Sonance PS-C63RT-WH Professional 6.5 High-Fidelity Audio InCeiling Speaker

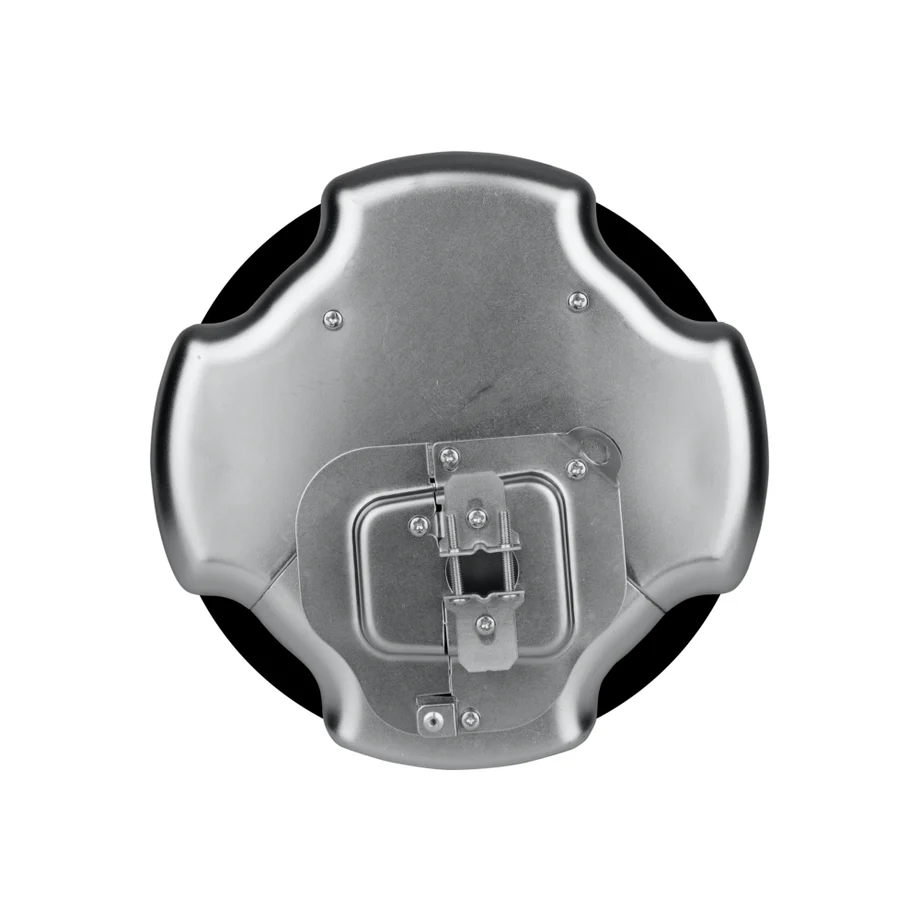

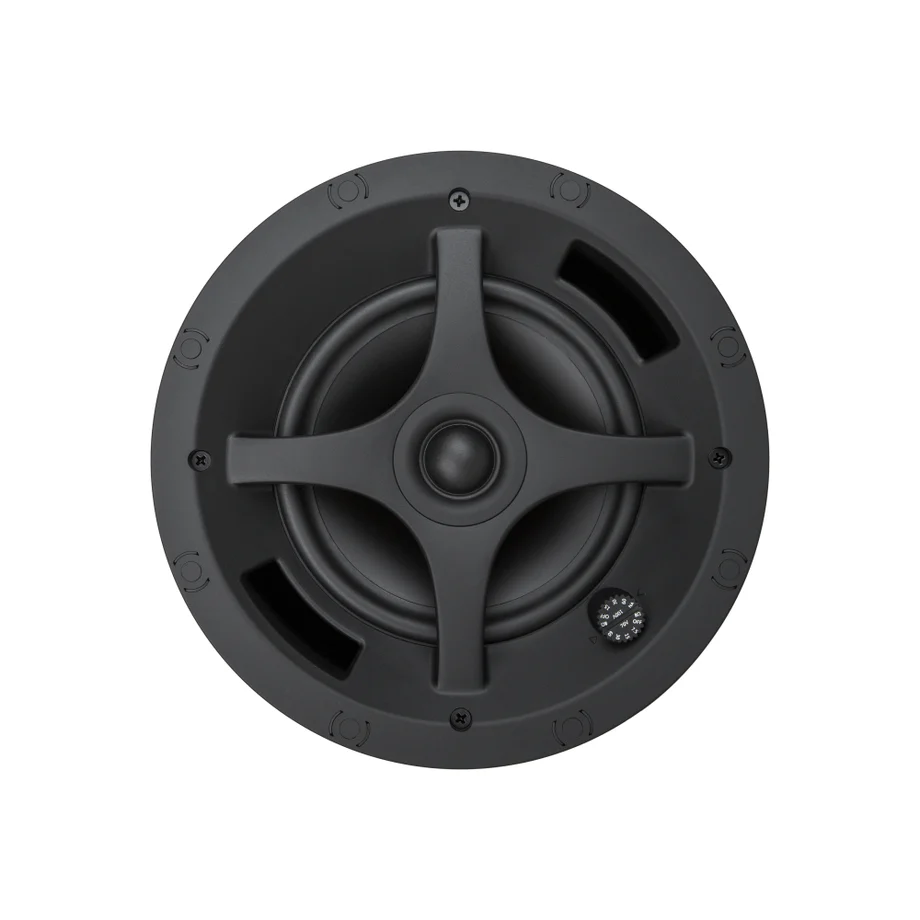

The Sonance PS-C63RT in-ceiling speaker features a bezel-less magnetic grille, optional square adapter, high-excursion 6.5" woofer, and pivoting tweeter for precise sound coverage. Its sealed metal enclosure includes cable clamping, a removable Euroblock connector, and seismic attachment. UL 1480 and UL 2043 certifications ensure safety and reliable performance.
Key Features
Class-leading sensitivity & sonic performance
Exceptional off-axis response
Heavy duty voice coil for longevity and reliability
Full-fidelity transformer for uncompromised tonality
Consistent voicing across product range
Bezel-less design for clean and minimalistic aesthetic
Optional black grilles in round or square
Magnetic grille retention for fast installation and removal
Finger-adjustable selector tap
One-step simplified painting process
Specifications
Color
White
HF Driver
1" (25mm) Cloth Dome, Pivoting, Ferrofluid cooled
LF Driver
6.5" (165mm) Polypropylene Cone, Butyl Rubber Surround
Frequency Response (+/- 10db)
49Hz-25kHz
Frequency Response (+/- 3db)
65Hz - 20kHz
Power Handling (RMS)
120W program, 60W pink noise
Sensitivity
91dB (2.83V/1m)
Rated Maximum SPL
108dB @ 1 meter (3.3 feet), 116dB peak
Nominal Impedance (Ohms)
8 Ohms
Transformer Taps
70 V / 100 V: 60W, 30W and 15W 70 V: 7.5W
Dimensions (Diameter x D)
9.13" x 8.86" (231.9mm x 225.04mm)
Cut-Out Dimensions (Diameter)
8.25" (209.55mm)
Knockout
One, Side mounted 0.75" (19mm)
Weight
9.38 lbs. (4.25kg)
Grille
One Piece Paintable Grille with Magnetic Retention
Input Connector
Four pin, Euroblock with loop output connections
Certifications
UL 1480; UL 2043; NFPA 90A; NFPA 70
Suspension Points
One, on top surface
