Digital Mixers
Audio mixers give musicians, DJs, creators, and studios complete control over their sound. Perfect for live shows, streaming, podcasting, recording, and content creation, mixers help balance audio sources, adjust EQ, add effects, and deliver clear, professional-quality sound. Available in analog and digital models, they’re essential for any modern audio setup.
4-Channel Ultra-Compact Analog Mixer
VLZ4 ups the level of sonic quality at every level, featuring Mackie's flagship Onyx mic preamps and premium components from front to back. The result is the most rock solid, the most easy to use and, yes, the best sounding compact mixer ever created.
Studio Quality Sound You Can Fit in a Backpack
Now featuring Mackie's flagship Onyx mic preamps, the ultra-compact 402VLZ4 delivers the proven feature set, high-headroom/low-noise design and "Built-Like-A-Tank" construction that created an industry more than 25 years ago. When you only need one or two channels but won't sacrifice sound quality, 402VLZ4 is made for you.
2 Boutique-quality Onyx mic preamps with ultra-wide 60dB gain range
Phantom power for condenser mics
Selectable instrument inputs
2-band EQ (80Hz, 12kHz)
18 dB/oct 100Hz low-cut filter on mic input channels
High-resolution 8-segment stereo meters
“Built-Like-A-Tank” rugged steel chassis with powder-coat finish
High-visibility, high-contrast controls deliver convenient “at-a-glance” visual feedback
Full features
2 boutique-quality Onyx mic preamps
Ultra-wide 60dB gain range
128.5 dB dynamic range
+22 dBu line input handling
Extended frequency response
Distortion under 0.0007% (20Hz – 50kHz)
Improved RF rejection perfect for broadcast applications
Phantom power for condenser mics
4 high-headroom line inputs
Selectable instrument inputs on first two channels – no DI box needed
2-band EQ (80Hz, 12kHz)
18 dB/oct 100Hz low-cut filter on mic input channels
High-resolution 8-segment stereo meters
Sealed rotary controls resist dust and grime
“Built-Like-A-Tank” rugged steel chassis with powder-coat finish
High-visibility, high-contrast controls deliver convenient “at-a-glance” visual feedback

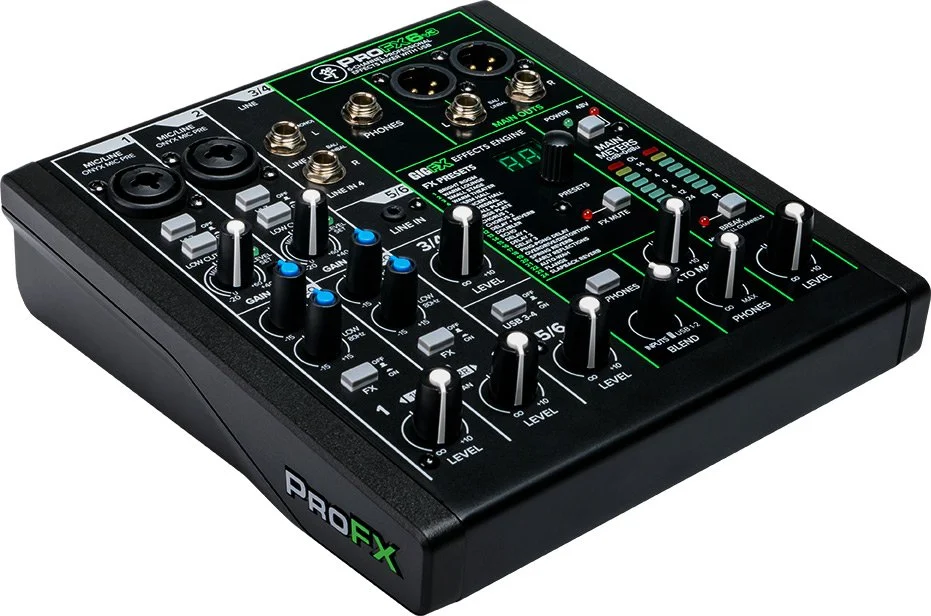

6-Channel Analog Mixer With Enhanced FX, USB Recording Modes and Bluetooth®
Mackie ProFX6v3+ is a professional analog mixer and USB-C audio interface with powerful enhancements for studio-quality recordings and live streams. Capture your performance with Onyx preamps and channel EQ, add computer audio via loopback, bring in calls via Bluetooth® and enhance your sound with upgraded GigFX+ effects on a color LCD screen.
LIVE SOUND MEETS LIVE STREAM
Enhance your sound using high-resolution GigFX+ effects, with 12 presets you can edit and save on the fly via the full-size LCD screen. Combining the warmth of an analog recording console with precise digital effects, ProFX6v3+ is an ideal mixer for home studios and live events alike.
Product features
2 Onyx mic pres with up to 60 dB of gain and ultra-low noise performance
High-resolution GigFX+™ effects engine
Full-color LCD display for editing and saving effects presets
24-Bit / 192 kHz 2x4 USB-C audio interface
Full features
Three recording modes: Standard, Loopback and Interface
Bi-directional Bluetooth® for music playback and caller integration
2-band EQ on channels 1 and 2
One-button compression on channels 1 and 2
Hi-Z switches allow direct connection of instruments
100 Hz low-cut filter and 48V phantom power on all mic channels
Stereo 1/8” input on channel 5/6
Headphone output with separate level and blend control
Easily blend between monitoring your computer output and a latency-free feed from the mixer
Waveform OEM™ recording software Included
Legendary Built-Like-A-Tank design
Solid steel chassis
Tough ABS side protection
32-Channel Digital Rack Mixer
The Mackie DL32SE digital mixer delivers proven mixing power with legendary Onyx+ mic preamps in a stage-friendly, rack-mountable design. Just connect to your wireless router and take total control with the intuitive Master Fader SE app.
EXPERIENCE YOUR BEST MIX EVER
Master Fader SE is the main user interface for your DL32SE digital mixer. Rather than knobs, faders and buttons on a large piece of hardware, you get powerful mixing tools on your tablet, Mac or PC — up to 20 different devices simultaneously. The proven design of the Master Fader SE app makes managing your mix, large or small, easy and efficient. Organize your channels with view and mute groups, utilize subgroups with full bus processing, control levels of channel groups simply with VCAs, and even lock out devices from specific capabilities within the app. And when you get a mix you like, you can save it all into a snapshot.
Product features
32 total inputs with Onyx+ preamps
Stagebox design with included rack ears
Connect to wireless router via Ethernet
Control with Master Fader SE app
Powerful processing with EQ, filters, compression, FX and more
32x32 USB audio interface
Waveform™ OEM software included
Full features
MAIN FEATURES
Convenient stagebox/rack design with built-in handle
32 input channels with Onyx+ preamps (16 XLR, 16 XLR/TRS combo with 2 Hi-Z)
10 fully assignable XLR outputs plus headphone output
Connect to your wireless router and control with Master Fader SE app
Per-channel EQ, filters, gate, compression and RTA/Spectrograph
4 stereo FX busses with studio-quality reverbs, delays, chorus and more
Multitrack 32x32 USB audio interface for recording and playback
Waveform OEM professional software and plugins included
WIRELESS MIXING
Take complete control via iOS, Android, macOS or Windows devices
No set FOH position — mix from anywhere
Control from up to 20 separate devices at once
Access Limiting allows performers to control their own monitor mixes without giving access to critical mixer functionality
Universal Ethernet connection supports your wireless router of choice
POWERFUL PROCESSING & ROUTING
32 input channels with 4-band PEQ + HPF, gate, compression and RTA/Spectrograph
32 stereo-linkable input channels plus stereo return channel
10 output busses with 4-band PEQ + HPF/LPF, 31-band GEQ, comp/limiter, alignment delay and RTA/Spectrograph
8 stereo-linkable aux sends
6 stereo-linkable subgroups
Main L/R bus
6 VCAs and 6 mute groups
4 stereo FX processors featuring studio-quality reverbs, delays, choruses, flangers and many more with dedicated sends and returns
Full I/O routing with A/B sources per channel
Assignable oscillator including pink/white noise and sine waves
Modern and Vintage options for comp/gate and EQ
MULTITRACK RECORDING & PLAYBACK
32x32 USB 2.0 audio interface for Mac or PC
Record the show for later mixdown
Perform a virtual sound check
Play intermission music, backing tracks and more directly into a dedicated stereo return channel
Flexible, low-cost studio recording solution
Utilize Mac or PC audio plug-ins in a live environment
MASTER FADER SE CONTROL APP
Intuitive and easy to master
Fast navigation with view groups and overview
Quick setup with tons of factory and user-definable presets
Access Limiting allows flexible customization of the user interface and prevents unwanted adjustments from other users
Quickly access channel processing, signal routing and a massive suite of great sounding effects with presets to get you started
Export presets, shows and complete system backups via Dropbox, email and more
Set up the show before you arrive at the venue with offline show creation
Available on iOS, Android, macOS and Windows
RECORD & PRODUCE LIKE A PRO
Waveform™ OEM professional software and plugin packages included
The DAW Essentials™ Bundle for Waveform OEM includes 16 powerful plugins like Equalizer, Compressor, Reverber8 and Limiter
24-Channel Premium Analog USB Mixer
Meet the new centerpiece of your studio or live rig. The Mackie Onyx24 is a premium 24-channel USB mixer for professional multitrack recording and live sound applications. With incredible sound and a powerful digital FX engine, you’ll have the ultimate solution at your fingertips.
PRISTINE AUDIO AND UNRIVALED VERSATILITY
Whether you’re in the studio or hitting the big stage, you need a highly capable mixer on your side. Every detail of the Mackie Onyx24 is geared towards recording at a professional level, from our award-winning Onyx preamps to the Perkins “British Style” EQs inspired by classic desks from the ‘60s and ‘70s.
Product features
Classic Sound, Modern Performance
Multitrack Recording via USB or SD card, up to 24-bit/96kHz
Award-Winning Onyx Preamps for Pristine Audio
Powerful FX Engine with Customizable Presets
Studio Command Interface with Full-color LCD
Bluetooth® Streaming
Full features
24x4 analog mixer with 18 low-noise Onyx preamps that provide 60dB of gain
3-band Perkins EQ with On/Off hard bypass switch for dialing in the perfect tone
High-resolution multitrack recording to Mac/PC via USB at up to 24-Bit / 96 kHz
Seamless stereo recording directly to an SD card
Built-Like-A-Tank™ rugged steel chassis for added protection
Professional, customizable Dynamic FX, w/ Multi-Parameter Adjustment
Studio Command—full-color LCD for easy FX control and SD card management
Waveform OEM professional software bundle included with purchase of Onyx24
Bluetooth® streaming
Switchable hi-Z inputs for guitars, bass, and other instruments
16-Channel Digital Rack Mixer
The Mackie DL16SE digital mixer delivers proven mixing power with legendary Onyx+ mic preamps in a stage-friendly, rack-mountable design. Just connect to your wireless router and take total control with the intuitive Master Fader SE app.
Command Your Mix
The Mackie DL16SE digital mixer delivers proven mixing power with legendary Onyx+ mic preamps in a stage-friendly, rack-mountable design made to withstand real-world abuse. Connect to your wireless router and get mixing quickly with the industry-leading, multi-platform Master Fader SE app. Create stunning multitrack recordings and get playback for a virtual soundcheck via USB I/O. Loaded with per-channel and output DSP plus 4 FX processors, DL16SE gives you all the mixing power you need for proven professional sound.
Product features
16 total inputs with Onyx+ preamps
Stagebox design with included rack ears
Connect to wireless router via Ethernet
Control with Master Fader SE app
Powerful processing with EQ, filters, compression, FX and more
16x16 USB audio interface
Waveform™ OEM software included
Full features
MAIN FEATURES
Convenient stagebox/rack design with built-in handle
16 input channels with Onyx+ preamps (8 XLR, 8 XLR/TRS combo with 2 Hi-Z)
8 fully assignable XLR outputs plus headphone output
Connect to your wireless router and control with Master Fader SE app
Per-channel EQ, filters, gate, compression and RTA/Spectrograph
4 stereo FX busses with studio-quality reverbs, delays, chorus and more
Multitrack 16x16 USB audio interface for recording and playback
Waveform OEM professional software and plugins included
WIRELESS MIXING
Take complete control via iOS, Android, macOS or Windows devices
No set FOH position — mix from anywhere
Control from up to 20 separate devices at once
Access Limiting allows performers to control their own monitor mixes without giving access to critical mixer functionality
Universal Ethernet connection supports your wireless router of choice
POWERFUL PROCESSING & ROUTING
16 preamps with 4-band PEQ + HPF, gate, compression and RTA/Spectrograph
16 stereo-linkable input channels plus stereo return channel
8 output busses with 4-band PEQ + HPF/LPF, 31-band GEQ, comp/limiter, alignment delay and RTA/Spectrograph
6 stereo-linkable aux sends
6 stereo-linkable subgroups
Main L/R bus
6 VCAs and 6 mute groups
4 stereo FX processors featuring studio-quality reverbs, delays, choruses, flangers and many more with dedicated sends and returns
Full I/O routing with A/B sources per channel
Assignable oscillator including pink/white noise and sine waves
Modern and Vintage options for comp/gate and EQ
MULTITRACK RECORDING & PLAYBACK
16x16 USB 2.0 audio interface for Mac or PC
Record the show for later mixdown
Perform a virtual sound check
Play intermission music, backing tracks and more directly into a dedicated stereo return channel
Flexible, low-cost studio recording solution
Utilize Mac or PC audio plug-ins in a live environment
MASTER FADER SE CONTROL APP
Intuitive and easy to master
Fast navigation with view groups and overview
Quick setup with tons of factory and user-definable presets
Access Limiting allows flexible customization of the user interface and prevents unwanted adjustments from other users
Quickly access channel processing, signal routing and a massive suite of great sounding effects with presets to get you started
Export presets, shows and complete system backups via Dropbox, email and more
Set up the show before you arrive at the venue with offline show creation
Available on iOS, Android, macOS and Windows
RECORD & PRODUCE LIKE A PRO
Waveform™ OEM professional software and plugin packages included
The DAW Essentials™ Bundle for Waveform OEM includes 16 powerful plugins like Equalizer, Compressor, Reverber8 and Limiter
INTRODUCING THE PODCAST MIXER THAT ADAPTS TO YOU.
The DLZ Creator Adaptive Digital Mixer for Podcasting and Streaming enables you to get the results you want—faster than ever.
THE INS AND OUTS OF PRODUCING
A PROFESSIONAL STUDIO MIXER FOR YOUR DESKTOP
DLZ Creator harnesses decades of Mackie expertise, making every detail count for your productions. From Onyx80 preamps that make even low-output mics sound both loud and pristine, to customized headphone mixes for each of your guests, DLZ Creator gives you the benefits of a professional studio mixer without the steep learning curve.
TECH SPECS
DLZ Mix Agent™
Guided setup walks you through channel configuration
Automatic Gain sets your input levels for you
Fast headphone output setup
DLZ Work Modes
Choose between Easy, Enhanced, and Pro
Transform the user interface to fit your experience level and needs
Auto Mix
Automatically reduces channel levels when not receiving signal
Ensures a consistent overall output level and reduces potential feedbackin mix
10.1” High-resolution full-color touch display with anti-glare coating
4 discrete XLR/TRS combo inputs
Stereo channel with dual 1/4” TRS inputs
Stereo channel with 1/8” TRS connection
Stereo Bi-Directional Bluetooth® channel
Onyx80 mic preamps with up to 80dB gain
14x4 USB-C audio interface to Mac/PC
Flexible multitrack recording and stereo playback to MicroSD and USB thumb drive
Professional audio processing
3-band parametric EQ + high pass filter
Noise gate / De-esser / Compressor
Atomizer Reverb and Chronotronic Delay
5 dynamically color-coded rotary controls
9 professional 100mm faders
Backlit mute, solo, sample triggers, and nav buttons
Sample playback
Instantly trigger pre-made samples via dedicated backlit buttons
Store your favorite sounds and record new ones on the fly to MicroSD®
4 independent headphone outputs
Individual level control for each output
Create custom mixes for each output (pro mode only)
Hard power switch and locking power connector
16-Channel Premium Analog USB Mixer
Take multitracking and live performance to the next level. The Mackie Onyx16 is a premium 16-channel USB mixer optimized for professional recording, production and live sound. Experience impeccable sound quality, a flexible FX engine and seamless workflow for the studio or the stage.
FLAWLESS SOUND AND MAXIMUM CONTROL
Record, produce and perform with a 16-channel mixer that offers remarkable performance, exceptional versatility and a wide host of features that will ignite your creativity. Every detail of the Mackie Onyx16 is geared towards recording at a professional level, from our award-winning Onyx preamps to the Perkins “British Style” EQs inspired by classic desks from the ‘60s and ‘70s.
Product features
Classic Sound, Modern Performance
Multitrack Recording via USB or SD card, up to 24-bit/96kHz
Award-Winning Onyx Preamps for Pristine Audio
Powerful FX Engine with Customizable Presets
Studio Command Interface with Full-color LCD
Bluetooth® Streaming to any Channel
Full features
18x4 analog mixer with 12 low-noise Onyx preamps that provide 60dB of gain
3-band Perkins EQ with On/Off hard bypass switch for dialing in the perfect tone
High-resolution multitrack recording to Mac/PC via USB at up to 24-Bit / 96 kHz
Stereo recording directly to an SD card
Built-Like-A-Tank™ rugged steel chassis for added protection
Professional, customizable Dynamic FX, w/ Multi-Parameter Adjustment
Studio Command—full-color LCD for easy FX control and SD card management
Waveform OEM professional software bundle included with purchase of Onyx16
Bluetooth® streaming
Switchable hi-Z inputs for guitars, bass, and other instruments
12-Channel Premium Analog USB Mixer
Give your project studio or mobile rig the analog mixer it deserves. The Mackie Onyx12 is a premium 12-channel USB mixer optimized for multitrack recording and live sound. Experience impeccable sound quality, a flexible FX engine and seamless workflow for your home recording or live shows.
PROFESSIONAL SOUND FOR THE STUDIO AND THE STAGE
Level-up your rig with a versatile 12-channel mixer designed by engineers who know that great sound lives in the details. Every element of the Mackie Onyx12 is geared towards recording at a professional level, from our award-winning Onyx preamps to the Perkins “British Style” EQs inspired by classic desks from the ‘60s and ‘70s.
Product features
Classic Sound, Modern Performance
Multitrack Recording via USB or SD card, up to 24-bit/96kHz
Award-Winning Onyx Preamps for Pristine Audio
Powerful FX Engine with Customizable Presets
Studio Command Interface with Full-color LCD
Bluetooth® Streaming
Full features
14x4 analog mixer with 8 low-noise Onyx preamps that provide 60dB of gain
3-band Perkins EQ with On/Off hard bypass switch for dialing in the perfect tone
High-resolution multitrack recording to Mac/PC via USB at up to 24-Bit / 96 kHz
Stereo recording directly to an SD card
Built-Like-A-Tank™ rugged steel chassis for added protection
Professional, customizable Dynamic FX, w/ Multi-Parameter Adjustment
Studio Command—full-color LCD for easy FX control and SD card management
Waveform OEM professional software bundle included with purchase of Onyx12
Bluetooth® streaming
Switchable hi-Z inputs for guitars, bass, and other instruments
12-Channel Professional Analog Mixer with USB
Experience the best-in-class series of professional analog usb mixers with effects. The Mackie ProFX12v3 is a 12-channel mixer that gives recording artists, live performers and content creators a new level of studio-quality performance.
RECORD. PRODUCE. PERFORM.
Legendary sound is within reach, whether you’re recording a podcast or performing at a coffee shop. The Mackie ProFX12v3 features seven award-winning Onyx preamps and a versatile GigFX effects engine, allowing you to get colorful high-resolution recordings with sample rates up to 192 kHz. To top it off, the Mackie ProFX12v3 includes Waveform™ OEM software to power your setup with the professional toolkit you deserve.
Product features
High-resolution recording via USB
Award-Winning Onyx Preamps for Pristine Audio
Powerful FX Engine with Customizable Presets
48-volt Phantom Power
Headphone Output with Independent Volume Control
Rugged Design
Onyx Mic Preamps
Record podcasts, stream gameplay or produce the next hit—all with ultra-clean, transparent audio. Our award-winning Onyx Mic Preamps deliver analog warmth so you sound great, no matter what you do.
GigFX High-Resolution Effects Engine
The Mackie ProFX12v3 has a high-resolution effects engine to give your sound the perfect touch, whether you need to add a bit of reverb to a guitar track or give your podcast a creative edge. With 24 incredible effects, you’ll have everything you need to shape your sound beyond limit.
Full features
12-channel USB mixer with seven low-noise, high-headroom Onyx preamps that provide 60dB of gain
3-band EQ with On/Off hard bypass switch for dialing in the perfect tone on all channels
Dual stereo USB return for additional routing flexibility during performances
Latency-free direct monitoring for hassle-free overdub sessions
High-resolution recording with sample rates up to 192kHz to Mac/PC via USB
24 included effects, including reverbs, delays and choruses, delivered via GigFX effects engine
Built-in compression keeps louder audio in check while pulling up softer audio sources
Switchable Hi-Z inputs for guitars, bass, and other instruments
100Hz low-cut filter and 48V phantom power on all channels
Aux/Monitor with dedicated per-channel send control
Stereo subgroup output bus with per-channel assignment
Headphone output with separate level and blend control
Footswitch input for FX mute
Waveform OEM professional software bundle included with purchase of ProFX12v3
6-Channel Professional Analog Mixer with USB
Experience the best-in-class series of professional analog USB mixers with effects. The Mackie ProFX6v3 is a 6-channel mixer for musicians and content creators who want studio-quality performance right on their desktop.
MIX. RECORD. CREATE AT THE NEXT LEVEL
Elevate your creations with a professional USB mixer from the best-selling Mackie ProFXv3 series. The Mackie ProFX6v3 features two award-winning Onyx preamps and a versatile GigFX engine, allowing you to get colorful high-resolution recordings with sample rates up to 192 kHz. Paired with the Waveform OEM software bundle, you’ll have the ultimate workstation for recording, streaming and creating content.
Product features
High-resolutionrRecording via USB
Award-Winning Onyx Preamps for Pristine Audio
Powerful FX Engine with Customizable Presets
48-volt Phantom Power
Headphone Output with Independent Volume Control
Rugged Design
Onyx Mic Preamps
Record podcasts, stream gameplay or produce the next hit—all with ultra-clean, transparent audio. Our award-winning Onyx Mic Preamps deliver analog warmth so you sound great, no matter what you do.
GigFX High-Resolution Effects Engine
The Mackie ProFX6v3 has a high-resolution effects engine to give your sound the perfect touch, whether you need to add a bit of reverb to a guitar track or give your podcast a creative edge. With 24 incredible effects, you’ll have everything you need to shape your sound beyond limits.
2x4 192 kHz USB Recording
Ensuring you get great sound is our top priority, which is why the Mackie ProFX6v3 is optimized for USB recording at sample rates up to 192 kHz. Use the 2X4 I/O to send separate mixes from your computer to your headphones and the channel strip—professional workflow at its finest.
Waveform OEM™ DAW
Waveform OEM is a multi award-winning workstation, featuring powerful and creative tools to inspire the modern musician. Unlike typical ‘Lite’ versions, it does not impose any restrictions – you get unlimited track count, powerful features, compatibility with all popular plug-ins and efficient performance on MacOS ®, Windows®, and Linux ® operating systems. Learn More
DAW Essentials Collection™
Introducing a collection of 16 contemporary FX plug-ins for use with any DAW. These plug-ins utilize the very latest algorithms and coding techniques to deliver extraordinary sound quality in an extremely efficient package, allowing the plug-ins to be used liberally across a wide range of native computer systems. Learn More
Equaliser, Compressor, Reverber8, Delay Studio, Stereo Delay, Tape Delay, Crossover, Limiter, Gate / Expander, Ducker, Flanger, Crusher, Chorus, Bus Compressor, Phaser, and Auto Filter
Full features
6-channel USB mixer with two low-noise, high-headroom Onyx preamps that provide 60dB of gain
2-band EQ (80Hz and 120Hz) for dialing in the perfect tone on channels 1 and 2
Dual stereo USB return for additional routing flexibility during performances
Latency-free direct monitoring for hassle-free overdub sessions
High-resolution recording with sample rates up to 192kHz to Mac/PC via USB
24 included effects, including reverbs, delays and choruses, delivered via GigFX effects engine
Switchable Hi-Z inputs for guitars, bass, and other instruments
100Hz low-cut filter and 48V phantom power on all channels

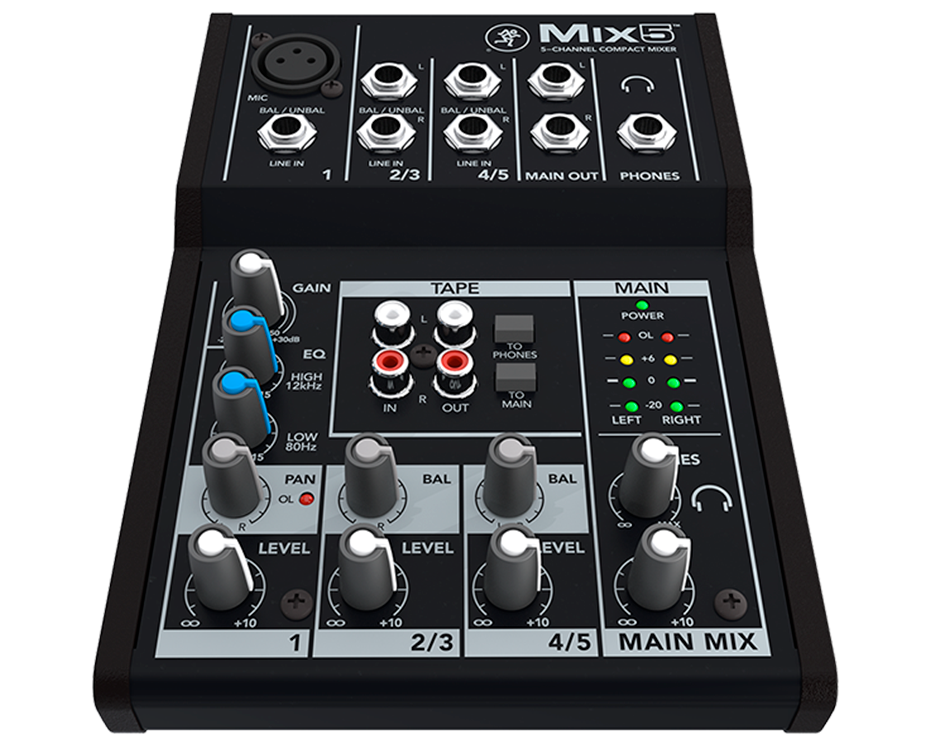

5-Channel Compact Mixer
Don’t let its compact size fool you—the Mackie Mix5 compact mixer packs a punch. It’s a versatile 5-channel mixer that gives you everything you need to take control of your home recording sessions, live streams, podcasts and more.
A Professional Pedigree
For more than 30 years, musicians and engineers have grown up mixing on a Mackie. You can find our mixers everywhere from major venues to small (but mighty) home studios. Now you can join that legacy with the Mackie Mix5 compact mixer. Featuring high-headroom preamps, a precision 2-band EQ and more, this 5-channel mixer has everything that musicians, content creators, gamers and podcasters need to get professional sound without the big price tag.
Product features
Professional Sound Quality
1 Mic/Line Input and 2 Stereo Line Inputs
Phantom Power
2-Band EQ
Rugged and Portable
Full features
5-channel compact mixer with proven high-headroom, low-noise performance
1 mic/line input with studio-level audio quality
2-band EQ with clean, precise tone shaping
Phantom power for studio condenser mics
2 stereo 1/4" line inputs
Dedicated stereo RCA inputs/outputs for playback or recording
Main L/R outputs
Headphone output with separate volume control
Rugged, reliable design built to last
Extremely compact and portable

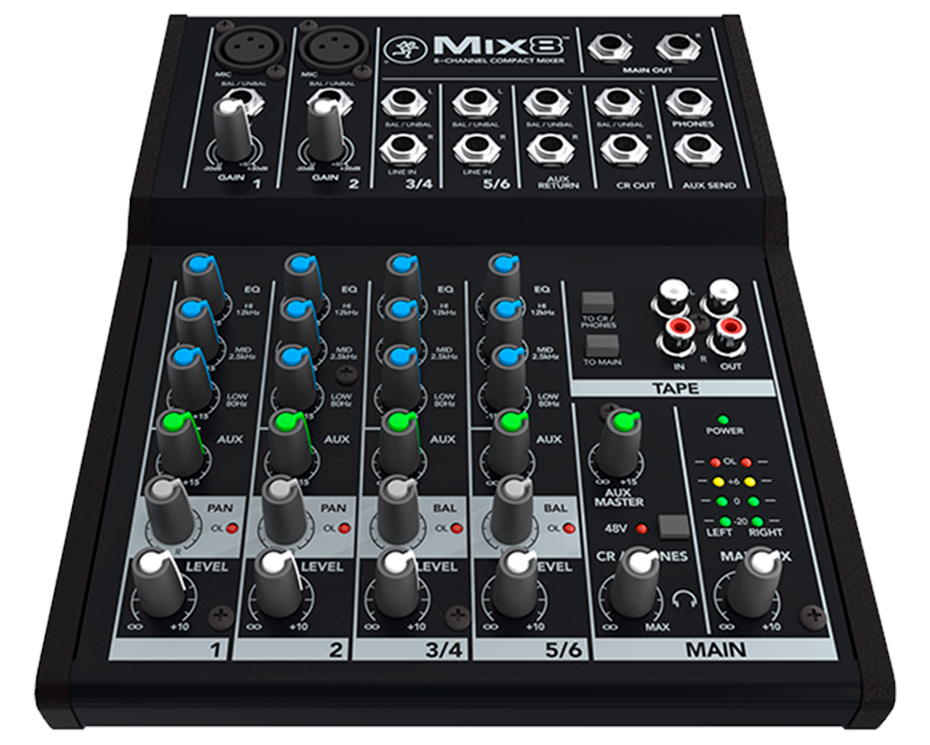

8-Channel Compact Mixer
Take control of your audio with the Mackie Mix8 compact mixer. Despite its small size, this versatile 8-channel mixer is loaded with premium features, including two microphone inputs with our studio-quality preamps, a 3-band EQ for each channel, an RCA I/O path for recording and more.
Quality Audio Starts Here
Mackie has brought professional-level compact mixers to the masses since we debuted the LM-1602 in 1988. The Mix8 is an 8-channel mixer that expands on our heritage of designing great gear that isn’t unattainable for real working musicians and content creators. Featuring our low-noise preamps, a 3-band EQ and aux sends for each channel, an RCA I/O path for recording and separate volume controls for headphones and the main monitor, the Mix8 is a versatile workhorse for creators who need more control over their audio.
Quality Audio Starts Here
Mackie has brought professional-level compact mixers to the masses since we debuted the LM-1602 in 1988. The Mix8 is an 8-channel mixer that expands on our heritage of designing great gear that isn’t unattainable for real working musicians and content creators. Featuring our low-noise preamps, a 3-band EQ and aux sends for each channel, an RCA I/O path for recording and separate volume controls for headphones and the main monitor, the Mix8 is a versatile workhorse for creators who need more control over their audio.
Full features
8-channel compact mixer with proven high-headroom, low-noise performance
2 mic/line inputs with studio-level audio quality
Pan, level and overload indication
Phantom power for studio condenser mics
2 stereo 1/4" line inputs
3-band EQ on all channels with clean, precise tone shaping
1 aux send with stereo 1/4'’ returns
Dedicated stereo RCA inputs/outputs for playback or recording
Main L/R outputs
Headphone and stereo control room outputs
Rugged, reliable design built to last
Extremely compact and portable
ART USBMIX6 Six-Channel Compact USB Audio Mixer Interface
The USB Mix 6 is an analog mixer with onboard effects and an integrated digital audio interface. Its designed for home and mobile recording, and is flexible enough for live use with a soloist or small ensemble.
The mixer section has six channels. Channels 1 and 2 have combo inputs that can accept mic, line, or instrument signals. Channels 3-4 and 5-6 are grouped in stereo pairs, and all channels have 2 band EQ for tone shaping. Theres also a stereo auxiliary input that can be assigned to the main or monitor bus for additional flexibility.
Enhance your mix with one of sixteen selectable effects including reverbs, delays, and modulation. Each channel or stereo pair has an independent FX Send, and the master section has a global FX Return control and FX Mute button.
You can record the mixer output over the stereo audio interface, and the USB playback can be routed to the monitor output or to channels 5 and 6.
The USB Mix 6 combines the familiar workflow of a traditional mixer, the convenience of a multi-effect processor, and easy digital integration. Its a compact, powerful, and versatile hub for project studios, mobile recording, and small stages.
Features
High Performance Low Noise Design
Six Discrete Inputs (2 x Mic / 2 x Stereo Line Level)
Switchable +48v Phantom Power (CH1 & CH2)
High and Low EQ on Each Input Channel
Integrated Stereo Multi-FX with Adjustable Sends & Returns
Stereo LED Metering
Independent Level Controls for Main and Headphone/Monitor Outputs
Integrated Class Compliant Plug-and-Play USB Audio for Mac & PC
Specifications:
Inputs
XLR & 1/4″ Balanced Combo Jack (CH1 & CH2)
1/4″ TRS Balanced (CH3 & CH4)
RCA Unbalanced (CH5 & CH6)
RCA Aux Loop In (L & R)
Outputs
1/4″ TRS Balanced Main Mix Outputs
1/4″ TRS Stereo Output & Monitor Outputs
RCA Loop Out (L & R)
Headphones
1/8″ Headset Output
Maximum Input Level
+4 dBu (Mic), +20 dBu (1/4″ Input)
Maximum Output Level
+15 dBu (Main Mix Outputs)
Maximum Gain
>54 dB (Mic)
>39 dB (Instrument)
10 dB (Stereo Monitor & Line Out)
Total Harmonic Distortion
<0.02% @ 1 kHz
Signal to Noise Ratio
>90 dB typical (Ref 0 dBu)
Phantom Power
Switch selectable, +48 V DC, filtered, current limited
Connectivity
USB Class Compliant plug-and-play Mac / PC Interface
Resolution
16 Bit, 44.1 kHz or 48 kHz, USB selectable from computer
0.4 ms A/D latency @ 44.1 kHz
Power Requirements
Via USB or 5 VDC @ 500 mA
Dimensions (HWD)
1.9″ x 7.4″ x 8.5″ (4.7 cm x 18.6 cm x 21.5 cm)
Weight
3.24 lbs / 1.47 kg
Note
0 dBu = 0.775 Vrms
ART USBMIX Three-Channel Compact USB Audio Mixer Interface
The USB Mix is a portable analog mixer and class-compliant digital audio interface.
Channel 1 features an XLR / 1/4 combo jack that can accept mic, line, or instrument signals. It also has switchable phantom power to work with condenser mics. Channels 2 and 3 are configured as a stereo pair with 1/4 line inputs.
You can switch between monitoring only the mixer inputs, or blend them with the audio playback from your recording software. There are stereo outputs for studio monitors, a headphone output with an independent volume control, and a USB 2.0 connection for your computer or mobile device.
Easy to set up and use, the USB Mix is a compact and convenient entry point into digital recording, and a convenient bus-powered solution for mobile tracking.
Features
USB powered, no external power supply needed when used with a computer
Balanced XLR or unbalanced 1/4-inch Instrument inputs with switchable impedance
Switchable low noise +48V phantom power
Balanced 1/4-inch TRS inputs for stereo or mono line-level sources
1/4-inch TRS output jacks work with balanced or unbalanced lines
Stereo 1/4-inch TRS headphone jack with independent level control for output monitoring
Independent controls for both sets of inputs, main output, and headphone monitor
Green/Red LED signal/clip indicator
Switchable assignment of USB playback to channels 2 and 3
USB 2.0 compliant USB cable, AC adapter, and Audacity recording software included
Specifications:
Inputs
XLR balanced / 1/4″ unbalanced “Combo” jack (Ch1 input)
1/4″ balanced or unbalanced (Ch2–Ch3 inputs)
Outputs
1/4″ TRS balanced (Main Mix outputs)
1/4″ TRS stereo (Monitor output)
Input Impedance
240k (Inst-HiZ), 20k Ω (Line) (Ch1, Ch2–Ch3 1/4″ inputs)
> 4k Ω (Ch1 XLR input)
Output Impedance
<1k Ω (balanced 1/4″), <500 Ω (unbalanced 1/4″)
100 Ω (Monitor output)
Maximum Input Level
+4 dBu (XLR input), +14 dBu (1/4″ input)
Maximum Output Level
+14 dBu (Main Mix Outputs), +13 dBu (Monitor output)
Frequency Response
20 Hz – 20 kHz (+0, -1 dB)
Total Harmonic Distortion
<0.01% @ 1 kHz
Equivalent Input Noise
-120 dBu typical (XLR balanced, max gain)
-100 dBu typical (1/4″)
Signal to Noise Ratio > 90 dB typical (Ref 0 dBu)
CMRR > 54 dB typical
Phantom Power
Switch selectable, +48 V DC, filtered, current limited
Connectivity
USB 2.0 compliant, Windows 7, Vista, XP, 2000, ME, 98SE
Mac OS 9.1 / OS X computers with native USB support, Linux
Resolution
16 Bit, 44.1 kHz or 48 kHz, USB selectable from computer
0.4 ms A/D latency @ 44.1 kHz
Enclosure
All steel black finish
Power Requirements
5.0V DC @ <500 mA (external)
USB bus powered @ 150 mA typical
Dimensions (HWD)
1.6″ x 4.0″ x 4.75″ (4.1 cm x 10.1 cm x 12.1 cm)
Weight
1.1 lbs / 0.5 kg
Note
0 dBu = 0.775Vrms
Weight includes power supply and USB cable

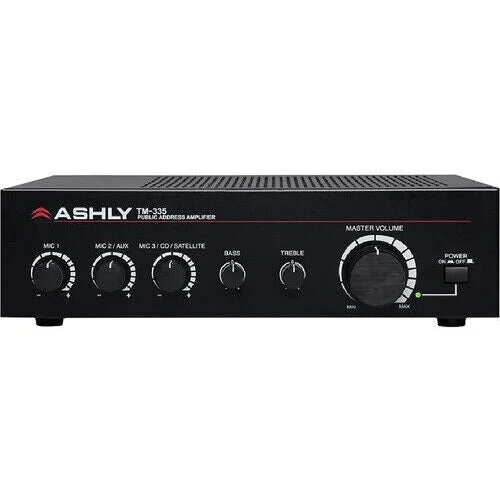

Ashly TM-335 35 Watt Compact Mixer/Amplifier TRS Input Overriding Euroblock
The TM-335 is a mixer and 35W mono power amplifier for applications that require public address, background music and/or paging.
The unit shall be a three input mixer combined with a 35W amplifier using transformer isolated outputs for Low Z (4 Ohm), 25V, or 70V speakers. There shall be a front panel level control for each Mic input, a master level control, and a master bass and treble control. Input 1 shall be balanced Mic level on Euroblock. Input 2 shall be selectable between balanced Mic level on Euroblock or Stereo Aux input on Euroblock or 3.5mm TRS jack, with TRS input overriding Euroblock. Input 3 shall be selectable between balanced Mic level on Euroblock or stereo CD/Satellite input on RCA jacks. The unit shall have a dedicated balanced Telephone input with gain control. Telephone input shall have ducking priority over all other inputs, with dedicated Ducking Depth control. Mic 1 input shall have ducking priority over Inputs 2 and 3, with dedicated ducking depth control. The unit shall be pre-wired for either 120VAC or 240VAC mains. The unit shall weigh 8.7 lbs (3.95kg), and have dimensions of 11.4”W x 3”H x 7.3”D (290mm x 76mm x 185mm). The unit shall have an optional rack-mounting kit available for standard 19” rack. The unit shall be cCSAus listed for safety. No other unit shall be acceptable unless all specifications herein are verified through an independent agent.
Input 1 is a balanced microphone input (Euroblock). Input 2 is a balanced microphone input (Euroblock) or summed stereo input (Euroblock or minijack). Input 3 is a balanced microphone input (Euroblock) or summed stereo input (dual RCA). Inputs 1-2-3 have front panel level controls and use fixed gain; microphones are 50dB and stereo inputs are 15dB.
A dedicated balanced telephone input is included (Euroblock). The telephone input has a level control on the rear panel. The TM-335 includes a priority-mute function. Inputs 2 and 3 can be muted by audio on Input 1. Inputs 1, 2 and 3 can be muted by audio on the telephone input. Input 1 and the telephone input have independent “muting depth” controls. This control will set the output level of muted inputs.
Bass and Treble controls are on the main output. The main output (Euroblock) is transformer isolated and rated at 35W into 4 Ohms, 8 Ohms, 25V and 70V.
Export versions with 100VAC or 230VAC input are 35W output at 4 Ohms, 8 Ohms, 70V, and 100V.
Features:
Inputs 1-2-3 are mic/line, 2-3 sum stereo inputs
Mute priority
Rear panel switches select mic or stereo line inputs
Optional rack kit available
Dedicated telephone page input
Safety/Compliance: cCSAus, CE, FCC, RoHS
----------------------------------------------------------------------------------------------------------------
Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998. We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications.
Shipping --Items are well packed and shipped USPS, UPS or Freight Service. Items purchased on Friday may not ship until Monday or until the projected processing period. We are working hard to get your unit Built ( if needed), processed and shipped. Processing Times do vary
Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.
Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as mount marks, plug marks, scratches, scuffs, dings or scrapes, screw mount marks or collateral material damage.. Items must also include all original packaging, manuals, warrantees & accessories or your return may be subject to a return handling charge.
Refunds are for the Item cost only. If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service/restocking fee. This item is now used and it would be unfair to resell to another customer as new.
The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, strings, computers, vacuum tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, cleaners, polishes & polishing cloths, software/sound ware, books, CDs, DVD's, vinyl records, and videos.
Ikan IDX-096 96 Channel DMX Lighting Console for Lighting System Easy Control
Ikan’s IDX-096 DMX512 console makes manual control much easier and more reliable for larger DMX consoles. It offers 96 channels for variable dimming control with the option of 96 programmable scenes or four pages, each featuring 24 scenes.
This versatile console allows users to reassign channels, adjust chase and fade times. It even offers 24 chaser sequences in 64 steps! The IDX-096 console features audio input, allowing the lights to match musical beats! Constructed out of durable aluminum, it can also be rack mounted for flight cases or studio situations.
A gooseneck lamp, which provides easy visibility in the dark, is included in the box. Whether it’s a music video or elaborate stage scene, the IDX-096 DMX 512 console allows you to get the lights just right.
Features
Standard DMX 512 Signal Control
96 Channel Variable Dimming Control
96 Programmable Scenes (4 pages containing 24 scenes each)
24 Chaser Sequence in 64 Steps
Audio Control Available
Cross Fade
Specifications
Channels: 96
Dimensions: 18 x 3 x 13 in.
Dimensions Metric: 45.7 x 7.6 x 33 cm
Power Supply: AC 90 - 240V
UPC Code: 847983014347
What's Included:
Power Cord
Gooseneck Lamp
Console
----------------------------------------------------------------------------------------------------------------
Echotone Music LLC is an experienced long time E-commerce Audio & Musical instrument dealer since 1998. We take pride in selling quality gear for musicians, sound engineers, production companies and broadcast applications.
Shipping --Items are well packed and shipped USPS, UPS or Pallet Freight Service. Items purchased on Friday may not ship until Monday or until the projected processing period. We are working hard to get your unit Built ( if needed), processed and shipped.
Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.
Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as mount marks, plug marks, scratches, scuffs, dings or scrapes, screw mount marks or collateral material damage.. Items must also include all original packaging, manuals, warrantees & accessories or your return may be subject to a return handling charge.
Refunds or for the Item cost only. If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.
The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, cleaners, polishes & polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.
Happy customers, that's music to our ears!
Presonus Studio Live 16.0.2 USB 16X2 Performance & Studio Mixer
The ease of analog meets the power of digital.
When you’re mixing a live event or have an artist in the studio, you need to be able to work quickly. The StudioLive® 16.0.2 USB’s familiar, easy-to-use interface keeps all critical controls visible and accessible —not buried in menus or layers. Our design philosophy is simple: One fader for every mono or stereo channel; one output for every bus. Add to that easily accessed, color-coded function buttons; rotary trim controls; and clearly labeled, individual knobs for EQ and dynamics processing. Aux sends have their own physical controls. Every channel has a big, bright meter display. But don’t let the analog feel fool you: The StudioLive 16.0.2 USB offers the power of modern digital mixing, multitrack recording, wireless remote control, and more.
Small size. Bigger possibilities.
In a footprint of less than 2 square feet (0.19 square meters), the compact, 16-channel StudioLive 16.0.2 USB offers 8 mono input channels, 4 stereo channels, and 4 aux buses, each with a high-quality, 60 mm fader. You get generous analog I/O, 12 XMAX Class A solid-state mic preamps, a Talkback input with Class A mic preamp, extensive signal processing with physical controls, MIDI control, accurate metering, and a built-in multichannel recording interface. As with all StudioLive mixers, the 16.0.2 USB comes with a suite of tightly integrated recording, control, and audio analysis software. And it’s so lightweight and compact that you can easily hold it in one hand and tuck it under your arm.
You’ll never run out of signal processors.
StudioLive 16.0.2 USB mixers provide plenty of DSP power, with no limitations, no shared resources, no figuring out what processing is available where. You have all of the processing available at all times, with no compromises or caveats. The unique Fat Channel provides a compressor, limiter, expander, and three-band semi-parametric EQ on every channel and bus; a highpass filter on each channel; phase reverse for the channel mic preamps; a library of professionally crafted presets; and the ability to save and selectively recall processor settings. A stereo, 31-band graphic EQ sits on the main bus. To top it off, you get two 32-bit delay/reverb effects processors, each with its own dedicated mix bus and a library of useful effects presets.
Superior sound.
Connect a StudioLive 16.0.2 USB mixer and you’ll instantly hear details and clarity you’d expect to find only in a much more expensive console. StudioLive mixers operate at up to 48 kHz for high-definition mixing and recording. High-quality Burr-Brown converters on every input and output provide a best-in-class 118 dB of dynamic range so you’ll catch every high and low with great accuracy and no audible distortion. And our XMAX microphone preamps deliver incredibly high headroom, deep lows, smooth highs, and a rich overall sound.
We start with a great microphone preamplifier. The job of a microphone preamplifier in a digital mixer is to boost a microphone-level signal to line level before conversion to the digital domain. A good preamp boosts the level to almost 400 times that of the original signal, making the preamp one of the most important stages in an interface. A cheap, off-the-shelf, op-amp-type mic preamp delivers thin, noisy, harsh results. But with XMAX preamps, the sonic quality is limited only by the microphone you plug into it.
XMAX preamplifiers are built with three key elements:
Class A. Class A circuits have no crossover distortion and deliver purer, clearer, and more musical results than the Class AB designs that are found in many preamps.
High Voltage. The XMAX preamplifier runs on power rails of 30V. Most off-the-shelf, op-amp-based designs run on power rails of 10V to 18V. Higher-voltage power rails deliver more headroom, deeper lows, smoother highs, and a richer overall sound.
Discrete components—not op-amps. We only use genuine transistors, resistors, and capacitors. Op-amps add noise, coloration, and harshness to a signal. Our discrete design delivers ultra-low noise and transparency.
The net result of the XMAX preamp design is high headroom, low noise, wide dynamic range, extended frequency response, and—most important—musicality and transparency.
Recording is in StudioLive 16.0.2 USB’s DNA.
The StudioLive 16.0.2 USB’s built-in 18x16 multitrack recording interface is tightly integrated with the rest of the mixer—not an afterthought we tacked on. All 16 channels and the main mix continuously stream to your USB-connected Mac or Windows PC. Each channel can independently access its analog input or its dedicated digital return from your computer. And with StudioLive mixers, recording is simple and easy: Just launch the included, preconfigured Capture® software for one-click recording of all channel inputs and your main mix. Or record with the included Studio One® Artist DAW—or any recording software that supports ASIO or Core Audio. Now you can record in the studio or at the gig with equal ease.
Integrated, multiplatform software for flexible control and one-click recording.
Like all PreSonus StudioLive mixers, the StudioLive 16.0.2 USB is tightly integrated with an entire suite of state-of-the-art software. Mix wirelessly or over a wired network from anywhere using UC Surface touch-control software for macOS®, Windows®, Android™, and iPadOS®. Control individual monitor mixes onstage with QMix®-UC for iPhone®/iPod® touch and Android. Automate virtual soundchecks and record shows with Capture for Mac and Windows. Edit, sweeten, and digitally release your recordings with Studio One Artist. StudioLive 16.0.2 USB mixers and software work together to form a cohesive ecosystem that helps you achieve your creative vision.
Dedicated analog connections for predictable signal flow.
Take a look at back panel of a StudioLive 16.0.2 USB mixer, and you’ll find the robust connections you’d expect from an analog mixer: balanced mic inputs on each of the 8 mono channels; 8 balanced ¼-inch line inputs; 4 unbalanced RCA line inputs; and dedicated balanced outputs for each of the 4 aux buses and the main stereo bus. Every input channel and bus send has its own dedicated jack—no sharing, no compromises—so you always know what’s flowing from each output.
Add excitement to performances with MIDI control.
Being able to control the StudioLive 16.0.2 USB from an iPad, iPhone, iPod touch, or Android device is cool—unless your hands are busy playing your instrument. That’s why the StudioLive 16.0.2 USB offers MIDI In and Out. Use a MIDI footpedal or DAW to recall scenes using MIDI Program Changes, control the main output volume and effects level, mute effects between songs, switch from lots of reverb to a little bit of delay, and change the mix for a solo. You can even automate these features with a DAW! It’s a great way to make your performances more exciting and varied, even if you don’t have a separate soundperson.
Better mixing with StudioLive family values.
It's easy to love this portable powerhouse. To learn more, visit the Media tab on the upper section of this page and watch our StudioLive 16.0.2 USB videos. Better yet, try a StudioLive 16.0.2 USB at your nearest PreSonus dealer. You’ll see what we mean about intuitive ease-of-use. You’ll hear what we mean about Class A preamps, rich DSP effects, and overall sound quality. And you'll come to believe in StudioLive family values.
Apple Silicon, iOS, and iPadOS compatibility—standard.
The PreSonus StudioLive 16.0.2 is natively compatible with Apple Silicon-based Mac computers*, as well as iOS and iPadOS devices, including iPad Pro, iPad, iPad Air, iPad Mini, iPod Touch, and iPhone. Because it's USB class-compliant, there are no special drivers or applications to download and install. You'll be able to produce on the go—everything from podcasts to folk rock to trap—wherever sound takes you.
Make your own magic.
At PreSonus, we want to make sure that our audio products come with everything you need to craft your own mesmerizing spells in the studio. That's why we include Studio One Artist with every audio interface and controller product we make, from the 2-channel AudioBox USB 96 to the 64-channel StudioLive 64S, ATOM to FaderPort 16, but we didn't stop there. Why? Because here in Louisiana, we have a word: lagniappe. It means "a little something extra," and it's in that spirit that we also include the Studio Magic Suite of software with our audio interface products and–new for 2021–our award-winning controllers as well.
The 2021 Studio Magic includes tutorials from Melodics, sound libraries from Ghost Hack, 7 virtual instruments, and 9 effects plug-ins in VST, AU, and AAX formats to use in Studio One Artist or your DAW of choice with a retail value of over $1000 (US).
Features
8 mono mic/line channel inputs, each with:
High-headroom Class A XMAX mic preamplifier
XLR mic and balanced ¼-inch line inputs
60 mm precision fader
4 stereo line channel inputs, with:
High-headroom Class A XMAX mic preamplifier (Ch. 9, 11, 13, and 15)
XLR mic inputs (Ch. 9, 11, 13, and 15)
Balanced ¼-inch line inputs (Ch. 9-16)
Unbalanced RCA line inputs (Ch. 13-16)
60 mm precision fader (4 stereo)
4 Auxiliary buses (pre/post-fader send)
2 Internal FX buses
2 stereo 32-bit digital effects processors with customizable reverb and delay presets
Fat Channel signal processing on all channels and buses, with:
3-band semi-parametric EQ (individual band on/off)
Full-featured compressor
Standard downward expander
Limiter
Phase reverse (12 mic preamplifiers only)
Pan with dedicated 15-LED display
Stereo link for input channels and aux buses
Highpass filter
One 31-band stereo graphic EQ (on main outputs only)
18-in/16-out USB recording interface (24-bit/44.1 kHz and 48 kHz)
Compatible with most audio software via ASIO, Windows Audio, Core Audio
Scene store and recall
Settings can be copied among channels and buses and saved as user presets.
Software bundle includes:
PreSonus® Studio One® Artist digital audio workstation for macOS® and Windows ®
PreSonus Capture® live-recording software for macOS and Windows
PreSonus UC Surface mixer-control software for macOS, Windows, Android™, and iPadOS®
Free downloadable PreSonus QMix®-UC software for iPhone®/iPod touch® and Android provides wireless remote control of aux mixes
Lockout mode protects your settings from meddlers and accidents
MIDI Control Mode provides control over:
Scene and FX Preset recall
Main Volume, FXA, and FXB output levels
FXA and FXB assign/unassign to Mains
Computer system requirements:
Below are the minimum computer-system requirements for UC Surface, QMix®-UC, and Studio One®.
Mac®
macOS® 10.13 or higher (64-bit only)
Intel® Core™ i3 or better (Native support for Apple Silicon)
Minimum 4 GB RAM (8 GB or more recommended)
Windows®
Windows 10 (64-bit only)
Intel Core i3 or better
Minimum 4 GB RAM (8 GB or more recommended)
Mac and Windows Systems
USB 2.0 port
Internet connection
Internal or external 7200 RPM storage drive highly recommended
30 GB hard disk space
Monitor with 1366x768 resolution
iOS
iOS® 10 or later
iPad® Pro, iPad Air 2, iPad Air, iPad mini 4, iPad mini with Retina display, iPad (4th generation)
Android
Android™ 6.0 (Marshmallow) or later
Android smartphone (QMix-UC)
Android tablet (8-inch) with 1024x768 resolution (UC Surface)
----------------------------------------------------------------------------------------------------------------
Echotone Music LLC is an experienced long time E-commerce Audio & Musical instrument dealer since 1998. We take pride in selling quality gear for musicians, sound engineers, production companies and broadcast applications.
Shipping --Items are well packed and shipped USPS, UPS or Pallet Freight Service. Items purchased on Friday may not ship until Monday or until the projected processing period. We are working hard to get your unit Built ( if needed), processed and shipped.
Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.
Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as belt-buckle or pick scratches, scuffs, dings or scrapes, screw mount marks or collateral materials. Items must also include all original packaging, manuals, warrantees and accessories or your return may be subject to a return handling charge.
If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.
The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, body jewelry, sheet music, cleaners, polishes and polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.
Happy customers, that's music to our ears!
Presonus Earmix 16M 16 Channel AVB Networked Personal Monitor Mixer
Ships Free!
Professional, networked personal monitoring.
The PreSonus EarMix 16M is an advanced 16-channel personal monitor mixer designed to provide a high-quality, expandable, networked monitoring solution for stage, installed sound systems, and studio recording. We gave the EarMix 16M professional sound quality, easy-to-use mixing features, and a high-performance headphone amplifier, to ensure you have the monitoring tools you need for any situation.
Your mix, your way.
Personal monitoring should be just that: personalized for whoever is listening. The EarMix 16M provides each channel with a 3-Band EQ and a limiter. This processing is also available for the main bus, allowing each musician to sculpt a mix that works best for them. Channels can be easily grouped, simplifying complex mixes. Once you’ve perfected your monitor mix, save the whole scene to internal memory; you can store and recall up to 16 mix scenes locally.
Loud and clear.
High-quality monitoring is crucial for artists to deliver their best performance, so we’ve given the EarMix 16M personal monitor mixer a loud, clear headphone amplifier that can drive low-impedance devices such as professional-caliber in-ear-monitors. We started with a top of the line digital-to-analog converter for wide dynamic range and low signal-to-noise ratio. We took special care in the amplifier design to deliver excellent sonic performance, whether you’re using custom-molded in-ears or your favorite pair of studio headphones.
PoE: Remote power for networked devices.
The EarMix 16M can be powered with its included external power supply or over the same Ethernet connection that’s used for AVB network audio, thanks to Power over Ethernet (PoE). With PoE, a single cable delivers both digital audio and electrical power. This allows you to put your EarMix 16M personal monitor mixer anywhere you need it. While compatible with any AVB switch that provides PoE, PreSonus’ SW5E five-port AVB switch enables you to connect multiple EarMix 16Ms to the AVB network and provides PoE.
Uniquely versatile personal monitoring.
For StudioLive Series III digital mixing systems, the EarMix 16M is a natural fit that adds personal monitor mixers wherever you need them, be it on stage, in the studio, or in the broadcast booth. When combined with the StudioLive 16R, the EarMix 16M becomes a complete personal monitoring solution that can be added to any mixing system. Simply connect the outputs of your installed mixer to the StudioLive 16R and route them to your EarMix 16M personal monitoring mixers over AVB. The StudioLive 16R lets you add independent reverb, compression and more to your monitoring system. Need more than 16 inputs? Combine the EarMix 16M with a StudioLive 24R or StudioLive 32R and now you can create independent buses that can be routed to each EarMix 16M on the network.
A complete networked solution.
The StudioLive Series III ecosystem of networked products are at the forefront of AVB networking technology. Designed to complement each other, the ecosystem is easily expanded and quickly configured. The EarMix 16M adds simple personal monitoring that can be located anywhere on the network. Whether used within a complete StudioLive Series III system, or employed as a standalone personal monitoring system, the EarMix 16M delivers powerful personal monitoring features with an intuitive workflow.
Features
Analog Input/Output
1/8-inch stereo aux input
2 Balanced ¼-inch TRS line outputs
¼-inch TRS stereo headphone output with loud, clear headphone amp that can drive low-impedance in-ear monitors
Meters, Controls, and Processing
3-band EQ with sweepable mid frequency on all channels and main mix
Limiter on all channels and main mix
Stereo channel linking
Channel grouping
Solo and Mute
Mix scene Store and Recall; store up to 16 mix scenes locally
16 Signal present and clip LEDs (one for each input)
8-segment stereo output meter
Channel Level rotary control with 8-segment level indicator
Aux Input level control
Independent Monitor (line out) and Phones level controls
Routing setup from StudioLive Series III consoles and UC Surface
Digital
16 mono channels of input via AVB networking
2 AVB Ethernet ports
24 bit, up to 48 kHz operation
Power
External 24 VDC power supply (included)
Support for PoE power
Physical
Mic stand mounting option (sold separately)
_____________________________________________________________________________
Echo tone Music is a long time E-commerce Audio and Musical instrument dealer since 1998. We take pride in selling quality gear for musicians, sound engineers and broadcast applications.
Shipping --Items are well packed and shipped USPS, FEDEX and UPS. Items purchased on Friday may not ship till monday. We want to get your item out as fast as we can.
Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs. Refunds are for the product price only and will be less all shipping charges and 15% restocking fee if the item was delivered with no defects.
If the item was listed as free shipping then the cost of the shipment will be deducted. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional restocking fee. This item is now used and it would be unfair to resell to another customer as new.
Happy customers, that's music to our ears!
PreSonus Faderport 16 Channel Motorized Mixer DAW Production Controller
Innoivative Mix Production !
Ships Free!
Don’t kill that mouse—give it a companion.
Although a keyboard and mouse are tried-and-true DAW-control devices, they’re far more effective when used in tandem with the FaderPort™ 16’s precise tactile control over mix and automation functions. A superior solution for anyone who mixes in the box, only the FaderPort 16 provides 16 100 mm touch-sensitive, motorized faders and 89 buttons covering 104 different functions, all in a compact chassis that easily sits on any desk. Quickly zoom in on audio files for editing, modify plug-in parameters, manage aux mixes—and, of course, control track levels with the touch of a finger. With the FaderPort 16, you’ll enjoy the fastest, most efficient workflow you’ve ever experienced.
Work faster and smarter.
Rather than forcing you to revise your mixing method, the FaderPort 16 augments the way you currently mix. You still use your faithful keyboard and mouse for things they do well, and the FaderPort 16 handles what you really want to get your fingers on: your mix. Having the ability to control the levels of 16 channels at once makes creating the perfect mix easier than ever before. And the FaderPort 16 allows you to view just the information you need to access. Sixteen digital scribble strips provide visual feedback. Quickly navigate between tracks and buses. Need to automate your virtual instruments? The FaderPort 16 lets you view just those tracks, making switching automation tasks a breeze. This is DAW control the way you always hoped it could be!
One-button access to key functions.*
The FaderPort 16's unique Session Navigator provides easy access to eight mission-critical functions for maximum flexibility. Use the large encoder button and companion buttons to edit and mix with greater efficiency and speed. Scroll through your timeline, using the encoder, or work measure by measure with the arrow buttons; zoom in and out on the timeline with the encoder and make your tracks larger or smaller with the arrow buttons; navigate and drop markers; and maintain constant control of your main level. Once you start using the Session Navigator, you’ll wonder how you mixed without it.
Universal compatibility. Integrated with Ableton Live.
While compatible with most third-party software, FaderPort 16 offers deeper integration with Ableton Live (version 10.1.5 and later). Navigate clips and scenes, change track volume and panning, and switch between Session and Arranger views, the FaderPort will help you work faster than ever. Even better: any FaderPort 16 purchased after January 18, 2020 gets a free copy of Ableton Live Lite dropped in your My.PreSonus account.
FaderPort 16’s streamlined workflow and support for the Mackie Control and HUI protocols also make it fast and easy to control Logic Pro X, Cubase, Pro Tools, and more. No driver installation is necessary; just plug the control surface into a USB port and take command of your mix.
Built for Studio One.
The optimized mode for PreSonus Studio One® will revolutionize your workflow in PreSonus' award-winning DAW (Studio One Artist included). Use the Session Navigator to quickly move and nudge events in the Arranger window. The unique Link function allows you to instantly control any parameter beneath your mouse with the large encoder. Control link lets you customize your function buttons and much more. You’ll be amazed at how much faster you can work.
An amazingly fast, efficient studio workflow awaits you!
With the compact, easy-to-use FaderPort 16, you’ll enjoy the fastest, most efficient workflow and the most session control you’ve ever experienced. But don’t just take our word for it; visit your favorite PreSonus dealer and try the FaderPort 16 for yourself!
iPadOS compatibility—standard.
The PreSonus FaderPort 16 is natively compatible with Apple Silicon-based Mac computers*, as well as iOS and iPadOS devices, including iPad Pro, iPad, iPad Air, iPad Mini, iPod Touch, and iPhone. Because it's USB class-compliant, there are no special drivers or applications to download and install. You'll be able to produce on the go—everything from podcasts to folk rock to trap—wherever sound takes you.
Make your own magic.
At PreSonus, we want to make sure that our audio products come with everything you need to craft your own mesmerizing spells in the studio. That's why we include Studio One Artist with every audio interface and controller product we make, from the 2-channel AudioBox USB 96 to the 64-channel StudioLive 64S, ATOM to FaderPort 16, but we didn't stop there. Why? Because here in Louisiana, we have a word: lagniappe. It means "a little something extra," and it's in that spirit that we also include the Studio Magic Suite of software with our audio interface products and–new for 2021–our award-winning controllers as well.
The 2021 Studio Magic includes tutorials from Melodics, sound libraries from Ghost Hack, 7 virtual instruments, and 9 effects plug-ins in VST, AU, and AAX formats to use in Studio One Artist or your DAW of choice with a retail value of over $1000 (US).
Features
16 touch-sensitive, 100 mm long-throw, motorized faders
16 Scribble Strip displays
Complete recording-transport controls: Play, Stop, Fast Forward, Rewind, Record, Loop
Drop Marker, Next/Prev Marker, Next / Prev Event
General session controls: Undo/Redo, Arm All, Solo/Mute Clear, Track Management, Click On/Off
Session Navigator provides quick control over Track Scrolling, Channel Banking, Timeline Scrolling, and much more
Channel Controls: Level, Pan, Solo, Mute, Rec Arm
Automation Controls: Touch, Latch, Trim, Write, Read, Off
Optional Fader functionality: Plug-in edit, bus sends, pan
Mac / Windows compatible with native Studio One support and HUI and Mackie Control Universal emulation
Footswitch input for hands-free start/stop
USB 2.0 connectivity
Features may vary depending on your software.
Computer system requirements:
Below are the minimum computer-system requirements for use for FaderPort 16.
Mac®
macOS® 10.13 or higher (64-bit only)
Intel® Core™ i3 or better (Native support for Apple Silicon)
Minimum 4 GB RAM (8 GB or more recommended)
Windows
Windows® 10 (64-bit only)
Intel Core i3 / AMD A10 processor or better
Minimum 4 GB RAM (8 GB or more recommended)
Mac and Windows Systems
USB 2.0 port
Internal or external 7200 RPM storage drive highly recommended
30 GB hard disk space (required for Studio One® Artist content)
Monitor with 1366x768 resolution
-----------------------------------------------------------------------------------------
Echo tone Music is a long time E-commerce Audio and Musical instrument dealer since 1998. We take pride in selling quality gear for musicians, sound engineers and broadcast applications.
Shipping --Items are well packed and shipped USPS, UPS or Pallet Freight Service. Items purchased on Friday may not ship until Monday or until the projected processing period. We are working hard to get your unit Built ( if needed), processed and shipped.
Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.
Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as belt-buckle or pick scratches, scuffs, dings or scrapes, screw mount marks or collateral materials. Items must also include all original packaging, manuals, warrantees and accessories or your return may be subject to a return handling charge.
If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.
The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, body jewelry, sheet music, cleaners, polishes and polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.
Happy customers, that's music to our ears!
Presonus StudioLive 32SX Compact 32 Ch 22 Buss Digital Console Mixer Recorder plus Software
Full Software Suite Included plus 3 year warranty!
Power meets efficiency.
Loaded with the processing power, studio-grade audio quality, and flexible routing options that made StudioLive® mixers famous, the StudioLive 32SX is the perfect compact, 32-channel digital mixing solution. Powered by the dual-core PreSonus® FLEX DSP Engine, the StudioLive 32SX digital mixer is equipped with 40 mixing channels, 26 mix buses, and 286 simultaneous processors, including 4 stereo reverberation systems, and Fat Channel plug-in models on every input and mix. The low profile of the StudioLive 32SX makes it an ideal solution for any mixing environment where desk real estate is at a premium. The split-fader workflow lets you manage 32 input channels in two fader layers, while still providing access to your mix outputs on eight additional faders. With 32 XMAX mic preamps and 16 balanced mix outputs, the StudioLive 32SX packs connectivity and power into an efficient use of space.
The scalable digital mixer.
The StudioLive 32SX digital mixer and the complete PreSonus StudioLive Series III ecosystem of AVB networking products allow you to create a system that is truly customized for your needs. Add EarMix 16M personal monitor mixers to give your musicians their own customizable 16-channel monitor mixes. Connect a StudioLive 32R to use as a remote stage box or monitor mixer. Multiple StudioLive Series III digital mixers can be networked, allowing you to route audio to and from any device on the audio network, thanks to the flexibility of Digital Patching onboard your StudioLive 32SX digital mixer and in UC Surface remote mixer software.
Superior sound.
We built our reputation designing great-sounding analog circuits for critical studio-recording environments, and we put all of that experience into designing the StudioLive 32SX digital mixer. In 1995, PreSonus patented digital control over analog circuits with our first studio product. Building on this legacy, we created a separate digital volume-control circuit ahead of our lauded analog XMAX mic preamp design, providing the convenience of digital recall without sacrificing fidelity. This allows the StudioLive 32SX mic preamps to be remote-controlled with UC Surface software or Studio One®, and when you load a StudioLive 32SX mixer scene, the mic preamp trim values can also be recalled along with the other settings.
Record music with or without a computer.
PreSonus Capture® recording software is an intuitive multitrack recording application with a fully integrated Virtual Soundcheck mode that runs directly on your StudioLive 32SX digital mixer or on your Mac® or Windows® computer. Record all 32 channels plus a stereo mix of your choosing via USB, to an SD Card, or both for the ultimate redundant live-recording rig. StudioLive mix scenes can be stored with your recordings to speed up virtual soundchecks. Best of all, Capture sessions open natively in Studio One with the entire StudioLive mix scene re-created in the Studio One console, complete with fader levels, Fat Channel settings, mutes, solos, and more. No other multitrack software makes recording as fast, simple and hassle-free so you can focus on mixing the show.
The best music recording software… included.
Studio One revolutionized music recording, making common mixing and production tasks as easy as drag-and-drop. Tight integration with StudioLive 32SX digital mixers allows you to control preamp levels and more directly from the Studio One software console. Press the DAW button on your StudioLive 32SX, and your Studio One controls are right under your fingertips on your digital mixer. Studio One control can be toggled on and off, allowing you to quickly switch between your live mix and your production mix with the press of a button. Studio One Artist is included with the StudioLive 32SX, so you can start recording right out of the box.
Remote control your digital mixer from anywhere—on any device.
PreSonus StudioLive Series III digital mixers are tightly integrated with an entire suite of state-of-the-art software. Mix wirelessly using UC Surface touch-control software for macOS®, Windows®, iPadOS® and Android™. Control your monitor mixes with QMix®-UC for iPhone®, iPod® touch, and Android devices. Whether you’re adjusting monitor mixes on stage, moving around the room to dial in your mix, or using your mobile device as a second screen for your StudioLive 32SX digital mixer, remotely controlling your mix from anywhere just got easier.
Flexible mixing for studio and stage.
The StudioLive 32SX was designed to fit well in any application. Its 16 FlexMixes can be individually configured to function as an aux bus, a subgroup, or a matrix mix. Four designated effects buses provide a total of 24 mix buses plus an independent solo bus and the main mix. We also provided 24 DCAs so you can more easily and flexibly control groups of channels. Inputs and buses can be freely routed internally, out to your AVB network, and over the USB bus, allowing you to customize your StudioLive 32SX for your unique mixing style.
The best USB audio interface for mixing.
With 128 (64x64) channels of recording over USB, you can record every input channel and bus on your StudioLive 32SX for the ultimate recording rig. Each channel can independently access its analog input or its dedicated digital return from your computer. Six preinstalled vintage EQ and classic compressor Fat Channel plug-in models can be used onboard your mixer as well as within Studio One. And you also get Fat Channel Collection Vol. 1, which includes 15 additional vintage-modeled EQs and compressors—a $149 (USD) value if purchased separately. Fat Channel plug-ins can be inserted on every input channel and output bus, giving you extensive, studio-style processing while mixing and recording.
A complete networked solution.
StudioLive Series III networked products form an ecosystem that is easily expanded and quickly configured. Designed to enhance each other, these products are at the forefront of AVB networking technology. Connect to StudioLive Series III rack mixers and add a dedicated monitor mixer. Route audio to EarMix 16M personal monitor mixers for customized mixes on stage. With powerful plug-in processing, advanced recording features, and a full complement of analog I/O in a compact chassis, the StudioLive 32SX is an ideal centerpiece for sound systems of any size.
Apple Silicon, iOS, and iPadOS compatibility—standard.
The PreSonus StudioLive 32SX is natively compatible with Apple Silicon-based Mac computers*, as well as iOS and iPadOS devices, including iPad Pro, iPad, iPad Air, iPad Mini, iPod Touch, and iPhone. Because it's USB class-compliant, there are no special drivers or applications to download and install. You'll be able to produce on the go—everything from podcasts to folk rock to trap—wherever sound takes you.
Make your own magic.
At PreSonus, we want to make sure that our audio products come with everything you need to craft your own mesmerizing spells in the studio. That's why we include Studio One Artist with every audio interface and controller product we make, from the 2-channel AudioBox USB 96 to the 64-channel StudioLive 64S, ATOM to FaderPort 16, but we didn't stop there. Why? Because here in Louisiana, we have a word: lagniappe. It means "a little something extra," and it's in that spirit that we also include the Studio Magic Suite of software with our audio interface products and–new for 2021–our award-winning controllers as well.
The 2021 Studio Magic includes tutorials from Melodics, sound libraries from Ghost Hack, 7 virtual instruments, and 9 effects plug-ins in VST, AU, and AAX formats to use in Studio One Artist or your DAW of choice with a retail value of over $1000 (US).
Features
Powered by the new dual-core PreSonus® FLEX DSP Engine to provide the most processing of any digital mixer in its class
40 input-channel digital mixer with 25 touch-sensitive motorized faders
32 local digitally controlled XMAX mic/line inputs
2 balanced stereo aux inputs
1 stereo tape input (RCA, USB, AVB or SD)
4 FLEX FX returns
1 Talkback
26 mix buses
16 FlexMixes (Aux, Subgroup, Matrix)
4 dedicated FLEX FX buses
4 dedicated subgroups
Stereo Main bus
286 simultaneous processors
HPF
Gate/Expander
Compressor with Fat Channel plug-in models
4-band/6-band parametric EQ with Fat Channel plug-in models
Limiter
31-band graphic EQ
4 FLEX FX slots featuring legendary classic reverb emulations and delays
State Space Modeled Fat Channel compressor and EQ plug-ins available on every input channel and output bus
FLEX FX multi-effects processor with 4 slots to load legendary reverb emulations and delays, with 4 dedicated effects buses
24 DCAs to control groups of channels
128-channel (64x64) recording over USB
Onboard multi-channel SD recorder (34x34) with true Virtual Soundcheck mode
AVB networking onboard (64x64) to connect with other mixers, NSB-series stage boxes, EarMix 16M personal monitor mixers and more
User Profiles for managing multiple operators with custom permissions
Per channel digital patching from any analog, AVB, USB, or SD Card source
DAW Control
Advanced Studio One® control integration
MCU emulation mode optimized for Logic
HUI emulation mode optimized for Pro Tools
Remote control every mix function from your computer, iPad®, or Android™ tablet with UC Surface (included)
Put your musicians’ monitor mix under their fingers with QMix®-UC (included) for iOS® or Android
Capture® 3.0 multitrack software included
Automated Virtual Soundcheck
Store StudioLive® mix scenes with your audio
Advanced Studio One integration (Studio One Artist Included)
XMAX mic preamp control from Studio One
Control Fat Channel parameters from Studio One mixing console
Computer system requirements:
Below are the minimum computer-system requirements for UC Surface, QMix®-UC, and Studio One®.
Mac®
macOS® 10.13 or higher (64-bit only)
Intel® Core™ i3 or better (Native support for Apple Silicon)
Minimum 4 GB RAM (8 GB or more recommended)
Windows®
Windows 10 (64-bit only)
Intel Core i3 or better
Minimum 4 GB RAM (8 GB or more recommended)
Mac and Windows Systems
USB 2.0 port
Internet connection
Internal or external 7200 RPM storage drive highly recommended
30 GB hard disk space
Monitor with 1366x768 resolution
iPadOS®
iPadOS 10 or later
iPad® Pro, iPad Air 2, iPad Air, iPad mini 4, iPad mini with Retina display, iPad (4th generation)
Android™
Android 6.0 (Marshmallow) or later
Android smartphone (QMix-UC)
Android tablet (8-inch) with 1024x768 resolution (UC Surface)
Note: The minimum system requirements may be different for DAWs other than Studio One. Please check the requirements for your DAW of choice with its manufacturer.
Note that this is the speed of your processor, the amount of RAM and the size of your harddrive will increase the overall performance of your recording system. So, a more powerful system (faster processor with more RAM) will allow for lower latency (signal delay) than you might experience.
----------------------------------------------------------------------------------------------------------------
Echotone Music LLC is an experienced long time E-commerce Audio & Musical instrument dealer since 1998. We take pride in selling quality gear for musicians, sound engineers, production companies and broadcast applications.
Shipping --Items are well packed and shipped USPS, UPS or Pallet Freight Service. Items purchased on Friday may not ship until Monday or until the projected processing period. We are working hard to get your unit Built ( if needed), processed and shipped.
Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.
Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as belt-buckle or pick scratches, scuffs, dings or scrapes, screw mount marks or collateral materials. Items must also include all original packaging, manuals, warrantees and accessories or your return may be subject to a return handling charge.
If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.
The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, body jewelry, sheet music, cleaners, polishes and polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.
Happy customers, that's music to our ears!
Presonus StudioLive 64S Series III 64 channel digital Console mixer & USB audio interface
Powerful Mixer with Serious Build quality and Features. Compatible with Most DAW's Backed by 3 year Warranty!
Ships Free!
The small format mixer with large format power.
The StudioLive 64S is a 64-channel mixer that brings the power of a large format console to small format digital mixing. Powered by the new quad-core PreSonus FLEX DSP Engine, the StudioLive 64S digital mixer is equipped with 76 mixing channels, 43 mix buses, and 526 simultaneous processors—including 8 stereo reverberation systems, and Fat Channel plug-in models on every input channel and mix bus. With 128 (64X64) channels of USB recording, 128 channels of AVB I/O, flexible routing options, and the studio-grade audio quality that made StudioLive mixers famous, the StudioLive 64S delivers a truly exceptional mixing experience that's in a class of its own.
The scalable digital mixer.
The StudioLive 64S digital mixer and the complete PreSonus® StudioLive Series III ecosystem of AVB networking products allow you to create a system that is truly customized for your needs. Connect NSB-series stage boxes to add remote analog inputs and outputs wherever they’re required and complete your 64-channel, 32-bus StudioLive 64S. Add EarMix 16M personal monitor mixers to give your musicians their own customizable 16-channel monitor mix. Multiple StudioLive Series III digital mixers can be networked together, allowing you to route audio to and from any device on the audio network thanks to the flexibility of Digital Patching available both onboard your StudioLive 64S digital mixer and inside UC Surface remote mixer software.
The best digital mixer for recording—with or without a computer.
PreSonus Capture® recording software is an intuitive multitrack recording application with a fully integrated Virtual Soundcheck mode that runs directly on your StudioLive 64S digital mixer or on your Mac® or Windows® computer. Record any combination of channels, FlexMixes, and the main stereo mix to USB, to an SD Card, or both for the ultimate redundant live recording rig. StudioLive mix scenes can be stored with your recordings to speed up Virtual Soundchecks. Best of all, Capture sessions open natively in Studio One® with the entire StudioLive mix scene re-created in the Studio One console, complete with fader levels, Fat Channel settings, mutes, solos, and more to launch your live mix right where you left it. No other multitrack software makes recording as fast, simple, and hassle-free so you can focus on mixing the show.
Superior sound.
We built our reputation designing great-sounding analog circuits for critical studio recording environments, and we put all of that experience into designing the StudioLive 64S digital mixer. In 1995, PreSonus patented digital control over analog circuits with our first studio product. Building on this legacy, we created a separate digital volume-control circuit ahead of our lauded analog XMAX mic preamp design, providing the convenience of digital recall without sacrificing fidelity. This allows the StudioLive 64S mic preamps to be remote-controlled with UC Surface software or Studio One, and when you load a StudioLive 64S mixer scene, the mic preamp trim values can be recalled along with the other settings.
Create the buses and groups you need.
PreSonus designed the StudioLive 64S digital mixer to adapt to your changing needs, whether you’re mixing in the studio or on a busy festival stage. Its 32 FlexMixes can be individually configured to function as an aux bus, a subgroup, or a matrix mix. Eight designated effects buses plus stereo and mono main buses make a total of 43 mix buses in addition to an independent solo bus. We also provided 24 DCAs so you can more easily and flexibly control groups of channels. The independent Main Mono bus can be configured with individual channel sends to feed a subwoofer or as the center channel in an LCR system, complete with a Center Divergence control on each channel to more precisely place your pan positions.
Reconfigure your mix without unplugging a cable.
StudioLive Series III digital mixers incorporate the concept of an analog patchbay and digitize it. This lets you patch any analog input or digital return (AVB, USB, or SD Card) to any channel to customize your mix configuration. This flexible feature also allows you to freely route audio to your AVB network and record any of the inputs and FlexMixes on the 64 USB sends. Digital Patching also makes it easy to quickly route to and source from your AVB audio network when using the StudioLive 64S as part of a complete networked audio system.
The ultimate USB audio interface and control surface.
With 128 (64x64) channels of recording over USB, the StudioLive 64S is not just the best digital mixer for live sound recording; it’s the best digital mixer for the studio as well. Each channel can independently access its analog input or its dedicated digital return from your computer. While compatible with any DAW, Studio One and the StudioLive 64S are the perfect pair to elevate your studio recording environment. Remotely control your StudioLive 64S digital mixer’s recallable XMAX mic preamps and Fat Channel processing from Studio One Artist. Press the DAW button on your StudioLive 64S digital mixer and use the 33 touch-sensitive motorized faders to control your Studio One mix. Seamless integration and thoughtful bidirectional control with Studio One make the StudioLive 64S the best mixing console for the modern recording studio.
World-class recording software included.
PreSonus Studio One® Artist DAW is included with the StudioLive 64S. Studio One seamlessly combines the time-tested and proven recording studio model with today’s beat- and loop-oriented production process so you can spend your precious time creating music instead of wondering what to click next.
Fat Channel plug-ins bring your mix to life for stage or studio.
The dynamic Fat Channel on the StudioLive 64S digital mixer puts critical EQ and Dynamics functions beneath your fingertips while giving you fast access to every parameter. Fat Channel plug-ins can be inserted on every input channel and output bus. You can enjoy extensive, studio-style processing whether recording in the studio or running shows on the road.
The StudioLive 64S includes six Classic Fat Channel EQ and Compressor plug-in models pre-installed. But you also get Fat Channel Collection Vol. 1... which includes 15 additional vintage-modeled EQs and Compressors—a $149 (USD) value if purchased separately.
Remote control your digital mixer from anywhere, on any device.
PreSonus StudioLive Series III digital mixers are tightly integrated with an entire suite of state-of-the-art software. Mix wirelessly using UC Surface touch-control software for macOS®, Windows, iPad® and Android™. Control your monitor mixes with QMix®-UC for iPhone®, iPod® touch, and Android devices. Whether you’re adjusting monitor mixes on stage, moving around the room to dial in your mix, or using your mobile device as a second screen for your StudioLive 64S digital mixer, remotely controlling your mix from anywhere just got easier.
A complete networked solution.
The StudioLive Series III ecosystem of networked products are at the forefront of AVB networking technology. Designed to complement each other, the ecosystem is easily expanded and quickly configured. The StudioLive 64S is your command center to create the ultimate AVB network. Route audio to EarMix 16M personal monitor mixers. Control the gain staging and add up to 64 inputs using NSB-series stage boxes and other StudioLive Series III digital mixers. With powerful plug-in processing, a plethora of mix buses, and integrated networking onboard, the StudioLive 64S brings the large format mixing experience to the compact desktop digital mixer.
Get Connected.
The back panel of a StudioLive 64S digital mixer is equipped with plenty of local analog I/O. 32 local analog mic/line channel inputs make it easy to connect a variety of gear. 16 local mix outputs let you route to floor monitors, delay stacks and more. But the local I/O is only half the story. Connect your StudioLive 64S digital mixer to an AVB audio network and add remote inputs and outputs anywhere you need them using NSB-series stage boxes.
Three year warranty—for all Series III and III S mixers
When we introduced the StudioLive Series III S mixers, we upgraded all Series III mixer warranty programs to three years as well, including both console and rack mixers. Even if you bought yours two and a half years ago, you're covered.
We take our build quality seriously, and if anything goes wrong with your mixer in your first three years of ownership (assuming you don't throw it in a swamp or anything like that) we'll repair it.
Make your own magic.
At PreSonus, we want to make sure that our audio interfaces come with everything you need to craft your own mesmerizing spells in the studio. That’s why we include Studio One Artist with every audio interface product we make. But here in Louisiana, we have a word: lagniappe. It means "a little something extra," and it’s in that spirit that we also include the Studio Magic Suite of software with our audio interface products.
The 2020 Studio Magic is a major step up from the 2019 edition, and includes Ableton Live Lite, tutorials from Melodics, 6 virtual instruments, and 9 effects plug-ins in VST, AU, and AAX formats... all unlocked for use inside Studio One Artist with a retail value of over $1000 (US).
Features
Powered by the new quad-core PreSonus FLEX DSP Engine to provide the most processing of any digital mixer in its class
76 input-channel digital mixer with 33 touch-sensitive motorized faders
64 channels (individually sourced from any of the 32 local digitally controlled XMAX mic/line inputs or any AVB, USB, or SD input)
2 balanced stereo aux inputs
1 stereo tape input (RCA, Bluetooth™ connectivity, USB, AVB or SD)
8 FLEX FX returns
1 Talkback
43 mix buses
32 FlexMixes (Aux, Subgroup, Matrix)
8 dedicated FLEX FX buses
Stereo Main bus
Main Mono/Center bus with per-channel level send and Center Divergence
526 simultaneous processors
HPF
Gate / Expander
Compressor with Fat Channel plug-in models
4-band/6-band parametric EQ with Fat Channel plug-in models
Limiter
31-band Graphic EQ
8 FLEX FX slots featuring legendary classic reverb emulations and delays
State Space-Modeled Fat Channel compressor and EQ plug-ins available on every input channel and output bus
FLEX FX multi-effects processor with 8 slots to load legendary reverb emulations and delays with 8 dedicated effects buses
24 DCAs to control groups of channels
128-channel (64x64) recording over USB
Onboard multi-channel SD recorder (34x34) with true Virtual Soundcheck mode
AVB Networking onboard (64x64) to connect with other mixers, NSB-series stage boxes, EarMix 16M personal monitor mixers and more
User Profiles for managing multiple operators with custom permissions
Per channel digital patching from any analog, AVB, USB, or SD Card source
DAW Control
Advanced Studio One control integration
MCU emulation mode optimized for Logic
HUI emulation mode optimized for Pro Tools
Remote control every mix function from your computer, iPad, or Android tablet with UC Surface (included)
Put your musicians’ monitor mix under their fingers with QMix-UC (included) for iOS or Android
Capture multitrack software included
Automated Virtual Soundcheck
Store StudioLive mix scenes with your audio
Advanced Studio One integration (Studio One Artist Included)
XMAX mic preamp control from Studio One
Control Fat Channel parameters from Studio One mixing console
----------------------------------------------------------------------------------------------------------------
Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998. We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications.
Shipping --Items are well packed and shipped USPS, UPS or Freight Service. Items purchased on Friday may not ship until Monday or until the projected processing period. We are working hard to get your unit Built ( if needed), processed and shipped. Processing Times do vary
Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.
Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as mount marks, plug marks, scratches, scuffs, dings or scrapes, screw mount marks or collateral material damage.. Items must also include all original packaging, manuals, warrantees & accessories or your return may be subject to a return handling charge.
Refunds are for the Item cost only. If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service/restocking fee. This item is now used and it would be unfair to resell to another customer as new.
The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, strings, computers, vacuum tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, cleaners, polishes & polishing cloths, software/sound ware, books, CDs, DVD's, vinyl records, and videos.
Presonus StudioLive 32S Series III 32-channel 22 bus digital mixer and USB audio interface
The Evolution of the Digital Mixer.-3 year warranty
Ships Free!
The small-format mixer with one-to-one control.
The StudioLive 32S is a powerful 32-channel mixer that provides the ultimate mixing experience, packing large format features into a small format chassis. Powered by the dual-core PreSonus FLEX DSP Engine, the StudioLive 32S digital mixer is equipped with 40 mixing channels, 26 mix buses, and 286 simultaneous processors—including 4 stereo reverberation systems, and Fat Channel plug-in models on every input channel and mix bus. With 128 (64x64) channels of USB recording, 128 channels of AVB network audio I/O, flexible routing options, and studio-grade audio quality, the StudioLive 32S delivers a fast and intuitive, surface-driven workflow for total control. Spend less time menu-diving and more time mixing—hands-on.
The scalable digital mixer.
The StudioLive 32S digital mixer and the complete PreSonus® StudioLive Series III ecosystem of AVB networking products allow you to create a system that is truly customized for your needs. Connect NSB-series stage boxes to add remote analog inputs and outputs wherever they’re required. Network with a StudioLive Series III rack mixer and add a dedicated monitor mixer. Add EarMix 16M personal monitor mixers to give your musicians their own customizable 16-channel monitor mixes. Multiple StudioLive Series III digital mixers can be networked, allowing you to route audio to and from any device on the audio network, thanks to the flexibility of Digital Patching onboard your StudioLive 32S digital mixer and in UC Surface remote mixer software.
The best digital mixer for recording - with or without a computer.
PreSonus Capture® recording software is an intuitive multitrack recording application with a fully integrated Virtual Soundcheck mode that runs directly on your StudioLive 32S digital mixer or on your computer running macOS® or Windows®. Record any combination of channels, FlexMixes, and the Main stereo mix via USB, to an SD Card, or both for the ultimate redundant live recording rig. StudioLive mix scenes can be stored with your recordings to speed up virtual soundchecks. Best of all, Capture sessions open natively in Studio One® with the entire StudioLive mix scene re-created in the Studio One console, complete with fader levels, Fat Channel settings, mutes, solos, and more. No other multitrack software makes recording as fast, simple, and hassle-free so you can focus on mixing the show.
Superior sound.
We built our reputation designing great-sounding analog circuits for critical studio recording environments, and we put all of that experience into designing the StudioLive 32S digital mixer. In 1995, PreSonus patented digital control over analog circuits with our first studio product. Building on this legacy, we created a separate digital volume-control circuit ahead of our lauded analog XMAX mic preamp design, providing the convenience of digital recall without sacrificing fidelity. This allows the StudioLive 32S mic preamps to be remote-controlled with UC Surface software or Studio One, and when you load a StudioLive 32S mixer scene, the mic preamp trim values can also be recalled along with the other settings.
Vintage studio processors onboard.
The dynamic Fat Channel on the StudioLive 32S digital mixer puts critical EQ and Dynamics functions beneath your fingertips while giving you fast access to every parameter. Fat Channel plug-ins can be inserted on every input channel and output bus. You can enjoy extensive, studio-style processing whether recording in the studio or running shows on the road.
The StudioLive 32S includes six Classic Fat Channel EQ and Compressor plug-in models pre-installed. But you also get Fat Channel Collection Vol. 1... which includes 15 additional vintage-modeled EQs and Compressors—a $149 (USD) value if purchased separately.
Flexible mixing without limits.
PreSonus designed the StudioLive 32S digital mixer to adapt with your changing needs, whether you’re mixing in the studio or on a busy festival stage. The 16 FlexMixes on the StudioLive 32S digital mixer can be individually configured to function as an aux bus, a subgroup, or a matrix mix. Four designated effects buses provide a total of 24 mix buses plus an independent solo bus and the main mix. We also provided 24 DCAs so you can more easily and flexibly control groups of channels. No other digital mixer provides this much flexibility.
Reconfigure your mix without unplugging a cable.
StudioLive Series III digital mixers incorporate the concept of an analog patchbay and digitize it. This lets you customize your mix configuration by patching any analog input or digital return (AVB, USB, or SD Card) to any channel you like. This flexible feature also allows you to freely route audio to your AVB network and record any of the inputs and FlexMixes on the 64 USB sends. Digital Patching also makes it easy to quickly route to and source from your AVB audio network when using the StudioLive 32S as part of a complete networked audio system. And with a fader for all 32 channels, plus 8 additional faders to manage your bus outputs, you always have total control of your entire mix.
The ultimate USB audio interface and control surface.
With 128 (64x64) channels of recording over USB, the StudioLive 32S is not just the best digital mixer for live sound recording; it’s the best digital mixer for the studio, as well. Each channel can independently access its analog input or its dedicated digital return from your computer. While the StudioLive 32S is compatible with any DAW, Studio One and the StudioLive 32S are the perfect pair to elevate your studio recording environment. Remote control your StudioLive 32S digital mixer’s recallable XMAX mic preamps and Fat Channel processing from Studio One Artist. Press the DAW button on your StudioLive 32S digital mixer and use the 33 touch-sensitive motorized faders to control your Studio One mix. Seamless integration and thoughtful bidirectional control with Studio One make the StudioLive 32S the best mixing console for the modern recording studio.
World-class recording software included.
PreSonus Studio One® Artist DAW is included with the StudioLive 32S. Studio One seamlessly combines the time-tested and proven recording studio model with today’s beat- and loop-oriented production process so you can spend your precious time creating music instead of wondering what to click next.
Remote control your digital mixer from anywhere… on any device.
PreSonus StudioLive Series III digital mixers are tightly integrated with an entire suite of state-of-the-art software. Mix wirelessly using UC Surface touch-control software for macOS®, Windows, iPad® and Android™. Control your monitor mixes with QMix®-UC for iPhone®, iPod® touch, and Android devices. Whether you’re adjusting monitor mixes on stage, moving around the room to dial in your mix, or using your mobile device as a second screen for your StudioLive 32S digital mixer, remote controlling your mix from anywhere just got easier.
A complete networked solution.
The StudioLive 32S is the flexible cornerstone for a custom AVB network that is easily expanded and quickly configured. Designed to complement each other, StudioLive Series III networked products form an ecosystem that is at the forefront of AVB networking technology. Route audio to EarMix 16M personal monitor mixers. Connect NSB-series stage boxes and StudioLive Series III rack mixers to add remote inputs and outputs. With powerful plug-in processing, a fader for every channel, and integrated networking onboard, the StudioLive 32S delivers an unmatched mixing experience that combines digital power with analog ease of use.
Three year warranty—for all Series III and III S mixers
When we introduced the StudioLive Series III S mixers, we upgraded all Series III mixer warranty programs to three years as well, including both console and rack mixers. Even if you bought yours two and a half years ago, you're covered.
We take our build quality seriously, and if anything goes wrong with your mixer in your first three years of ownership (assuming you don't throw it in a swamp or anything like that) we'll repair it.
Make your own magic.
At PreSonus, we want to make sure that our audio interfaces come with everything you need to craft your own mesmerizing spells in the studio. That’s why we include Studio One Artist with every audio interface product we make. But here in Louisiana, we have a word: lagniappe. It means "a little something extra," and it’s in that spirit that we also include the Studio Magic Suite of software with our audio interface products.
The 2020 Studio Magic is a major step up from the 2019 edition, and includes Ableton Live Lite, tutorials from Melodics, 6 virtual instruments, and 9 effects plug-ins in VST, AU, and AAX formats... all unlocked for use inside Studio One Artist with a retail value of over $1000 (US).
Features
Powered by the new dual-core PreSonus FLEX DSP Engine to provide the most processing of any digital mixer in its class
40 input-channel digital mixer with 33 touch-sensitive motorized faders
32 local digitally controlled XMAX mic/line inputs
2 balanced stereo aux inputs
1 stereo tape input (RCA, Bluetooth™ connectivity, USB, AVB or SD)
4 FLEX FX returns
1 Talkback
26 mix buses
16 FlexMixes (Aux, Subgroup, Matrix)
4 dedicated FLEX FX buses
4 dedicated subgroups
Stereo Main bus
286 simultaneous processors
HPF
Gate / Expander
Compressor with Fat Channel plug-in models
4-band/6-band parametric EQ with Fat Channel plug-in models
Limiter
31-band Graphic EQ
4 FLEX FX slots featuring legendary classic reverb emulations and delays
State Space-Modeled Fat Channel compressor and EQ plug-ins available on every input channel and output bus
FLEX FX multi-effects processor with 4 slots to load legendary reverb emulations and delays with 4 dedicated effects buses
24 DCAs to control groups of channels
128-channel (64x64) recording over USB
Onboard multi-channel SD recorder (34x34) with true Virtual Soundcheck mode
AVB Networking onboard (64x64) to connect with other mixers, NSB-series stage boxes, EarMix 16M personal monitor mixers and more
User Profiles for managing multiple operators with custom permissions
Per channel digital patching from any analog, AVB, USB, or SD Card source
DAW Control
Advanced Studio One control integration
MCU emulation mode optimized for Logic
HUI emulation mode optimized for ProTools
Remote control every mix function from your computer, iPad, or Android tablet with UC Surface (included)
Put your musicians’ monitor mix under their fingers with QMix-UC (included) for iOS or Android
Capture 3.0 multitrack software included
Automated Virtual Soundcheck
Store StudioLive mix scenes with your audio
Advanced Studio One integration (Studio One Artist Included)
XMAX mic preamp control from Studio One
Control Fat Channel parameters from Studio One mixing console
-----------------------------------------------------------------------------------------
Echo tone Music is a long time E-commerce Audio and Musical instrument dealer since 1998. We take pride in selling quality gear for musicians, sound engineers and broadcast applications.
Shipping --Items are well packed and shipped USPS, UPS or Pallet Freight Service. Items purchased on Friday may not ship until Monday or until the projected processing period. We are working hard to get your unit Built ( if needed), processed and shipped.
Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.
Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as belt-buckle or pick scratches, scuffs, dings or scrapes, screw mount marks or collateral materials. Items must also include all original packaging, manuals, warrantees and accessories or your return may be subject to a return handling charge.
If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.
The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, body jewelry, sheet music, cleaners, polishes and polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.
Happy customers, that's music to our ears!
Presonus Studio Live 16R 18 input 16 Channel Stage Box 7 Rack Mixer
3yr Warranty
One rack space to rule them all.
The StudioLive® 16R digital mixer is four audio tools in a single rackspace. Use it as a standalone digital mixer with UC Surface remote mixing software. Pair it with your StudioLive Series III console mixer to use as a stage box or integrated monitor mixer. Connect it with EarMix 16M monitor mixers for the ultimate personal monitor system. Plug it into your studio computer, and you have a continuously bidirectional, 36-channel (18x18) USB audio interface with modeled vintage dynamics and EQ plug-ins on every input and bus. Whether used standalone or as part of a complete audio system, no other rackmount digital mixer is as flexible or as powerful.
The best 16-channel digital mixer for your rack.
Inside the StudioLive 16R, the single-core PreSonus® FLEX DSP Engine powers 18 mixing channels, 10 mix buses, and 130 simultaneous processors, including 2 stereo reverberation systems and Fat Channel plug-in models on every input channel and mix bus. This is a true 16-channel digital mixer that can comfortably fit in any size rig. Simply connect it to a standard wireless router and control every mix parameter from your iPad®, Android™ tablet, or Windows® Touch computer, using UC Surface. UC Surface was designed to make mixing on a touch screen as intuitive as mixing on faders but with the benefit of allowing you to mix front-of-house from anywhere in the venue.
An integrated monitor mixer.
Professional venues and touring acts know that having a dedicated monitor mixer is the best way to ensure musicians can hear themselves clearly on stage. When connected to a StudioLive Series III console mixer, the StudioLive 16R provides remote inputs and main outputs while simultaneously retaining full control over its FlexMixes, so you can create up to six monitor mixes complete with independent gate, compression, EQ, and effects on every channel and bus.
The perfect personal monitoring system.
Modern musicians sometimes want more than just remote control: They want total control. When combined with up to 16 EarMix 16M personal monitor mixers, the StudioLive 16R is the most powerful personal monitoring hub available. With 6 FlexMix buses that can be configured as aux mixes, subgroups, or matrix mixes, the StudioLive 16R makes it easy to create simplified mixes for some EarMix 16M personal monitor mixers, while giving other EarMix 16Ms on the same network access to all 16 channels. Two dedicated effects buses let you add reverb and delay and let the musicians control the blend from stage. No other personal monitoring system offers so much powerful processing with flexible, easy-to-use routing features.
The digital stage box.
As a digital stage box for StudioLive Series III console mixers, the StudioLive 16R provides 16 remote digitally controlled XMAX preamps that can be gain-staged right from your StudioLive Series III console Fat Channel. The outputs of the StudioLive 16R automatically mirror the mixes available on your console mixer, making routing fast and easy. Best of all, when you need a rackmount mixer for a small mobile gig, simply disable Stage Box mode, and you have a full-featured, 16-channel digital mixer that fits into a single rackspace.
The USB audio interface with vintage sounds.
Recording engineers searching for a USB audio interface with near-zero latency monitor mixing, integrated plug-in models, and recallable mic preamps need look no further than the StudioLive 16R. An integrated 36-channel (18x18) audio interface lets you record with a complete rack of vintage EQ and dynamics processors for every channel and bus. You get 6 models preinstalled, plus the additional 15 models from the Fat Channel Collection Vol. 1—a $149 (USD) value if purchased separately.
Modeled after classic analog studio designs, these compressor and EQ plug-ins load both natively on the StudioLive 16R and inside Studio One®, providing the ultimate mixing and recording flexibility. Like every PreSonus interface, the StudioLive 16R is ready to record right out of the box with Studio One Artist or Capture®—both of which are included. You also get Ableton® Live Lite.
A complete networked solution.
StudioLive Series III networked products form an ecosystem that is easily expanded and quickly configured. Designed to enhance each other, these products are at the forefront of AVB networking technology. The StudioLive 16R combines the powerful processing for which StudioLive Series III mixers are known, with flexible modes to pair perfectly with console mixers and EarMix 16M personal monitoring mixers. Whether used standalone as a digital mixer and audio interface, or utilized with other StudioLive Series III ecosystem products, the StudioLive 16R combines flexibility with DSP power to become the ultimate compact audio solution.
Apple Silicon, iOS, and iPadOS compatibility—standard.
The PreSonus StudioLive 16R is natively compatible with Apple Silicon-based Mac computers*, as well as iOS and iPadOS devices, including iPad Pro, iPad, iPad Air, iPad Mini, iPod Touch, and iPhone. Because it's USB class-compliant, there are no special drivers or applications to download and install. You'll be able to produce on the go—everything from podcasts to folk rock to trap—wherever sound takes you.
Three year warranty—for all Series III and III S mixers
When we introduced the StudioLive Series III S mixers, we upgraded all Series III mixer warranty programs to three years as well, including both console and rack mixers. Even if you bought yours two and a half years ago, you're covered.
We take our build quality seriously, and if anything goes wrong with your mixer in your first three years of ownership (assuming you don't throw it in a swamp or anything like that) we'll repair it.
Make your own magic.
At PreSonus, we want to make sure that our audio products come with everything you need to craft your own mesmerizing spells in the studio. That's why we include Studio One Artist with every audio interface and controller product we make, from the 2-channel AudioBox USB 96 to the 64-channel StudioLive 64S, ATOM to FaderPort 16, but we didn't stop there. Why? Because here in Louisiana, we have a word: lagniappe. It means "a little something extra," and it's in that spirit that we also include the Studio Magic Suite of software with our audio interface products and–new for 2021–our award-winning controllers as well.
The 2021 Studio Magic includes tutorials from Melodics, sound libraries from Ghost Hack, 7 virtual instruments, and 9 effects plug-ins in VST, AU, and AAX formats to use in Studio One Artist or your DAW of choice with a retail value of over $1000 (US).
Computer system requirements:
Below are the minimum computer-system requirements for StudioLive 16R.
macOS®
macOS version 10.13 or later
200 MB storage space and 8 GB RAM for Universal Control (required for firmware updates)
Available USB port
Windows®
Windows 10 or later (64-Bit Only)
200 MB storage space and 8 GB RAM for Universal Control (required for firmware updates and low-latency ASIO support)
Available USB port
----------------------------------------------------------------------------------------------------------------
Echotone Music LLC is an experienced long time E-commerce Audio & Musical instrument dealer since 1998. We take pride in selling quality gear for musicians, sound engineers, production companies and broadcast applications.
Shipping --Items are well packed and shipped USPS, UPS or Pallet Freight Service. Items purchased on Friday may not ship until Monday or until the projected processing period. We are working hard to get your unit Built ( if needed), processed and shipped.
Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.
Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as mount marks, plug marks, scratches, scuffs, dings or scrapes, screw mount marks or collateral material damage.. Items must also include all original packaging, manuals, warrantees & accessories or your return may be subject to a return handling charge.
Refunds or for the Item cost only. If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.
The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, cleaners, polishes & polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.
Happy customers, that's music to our ears!
Presonus StudioLive 32R: 34-input, 32-channel Series III stage box and rack mixer
Ships Free!
Stunning Rackmount Mixing and Processing Power. Mix your own monitor mix right on your cell phone or tablet remotely
The digital mixer that defines versatility.
The StudioLive® 32R digital mixer is four audio tools in two compact rack spaces. Use it as a standalone digital mixer with UC Surface remote mixing software. Pair it with your StudioLive Series III console mixer to use as a stage box or integrated monitor mixer. Connect it with EarMix 16M monitor mixers for the ultimate personal monitor system. And of course, just like other StudioLive Series III digital mixers, the StudioLive 32R has a continuously bidirectional 128-channel (64x64) USB audio interface onboard. Whether used standalone or as part of a complete audio system, no other rackmount digital mixer is as flexible or as powerful.
The best digital mixer for your rack.
Inside the StudioLive 32R, you’ll find the dual-core PreSonus FLEX DSP Engine powering 40 mixing channels, 22 mix buses, and 270 simultaneous processors—including 4 stereo reverberation systems and Fat Channel plug-in models on every input channel and mix bus. This is a true 32-channel digital mixer that can comfortably fit in any size rig. Simply connect it to a standard wireless router and control every mix parameter from your iPad®, Android™ tablet, or Windows® Touch computer using UC Surface. UC Surface was designed to make mixing on a touch screen as intuitive as mixing on faders, but with the benefit of allowing you to mix front-of-house from anywhere in the venue.
An integrated monitor mixer.
Professional venues and touring acts know that having a dedicated monitor mixer is the best way to ensure musicians can hear themselves clearly on stage. When connected to a StudioLive Series III console mixer, the StudioLive 32R provides remote inputs and main outputs while simultaneously retaining full control over its FlexMixes, so you can create up to 16 monitor mixes complete with independent gate, compression, EQ, and effects on every channel and bus.
The perfect personal monitoring system.
Modern musicians sometimes want more than just remote control: They want total control. When combined with up to 16 EarMix 16M personal monitor mixers, the StudioLive 32R is the most powerful personal monitoring hub available. With 16 FlexMix buses that can be configured as aux mixes, subgroups, or matrix mixes, the StudioLive 32R makes it easy to bus down larger channel counts to provide simplified 16-channel mixes for your musicians to manage. Four dedicated effects buses let you add reverb and delay and let the musicians control the blend from stage. No other personal monitoring system offers so much powerful processing with flexible, easy-to-use routing features.
The digital stage box.
As a digital stage box for StudioLive Series III console mixers, the StudioLive 32R provides 32 remote digitally controlled XMAX preamps that can be gain-staged right from your StudioLive Series III console Fat Channel. The outputs of the StudioLive 32R automatically mirror the mixes available on your console mixer, making routing fast and easy. Best of all, when you need a rackmount mixer for a small mobile gig, simply disable Stage Box mode, and you have a full-featured 32-channel digital mixer that fits into two rackspaces.
The 64-channel audio interface.
Recording engineers searching for a high-channel count audio interface with near-zero latency monitor mixing, integrated plug-in models, and recallable mic preamps need look no further than the StudioLive 32R. An integrated 128-channel (64x64) audio interface lets you record all your inputs and buses over USB.
The StudioLive 32R is also a complete rack of vintage EQ and dynamics processors. Every channel and bus can be processed with Fat Channel plug-in models pre- or post-recording. Modeled after classic analog studio designs, these compressor and EQ plug-ins load both natively on the StudioLive 32R and inside Studio One®, providing the ultimate mixing and recording flexibility. You get six models pre-installed, plus an additional 15 plug-ins from the Fat Channel Collection Vol. 1: a $149 (USD) value if purchased separately. Like every PreSonus interface, the StudioLive 24R is ready to record right out of the box with Studio One Artist or Capture®—both of which are included.
A complete networked solution.
StudioLive Series III networked products form an ecosystem that is easily expanded and quickly configured. Designed to enhance each other, these products are at the forefront of AVB networking technology. The StudioLive 32R combines the powerful processing for which StudioLive Series III mixers are known with flexible modes to pair perfectly with console mixers and EarMix 16M personal monitoring mixers. Whether used standalone as a digital mixer and audio interface, or utilized with other StudioLive Series III ecosystem products, the StudioLive 32R combines flexibility with DSP power to become the ultimate compact audio solution.
Three year warranty—for all Series III and III S mixers
When we introduced the StudioLive Series III S mixers, we upgraded all Series III mixer warranty programs to three years as well, including both console and rack mixers. Even if you bought yours two and a half years ago, you're covered.
We take our build quality seriously, and if anything goes wrong with your mixer in your first three years of ownership (assuming you don't throw it in a swamp or anything like that) we'll repair it.
Make your own magic.
At PreSonus, we want to make sure that our audio interfaces come with everything you need to craft your own mesmerizing spells in the studio. That’s why we include Studio One Artist with every audio interface product we make. But here in Louisiana, we have a word: lagniappe. It means "a little something extra," and it’s in that spirit that we also include the Studio Magic Suite of software with our audio interface products.
The 2020 Studio Magic is a major step up from the 2019 edition, and includes Ableton Live Lite, tutorials from Melodics, 6 virtual instruments, and 9 effects plug-ins in VST, AU, and AAX formats... all unlocked for use inside Studio One Artist with a retail value of over $1000 (US).
Features
Powered by the new dual-core PreSonus FLEX DSP Engine to provide the most processing of any digital mixer in its class
36 input-channel digital rack mixer
32 local digitally controlled XMAX mic/line inputs
4 FLEX FX returns
26 mix buses
16 FlexMixes (Aux, Subgroup, Matrix)
4 dedicated FLEX FX buses
Stereo Main bus
286 simultaneous processors
HPF
Gate / Expander
Compressor with Fat Channel plug-in models
4-band/6-band parametric EQ with Fat Channel plug-in models
Limiter
31-band Graphic EQ
4 FLEX FX slots featuring legendary classic reverb emulations and delays
State Space-Modeled Fat Channel compressor and EQ plug-ins available on every input channel and output bus
FLEX FX multi-effects processor with 4 slots to load legendary reverb emulations and delays with 4 dedicated effects buses
24 DCAs to control groups of channels
128-channel (64x64) recording over USB
Onboard stereo SD recorder with true Virtual Soundcheck mode
AVB Networking onboard (64x64) to connect with other mixers, NSB-series stage boxes, EarMix 16M personal monitor mixers and more
Monitor Mix and Stage Box Mode for use with StudioLive Series III console mixers
Pair with EarMix 16M personal monitor mixers for the ultimate personal monitor system
Remote control every mix function from your computer, iPad, or Android tablet with UC Surface (included)
Put your musicians’ monitor mix under their fingers with QMix-UC (included) for iOS or Android
Capture 3.0 multitrack software included
Automated Virtual Soundcheck
Store StudioLive mix scenes with your audio
Advanced Studio One integration (Studio One Artist Included)
XMAX mic preamp control from Studio One
Control Fat Channel parameters from Studio One mixing console
_____________________________________________________________________________
Echo tone Music is a long time E-commerce Audio and Musical instrument dealer since 1998. We take pride in selling quality gear for musicians, sound engineers and broadcast applications.
Shipping --Items are well packed and shipped USPS, FEDEX and UPS. Items purchased on Friday may not ship till monday. We want to get your item out as fast as we can.
Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs. Refunds are for the product price only and will be less all shipping charges and 15% restocking fee if the item was delivered with no defects.
If the item was listed as free shipping then the cost of the shipment will be deducted. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional restocking fee. This item is now used and it would be unfair to resell to another customer as new.
Happy customers, that's music to our ears!
Presonus Studio Live 24R 26-input 32-channel Series III stage box rack mixer
Stunning Rackmount Mixing and Processing Power.
Ships Free!
The digital mixer that defines versatility.
The StudioLive 24R digital mixer is four audio tools in two compact rackspaces. Use it as a standalone digital mixer with UC Surface remote mixing software. Pair it with your StudioLive Series III console mixer to use as a stage box or integrated monitor mixer. Connect it with EarMix 16M monitor mixers for the ultimate personal monitor system. And of course, Just like other StudioLive Series III digital mixers, the StudioLive 24R is a continuously bidirectional, 128-channel (64x64) USB audio interface. Whether used standalone or as part of a complete audio system, no other rackmount digital mixer is as flexible or as powerful.
The best digital mixer for your rack.
Inside the StudioLive 24R, you’ll find the dual-core PreSonus FLEX DSP Engine powering 40 mixing channels, 22 mix buses, and 270 simultaneous processors—including 4 stereo reverberation systems and Fat Channel plug-in models on every input channel and mix bus. Add an NSB 8.8 stage box and you’ve got an analog input and output for every channel and bus. This is a true 32-channel digital mixer that can comfortably fit in any size rig. Simply connect it to a standard wireless router and control every mix parameter from your iPad®, Android™ tablet, or Windows® Touch computer using UC Surface. UC Surface was designed to make mixing on a touch screen as intuitive as mixing on faders, but with the benefit of allowing you to mix front-of-house from anywhere in the venue.
An integrated monitor mixer.
Professional venues and touring acts know that having a dedicated monitor mixer is the best way to ensure musicians can hear themselves clearly on stage. When connected to a StudioLive Series III console mixer, the StudioLive 24R provides remote inputs and main outputs while simultaneously retaining full control over its FlexMixes, so you can create up to 16 monitor mixes complete with independent gate, compression, EQ, and effects on every channel and bus.
The perfect personal monitoring system.
Modern musicians sometimes want more than just remote control: They want total control. When combined with up to 16 EarMix 16M personal monitor mixers, the StudioLive 24R is the most powerful personal monitoring hub available. With 16 FlexMix buses that can be configured as aux mixes, subgroups, or matrix mixes, the StudioLive 24R makes it easy to bus down larger channel counts to provide simplified 16-channel mixes for your musicians to manage. Four dedicated effects buses let you add reverb and delay and let the musicians control the blend from stage. No other personal monitoring system offers so much powerful processing with flexible, easy-to-use routing features.
The digital stage box.
As a digital stage box for StudioLive Series III console mixers, the StudioLive 24R provides 24 remote digitally controlled XMAX preamps that can be gain-staged right from your StudioLive Series III console Fat Channel. The outputs of the StudioLive 24R automatically mirror the mixes available on your console mixer, making routing fast and easy. Best of all, when you need a rackmount mixer for a small mobile gig, simply disable Stage Box mode and you have a full-featured 32-channel digital mixer that fits into two rackspaces.
The 64-channel audio interface.
Recording engineers searching for a high-channel-count audio interface with near-zero latency monitor mixing, integrated plug-in models, and recallable mic preamps need look no further than the StudioLive 24R. An integrated 128-channel (64x64) audio interface lets you record all your inputs and buses over USB.
The StudioLive 24R also provides a complete rack of vintage EQ and dynamics processors. Every channel and bus can be processed with Fat Channel plug-in models pre- or post-recording. Modeled after classic analog studio designs, these compressor and EQ plug-ins load both natively on the StudioLive 24R and inside Studio One®, providing the ultimate mixing and recording flexibility. You get six models pre-installed, plus an additional 15 plug-ins from the Fat Channel Collection Vol. 1: a $149 (USD) value if purchased separately. Like every PreSonus interface, the StudioLive 24R is ready to record right out of the box with Studio One Artist or Capture®—both of which are included.
A complete networked solution.
StudioLive Series III networked products form an ecosystem that is easily expanded and quickly configured. Designed to enhance each other, these products are at the forefront of AVB networking technology. The StudioLive 24R combines the powerful processing for which StudioLive Series III mixers are known with flexible modes to pair perfectly with console mixers and EarMix 16M personal monitoring mixers. Whether used standalone as a digital mixer and audio interface, or utilized with other StudioLive Series III ecosystem products, the StudioLive 24R combines flexibility with DSP power to become the ultimate compact audio solution.
Three year warranty—for all Series III and III S mixers
When we introduced the StudioLive Series III S mixers, we upgraded all Series III mixer warranty programs to three years as well, including both console and rack mixers. Even if you bought yours two and a half years ago, you're covered.
We take our build quality seriously, and if anything goes wrong with your mixer in your first three years of ownership (assuming you don't throw it in a swamp or anything like that) we'll repair it.
Make your own magic.
At PreSonus, we want to make sure that our audio interfaces come with everything you need to craft your own mesmerizing spells in the studio. That’s why we include Studio One Artist with every audio interface product we make. But here in Louisiana, we have a word: lagniappe. It means "a little something extra," and it’s in that spirit that we also include the Studio Magic Suite of software with our audio interface products.
The 2020 Studio Magic is a major step up from the 2019 edition, and includes Ableton Live Lite, tutorials from Melodics, 6 virtual instruments, and 9 effects plug-ins in VST, AU, and AAX formats... all unlocked for use inside Studio One Artist with a retail value of over $1000 (US).
Features
Powered by the new dual-core PreSonus FLEX DSP Engine to provide the most processing of any digital mixer in its class
36 input-channel digital rack mixer
24 local digitally controlled XMAX mic/line inputs
4 FLEX FX returns
26 mix buses
16 FlexMixes (Aux, Subgroup, Matrix)
4 dedicated FLEX FX buses
Stereo Main bus
286 simultaneous processors
HPF
Gate / Expander
Compressor with Fat Channel plug-in models
4-band/6-band parametric EQ with Fat Channel plug-in models
Limiter
31-band Graphic EQ
4 FLEX FX slots featuring legendary classic reverb emulations and delays
State Space-Modeled Fat Channel compressor and EQ plug-ins available on every input channel and output bus
FLEX FX multi-effects processor with 4 slots to load legendary reverb emulations and delays with 4 dedicated effects buses
24 DCAs to control groups of channels
128-channel (64x64) recording over USB
Onboard stereo SD recorder with true Virtual Soundcheck mode
AVB Networking onboard (64x64) to connect with other mixers, NSB-series stage boxes, EarMix 16M personal monitor mixers and more
Monitor Mix and Stage Box Mode for use with StudioLive Series III console mixers
Pair with EarMix 16M personal monitor mixers for the ultimate personal monitor system
Remote control every mix function from your computer, iPad, or Android tablet with UC Surface (included)
Put your musicians’ monitor mix under their fingers with QMix-UC (included) for iOS or Android
Capture 3.0 multitrack software included
Automated Virtual Soundcheck
Store StudioLive mix scenes with your audio
Advanced Studio One integration (Studio One Artist Included)
XMAX mic preamp control from Studio One
Control Fat Channel parameters from Studio One mixing console
ProductsMixing SystemsStudioLive Series III Rack MixersStudioLive 24RFeatures
-----------------------------------------------------------------------------------------
Echo tone Music is a long time E-commerce Audio and Musical instrument dealer since 1998. We take pride in selling quality gear for musicians, sound engineers and broadcast applications.
Shipping --Items are well packed and shipped USPS, UPS or Pallet Freight Service. Items purchased on Friday may not ship until Monday or until the projected processing period. We are working hard to get your unit Built ( if needed), processed and shipped.
Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.
Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as belt-buckle or pick scratches, scuffs, dings or scrapes, screw mount marks or collateral materials. Items must also include all original packaging, manuals, warrantees and accessories or your return may be subject to a return handling charge.
If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.
The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, body jewelry, sheet music, cleaners, polishes and polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.
Happy customers, that's music to our ears!
Presonus StudioLive AR16c 16 channel USB Audio Interface Analog Mixer Stereo SD Recorder
Ships Free!
Audio recording made easy.
Don’t let the classic analog mixer design fool you—the StudioLive® AR16c was built to record. With a pristine analog front-end, 12 high-gain XMAX mic preamps, and an 18x4 24-bit, 96 kHz, USB-C compatible USB 2.0 audio interface, its hybrid design makes it simple to record studio productions and mix live shows from a single intuitive console. Add in a musical 3-band analog EQ, mic/line boost for low-level vintage synths and broadcast microphones, all-new digital effects with rich reverbs and lush delays, Bluetooth® connectivity, and a stereo SD recorder... and you have a mixing and recording powerhouse that fulfills the needs of both modern musicians and content creators.
A full-featured audio interface.
The StudioLive AR16c audio interface operates at up to 96 kHz for high-definition mixing and recording. Record each of the 16 inputs, plus the main mix for even more flexible recording options. Play back up to four streams for monitoring previously recorded tracks—plus a click. Twelve lauded XMAX mic preamps provide all the gain you need to capture even the most subtle details without adding any extra noise. The analog mixer front-end makes connecting your gear to your computer intuitive, and creating monitor mixes is quick and easy. With a USB-C™ compatible connection, your StudioLive AR16c is ready to use as an audio interface for nearly any computer.
The channel that does it all… even Bluetooth connectivity!
The unique Super Channel can handle four stereo sources at once and makes it easy to integrate consumer devices into your studio workflow. Connect a turntable to the RCA inputs, use the ⅛-inch stereo input to plug-in your smartphone, or forget the cable and connect it via Bluetooth wireless technology. You can also toggle between a stereo playback stream from your computer and playback from the onboard SD recorder, making rehearsal a snap.
A complete recording solution for studio and stage.
The StudioLive AR16c audio interface and analog mixer is tightly integrated with state-of-the-art recording software to help you realize your creative vision. Record multitrack live performances with one click thanks to PreSonus’ Capture™ live-recording software. Create complete studio productions with our award-winning Studio One® Artist DAW. With two professional recording applications included with your StudioLive AR16c, you’re ready to record right out of the box.
Stereo recording without a computer.
Imagine you’re rehearsing with your band and want to record your session to analyze later. Or perhaps you’re in the middle of a songwriting session and want to capture your ideas as quickly as they come to you. Either way, the StudioLive AR16c’s stereo SD recorder has you covered. Insert any SD/SDHC card and you’re ready to record your main mix to listen to later, so you’ll never forget a great song idea or an amazing guitar solo. Doing mobile interviews for your podcast? Leave the computer at home and record straight to SD.
Effects without latency.
Monitoring with reverb and delay helps to create better recordings. Any vocalist or guitarist will tell you that a little reverb makes them feel more comfortable while performing. The StudioLive AR16c mixer’s onboard effects processor lets you add high-quality reverb, delay, or chorus to any channel for a professional monitor mix. Like what you hear in your headphones? Record the Main Mix and capture the effects mix, too—with or without the dry channels—to blend with your multitrack recording. Experiment in post-production to your heart's content.
All the connections you need with a familiar look.
Packed with all the connections and controls needed to mix and record in the studio and on the stage, the StudioLive AR16c is the ultimate recording solution. The eight mono channels and four stereo channels include a musical three-band EQ, plus one of PreSonus’ famed XMAX high-gain mic preamps. Two dedicated monitor mixes with balanced outputs provide your musicians the custom mix they need. The USB-C compatible connector ensures your StudioLive AR16c audio interface will be the center of your studio for years to come. And with high-resolution 96 kHz recording, a full complement of connections, and an instantly familiar workflow, the StudioLive AR16c is the perfect recording and mixing solution for the modern musician and content creator.
Make your own magic.
At PreSonus, we want to make sure that our audio interfaces come with everything you need to craft your own mesmerizing spells in the studio. That’s why we include Studio One Artist with every audio interface product we make. But here in Louisiana, we have a word: lagniappe. It means "a little something extra," and it’s in that spirit that we also include the Studio Magic Suite of software with our audio interface products.
The 2020 Studio Magic is a major step up from the 2019 edition, and includes Ableton Live Lite, tutorials from Melodics, 6 virtual instruments, and 9 effects plug-ins in VST, AU, and AAX formats... all unlocked for use inside Studio One Artist with a retail value of over $1000 (US).
Features
Recording
18x4 24-bit/96 kHz, USB 2.0 (over USB-C™ connection) audio recording interface
Record every channel plus the main mix
2x2 SD recorder to capture the main mix
Supports SD™ and SDHD™ formats up to 32 GB
Mixing
18-channel analog mixer
12 balanced microphone inputs with XMAX mic preamps
2 insert points
2 instrument/line inputs
16 balanced line level inputs:
8 mono
4 stereo pairs
Stereo Super Channel (Ch. 17/18) with Bluetooth 5.0 input, RCA inputs, 1/8-inch stereo input, and switchable SD/USB stereo playback
8 mono and 4 stereo channels, each with level knob, pan, mute, PFL solo, highpass filter, and 3-band semi-parametric EQ
2 monitor buses with dedicated channel sends, AFL solo, and balanced TRS output
L/R Control Room outputs with level control
Headphone output with level control
Signal Processing
Highpass filter on every channel
3-band quasi-parametric EQ with sweepable mid-band on each mono channel
3-band semi-parametric EQ on each stereo channel
Stereo effects processor with 16 presets, dedicated send and return, and bypass footswitch jack
Mic/line boost on stereo channels for low-level input sources and consumer devices
Included Software
Capture™ live multitrack recording software
Studio One ® Artist recording and production software (DAW)
Studio Magic plug-in suite
Power
Internal power supply
Standard IEC power connector
Physical
Sturdy metal construction
60 mm faders
Rackmount kit included
-----------------------------------------------------------------------------------------
Echo tone Music is a long time E-commerce Audio and Musical instrument dealer since 1998. We take pride in selling quality gear for musicians, sound engineers and broadcast applications.
Shipping --Items are well packed and shipped USPS, UPS or Pallet Freight Service. Items purchased on Friday may not ship until Monday or until the projected processing period. We are working hard to get your unit Built ( if needed), processed and shipped.
Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.
Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as belt-buckle or pick scratches, scuffs, dings or scrapes, screw mount marks or collateral materials. Items must also include all original packaging, manuals, warrantees and accessories or your return may be subject to a return handling charge.
If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.
The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, body jewelry, sheet music, cleaners, polishes and polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.
Happy customers, that's music to our ears!
PreSonus StudioLive AR8c 8-channel USB-C Compatible Audio Interface Analog Mixer Recorder
Ships Free!
Podcasting and home recording, simplified.
With its instantly familiar analog mixer design, the StudioLive® AR8c is the easiest way to record podcasts, live streams, and music productions. Featuring a pristine analog front-end with four high-gain XMAX mic preamps and an 8x4, 24-bit, 96 kHz, USB-C-compatible USB 2.0 audio interface, the StudioLive AR8c’s hybrid design makes it simple to record from a single intuitive console. Add in tools like a musical 3-band analog EQ, mic/line boost for low-level broadcast microphones and consumer devices, Bluetooth connectivity, and a stereo SD recorder, and you have a broadcasting and recording powerhouse that fulfills the needs of both modern musicians and content creators.
A full-featured audio interface.
The StudioLive AR8c audio interface operates at up to 96 kHz for high-definition mixing and recording. Record each of the six inputs, plus the main mix, for even more flexible recording options. Play back up to four streams for monitoring previously recorded tracks—plus sound effects, loopback audio, and more. Four of PreSonus' lauded XMAX mic preamps provide all the gain you need to capture even the most subtle details without adding noise. The analog mixer front-end makes connecting your gear intuitive. With a USB-C compatible connection, your StudioLive AR8c is ready to use as an audio interface for nearly any computer.
The channel that does it all… even Bluetooth connectivity!
The unique Super Channel can handle four stereo sources at once and makes it easy to integrate consumer devices into your studio workflow. Connect a turntable to the RCA inputs, use the ⅛-inch stereo input to plug in your smartphone, or forget the cable and connect via Bluetooth wireless technology. You can also toggle between a stereo playback stream from your computer and play back from the onboard SD recorder, making it simple to add bumpers and sound effects to your podcast in real-time or practice along with your favorite recordings.
The all-in-one recording package.
The StudioLive AR8c audio interface and analog mixer is tightly integrated with state-of-the-art recording software to help you achieve your creative vision. Create multitrack recordings for your podcast or band with one click thanks to PreSonus® Capture® live-recording software. Capture is designed to make recording easy. Create complete studio productions with our award-winning Studio One® Artist DAW to add effects, bumpers, and more. With two professional recording applications included with your StudioLive AR8c, you’re ready to record right out of the box, whether you’re creating a podcast, live streaming your performance, or recording your first EP.
Record whenever and wherever you want.
Whether you’re recording a mobile interview for your podcast, or you’re in the middle of a songwriting session and want to capture your ideas as quickly as they come to you, the StudioLive AR8c’s stereo SD recorder has you covered. Insert any SD/SDHC card, and you’re ready to record your main mix, enabling you to simplify your recording process whenever you want. Doing mobile interviews for your podcast? Leave the computer at home and record straight to SD.
Effects without latency
Monitoring with reverb and delay helps to create better recordings. Any vocalist or guitarist will tell you that a little reverb makes them feel more at ease while performing. The StudioLive AR8c mixer’s onboard effects processor lets you add high-quality reverb, delay, or chorus to any channel for a professional monitor mix. Like what you hear in your headphones? Record the main mix and capture the effects mix, too—with or without the dry channels—to blend with your multitrack recording. Experiment in post-production to your heart's content.
All the connections you need with a familiar look.
Packed with all the connections and controls needed to mix and record podcasts, live streams, and music productions, the StudioLive AR8c is a powerful recording solution. The two mono channels and two stereo channels include a musical three-band EQ, plus one of PreSonus’ famed XMAX high-gain mic preamps. The USB-C connector ensures your StudioLive AR8c audio interface will be the center of your studio for years to come. With high-resolution 96 kHz recording, a full complement of connections, and an instantly familiar workflow, the StudioLive AR8c is the perfect recording and mixing solution for the modern musician and content creator.
Apple Silicon M1, iOS, and iPadOS compatibility—standard.
The PreSonus StudioLive AR8c is natively compatible with Apple Silicon M1-based Mac computers*, as well as iOS and iPadOS devices, including iPad Pro, iPad, iPad Air, iPad Mini, iPod Touch, and iPhone. Because it's USB class-compliant, there are no special drivers or applications to download and install. You'll be able to produce on the go—everything from podcasts to folk rock to trap—wherever sound takes you.
Make your own magic.
At PreSonus, we want to make sure that our audio products come with everything you need to craft your own mesmerizing spells in the studio. That's why we include Studio One Artist with every audio interface and controller product we make, from the 2-channel AudioBox USB 96 to the 64-channel StudioLive 64S, ATOM to FaderPort 16, but we didn't stop there. Why? Because here in Louisiana, we have a word: lagniappe. It means "a little something extra," and it's in that spirit that we also include the Studio Magic Suite of software with our audio interface products and–new for 2021–our award-winning controllers as well.
The 2021 Studio Magic includes tutorials from Melodics, sound libraries from Ghost Hack, 7 virtual instruments, and 9 effects plug-ins in VST, AU, and AAX formats to use in Studio One Artist or your DAW of choice with a retail value of over $1000 (US).
Features
Recording
8x4 24-bit/96 kHz, USB 2.0 (over USB-C connection) audio recording interface
Record every channel plus the main mix
2x2 SD recorder to capture the main mix
Supports SD™ and SDHD™ formats up to 32 GB
Mixing
8-channel analog mixer
4 balanced microphone inputs with XMAX mic preamps
2 instrument/line inputs
6 balanced line level inputs:
2 mono
2 stereo pairs
Stereo Super Channel (Ch. 13/14) with Bluetooth 5.0 input, RCA inputs, 1/8-inch stereo input, and switchable SD/USB stereo playback
2 mono and 2 stereo channels, each with level knob, pan, mute, PFL solo, highpass filter, and 3-band semi-parametric EQ
1 monitor bus with dedicated channel send, AFL solo, and balanced TRS output
L/R Control Room outputs with level control
Headphone output with level control
Signal Processing
Highpass filter on every channel
3-band semi-parametric EQ on every channel
Stereo effects processor with 16 presets, dedicated send and return, and bypass footswitch jack
Mic/line boost on stereo channels for low-level input sources and consumer devices
Included Software
Capture® live multitrack recording software
Studio One® Artist recording and production software (DAW)
Studio Magic Software Suite
Power
Internal power supply
Standard IEC power connector
Physical
Sturdy metal construction
Optional rackmount kit
Computer system requirements:
Below are the minimum computer-system requirements for use with Capture® and Studio One®.
Mac®
macOS® 10.13 or higher (64-bit only)
Intel® Core™ i3 or better (Native support for Apple Silicon)
Minimum 4 GB RAM (8 GB or more recommended)
Windows®
Windows 10 (64-bit only)
Intel Core i3 / AMD® A10 processor or better
Minimum 4 GB RAM (8 GB or more recommended)
Mac and Windows Systems
USB 2.0 port
Internal or external 7200 RPM storage drive highly recommended
30 GB hard disk space
Monitor with 1366x768 resolution
The minimum system requirements may differ for DAWs other than Studio One. Please check the requirements for your DAW of choice with its manufacturer.
Note that the speed of your processor, amount of RAM and size and speed of your hard drive will greatly affect the overall performance of your recording system. Also, a more powerful system (faster processor with more RAM) will allow for lower latency (signal delay) than you might experience while monitoring audio signals.
As a commitment to constant improvement, PreSonus Audio Electronics, Inc., reserves the right to change any specification stated herein, at any time, without notification.
-----------------------------------------------------------------------------------------
Echo tone Music is a long time E-commerce Audio and Musical instrument dealer since 1998. We take pride in selling quality gear for musicians, sound engineers and broadcast applications.
Shipping --Items are well packed and shipped USPS, UPS or Pallet Freight Service. Items purchased on Friday may not ship until Monday or until the projected processing period. We are working hard to get your unit Built ( if needed), processed and shipped.
Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.
Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as belt-buckle or pick scratches, scuffs, dings or scrapes, screw mount marks or collateral materials. Items must also include all original packaging, manuals, warrantees and accessories or your return may be subject to a return handling charge.
If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.
The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, body jewelry, sheet music, cleaners, polishes and polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.
Happy customers, that's music to our ears!
Allen & Heath AH-AB-168 16 x 8 Portable AudioRack Digital Mixing System
16 XLR Input / 8 XLR Output – 48kHz
AB168 is a 48kHz portable remote AudioRack for use with Qu, Avantis and SQ mixers, and with the AHM-64 audio matrix processor.
Featuring 16 mic preamps with Phantom Power indicators and 8 XLR line outs, AB168 runs on Allen & Heath’s proprietary dSNAKE protocol.
Adding an AB168 to a compatible system allows some or all I/O to be positioned up to 100m from the mixer. The unit connects over a single Cat5 cable to the mixer or AR2412 AudioRack via a secure dSNAKE EtherCon port. A second EtherCon port is provided for daisy-chaining to another AB168 box or connection of a ME personal mixing system. AB168 auto updates its firmware to synchronize with the system.
The rack’s rugged design, including rubber bumpers, renders it highly roadworthy and allows it to be placed on the stage floor during performances. Weighing in at just 4.8kg and featuring a sturdy carry handle, AB168 is also designed for maximum convenience and portability. An optional rack mounting kit is also available.
Features:
48kHz
16 Mic Preamps
8 XLR Line Outs
Expander port for daisy-chaining of 2 AB168 Expanders or connection ME personal mixers
Optional 19-inch rack mount kit available
Compatible with CAT5e (or higher) cables of up to 100m
Rubber bumpers
Carry handle
Allen & Heath AH-ZED428 24 Ch USB Stereo Digital Mixer
4 Bus Mixer for Live Sound and Recording
ZED-428
ZED-428 is excellent for bands, houses of worship, theatres or AV applications. It has a truly professional feature set, which will fit any sound reinforcement application or professional PA hire stock. ZED-428 has configurable USB audio in/out, making it easy to capture stereo recordings, plus 24 mic/line inputs, 2 dual stereo inputs, 4-band EQ with MusiQ, 4 sub-groups, 6 auxiliary sends and a 7×2 matrix.
USB AUDIO FLEXIBILITY
Getting audio to and from a computer easily is now a common requirement for live sound and music production. The way this has been implemented on ZED is super-flexible and super-easy! No longer do you need to fiddle around the back of your PC to get to the soundcard inputs, only to find that the levels are all wrong and noisy. Just plug in a USB lead to your ZED, select the USB routing on the mixer and the device on your computer and that’s it! CD quality audio to and from your PC or Mac. Switches and connection through jack socket terminals provide different send/return configurations:-
SEND OPTIONS
1) Main Mix Left + Right (Post-fade)
2) Main Mix Left + Right (Pre-Fade)
3) Auxes 1-2
4) Auxes 5-6
5) Matrix 1-2.
RETURN OPTIONS
1) To Playback input
2) To Stereo 3 channel
MUSIQ
ZED-428 has a tuned 4-band EQ taken from the acclaimed GL2200 mixer, utilising MusiQ – with optimised slope (or Q factor) for equalising individual instruments.
DUOPRE
Based on the proven pre-amps from the hugely successful PA series, ZED-428 has DuoPre pre-amps, which use a two stage design, with carefully controlled amounts of gain in each stage. When amplifying the signal from the XLR input, the gain range is huge – 69dB of range to be exact – and is very evenly distributed around the gain control, meaning better control of signal level. Most of the gain comes from the first stage, so unwanted noise is kept to a minimum. Line level signals are simply plugged into the second stage of the pre-amp by using the line input jack socket, which has the great advantage of less noise when using the line input and also matching to a higher input impedance.
Features:
24 mono channels
2 dual stereo inputs with 4-band EQ
Neutrik mic XLR
Neutrik 1/4 inch jacks
Channel insert
Super wide gain ‘DuoPre’ mic line input
4-band EQ with 2 swept mids and in/out switch
Illuminated mute
Sound image pan
Illuminated PFL & peak warning indicator
ALPS 100mm faders
6 auxiliary sends (2 pre, 2 post, 2 pre/post)
4 sub groups fed from each channel
All inputs with level control
12 bar meters
L, R and M main mix outputs
2 matrix sections available; can send output to USB
Individual channel 48V phantom power
Direct output on every mono channel
Peak and signal indication on every channel
Configurable USB stereo audio in/out
Master level controls on all outputs
Easy to use layout – all connections and controls on top surface
A New Standard in Compact Digital Mixing
48 channel, 96kHz digital mixer for live sound, AV and installation.
Compact, powerful, and versatile, the Allen & Heath SQ-5 is a premium 48-channel digital mixer designed for professionals who need exceptional performance in a portable format. It features 16+1 motorized faders, 16+1 onboard preamps and 8 assignable SoftKeys, providing comprehensive control in a compact 19” rack-mountable design.
Drag-and-Drop Layout
Channels and mixes can be dragged and dropped to any strip, with custom naming and colour coding on the displays, allowing you to build a mixing environment that works for you.
At-a-Glance Metering
Each strip features our patented Chromatic channel metering system, giving you at-a-glance level indication thanks to LEDs with variable brightness and colour.
Intuitive Control
SQ’s dashboard is centred around a high-res 7” touchscreen, framed by an array of high-grip, illuminating encoders to create an intuitive, integrated blend of clear visual feedback and immediate, hands-on control.
Speed Up Your Workflow
All SQ mixers feature SoftKeys, which can be assigned to commonly used functions. The SQ-6 and SQ-7 also provide assignable Soft Rotaries for even more custom control.
Processing
Powerful Processing
Every input has HPF, a super-fast gate with sidechain and filter, a musical 4-band parametric equaliser with RTA, and Peak/RMS compressor for control and shaping of levels and transients.
Mixes have both a parametric and 28 band graphic EQ, along with compressor as standard, all ready to switch in when required.
FX
World-Class FX
SQ is armed with 8 stereo FX engines and comes complete with the acclaimed RackExtra library, featuring emulations of legendary classic reverbs, gated reverbs, delays, modulators and more.
Every engine has its own dedicated stereo return too, so you don’t need to use up any of your 48 input channels.
Integrated USB Interface
Record. Stream. Mix.
SQ’s built-in 32×32 96kHz audio interface enables easy multitrack recording, backing-track playback, livestreaming and virtual soundcheck.
The interface is class-compliant on Mac OS X making it truly plug ‘n play, with ASIO and WDM compatible drivers available for Windows computers.
You can even map the SQ’s faders, rotaries, channel keys and softkeys to control your favourite DAW using the Allen & Heath MIDI Control app.
Features
Audio and Processing:
96kHz XCVI FPGA processing
48 input channels
12 stereo mixes + LR
3 stereo matrix
8 stereo FX engines + dedicated stereo returns
DEEP processing ready
Onboard I/O:
16+1 built-in mic preamps
2 stereo line inputs
12 XLR line outputs
2 TRS line outputs
AES output
Control:
16+1 Faders / 6 Layers
7” capacitive touchscreen
8 assignable SoftKeys
SQ-MixPad app
SQ4You app
Expandability and Integration:
SLink port for remote audio/expansion
64×64 I/O port for audio networking cards (Dante, Waves, MADI, SLink)
Recording and Streaming:
SQ-Drive direct recording to USB
32×32 96kHz USB interface
