Sound Cards

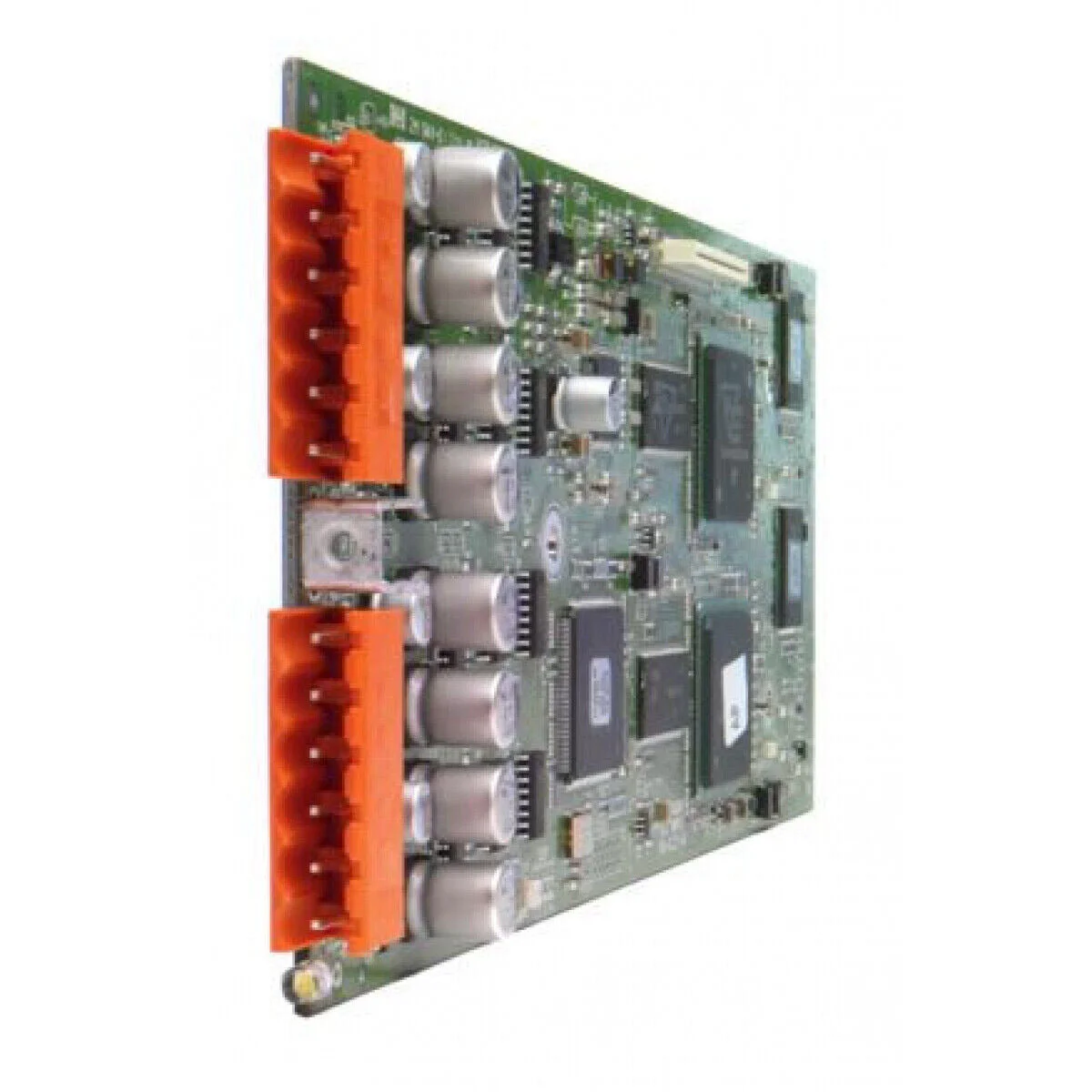

BSS BLUCARD-OUT Analog Output Sound Card  AES/EBU and S/PDIF audio signals

The Soundweb London Analog Output Card is designed to populate any of the four card slots on Soundweb London BLU-800, BLU-805, BLU-806, BLU-320, BLU-325, BLU-326, BLU-160, BLU-120, BLU-80, BLU-32 and BLU-16 devices. This analog card enables Soundweb London devices to send line level signals.

The Analog Output Card has two Combicon connectors which are used as follows:

Connector 1

Balanced / Unbalanced Audio, Channel 1 - Mic/Line

Balanced / Unbalanced Audio, Channel 2 - Mic/Line

Connector 2

Balanced / Unbalanced Audio, Channel 3 - Mic/Line

Balanced / Unbalanced Audio, Channel 4 - Mic/Line

Connector [Mic/Line Combicon] [Mic/Line Combicon]

Signal                4 3                        2   1

Pin                 [S + -]      [S + -]                   [S + -] [S + -]

Balanced Hot: to + Unbalanced Hot: to +

          Cold: to -                 Link to Shield: to -

          Shield: to S          Shield: to S

Specifications

Analog Outputs: 4 line

Output Type: balanced/unbalanced

----------------------------------------------------------------------------------------------------------------

Echotone Music LLC is an experienced  long time E-commerce Audio & Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers, production companies and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as mount marks, plug marks, scratches,  scuffs, dings or scrapes, screw mount marks or collateral material damage.. Items must also include all original packaging, manuals, warrantees & accessories or your return may be subject to a return handling charge.

Refunds or for the Item cost only. If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, cleaners, polishes & polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!

Allen & Heath M-DL-WAVES3-A  Audio Networking Card

dLive/Avantis Audio Networking Card

The Waves V3 Audio Networking Card (M-DL-WAVES3) is one of several audio networking options that can be fitted to an Allen & Heath dLive or Avantis I/O Port. It provides a 128x128ch 48/96kHz interface to the Waves SoundGrid networking platform, for several applications including Waves plugin processing, audio distribution, and digital mic splitting. It also offers a super convenient way of recording 128 tracks of 96kHz audio, into a Windows or Mac computer, over a single CAT cable.

SoundGrid is an Audio-over-Ethernet protocol developed by Waves for real-time professional audio applications. It provides a very low latency environment using standard Gigabit Ethernet networks. Plugin processing can be performed natively on a computer or on dedicated Waves servers.

Features:

• 128 in, 128 out

• Switchable 48/96kHz sample rate

• Waves SoundGrid audio networking

• Multitrack recording and playback

• Integrated 3-port Ethernet switch for connection of multiple devices

• Input sharing with Waves V2 and V3 cards

Allen Heath AM-SQ-WAVES3-A 64Ch Digital Audio SoundGrid Network Interface Card

SQ Waves provides any SQ or AHM-64 unit with a 64×64, 96kHz or 48kHz interface to a Waves SoundGrid network using the I/O Port. Engineers or installers can now fit the Waves card to any SQ or AHM-64 for Waves plugin processing, multitrack recording (at 96kHz or 48kHz), virtual soundcheck and audio distribution applications.

Features:

• 64×64 channel digital audio over a network

• 96kHz or 48kHz operation

• Integration with a Waves plugin server or Waves Native

• Multichannel recording / playback

• Two ports with integrated switch

• Internal Control Network Bridge

• Locking Ethercon connectors

Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998.  We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications.

Shipping --Pro packed & shipped  USPS, UPS or Freight Service. Contact us & pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed &  shipped. Processing times vary, 2-30  days

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided. Otherwise customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, & accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

What products can not be returned? - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids

Allen & Heath M-DANTE-A 64 Channel Dante Card for Digital Audio Networking

Ships Free!

Dante is a ground breaking, Ethernet compliant audio networking technology developed by Audinate to satisfy the increasing demands of the live sound industry for high performance audio, routing flexibility and affordable direct to computer recording. It uses CAT5 cable and standard networking components to distribute multiple streams of audio plus integrated control data with sub millisecond latency.

M-Dante is one of a range of digital audio networking options available for dLive, GLD and iLive to enable integration with other systems, digital mic splitting, multi-track recording and system expansion. It provides 64 channels of bi-directional audio at 48kHz, and can be fitted to any dLive I/O Port when equipped with a M-DL-ADAPT interface.

It can also be fitted to the I/O Port in a GLD mixer, Port B expansion slot in iLive fixed format MixRacks (iDR-16, iDR-32, iDR-48, iDR-64) or expander (xDR-16), Port A/B in iLive modular MixRacks (iDR0, iDR10) and Port A of iLive modular surfaces if they are fitted with the new RAB-2 standard.

Dante Virtual Soundcard is software from Audinate that lets you connect up to 64 channels of iLive audio directly to your PC or Mac via its Ethernet port, ideal for multitrack recording and playback, or working with popular processing plug-ins. One Dante Virtual Soundcard licence is provided free with M-DANTE. More can be purchased from Audinate.

Dante Domain Manager is network management software that enables user authentication, role-based security and audit capabilities for Dante networks, while allowing seamless expansion of Dante systems over any network infrastructure.

Features

• 64 channel bi-directional audio plus control over CAT5

• Uses standard, off-the-shelf computer networking equipment

• Self discovery and auto-configuration of IP addresses

• Easy to add, name, remove and rearrange devices

• Wide range of Dante enabled equipment becoming available

• Secondary port for redundant network option

• Control port to bridge dLive or other network over Dante

• Sample accurate playback syncronisation

• Very low latency

• Gigabit ports

• Direct connection to computer for multitrack recording

• Dante Virtual Soundcard software replaces expensive hardware

• Dante Controller software available for setting up the network

----------------------------------------------------------------------------------------------------------------

Echotone Music LLC is an experienced  long time E-commerce Audio & Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers, production companies and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as mount marks, plug marks, scratches,  scuffs, dings or scrapes, screw mount marks or collateral material damage.. Items must also include all original packaging, manuals, warrantees & accessories or your return may be subject to a return handling charge.

Refunds or for the Item cost only. If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, cleaners, polishes & polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!

Tascam SS-R250N Versatile 2 Channel SD Card Recorder Player for Network Applications USB

The SS-R250N is the ideal SD card recorder/player having a variety of features with extensive terminal equipment applications and business applications. An FTP client function is added which enables the exchanges of sound source data with others via server communication. You can also keep the starting time accurate for recording and playback based on time management via SNTP. The remote control with the dedicated app on a iOS/Android/ Windows/Mac device, and the mic inputs are also available on the unit which allows you to use in many ways with flexibility.

The unit is equipped with a LAN terminal for easy network connection to an FTP client, enabling you to upload recorded files from the SS-R250N side or download sound files from the server. As the SS-R250N also also acts as an FTP server, you can also upload / download from a PC side without having to physically exchange SD cards.

Event List for recording, playback, download and other functions enables automatic operation based on time
The Event List function contains an auto-play feature deisgned for audio files such as background music and announcements, perfect for use in a retail setting or restaurant. This Event List can also be used to to schedule recording and file upload which makes the TASCAM SS-R250N the perfect recorder for town hall meetings, board room installations and government jobs.

When operating on the same network, the SS-R250N can be controlled by an iOS / Android mobile device for remote status updates and transport control.

In addition to the front panel USB port, the SS-R250N will record to – and play back from SDXC cards, as well as SD/SDHC with capacity of up to 128GB.

Dual SD card slots can be used for backup recording, which records the same data on two cards simultaneously, or chain recording in which the system automatically begins recording on the second SD card when the first card has reached capacity.

While recording, the TASCAM SS-R250N automatically saves and closes the file every few seconds to safeguard against data loss.

The link playback function allows syncronized operation of two units, connected using S/PDIF. Ideal for critical situations where a backup is required, both units will record in sync, but also be able to operate independently if the need arises.

The SS-R250N is equipped with a wide array interface options to make it fast and easy to integrate into any touring, install, or live sound application.

Dual microphone preamps with Phantom power
Dual microphone inputs on the rear panel feature +48V Phantom for condenser and dynamic microphones. The SS-R250N also features an integrated ducking circuit making this unit idea for a wide variety of paging, background music and public address applications.

Optional IF-DA2 interface card supporting Dante 2ch Input and Output
With 2-channel Dante support, the TASCAM SS-R250N can be easily incorporated into any Dante network audio environment and also makes the SS-R250 one of the least expensive Dante interfaces available.

Features at a glance:
Network functions / control functions

FTP Client function enables automatic uploading of recorded files or downloading audio files from the server
Event List for recording, playback, download and other functions can be operated automatically based on the time set
Time setting via SNTP Client function enables event management with more accuracy
Automatic Upload function enables recorded files to be uploaded automatically
iOS / Android / Windows / Mac control apps available: allowing transport operations and remote control of various settings
The IF-DA2 interface card supporting Dante 2ch input and output can be installed (sold separately)
Serial and parallel port connections
RC-SS150 Flash Start control unit with the a color LCD screen (sold separately)
Optional RC-3F footswitch can be connected to the RC-20 remote control

Recording capabilities

Supports recording and playback of high-resolution files up to 96kHz / 24bit
Dual SD memory card slot permits mirror and relay recording
Auto mark function: When an error occurs or input level overloads, the time point will be marked automatically
PRE REC function to prevent any missing part in your recording
Auto track function automatically trims the tracks
Compressor and limiter included
Auto level control function automatically adjusts the input level for recording
Starts recording as soon as the unit is turned on with Power-on-record function
Microphone input connector with phantom power supply
Direct recording function enables the recording starts right away without any standby

Playback functions

Call function that saves the position where your last playback starts
Playback modes such as Program, Random, and Single
Ducking function automatically adjusts the playback volume while the input level increases or decreases
All repeat / A-B repeat function
Incremental play function to transport to the beginning of the next track
Monaural mix playback function
Auto Cue function tracks the first sound in the playback for standby
Auto ready function allows a standby before the next track begins
Pitch control and key control function for speed and key adjustments
Can set the mark at any position
EOM (End of message) notification available before the track ends

Other features

Sampling rate converter for inputs and outputs are available
Link playback function allows two units to be operated at the same time
Automatic file closing process to avoid data loss if there is a sudden power loss during recording
User presets: Up to three sets of optional settings can be stored for such things as switching input and output, sampling rate selection and other functions
1U rack-mount size

Specifications:
Recording/Playback media
SD:
SD card (512MB to 2GB)
SDHC card (4GB to 32GB)
SDXC card (64GB to 128GB)
USB: USB Flash memory (512MB to 128GB)
File format
MP3: 44.1k / 48k Hz, 64k / 128k / 192k / 256k / 320k bps
WAV: 44.1k / 48k / 96k Hz, 16 / 24-bit
Number of channels: 2 (stereo), 1 (mono)
Analog Audio inputs
UNBALANCED
Connector: RCA Pin jack× 1 pair
Nominal input level: –10dBV (0.316Vrms)
Maximum input level: +6dBV (2.0Vrms)
Input impedance: 10kΩ
BALANCED
Connector: XLR-3-31 (1: GND, 2: HOT, 3: COLD) × 1 pair
Line input
Nominal input level:
+4dBu (1.23Vrms, Ref.Level other than –9dBFS)
+6dBu (1.55Vrms, Ref.Level –9dBFS)
Maximum input level:
+15dBu (4.36Vrms, Ref.Level –9dBFS)
+18dBu (6.16Vrms, Ref.Level –14dBFS)
+20dBu (7.75Vrms, Ref.Level –16dBFS)
+22dBu (9.76Vrms, Ref.Level –18dBFS)
+24dBu (12.28Vrms, Ref.Level –20dBFS)
Input impedance: 10kΩ
Mic input
Maximum input level: +4dBu (1.23Vrms)
Minimum input level: –70dBu (245uVrms) or more
Input impedance: 2.2kΩ
Analog Audio outputs
UNBALANCED
Connector: RCA Pin jack × 1 pair
Nominal output level: –10dBV (0.316Vrms)
Maximum output level: +6dBV (2.0Vrms)
Output impedance: 200Ω
BALANCED
Connector: XLR-3-32 (1: GND, 2: HOT, 3: COLD) × 1 pair
Nominal output level: +4dBu (1.23Vrms)
Maximum output level:
+15dBu (4.36Vrms, Ref.Level –9dBFS)
+18dBu (6.16Vrms, Ref.Level –14dBFS)
+20dBu (7.75Vrms, Ref.Level –16dBFS)
+22dBu (9.76Vrms, Ref.Level –18dBFS)
+24dBu (12.28Vrms, Ref.Level –20dBFS)
Output impedance: 200Ω
Digital Audio inputs
AES/EBU
Connector: XLR-3-31 × 1
Input impedance: 110Ω
Format: AES3-2003/IEC60958-4 (AES/EBU)
Supported sampling frequencies: 44.1k / 48k / 96k Hz
S/PDIF
Connector: RCA Pin jack × 1
Format: IEC60958-3
Supported sampling frequencies: 32k to 96k Hz
Digital Audio outputs
AES/EBU
Connector: XLR-3-32 × 1
Output impedance: 110Ω
Format: AES3-2003/IEC60958-4 (AES/EBU)
Supported sampling frequencies: 44.1k / 48k / 96k Hz
S/PDIF
Connector: RCA Pin jack × 1
Format: IEC60958-3
Control input/output
REMOTE (FRONT)
Connector: 2.5mm TRS jack × 1 (TASCAM RC-3F, RC-20 sold separately)
RS-232C
Connector: D-sub 9 pin × 1
PARALLEL
Connector: D-sub 25 pin × 1
PHONES
Connector: 1/4" (6.3mm) Stereo Phone jack × 1
Maximum output: 45mW + 45mW (THD+N 0.1% or less, into 32Ω load)
ETHERNET
Connector: RJ-45 × 1
Compatible standard: 100BASE-TX
Power: AC 100 - 240V, 50/60Hz
Power consumption: 20W
Dimensions: 19.0" × 1.77" × 11.8" / 482.6 × 45 × 300.5 mm
Weight: 6.4 lbs. / 2.9 kg
Operating temperature range: 41˚F to 95˚F / 5˚C to 35˚C
Included items: AC power code, RC-10 remote control unit, rack-mounting screw kit, security screw kit, Owner's manual (with warranty)

Audio performance
Frequency response:
20Hz to 20kHz, ±0.5dB(JEITA)
20Hz to 40kHz, +0.5/–3dB (JEITA)
Distortion: 0.002% or less (Ref:–16dB/BALANCED, JEITA)
S/N ratio: 106dB or more (JEITA)
Dynamic range: 106dB or more (JEITA)
Crosstalk: 100dB or more (JEITA)
EIN (equivalent input noise): –125dBu or less (40Ω 20kHz LPF)

Waves SGRCK Plug In Software for VENUE S6L Mixing Console Full License Download

The full license of Waves 'SGRCK' SoundGrid Rack for VENUE rack plug-in software is the heart of the company's SoundGrid software and hardware integration with the Avid VENUE | S6L mixing console. Ideal for demanding live environments, it enables front-of-house, monitor, and broadcast engineers to run SoundGrid-compatible plug-ins directly within the S6L, with tactile control from the console's surface knobs and no need for a computer host or external network switch.

The software moves plug-in processing from the VENUE engine to a SoundGrid server (available separately), allowing you to run up to 128 mono or 64 stereo SoundGrid Rack instances at 96 kHz, and with minimum system latency. You can load up to eight SoundGrid-compatible plug-ins per instance of SoundGrid Rack.

Features:
Run SoundGrid-compatible Waves plug-ins directly within your Avid VENUE | S6L console
Real-time audio processing for front-of-house, monitor, and broadcast applications
Uses SoundGrid DSP server processing power for increased processing power with minimum system latency
Run up to 128 mono or 64 stereo SoundGrid Racks within the S6L, at 96 kHz
Load up to eight SoundGrid-compatible Waves plug-ins per instance of SoundGrid Rack
Follows standard operation of all plug-ins in the VENUE plug-in rack
Tactile control surface mapping for all Waves plug-ins
Snapshot automation for plug-in parameters
Legacy VENUE D-Show file compatibility
Server redundancy with automatic failover
No external computer host or network switch necessary

Specifications:
Delivery Method: Download
License Type: Standard
Standalone Operation: No
Supported Sample Rates: Up to 96 kHz
Number of Devices Supported: 1
Visual Impairment Support: No
System Requirements
Software Requirement:
VENUE 5.7
Waves Plug-Ins
Internet Connection Required: Yes

Waves XWSG SoundGrid I/O Expansion Card for X 32 and M 32 Series Mixing Console

The X-WSG is a console expansion card supported by various X-32 and M-32

series console models.

The X-WSG expansion slot card makes it possible to run Waves plug-ins on selected Behringer mixing consoles, using Waves SoundGrid technology. Together with a server, a Mac or PC, and authorized Waves plug-ins, the X-WSGlets you process 32 channels of audio using Waves award-winning reverbs, equalizers, compressors, limiters, delays, and more.

With a rich feature set including a redundancy and recovery safety net, plus scalability and expandability,X-WSG is an essential asset toany compatible Behringer mixing console.

The X-WSG card also features Clock Sync-over-Ethernet for syncing multiple consoles and performing digital splits.

SoundGrid is Waves’ Audio-over-Ethernet networking and processing technology, which provides extremely low latency, high channel-countWaves audio processing. Since it uses standard, off-the-shelf network switches,servers, and computers,it is an extremely cost-effective live-sound platform.

Features

• Supports the following sampling frequencies: 44.1, 48kHz

• Sample resolution: 24 bits

• 32 channels of audio at 44.1/48KHz

• ClockSync-over-Ethernet (SoE) for digital splits andaudio networking

• Card can accept Firmware changes/upgrades

Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998.  We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications.

Shipping --Pro packed & shipped  USPS, UPS or Freight Service. Contact us & pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed &  shipped. Processing times vary, 2-30  days

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided. Otherwise customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, & accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

What products can not be returned? - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids

Furman BLUEBOLT-CV2 IP Interface Card Plug In for F1500-UPS and MB1500

The BlueBOLT-CV2 Interface Card plugs in to select Panamax/Furman products and provides access to BlueBOLT™ cloud based remote power management technology. Each BlueBOLT-CV2 card includes a unique MAC address and identification number allowing you to create a BlueBOLT account or add a compatible unit to an existing account. The BlueBOLT-CV2 includes an embedded web page for local control, embedded scheduled events and pings, increased memory for future expansion, and enhanced data encryption AES128.

Features:
Embedded Web Page for local control
Embedded scheduled events and pings
Increased memory for future expansion
Enhanced data encryption AES128

Specifications
Networking: 10/100Base-T Ethernet
Power consumption: 1W (3.3V x 300mA)
Regulatory Approval: FCC part 15, Class B device
Supported Protocols: HTTP (port 80*), Telnet (Port 23*),*or user defined
Dimensions: 3.15” W x 4.0” L x 0.9” H
General
Family: Accessories
Line Voltage: 120 (Volts)
Compliance: FCC part 15, Class B device
Weight: 0.1 lbs.
Power Consumption: 1W (3.3V x 300mA)

Soundcraft MINI STAGEBOX-16R 16 Channel Mixing Console with MADI Card

The new Mini Stagebox range from Harman's Soundcraft provides a simple solution to stage connectivity offering a lower-cost option for many systems where the modularity and configurability of the larger systems are not required.

The Mini Stagebox 16R (2U) model providing 16 analogue inputs and 8 line outputs making a 16 x 8 matrix. They connect to any of the Soundcraft Si Expression, Si Compact, Si Performer, Si Series and Vi Series consoles via a MADI card fitted to the option card slot.

The Mini Stagebox models contain an integral PSU so are completely self-contained and sit comfortably stage-side.

The new units are part of the ViSi Connect range of interface options for all Soundcraft mixing consoles which includes the Compact and Vi Stageboxes and a range of option cards such as MADI, AES, CobraNet and AES.

Both models are supplied with the stagebox card installed, plus the corresponding card for an Si series console (Vi console MADI cards sold separately)

Compatibility:
Vi1              Si Impact                   Si1, Si1+
Vi2              Si Performer              Si2, Si2+
Vi4              Si Expression             Si3, Si3+
Vi6 Si Compact
Vi3000
Vi5000
Vi7000

BBS BSSBLUDIGITALOUT-M Digital Output Card for Soundweb London Blu Link

The BSS BSSBLUDIGITALOUT-M Digital Output Card card is designed to populate any of the four card slots on Soundweb London BLU-800, BLU-805, BLU-806, BLU-320, BLU-325, BLU-326, BLU-160, BLU-120, BLU-80, BLU-32 and BLU-16 devices. These digital cards enable Soundweb London devices to receive AES/EBU and S/PDIF audio signals.

Features:
The Digital Output Card can be configured in the following ways:

• 2 Stereo AES/EBU Signals
• 1 Stereo AES/EBU signal / 1 Stereo S/PDIF Signal
• 2 Stereo S/PDIF Signals

The Digital Output Card has two Combicon connectors which are used as follows:

• Connector 1: Stereo Audio, Channels 1 and 2 - AES/EBU / S/PDIF; Stereo Audio, Channels 3 and 4 - AES/EBU / S/PDIF
• Connector 2: Clock Input - High Impedance; Clock Input - 75R Terminated

Specifications:
• The Digital Output Card can be configured in the following ways:
2 Stereo AES/EBU Signals
1 Stereo AES/EBU signal / 1 Stereo S/PDIF Signal
2 Stereo S/PDIF Signals

• The Digital Output Card has two Combicon connectors which are used as follows:
Connector 1
Stereo Audio, Channels 1 and 2 - AES/EBU / S/PDIF
Stereo Audio, Channels 3 and 4 - AES/EBU / S/PDIF
Connector 2
Clock Input - High Impedance
Clock Input - 75R Terminated

Digital Inputs
• Up to 2 pairs of AES/EBU or S/PDIF on Phoenix/Combicon removable screw connectors
• Input Impedance: 110 ohm (AES/EBU), 75 ohm (S/PDIF)
• Sample Rate: 48kHz or 96kHz
• Sample Rate Conversion: 8kHz-96kHz
• THD+N: <-140dB
• Latency: 3/Fso + (56.581/Fsi) + (55.658/Fso)

Digital Outputs
• Up to 2 pairs of AES/EBU or S/PDIF on Phoenix/Combicon removable screw connectors
• Output Impedance: 110 ohm (AES/EBU), 75 ohm (S/PDIF)
• Sample Rate: 48kHz or 96kHz
• Sample Rate Conversion: 8kHz-96kHz
• THD+N: <-140dB
• Latency: 3/Fso + (56.581/Fsi) + (55.658/Fso)

BBS BSSBLUCARDOUT-M Analog Output Card Line for Soundweb London Chassis

The Soundweb London Analog Output Card is designed to populate any of the four card slots on Soundweb London BLU-800, BLU-805, BLU-806, BLU-320, BLU-325, BLU-326, BLU-160, BLU-120, BLU-80, BLU-32 and BLU-16 devices. This analog card enables Soundweb London devices to send line level signals.

Features:
The Analog Output Card has two Combicon connectors which are used as follows:
• Connector 1
Balanced / Unbalanced Audio, Channel 1 - Mic/Line
Balanced / Unbalanced Audio, Channel 2 - Mic/Line
• Connector 2
Balanced / Unbalanced Audio, Channel 3 - Mic/Line
Balanced / Unbalanced Audio, Channel 4 - Mic/Line

Specifications:
• Analog Inputs: Up to 4 electronically balanced on Phoenix/Combicon removable screw connectors
• Mic/Line Inputs: Nominal gain 0dB, electronically switchable up to +48dB,in +6dB steps
• Input Impedance: 3.5kΩ
• Maximum Input Level: +20dBu with 0dB input gain,+8dBu with 12dB gain
• CMRR: >75dB at 1KHz
• Input Noise (E.I.N.): <-128dBu typical with 150Ω source
• Phantom Power: 48V nominal, selectable per input
• A/D Latency (Rev. A):* 41/Fs [0.85ms@48k, 0.43ms@96k]
• A/D Latency (Rev. B): 12/Fs [0.25ms@48k, 0.13ms@96k]
• Analog Outputs: Up to 4 electronically balanced on Phoenix/Combicon removable screw connectors
• Maximum Output Level: +19dBu
• Output Impedance: 40 Ohms balanced, 20 Ohms unbalanced
• Frequency Response: 20Hz-20KHz (+0.5dB/-1dB)
• THD: <0.01% 20Hz to 20KHz, +10dBu output
• Dynamic Range: 108dB typical, 22Hz-22KHz unweighted
• Crosstalk: <-75dB
• D/A Latency: 28/Fs [0.58ms@48k, 0.29ms@96k]

Yamaha NY64-D Dante Expansion Card for TF Series Mixers

Call to order 585-405-4375

The NY64-D is a Dante expansion card for TF series consoles. The NY64-D from Yamaha is an I/O expansion card for the TF-series console that allows transmission and reception of up to 128 channels (64 in/64 out) of uncompressed 24-bit/48 kHz digital audio data via a Dante audio network. It is also compatible with the Tio1608-D Dante-equipped I/O rack (sold separately) and with this setup, it becomes possible to create a stage-box system with up to 48 inputs and 24 outputs.

The Yamaha NY64-D expands your TF mixer’s capabilities, making it a powerful solution for professional audio systems demanding top-tier performance and network versatility.

Features:
• Expands the TF-Series Routing Capacities
• 24-Bit/48 kHz Digital Audio
• Transmits & Receives Up to 128 Channels
• Plugs into Expansion Slot of Mixer
• Provides Audio Data Via a Dante Network

Specifications:
• Compatible with TF-Series Consoles
• Sample Rate and Resolution: 48 kHz / 24-Bit
• Inputs/Outputs: Connector 1 - 1x RJ45/etherCON, Connector 2 - 1x RJ45/etherCON
• Package Weight: 1 lb
• Dimensions (LxWxH): 8.8 x 7.1 x 3.6"
