Blaze Powerzone Amplifiers

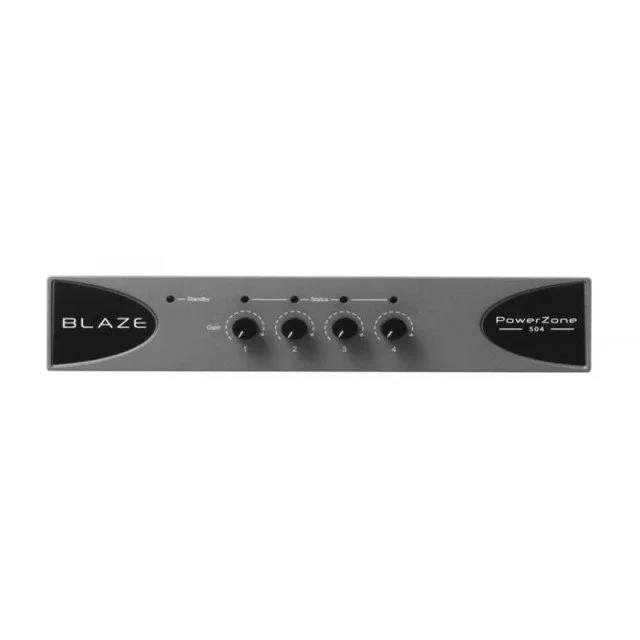

Blaze POWERZONE 504 1U Class D 4 Channel Power Amplifier 500 Watts

The PowerZone™ Connect 1U series is a line of DSP-enabled Class-D amplifiers designed to make system installers’ lives easier, offering unparalleled reliability and efficiency, along with exceptional system configuration. The ultra-compact form factor, makes them an ideal choice for audio/voice installation projects with limited space constraints that demand high-output performance. The 1U family powers both conventional low-impedance (4Ω to 16Ω) loudspeakers and constant voltage (70V/ 100V) transformer-coupled loudspeakers, and features automatic power-sharing technology for proportional distribution in both Lo-Z and Hi-Z modes.

Our intuitive PowerZone™ Control web app is built into all our PowerZone™ Connect amplifiers for easy system setup. PowerZone™ Control facilitates effortless customization of even the most challenging audio/voice systems by delivering many DSP configuration options and tuning features, including multi-zone setup, input mixing, priority and ducking, restriction, input and output EQ, S/PDIF output routing, high-pass filter, speaker presets, delay, Wall-S1 controller configuration, Sine generator, and much more.

Features:
Ultra-compact ½-rack form factor
Full-matrix DSP configuration via PowerZone™ Control web app (built-in)
Hybrid power distribution in both Lo-Z and Hi-Z
Powered by Pascal UMAC™ Class-D technology
Flexible power sharing across output channels
S/PDIF input/output
Configurable GPIO
ErP and Energy Star compliant / UL listed audio equipment

Specifications:
Channels: 4 x lo-Z / 2 x Hi-Z
Output Power @ 4Ω: 4 x 125 W
Output Power @ 8Ω: 4 x 125 W
Output Power @ 70V: 2 x 250 W
Output Power @ 100V: 2 x 250 W
Powersharing (up to) across all channels: 2 x 250 W
Power Consumption: 150 W
Dimensions: 44 x 220 x 319 mm (1.7 x 8.7 x 12.6 in)
Weight: 2.8kg (6.2 lbs)
Total System Power: 500 W
Output Circuitry: UMAC™ Class D - full bandwidth PWM modulator with ultra-low distortion
Output Voltage: 70Vp / 140Vpp (unloaded) // Bridged 140Vp / 280 Vpp (unloaded)
Signal To Noise-Ratio: > 106dB (A-weighted, 20Hz-20kHz, 8Ω load)
THD+N (typical): < 0.05% (20Hz-20kHz, 8Ω load, 3dB below rated power)
Frequency Response: 20Hz-20kHz (+0/-0.25dB (8Ω load, 3dB below rated power)
Protection Circuits: Short circuit -, DC -, Undervoltage -, Temperature - and Overload protection
Power Supply: UREC™ universal mains switch mode power supply with Power Factor Correction (PFC) and standby converter
Operating temperature: 0-40°C
Operating Voltage/ Frequency: Universal Mains, 100V-240V, 50Hz-60Hz
Standby Consumption: < 0.5W
Power Ratings: Output power measured @ 1% THD at 120VAC 60Hz and 230VAC 50Hz

Blaze POWERZONE 1004 4 Channel Class D Audio Power Amplifier 1000 Watts

Each output channel can be independently configured to drive either Lo-Z or Hi-Z loads – making it so much more flexible and versatile than other full rack products. This means a system can be easily configured with any power output, and drive both Lo-Z and Hi-Z loudspeakers – from just one clever amplifier.

Total available power is automatically shared across channel pairs – thanks to our power sharing technology (*252 and 504 models only). The ultra-compact PowerZone can be installed in locations where other products cannot – and has desk and wall mount brackets as well as full rack supports.

PowerZone is a robust and energy-efficient amplifier, that offers quick set-up and custom configuration options, and like all PowerZone products, this reliable, high-performance amplifier has a 5-year warranty.

Features:
Configure any output in Low or High impedance – complete flexibility of power options
Power sharing technology delivers versatile power output for each install
DIP Switches allow you to configure on site – with GPIO connectors for external controllers
Ultra-compact form factor means it can be installed in spaces where others cannot
Class leading energy efficiency and long-term low cost of ownership
Blaze Audio is powered by ultra-reliable Pascal UMAC™ Class-D technology

Specifications:
Channels: 4 x lo-Z / 4 x Hi-Z
Output Power @ 4Ω: 4 x 250 W
Output Power @ 8Ω: 4 x 250 W
Output Power @ 70V: 4 x 250 W
Output Power @ 100V: 4 x 250 W
Powersharing (up to) across all channels: N/A
Power Consumption: 300 W
Dimensions: 44.5 x 440 x 292 mm (1.75 x 17.32 x 11.50 in)
Weight: 3.6 kg (7.9 lbs)
Total System Power: 1000 W
Output Circuitry: UMAC™ Class D - full bandwidth PWM modulator with ultra-low distortion
Output Voltage: 70 Vp / 140 Vpp (unloaded) / Bridged 140 Vp / 280 Vpp (unloaded)
Signal To Noise-Ratio: > 100 dB (A-weighted, 20 Hz - 20 kHz, 8 Ω load)
THD+N (typical): < 0.05 % (20 Hz - 20 kHz, 8 Ω load, 3 dB below rated power)
Frequency Response: 20 Hz - 20 kHz (+0/-0.25 dB (8 Ω load, 3 dB below rated power)
Protection Circuits: Short circuit protection, DC protection, under voltage protection, temperature protection, overload protection
Power Supply: UREC™ universal mains switch mode power supply with Power Factor Correction (PFC) and integral standby converter
Operating Voltage/ Frequency: Universal Mains, 100-240V, 50-60Hz
Standby Consumption: < 0.5 W (Energy Star & ErP 1275/2008/EC compliant)
Power Ratings: Output power measured @ 1% THD at 120VAC 60Hz and 230VAC 50Hz

Blaze POWERZONE CONN 122 2 Channel 1U Audio Power Amplifier 125 Watts

The PowerZone™ Connect 1U series is a line of DSP-enabled Class-D amplifiers designed to make system installers’ lives easier, offering unparalleled reliability and efficiency, along with exceptional system configuration. The ultra-compact form factor, makes them an ideal choice for audio/voice installation projects with limited space constraints that demand high-output performance. The 1U family powers both conventional low-impedance (4Ω to 16Ω) loudspeakers and constant voltage (70V/ 100V) transformer-coupled loudspeakers, and features automatic power-sharing technology for proportional distribution in both Lo-Z and Hi-Z modes.

Our intuitive PowerZone™ Control web app is built into all our PowerZone™ Connect amplifiers for easy system setup. PowerZone™ Control facilitates effortless customization of even the most challenging audio/voice systems by delivering many DSP configuration options and tuning features, including multi-zone setup, input mixing, priority and ducking, restriction, input and output EQ, S/PDIF output routing, high-pass filter, speaker presets, delay, Wall-S1 controller configuration, Sine generator, and much more.

Features:
Ultra-compact ½-rack form factor
Full-matrix DSP configuration via PowerZone™ Control web app (built-in)
Hybrid power distribution in both Lo-Z and Hi-Z
Powered by Pascal UMAC™ Class-D technology
Flexible power sharing across output channels
S/PDIF input/output
Configurable GPIO
ErP and Energy Star compliant / UL listed audio equipment

Specifications:
Channels: 2 x lo-Z / 1 x Hi-Z
Output Power @ 4Ω: 2 x 60 W
Output Power @ 8Ω: 2 x 60 W
Output Power @ 70V: 1 x 125 W
Output Power @ 100V: 1 x 125 W
Powersharing (up to) across all channels: 1 x 125 W
Power Consumption: 75 W
Dimensions: 44 x 220 x 213 mm (1.7 x 8.7 x 8.4 in)
Weight: 2kg (4.4 lbs)
Total System Power: 125 W
Output Circuitry: UMAC™ Class D - full bandwidth PWM modulator with ultra-low distortion
Output Voltage: 70Vp / 140Vpp (unloaded) // Bridged 140Vp / 280 Vpp (unloaded)
Signal To Noise-Ratio: > 106dB (A-weighted, 20Hz-20kHz, 8Ω load)
THD+N (typical): < 0.05% (20Hz-20kHz, 8Ω load, 3dB below rated power)
Frequency Response: 20Hz-20kHz (+0/-0.25dB (8Ω load, 3dB below rated power)
Protection Circuits: Short circuit -, DC -, Undervoltage -, Temperature - and Overload protection
Power Supply: UREC™ universal mains switch mode power supply with Power Factor Correction (PFC) and standby converter
Operating temperature: 0-40°C
Operating Voltage/ Frequency: Universal Mains, 100V-240V, 50Hz-60Hz
Standby Consumption: < 0.5W
Power Ratings: Output power measured @ 1% THD at 120VAC 60Hz and 230VAC 50Hz

Blaze POWERZONE CONN 254 1U 4 Channel Audio Power Amplifier 250 Watts

The PowerZone™ Connect 1U series is a line of DSP-enabled Class-D amplifiers designed to make system installers’ lives easier, offering unparalleled reliability and efficiency, along with exceptional system configuration. The ultra-compact form factor, makes them an ideal choice for audio/voice installation projects with limited space constraints that demand high-output performance. The 1U family powers both conventional low-impedance (4Ω to 16Ω) loudspeakers and constant voltage (70V/ 100V) transformer-coupled loudspeakers, and features automatic power-sharing technology for proportional distribution in both Lo-Z and Hi-Z modes.

Our intuitive PowerZone™ Control web app is built into all our PowerZone™ Connect amplifiers for easy system setup. PowerZone™ Control facilitates effortless customization of even the most challenging audio/voice systems by delivering many DSP configuration options and tuning features, including multi-zone setup, input mixing, priority and ducking, restriction, input and output EQ, S/PDIF output routing, high-pass filter, speaker presets, delay, Wall-S1 controller configuration, Sine generator, and much more.

Features:
Ultra-compact ½-rack form factor
Full-matrix DSP configuration via PowerZone™ Control web app (built-in)
Hybrid power distribution in both Lo-Z and Hi-Z
Powered by Pascal UMAC™ Class-D technology
Flexible power sharing across output channels
S/PDIF input/output
Configurable GPIO
ErP and Energy Star compliant / UL listed audio equipment

Specifications:
Channels: 4 x lo-Z / 2 x Hi-Z
Output Power @ 4Ω: 4 x 60 W
Output Power @ 8Ω: 4 x 60 W
Output Power @ 70V: 2 x 125 W
Output Power @ 100V: 2 x 125 W
Powersharing (up to) across all channels: 1 x 250 W
Power Consumption: 75 W
Dimensions: 44 x 220 x 319 mm (1.7 x 8.7 x 12.6 in)
Weight: 2.8kg (6.2 lbs)
Total System Power: 250 W
Output Circuitry: UMAC™ Class D - full bandwidth PWM modulator with ultra-low distortion
Output Voltage: 70Vp / 140Vpp (unloaded) // Bridged 140Vp / 280 Vpp (unloaded)
Signal To Noise-Ratio: > 106dB (A-weighted, 20Hz-20kHz, 8Ω load)
THD+N (typical): < 0.05% (20Hz-20kHz, 8Ω load, 3dB below rated power)
Frequency Response: 20Hz-20kHz (+0/-0.25dB (8Ω load, 3dB below rated power)
Protection Circuits: Short circuit -, DC -, Undervoltage -, Temperature - and Overload protection
Power Supply: UREC™ universal mains switch mode power supply with Power Factor Correction (PFC) and standby converter
Operating temperature: 0-40°C
Operating Voltage/ Frequency: Universal Mains, 100V-240V, 50Hz-60Hz
Standby Consumption: < 0.5W
Power Ratings: Output power measured @ 1% THD at 120VAC 60Hz and 230VAC 50Hz

Blaze POWERZONE CONN 252 1U 2 Channel Audio Power Amplifier 250 Watts

The PowerZone™ Connect 1U series is a line of DSP-enabled Class-D amplifiers designed to make system installers’ lives easier, offering unparalleled reliability and efficiency, along with exceptional system configuration. The ultra-compact form factor, makes them an ideal choice for audio/voice installation projects with limited space constraints that demand high-output performance. The 1U family powers both conventional low-impedance (4Ω to 16Ω) loudspeakers and constant voltage (70V/ 100V) transformer-coupled loudspeakers, and features automatic power-sharing technology for proportional distribution in both Lo-Z and Hi-Z modes.

Our intuitive PowerZone™ Control web app is built into all our PowerZone™ Connect amplifiers for easy system setup. PowerZone™ Control facilitates effortless customization of even the most challenging audio/voice systems by delivering many DSP configuration options and tuning features, including multi-zone setup, input mixing, priority and ducking, restriction, input and output EQ, S/PDIF output routing, high-pass filter, speaker presets, delay, Wall-S1 controller configuration, Sine generator, and much more.

Features:
Ultra-compact ½-rack form factor
Full-matrix DSP configuration via PowerZone™ Control web app (built-in)
Hybrid power distribution in both Lo-Z and Hi-Z
Powered by Pascal UMAC™ Class-D technology
Flexible power sharing across output channels
S/PDIF input/output
Configurable GPIO
ErP and Energy Star compliant / UL listed audio equipment

Specifications:
Channels: 2 x lo-Z / 1 x Hi-Z
Output Power @ 4Ω: 2 x 125 W
Output Power @ 8Ω: 2 x 125 W
Output Power @ 70V: 1 x 250 W
Output Power @ 100V: 1 x 250 W
Powersharing (up to) across all channels: 1 x 250 W
Power Consumption: 75 W
Dimensions: 44 x 220 x 213 mm (1.7 x 8.7 x 8.4 in)
Weight: 2kg (4.4 lbs)
Total System Power: 250 W
Output Circuitry: UMAC™ Class D - full bandwidth PWM modulator with ultra-low distortion
Output Voltage: 70Vp / 140Vpp (unloaded) // Bridged 140Vp / 280 Vpp (unloaded)
Signal To Noise-Ratio: > 106dB (A-weighted, 20Hz-20kHz, 8Ω load)
THD+N (typical): < 0.05% (20Hz-20kHz, 8Ω load, 3dB below rated power)
Frequency Response: 20Hz-20kHz (+0/-0.25dB (8Ω load, 3dB below rated power)
Protection Circuits: Short circuit -, DC -, Undervoltage -, Temperature - and Overload protection
Power Supply: UREC™ universal mains switch mode power supply with Power Factor Correction (PFC) and standby converter
Operating temperature: 0-40°C
Operating Voltage/ Frequency: Universal Mains, 100V-240V, 50Hz-60Hz
Standby Consumption: < 0.5W
Power Ratings: Output power measured @ 1% THD at 120VAC 60Hz and 230VAC 50Hz

Blaze POWERZONE CONN 1502 1U 2 Channel Audio Power Amplifier 1500 Watts

The PowerZone Connect 1502 is a solid, reliable, full rack, DSP amplifier with network connection for easy configuration and control. Its network can be wired or wireless and allows access to the PowerZone Control web app's system setup and audio configuration menu.

Features:
DSP – full matrix DSP embedded and controlled via TCP/IP
Targeted Constant Voltage – Optimal hybrid of Lo-Z and Hi-Z performance
Master / Slave functionality – S/PDIF link to multiple amps
UREC™ universal power supply with PFC
Market proven reliability – Based on Pascal’s proven technologies
5 Year warranty – Blaze Audio products are designed to endure

Specifications:
Channels: 2 x Lo-Z/1 x Hi-Z
Output Power @ 2Ω: 2 x 750 W (SE)
Output Power @ 4Ω: 2 x 750 W (SE)
1 x 1500 W (BTL)
Output Power: @ 8Ω 2 x 400 W (SE)
1 x 1500 W (BTL)
Output Power @ 70V: 1 x 1200 W (BTL)
Output Power @ 100V: 1 x 1500 W (BTL)
Total System Power: 1500 W
Power Consumption: 350 W
Output Voltage: 80 Vp / 160 Vpp (SE unloaded)
160 Vp / 320 Vpp (BTL unloaded)
Weight: 5.9 kg
Dimensions: 88 x 440 x 332 mm
(3.5 x 17.3 x 13.1 in)
Output Circuitry: UMAC™ Class D - full bandwidth PWM modulator with ultra-low distortion
Signal To Noise-Ratio: Over 108 dB (A-weighted, 20 Hz-20 kHz, 8 Ω load)
THD+N (typical): 0.05 % (20 Hz-20 kHz, 8 Ω load, 3 dB below rated power)
Frequency Response: 20 Hz-20 kHz (+0/-0.5 dB (8 Ω load, 3 dB below rated power)
Protection Circuits: Short circuit -, DC -, Undervoltage -, Temperature - and Overload protection
Power Supply: UREC™ universal mains switch mode power supply with Power Factor Correction (PFC) and standby converter
Operating temperature: 0-40° C
Operating Voltage/Frequency: Universal Mains, 100 V-240 V, 50 Hz-60 Hz
Standby Consumption: 0.5 W
Accessories: 2x rack ears, 4 x adhesive feet
Power Ratings: 1 % THD @ 120 Vac and 230 Vac

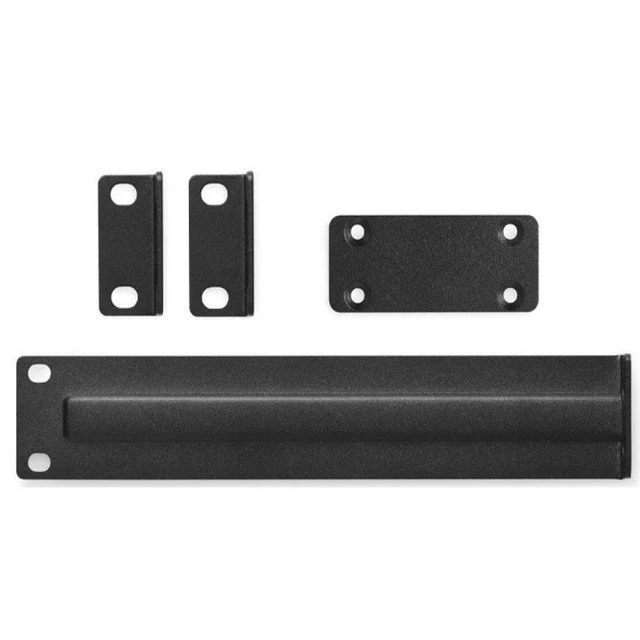

Blaze POWERZONE RACK KIT Single Double Rack Mount Kit for PowerZone Series

POWERZONE RACK KIT Single unit or dual unit rackmount kit for half-rack PowerZone amplifiers including 2 rack ear brackets, 1 rack extension, and 1 connector plate.

Features:
Single/Double PowerZone Rackmount
For half-rack PowerZone amplifiers
2 rack ear brackets, 1 rack extension, and 1 connector plate

Blaze POWERZONE MOUNT KIT Wall Desk Shelf Bracket for Mounting PowerZone Amplifiers

POWERZONE MOUNT KIT Dual wall or under-shelf top-loaded brackets for mounting of PowerZone amplifiers to flat surfaces.

Features:
Wall/Under-Shelf PowerZone bracket
Mounting for PowerZone amplifiers

Blaze PowerZone 252 2Channel Audio Power Amplifier 250 watts

PowerZone™ is a series of non-networked Class-D installation amplifiers engineered for professionals who demand affordable, reliable, high-performance audio power.

Key features include flexible configuration options that allow each output channel to be independently set to drive either Lo-Z or Hi-Z loads, enabling you to tailor your system to drive both types of loudspeakers from a single unit.

Additionally, the PowerZone™ series’ power-sharing technology (exclusive to the 252 and 504 models) intelligently distributes the total available power across channels, ensuring optimal performance and reliability.

With full rack support and adaptable desk and wall mount brackets, the PowerZone™ series offers unparalleled installation versatility in a compact form factor that seamlessly fits into spaces where other amplifiers may fall short.

Like all PowerZone products from Blaze Audio, these amplifiers come with a 5- year warranty.

Features

• Compact 1U half-rack form factor.

• Hybrid power distribution in both Lo-Z and Hi-Z.

• Flexible power sharing across output channels.

• Powered by Pascal UMAC™ Class-D technology.

• Eight-position DIP switch for operational configuration, including locking front panel gain control.

• GPIO interface for remote volume and standby.

• ErP and Energy Star compliant.

• UL listed audio equipment.

Specifications

• Total System Power: 250 W

• Output Power @ 4/8Ω: 2 x 125 W

• Output Power @ 70/100V*: 2 x 125 W

• Powershare (up to) Across all channels: 1 x 250 W

• Power Consumption: 75 W

• Dimensions: 44.5 x 220 x 262 mm (1.75 x 8.66 x 10.31 in)

• Weight: 1.9 kg (4.2 lbs)

• Output Circuitry: UMAC™ Class D – full bandwidth PWM modulator with ultra-low distortion

• Output Voltage: 45Vrms (S.E) – 70/100V (Hi-Z)

• Signal To Noise-Ratio: > 100 dB (A-weighted, 20 Hz – 20 kHz, 8 Ω load)

• THD+N (typical): < 0.05 % (20 Hz – 20 kHz, 8 Ω load, 3 dB below rated power)

• Frequency Response: 20 Hz – 20 kHz (+0/-0.25 dB (8 Ω load, 3 dB below rated power)

• Protection Circuits: Short circuit protection, DC protection, under voltage protection, temperature protection, overload protection

• Power Supply: UREC™ universal mains switch mode power supply with Power Factor Correction (PFC) and integral standby converter

• Operating Voltage/Frequency.: Universal Mains, 100-240V, 50-60Hz

• Standby Consumption: < 0.5 W (Energy Star & ErP 1275/2008/EC compliant)

• Power Ratings: 1% THD @ 120VAC and 230VAC

Blaze PowerZone Connect 504 4Channel Audio Power Amplifier 500 watts

The PowerZone™ Connect 1U series is a line of DSP-enabled Class-D amplifiers designed to simplify the lives of system installers, providing unmatched reliability, efficiency, and exceptional system configuration.

Their compact form factor makes them an ideal choice for audio/voice installation projects with limited space constraints, demanding high-output performance of up to 1000 W.

The 1U family powers both conventional low-impedance (4 Ω to 16 Ω) loudspeakers and constant voltage (70 V/100 V) transformer-coupled loudspeakers, and features automatic power-sharing technology for proportional distribution in both Lo-Z and Hi-Z modes.

Our intuitive PowerZone™ Control web app is built into all our PowerZone™ Connect amplifiers for easy system setup.

PowerZone™ Control facilitates effortless customization of even the most challenging audio/voice systems by delivering many DSP configuration options and tuning features, including multizone setup, input mixing, priority and ducking, restriction, input and output EQ, S/PDIF output routing, high-pass filter, speaker presets, delay, Wall-S1 controller configuration, Sine generator, and much more.

Specific models of the PowerZone™ Connect 1U amplifiers offer compatibility with Audinate Dante™ AoIP networks and installations.

Features

• Ultra-compact ½-rack form factor

• Full-matrix DSP configuration via PowerZone™ Control web app (built-in)

• Hybrid power distribution in both Lo-Z and Hi-Z

• Powered by Pascal UMAC™ Class-D technology

• Flexible power sharing across output channels

• S/PDIF input/output

• Configurable GPIO

• ErP and Energy Star compliant

• UL listed audio equipment

• UREC™ universal power supply with PFC 5 Year warranty

Specifications

• Total System Power: 500 W

• Output Power @ 4/8Ω: 4 x 125 W

• Output Power @ 70/100V: 2 x 250 W

• Powershare (up to) Across all channels: 2 x 250 W

• Power Consumption: 150 W

• Dimensions: 44 x 220 x 319 mm 1.7 x 8.7 x 12.6 in

• Weight: 2.8kg, 6.2 lbs

• Output Circuitry: UMAC™ Class D – full bandwidth PWM modulator with ultra-low distortion

• Output Voltage: 45Vrms (S.E) – 70/100V (Hi-Z)

• Signal To Noise-Ratio: > 100 dB (A-weighted, 20 Hz – 20 kHz, 8 Ω load)

• THD+N (typical): < 0.05 % (20 Hz – 20 kHz, 8 Ω load, 3 dB below rated power)

• Frequency Response: 20 Hz – 20 kHz (+0/-0.25 dB (8 Ω load, 3 dB below rated power)

• Protection Circuits: Short circuit protection, DC protection, under voltage protection, temperature protection, overload protection

• Power Supply: UREC™ universal mains switch mode power supply with Power Factor Correction (PFC) and integral standby converter

• Operating Voltage/Frequency.: Universal Mains, 100-240V, 50-60Hz

• Operating temperature: 0-40°C

• Standby Consumption: < 0.5 W (Energy Star & ErP 1275/2008/EC compliant)

• Power Ratings: 1% THD @ 120VAC and 230VAC

• channels: 4

Blaze PowerZone Connect 3004 4Channel Audio Power Amplifier 3000 watts

The PowerZone™ Connect 2U series is a line of ultra-reliable, full-matrix DSP-enabled Class-D amplifiers that delivers exceptional system configuration and flexible output, with a total system power ranging from 1000 W to 6000 W.

The PowerZone™ Connect 2U series powers both conventional low-impedance (2 Ω to 16 Ω) loudspeakers and constant voltage (70 V/100 V) transformer-coupled loudspeakers, and features proportional distribution in both Lo-Z and Hi-Z modes.

Specific models of the PowerZone™ Connect 2U amplifiers offer compatibility with Audinate Dante™ AoIP networks and installations.

Our intuitive PowerZone™ Control web app is built into all our PowerZone™ Connect amplifiers for easy system setup.

PowerZone™ Control facilitates effortless customization of even the most challenging audio/voice systems by delivering many DSP configuration options and tuning features, including multizone setup, input mixing, priority and ducking, restriction, input and output EQ, S/PDIF output routing, high-pass filter, speaker presets, delay, Wall-S1 controller configuration, Sine generator, and much more.

Features

• Full rack 2U form factor

• Full-matrix DSP configuration via PowerZone™ Control web app (built-in)

• Hybrid power distribution in both Lo-Z and Hi-Z

• Powered by Pascal UMAC™ Class-D technology

• UREC™ universal power supply with PFC

• S/PDIF input/output

• Configurable GPIO

• ErP and Energy Star compliant

• UL listed audio equipment

• 5 Year warranty

Specifications

• Total System Power: 3000 W

• Output Power @ 2Ω: 4 x 750 W (SE)*

• Output Power @ 4Ω: 4 x 750 W (SE) 2 x 1500 W (BTL)

• Output Power @ 8Ω: 4 x 400 W (SE) 2 x 1500 W (BTL)

• Output Power @ 70V: 2 x 1200 W (BTL)

• Output Power @ 100V: 2 x 1500 W (BTL)

• Power Consumption: 700 W

• Dimensions: 88 x 440 x 332 mm 3.5 x 17.3 x 13.1 in

• Weight: 7.4 kg

• Operating temperature: 0-40° C

Blaze PowerZone Connect 6008 8Channels Audio Power Amplifier 6000 watts

The PowerZone™ Connect 2U series is a line of ultra-reliable, full-matrix DSP-enabled Class-D amplifiers that delivers exceptional system configuration and flexible output, with a total system power ranging from 1000 W to 6000 W.

The PowerZone™ Connect 2U series powers both conventional low-impedance (2 Ω to 16 Ω) loudspeakers and constant voltage (70 V/100 V) transformer-coupled loudspeakers, and features proportional distribution in both Lo-Z and Hi-Z modes.

Specific models of the PowerZone™ Connect 2U amplifiers offer compatibility with Audinate Dante™ AoIP networks and installations.

Our intuitive PowerZone™ Control web app is built into all our PowerZone™ Connect amplifiers for easy system setup.

PowerZone™ Control facilitates effortless customization of even the most challenging audio/voice systems by delivering many DSP configuration options and tuning features, including multizone setup, input mixing, priority and ducking, restriction, input and output EQ, S/PDIF output routing, high-pass filter, speaker presets, delay, Wall-S1 controller configuration, Sine generator, and much more.

Features

• Full rack 2U form factor

• Full-matrix DSP configuration via PowerZone™ Control web app (built-in)

• Hybrid power distribution in both Lo-Z and Hi-Z

• Powered by Pascal UMAC™ Class-D technology

• UREC™ universal power supply with PFC

• S/PDIF input/output

• Configurable GPIO

• ErP and Energy Star compliant

• UL listed audio equipment

• 5 Year warranty

Specifications

• Total System Power: 6000 W

• Output Power @ 2Ω: 8 x 750 W (SE)*

• Output Power @ 4Ω: 8 x 750 W (SE) 4 x 1500 W (BTL)

• Output Power @ 8Ω: 8 x 400 W (SE) 4 x 1500 W (BTL)

• Output Power @ 70V: 4 x 1200 W (BTL)

• Output Power @ 100V: 4 x 1500 W (BTL)

• Power Consumption: 1400 W

• Dimensions: 88 x 440 x 414 mm 3.5 x 17.3 x 16.3 in

• Weight: 11.6 kg (25.6 lbs)

• Output Voltage: 80 Vp / 160 Vpp (SE unloaded)

• 160 Vp / 320 Vpp (BTL unloaded)

• Operating temperature: 0-40° C

• channels: 8

• features: 8 Channels

Blaze PowerZone Connect 1008 8Channels Audio Power Amplifier 1000 watts

The PowerZone™ Connect 1U series is a line of DSP-enabled Class-D amplifiers designed to simplify the lives of system installers, providing unmatched reliability, efficiency, and exceptional system configuration.

Their compact form factor makes them an ideal choice for audio/voice installation projects with limited space constraints, demanding high-output performance of up to 1000 W.

The 1U family powers both conventional low-impedance (4 Ω to 16 Ω) loudspeakers and constant voltage (70 V/100 V) transformer-coupled loudspeakers, and features automatic power-sharing technology for proportional distribution in both Lo-Z and Hi-Z modes.

Our intuitive PowerZone™ Control web app is built into all our PowerZone™ Connect amplifiers for easy system setup.

PowerZone™ Control facilitates effortless customization of even the most challenging audio/voice systems by delivering many DSP configuration options and tuning features, including multizone setup, input mixing, priority and ducking, restriction, input and output EQ, S/PDIF output routing, high-pass filter, speaker presets, delay, Wall-S1 controller configuration, Sine generator, and much more.

Specific models of the PowerZone™ Connect 1U amplifiers offer compatibility with Audinate Dante™ AoIP networks and installations.

Features

• 1RU form factor

• Full-matrix DSP configuration via PowerZone™ Control web app (built-in)

• Hybrid power distribution in both Lo-Z and Hi-Z

• Powered by Pascal UMAC™ Class-D technology

• S/PDIF input/output

• Configurable GPIO

• ErP and Energy Star compliant

• UL listed audio equipment

• UREC™ universal power supply with PFC

• 5 Year warranty

Specifications

• Total System Power: 1000 W

• Output Power @ 4/8Ω: 8 x 125 W

• Output Power @ 70/100V: 4 x 250 W

• Powershare (up to) Across all channels: 4 x 250 W

• Power Consumption: 300 W

• Dimensions: 44 x 440 x 319 mm 1.7 x 17.3 x 12.6 in

• Weight: 3.8 kg, 8.4 lbs

• Output Circuitry: UMAC™ Class D – full bandwidth PWM modulator with ultra-low distortion

• Output Voltage: 45Vrms (S.E) – 70/100V (Hi-Z)

• Signal To Noise-Ratio: > 100 dB (A-weighted, 20 Hz – 20 kHz, 8 Ω load)

• THD+N (typical): < 0.05 % (20 Hz – 20 kHz, 8 Ω load, 3 dB below rated power)

• Frequency Response: 20 Hz – 20 kHz (+0/-0.25 dB (8 Ω load, 3 dB below rated power)

• Protection Circuits: Short circuit protection, DC protection, under voltage protection, temperature protection, overload protection

• Power Supply: UREC™ universal mains switch mode power supply with Power Factor Correction (PFC) and integral standby converter

• Operating Voltage/Frequency.: Universal Mains, 100-240V, 50-60Hz

• Operating temperature: 0-40°C

• Standby Consumption: < 0.5 W (Energy Star & ErP 1275/2008/EC compliant)

• Power Ratings: 1% THD @ 120VAC and 230VAC

• channels: 8
