Waves IONIC 16 Channel Stage Box for Live Sound
Experience the precision, punch, and clarity that redefine live sound. The Waves IONIC 16 stagebox delivers uncompromising audio quality and effortless integration with the eMotion LV1 live mixer, ensuring pristine performance in any venue or setup.
At its core are Waves Signature Preamps—fully discrete analog designs offering maximum headroom, lightning-fast transient response, and an ultra-low noise floor. Choose between transparent preamp sound or rich harmonic enhancement per input for the perfect tonal character.
Key Features
16 in / 12 out SoundGrid stagebox with superior audio quality
Seamless integration with the Waves eMotion LV1 live mixer
16 mic/line inputs featuring Waves Signature Preamps
12 crystal-clear line outputs (selectable between 18 dBu / 24 dBu)
Stereo AES input/output and two independent headphone outputs
Optional analog-modeled harmonic enhancement per input
Sample rates: 44.1, 48, 88.2, and 96 kHz
Analog input impedance selector: classic 2kΩ or modern 7kΩ
Rugged 2U rack-mountable chassis for touring reliability
Optional external power supply available separately
2-year warranty upon registration
Unmatched Preamp Performance
The newly designed Waves Signature Preamps deliver studio-grade transparency with a wide dynamic range and exceptional signal handling. The result: rich headroom, ultra-clean transients, and a remarkably low noise floor—perfect for any stage or source.
Studio Warmth for Live Sound
Bring studio character to your live mix with the HMX harmonic enhancer, adding analog-modeled warmth and harmonic richness to each input. Easily toggle the enhancer on or off for either pure transparency or vintage tone.
Crystal-Clear Outputs
Whether you’re running stage monitors, in-ear transmitters, or full PA systems, the IONIC 16’s twelve outputs and dual headphone outs deliver impeccable clarity, power, and presence—no matter the volume or environment.
Effortless Integration
IONIC 16 connects seamlessly to the Waves eMotion LV1 mixer, automatically configuring settings for quick setup and control. Adjust preamp and output parameters directly from the LV1 interface—no extra software needed.
Flexible Mic Response
Fine-tune your sound with the analog impedance selector, offering a choice between classic 2kΩ and modern 7kΩ responses. This gives you complete control over how your microphones and instruments interact with the preamps.
Introducing Waves IONIC 24: The Pinnacle of Live Sound Quality
Experience unmatched punch, clarity, and precision with the Waves IONIC 24 stage box. Engineered for excellence, it enhances every input—from vocals to snare drums—delivering rich, detailed sound with uncompromising accuracy and warmth.
At its core are Waves Signature Preamps, featuring fully discrete analog circuits that provide maximum headroom, lightning-fast transient response, and an incredibly low noise floor. Choose between transparent preamp sound or harmonically enhanced analog tone per input.
Designed as the perfect I/O expansion for the eMotion LV1 live mixing console, IONIC 24 complements the LV1’s world-class performance with seamless integration and fast, reliable setup.
Key Features
24 in / 18 out SoundGrid stage box with superior audio quality
Seamless integration with the eMotion LV1 live mixing console
24 mic/line inputs with original-design Waves Signature Preamps
18 line outputs (selectable between 18 dBu / 24 dBu)
Stereo AES: 1 in / 2 out, plus two independent headphone outputs
Optional analog-modeled harmonic enhancement per input
Sample rates: 44.1, 48, 88.2, and 96 kHz
Analog input impedance selector: classic 2kΩ or modern 7kΩ
Rugged 3U rack-mountable chassis for touring durability
2-year warranty upon registration
Optional external power supply available separately
Unmatched Preamp Performance
At the heart of IONIC 24 are the new Waves Signature Preamps—fully discrete, high-end analog circuits designed for wide dynamic range and flawless signal handling. The result is enormous headroom, ultra-clean transients, and minimal noise—perfect for achieving a clear, powerful live mix.
Timeless Analog Warmth
IONIC 24 gives your sources a rich, full-bodied tone with the analog-modeled HMX harmonic enhancer. This feature can be activated or bypassed per channel, allowing total control between transparent fidelity or classic analog warmth.
Crystal-Clear Outputs
From stage wedges and in-ear monitors to full PA systems, IONIC 24’s 18 line outputs and dual headphone outs deliver pristine audio with exceptional headroom—ensuring clarity and presence across any setup.
Seamless LV1 Integration
IONIC 24 integrates effortlessly with the Waves eMotion LV1 mixer. Configuration is quick and automatic, while full preamp and output control is accessible directly from the LV1 interface—so you can focus entirely on your mix, not the setup.
Enhanced Mic Flexibility
Choose your sonic character with the analog impedance selector—switch between classic 2kΩ or modern 7kΩ settings to match the response of your stage microphones and instruments perfectly.
Waves AIOCL All-In-One Mic Preamp & Audio Interface
64 stereo channels and 44 stereo buses of industry-leading sound. Includes 16 inputs powered by Waves Signature Preamps and the live sound industry’s deepest processing, built into the console. Designed for intuitive workflow, easy scalability, and maximum portability.
For the first time, all the advantages of the LV1 live mixing platform are available in a classic hardware form factor. eMotion LV1 Classic builds on the proven LV1 mixer engine, delivering its sonic quality with the tactile control and workflow preferred by live sound engineers worldwide.
With a pristine-sounding mixer engine, quick-access interface combining a 21.5” multi-touch screen with tactile control, and robust physical build, LV1 Classic packs more live mixing power into a compact console than ever before.
Key Highlights
64 stereo channels / 44 stereo buses
Double-precision 32-bit float mix engine (44.1–96 kHz)
16 Waves Signature Preamps with 12 line outputs
21.5” touch screen and 17 motorized 100 mm faders
Compact and flyable design (38 lbs / 17.2 kg)
Built-in processing: compression, EQ, dynamic EQ, vocal tuning, feedback control, FX, and more
Upgrade with 160+ additional Waves processors, immersive in-ear mixing, and Dugan auto-mixing
Premium stagebox expansions: IONIC 24 and IONIC 16
Easy scalability for I/O, DSP, and multi-console networking
Two-year warranty upon registration
Sound Quality and Performance
eMotion LV1 Classic’s 32-bit float mix engine delivers pristine clarity and maximum headroom, powered by Waves’ award-winning digital signal processing expertise. The 16 original Waves Signature Preamps offer pure, transparent audio or rich harmonic enhancement through HMX mode.
Connectivity and Flexibility
Features 12 line outputs, AES3 I/O, four SoundGrid ports, headphone and monitor outputs, HDMI, USB, network connectivity, and dual power supply for redundancy. Ideal for diverse live sound setups.
Intuitive Control
A large 21.5” multi-touch screen and tactile surface with 17 faders provide quick access to essential mixer functions. Each fader features customizable encoders and LCD metering for efficient, real-time control.
Included Processing
Comes with 16 of Waves’ most popular processors, including F6 Dynamic EQ, Waves Tune Real-Time, X-FDBK, PSE, Magma Tube Channel Strip, R-Comp, H-Delay, R-Verb, Doubler, GTR3, and more. All processors can be flexibly chained across all input and mix channels.
Expandable and Portable
Add more I/O with IONIC stageboxes, expand DSP power, or network multiple consoles for FOH, monitors, or broadcast. Compact and lightweight at just 38 lbs (17.2 kg), LV1 Classic is ideal for touring or permanent installations.
Built for Houses of Worship and Beyond
Designed for both professionals and volunteers, the LV1 Classic offers intuitive control, pristine sound, and tools to manage feedback, EQ, and dynamics in any acoustic environment.
Technical Support
Waves offers 7-day-a-week phone and remote support, including live TeamViewer assistance for your eMotion LV1 Classic console.
Specifications
64 input channels and 44 buses (8 groups, 24 auxes, 8 matrices, 3 masters, cue)
Latency as low as 0.8 ms
21.5” touch screen with 1000 Nit brightness
16+1 motorized 100 mm faders and precision encoders
8-slot plugin rack per channel
Record 16 tracks locally or up to 128 tracks remotely
USB stereo playback
Supports up to 1000 scenes, DCA groups, mute groups, and recall filters
Size: 22” x 15.8” x 22.1” (560 x 402 x 561 mm)
Weight: 38 lbs (17.2 kg)

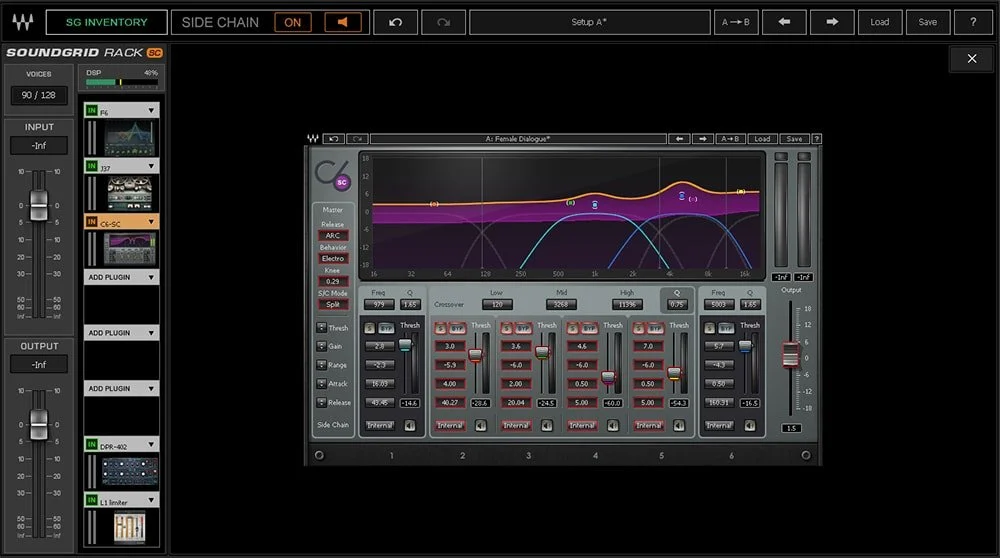

Waves SGRCK Plug In Software for VENUE S6L Mixing Console Full License Download
The full license of Waves 'SGRCK' SoundGrid Rack for VENUE rack plug-in software is the heart of the company's SoundGrid software and hardware integration with the Avid VENUE | S6L mixing console. Ideal for demanding live environments, it enables front-of-house, monitor, and broadcast engineers to run SoundGrid-compatible plug-ins directly within the S6L, with tactile control from the console's surface knobs and no need for a computer host or external network switch.
The software moves plug-in processing from the VENUE engine to a SoundGrid server (available separately), allowing you to run up to 128 mono or 64 stereo SoundGrid Rack instances at 96 kHz, and with minimum system latency. You can load up to eight SoundGrid-compatible plug-ins per instance of SoundGrid Rack.
Features:
Run SoundGrid-compatible Waves plug-ins directly within your Avid VENUE | S6L console
Real-time audio processing for front-of-house, monitor, and broadcast applications
Uses SoundGrid DSP server processing power for increased processing power with minimum system latency
Run up to 128 mono or 64 stereo SoundGrid Racks within the S6L, at 96 kHz
Load up to eight SoundGrid-compatible Waves plug-ins per instance of SoundGrid Rack
Follows standard operation of all plug-ins in the VENUE plug-in rack
Tactile control surface mapping for all Waves plug-ins
Snapshot automation for plug-in parameters
Legacy VENUE D-Show file compatibility
Server redundancy with automatic failover
No external computer host or network switch necessary
Specifications:
Delivery Method: Download
License Type: Standard
Standalone Operation: No
Supported Sample Rates: Up to 96 kHz
Number of Devices Supported: 1
Visual Impairment Support: No
System Requirements
Software Requirement:
VENUE 5.7
Waves Plug-Ins
Internet Connection Required: Yes
Waves RKSHLF 19 Inch Rack Mount Frame Rack Shelf for Half Rack SoundGrid Servers
Custom-made to fit two half-rack SoundGrid servers side-by-side, for rack-mounting onto a standard 19-inch rack frame.
Features:
Fits two half-rack SoundGrid servers side-by-side
Mounts onto a standard 19" rack frame
Sturdy metal build
Holed bottom for proper airflow
Includes 8 #2 Phillips black matte finish screws for mounting a SoundGrid Impact Server-C to the underside of the tray
Includes 8 2.5mm metallic finish hex screws for mounting a SoundGrid Impact Server-C to the left or right side of the tray
Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998. We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications.
Shipping --Pro packed & shipped USPS, UPS or Freight Service. Contact us & pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed & shipped. Processing times vary, 2-30 days
Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided. Otherwise customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, & accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.
What products can not be returned? - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids
Waves 8PSW NETGEAR GS108 8 Port Gigabit Ethernet Switch SoundGrid Audio Network
SoundGrid-tested and approved Gigabit Ethernet switch for connecting all the computers, SoundGrid I/Os and SoundGrid servers in your SoundGrid audio network.
Features:
Gigabit Ethernet switch
8 ports
SoundGrid-tested and approved
Connects all your computers and SoundGrid devices to a SoundGrid audio network
Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998. We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications.
Shipping --Pro packed & shipped USPS, UPS or Freight Service. Contact us & pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed & shipped. Processing times vary, 2-30 days
Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided. Otherwise customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, & accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.
What products can not be returned? - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids
Waves XWSG SoundGrid I/O Expansion Card for X 32 and M 32 Series Mixing Console
The X-WSG is a console expansion card supported by various X-32 and M-32
series console models.
The X-WSG expansion slot card makes it possible to run Waves plug-ins on selected Behringer mixing consoles, using Waves SoundGrid technology. Together with a server, a Mac or PC, and authorized Waves plug-ins, the X-WSGlets you process 32 channels of audio using Waves award-winning reverbs, equalizers, compressors, limiters, delays, and more.
With a rich feature set including a redundancy and recovery safety net, plus scalability and expandability,X-WSG is an essential asset toany compatible Behringer mixing console.
The X-WSG card also features Clock Sync-over-Ethernet for syncing multiple consoles and performing digital splits.
SoundGrid is Waves’ Audio-over-Ethernet networking and processing technology, which provides extremely low latency, high channel-countWaves audio processing. Since it uses standard, off-the-shelf network switches,servers, and computers,it is an extremely cost-effective live-sound platform.
Features
Supports the following sampling frequencies: 44.1, 48kHz
Sample resolution: 24 bits
32 channels of audio at 44.1/48KHz
ClockSync-over-Ethernet (SoE) for digital splits andaudio networking
Card can accept Firmware changes/upgrades
Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998. We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications.
Shipping --Pro packed & shipped USPS, UPS or Freight Service. Contact us & pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed & shipped. Processing times vary, 2-30 days
Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided. Otherwise customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, & accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.
What products can not be returned? - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids
Waves DSPSGRD StageGrid 4000 32 x 16 Analog Stagebox for eMotion LV1 mixer
SoundGrid stagebox, perfect for use with the eMotion LV1 live mixer. Crafted for supreme sound quality and reliability, with 32 mic/line ins, 16 analog outs and AES/EBU ins/outs, all digitally controlled.
Featuring pristine preamps designed to deliver a dynamic sound with superb clarity, StageGrid 4000 is fully integrated into the Waves ecosystem and easily interfaces with the eMotion LV1 mixer and any other SoundGrid network component. It provides a seamless solution for live sound applications, coupled with the modularity and power of SoundGrid technology.
Built ruggedly in a robust 4U rack-mountable chassis, StageGrid 4000 is designed with the challenges of the road in mind, and with no compromise in audio quality. All of StageGrid 4000's components were carefully selected and tested to ensure continuous system stability and maximum dependability, including a redundant power supply. This way you can focus on what really matters – creating a consistent, impactful sonic experience, show after show.
Features:
SoundGrid stagebox perfect for the eMotion LV1 mixer
32 Analog mic/line Inputs
16 Analog line outputs
4 Stereo AES / EBU Digital inputs
4 Stereo AES / EBU Digital outputs
Sample Rate: 44.1 kHz - 96 kHz2 Headphone outs with individual volume controls
Word Clock input and output, BNC connectors
SoundGrid Ethernet connection
Redundant AC power supply
Specifications:
General
32 Analog mic/line Inputs
16 Analog line outputs
4 Stereo AES / EBU Digital inputs
4 Stereo AES / EBU Digital outputs
Configurable Sample Rate of 44.1, 48, 88.2 and 96kHz
Two headphone outputs
Wordclock INOUTA SoundGrid Ethernet port
Redundant Power supply
Analog Inputs
Impedance: 2.86 kOhms
Gain range: -4 dB to 60 dB
Max input level: 28 dBu (-4 dB gain)
Dynamic range: 115 dB (-60 dBFS, 20 dB gain, 1 kHz, A-weighted)
THD: 0,002 % (-1 dBFS, 20 dB gain, 1 kHz, A-weighted)
Equivalent input noise: -128 dBu (60 dB gain, A-weighted, 150 ohms)
Frequency response: +/- 0.1 dB (20 Hz to 40 kHz at 96 kHz sampling rate)
Phase Shift: <10° at 20 Khz
Analog Outputs
Output impedance: 50 ohms
Max output Level (0dBFS): 24 dB
Dynamic range: 115 dB (-60 dBFS, 1 kHz, A-weighted)
THD: 0,002 % (-1 dBFS, 20 dB gain, 1 kHz, A-weighted)
Frequency response: +/- 0.1 dB (20 to 40 kHz at 96 kHz)
Phase shift: <5° at 20 Khz
AES/EBU IN/OUT
Standard: AES3 (2009)
Sample rates: 44.1, 48, 88.2 and 96 kHz
Impedance: 110 ohms
Headphones
Output Power: 150 mW per channel on 16 ohms
Dynamic range: 100 dB
SoundGrid
Interface: Gigabit Ethernet
Connector: Neutrik EtherCON
Word Clock
Connector: BNC
Impedance: 75 Ohms
Voltage level: 5V TTL
Power supply
Voltage: 110 or 240 VAC
Frequency: 50 Hz or 60 Hz Power: 60 W
Environmental specifications
Operating temperature: 0°C to 40°C
Relative humidity: Up to 90% non-condensing
Dimensions
Height: 176 mm / 6.92 in (4RU)
Width: 430 mm / 19.92 in (for 19” rack)
Depth: 300 mm / 11.81 in (not including connectors)
Weight: 7.89 Kg
Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998. We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications.
Shipping --Pro packed & shipped USPS, UPS or Freight Service. Contact us & pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed & shipped. Processing times vary, 2-30 days
Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided. Otherwise customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, & accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.
What products can not be returned? - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids
Waves PRTAXIS Axis Proton Custom Designed Computer for 32 Ch eMotion LV1 Mixer
Axis Proton is a custom-designed computer, optimized through meticulous selection of components to run Waves audio applications such as the 32-channel eMotion LV1 live mixer and SuperRack live plugin rack.
With its SoundGrid connectivity, Axis Proton integrates seamlessly with SoundGrid I/Os and servers, acting as the “brain” of a SoundGrid system. Designed to perform with maximum stability, Axis Proton is optimized for use in live setups of up to 32 stereo channels at 48kHz.
With sleek industrial design for elegance and durability, the half-rack 1U slick aluminum casing can be easily mounted using rack ears or placed side-by-side with an additional half-rack 1U device within a rack mounting system. Combine the Axis Proton with the Proton SoundGrid Server and the eMotion LV1 live 32-channel mixer to build the ultimate compact live mixing system for a 32-channel live sound setup.
Features:
Custom-built, fully optimized computer for running Waves plugins
Sleek, rugged industrial design for durability and elegance
Designed for systems up to 32 channels at 48kHz.
Intel® Celeron® CPU
8GB RAM256GB SSD Storage
2 x 1GbE Ethernet Ports2 x HDMI Port
4 USB2/3 Ports
Durable aluminum casing (1U half-rack)
Windows 10 included
Can be racked in a 1U rack shelf accessory
Free 6-month warranty Extended warranties available
Specifications:
Supported Configuration: up to 32 Stereo Channels @ 48kHz
CPU: Intel® Celeron J4125
RAM: 8 GB
Motherboard: QBI-2145A
LAN Card: Intel I211/Realtek RTL8411
Dimensions:
Length: 22 cm / 8.7 in
Height: 4.2 cm / 1.7 in
Depth: 27.7 cm / 10.9 in
Device Weight: 2.1 kg / 4.6 lb
Package Weight: 3.2 kg / 7 lb
Power Consumption:
110/220V 15 W
Operating Environment temperature range:
50° to 95°F / 10° to 35°C
Max Environment temperature:
104°F / 40°C
Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998. We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications.
Shipping --Pro packed & shipped USPS, UPS or Freight Service. Contact us & pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed & shipped. Processing times vary, 2-30 days
Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided. Otherwise customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, & accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.
What products can not be returned? - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids
Waves SGS1C One C SoundGrid Server Compact Digital Signal Processor Unit 8GB RAM
One-C is a compact, lightweight and durable DSP unit, custom-designed and optimized to relieve your computer of plugin processing. Run hundreds of Waves plugins in real time, live or in the studio — using only half the width of a standard rack.
Whether you're mixing a live show or tracking overdubs in the studio, real-time plugin processing is a must. The One-C server gives you exactly that and does it at lightning-fast speeds: latency as low as 0.8 ms at 44.1, 48, 88.2 and 96 kHz.
The latest generation of Waves’s SoundGrid servers boasts a new sleek industrial design built for elegance and durability. One-C now features LED indicators for easy network and temperature monitoring, plus sturdy RAM positioning that secures your mixing experience wherever you are.
One-C is fitted into a rugged all-metal 2U casing which is only half the width of a standard 19-inch rack. You can rack-mount a single server using rack ears, or mount two servers side-by-side using a rack shelf.
Small enough so you can easily take it with you to any production or session, the One-C server allows you to mix plugin-rich sessions anywhere you go.
Features:
Adds more processing power to your system
Ultra-low latency: as low as 0.8 milliseconds at 44.1, 48, 88.2 and 96 kHz
Quiet fan design: fan speed auto-adjusts based on CPU temperature
NEW: Powerful Intel® 10th Generation i3-10300
NEW: Sleek new industrial design
NEW: Enhanced with sturdy RAM positioning for added reliability
NEW: LED indicators for easy network & temperature monitoring
Rugged Neutrik etherCon connector
8 GB RAM
Use with any SoundGrid interface (including DiGiGrid I/Os)
Use with non-SoundGrid I/Os (ASIO/Core Audio) via SoundGrid Connect: See complete instructions
Free 1-year warranty; Extended warranties available
Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998. We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications.
Shipping --Pro packed & shipped USPS, UPS or Freight Service. Contact us & pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed & shipped. Processing times vary, 2-30 days
Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided. Otherwise customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, & accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.
What products can not be returned? - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids
Waves MDPLFT 16+1 Touch Sensitive Motorized Faders Mixing Console Surface
Waves Audio Midiplus FIT Controller is the ultimate intuitive control surface designed to function as a fully integrated fader bank for the Waves eMotion digital mixing console.MidiPlus FIT features 16+1 touch-sensitive motorized faders, 16+1 clickable rotary encoders, and tons of control buttons. It is the perfect match for Waves eMotion LV1.This is the best way to integrate the world’s leading software live mixer with a tactile, manual, and intuitive control surface that will simply make your life easier.You can also FIT as a universal control surface by using its HUI and MAckie contro emulation, let you get fully control on your mixing session.
What's in the box
FIT mixing control surface
USB cable
Power supply
User guide
Rack mounting panels
Registration caed
Plastic overlays for different DAWs
Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998. We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications.
Shipping --Pro packed & shipped USPS, UPS or Freight Service. Contact us & pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed & shipped. Processing times vary, 2-30 days
Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided. Otherwise customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, & accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.
What products can not be returned? - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids
Waves SGMOB Mobile SoundGrid Server Compact DSP Unit RAM 4 GB Audio Interface
Small but mighty, the Mobile SoundGrid Server fits right in your backpack and leaves room for more. Great for traveling, mixing small live shows and for the studio. Take it anywhere you go and boost your plugin processing power.
Don't be fooled by its size, the SoundGrid Moblie server definitely packs a powerful punch. With an Intel® Core™ i5 processor and 4 GB of RAM you can pile on quite a bit of processing tasks, making it suitable to power your plugins in small live shows as well as in the studio.
No different than the full sized, rack-mountable SoundGrid servers, latency is extremely low as ever: 0.8 ms at 44.1–96kHz. This positions the Mobile SoundGrid Server in an exceptional price/performance sweet spot for mobile DSP.
Paired with a SoundGrid audio interface, the Mobile server allows you to record and monitor through plugins in real time. With a non-SoundGrid interface, it takes the plugin processing load off your computer during mixing and editing sessions.
The carefully designed aluminum casing makes it a tough companion for your traveling adventures. Just throw it in your backpack alongside your laptop, audio interface and headphones and you still have room for more (snacks?).
Features:
Boost your plugin processing power live or in the studio
Plugin processing power that goes with you
Fits in your backpack with room for more
Exceptional price/performance sweet spot for mobile DSP
Ultra-low latency: as low as 0.8 milliseconds at 44.1–96kHz
Durable aluminum casing
Use with any SoundGrid audio interface (including DiGiGrid I/Os) for real-time processing for live-mixing / recording with plugins
Offload plugin processing from your computer to the server, using the audio interface you already have*
CPU: Intel® Skylake Core™ i5-6200u
RAM 4 GB
Power: DC12V 3A
6-month warranty
Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998. We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications.
Shipping --Pro packed & shipped USPS, UPS or Freight Service. Contact us & pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed & shipped. Processing times vary, 2-30 days
Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided. Otherwise customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, & accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.
What products can not be returned? - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids
Waves RKEAR 19 Inch Rack Mount Frame Rack Ears for Half Rack SoundGrid Servers
Custom-made to fit half-rack SoundGrid servers, for rack-mounting a single server onto a standard 19-inch rack frame.
Features:
Custom-made for half-rack SoundGrid servers
Mount a single server onto a standard 19" rack frame
Sturdy metal build
Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998. We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications.
Shipping --Pro packed & shipped USPS, UPS or Freight Service. Contact us & pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed & shipped. Processing times vary, 2-30 days
Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided. Otherwise customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, & accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.
What products can not be returned? - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids
Simplify Your Routing with DiGiGrid MGO
The DiGiGrid MGO lets you record, process, and playback up to 128 channels with Waves and other SoundGrid-compatible plugins—all at an ultra-low latency of just 0.8 milliseconds. It even allows simultaneous recording to two computers, perfect for virtual soundcheck and backup.
With its optical connector and support for both 56-channel and 64-channel modes, the MGO provides up to 112/128 channels of I/O at 48 kHz, and up to 56/64 channels at 96 kHz.
Key Features:
• Plug any optical MADI-enabled device into a SoundGrid network
• MADI-to-SoundGrid interface with optical connector
• Record to two computers simultaneously
• Record, process, and play back up to 128 channels
• Includes the SoundGrid Studio system software suite
• Compatible with eMotion LV1, SuperRack, and SoundGrid Studio
