Splitters

3.5" POWERED STUDIO MONITORS WITH TONE CONTROL AND BLUETOOTH®

YOUR WORK + PLAY SPEAKERS

Shape the sound of your Mackie CR3.5BT studio monitors on the fly, so you can mix a podcast episode, listen to music and DJ a house party, all with the same set of compact speakers.

Content Creation & Gaming

Add a set of our creative reference monitors to your setup for immersive sound you can tweak to your liking. Just connect your speakers to your gaming PC, audio interface, or Mainstream streaming interface, then adjust the tone knob until you hear the full impact of every footstep, line of dialogue and epic soundtrack moment.

Music Production

CR3.5BT studio monitors have the clear, accurate sound you need to produce and record music. With the tone knob turned all the way left, you get a flat frequency response for tracking and mixing. Crank the tone knob to the right to hear more bass and sparkle.

Casual Listening

When your space serves as an office, recording studio, streaming den, living area and more, you need speakers that can do it all. That‘s why CR Series monitors have versatile features like the tone control knob and the location switch to quickly adjust your listening experience to any situation you prefer.

BETTER WITH BLUETOOTH

Enjoy true flexibility with wireless Bluetooth® streaming. Press the icon on the front of the powered speaker to pair your favorite devices such as smartphones, laptops, and more for studio-quality sound anywhere.

PRODUCT FEATURES

Sound-shaping tone control

Location switch with desktop and bookshelf modes

50 watts RMS of bi-amplified Class A/B amplification

TRS, RCA and 3.5 mm inputs

Bluetooth® connectivity

Built-in headphone output

Silk dome tweeter with protective grille

3.5" woven woofer

Size (H × W × D): 8.1 × 5.5 × 7.1 in / 206 × 140 × 180 mm

Weight: 8.1 lb / 3.7 kg

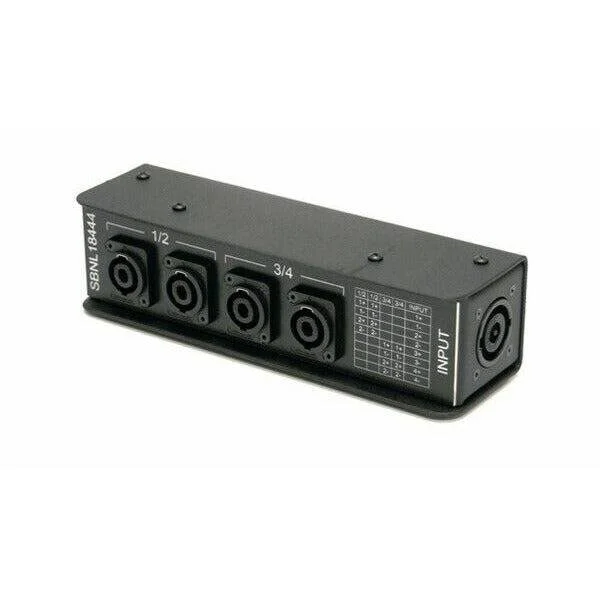

Whirlwind SBNL18444 Speakon Speaker Splitter Box 1 NL8 to 4NL4 bi amp pairs

Made in USA

Well constructed with high quality parts and connecters

Speakon splitter stage box 1 NL8 to 4 NL4  wired as bi amp pairs

This SBNL 18444  provides for a convenient way to split or breakout NL Speakons® for multiple speaker cabinet hookups.  Also comes with screw on custom eye hook to hang up off the floor or stage out of the way.

Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998.  We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications.

Shipping --Pro packed & shipped  USPS, UPS or Freight Service. Contact us & pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed &  shipped. Processing times vary, 2-30  days

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided. Otherwise customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, & accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

What products can not be returned? - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids

Whirlwind SBNL14442 Speakon Speaker Splitter Box 1 NL4 to 4NL4 stage box

Made in USA

Well constructed with high quality parts and connecters

Speakon splitter stage box 1 NL4 to 4 NL4  wired as pairs

This SBNL 14442  provides for a convenient way to split or breakout NL Speakons® for multiple speaker cabinet hookups.  Also comes with screw on custom eye hook to hang up off the floor or stage out of the way.

Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998.  We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications.

Shipping --Pro packed & shipped  USPS, UPS or Freight Service. Contact us & pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed &  shipped. Processing times vary, 2-30  days

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided. Otherwise customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, & accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

What products can not be returned? - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids

Whirlwind SBNL18442 Speakon Speaker Splitter Box 1 NL8 to 4NL4 Speakon Connector

Made in USA

Well constructed with high quality parts and connecters

Speakon splitter box 1 NL8 to 4 NL4  1 (+/-)

This SBNL 18442  provides for a convenient way to split or breakout NL Speakons® for multiple speaker cabinet hookups.  Also comes with screw on custom eye hook to hang up off the floor or stage out of the way.

Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998.  We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications.

Shipping --Pro packed & shipped  USPS, UPS or Freight Service. Contact us & pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed &  shipped. Processing times vary, 2-30  days

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided. Otherwise customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, & accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

What products can not be returned? - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids

Sennheiser ASA 214-UHF Active Antenna Splitter for G3 and G4 Wireless Microphone System

Ships Free!

The ASA 214 active antenna splitter is built in a full metal housing and ships with 8 BNC cables included. The splitter runs up to 4 receivers of the ew series with two antennas. The UHF-Version includes the NT 1-1 power supply with EU, UK and US adapters, while the ASA 214-1G8 includes the NT 1-1 with EU, UK and AU adapters.

Features

• Compatible with G4 and G3 systems

• Power supply via BNC cables for EM 300-500 / EM 100 receivers. No additional power supply needed

• Up to 4 true diversity receivers can be used with two external antennas

• Full metal housing

Specifications

Impedance: 50 Ω

Dimensions: approx. 212 x 168 x 43 mm

Weight: approx. 1090 g

Power consumption: max. 2.0 A with connected receivers and boosters

Storage temperature: -20°C - +70°C

Operating temperature: -10°C - +55°C

Power supply: 13,8 V DC (with NT 1-1 mains unit)

Antenna connector: BNC

Frequency range: 470-870 MHz (UHF), 1785-1800 MHz (1G8)

Operating relative humidity: 5 - 95 %

What's in the Box

• ASA 214 splitter

• 8x BNC cable 50cm

• NT 1-1 power supply

-----------------------------------------------------------------------------------------

Happy customers, that's music to our ears!

Sennheiser EW-D ASA (Q-R-S) Active Antenna Splitter for Wireless Digital System

Ships Free!

Active Antenna Splitter for use with Evolution Wireless Digital systems.

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. Receive state-of-the-art live sound.

Features

• Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability

• Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance

• Auto scan creates reliable connections with minimal time and effort

• 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail

• Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart

• 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels

• 2,240 selectable frequencies allow for fine tuning

• Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)

Raising the bar

Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market. Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own.

Equidistant Spacing – simpler than it sounds

Evolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems. Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other. This simplifies frequency coordination for wireless beginners and seasoned professionals alike, and also contributes to the system’s scalability and impressively high channel count.

An engineer in your pocket

The power of Bluetooth Low Energy puts full control right in the palm of your hand with the Sennheiser Smart Assist app. Take advantage of a remarkably fast automated setup, mobile access to every system setting and the added benefit of remote monitoring, all from the convenience of your Android or iOS device. Save time, save energy and perform with confidence.

Specifications

Frequency range: 470 - 694 MHz

What's in the Box

• EW-D ASA active antenna splitter (dual 1:4)

• NT 12-35 CS power supply for EW-D ASA

• (8) BNC antenna interconnect cable

-----------------------------------------------------------------------------------------

Echo tone Music is a long time E-commerce Audio and Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as belt-buckle or pick scratches, scuffs, dings or scrapes, screw mount marks or collateral materials. Items must also include all original packaging, manuals, warrantees and accessories or your return may be subject to a return handling charge.

If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, body jewelry, sheet music, cleaners, polishes and polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!

Whirlwind Split 6 Power Amplifier, Power speaker XLR Splitter 1 XLRF to 6 XLRM

Made in USA

Use this handy box when you need to split a line level signal up to 6 times*.

Description

Features 1 female XLR input wired to 6 male XLR outputs. Perfect when adding extra amplifiers to a system, connecting multiple powered speakers, splitting intercom lines, etc.

* Line level outputs can usually be split 6 times without noticeable loss of signal quality. The actual number of splits that can be accomplished depends on the level of the source signal and the impedances of the source and destinations in a particular application. It is not recommended that the SPLIT 6 be used to split a microphone level signal to more than two outputs. Attempting to do so may result in poor frequency response and reduced signal level.

Whirlwind  1X3 Line Level Splitter

Made in USA

Part number: SP1X3LL~Fresh made unit

The SP1X3LL provides one direct and two transformer isolated outputs from a line level input. The signal level at each transformer isolated output is 6 dB lower than the level of the direct output. The transformer outputs have individual  ground lift switches.

Maximum input level at 20 Hz is +20dBu.

Ships by Authorized Whirlwind Dealer

Whirlwind STSR358 Super Tour 58 Ch Concert Splitter System AC,Truck,Fanouts Case

3-way iso split w/TRSP2F transformers

Entire system, Components and Case all Made in USA

The Whirlwind Super Tour is an entire 58-ch Concert Series snake system, neatly packed into a single road case. Super Tour packages are very popular with hotels, casinos, convention centers and touring sound companies and include all of the cabling you need for FOH, Monitors and setup. Also included is our legendary Patchmaster system, complete with sub snakes.

Description

All Super Tour splitters feature a W4 direct output on the rear, with the option of one or two isolated W4 outputs on the front panel. The 300' FOH cable consists of a 58-ch W4 cable, 12-ch W1 drive cable and AC cable bundled together. This cable coils neatly behind the splitter and exits through a trap door on the rear of the road case.

The charts below outline the components included with each of our Super Tour systems. All Super Tour components are available separately.

AC panel, input on front, output on rear

Drive panel, input on rear

The STSR358 SuperTour 3-way system consists of:

1-STSCSR358

SuperTour Splitter: 58-channel, 3-way ISO w/ Whirlwind TRSP-2F transformers. Direct Out on rear, dual ISO out on front. All outputs on Whirlwind W4 MASS connectors.

1-STSCASE

SuperTour Road Case w/ removable lid and front, houses all components and cables.

1-STSACPANEL

SuperTour AC power disconnect panel with Littlelite and USB charger port

1-PATCHMASTER60

PatchMaster system w/ 5 W1 multipin inputs to color-coded tails.

1-STSC5812AC300

300' 3-piece main trunk, joined with heavy duty heatshrink, consists of 1 each:

   · 58 channel W4 to W4 MASS interconnect cable

   · 300' 12 channel W1 to W1 drive interconnect cable

   · 300' 12-3 AC power cable w/ Neutrik Powercon connectors

1-FM562XLW4IRP(I)10SS

10' fanout for FOH, 56 inputs, 2 returns

2-FM562XLW4IRP(I)25SS

25' fanouts for split #2 and split #3, 56 inputs, 2 returns

1-STSD12S1

Color-coded Drive Output panel w/ W1 input.

1-STSD12F1

12 channel drive panel for FOH

2-B120NRW1IM50- Color/or BK

12 channel drop boxes w/ 50' hardwired cable to W1 (available with detachable box)

3-B120NRW1IM100 + COLOR

2 channel drop boxes w/ 100' hardwired cable to W1 (available with detachable box)

The heavy duty Stage Road Case is 43" Deep, 29" wide and 29" high.  Everything fits inside the case and latches shut for easy transport.

Everything pictured here is included except the Mixer in Pic #2.  Also include which is not pictured but in the description are five B12 drop boxes and W1 snake ( ask for detachable or hardwired )

*****This unit is shipped by Truck Freight Service on a pallet and will deliver to any Venue, or commercial business with a loading dock.  If you don't have a loading dock or a freight terminal in your town ( very rural areas)  Then you will go pick it up at the nearest terminal.  Ships in the Lower 48 states only. Email prior to purchase if you need a lift gate for delivery. *** this unit is non returnable***

Whirlwind AES-SP1X2  Splitter 1 XLR Female to 2 XLR Maile AES/EBU Box

The Whirlwind AES Splitter 1x2 is a passive unit that delivers two identical AES/EBU signals from a single stream. The design utilizes a dual secondary transformer on the input and a separate isolation transformer for each output. With the three-transformer circuit, the Whirlwind AES-SP1X2 maintains excellent data integrity and high amounts of isolation between outputs.

Authorized Whirlwind Dealer

ART ARTS8 8 Channel Microphone Signal Splitter Multiple Mixing Consoles

The ART S8 can be used to split eight balanced low impedance microphone signals into sixteen balanced low impedance microphone signals (eight pairs).

Each channel of the S8 provides one direct output and one transformer isolated output from a single microphone. Applications include sending the direct outputs to the main or Front-of-House mixer, and the second isolated outputs being sent to a monitor or recording mixer. The direct outputs pass phantom power from the main mixer to the microphones for use with condenser microphones.

The S8 includes a ground-lift switch on each isolated output to reduce noise due to ground loops between connected equipment. For versatility the S8 also features an attenuator pad switch on each input that can be used to connect preamplified signals to the two microphone-level outputs on each channel. Typical preamplified signals would originate from instrument preamplifiers, mixers, keyboards, et cetera.

Features:

• Ideal solution for splitting microphone sources to feed multiple mixing consoles

• Fully transformer isolated

• Passes phantom power from main mixer

• Individual ground lift on each channel

• Individual pad switch on each channel

Specifications:

Input Impedance: > 1.1k Ω @ 1kHz (Typical)

Maximum Input Level: -1.4dBu @20Hz / +3.5dBu @30Hz / +9.4dBu @50Hz

Output Impedance: <255 Ω @ 1kHz (Typical)

Total Harmonic Distortion: <0.1% From 45Hz To 20kHz @ -15Dbu Input

Frequency Response: 20Hz to 20kHz

CMRR: > 105dB @60Hz / Greater Than 80dB @3kHz

Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998.  We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications.

Shipping --Pro packed & shipped  USPS, UPS or Freight Service. Contact us & pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed &  shipped. Processing times vary, 2-30  days

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided. Otherwise customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, & accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

What products can not be returned? - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids

Chauvet DJ DATASTREAM4 Universal DMX-512 Optical Splitter Distribute DMX Signal

The Data Stream 4 is a universal DMX-512 optical splitter designed to distribute the incoming DMX signal, in daisy chain configurations, into four separate outputs with an additional “thru” port.

Highlights:
Universal, optical DMX splitter provides 4 outputs from a single input
Increase flexibility with 3- and 5-pin XLR connections for each input/output
Increase operation with additional 3- and 5-pin output for linking other Data Stream 4 units
Electrical isolation between input and output
Conveniently mount with a shorter cable run using the single space (1U) mounting rack

WHAT'S INCLUDED:
Power cord
Warranty card

Specifications:
DMX Channels: 3- and 5-pin
Input Voltage: Auto-ranging 100 - 240
VAC 50/60HzPower and Current:
3W, 0.1A @ 120V 60Hz
5W, 0.1A @ 230V 50Hz
Weight: 5.8 lb (2.6 kg)
Size: 19 x 5.3 x 1.8 in (483 x 134 x 46 mm)
Approvals: CE

Whirlwind CSR58T2NRRP Concert Series W4 Splitter 58X0 Ground lifts Transformers

Brand new unit with 5 year warranty. No stock pic so we just took a picture of it ourselves.

Made In USA

Rack mounted Unit, W4 Direct Out, [2] W4 isolated Splits with ground lifts & TRSP2F Transformers

The Whirlwind Concert Series mic splitting systems include the most requested options for splitter boxes and panels for concert audio.

Each system is housed in either a heavy-duty steel stage box or an EIA 19" rack panel with back box enclosure. Our Whirlwind MASS Series Multipin connectors speed set-up and tear-down.

Overbuilt like everything Whirlwind Makes to Last for Years to come

This unit is Approx 4" Deep and 19" across from left to right.

Authorized Whirlwind Dealer

Whirlwind LBS XLR Audio Line Balancer Splitter Interface Noise Reduction Box

American Made with high quality components in USA  Passive with 3 year full warranty

This handy tool balances and isolates a single line level signal or lets you send a line level signal to two destinations with transformer balancing and isolation for one or both of the outputs.

The balancing provides superior noise rejection when you have equipment with unbalanced outputs that need to feed equipment with balanced inputs. The transformer isolation helps eliminate unwanted hum and buzz caused by power line and grounding issues.

In ISO mode the signal is passed directly through to one output and transformer isolated to the second output.

In SPLIT mode the signal is transformer isolated to both outputs with a resulting 6dB drop in level at each output.

A ground lift switch is provided for each output.

Both a female XLR and a 1/4" TRS jack are provided for the input signal. Male XLR connectors are used for the output signals.

Operating Level:

Input: -10dBm to +26dBm

Output: -10dBm to +26dBm (ISO mode), -16dBm to +20dBm (SPLIT mode)

Frequency Response: 20Hz-20kHz ±1dB

Whirlwind MLTSP1X3 4 channel XLR Microphone Splitter Media Broadcast Rack Splitter

Made in USA

Description

Four channels of passive and isolated microphone splitting in a single space rack panel.

Ideal for splitting and isolating mic level sends to a video truck or a remote broadcast, the MLTSP1X3 provide one direct and two transformer isolated outputs per channel respectively.

Each isolated output has a front panel ground lift switch. The inputs (female XLR) are located on the front panel and outputs (male XLR) are located on the rear panel.

Operating Level: -50dB to +4dBu

Frequency Response: 20Hz-20kHz ±1dB

Outputs: MLTSP1X2: 1 direct, 2 isolated

Fresh Made units shipped by long time Authorized Whirlwind dealer.

Whirlwind FM328XLW3CRP010SS 40ch Concert Stage Snake W3IRP to 32 x 8 Returns 10ft long

Made in USA

Custom buit 40 pair Concert snake for Whirlwind 32X8 Medusa Stage Box/Concert Splitter

FM Series Concert grade Fanout 32 channel and 8 returns

Description

These fanouts have an inline W3 multipin connector at one end and a fanout at the other with WI3M male XLRs on input channels and WI3F female XLRs connectors on return channels.

Black XLRs have large pre-stamped identifying numbers. Each fan out channel is 3 foot in length and the remailing trunk will be 7ft for a total of 10ft including the mass connector.

Snakeskin® is applied to the fanouts as a standard feature on all FM Series snakes

Made to last like everything Whirlwind makes!  Handbuilt everytime!

© 2025 Echotone Music LLC All Rights Reserved. Any use of any material content, images, or design, without prior written consent from echotonemusic.net, is strictly prohibited by law.

Whirlwind STSR358D W4 Super Tour 58 Channel Concert Splitter System w/Data

Whirlwind incorporates the standard features of their legendary Super Tour with 2 lines of Data.

The Whirlwind Super Tour is an entire 58-ch Concert Series snake system, neatly packed into a single road case. Super Tour packages are very popular with hotels, casinos, convention centers and touring sound companies and include all of the cabling you need for FOH, monitors, and broadcast (optional). Also included is our legendary Patchmaster system, complete with sub snakes.

All Super Tour splitters feature a W4 direct output on the rear, with the option of one or two isolated W4 outputs on the front panel. The 300' FOH cable consists of a 58-ch W4 cable, 12-ch W1 drive cable and AC cable bundled together. This cable coils neatly behind the splitter and exits through a trap door on the rear of the road case.

The charts below outline the components included with each of our Super Tour systems. All Super Tour components are available separately.

AC panel, input on front, output on rear

Drive panel, input on rear

The STSR358D SuperTour 3-way iso split w/TRSP2F transformers and 2 lines of data system consists of:

Description

1 STSCSR358 - SuperTour Splitter: 58-channel, 3-way ISO w/ Whirlwind TRSP-1F transformers. Direct Out on rear, single ISO out on front. Both outputs on Whirlwind W4 MASS connectors.

1 STSCASE -   SuperTour Road Case w/ removable lid and front, houses all components and cables.

1 STSACPANEL-  SuperTour AC power disconnect panel with LittleLite and USB  charger port

1 PATCHMASTER60- PatchMaster system w/ 5 W1 multipin inputs to color-coded tails.

1 STSC5812ACC5E2300- 300' 3-piece main trunk, joined with heavy duty heatshrink, consists of 1 each:

   · 58 channel W4 to W4 MASS interconnect cable

   · 300' 12 channel W1 to W1 drive interconnect cable

   · 300' 12-3 AC power cable w/ Neutrik Powercon Connectors

    · 300' Tactical Cat5E cable w/ Neutrik Ethercon Connectors

1 FM562XLW4IRP(I)10SS- 10' fanout for FOH, 56 inputs, 2 returns

1 FM562XLW4IRP(I)25SS- 25' fanout for split #2, 56 inputs, 2 returns

1 -STSD12S1 - Color-coded Drive Output panel w/ W1 input.

1 STSD12F1- FOH drive panel w/ W1 output.

2 B120NRW1IM50 + COLOR 12 channel drop boxes w/ 50' hardwired cable to W1 (available with detachable box-extra)

3 B120NRW1IM100 + COLOR 12 channel drop boxes w/ 100' hardwired cable to W1 (available with detachable box-extra)

1 STSC5E2- Data Panel w/2 Cat5E Ethercons on front and rear

*** This unit is shipped by Freight service on a pallet to a commercial loading dock or companies with Forklifts. This is a non-returnable and Non-refundable item but fully backed by Whirlwind if service is needed.

Whirlwind CSR58TNRRP W4 58X0 58 Channel Concert Splitter System Transformers Ground lifts

The ultimate in Hand Built 12U concert splitter for the best in performance and sound. Featuring W4 Connectors, TRS1PF Transformers. Ground Lift switches for each microphone.

The Whirlwind Concert Series mic splitting systems include the most requested options for splitter boxes and panels for concert audio.

Each system is housed in either a heavy-duty steel stage box or an EIA 19" rack panel with back box enclosure. Our Whirlwind MASS Series Multipin connectors speed set-up and tear-down.

Microphone inputs are wired directly to one multipin (Main Out) and paralleled or wired through Whirlwind TRSP-1F transformers to a second multipin (Split Out). Each microphone input has a ground-lift switch on the Split Out.

This unit can be airmailed , simply call us to upgrade service. Otherwise it ships UPS Ground with Signiture required.

Concert 58NR:
58 WC3F female XLR microphone inputs (no returns)

Rack Panel - 12-U high:
CSR58TNRRP (transformer split, replaceable pin MASS)

Whirlwind FM58NRW4RP010 58ch Concert Splitter Snake No Returns XLR to W4IRP 10 FT

FM58NRW4RP010SS

Made in USA

This fits 58X0 channel Concert series splitters with W4CRP chassis connector like, CSR58T2NRRP

Whirlwind's the line W4 58 Channel Concert series snakes are all handmade in Rochester NY.  This has a W4IRP Mass inline Connector to 58 WI3M inputs and 0 outputs. Black XLRs have large pre-stamped identifying numbers with 4.5ft fanouts. Snakeskin® is applied to the fanouts as a standard feature. Black XLRs have large pre-stamped identifying numbers and will have the multi-colored fanouts as shown in the picture here.

Great for Pro Sound applications where fast set up and tear down is needed.

ARX MaxiSplit 1 into 4 Line Distribution Splitter

Built in Austrailia
You'll never compromise on Quality when you choose ARX

In the modern multi-zone installation audio environment it has become a fact of life that one signal now has to go to more than one place, and usually at differing levels. And, to ensure a low noise floor and good frequency response, the split signal needs to be buffered and balanced as well.

The Solution
To fulfill this seemingly simple but important signal splitting task, ARX has designed the MaxiSPLIT: two independent channels of 1 into 4 splitters, switchable to a single channel 1 into 8 splitter by using the rear panel channel link switch. Mode status is shown by the front panel LED indicators.

Balanced Inputs and Outputs
Each channel features Male and Female electronically balanced XLR inputs, with passive RF filtering to prevent RF breakthrough. Each output features an electronically balanced male XLR output with individual output gain control on the front panel, providing up to +6 dB of gain.

Wide Dynamic Range
Internally, careful attention to signal path design has resulted in a unit with wide dynamic range, enough headroom to cope with the hottest line signal, and better than digital noise specifications.

Universal AC Power
AC power range is a universal 100 to 120V or 220 to 240V AC and is connected to the unit via a standard IEC connector, with built-in fuse and voltage change switch

Applications
A typical MaxiSplit application would be as a Master Line Distribution Splitter. In this way, it can control the levels of 4 different zones in a stereo installation or up to 8 different zones in a mono installation.

Other applications include splitting effects sends to multiple effects units in both studio and live sound applications, supplying different feeds from the main signal, and separating OB signals in broadcasting.

Accurate and compact, the MaxiSplit's unique combination of ultra-low distortion, low noise, and high headroom makes it the ideal installation line distribution splitter.

For the Installation Contractor, accurately mixing line level audio signals has never been easy. Using the wrong product can lead to lack of headroom, vastly differing input levels, uneven output levels, RF breakthrough - the problems have been seemingly endless.
Until now, that is!

The Solution
Introducing the MaxiMIX from ARX: Two independent mixdown groups, each consisting of 4 line inputs with individual level controls and RF filters. Both groups can be linked for a Mono 8 channel mix.
Each input has up to +6dB of gain available, and full attenuation to allow matching of any line level signals.

Balanced Inputs and Outputs
In Stereo mode, each of the 4 electronically balanced inputs combine into fully balanced Master outputs, each of which has 2 male XLR sockets. In Mono mode all Eight inputs mix down to a single linked pair of Master outputs

Wide Dynamic Range
Internally, careful attention to the signal path design has resulted in a unit with wide dynamic range, enough headroom to cope with the hottest line signal, and better than digital noise specifications

Universal AC Power
AC power range is a universal 100 to 120V or 220 to 240V AC, and is connected to the unit via a standard three pin IEC connector, with built-in fuse and voltage change switch.

Applications

A typical MaxiMIX application would be as an Installation Master Mixer, combining Live Band Mix, Disco, KTV and Audio-for-Video signals. In this way they can all run independently of each other through the one speaker system.
Other applications include using it as a line sub-mixer for external effects units, and as a Keyboards, Drum machines or other Electronic Instruments sub-mixer.

Accurate and compact, the MaxiMIX's unique combination of ultra low distortion, low noise and high headroom makes it the ideal installation line mixer.

Technical Specs:

Modes of operation 2 x 4:1 Line Mixer, 1 x 8:1 Line Mixer
Input Impedance 44K Ohms Balanced, 22K Ohms Unbalanced
Input Headroom +21dB
Output Level +26dB
Output Signal/Noise (@ unity gain) -95dB unweighted, 101dB A weighted
Output Impedance 300 Ohms Balanced, 150 Ohms Unbalanced

Dynamic Range 120dB
Frequency Response 20Hz-20 KHz -1dB
Distortion (@ unity gain
100Hz .0035%
1KHz .0033%
10KHz .0037%
Input Connector Type Female XLR
Output Connector Type Male XLR

Front Panel Controls
Individual Level controls for all 8 input channels
Mode status LEDs
Marker panel for labelling input channels
Rear Panel

Balanced Inputs and Outputs, on Balanced XLR connectors
Switchable between 4 channel stereo mixer mode or 8 channel mono mixer mode
AC input connector, with voltage switch and fuse
