Whirlwind PLD 100A Portable Power Distro 24 Duplex Circuits
** We will ship this free to the lower 48 states. No lift gate ( a $400 plus freight service)
**Note 5 to 7 weeks to build prior to shipment. Ships LTL Freight
*** This item is non-returnable and Non non-refundable as it’s a special build order. It can not be cancelled once it is placed.
Pro hand-built and wired 3 phase UL approved PLD 100A Power Distro for Events & Touring. Included is a pro power meter, 100A main service breaker, Cam lock inputs and 24 Duplex circuits with breakers. This Unit is housed in a cyclone lift-off door marine-grade case. A heavy-duty enclosure that is well-designed and crafted. One of the best cases made today anywhere in the world, as the distro itself.
5 year warranty coverage by Whirlwind’s factory. Coverage against workmanship or failure. They stand behind the products they build, and so do we.
Professional power solution for festivals, events, lighting, and pro audio setups.
Contact us 585-405-4375 for further questions on this or any power disto builds.
Whirlwind PLD 100A Portable Power Distro for Stage & AV
** We will ship this free to the lower 48 states. No lift gate ( a $400 plus freight service)
**Note 5 to 7 weeks to build prior to shipment. Ships LTL Freight
Pro hand-built and wired 3 phase UL approved PLD 100A Power Distro for Events & Touring. Included is a pro power meter, 100A main service breaker, Cam lock inputs and 12 Duplex circuits with breakers. This Unit is housed in a cyclone lift-off door marine-grade case. A heavy-duty enclosure that is well-designed and crafted. One of the best cases made today anywhere in the world, as the distro itself.
5 year warranty coverage by Whirlwind’s factory. Coverage against workmanship or failure. They stand behind the products they build, and so do we.
Professional power solution for festivals, events, lighting, and pro audio setups.
Contact us 585-405-4375 for further questions on this or any power disto builds.

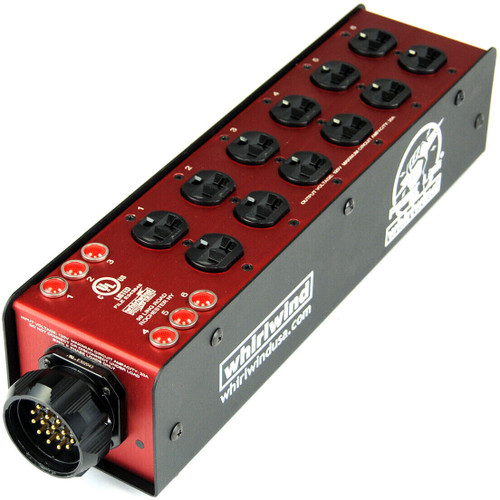

Whirlwind PL2 SPX16E-000 Powerlink Power Distro box SPX19 to 12 Edison AC
Made in USA
Power distro Stringer Steel box with Chassis mount SPX19 inlet to 12 Edison AC outlets. Unit is UL Approved and Build to last!
PL2 Stringer
SPX19 chassis inlet
(6) 20A Duplex outlets
Neon indicator lamps
Rated for 120v to 230v
Whirlwind PL2SPX112P-000 Powercon Distro Outlet Stage Box 20A SPX19
Made in USA
Fresh builds & Latest version shipped
PL2 Stringer
SPX19 chassis inlet
(12) PowerCon 20A outlets
Neon indicator lamps

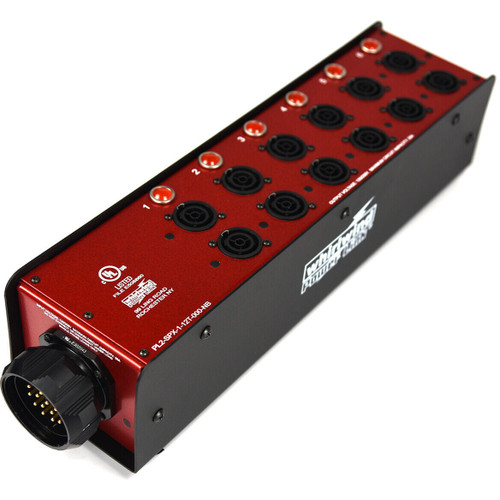

Whirlwind PL2 SPX112T-000 Powerlink Distro Stringer Box SPX19 to 12 Powercon True One outlets
Made in USA
Rugged Steel Box houses 12 Powercon True One Outlets with Indicator lights. Main chassis inlet is a SPX19 Male connect. This unit is 17" X 4" wide.
PL2 Stringer
SPX19 chassis inlet
(12) True One outlets
Neon indicator lamps
120V-220V will work Domestic or In Europe
Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998. We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications.
Shipping --Pro packed & shipped USPS, UPS or Freight Service. Contact us & pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed & shipped. Processing times vary, 2-30 days
Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided. Otherwise customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, & accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.
What products can not be returned? - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids
Whirlwind PL2213016P Powerlink Distro Plus Circut Breaker L2130 to 6 powercon
Made in USA
Whirlwind Powerlink Division makes the best AC power stringers made today. Make sure your event will go off with out a hitch everytime and will be safe with Powerlink Distro Units.
Using light weight aluminum panels, premium, fast
response magnetic circuit breakers, and top of the line components.
Built the way you’d expect when the Whirlwind name is on it.
Each PL2 module converts a multi-phase input into independent branch circuits, and also provides a multi-phase output connector so multiple boxes can be linked together. The PL2 series is perfect for distributing power around a stage, trade show kiosks or festival booths. The optional PL2-FB fly bracket allows the PL2 to be mounted to truss for multi-circuit power distribtuion to loudspeakers and lighting fixtures. All PL2 modules are UL-listed devices.
Part number: PL2-2130-1-6P-000
*PL2 Stringer
* L2130 chassis inlet
* (6) PowerCon 20A outlets
* Neon indicator lamps
* circuit breaker
PL2 Fly Bracket for mounting PL2 Distro Stringer units
Made in USA
Part number: PL2FB
Fly Bracket for truss-mounting PL2 Outlet stringer Power Link Units. Well made steel bracket
Whirlwind PL2-213023E6P-00 PowerCon Duplex Circuit Breaker AC Stringer Box
Make setups easy and safe with this well designed Circuit Breaker distro Power Unit
Each PL2 module converts a multi-phase input into independent branch circuits, and also provides a multi-phase output connector so multiple boxes can be linked together. The PL2 series is perfect for distributing power around a stage, trade show kiosks or festival booths. The optional PL2-FB fly bracket allows the PL2 to be mounted to truss for multi-circuit power distribution to loudspeakers and lighting fixtures. All PL2 modules are UL-listed devices.
** mounting brackets sold separate and available here in our store.
PL2 Stringer
L2130 inlet and outlet
(3) 20A duplex outlets
(6) PowerCon 20A outlets
Neon indicator lamps
circuit breakers
Proudly Made in USA
Whirlwind PL2 PowerCon AC Stringer w/ Circuit Breaker L2130 to Powercon 20A
Made in USA
Part number: PL2-2130-1-3P-000
Whirlwind Powerlink Division makes the best AC power stringers made today. Make sure your event will go off with out a hitch everytime and will be safe with Powerlink Distro Units.
Using light weight aluminum panels, premium, fast
response magnetic circuit breakers, and top of the line components.
Built the way you’d expect when the Whirlwind name is on it.
Each PL2 module converts a multi-phase input into independent branch circuits, and also provides a multi-phase output connector so multiple boxes can be linked together. The PL2 series is perfect for distributing power around a stage, trade show kiosks or festival booths. The optional PL2-FB fly bracket allows the PL2 to be mounted to truss for multi-circuit power distribtuion to loudspeakers and lighting fixtures. All PL2 modules are UL-listed devices.
* PL2 Stringer
* L2130 chassis inlet
* (3) PowerCon 20A outlets
* Neon indicator lamps
* circuit breakers
-----------------------------------------------------------------------------------------
Echo tone Music is a long time E-commerce Audio and Musical instrument dealer since 1998. We take pride in selling quality gear for musicians, sound engineers and broadcast applications.
Shipping --Items are well packed and shipped USPS, UPS or Pallet Freight Service. Items purchased on Friday may not ship until Monday or until the projected processing period. We are working hard to get your unit Built ( if needed), processed and shipped.
Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.
Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as belt-buckle or pick scratches, scuffs, dings or scrapes, screw mount marks or collateral materials. Items must also include all original packaging, manuals, warrantees and accessories or your return may be subject to a return handling charge.
If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.
The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, body jewelry, sheet music, cleaners, polishes and polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.
Happy customers, that's music to our ears!
Whirlwind Catdusa CATFORMER 4 channel RJ45 breakout Box Combo XLR/DI to Neutrik Ethercon
Made In USA
The Whirlwind Catformer is a four channel RJ45 input box. Each channel features a Neutrik combo connector, and can be either a mic or DI input with the simple flick of a switch. The Catformer has 1/4" feed-thru connectors for the DI inputs, with ground lift switches to eliminate hum, and a Neutrik Ethercon output jack.
***Fresh Build, Newest Version***
Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998. We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications.
Shipping --Pro packed & shipped USPS, UPS or Freight Service. Contact us & pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed & shipped. Processing times vary, 2-30 days
Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided. Otherwise customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, & accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.
What products can not be returned? - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids
Whirlwind Catdusa CT-F Ethercon Cat5 Mini Audio Drop Snake to 4 Female XLR
Made in USA
Catdusa CT-F mini snakes are the latest addition to the Catdusa family. Like other Catdusa products, they use Cat cable to transmit four channels of analog audio. They have a Neutrik Ethercon connector broken out to four XLRs on 18 inch tails. They are wired with 110 ohm cable to maintain AES and DMX performance when using shielded Cat cable. This CT-F terminates to four female XLRs. ( the CT-M male XLR ends is a separate listing) They can be used together to create a simple 4 channel fan to fan snake, or combined with other Catdusa pieces to create a flexible and comprehensive stage sub snake system. Check out our entire Catdusa family, and find out what RJ45 solution works best for you!
____________________________________________________________________________
Echo tone Music is a long time E-commerce Audio and Musical instrument dealer since 1998. We take pride in selling quality gear for musicians, sound engineers and broadcast applications.
Shipping --Items are well packed and shipped USPS, UPS or Pallet Freight Service. Items purchased on Friday may not ship until Monday or until the projected processing period. We want to get your item out as fast as we can.
Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs. Refunds are for the product price only and will be less all shipping charges and 10% return Service Charge as we have to pay people to process and inspect all returns.
If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.
Happy customers, that's music to our ears!
Whirlwind Catmaster Catdusa 6 RJ45 to 24XLR Male 3ft snake Rack unit
Made in the USA
The CatMaster incorporates 6 Neutrik EtherCON connectors terminating to color-coded tails.
The tails exit through grommets so they may be retracted into the panel. Tails can be dressed to length for a neat appearance and unused tails can be pushed back and out of the way.
***Fresh Built, Newest Version**
Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998. We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications.
Shipping --Pro packed & shipped USPS, UPS or Freight Service. Contact us & pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed & shipped. Processing times vary, 2-30 days
Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided. Otherwise customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, & accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.
What products can not be returned? - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids
Whirlwind MD04C5E150 4 channel 150ft Cat5e Ethercon Data Snake
Made in USA
This unit features Whirlwind's typical bullet proof construction utilizing a Medusa® 4 channel Mini-6 style stage box wired with CAT-5e snake cable to Neutrik Ethercons® and Snakeskin®on the fanout. All 4 channels shielded and wired to top specs as whirlwind has since the first snake in 1973.
Quality Checked while its being made and quality checked and tested prior to shipment. We want everyone to get a top notch product!
Whirlwind MIC MUTE PM Microphone Mute Foot Pedal Made in USA
The Whirlwind Micmute boxes offer passive switching solutions for controlling the on and off conditions of a microphone or balanced line signal.
Made in USA
Made with High quality parts that will last
The Micmute PM are configured as Push to Mute switches, meaning that the input signal is normally on, passing through the box. When the switch is depressed and held down, the signal is turned off or muted. The signal is reconnected as soon as the switch is released. Mute Your Mic on and off with just a press of a button
Whirlwind B12MNRW1CMB 12 Channel W1 Stage Snake Box with Multi Pin Connector
The Most Popular Drop Box in the World is still hand built and tested!
Choose the color of your choice when ordering.
Stage box is made of cold rolled steel and has 12 XLR-F to 39 pin Multi Pin W1 Connector w/cap as shown.
Smaller Mini Slim Box allows you to put these boxes in tighter spots and out of the way.
Built to last and take the rigors of road, stage or studio with daily use. Made in USA
Whirlwind MTD04C5E250 Fan to Fan Cat5e Nuetrik Ethercon 4 Channel Snake 250ft
Made in USA
Fan to Fan CAT-5e snake cable with Neutrik Ethercons® and Snakeskin®on the fanouts. Made with Belden's 2412 heavy-duty, fourpair Cat5e Cable . Also comes with Heavy duty Pig bag covers to protect the Ethercon connectors when in transport or storage.
Professional High Quality Snake you can count on to perform year after year.
Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998. We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications.
Shipping --Items are well packed and shipped USPS, UPS or Freight Service. Items purchased on Friday may not ship until Monday or until the projected processing period. We are working hard to get your unit Built ( if needed), processed and shipped. Processing Times do vary
Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs. Returned items must be sealed/unopened in original brand-new condition, showing no signs use such as mount marks, scratches, scuffs, or collateral material damage.. Items must also include all original packaging, manuals & accessories or your return may be subject to a return handling charge.
Refunds are for the Item cost only. If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service/restocking fee. This item is now used and it would be unfair to resell to another customer as new.
The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, software/sound ware.
Whirlwind C series 12 Channel Multi-line Cable-Made in USA 100ft long
This has W1IF on one end and a W1IM on the other, W1 inline connector.
Multiline Cable Assemblies are designed to interconnect the components of Concert Series Splitters or other custom multichannel distribution systems and B12 Snake Boxes.
Pro grade Distro Cable constructed with Whirlwind cable and inline W-Series multipin connectors.
Authorized Whirlwind dealer
Fresh made Units shipped
Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998. We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications.
Shipping --Pro packed & shipped USPS, UPS or Freight Service. Contact us & pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed & shipped. Processing times vary, 2-30 days
Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided. Otherwise customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, & accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.
What products can not be returned? - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids
Whirlwind Direct2 DI Box Convert Computer Keyboard, Acoustic Preamp to balanced
Made in USA
The DIRECT2 combines features found on two of our DIRECTOR ® direct boxes in one unit.
Perfect for converting unbalanced signals from stereo keyboards, acoustic guitar preamps, CD and tape players, computer sound cards, etc.
Description
Each section features:
1/4" parallel wired in/out jacks
Ground Lift switch to help eliminate hum and buzz
-20dB pad switch for connection to "hot" input signals
Uses Whirlwind's TRHL-M transformer with metal shield
The input and output grounds of each section are isolated from each other. This allows the DIRECT2 to be used as if it were two completely separate DIs without fear of creating ground loop interaction.
Model # - DIRECT2
Impedance Ratio (input to output per channel): 133:1 Frequency Response: 20Hz-20kHz ±1dB
Level Change (input to output): -20dB (pad out), -40dB (pad in)
Whirlwind SC48RJ Speaker cable, data cable tester NL4 / NL8 / RJ45 / XLR TESTER
The SC48RJ Tester provides rapid, positive testing for NL4 and NL8 type multiline speaker cables, RJ45 type data cables and XLR cables.
Description
Rotating the central switch applies voltage to the cable conductors one at a time. A SEND LED indicates the pin to which the voltage is being applied, and a RECEIVE LED indicates where it returns, clearly revealing, shorts, opens and cross-wires.
Ships by Authorized long time Dealer
Whirlwind THS 3 Talkback Headphone Box DJ Sports Announcer Microphone Control
THS 3 Talkback BOX, Made in USA
The THS 3 Talkback/Headphone box is an all-purpose, fully loaded sports announcer console. Both main and talkback microphone outputs are provided, with Mic On/Off, Cough and Talkback switches for control. The talkback output is line level with a trim control and the main microphone output of the THS 3 will be live on-air if power is lost, when using dynamic microphones.
There are two assignable inputs for the headphones with balanced and unbalanced connections. Each input can be assigned to left, right or both ears. The THS 3 left and right headphone amplifiers have individual volume controls that adjust the overall level in each ear. Headphones with impedances ranging from 30 to 600 Ohms can be driven to full volume.
Description
The THS 3 has both main and talkback microphone outputs. A latching Mic On/Off switch connects signal to the main mic output. The switch is illuminated red when the mic output is live. 36 Volt phantom power is available if condenser mics are used. Onboard phantom power allows seamless switching when talkback is activated. The switch to turn phantom power on and off is recessed to avoid accidental turn off. A momentary Cough switch silences both the mic out and the talkback out when depressed. The momentary Talkback switch connects audio to the talkback output and mutes the mic out. The announcer’s microphone is sent through a preamp and line driver that deliver signal to the talkback output at line level. There is a level control for fine adjustment of the audio sent down the talkback line. The Talkback switch illuminates green when depressed.
The headphone section of the THS 3 has two inputs. Each input can be assigned to left, right or both ears. Individual volume controls are provided for left and right ears, which adjust the overall level of any inputs assigned to that ear. Input signals can be either balanced mono or unbalanced stereo. A rear panel switch selects the proper mode. Both 3 pin XLR and ¼” TRS input jacks are provided for hookup flexibility. Headphones with impedances ranging from 30 to 600 Ohms can be driven to full volume.
Power is supplied by a 12 VAC power adapter, model # PS12AC1A, included with the unit.
Features
· Separate left and right headphone amps with individual volume controls
· Two headphone signal inputs can be assigned to either or both ears
· Balanced or unbalanced inputs on XLR or ¼” TRS jacks
· Passive Mic Out for on-air reliability
· Mic output switching is completely silent
· Active line level Talkback Out with level adjust
· Mic On, Cough and Talkback switches for control
· ¼” TRS or 3.5mm headphone jacks
· PS12AC1A power adapter included
Whirlwind THS 5 Talkback Podcast Headphone Box Broadcast Announcer Interface
Ships Free!
The THS 5 Talkback/Headphone box is an all-purpose sports announcer console with unique mixing features for ultimate monitoring flexibility. There are two balanced XLR inputs for the headphones. Each input has a volume control and a pan pot for setting left/right headphone balance. The announcer's microphone can also be added to the headphone mix via volume and pan pots. A master headphone volume controls the overall mix. Headphones with impedances ranging from 30 to 600 Ohms can be driven to full volume.
Both main and talkback microphone outputs are provided, with Mic On/Off, Cough and Talkback switches for control. The talkback output is line level with a trim control and the main microphone output of the THS 5 will be live on-air if power is lost, when using dynamic microphones.
Description
The THS 5 has both main and talkback microphone outputs. A latching Mic On/Off switch connects signal to the Mic Out. The red light is illuminated when the Mic Out is live and is turned off by the cough and talkback switches. Two types of onboard condenser microphone power are available, enabling seamless switching when talkback is activated. A three way switch selects either phantom or "T" power and is recessed to avoid accidental turn off.A momentary Cough switch silences both the Mic Out and the talkback out when depressed. The momentary Talkback switch connects the mic to the talkback output and mutes the Mic Out. The announcer’s microphone is sent through a preamp and line driver that deliver signal to the talkback output at line level. There is a level control for fine adjustment of the audio sent down the talkback line. The Talkback switch illuminates green when depressed.
There are two balanced line level headphone inputs on individual female XLR connectors. Separate front panel volume controls and pan pots adjust the level to the left and right ears. The THS 5 also has a third set of volume and pan pots that add the announcer's microphone to the headphone mix. A master headphone volume pot varies the overall mix in both ears simultaneously. Headphones with impedances ranging from 30 to 600 Ohms can be driven to full volume.
Power is supplied by a 12 VAC power adapter, model # PS12AC1A, included with the unit.
Features
· Two balanced line level inputs with individual volume and pan controls
· Announcer mic mix to headphones with volume and pan controls
· Master headphone volume adjusts overall mix
· Passive Mic Out for on-air reliability with dynamic mics
· Active line level Talkback Out with level adjust
· Mic On, Cough and Talkback switches for control
· ¼” TRS or 3.5mm headphone jacks
· PS12AC1A power adapter included
Whirlwind THS 4 Talkback Headphone Box DJ Sports Announcer Microphone Control
Made in USA
The THS 4 Talkback/Headphone box is an all-purpose, fully loaded sports announcer console. Both main and talkback microphone outputs are provided, with Mic On/Off, Cough and Talkback switches for control. The talkback output is line level with a trim control and the main microphone output of the THS 4 will be live on-air if power is lost, when using dynamic microphones.
There are two inputs for the headphones with balanced and unbalanced connections.Each input has a volume control and assign switches for the left and/or right headphones. Input level adjustments affect both left and right ears equally. Headphones with impedances ranging from 30 to 600 Ohms can be driven to full volume.
Description
The THS 4 has both main and talkback microphone outputs. A latching Mic On/Off switch connects signal to the main mic output. The switch is illuminated red when the mic output is live. 36 Volt phantom power is available if condenser mics are used. Onboard phantom power allows seamless switching when talkback is activated. The switch to turn phantom power on and off is recessed to avoid accidental turn off. A momentary Cough switch silences both the mic out and the talkback out when depressed. The momentary Talkback switch connects audio to the talkback output and mutes the mic out. The announcer’s microphone is sent through a preamp and line driver that deliver signal to the talkback output at line level. There is a level control for fine adjustment of the audio sent down the talkback line. The Talkback switch illuminates green when depressed.
The headphone section of the THS 4 has two inputs. Each input has a volume control and dip switches to send the signal to the left and/or right headphone earpieces. When an input is assigned to both ears, level adjustments affect both left and right ears equally. Input signals can be either balanced mono or unbalanced stereo. A rear panel switch selects the proper mode. Both 3 pin XLR and ¼” TRS input jacks are provided for hookup flexibility. Headphones with impedances ranging from 30 to 600 Ohms can be driven to full volume.
Power is supplied by a 12 VAC power adapter, model # PS12AC1A, included with the unit.
Features
· Two line level inputs with individual volume controls
· Input Assign switches route inputs to either or both ears
· Balanced or unbalanced inputs on XLR or ¼” TRS jacks
· Passive Mic Out for on-air reliability
· Mic output switching is completely silent
· Active line level Talkback Out with level adjust
· Mic On, Cough and Talkback switches for control
· ¼” TRS or 3.5mm headphone jacks
· PS12AC1A power adapter included
Whirlwind STSR358 Super Tour 58 Ch Concert Splitter System AC,Truck,Fanouts Case
3-way iso split w/TRSP2F transformers
Entire system, Components and Case all Made in USA
The Whirlwind Super Tour is an entire 58-ch Concert Series snake system, neatly packed into a single road case. Super Tour packages are very popular with hotels, casinos, convention centers and touring sound companies and include all of the cabling you need for FOH, Monitors and setup. Also included is our legendary Patchmaster system, complete with sub snakes.
Description
All Super Tour splitters feature a W4 direct output on the rear, with the option of one or two isolated W4 outputs on the front panel. The 300' FOH cable consists of a 58-ch W4 cable, 12-ch W1 drive cable and AC cable bundled together. This cable coils neatly behind the splitter and exits through a trap door on the rear of the road case.
The charts below outline the components included with each of our Super Tour systems. All Super Tour components are available separately.
AC panel, input on front, output on rear
Drive panel, input on rear
The STSR358 SuperTour 3-way system consists of:
1-STSCSR358
SuperTour Splitter: 58-channel, 3-way ISO w/ Whirlwind TRSP-2F transformers. Direct Out on rear, dual ISO out on front. All outputs on Whirlwind W4 MASS connectors.
1-STSCASE
SuperTour Road Case w/ removable lid and front, houses all components and cables.
1-STSACPANEL
SuperTour AC power disconnect panel with Littlelite and USB charger port
1-PATCHMASTER60
PatchMaster system w/ 5 W1 multipin inputs to color-coded tails.
1-STSC5812AC300
300' 3-piece main trunk, joined with heavy duty heatshrink, consists of 1 each:
· 58 channel W4 to W4 MASS interconnect cable
· 300' 12 channel W1 to W1 drive interconnect cable
· 300' 12-3 AC power cable w/ Neutrik Powercon connectors
1-FM562XLW4IRP(I)10SS
10' fanout for FOH, 56 inputs, 2 returns
2-FM562XLW4IRP(I)25SS
25' fanouts for split #2 and split #3, 56 inputs, 2 returns
1-STSD12S1
Color-coded Drive Output panel w/ W1 input.
1-STSD12F1
12 channel drive panel for FOH
2-B120NRW1IM50- Color/or BK
12 channel drop boxes w/ 50' hardwired cable to W1 (available with detachable box)
3-B120NRW1IM100 + COLOR
2 channel drop boxes w/ 100' hardwired cable to W1 (available with detachable box)
The heavy duty Stage Road Case is 43" Deep, 29" wide and 29" high. Everything fits inside the case and latches shut for easy transport.
Everything pictured here is included except the Mixer in Pic #2. Also include which is not pictured but in the description are five B12 drop boxes and W1 snake ( ask for detachable or hardwired )
*****This unit is shipped by Truck Freight Service on a pallet and will deliver to any Venue, or commercial business with a loading dock. If you don't have a loading dock or a freight terminal in your town ( very rural areas) Then you will go pick it up at the nearest terminal. Ships in the Lower 48 states only. Email prior to purchase if you need a lift gate for delivery. *** this unit is non returnable***
Whirlwind PCDI Computer CD Player MP3 Player Direct Box DI audio interface
Made in USA PCDI®
Part number: PCDI
The Whirlwind pcDI is perfect for interfacing the outputs of CD players, computer sound cards, iPODs® / MP3 players, tape decks, etc. with professional, balanced, low impedance equipment.
Description
This unit contains two separate DIs - input your signals with one 3.5mm (1/8") mini TRS stereo jack, two sets of color coded RCA phono type input and through jacks or 1/4" TS input jacks. Output is via corresponding color coded XLRs.
Features:
Color coded RCA phono in / through jacks
3.5 mm input jack
1/4" TS input jacks
Color coded XLR output jacks
Ground Lift switch to help eliminate hum and buzz
Stereo/Mono switch for stereo operation or safely combine both inputs into a mono signal sent to both outputs
20dB pad switch for connection to "hot" input signals
Uses Whirlwind's TRHL-M transformers with metal shield
Model # - PCDI
Impedance Ratio (input to output, per channel): 133:1
Frequency Response: 20Hz-20kHz ±1dB
Level Change (input to output): -20dB (pad out), -40dB (pad in)
Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998. We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications.
Shipping --Pro packed & shipped USPS, UPS or Freight Service. Contact us & pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed & shipped. Processing times vary, 2-30 days
Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided. Otherwise customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, & accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.
What products can not be returned? - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids
Whirlwind Patchmaster 60-DT12 60 Channel Patch Snake System DT12 to XLR
*** this rack unit has DT12 connectors on the front panel and Not W1's like the regular Patchmaster60
*** This is a special order only item and takes 2-4 weeks and to build and ship and is non-returnable
Made in USA
The PatchMaster DT12 incorporates five DT 12 multipin inputs connected directly to color-coded tails.
Description
The tails exit through grommets so they may be retracted into the panel. Tails can be dressed to length for a neat appearance and unused tails can be pushed back and out of the way.
Whirlwind Presspower3 Active Press Pressbox Full Featured, with carry case
Made in USA
The full-featured PRESSPOWER 3 is the successor of very popular Presspower2 unit, the standard for press conferences worldwide.
The All NEW PRESSPOWER 3- 2022 has been fully redesigned and better than ever.
Description
It features 2 mic/line inputs with individual gain controls and 16 transformer isolated outputs that are individually switchable for mic or line level operation. The PRESSPOWER 3 includes a 20-segment LED level meter, an internal test tone generator, a built-in headphone monitor amp with volume control, high-pass filters, and phantom power -- all conveniently front-panel accessible.
The high-performance input stage provides clean audio even in high RF environments.
The unit can be powered by 115 / 230 VAC - 50 / 60 Hz, by (4) 9 V internal batteries or with an external DC supply (12 - 36 VDC) connected via rear terminals. This allows the unit to be powered by a car battery, cigarette lighter, camera pack battery, etc. In the event of an AC power failure or battery exhaustion, the unit will automatically switch to alternate power by selecting the strongest Voltage available.
Additional active mic/line outputs can be added with an optional 16 channel PRESS2XP expander modules, giving you 32 total active outputs. Additional mic outputs can be achieved by adding passive PB Series Press Boxes to outputs set to line level.
Frequency Response: -.5dBm 20Hz to -2dBm 16kHz
Input Impedance:
Mic: 1.5k Ohms
Line: 200k Ohms
Maximum Input Level:
Mic: -5dBm
Line: +50dBm
Output Impedance:
Mic: 150 Ohms
Line: 150 Ohms
Maximum Output Level:
Mic: -5 dBm into 2k Ohms
Line: +23 dBm into 2k Ohms
Total Harmonic Distortion: .075% at 1 kHz, mic @ unity gain
Isolation Between Outputs:
Mic: Greater than 95 dBm
Line: Greater than 60 dBm
Power Draw AC mode: 31 W max.
Whirlwind B120NRDT12CM 12 Channel Mini Snake Box Broadcast Standard DT12 to FXLR
Made in USA
***This box has the DT12 Broadcaster Connection on it instead of the W1. Still a 12 channel connector but a Thicker Beefier Gold pins and heavy duty screw on cap.
**NOTE- these take 7-12 days to be tested and processed prior to shipment.
This is the world-famous 12 Channel stagebox by Whirlwind, made of Cold Rold steel and gold plated connections. This one has the Broadcast Connection DT12 a high grade connector for broadcast applications. Top of the line 12-channel box will last many many years and has been hand wired.
***these boxes with this connection are built to order and are non refundable and take 2-3 weeks to build. Maybe less depending on load Thank you
Whirlwind Powerlink Power Distro12U 24X30 200 Amp Service with meter UL Approved
***PLEASE READ. Contact us to configure exactly the distro you want as this one is a real fully loaded distro ,however you may need a different configuration, imput panels or amperage etc etc.***
Get a fast and easy quote today! Build times vary between 6-12 weeks depending exactly on the configuration you need.
You can purchase this Exact configuration if it will def suit your needs. If you have any questions at all please contact us ***
Introducing the safest, most reliable UL® Listed Power Distro on the market, and it’s made by Whirlwind, the most trusted name in audio interface.Made in the USA using light weight aluminum panels, premium, fast response magnetic circuit breakers, and top of the line components. Built the way you’d expect when the Whirlwind name is on it
PLD Disto Overview Information.
PL-PM1 Power Meter
• Eight, super-bright, 14.2mm GaAlAs LED displays insure high-visibility even in direct sunlight.
• Requires only a single active phase for full functionality.
• 208V (phase-phase) and 120V (phase-neutral) voltage monitoring modes.
• X, Y, Z and N loads monitored simultaneously in both modes.
• Monitoring of N-G voltage (120V mode) and Frequency (208V mode). General
• Hydraulic magnetic circuit breakers ensure accurate, rapid branch circuit protection and are not subject to the effects of ambient heat and the erosion of functionality that is inherent to thermal circuit breakers.
• Genuine Hubbell receptacles and mains connectors.
• Neon indicators for every circuit.
• Exclusive, free Design Pro software allows easy distro configuration.
• Hand-wired in Rochester, NY.
This example distro shown here includes the following panels and is housed in a standard ATA flightcase with Rack lighting built in on each side. This can also be ordered built into one of the premium Cyclone Shock mount pocket door cases as well.
You can also get this or any Power Link distro built in a install version with out the case so you can put it in the back of your venue in an permenent or shelved version. This will beable to take power from your generator truck or install power source and distribute it out safely through out stage or event area.
Front Panels
PL-PM1RJ- Meter
PLC201- 6 20A 1P breakers, 6 duplex, 2-RU
PlM-602- Main breaker 200Amp
Input panel
PL1440- 10 Cam-Lok, 24 circuits per leg, 4-RU
Back Panel
PLC-202 - 6 20A 1P breakers, 6 NAC3MPB, 2-RU
PLC-238 - 3 30A 3P breakers, 3 L21-30, 3-RU
PLC-238- 3 30A 3P breakers, 3 L21-30, 3-RU
PLC-238 - 3 30A 3P breakers, 3 L21-30, 3-RU
Whirlwind THS2 Talkback Headphone Box DJ Sports Announcer Microphone Control
Made in USA
The Whirlwind THS 2 sports announcer box has two mic control buttons, a latching Mic On/Off switch and a momentary Cough switch. The microphone output of the THS 2 boxes is a passive, straight through connection. THS boxes are ergonomically designed to put the control buttons within easy reach of the announcer even while shuffling through stat sheets. The headphone amplifiers are designed to deliver powerful, undistorted audio that can be heard over an arena full of screaming fans.
Description
The THS 2 Talkback/Headphone box has a single microphone output, controlled by a latching Mic On/Off switch and a momentary Cough switch. The microphone output is a passive, straight through connection from the microphone input. This configuration ensures that the microphone will still be live on-air, even if power to the THS 2 is lost. Works with dynamic mics only.
Headphone inputs consist of balanced left and right inputs on separate female XLR connectors. Separate front panel volume controls adjust the level to the left and right ears. Another balanced XLR Mono input is provided that feeds both left and right ears equally. The Mono input has it’s own volume control. Headphones with impedances ranging from 30 to 600 Ohms can be driven to full volume.
Power is supplied by a 12 VAC power adapter, model # PS12AC1A, included with the unit.
Features
· Left and right balanced line level inputs with individual volume controls
· Additional Mono input feeds both left and right ears
· Balanced XLR input and output jacks
· A red lamp indicates the Mic is on
· Push to Mute (Cough) switch is completely silent
· ¼”TRS or 3.5mm headphone jacks
· PS12AC1A power adapter included]
The New producer THSPC Producer Sports Announcer Control Box allows the producer to talk directly with cameramen, sideline announcers,and Audio techs from the truck or remote booth. This new Main console has T power, Broadcast feeds, and personal feeds all in one for maximum communication among your team on and off the field or for any remote pop-up event.
This unit is compatible and talks to the other THS1, THS2, THS3, THS4 headphone boxes. It does not work with THSR or THS5.
Whirlwind’s all-in-one producer station built for streamlined control of program audio, IFB distribution, and RTS® intercom integration
• Designed for fast-paced broadcast environments, the THS P brings your key audio paths together in one clear, easy-to-manage desktop unit.
The THS P features a microphone and headset input, two Program inputs, a dedicated talkback input, four IFB outputs, and full belt pack I/O for seamless RTS® compatibility
• Program 1 feeds headphones and IFB lines with adjustable level and pan, and can be ducked by the mic on each IFB line with individual control. Program 2 can be summed with belt pack audio and routed as needed.
The mic input supports dynamic and condenser microphones with selectable phantom or T power, and includes an inline limiter with user-selectable 4:1 or ∞:1 ratio
• Pushbuttons and DIP switches allow flexible routing of headphone mixes, IFB outputs, and belt pack signals, while the ALL TALK function makes it easy to address every IFB line at once.
For sports broadcasts, remote productions, or any setup that demands clear communication and precise routing, the THS P delivers straightforward control where it matters most.
*Note these are built to order and take 5 to 12 business days to ship
