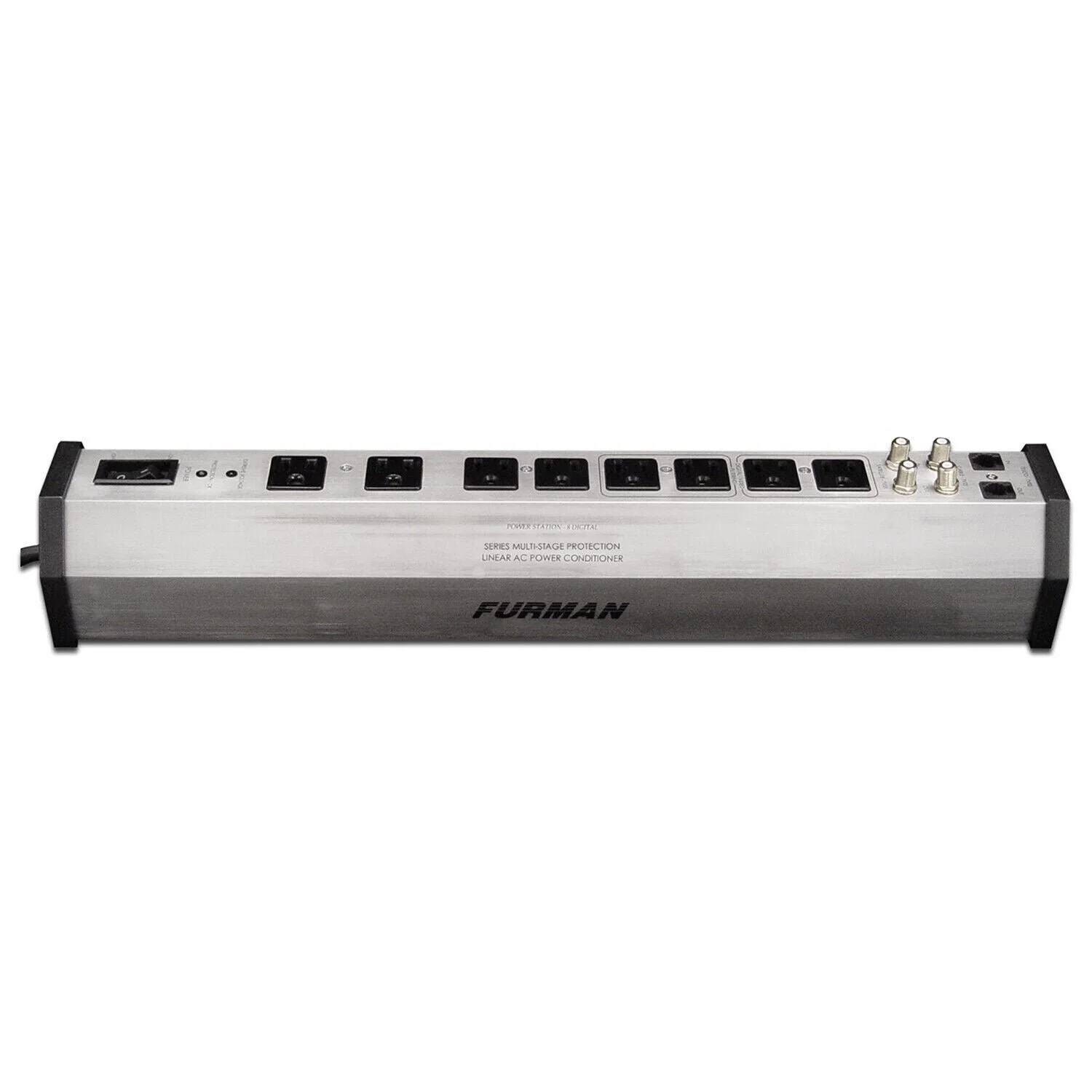

Furman PST-8 15A 8 Outlet Surge Suppressor W/SMP, LiFT, EVS and 2 Filtered Banks

Ships Free!

Furman’s Series Multi-Stage Protection (SMP) delivers the purest AC power and the most comprehensive protection available, going far beyond what is found in traditional surge strips. With Furman’s Power Station Series, everyone can reap the benefits of unrivaled power purification and unequalled surge protection.

For over 40 years, Furman has pioneered the development of AC power products for the most demanding audio, video, and broadcast professionals.

Today’s overworked, outdated power grid delivers poor quality AC power. When connecting sensitive equipment to regular power outlets, AC noise masks and distorts critical signal information which cripples performance. This is why it’s more important that ever to purify or clean the AC powering your sensitive audio/video equipment.

The PST-8 DIG all feature Furman’s SMP circuit which incorporates Linear Filtering Technology (LiFT) and a high current TVZ-MOV to insure that any electronic device (including televisions, projectors, CD-DVD players, or computers) is fed clean, filtered AC power. This dramatically reduces noise, ensuring consistent peak performance from your equipment.

Typical AC filters feature antiquated non-linear circuits. Though these multiple stage filters or power cleaners reduce some noise, they do so unevenly. In fact, they can add noise to your power line due to their filter’s excessive resonant peaking. With Furman’s proprietary Linear Filtering Technology (LiFT), AC noise is suppressed evenly, assuring maximum performance from your system.

Additionally, today’s power grid commonly experiences numerous electrical surges and spikes on a daily basis. At best, these irregularities can degrade your equipment’s performance, and, at worst, can severely damage your entire system. Furman’s SMP circuit offers the highest degree of protection available without sacrificing itself or any of its components.

Conventional AC conditioners employing older technologies leak voltage to circuit ground which can, in fact, aid in damaging sensitive digital circuits such as computer processors. Furman’s new technology, however, never directs voltage to the circuit ground further ensuring the safety of your equipment.

Another feature that is unique to Furman’s SMP circuit is automatic extreme-voltage shutdown. Extreme voltages are statistically the most common, damaging AC event. The Extreme Voltage Shutdown circuit automatically turns off the unit when it is fed 137 volts or higher protecting itself and connected equipment from the extreme voltage. Only Furman offers this degree of protection! Add telco and cable /satellite transient voltage suppression, and you have what is, unquestionably, the most comprehensive protection available in a portable AC power conditioner.

Features:

• SMP provides the highest level of protection available

• LiFT significantly reduces AC line noise

• E.V.S. protects equipment from dangerous overvoltage conditions

• Zero ground contamination circuitry assures the delivery of pure AC power thus protecting critical audio/video components

• Cable satellite and Telco connectors deliver advanced protection to connected equipment

• Sturdy Aluminum chassis

Furman CN-20MP 20A Remote Duplex EVS Smart Sequencing 10 Ft Cord 20 Amp Output

Ships Free!

Delivering SmartSequencing outside of the equipment rack, with remote relay.

Furman’s Contractor Series MiniPorts extend the benefits of SmartSequencing to electronics outside of the equipment rack, providing tremendous flexibility to any installation scenario. Units may be daisy-chained and fully controlled via a Furman SmartSequencer, legacy Furman sequencer, third-party sequencers, via the Internet (with BB-RS232 adaptor and SmartSequencer), and/or control and automation systems.

DIP switches and potentiometer allows customization of settings such as sequencing delays, 12V on/off, and more. Security covers are provided to prevent unauthorized personnel from tampering with DIP switches.

Sequencing of duplex initiated remotely by standard analog triggering (remote terminal) or data link (SmartSequencing from CN-1800S or CN-2400S).

The CN-20MP can shut itself off automatically when triggered by a fire alarm.

15 Year Limited Warranty

Specifications:

AC Voltage Input Range 90-139VAC, 50/60Hz

Maximum AC Current Rating 20 Amps (No Breaker)

AC Cord 3/12AWG, 10 feet, black, fixed, NEMA 5-20P plug

AC Receptacles 2 NEMA 5-20R’s (1 duplex)

AC Undervoltage Protection EVS, 77VAC+/-3VAC

AC Overvoltage Protection EVS, 140VAC+/-5VAC

AC Overvoltage Reset Modes Enabled and disabled (configurable via DIP Switch #9)

Operating Temperature Range 5C (40F) to 40C (105F) degrees

Humidity Range <90% rH (Relative Humidity)

Circuit Breaker No Breaker

Front panel diagnostic indicators (LED) Power, Extreme Voltage, Primary Link, Secondary Link

Side Panel DIP Switch Features (with security cover) 1 Minute Delay, 2 Minute Delay, 4 Minute Delay, Force Off NO/NC, 12V Mode On/Off GND Mode On, Momentary/Maintained, Primary/Secondary, EVS Reset Auto/Manual

Side Panel Potentiometer allows fine tune delay adjustments

Remote Terminal +5-30VDC In, 12VDC (12mA) Out

SmartSequencing Phoenix-type 4-Pin Connector, Screw Terminals, Primary & Secondary Links (Current Loop – 1000’ nominal)

Remote Terminal Phoenix-type 5-Pin Connector With Screw Terminals; +12V, STAT, REM, GND, DLY_OUT (Class 1 Wiring)

Force Off Phoenix-type 2-Pin Connector With Screw Terminals, FORCE OFF (Class 1 Wiring)

RS-232 Compatible Yes, indirectly, when connected via SmartSequencing to a Furman Smart Sequencer with an RS-232 port

IP Accessibility Optional IP control via Telnet, HTTP, or BlueBOLT® when used in conjunction with SmartSequencing

Voltmeter Available with SmartSequencing Ethernet option, ± 2VAC accuracy

Ammeter Available with SmartSequencing Ethernet option, ±1A accuracy

Power Consumption (No Load) 10 Watts

Safety Agency CSA, RoHS Compliant

Features:

• SmartSequencing™ – SmartSequencing allows bidirectional, safe sequenced power up/down operations via the push of a button or turn of a key.

• Voltage Protection – Extreme Voltage Shutdown (EVS) safeguards from catastrophic under-voltage (under 80V sustained) or over-voltage (over 145V sustained) conditions. The EVS feature can be selectively enabled or disabled according to the preference of the user.

• BlueBOLT Compatible® – IP Control (Telnet or cloud-based BlueBOLT) via SmartSequencing (when connected to CN-1800S/CN-2400S with BB-RS232 Adaptor).

• Diagnostic Lights – Diagnostic lights provide valuable system information including power quality.

• 20 Amp Output Current – 20 amp maximum current capacity.

• DIP Switch Customization – DIP switches and potentiometer allows customization of settings such as sequencing delays, 12V on/off, and more. Security covers are provided to prevent unauthorized personnel from tampering with DIP switches.

----------------------------------------------------------------------------------------------------------------

Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998.  We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or  Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped. Processing Times  do vary

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as mount marks, plug marks, scratches,  scuffs, dings or scrapes, screw mount marks or collateral material damage.. Items must also include all original packaging, manuals, warrantees & accessories or your return may be subject to a return handling charge.

Refunds are for the Item cost only. If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service/restocking fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, computers, vacuum tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, cleaners, polishes & polishing cloths, software/sound ware, books, CDs, DVD's, vinyl records, and videos.

Furman CN-2400S 20A SmartSequencing Power AC Protection and Noise Filtration

Ships Free!

Designed for Commercial A/V Installers, the CN-2400S combines robust control capabilities via SmartSequencing™ Technology, advanced AC protection, AC noise filtration, and optional compatibility with the BlueBOLT® Remote Power and Energy Management Platform (BB-RS232 adaptor required, sold separately).

The new CN-2400S is one of the first products to feature Furman’s SmartSequencing™ technology, which allows large and complex A/V systems to be safely powered on and off with a simple press of a button or turn of a key, even by nontechnical personnel. SmartSequencing’s bidirectional communications between installed units enables a primary unit to control and sequence multiple secondary units, ensuring multizone electronic systems are powered on and off safely and dependably from a single control point across an entire installation. Units can be connected via current loop at runs of more than 1,000 feet with backwards compatibility with Furman’s legacy sequencers.

In addition, the CN-2400S offers robust control options, equipped with RS-232 ports and command sets for integration with control systems. An optional RS-232-to-Ethernet adaptor (sold separately) adds full IP-addressability to the unit, allowing it to be controlled, programmed, and monitored from a smartphone, tablet, PC, or any Web-enabled device via Telnet, direct HTTP: connection, or Panamax/Furman’s BlueBOLT®-hosted remote power and energy management platform.

Specifications:

AC Voltage Input Range 90-139VAC, 50/60Hz

Maximum AC Current Rating 20 amps (Thermal breaker)

AC Cord 3/12AWG, 10 feet, black, fixed, NEMA 5-20P plug

Rear Panel Outlets 2 Unswitched NEMA 5 20R’s (1 duplex), 6 Sequenced NEMA 5-20R’s (3 duplexes each controlled by separate relay)

Front Panel One NEMA 5-15R Convenience Outlet, Unswitched

AC Surge Protection SMP

Spike Protection Mode Line to neutral, zero ground leakage

Spike Clamping Voltage 188VAC peak @ 6,000 volts/3,000 amps

Response Time 1 nanosecond

Maximum Surge Current 6,500 Amps

AC Undervoltage Protection EVS, 77VAC+/-3VAC

AC Overvoltage Protection EVS, 145VAC+/-5VAC

AC Overvoltage Reset Modes Manual and Auto-reset (configurable)

AC Filtering LiFT

Noise Attenuation Linear, 10dB @10KHz, 40dB@100KHz, 50dB@500KHz

Operating Temperature Range 5C (40F) to 40C (105F) degrees

Humidity Range <90% rH (Relative Humidity)

Keyswitch Front panel, 3-position keyswitch (On, Off, Remote)

Keys Included, 1 pair

Pushbutton Switch Front panel, hidden by security cover

Circuit Breaker Front panel, pushbutton, 20A Thermal Breaker

Front panel diagnostic indicators Primary link, Secondary link, Ethernet, Remote off, Delay 1, Delay 2, Delay 3, Power, Protection OK, Extreme Voltage

DIP Switches Front panel. Hidden by security cover, 1 Minute Delay, 2 Minute Delay, 4 Minute Delay, Force Off NO/NC, 12V Mode On/Off BND Mode On, Momentary/Maintained, Primary/Secondary, EVS Reset Auto/Manual

Potentiometer Front panel, hidden by security cover, fine tune delay adjust

Remote Terminal +5-30VDC In, 12VDC (12mA) Out

SmartSequencing Phoenix 4-Pin Connector, Screw Terminals, Primary & Secondary Links (Current Loop – 1000’ nominal)

Remote Terminal Phoenix 4-Pin Connector With Screw Terminals; +12V, STAT, REM, GND (Class 2 Wiring)

Force Off/Delay 3 Terminal Phoenix 5-Pin Connector With Screw Terminals, FORCE OFF, DELAY 3 (Class 2 Wiring)

RS-232 Compatible Yes, DB-9 Connector

IP Addressability Optional, via BB-RS232 Ethernet/RS-232 Adaptor (sold separately) for IP control via Telnet, HTTP, BlueBOLT®

Voltmeter Available with RS-232/Ethernet option, ± 2VAC accuracy

Ammeter Available with RS-232/Ethernet option, ±1A accuracy

Power Consumption (No Load) 10 Watts

Safety Agency NRTL-C, RoHS Compliant

Features:

• Surge Protection – Series Multi-Stage Protection (SMP) Technology provides the highest level of surge & spike protection available.

• Noise Filtration – Linear Filtration Technology (LiFT) reduces AC noise linearly across a very wide bandwidth for unequaled audio & video clarity.

• Voltage Protection – Extreme Voltage Shutdown (EVS) circuity safely powers down itself and connected equipment during unsafe voltage periods.

• SmartSequencing™ – SmartSequencing allows bidirectional, safe sequenced power up/down operations via the push of a button or turn of a key.

• Diagnostic Lights – Diagnostic lights provide valuable system information including power quality, “Protectection Ok” indicator, and Extreme Voltage indicator.

• Remote Access (RS-232) – RS-232 compatibility & command set provide integration with control systems, open source and control programming.

• BlueBOLT Compatible® – BlueBOLT provides remote access to reboot components, power equipemnt on/off, and monitor power quality via the internet from anywhere in the world.

• Nine Total Outlets – The CN-2400S contains eight rear panel NEMA 5-20R outlets and one front panel NEMA 5-15R outlet.

----------------------------------------------------------------------------------------------------------------

Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998.  We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or  Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped. Processing Times  do vary

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as mount marks, plug marks, scratches,  scuffs, dings or scrapes, screw mount marks or collateral material damage.. Items must also include all original packaging, manuals, warrantees & accessories or your return may be subject to a return handling charge.

Refunds are for the Item cost only. If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service/restocking fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, computers, vacuum tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, cleaners, polishes & polishing cloths, software/sound ware, books, CDs, DVD's, vinyl records, and videos.

Furman AC-215A 10Amp Two Outlet Compact Power Conditioner Auto Resetting Voltage

10 Amp compact power conditioner with auto-resetting voltage protection. Includes surface mounting hardware.

The AC-215A compact power conditioner features Furman’s revolutionary SMP technology. Furman’s Series Multi-Stage Protection (SMP) circuit features our exclusive Linear Filter Technology (LiFT) and Extreme Voltage Shutdown (EVS). Together, these technologies comprise what is, without question, the world’s most advanced and comprehensive transient voltage surge suppressor.

SMP (Series Multi-Stage Protection Plus)

Furman’s SMP surge suppression virtually eliminates service calls. Traditional surge suppression circuits sacrifice themselves when exposed to multiple transient voltage spikes, requiring the dismantling of your system, and repair of your surge suppressor. Not so with SMP. With Furman’s SMP, damaging transient voltages are safely absorbed, clamped and dissipated – no sacrificed parts, no service calls, no down time.

Unique to Furman’s SMP is its unparalleled clamping voltage, even when tested beyond the grueling specifications of – USA/CIDA’s A-1-1 test. While other designs offer clamping voltages that are well above 300VAC peak (far beyond long accepted professional standards), Furman’s SMP clamps at 188VAC peak, 133 VAC RMS even when tested with multiple 6000VAC – 3000 Amp surges! This unprecedented level of protection is only available with Furman’s SMP technology.

LiFT (Linear Filtering Technology)

Unfortunately, traditional AC filter/conditioners have been designed for unrealistic laboratory conditions. Prior technologies could actually harm audio and video performance more than they help, due to the resonant peaking of their antiquated, non-linear designs. Under certain conditions, these designs can actually add more than 10 dB of noise to the incoming AC line. Worse still, lost digital data, the need to reboot digital presets, or destroyed digital converters are frequently caused by excessive voltage spikes and AC noise contaminating the equipment ground. Furman’s SMP with LiFT takes another approach, ensuring optimal performance through linear filtering and no leakage to ground.

E.V.S. (Extreme Voltage Shutdown)

Furman’s trusted overvoltage circuitry protects against all too frequent accidental connections to 208 or 240VAC by shutting off the incoming power until the overvoltage condition is corrected.

Compact Chassis Design

At only 1.75”H x 5”W x 8.5”D, and weighing in at only 3 lbs., the AC-215A’s compact, low-profile design makes it ideal for mounting to the back of a flat-screen television, or anywhere that discretely located, remote power protection and purification are needed.

3 Year Limited Warranty

Features:

• Furman’s exclusive SMP Technology provides the highest level of surge & spike protection available

• LiFT offers linear AC power filtering to ensure clean power for unequaled audio & video clarity

• Auto-Reset EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions

• LED indicators provide information on power quality and operational status of unit

• 10 amp rating featuring circuit breaker for added protection

• Zero ground contamination circuitry protects critical video circuits

• Compact chassis design easily attaches to any flat screen television mount or any other remote location

Furman PL-PLUS DMC Classic Series 15A Conditioner with Lights Volt Amp Meters

Ships Free!

The Classic Series from Furman brings together superior protection and outstanding performance in a sturdy, rack-mountable design.

The Classic Series features Furman’s revolutionary Series Multi-Stage Protection (SMP), Linear Filtering Technology (LiFT), and Extreme Voltage Shutdown (EVS). Together, these technologies comprise what is, without question, one of the world’s most advanced and comprehensive transient voltage surge supressors.

Applications

INSTRUMENT RIGS

You’ve got a rack for your effects, preamps, tuner…You’re going to plug that into the wall? One big spike and your rig is up in smoke. Furman’s advanced Series Multi-Stage Protection defends your gear from the spikes and surges that are so common at gigs and practice spots. With Furman’s advanced Linear Filtering Technology, you’ll get a quieter tone without pops, crackles, and the local radio station coming out of your amp.

RECORDING

Can’t track down where that noise is coming from? Your mix sounding flat? With Furman’s advanced Linear Filtering Technology you’ll lower the noise floor caused by the dirty AC power coming into your console or DAW. Furman’s advanced Series Multi-Stage Protection keeps your sensitive digital equipment from acting funny or burning up due to everyday spikes and surges. With a 15A capacity and eleven total outlets, it’s enough to power your whole home studio.

DJ EQUIPMENT

Bars, clubs and other event venues have some of the worst power out there – from air compressors turning on and off, to light shows pulling current loads up and down, the AC power can be a strain on the circuits in your rig. Furman’s advanced Series Multi-Stage Protection and LiFT keeps the bad stuff out and the dual pull-out front panel lights let you discreetly see your board and gear without distracting from the show on the dance floor.

PRO AUDIO

When you’re out there gigging, you never know what kind of power you’re going to get. The wear and tear on mobile rigs eventually takes it’s toll – that’s why it’s smart to plug into Furman’s advanced Linear Filtering Technology. It keeps your equipment safe and sounding clean. Whether you’re setting up a show at the local club or powering up the church band for their next service, make sure you give them power they can trust.

Features

• Surge Protection

• Furman’s exclusive SMP technology provides the highest level of surge & spike protection available.

• Noise Filtration

• LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.

• Voltage Protection

• Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.

• Pull-out Lights

• Dual smooth track retractable LED lights illuminate equipment in your rack.

• Diagnostic Lights

• LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.

• Voltmeter / Ammeter

• Large digital voltmeter / ammeter, with discrete dimmer button, displays line votlage and true RMS current draw.

• Isolated Banks

• Isolated outlet banks minimize inter-component interference and noise contamination.

• Wall Wart Spacing

• Three widely spaced outlets accommodate bulky AC power transformers.

• 15 AMP Rating

• 15 Amp rating featuring a high inrush magnetic circuit breaker for added protection.

• Nine Total Outlets

• Nine total outlets (8 rear panel outlets and one front panel convenience outlet).

• BNC Lamp Connector

• Rear panel BNC connector powers any standard gooseneck lamp for rear rack illumination.

Specifications

Family: Classic Series

Line Voltage: 120 (Volts)

Number of Outlets: 9

Number of Isolated Banks: 2

Outlet Descriptions: All 9 outlets linearly filtered and surge protected

Rack Mountable: Yes

Rack Ears Included: Yes

Front Panel Meter(s): LED voltmeter/ammeter displays incoming voltage and true RMS current draw

Front Media Light(s): 2 multi-LED, dimmable lamps

ControlFront panel:

– On/Off switch

– Voltage meter dimmer button

Voltage Regulation: No

Compliance: cTUVus

USB Charging: N/A

Low Voltage Trigger: N/A

AC Power Cord: 10 ft, captive 3/14 AWG, with NEMA 15 plug

Dimensions: 19" W x 10.5" D x 1.75" H

Weight: 12 lbs

Power Consumption: 12 Watts

AC Protection

AC Protection Technology Extreme Voltage Shutdown

Series Multi-Stage Protection

Non-sacrificial protection with zero ground contamination

Under-Voltage Shutoff: 90V

Over-Voltage Shutoff: 140 VAC

Maximum Current Rating: 15 (Amps)

Initial Clamping Level: 188 VAC peak @ 3,000 Amps

Filtration

Filtration Technology LiFT

Filtration Rating10 dB @ 10 kHz

40 dB @ 100 kHz

50 dB @ 500 kHz

Signal Line Protection: No

Response Time: 1 nanosecond

Maximum Surge Current: 6,500 amps

Construction: Steel chassis, .120” brushed and black anodized aluminum front panel; glass epoxy printed circuit boards

----------------------------------------------------------------------------------------------------------------

Echotone Music LLC is an experienced  long time E-commerce Audio & Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers, production companies and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as mount marks, plug marks, scratches,  scuffs, dings or scrapes, screw mount marks or collateral material damage.. Items must also include all original packaging, manuals, warrantees & accessories or your return may be subject to a return handling charge.

Refunds or for the Item cost only. If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, cleaners, polishes & polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!

Furman F1500-UPS 1500VA 2RU Uninterruptible Power Supply and Voltage Regulator

Ships Free!

Uninterruptible power supply – battery backup / power conditioner. 2RU, AVR, RS-232 & USB Interface; BlueBOLT compatible.

The Furman F1500-UPS battery backup is designed exclusively for audio/video professionals and home theater aficionados.

For decades, traditional audio/video components were simple analog devices designed to easily weather power outages of well over two seconds. Later, as computer and microprocessor based components gained in popularity, their extraordinary sensitivity to even a fraction of a second’s power loss was managed with traditional UPS (uninterruptible power supply) technology.

Unfortunately, these units were solely designed for the I.T. professional. Though they included many technologies and features appropriate to that application, they fell short for premium audio/video components. Though many of these manufacturers later recognized the ever-emerging professional audio/video, broadcast, and home theater market, their lack of experience led merely to a re-tooled chassis. These hastily produced UPS devices lacked the technologies necessary to truly optimize protection, performance, and control for today’s audio video components.

The Furman F1500-UPS more than fills this void, and offers your system unparalleled battery back-up technology, created from the ground up to meet the exacting demands of the world’s most sensitive audio, video and control systems!

Protection

Typical UPS systems feature antiquated surge suppression technologies that can cause as much damage and annoying lock-ups as they attempt to prevent. Only Furman offers battery back-up with our road-proven SMP non-sacrificial, zero ground contamination surge suppression technology and EVS Extreme Voltage Shutdown. After all, the most robust battery cannot function if the accompanying circuits are damaged. With Furman’s F1500-UPS, you can expect years of trouble free operation.

Filtration

Though many control devices are relatively immune to moderate levels of AC line noise, today’s more sensitive devices (such as DLP projectors and line-level signal processors) certainly are not. High-definition technologies have pushed resolution to levels so extreme that virtually any AC noise capable of coupling with your system’s signal will distort, mask, or destroy the performance advantages we all strive so hard to capture and reproduce. Once again, the F1500-UPS is different. While other UPS devices feature AC line filters suitable for an IT closet, only Furman employs our exclusive Linear Filtering Technology (LiFT) to four discrete isolated outlet banks. This advanced noise filtering technology assures that today’s ultra-wide dynamic range is maintained as it must be – pristine. Remember, less AC noise equals greater content, greater resolution, and higher definition.

True Sine Wave Output

The F1500-UPS provides True Sine Wave output when in battery backup mode, ensuring the utmost reliability to all connected equipment while running on battery power.

Expandability

At 1500VA, the F1500-UPS provides substantial backup time for most critical digital A/V components (see runtime chart). If more runtime is needed, 1500VA battery packs (BATT1500E-EXT) may be daisy chained to double, triple, and further increase runtime as the application demands.

Programmability & Control

Audio/video systems can vary greatly in their size and components, and as such, flexibility is needed in determining how a battery backup solution should function under different circumstances. Because of this, Furman has provided open source RS-232 control over four independent AC outlet banks, with a wide range of features to interface with an existing control unit. Dual programmable IR control allows the unit to send a shut down command to remote components in the event of a blackout – no more expensive projector bulbs to replace in the event of a blackout. Optional TCP/IP control (separate interface card, available Q4), offers remote control over any Internet connection via a truly plug-and-play, hosted, web-based graphical user interface, with full remote control and power monitoring functionality.

* As with any battery back up system, the battery pack must be replaced periodically (2.5 to 3 years typically)

Typical Backup Components

Given the nature of battery backup technology, high-current audio and video components such as power amplifiers, powered subwoofers, and high-wattage displays are not recommended for use with the F1500-UPS. Not only will these components drain battery power quite rapidly, line impedance will be raised due to the F1500-UPS’s (or any) AVR and AC to DC inverter, which can induce current compression and noticeably diminish performance with high-current A/V equipment. The following components are ideal for use with the F1500-UPS:

DAWs

Satellite Receivers

Cable Boxes

Digital Video Recorders

Media Servers

External Hard Drives

Digital Mixing Consoles

Lamp Based Video Displays

Control Systems

For power management of other components, Furman recommends Classic or Prestige Series Power Conditioners. For high-current components such as power amplifiers and powered subwoofers, solutions featuring Furman’s exclusive Power Factor Technology are ideal.

Approximate Run Time, 1500VA **

Satellite Reciever or Cable Box = 80 Minutes

Control System + Media Server = 40 Minutes

Digital Mixing Console (24 channel) = 20 minutes

DAW Computer + Digital I/O + External Hard Drive + 24” LCD Monitor = 7 minutes

Features:

• Surge Protection

• Furman’s exclusive SMP technology provides the highest level of surge & spike protection available.

• Noise Filtration

• LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.

• Voltage Protection

• Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.

• Diagnostic Indicators

• Digital indicators provide information on power quality and operational status of unit.

• Battery Backup

• 1500VA true sine wave battery backup protects your data in a power failure allowing the opportunity to save your applications, programs, and shut-down the system gracefully .

• Critical Load Management

• Critical Load Management prioritizes the allocation of temporary power to connected equipment.

• Infrared Control

• Dual Learning IR Blasters allow safe shutdown of remote components.

• BlueBOLT® Compatible

• BlueBOLT® TCP/IP interface provides remote control to reboot components, power equipment on or off, and monitor power quality from anywhere in the world.

• Custom Programming

• Custom programming provides control of unit via RS-232 card (included) or optional TCP/IP interface card (sold separately)

• 12 AMP Rating

• 12 Amp rating featuring a circuit breaker for added protection.

• Eight Total Outlets

• Eight total outlets rear outlets in isolated banks (Critical and Non-Critical loads).

• Standard Voltage Regulation

• Standard level automatic voltage regulation (AVR) delivers a stable 120 volts of AC power to protect equipment from problems caused by AC line voltage irregularities.

• Power Control Software

• Easy to use power control software assists you in maximizing the performance of your UPS.

• Optional Battery Extension Pack

• External battery packs (sold separately) are available and may be daisy-chained to the F1500-UPS increase battery capacity.

----------------------------------------------------------------------------------------------------------------

Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998.  We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or  Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped. Processing Times  do vary

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as mount marks, plug marks, scratches,  scuffs, dings or scrapes, screw mount marks or collateral material damage.. Items must also include all original packaging, manuals, warrantees & accessories or your return may be subject to a return handling charge.

Refunds are for the Item cost only. If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service/restocking fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, computers, vacuum tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, cleaners, polishes & polishing cloths, software/sound ware, books, CDs, DVD's, vinyl records, and videos.

Furman PL-PLUSC 15A Power Conditioner with Lights & Voltmeter Rackmountable

Ships Free!

The Classic Series from Furman brings together superior protection and outstanding performance in a sturdy, rack-mountable design.

The Classic Series features Furman’s revolutionary Series Multi-Stage Protection (SMP), Linear Filtering Technology (LiFT), and Extreme Voltage Shutdown (EVS). Together, these technologies comprise what is, without question, one of the world’s most advanced and comprehensive transient voltage surge supressors.

Applications

INSTRUMENT RIGS

You’ve got a rack for your effects, preamps, tuner…You’re going to plug that into the wall? One big spike and your rig is up in smoke. Furman’s advanced Series Multi-Stage Protection defends your gear from the spikes and surges that are so common at gigs and practice spots. With Furman’s advanced Linear Filtering Technology, you’ll get a quieter tone without pops, crackles, and the local radio station coming out of your amp.

RECORDING

Can’t track down where that noise is coming from? Your mix sounding flat? With Furman’s advanced Linear Filtering Technology you’ll lower the noise floor caused by the dirty AC power coming into your console or DAW. Furman’s advanced advanced Series Multi-Stage Protection keeps your sensitive digital equipment from acting funny or burning up due to everyday spikes and surges. With a 15A capacity and eleven total outlets, it’s enough to power your whole home studio.

DJ EQUIPMENT

Bars, clubs and other event venues have some of the worst power out there – from air compressors turning on and off, to light shows pulling current loads up and down, the AC power can be a strain on the circuits in your rig. Furman’s advanced Series Multi-Stage Protection and LiFT keeps the bad stuff out and the dual pull-out front panel lights let you discreetly see your board and gear without distracting from the show on the dance floor.

PRO AUDIO

When you’re out there gigging, you never know what kind of power you’re going to get. The wear and tear on mobile rigs eventually takes it’s toll – that’s why it’s smart to plug into Furman’s advanced Linear Filtering Technology. It keeps your equipment safe and sounding clean. Whether you’re setting up a show at the local club or powering up the church band for their next service, make sure you give them power they can trust.

Features

• Surge Protection

• Furman’s exclusive SMP technology provides the highest level of surge & spike protection available.

• Noise Filtration

• LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.

• Voltage Protection

• Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.

• Pull-out Lights

• Dual smooth track retractable LED lights illuminate equipment in your rack.

• Diagnostic Lights

• LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.

• LED Voltmeter

• Segmented LED voltmeter monitors and displays incoming line voltage.

• Isolated Banks

• Isolated outlet banks minimize inter-component interference and noise contamination.

• Wall Wart Spacing

• Three widely spaced outlets accommodate bulky AC power transformers.

• 15 AMP Rating

• 15 Amp rating featuring a high inrush magnetic circuit breaker for added protection.

• Nine Total Outlets

• Nine total outlets (8 rear panel outlets and one front panel convenience outlet).

• BNC Lamp Connector

• Rear panel BNC connector powers any standard gooseneck lamp for rear rack illumination.

Specifications

Family: Classic Series

Line Voltage: 120 (Volts)

Number of Outlets: 9

Number of Isolated Banks: 2

Outlet Descriptions: All 9 outlets linearly filtered and surge protected

Rack Mountable: Yes

Rack Ears Included: Yes

Front Panel Meter(s): Segmented LED voltmeter

Front Media Light(s): L2 multi-LED, dimmable lamps

ControlFront panel: On/Off switch

Voltage Regulation: No

Compliance: cTUVus

USB Charging: N/A

Low Voltage Trigger: N/A

AC Power Cord: 10 ft, captive 3/14 AWG, with NEMA 15 plug

Dimensions: 19" W x 10.5" D x 1.75" H

Weight: 12 lbs

Power Consumption: 12 Watts

AC Protection Technology Extreme Voltage Shutdown

Series Multi-Stage Protection

Non-sacrificial protection with zero ground contamination

Under-Voltage Shutoff: 90V

Over-Voltage Shutoff: 140 VAC

Maximum Current Rating: 15 (Amps)

Initial Clamping Level: 188 VAC peak @ 3,000 Amps

Filtration

Filtration Technology: LiFT

Filtration Rating10 dB @ 10 kHz

40 dB @ 100 kHz

50 dB @ 500 kHz

Signal Line Protection: No

Response Time: 1 nanosecond

Maximum Surge Current: 6,500 amps

Construction: Steel chassis, .120” brushed and black anodized aluminum front panel; glass epoxy printed circuit boards

----------------------------------------------------------------------------------------------------------------

Echotone Music LLC is an experienced  long time E-commerce Audio & Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers, production companies and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as mount marks, plug marks, scratches,  scuffs, dings or scrapes, screw mount marks or collateral material damage.. Items must also include all original packaging, manuals, warrantees & accessories or your return may be subject to a return handling charge.

Refunds or for the Item cost only. If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, cleaners, polishes & polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!

Furman M-8S 15A Standard Power Conditioner with Sequencer Rackmountable

Ships Free!

Merit M-8S Power Sequencer is the perfect low-cost AC power solution for any rack mount system where power sequencing is desired.

Install an M-8s in to the top slot of your rack, and the six delayed outlets in the rear panel will power up sequentially and protect all your equipment up to a 15-amp load.

Includes 3 delayed outlet banks – each with 2 outlets – plus 2 unswitched outlets.

Features

• Power Sequencing

• Prevents excessive inrush currents.

• Six sequenced rear panel outlets (in three groups), two unswitched rear panel outlets, and one front panel unswitched outlet.

• Momentary and maintained sequencing via rear panel terminal block or front panel switch (momentary only).

• Noise Filtration

• Noise filtering to reduce radio frequency and electromagnetic interference.

• Surge Protection

• Ensures equipment stays safe.

• 9 Total Outlets

• Eight rear panel outlets and one front panel convenience panel outlet.

• 15 Amp Rating

• 15 amp rating, with circuit breaker.

• “Protection OK” Indicator

• Front panel indicator LEDs for Outlet Banks, Protection OK and Power Status.

• Wall Wart Spacing

• Rear outlets have been spaced to accommodate even the bulkiest of wall warts and adapters.

• All settings and configurations available on rear panel.

Specifications

Maximum AC Current Rating 15 Amps, 120 VAC (Thermal breaker)

AC Cord 14AWGx3, 10 feet, black, fixed, NEMA 5-15P plug

Convenience Outlet (Front Panel) 1 Un-switched NEMA 15-5R

Rear Panel Outlets 2 Un-switched NEMA 5-15R (1 duplex)

6 Sequenced NEMA 5-15R (3 duplexes, each controlled by separate relay)

AC Surge Protection Merit Class (sacrificial)

Spike Protection Mode Line to neutral, zero ground leakage

Max Continuous Operating Voltage 130V RMS

Max Clamp Voltage 500 Volts Peak

Peak Impulse Current 12,000 Amps

Energy Rating (2 X 820µS) 225 Joules

AC Filtering Pi LCR Filter

Noise Attenuation >26dB, 100 Khz to 1 MHz

Operating Temperature Range 5C (40F) to 40C (105F) degrees

Humidity Range <90% rH (Relative Humidity)

Rocker Switch Front panel, Sequence (ON, OFF)

Thermal Circuit Breaker Front panel, push to reset

Front panel indicators Delay 1, Delay 2, Delay 3, Power, Protection OK

Control/Status/Triggering (Rear Panel) Rear Panel DIP Switches: 12V Mode On/Off,

GND Mode On, Momentary/Maintained

Potentiometer Rear panel, time calibration fine tune delay adjust

Remote Terminal +5-30VDC In, 12VDC (12mA) Out

Remote Terminal Phoenix type 4-Pin Connector with Screw terminals; +12V, STAT, REM, GND (Class 2 Wiring)

Size 1.75” X 19.00” X 6.5” (HWD) – ANSI 1RU

Mass 5.3 lbs.

Power Consumption (No Load) 5 Watts

Safety Agency C/CSA/US

Family: Merit Series

Line Voltage: 120 (Volts)

----------------------------------------------------------------------------------------------------------------

Echotone Music LLC is an experienced  long time E-commerce Audio & Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers, production companies and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as mount marks, plug marks, scratches,  scuffs, dings or scrapes, screw mount marks or collateral material damage.. Items must also include all original packaging, manuals, warrantees & accessories or your return may be subject to a return handling charge.

Refunds or for the Item cost only. If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, cleaners, polishes & polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!

Furman ASD-120 2.0 6 Circuit Sequencing Power Distribution 20A 120V circuits

Ships Free!

Updated for easier installation and operation, the ASD-120 2.0 is a compact rack-mount power distribution system for use where AC power must be distributed to multiple circuits and there is no hard-wired, built-in system.

The ASD-120 2.0 AC Sequenced Power Distributor updates the ASD-120, optimized for easier installation and operation. The ASD-120 2.0 is an extremely compact, low cost rackmount power distribution system ideal for touring PA systems, touring musical and theatrical acts, mobile recording facilities, on-location film and video shoots, etc. – any situation where AC power must be distributed to multiple circuits and a hard-wired, built-in system is missing, inadequate or impractical.

The ASD-120 2.0 allows you to power up and its six circuits in a sequenced fashion. The sequence is reversed for power down. The delay interval is user-adjustable via an internal trimpot.

Power sequencing is needed whenever various kinds of equipment must be powered up or down in groups, rather than all simultaneously. In audio systems, sequenced powering is often necessary to allow turn-on transients from low level amplifiers and processors to settle down before any power amps are turned on, because simultaneous powering would result in a loud, annoying, and potentially destructive ‘pop’ reaching the speakers. And in any large system whose components present an inductive load to the AC line (including electric motors, power supplies, and power amplifiers of all kinds), sequenced powering can avoid excessive inrush currents that cause circuit breakers to trip even though the steady-state currents are not excessive.

The ASD-120 2.0’s front panel provides a three-position switch for each circuit that allows each circuit to be part of the power up/down sequence, or to remain on or off apart from the sequence. An LED that indicates when either the power-up or power-down sequence is in progress. The sequence can be initiated with either momentary or maintained switches, locally or remotely. A duplex outlet is provided for each delay step. A locking switch with a removable key is provided for maximum security.

Since the sequence control signals are also available on the rear panel, one or more ASD-120 2.0s may be installed in remote locations and operated via low-voltage control wiring. The sequence control signals can also drive PowerPorts, MiniPorts, PS-PRO and PS-8-R Power Sequencers, or any other circuits that need to know when their particular time delay has elapsed. Using one or more ASD-120’s can provide the capability of controlling power and power sequencing for an entire system.

The ASD-120 2.0 can handle up to 120 amps of incoming power, distributing it to six 20 amp, 120V circuits. Each circuit has a front panel status indicator that lights up when it is turned on, and a 20 amp duplex outlet on the rear panel.

The ASD-120 2.0’s design incorporates four oversized busses, allowing wiring for 120V or 240V single phase, or 208V three phase power. A strain relief clamp is provided that can accommodate a cable or wire bundle up to 1.5 inches in diameter. Cable termination is a simple process of breaking out and stripping the individual conductors and connecting them with set screws, and then tightening the strain relief clamp. Complete instructions accompanying the unit guide the user through the process of selecting and terminating the supply cable.

Features

• 120 amp total load

• Six 20 amp, 120 volt circuits, each with a status indicator

• Oversized buss bars

• Four buss design accommodates 120V or 240V single phase, or 208V three phase power

• Six widely spaced duplex outlets on rear panel

• Outlets can be powered up and down in sequence

• Three position switch allows each circuit to be part of the power sequencing, or to be switched on/off independently

• Sequence timing can be initiated from unit or remotely, using low voltage control wires

• Sequence control signals are available on rear panel to drive additional ASD-120 2.0s or other devices and circuits

• Front panel key switch for security

• Compact two rack space package

• Most economical product of its type

Specifications

AC Input Voltage: 240V single phase or 208V three phase

Input Current: 120 amps maximum

Output: Six 120V 20A circuits

Maximum AC Current Rating: Six 120V 20A circuits for 120A total

Cable Clamp: 145R – 1 1/2 inch NM Clamp Type – Wire Size: 2 to 6AWG

AC Output Receptacles

Rear Panel Outlets: 6 duplex NEMA 5-20R sequenced.

Front Panel: 6 thermal circuit breakers, one per duplex pair.

Operating Temperature and Humidity: 5 to 40C (40 to 105F), <90% Relative Humidity

User Interface (Front Panel)

Key-switch: Front panel, 3 position (On/Off/Remote)

Keys: Included, 1 pair

Push Button Switch: Front panel

Circuit Breakers: Front panel, push-button; 6, 20A Thermal Breakers

Output Circuit Status: Front panel indicators – one per output

Configuration Switches: Front panel, hidden by security cover;

Delay Switches: 3 maximum delay switches – 1, 2, and 4 minute

Switching Modes: Force Off NO/NC

12V mode On/Off

GND mode On/Off

Momentary/Maintained mode selection

Fine Delay Adjustment: Potentiometer hidden by security cover.

Programmable Delay: 7 minutes delay per step

35 minutes total delay time

Control/Status/Triggering(Rear Panel)

Remote Terminal: Phoenix-style 4 Pin Connector with Screw Terminals;

+12V @ 250mA, STAT, REM, GND (Class 2 wiring)

+5 to 30VDC at REM terminal.

Delay Outputs: Phoenix-style 8-Pin Connector with Screw Terminals

6 relay contacts with NO and NC common connections

Class 2 wiring)

A, B, C, D, E, and F delay contacts switched with output circuits

Force Off: Phoenix-style 2 Pin Connector with Screw Terminals;

Optically isolated, 12V, 10mA current source (Class 2 wiring)

Senses external relay contact closure

Power Consumption

Standby: 5 Watts

Sequenced ON: 20 Watts

Safety Agencies

Intertek

FCC

RoHS Compliant

Family: Contractor Series

Line Voltage: 120 (Volts)

Dimensions: 3.5″ H x 19″ W x 10″ D (8.9 x 48.3 x 25.4 cm)

Weight: 16 lbs

----------------------------------------------------------------------------------------------------------------

Echotone Music LLC is an experienced  long time E-commerce Audio & Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers, production companies and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as mount marks, plug marks, scratches,  scuffs, dings or scrapes, screw mount marks or collateral material damage.. Items must also include all original packaging, manuals, warrantees & accessories or your return may be subject to a return handling charge.

Refunds or for the Item cost only. If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, cleaners, polishes & polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!

Furman M-8DX 15A Standard Power Conditioner with Lights and Digital Meter

Ships Free!

Install an M-8Dx into the top slot of your rack, and the eight switched outlets in the rear panel will power up and protect all your equipment up to a 15-amp load. Illuminate your rack with two retractable, front panel lights. Monitor voltage with the digital meter display.

A Merit Series Power Conditioner is the perfect low-cost AC power solution for any rack mount system. The M-8Dx features two slide out, swiveling light fixtures to provide discreet illumination of your equipment on stages, in studios, and in other dark places. A dimmer knob lets you adjust the lamp brightness to just the right level.The M-8Dx also features a bright red, three-digit LED voltmeter that displays incoming voltage.

Applications

INSTRUMENT RIGS

You’ve got a rack for your effects, preamps, tuner…You’re going to plug that into the wall? One big spike and your rig is up in smoke. Furman’s standard level surge/spike protection defends your gear from the spikes and surges that are so common at gigs and practice spots. With Furman’s standard level RFI/EMI filtration, you’ll get a quieter tone without pops, crackles, and the local radio station coming out of your amp. Plus, dual pull-out lamps let you see your rack without turning the house lights on, while the digital voltmeter lets you monitor incoming voltage.

RECORDING

Can’t track down where that noise is coming from? Your mix sounding flat? With Furman’s standard level RFI/EMI filtration you’ll lower the noise floor caused by the dirty AC power coming into your console or DAW. Furman’s standard level surge and spike protection keeps your sensitive digital equipment from acting funny or burning up due to everyday spikes and surges. You can even monitor voltage changes, as the digital meter allows you to keep an eye on the incoming line voltage. With a 15A capacity and nine total outlets, it’s enough to power your whole home studio.

DJ EQUIPMENT

Bars, clubs and other event venues have some of the worst power out there – from air compressors turning on and off to light shows pulling current loads up and down, the AC power can be a strain on the circuits in your rig. Furman’s standard level protection and filtration keeps the bad stuff out. The dual pull-out front panel lights also let you discreetly see your board and gear without distracting from the show on the dance floor.

PRO AUDIO

When you’re out there gigging, you never know what kind of power you’re going to get. The wear and tear on mobile rigs eventually takes it toll – that’s why it’s smart to plug into Furman’s standard level protection and RFI/EMI filtration. It keeps your equipment safe and sounding clean. It keeps your equipment safe and sounding clean, while the digital voltmeter lets you monitor incoming voltage. Whether you’re setting up a show at the local club or powering up the church band for their next service, make sure you give them power they can trust.

Features

• Noise Filtration

• AC noise filtering to reduce radio frequency and electromagnetic interference (RFI/EMI)

• Surge Protection

• Spike & surge protection ensures equipment stays safe and your power stays clean

• 9 Total Outlets

• 8 rear panel outlets and 1 front panel convenience outlet

• Digital Voltmeter

• Digital voltmeter display incoming line voltage

• 15 Amp Rating

• 15 amp rating, with circuit breaker

• “Protection OK” Indicator

• Front panel indicator LED lets you know that your equipment is being protected

• Wall Wart Spacing Indicator

• Rear outlets have been spaced to accomodate even the bulkiest of wall warts and adapters

• Front Panel Pull-out Lights

• Two retractable incandescent light fixtures with dimmer control for convenient rack illumination

Specifications

Family: Merit Series

Line Voltage: 120 (Volts)

Number of Outlets: 9

Number of Isolated Banks: 0

Outlet Descriptions: All 9 outlets filtered and surge protected

Rack Mountable: Yes

Rack Ears Included: Yes

Front Panel Meter(s): Digital Voltmeter

Front Media Light(s): Two 120V incandescent bulbs, 4 watts each

ControlFront panel:

– On/Off switch

– Light dimmer knob

Voltage Regulation: No

Compliance: cTUVus

USB Charging: N/A

Low Voltage Trigger: N/A

AC Power Cord: 6 ft. captive, 14 AWG, with 3-conductor Edison Plug

Dimensions: 19″ W x 7.5″ D x 1.75″ H

Weight: 6 lbs

AC Protection

AC Protection Technology Standard spike and surge protection

Under-Voltage Shutoff: N/A

Maximum Continuous Operating Voltage Shutoff: 130 VAC RMS

Maximum Current Rating: 15 (Amps)

Filtration

Filtration Technology Standard Level RFI/EMI Filtration

Filtration Rating

Greater than 26dB, 200Khz to 10 Mhz

Signal Line Protection: No

Spike Protection Modes: Line to Neutral

Energy Dissipation: 150 joules

Maximum Continuous Operating Voltage 130 VAC RMS

Peak Impulse Current: 12,000 amps

Construction: Steel Chassis, Black Painted

----------------------------------------------------------------------------------------------------------------

Echotone Music LLC is an experienced  long time E-commerce Audio & Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers, production companies and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as mount marks, plug marks, scratches,  scuffs, dings or scrapes, screw mount marks or collateral material damage.. Items must also include all original packaging, manuals, warrantees & accessories or your return may be subject to a return handling charge.

Refunds or for the Item cost only. If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, cleaners, polishes & polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!

Furman PL-8C 15A Classic Series Power Conditioner with Lights Rackmountable

Ships Free!

The Classic Series from Furman brings together superior protection and outstanding performance in a sturdy, rack-mountable design.

The Classic Series features Furman’s revolutionary Series Multi-Stage Protection (SMP), Linear Filtering Technology (LiFT), and Extreme Voltage Shutdown (EVS). Together, these technologies comprise what is, without question, one of the world’s most advanced and comprehensive transient voltage surge supressors.

Applications

INSTRUMENT RIGS

You’ve got a rack for your effects, preamps, tuner…You’re going to plug that into the wall? One big spike and your rig is up in smoke. Furman’s advanced Series Multi-Stage Protection defends your gear from the spikes and surges that are so common at gigs and practice spots. With Furman’s advanced Linear Filtering Technology, you’ll get a quieter tone without pops, crackles, and the local radio station coming out of your amp.

RECORDING

Can’t track down where that noise is coming from? Your mix sounding flat? With Furman’s advanced Linear Filtering Technology you’ll lower the noise floor caused by the dirty AC power coming into your console or DAW. Furman’s advanced Series Multi-Stage Protection keeps your sensitive digital equipment from acting funny or burning up due to everyday spikes and surges. With a 15A capacity and eleven total outlets, it’s enough to power your whole home studio.

DJ EQUIPMENT

Bars, clubs and other event venues have some of the worst power out there – from air compressors turning on and off to light shows pulling current loads up and down, the AC power can be a strain on the circuits in your rig. Furman’s advanced Series Multi-Stage Protection and LiFT keeps the bad stuff out and the dual pull-out front panel lights let you discreetly see your board and gear without distracting from the show on the dance floor.

PRO AUDIO

When you’re out there gigging, you’ll never know what kind of power you’re going to get. The wear and tear on mobile rigs eventually takes it’s toll – that’s why it’s smart to plug into Furman’s advanced Linear Filtering Technology. It keeps your equipment safe and sounding clean. Whether you’re setting up a show at the local club or powering up the church band for their next service, make sure you give them power they can trust.

Features

• Surge Protection

• Furman’s exclusive SMP technology provides the highest level of surge & spike protection available.

• Noise Filtration

• LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.

• Voltage Protection

• Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.

• Pull-out Lights

• Dual smooth track retractable LED lights illuminate equipment in your rack.

• Diagnostic Lights

• LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.

• Isolated Banks

• Isolated outlet banks minimize inter-component interference and noise contamination.

• Wall Wart Spacing

• Three widely spaced outlets accommodate bulky AC power transformers.

• 15 AMP Rating

• 15 Amp rating featuring a high inrush magnetic circuit breaker for added protection.

• Nine Total Outlets

• Nine total outlets (8 rear panel outlets and one front panel convenience outlet).

• BNC Lamp Connector

• Rear panel BNC connector powers any standard gooseneck lamp for rear rack illumination.

Specifications

Family: Classic Series

Line Voltage: 120 (Volts)

Number of Outlets: 9

Number of Isolated Banks: 2

Outlet Descriptions: All 9 outlets linearly filtered and surge protected

Rack Mountable: Yes

Rack Ears Included: Yes

Front Panel Meter(s): No

Front Media Light(s): 2 multi-LED, dimmable lamps

ControlFront panel:

– On/Off switch

– Light dimmer knob

Voltage Regulation: No

Compliance: cTUVus

USB Charging: N/A

Low Voltage Trigger: N/A

AC Power Cord: 10 ft, captive 3/14 AWG, with NEMA 15 plug

Dimensions: 19″ W x 10.5″ D x 1.75″ H

Weight: 12 lbs

Power Consumption: 12 Watts

AC Protection

AC Protection TechnologyExtreme Voltage Shutdown

Series Multi-Stage Protection

Non-sacrificial protection with zero ground contamination

Under-Voltage Shutoff: 90V

Over-Voltage Shutoff: 140 VAC

Maximum Current Rating: 15 (Amps)

Initial Clamping Level: 188 VAC peak @ 3,000 Amps

Filtration

Filtration Technology: LiFT

Filtration Rating: 10 dB @ 10 kHz

40 dB @ 100 kHz

50 dB @ 500 kHz

Signal Line Protection: No

Response Time 1 nanosecond

Peak Impulse Current 6,500 amps

Rear BNC Connector Rear rack lamp (Lamp not included) 12VAC 500MA max

----------------------------------------------------------------------------------------------------------------

Echotone Music LLC is an experienced  long time E-commerce Audio & Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers, production companies and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as mount marks, plug marks, scratches,  scuffs, dings or scrapes, screw mount marks or collateral material damage.. Items must also include all original packaging, manuals, warrantees & accessories or your return may be subject to a return handling charge.

Refunds or for the Item cost only. If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, cleaners, polishes & polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!

Furman CN-1800S 15A Smart Sequencing Power Conditioner with AC protection and Noise Filtration

Ships Free!

Designed for Commercial A/V Installers, the CN-1800S combines robust control capabilities via SmartSequencing™ Technology, advanced AC protection, AC noise filtration, and optional compatibility with the BlueBOLT® Remote Power and Energy Management Platform (BB-RS232 adapter required, sold separately).

The new CN-1800S is one of the first products to feature Furman’s SmartSequencing™ technology, which allows large and complex A/V systems to be safely powered on and off with a simple press of a button or turn of a key, even by nontechnical personnel. SmartSequencing’s bidirectional communications between installed units enables a primary unit to control and sequence multiple secondary units, ensuring multizone electronic systems are powered on and off safely and dependably from a single control point across an entire installation. Units can be connected via current loop at runs of more than 1,000 feet with backwards compatibility with Furman’s legacy sequencers.

In addition, the CN-1800S offers robust control options, equipped with RS-232 ports and command sets for integration with control systems. An optional RS-232-to-Ethernet adaptor (sold separately) adds full IP-addressability to the unit, allowing it to be controlled, programmed, and monitored from a smartphone, tablet, PC, or any Web-enabled device via Telnet, direct HTTP: connection, or Panamax/Furman’s BlueBOLT®-hosted remote power and energy management platform.

Features

• Surge Protection – Series Multi-Stage Protection (SMP) Technology provides the highest level of surge & spike protection available.

• Noise Filtration – Linear Filtration Technology (LiFT) reduces AC noise linearly across a very wide bandwidth for unequaled audio & video clarity.

• Voltage Protection – Extreme Voltage Shutdown (EVS) circuity safely powers down itself and connected equipment during unsafe voltage periods.

• SmartSequencing™ – SmartSequencing allows bidirectional, safe sequenced power up/down operations via the push of a button or turn of a key.

• Diagnostic Lights – Diagnostic lights provide valuable system information including power quality, “Protectection Ok” indicator, and Extreme Voltage indicator.

• 15 Amp Output Current – 15 amp maximum current capacity with incorporated 15 amp thermal circuit breaker.

• Remote Access (RS-232) – RS-232 compatibility & command set provide integration with control systems, open source and control programming.

• BlueBOLT Compatible® – BlueBOLT provides remote access to reboot components, power equipemnt on/off, and monitor power quality via the internet from anywhere in the world.

• Nine Total Outlets – The CN-1800S contains eight rear panel NEMA 5-15R outlets and one front panel NEMA 5-15R outlet.

Specifications

AC Voltage Input Range 90-139VAC, 50/60Hz

Maximum AC Current Rating 15 amps (Thermal breaker)

AC Cord 3/14AWG, 10 feet, black, fixed, NEMA 5-15P plug

AC Receptacles Rear Panel Outlets 2 Unswitched NEMA 5 15R’s (1 duplex), 6 Sequenced NEMA 5-15R’s (3 duplexes each controlled by separate relay)

Front Panel One NEMA 5-15R Convenience Outlet, Unswitched

AC Surge Protection SMP

Spike Protection Mode Line to neutral, zero ground leakage

Spike Clamping Voltage 188VAC peak @ 6,000 volts/3,000 amps

Response Time 1 nanosecond

Maximum Surge Current 6,500 Amps

AC Undervoltage Protection EVS, 77VAC+/-3VAC

AC Overvoltage Protection EVS, 145VAC+/-5VAC

AC Overvoltage Reset Modes Manual and Auto-reset (configurable)

AC Filtering LiFT

Noise Attenuation Linear, 10dB @10KHz, 40dB@100KHz, 50dB@500KHz

Operating Temperature Range 5C (40F) to 40C (105F) degrees

Humidity Range <90% rH (Relative Humidity)

Key-switch Front panel, 3-position key-switch (On, Off, Remote)

Keys Included, 1 pair

Push-button Switch Front panel, hidden by security cover

Circuit Breaker Front panel, push-button, 15A Thermal Breaker

Front panel diagnostic indicators Primary link, Secondary link, Ethernet, Remote off, Delay 1, Delay 2, Delay 3, Power, Protection OK, Extreme Voltage

Front Panel DIP Switches Front panel. Hidden by security cover, 1 Minute Delay, 2 Minute Delay, 4 Minute Delay, Force Off NO/NC, 12V Mode On/Off BND Mode On, Momentary/Maintained, Primary/Secondary, EVS Reset Auto/Manual

Potentiometer Front panel, hidden by security cover, fine tune delay adjust

Control/Status/Triggering (Rear Panel) Remote Terminal +5-30VDC In, 12VDC (12mA) Out

SmartSequencing Phoenix 4-Pin Connector, Screw Terminals, Primary & Secondary Links (Current Loop – 1000’ nominal)

Remote Terminal Phoenix 4-Pin Connector With Screw Terminals; +12V, STAT, REM, GND (Class 2 Wiring)

Force Off/Delay 3 Terminal Phoenix 5-Pin Connector With Screw Terminals, FORCE OFF, DELAY 3 (Class 2 Wiring)

RS-232 Compatible Yes, DB-9 Connector

IP Addressability Optional, via BB-RS232 Ethernet/RS-232 Adapter (sold separately) for IP control via Telnet, HTTP, BlueBOLT®

Voltmeter Available with RS-232/Ethernet option, ± 2VAC accuracy

Ammeter Available with RS-232/Ethernet option, ±1A accuracy

Power Consumption (No Load) 10 Watts

Safety Agency NRTL-C, RoHS Compliant

Family: Contractor Series

Line Voltage: 120 (Volts)

----------------------------------------------------------------------------------------------------------------

Echotone Music LLC is an experienced  long time E-commerce Audio & Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers, production companies and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as mount marks, plug marks, scratches,  scuffs, dings or scrapes, screw mount marks or collateral material damage.. Items must also include all original packaging, manuals, warrantees & accessories or your return may be subject to a return handling charge.

Refunds or for the Item cost only. If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, cleaners, polishes & polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!

Furman PLPROC Classic Series 20A Rackmountable Power Conditioner with Voltmeter

Ships Free!

The Classic Series from Furman brings together superior protection and outstanding performance in a sturdy, rack-mountable design.

The Classic Series features Furman’s revolutionary Series Multi-Stage Protection (SMP), Linear Filtering Technology (LiFT), and Extreme Voltage Shutdown (EVS). Together, these technologies comprise what is, without question, one of the world’s most advanced and comprehensive transient voltage surge supressors.

INSTRUMENT RIGS

You’ve got a rack for your effects, preamps, tuner…You’re going to plug that into the wall? One big spike and your rig is up in smoke. Furman’s advanced Series Multi-Stage Protection defends your gear from the spikes and surges that are so common at gigs and practice spots. With Furman’s advanced Linear Filtering Technology, you’ll get a quieter tone without pops, crackles, and the local radio station coming out of your amp.

RECORDING

Can’t track down where that noise is coming from? Your mix sounding flat? With Furman’s advanced Linear Filtering Technology you’ll lower the noise floor caused by the dirty AC power coming into your console or DAW. Furman’s advanced advanced Series Multi-Stage Protection keeps your sensitive digital equipment from acting funny or burning up due to everyday spikes and surges. With a 15A capacity and eleven total outlets, it’s enough to power your whole home studio.

DJ EQUIPMENT

Bars, clubs and other event venues have some of the worst power out there – from air compressors turning on and off, to light shows pulling current loads up and down, the AC power can be a strain on the circuits in your rig. Furman’s advanced Series Multi-Stage Protection and LiFT keeps the bad stuff out and the dual pull-out front panel lights let you discreetly see your board and gear without distracting from the show on the dance floor.

PRO AUDIO

When you’re out there gigging, you never know what kind of power you’re going to get. The wear and tear on mobile rigs eventually takes it’s toll – that’s why it’s smart to plug into Furman’s advanced Linear Filtering Technology. It keeps your equipment safe and sounding clean. Whether you’re setting up a show at the local club or powering up the church band for their next service, make sure you give them power they can trust.

Features

• Surge Protection

• Furman’s exclusive SMP technology provides the highest level of surge & spike protection available.

• Noise Filtration

• LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.

• Voltage Protection

• Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.

• Pull-out Lights

• Dual smooth track retractable LED lights illuminate equipment in your rack.

• Diagnostic Lights

• LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.

• USB Charger

• Front panel convenience charger allows you to charge most media devices or power a USB lamp.

• LED Voltmeter

• Segmented LED voltmeter monitors and displays incoming line voltage.

• Isolated Banks

• Isolated outlet banks minimize inter-component interference and noise contamination.

• Wall Wart Spacing

• Three widely spaced outlets accommodate bulky AC power transformers.

• 20 Amp Rating

• 20 Amp rating featuring a high inrush magnetic circuit breaker for added protection.

• Nine Total Outlets

• Nine total outlets (8 rear panel outlets and one front panel convenience outlet).

• BNC Lamp Connector

• Rear panel BNC connector powers any standard gooseneck lamp for rear rack illumination.

Specifications

Family: Classic Series

Line Voltage: 120 (Volts)

Number of Outlets: 9

Number of Isolated Banks: 2

Outlet Descriptions: All 9 outlets linearly filtered and surge protected

Rack Mountable: Yes

Rack Ears Included: Yes

Front Panel Meter(s): Segmented LED voltmeter

Front Media Light(s): 2 multi-LED, dimmable lamps

Control: Front panel On/Off switch

Voltage Regulation: No

Compliance: cTUVus

USB Charging: 1 front panel USB charger

Low Voltage Trigger: N/A

AC Power Cord: 10 ft, captive 3/12 AWG, with NEMA 20 plug

DimensionsL: 19" W x 10.5" D x 1.75" H

Weight: 12 lbs

Power Consumption: 12 Watts

AC Protection

AC Protection Technology Extreme Voltage Shutdown

Series Multi-Stage Protection

Non-sacrificial protection with zero ground contamination

Under-Voltage Shutoff: 90V

Over-Voltage Shutoff: 140 VAC

Maximum Current Rating: 20 (Amps)

Initial Clamping Level: 188 VAC peak @ 3,000 Amps

Filtration

Filtration Technology LiFT

Filtration Rating: 10 dB @ 10 kHz

40 dB @ 100 kHz

50 dB @ 500 kHz

Signal Line Protection: No

Response Time: 1 nanosecond

Maximum Surge Current: 6,500 amps

Construction: Steel chassis, .120” brushed and black anodized aluminum front panel; glass epoxy printed circuit boards

----------------------------------------------------------------------------------------------------------------

Echotone Music LLC is an experienced  long time E-commerce Audio & Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers, production companies and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as mount marks, plug marks, scratches,  scuffs, dings or scrapes, screw mount marks or collateral material damage.. Items must also include all original packaging, manuals, warrantees & accessories or your return may be subject to a return handling charge.

Refunds or for the Item cost only. If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, cleaners, polishes & polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!

Furman M-8X AR Merit Series 15 Amp Rackmountable Voltage Regulator 9 Outlets

Ships Free!

Provides nine regulated, conditioned AC outlets-eight on the rear panel and one on the front.

The Furman M-8x AR Voltage Regulator is intended to protect sensitive electronic equipment from problems caused by AC line voltage irregularities such as brownouts, sags, and over-voltage conditions. Such irregularities can cause audio tonal changes, digital equipment malfunctions (such as loss of MIDI programs or other data), or in extreme cases, permanent damage.

Power Conditioning Definitions

Voltage Regulation

The AC line voltage is a number representing the nominal electrical potential that has been adopted in a region for powering electrical equipment of all kinds. In most of North America the line voltage is 120VAC. The actual voltage can fall below or rise above this nominal level due to brownouts, power cutbacks, use of substandard wiring, and other causes. These deviations can cause poor performance or a malfunction. A voltage regulator is a device which, through use of an autotransformer, corrects for deviations in line voltage by switching transformer taps such that the output voltage is at or near the nominal AC line voltage level.

Spike (also called surges or transients)

Spikes can have voltages as high as 6000 volts. Though they are usually of very short duration, the energy they contain can be considerable and enough to damage sensitive solid-state components in audio and computer equipment. Spikes can also foul switch contacts and degrade wiring insulation. They are an unavoidable component of electric power. They are caused unpredictably by electric motors switching on or off (on the premises or outside), utility company maintenance operations, nearby lightning strikes, and other factors. Spikes are absorbed by special components called MOV’s inside the M-8x AR to provide safe voltage levels to protect your equipment.

RFI/EMI Interference

Noise from RFI (Radio Frequency Interference) or EMI (Electro Magnetic Interference) involves lower voltages and less energy than is found in spikes, but it is continuous or transient. It is not likely to cause physical damage, but it can certainly be annoying, producing static in audio circuits, “snow” on video screens, or garbled data in computers. Noise can be introduced into AC lines by nearby radio transmitters, certain kinds of lighting, electric motors, and other devices. Because RFI/EMI noise occurs at higher frequencies than the 50 or 60 Hz AC line, it can be effectively reduced through the use of low-pass filtering.

Extreme Voltage Protection

The M-8x AR includes special circuitry to sense over and under voltage conditions and either regulate or disable the output before damage can be done to connected equipment. Please refer to the specifications for the exact voltages at which shutdown occurs. When the input voltage falls outside the regulation limit, the power will cut off. Power will automatically be restored when the condition has subsided. The two red LEDs labeled “EVS” indicate a protective shutdown condition.

Extreme Current Protection

The M-8x AR includes a special ECS circuit to detect an extreme over-current condition and shut down the outlets before damage is done to the M-8x AR or your connected equipment. The ECS circuit has been designed to detect high speed and high level currents and will ignore low speed / low current transients, such as amplifier inrush currents. When an ECS condition has been detected, the M-8x AR will shut down outlets and illuminate the red Extreme Current LED.

Specifications

Family: Merit Series

Line Voltage: 120 (Volts)

Number of Outlets: 9

Number of Isolated Banks: 0

Outlet Descriptions: All 9 outlets regulated and conditioned -eight on the rear panel and one on the front

Rack Mountable: Yes

Rack Ears Included: Yes

Front Panel Meter(s): Eight element, Bi-color bar graph meter to indicate input line voltage

Front Media Light(s): No

ControlFront panel:

– On/Off switch

Voltage Regulation Regulation capture range

97 VAC to 141 VAC

Output Voltage:

120 VAC ±5V

Compliance: cCSAus

USB Charging: N/A

Low Voltage Trigger: N/A

AC Power Cord: 10 ft. captive AC power cord with NEMA 5-15 Plug

Dimensions: 19″ W x 11″ D x 1.75″ H

Weight: 15.75 lbs

AC Protection

AC Protection Technology Voltage Regulation

Extreme Voltage Shutdown

Extreme Current Shutdown

Under-Voltage Shutoff: 75V

Over-Voltage Shutoff: 145 VAC

Maximum Current Rating: 15 (Amps)

Initial Clamping Level: 400 volts peak at 500 A

Filtration

Filtration Technology Standard Level RFI/EMI Filtration

Filtration Rating

-16dB @ 10KHz

-33dB @ 100 kHz

-48dB @ 400KHz

Signal Line Protection: No

Spike Protection Modes: Line to Neutral

Energy Dissipation: 225 joules

Peak Impulse Current: 15,000 amps

Construction: Steel Chassis, Black Painted

----------------------------------------------------------------------------------------------------------------

Echotone Music LLC is an experienced  long time E-commerce Audio & Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers, production companies and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as mount marks, plug marks, scratches,  scuffs, dings or scrapes, screw mount marks or collateral material damage.. Items must also include all original packaging, manuals, warrantees & accessories or your return may be subject to a return handling charge.

Refunds or for the Item cost only. If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, cleaners, polishes & polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!

Furman M-8LX 15A Merit Series Power Conditioner with Lights Rackmountable

Ships Free!

Install an M-8Lx into the top slot of your rack, and the eight switched outlets in the rear panel will power up and protect all your equipment up to a 15-amp load. Illuminate your rack with two retractable, front panel lights.

A Merit Series Power Conditioner is the perfect low-cost AC power solution for any rack mount system. The M-8Lx features two slide out, swiveling light fixtures to provide discreet illumination of your equipment on stages, in studios, and in other dark places. A dimmer knob lets you adjust the lamp brightness to just the right level.

Applications

INSTRUMENT RIGS

You’ve got a rack for your effects, preamps, tuner…You’re going to plug that into the wall? One big spike and your rig is up in smoke. Furman’s standard level surge/spike protection defends your gear from the spikes and surges that are so common at gigs and practice spots. With Furman’s standard level RFI/EMI filtration, you’ll get a quieter tone without pops, crackles, and the local radio station coming out of your amp. Plus, dual pull-out lamps let you see your rack without turning the house lights on.

RECORDING

Can’t track down where that noise is coming from? Your mix sounding flat? With Furman’s standard level RFI/EMI filtration you’ll lower the noise floor caused by the dirty AC power coming into your console or DAW. Furman’s standard level surge and spike protection keeps your sensitive digital equipment from acting funny or burning up due to everyday spikes and surges. With a 15A capacity and nine total outlets, it’s enough to power your whole home studio.

DJ EQUIPMENT

Bars, clubs and other event venues have some of the worst power out there – from air compressors turning on and off to light shows pulling current loads up and down, the AC power can be a strain on the circuits in your rig. Furman’s standard level protection and filtration keeps the bad stuff out. The dual pull-out front panel lights also let you discreetly see your board and gear without distracting from the show on the dance floor.

PRO AUDIO

When you’re out there gigging, you never know what kind of power you’re going to get. The wear and tear on mobile rigs eventually takes it toll – that’s why it’s smart to plug into Furman’s standard level protection and RFI/EMI filtration. It keeps your equipment safe and sounding clean. Whether you’re setting up a show at the local club or powering up the church band for their next service, make sure you give them power they can trust.

Features

• Noise Filtration

• AC noise filtering to reduce radio frequency and electromagnetic interference (RFI/EMI)

• Surge Protection

• Spike & surge protection ensures equipment stays safe and your power stays clean

• 9 Total Outlets

• 8 rear panel outlets and 1 front panel convenience outlet

• 15 Amp Rating

• 15 amp rating, with circuit breaker

• “Protection OK” Indicator

• Front panel indicator LED lets you know that your equipment is being protected

• Wall Wart Spacing Indicator

• Rear outlets have been spaced to accomodate even the bulkiest of wall warts and adapters

• Front Panel Pull-out Lights

• Two retractable incandescent light fixtures with dimmer control for convenient rack illumination

Specifications

Family: Merit Series

Line Voltage: 120 (Volts)

Number of Outlets: 9

Number of Isolated Banks: 0

Outlet Descriptions: All 9 outlets filtered and surge protected

Rack Mountable: Yes

Rack Ears Included: Yes

Front Panel Meter(s): No

Front Media Light(s): Two 120V incandescent bulbs, 4 watts each

ControlFront panel:

– On/Off switch

– Light dimmer knob

Voltage Regulation: No

Compliance: cTUVus

USB Charging: N/A

Low Voltage Trigger: N/A

AC Power Cord: 6 ft. captive, 14 AWG, with 3-conductor Edison Plug

Dimensions: 19″ W x 7.5″ D x 1.75″ H

Weight: 6 lbs

AC Protection

AC Protection Technology Standard spike and surge protection

Under-Voltage Shutoff: N/A

Maximum Continuous Operating Voltage: 130 VAC RMS

Maximum Current Rating: 15 (Amps)

Filtration

Filtration Technology Standard Level RFI/EMI Filtration

Filtration Rating

Greater than 26dB, 200Khz to 10 Mhz

Signal Line Protection: No

Spike Protection Modes: Line to Neutral

Energy Dissipation: 150 joules

Maximum Continuous Operating Voltage 130 VAC RMS

Peak Impulse Current: 12,000 amps

Construction: Steel Chassis, Black Painted

----------------------------------------------------------------------------------------------------------------

Echotone Music LLC is an experienced  long time E-commerce Audio & Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers, production companies and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as mount marks, plug marks, scratches,  scuffs, dings or scrapes, screw mount marks or collateral material damage.. Items must also include all original packaging, manuals, warrantees & accessories or your return may be subject to a return handling charge.

Refunds or for the Item cost only. If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, cleaners, polishes & polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!

Furman PL-PRO DMC 20A Rackmountable Power Conditioner with Lights Volt Ammeter

Ships Free!

The Classic Series from Furman brings together superior protection and outstanding performance in a sturdy, rack-mountable design.

The Classic Series features Furman’s revolutionary Series Multi-Stage Protection (SMP), Linear Filtering Technology (LiFT), and Extreme Voltage Shutdown (EVS). Together, these technologies comprise what is, without question, one of the world’s most advanced and comprehensive transient voltage surge supressors.

Applications

INSTRUMENT RIGS

You’ve got a rack for your effects, preamps, tuner…You’re going to plug that into the wall? One big spike and your rig is up in smoke. Furman’s advanced Series Multi-Stage Protection defends your gear from the spikes and surges that are so common at gigs and practice spots. With Furman’s advanced Linear Filtering Technology, you’ll get a quieter tone without pops, crackles, and the local radio station coming out of your amp.

RECORDING

Can’t track down where that noise is coming from? Your mix sounding flat? With Furman’s advanced Linear Filtering Technology you’ll lower the noise floor caused by the dirty AC power coming into your console or DAW. Furman’s advanced advanced Series Multi-Stage Protection keeps your sensitive digital equipment from acting funny or burning up due to everyday spikes and surges. With a 15A capacity and eleven total outlets, it’s enough to power your whole home studio.

DJ EQUIPMENT

Bars, clubs and other event venues have some of the worst power out there – from air compressors turning on and off, to light shows pulling current loads up and down, the AC power can be a strain on the circuits in your rig. Furman’s advanced Series Multi-Stage Protection and LiFT keeps the bad stuff out and the dual pull-out front panel lights let you discreetly see your board and gear without distracting from the show on the dance floor.

PRO AUDIO

When you’re out there gigging, you never know what kind of power you’re going to get. The wear and tear on mobile rigs eventually takes it’s toll – that’s why it’s smart to plug into Furman’s advanced Linear Filtering Technology. It keeps your equipment safe and sounding clean. Whether you’re setting up a show at the local club or powering up the church band for their next service, make sure you give them power they can trust.

Features

• Surge Protection

• Furman’s exclusive SMP technology provides the highest level of surge & spike protection available.

• Noise Filtration

• LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.

• Voltage Protection

• Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.

• Pull-out Lights

• Dual smooth track retractable LED lights illuminate equipment in your rack.

• Diagnostic Lights

• LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.

• USB Charger

• Front panel convenience charger allows you to charge most media devices or power a USB lamp.

• Voltmeter / Ammeter

• Large digital voltmeter / ammeter, with discrete dimmer button, displays line votlage and true RMS current draw.

• Isolated Banks

• Isolated outlet banks minimize inter-component interference and noise contamination.

• Wall Wart Spacing

• Three widely spaced outlets accommodate bulky AC power transformers.

• 20 AMP Rating

• 20 Amp rating featuring a high inrush magnetic circuit breaker for added protection.

• Nine Total Outlets

• Nine total outlets (8 rear panel outlets and one front panel convenience outlet).

• BNC Lamp Connector

• Rear panel BNC connector powers any standard gooseneck lamp for rear rack illumination.

Specifications

Family: Classic Series

Line Voltage: 120 (Volts)

Number of Outlets: 9

Number of Isolated Banks: 2

Outlet Descriptions: All 9 outlets linearly filtered and surge protected

Rack Mountable: Yes

Rack Ears Included: Yes

Front Panel Meter(s): LED voltmeter/ammeter displays incoming voltage and true RMS current draw

Front Media Light(s): 2 multi-LED, dimmable lamps

ControlFront panel:

– On/Off switch

– Voltage meter dimmer button

Voltage Regulation: No

Compliance: cTUVus

USB Charging: 1 front panel USB charger

Low Voltage Trigger: N/A

AC Power Cord: 10 ft, captive 3/12 AWG, with NEMA 20 plug

Dimensions: 19" W x 10.5" D x 1.75" H

Weight: 12 lbs

Power Consumption: 12 Watts

AC Protection

AC Protection Technology Extreme Voltage Shutdown

Series Multi-Stage Protection

Non-sacrificial protection with zero ground contamination

Under-Voltage Shutoff: 90V

Over-Voltage Shutoff: 140 VAC

Maximum Current Rating: 20 (Amps)

Initial Clamping Level: 188 VAC peak @ 3,000 Amps

Filtration

Filtration Technology LiFT

Filtration Rating: 10 dB @ 10 kHz

40 dB @ 100 kHz

50 dB @ 500 kHz

Signal Line Protection: No

Response Time: 1 nanosecond

Maximum Surge Current: 6,500 amps

Construction: Steel chassis, .120” brushed and black anodized aluminum front panel; glass epoxy printed circuit boards

----------------------------------------------------------------------------------------------------------------

Echotone Music LLC is an experienced  long time E-commerce Audio & Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers, production companies and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as mount marks, plug marks, scratches,  scuffs, dings or scrapes, screw mount marks or collateral material damage.. Items must also include all original packaging, manuals, warrantees & accessories or your return may be subject to a return handling charge.

Refunds or for the Item cost only. If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, cleaners, polishes & polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!

Furman CN-15MP SmartSequencing Contractor Series 15A MiniPort 12 Volts

Furman’s Contractor Series MiniPorts extend the benefits of SmartSequencing to electronics outside of the equipment rack, providing tremendous flexibility to any installation scenario. Units may be daisy-chained and fully controlled via a Furman SmartSequencer, legacy Furman sequencer, third-party sequencers, via the Internet (with BB-RS232 adaptor and SmartSequencer), and/or control and automation systems.

DIP switches and potentiometer allows customization of settings such as sequencing delays, 12V on/off, and more. Security covers are provided to prevent unauthorized personnel from tampering with DIP switches.

Sequencing of duplex initiated remotely by standard analog triggering (remote terminal) or digital link (SmartSequencing from CN-1800S or CN-2400S).

The CN-15MP can shut itself off automatically when triggered by a fire alarm.

Features:

• SmartSequencing™ – SmartSequencing allows bidirectional, safe sequenced power up/down operations via the push of a button or turn of a key.

• Voltage Protection – Extreme Voltage Shutdown (EVS) safeguards from catastrophic under-voltage (under 80V sustained) or over-voltage (over 145V sustained) conditions. The EVS feature can be selectively enabled or disabled according to the preference of the user.

• BlueBOLT Compatible® – IP Control (Telnet or cloud-based BlueBOLT) via SmartSequencing (when connected to CN-1800S/CN-2400S with BB-RS232 Adaptor).

• Diagnostic Lights – Diagnostic lights provide valuable system information including power quality.

• 15 Amp Output Current – 15 amp maximum current capacity with incorporated 15 amp thermal circuit breaker.

• DIP Switch Customization – DIP switches and potentiometer allows customization of settings such as sequencing delays, 12V on/off, and more. Security covers are provided to prevent unauthorized personnel from tampering with DIP switches.

Specifications:

AC Voltage Input Range 90-139VAC, 50/60Hz

Maximum AC Current Rating 15 amps (Thermal breaker)

AC Cord 3/14AWG, 10 feet, black, fixed, NEMA 5-15P plug

AC Receptacles 2 NEMA 5-15R’s (1 duplex)

AC Undervoltage Protection EVS, 77VAC+/-3VAC

AC Overvoltage Protection EVS, 140VAC+/-5VAC

AC Overvoltage Reset Modes Manual and Auto-reset (configurable)

Operating Temperature Range 5C (40F) to 40C (105F) degrees

Humidity Range <90% rH (Relative Humidity)

Circuit Breaker Pushbutton, 15A

Front panel diagnostic indicators (LED) Power, Extreme Voltage, Primary Link, Secondary Link

Side Panel DIP Switch Features (with security cover) 1 Minute Delay, 2 Minute Delay, 4 Minute Delay, Force Off NO/NC, 12V Mode On/Off GND Mode On, Momentary/Maintained, Primary/Secondary, EVS Reset Auto/Manual

Side Panel Potentiometer allows fine tune delay adjustments

Remote Terminal +5-30VDC In, 12VDC (12mA) Out

SmartSequencing Phoenix-type 4-Pin Connector, Screw Terminals, Primary & Secondary Links (Current Loop – 1000’ nominal)

Remote Terminal Phoenix-type 5-Pin Connector With Screw Terminals; +12V, STAT, REM, GND, DLY_OUT (Class 1 Wiring)

Force Off Phoenix-type 2-Pin Connector With Screw Terminals, FORCE OFF (Class 1 Wiring)

RS-232 Compatible Yes, indirectly, when connected via SmartSequencing to a Furman Smart Sequencer with an RS-232 port

IP Accessibility Optional IP control via Telnet, HTTP, or BlueBOLT® when used in conjunction with SmartSequencing

Voltmeter Available with SmartSequencing Ethernet option, ± 2VAC accuracy

Ammeter Available with SmartSequencing Ethernet option, ±1A accuracy

Power Consumption (No Load) 10 Watts

Safety Agency CSA, RoHS Compliant

Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998.  We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications.

Shipping --Pro packed & shipped  USPS, UPS or Freight Service. Contact us & pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed &  shipped. Processing times vary, 2-30  days

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided. Otherwise customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, & accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

What products can not be returned? - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids

Furman P-8 PRO C 20A Power Conditioner Series Multi Stage Protection 2400 Watts

The P-8 PRO C features Furman’s venerable Series Multi-Stage Protection (SMP) circuit as well as our exclusive Linear Filtering Technology (LiFT). Together, these technologies comprise what is, without question, the worlds most advanced and comprehensive transient voltage surge suppressor / conditioner.

The Classic Series from Furman brings together superior protection and outstanding performance in a sturdy, rack-mountable design. The Classic Series features Furman’s revolutionary Series Multi-Stage Protection (SMP), Linear Filtering Technology (LiFT), and Extreme Voltage Shutdown (EVS). Together, these technologies comprise what is, without question, one of the world’s most advanced and comprehensive transient voltage surge supressors.

Features:

• SMP+ with extreme voltage shutdown

• LiFT (Linear Filtering Technology) with zero ground contamination

• Eight rear panel outlets and one front panel outlet

• BNC connector on the rear panel allows you to attach any standard (12V 0.5 Amp) goose-neck lamp to illuminate the rear of your rack

• 2400 Watt rating, with a high in-rush 20 Amp circuit breaker

• Rugged road-worthy steel chassis

• 10 foot power cord with NEMA 5-20P plug

Applications:

INSTRUMENT RIGS

You’ve got a rack for your effects, preamps, tuner…You’re going to plug that into the wall? One big spike and your rig is up in smoke. Furman’s advanced Series Multi-Stage Protection defends your gear from the spikes and surges that are so common at gigs and practice spots. With Furman’s advanced Linear Filtering Technology, you’ll get a quieter tone without pops, crackles, and the local radio station coming out of your amp.

RECORDING

Can’t track down where that noise is coming from? Your mix sounding flat? With Furman’s advanced Linear Filtering Technology you’ll lower the noise floor caused by the dirty AC power coming into your console or DAW. Furman’s advanced advanced Series Multi-Stage Protection keeps your sensitive digital equipment from acting funny or burning up due to everyday spikes and surges. With a 15A capacity and eleven total outlets, it’s enough to power your whole home studio.

DJ EQUIPMENT

Bars, clubs and other event venues have some of the worst power out there – from air compressors turning on and off to light shows pulling current loads up and down, the AC power can be a strain on the circuits in your rig. Furman’s advanced Series Multi-Stage Protection and LiFT keeps the bad stuff out and the dual pull-out front panel lights let you discreetly see your board and gear without distracting from the show on the dance floor.

PRO AUDIO

When you’re out there gigging, you never know what kind of power you’re going to get. The wear and tear on mobile rigs eventually takes it toll – that’s why it’s smart to plug into Furman’s advanced Linear Filtering Technology. It keeps your equipment safe and sounding clean. Whether you’re setting up a show at the local club or powering up the church band for their next service, make sure you give them power they can trust.

Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998.  We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications.

Shipping --Pro packed & shipped  USPS, UPS or Freight Service. Contact us & pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed &  shipped. Processing times vary, 2-30  days

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided. Otherwise customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, & accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

What products can not be returned? - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids

Furman F1000-UPS 1000VA  2RU Uninterruptible Power Supply Battery Backup

Ships Free!

2RU uninterruptible power supply – battery backup / power conditioner. AVR, RS-232 & USB interface; no fan.

The Furman F1000-UPS: battery backup is designed exclusively for audio/video professionals and home theater aficionados.

For decades, traditional audio/video components were simple analog devices designed to easily weather power outages of well over two seconds. Later, as computer and microprocessor based components gained in popularity, their extraordinary sensitivity to even a fraction of a second’s power loss was managed with traditional UPS (uninterruptible power supply) technology.

Unfortunately, these units were solely designed for the I.T. professional. Though they included many technologies and features appropriate to that application, they fell short for premium audio/video components. Though many of these manufacturers later recognized the ever emerging professional audio/video, broadcast, and home theater market, their lack of experience led merely to a re-tooled chassis. These hastily produced UPS devices lacked the technologies necessary to truly optimize protection, performance, and control for today’s audio video components.

The Furman F1000-UPS more than fills this void, and offers your system unparalleled battery back-up technology, created from the ground up to meet the exacting demands of the world’s most sensitive audio, video and control systems!

Protection

Typical UPS systems feature antiquated surge suppression technologies that can cause as much damage and annoying lock-ups as they attempt to prevent. Only Furman offers battery back-up with our road-proven SMP non-sacrificial, zero ground contamination surge suppression technology and EVS Extreme Voltage Shutdown. After all, the most robust battery can not function if the accompanying circuits are damaged. With Furman’s F1000-UPS, you can expect years of trouble free operation.

Filtration

Though many control devices are relatively immune to moderate levels of AC line noise, today’s more sensitive devices (such as DLP projectors and line-level signal processors) certainly are not. High-definition technologies have pushed resolution to levels so extreme that virtually any AC noise capable of coupling with your system’s signal will distort, mask, or destroy the performance advantages we all strive so hard to capture and reproduce. Once again, the F1000-UPS is different. While other UPS devices feature AC line filters suitable for a I.T. closet, only Furman employs our exclusive Linear Filtering Technology (LiFT). This advanced noise filtering technology assures that today’s ultra-wide dynamic range is maintained as it must be – pristine. Remember, less AC noise equals greater content, greater resolution, and higher definition.

Programmability & Control

Audio/video systems can vary greatly in their size and components, and as such, flexibility is needed in determining how a battery backup solution should function under different circumstances. Because of this, Furman has provided open source RS-232 control over two independent AC outlet banks, with a wide range of control features to interface with an existing automation solution. Dual programmable IR control allows the unit to send a shut down command to remote components – no more expensive projector bulbs to replace in the event of a blackout.

Typical Backup Components

Given the nature of battery backup technology, high-current audio and video components such as power amplifiers, powered subwoofers, and high-wattage displays are not recommended for use with the F1000-UPS. Not only will these components drain battery power quite rapidly, line impedance will be raised due to the F1000-UPS’s (or any) AVR and AC to DC inverter, which can induce current compression and noticeably diminish performance with high-current A/V equipment. The following components are ideal for use with the F1000-UPS:

• DAWs

• Satellite Receivers

• Cable Boxes

• Digital Video Recorders

• Media Servers

• External Hard Drives

• Digital Mixing Consoles

• Lamp Based Video Displays

• Control Systems

For power management of other components, Furman recommends Classic or Prestige Series Power Conditioners. For high-current components such as power amplifiers and powered subwoofers, solutions featuring Furman’s exclusive Power Factor Technology are ideal.

Features

• Surge Protection

• Furman’s exclusive SMP technology provides the highest level of surge & spike protection available.

• Noise Filtration

• LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.

• Voltage Protection

• Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.

• Diagnostic Lights

• LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.

• Standard Voltage Regulation

• Standard Voltage Regulation delivers a stable 120 volts of AC power to protect equipment from problems caused by AC line voltage irregularities.

• Battery Backup

• 1000VA Simulated Sine Wave battery backup protects your data in a power failure allowing the opportunity to save your applications, programs, and shut-down the system gracefully.

• Infrared Control

• Learning IR control allows you to program connected equipment for shut-down sequencing.

• RS-232 Protocol

• RS-232 Open Source Code Protocol provides custom programming for connected equipment.

• 12 AMP Rating

• 12 Amp rating featuring a circuit breaker for added protection.

• Eight Total Outlets

• 8 rear panel outlets.

• Critical Load Management

• Critical Load Management prioritizes the allocation of temporary power to connected equipment.

• Power Control Software

• Easy to use power control software assists you in maximizing the performance of your UPS.

Specifications

Family: F-Battery

Line Voltage: 120 (Volts)

Number of Outlets: 8

Number of Isolated Banks: 0

Outlet Descriptions: All 8 outlets surge protected, linearly filtered, and backud up

Rack Mountable: Yes

Rack Ears Included: Yes

Front Panel Meter(s): LCD Displays status and menu navigation items

Front Media Light(s): No

Control: Remote control through RS-232 serial port

AC Power Cord: 10 ft, captive

Dimensions: 17″ W (19″ w/ rack ears) x 13″ D x 3.5″ H (4″ tall with feet installed)

Weight: 36 lbs.

Battery Backup

Input Frequency: 57 – 63 Hz

Regulation Capture Range: 99 – 135V (Sensitive Mode)

94 – 142V (Standard Mode)

Output Frequency: 60 Hz ± 1%

UPS Output Capacity: 1000VA, 600W @ 0.6pf

Regulation Output Range: 120V ± 5% (Sensitive Mode)

120V ± 10% (Standard Mode)

UPS Backup Time (Full Load): 3 minutes

Transfer Time: < 10ms

AC Protection

AC Protection Technology Non-sacrificial SMP (Series Multi-Stage Protection)

Under-Voltage Shutoff: 90V ± 5V

Over-Voltage Shutoff: 150V ± 5V (fast rise)

132 ± 5V (slow rise)

Maximum Current Rating: 12 (Amps)

Filtration

Filtration TechnologyLinear Filtering Technology (LiFT)

Filtration Rating: 10 dB @ 10kHz

40 dB @ 100 kHz

50 dB @ 500kHz

UPS Output Voltage 120 ±5V, Simulated Sine Wave

----------------------------------------------------------------------------------------------------------------

Echotone Music LLC is an experienced  long time E-commerce Audio & Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers, production companies and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as mount marks, plug marks, scratches,  scuffs, dings or scrapes, screw mount marks or collateral material damage.. Items must also include all original packaging, manuals, warrantees & accessories or your return may be subject to a return handling charge.

Refunds or for the Item cost only. If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, cleaners, polishes & polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!

Furman SS-6B 6 outlet AC Surge Strip 2X3 Block w/ Voltage Shutdown 15' Cord

The SS-6B is a 6-outlet power block with standard level surge suppression protection, EMI/RFI filtration, Extreme Voltage Shudown (EVS), heavy duty steel construction, and a 15ft. Power cord.

The EVS provides over/under voltage protection and will automatically turn back on once the incoming power has stabilized. Another great value of the EVS circuit is that not only does it protect the connected equipment, the EVS also protects the SS-6B-PRO making a sacrificial situation highly unlikely.

Features:
6 Outlet block
Heavy duty steel construction
15 foot power cord
Illuminated ON/OFF switch
Circiut Breaker
EMI/RFI noise attenuation
Extreme Voltage Shutoff Overvoltage 140VAC +/- 7 VAC, undervoltage 95 VAC +/- 5VAC

Warranty:
Limited 1 Year Warranty

Furman BLUEBOLT-CV2 IP Interface Card Plug In for F1500-UPS and MB1500

The BlueBOLT-CV2 Interface Card plugs in to select Panamax/Furman products and provides access to BlueBOLT™ cloud based remote power management technology. Each BlueBOLT-CV2 card includes a unique MAC address and identification number allowing you to create a BlueBOLT account or add a compatible unit to an existing account. The BlueBOLT-CV2 includes an embedded web page for local control, embedded scheduled events and pings, increased memory for future expansion, and enhanced data encryption AES128.

Features:
Embedded Web Page for local control
Embedded scheduled events and pings
Increased memory for future expansion
Enhanced data encryption AES128

Specifications
Networking: 10/100Base-T Ethernet
Power consumption: 1W (3.3V x 300mA)
Regulatory Approval: FCC part 15, Class B device
Supported Protocols: HTTP (port 80*), Telnet (Port 23*),*or user defined
Dimensions: 3.15” W x 4.0” L x 0.9” H
General
Family: Accessories
Line Voltage: 120 (Volts)
Compliance: FCC part 15, Class B device
Weight: 0.1 lbs.
Power Consumption: 1W (3.3V x 300mA)

Furman D10-PFP 10 Outlet Power Distributor Rack Strip 6' Cord w/ Circuit Breaker

The D10-PFP is a sturdy, rack-mountable power distributor. Featuring 10 rear panel outlets with circuit breaker, it offers a convenient way to power a rack full of equipment up to a 15 amp load.

The sturdy, all steel construction and heavy-duty 6 foot (14 AWG) three conductor cord provide ultimate durability and longevity.

Note that the D10-PFP is a power distributor only, and offers no surge protection or conditioning functions, making it an ideal extension to an existing branch circuit.

Features:
10 rear panel outlets for your equipment
Sturdy one rack space design
Heavy duty 6 foot, 14 AWG Cord
Circuit breaker protected
Rated 15 amps
All steel construction

Specifications:
Maximum Output Current: 15 amps (1800 watts at 120 VAC)
Line Cord: 6 ft. captive, 14 AWG, with three conductor Edison plug
Operating Voltage: 90 to 140 VAC
Dimensions: 19” W x 7.5” D x 1.75&rdquo. H
Weight: 5 lbs. (2.3 kg.)
Construction: Steel chassis, black painted
Power consumption: 0 watts
Safety Agency Listings: cULus

Furman PLUGLOCK 15A Power Distribution Strip 5 Spaced Outlets w/ Brackets 5' Cord

The PLUGLOCK circuit-breaker protected locking outlet strip provides enough wall wart spacing for five bulky transformers and can be safely mounted out of sight, in the rear of your rack.

Secure clamping design “locks” your transformers and conventional plugs in place, ensuring you never get disconnected from your power source. Adjustable clamps accommodate transformers and plugs from 0.4″ to 2.1″ above outlet.

The sturdy, all steel construction and heavy-duty 5 foot (14 AWG) three conductor cord provide ultimate durability and longevity.

Features:
Wall Wart Spacing for Bulky Transformers
Clamps Securely Lock Wall Warts in Place
Clamps Secure Regular Plugs As Well
Mounts Safely Out of Sight in Rear of Rack
Heavy Duty 5 Foot, 14 AWG Cord
Circuit-breaker Protected
Rated 15 Amps
All Steel Construction

Specifications:
General
FamilyPro Plugs Series
Line Voltage120 (Volts)
Number of Outlets5
Outlet Descriptions5 power distribution outlets. No filtration or power protection.
USB ChargingN/A
Low Voltage TriggerN/A
AC Power Cord5 ft. captive cord
Dimensions2.3" W x 2.5" D x 12.6" H
Weight2.125 lbs
AC Protection
AC Protection TechnologyN/A
Undervoltage ShutoffN/A
Over-Voltage ShutoffN/A
Maximum Current Rating15 (Amps)
Initial Clamping LevelN/A
Filtration
Filtration TechnologyN/A
Signal Line ProtectionNo
Shipping Info
Length5.5 (Inches)
Width2.7 (Inches)
Height12.4 (Inches)
Weight2.8 (Lbs)
Unit of MeasureEach
UPC654061002529
Master Pack Qty15

Furman BC-1000 Replacement Battery Carriage w/ 2 Batteries for MB1000 or F-1000-UPS

The Furman BC-1000 Replacement Battery Carriage with 2 Batteries. This replacement battery pack is designed specifically for use with the Panamax MB1000 or Furman F-1000-UPS.

Features:
Replacement Battery pack (2)
For MB1000 or Furman F-1000-UPS

Furman PST-2+6 15A 8 Outlet Surge Suppressor Strip Power Conditioner

The PST-2+6 gives you the high level of protection of a Furman power conditioner, but without all of the advance features that the other Power Station products possess.

For over 40 years, Furman has pioneered the development of AC power products for the most demanding audio, video, and broadcast professionals. With Furman’s Power Station Series, everyone can reap the benefits of unrivaled power purification and unequalled surge protection.

Today’s overworked, outdated power grid delivers poor quality AC power. When connecting sensitive equipment to regular power outlets, AC noise masks and distorts critical signal information which cripples performance. This is why it’s more important that ever to purify or clean the AC powering your sensitive audio/video equipment.

Features:
Advanced surge suppression with zero ground contamination
Offers superior protection over a standard power strip
Cable satellite and Telco connectors deliver advanced protection
Audible alarm indicates excessive power surge
Compact design enables discrete placement

Specifications:
General
FamilyPower Station Series
Line Voltage120 (Volts)
Number of Outlets8
Outlet DescriptionsAll 8 outlets filtered and surge protected
ControlOn/Off control to all outlets through power switch.
ComplianceC-UL (UL standard #1449, #1363)
USB ChargingN/A
Low Voltage TriggerN/A
AC Power Cord8ft captive power cord with 36 degree NEMA 15 plug
Dimensions11.7" W x 5" D x 1.7" H
Power Consumption6 Watts
AC Protection
AC Protection TechnologyFused MOV shunt protection L-N
Undervoltage ShutoffN/A
Over-Voltage ShutoffN/A
Maximum Current Rating15 (Amps)
Filtration
Filtration TechnologyRFI/EMI Filtration
Filtration Rating40 dB from 150Khz – 100 MHz
Signal Line Protection1 Tel
1 Cable/Satellite
Shipping Info
Length13.5 (Inches)
Width2.7 (Inches)
Height7 (Inches)
Weight2.1 (Lbs)
Unit of MeasureEach
UPC654061011903
Master Pack Qty10
