Atlas Sound

Atlas HPA2602 2 Channel 3200 Watts Commercial Audio Power Amplifier

The AtlasIED High Power Amplifier “HPA” Series has been designed to be versatile for uses in both commercial 70V distributed systems and professional applications that require amplifiers to handle 4 and 2 ohm loads. The HPA is compact and lightweight in comparison to other models delivering the similar power levels. The HPA Series features generation II Class I Output topology that gives the efficiency close to a Class D amplifier with the sound quality of a Class AB amplifier. The power supply is switch mode global auto sensing gen 3 design that maintains a stable output during fluxuating power conditions. The power supply and output stage collectively are designed to deliver exceptional dynamic high output voltage and
current to virtually any speaker load.

The HPA Series features front panel detented level controls with a security cover, remote turn on, balanced inputs, fault reporting and an accessory card slot for an optional Dante™ 2 or 4-channel digital audio interface. Cooling is not an issue because of the unique output stage low resistance direct couple thermal transfer design. HPA also is energy efficient and meets Energy Star standards with only drawing 1W of power in standby mode.

Whether your application is a large distributed constant voltage sound system or a high SPL sound reinforcement system, the AtlasIED HPA Series is the answer for high power/cost effective amplification need

Features;
8 Bridged
4 Bridged
Frequency Response
Terminal Block & Phoenix
1 - Variable Speed
BTU All Channels Driven AES
4265 BTU (70.7V, 120VAC)
Max Current All Channels Driven Continuous
3.5" (89mm)
19" (483mm)
15" (381mm)

Specifications:
Power Output
70.7V: 2 x 1300W
100V: NA
8Ω: 2 x 800W
4Ω: 2 x 1300W
2Ω: 2 x 1800W
8Ω Bridged: 1 x 2500W
1Ω RMS Power Output: 1 x 3200W
Frequency Response: 20Hz - 20kHz
THD: <0.05%
Channels: Two
Signal To Noise Ratio: >85dB
Connector Type: Terminal Block & Phoenix
Width: 19" (483mm)
Depth: 15" (381mm)
Number Of Fans: 1 - Variable Speed
Weight: 33 lbs. (15kg)
BTU All Channels: Driven AES 4265 BTU (70.7V, 120VAC)
Max Current: All Channels Driven Continuous 18.4A
Rack Units: 2 RU
Height: 3.5" (89mm)
Finish: Black
Voltage Compatibility: Universal
Warranty Period: 36 months from date of purchase

Atlas APC-30T 30 Watts Wide Angle Horn Speaker with Transformer

APC-30T is a high-power 30 watt speaker with extended low frequency response. Unit is equipped with a wide-angle molded plastic bell for sound directivity. Transformer includes a screwdriver-adjust power selection with a 45 ohm tap for intercom and talk-back use.
For mounting, the APC-30T features the Omni-Purpose® bracket for vertical/horizontal positioning with provisions for surface/strap mounting to pillars and I-beams.
Finished in grey baked epoxy.
Learn more about the importance of protecting paging horns from low frequency damage and view the TSD-HF11 unit designed specifically to protect horns from low frequency damage.

Features:
High-Powered Compression Driver Projects Superior Voice and Tone Signaling
Includes a 25, 70.7, 100V Transformer with a 45-Ohm Tap
One-Step Method of Adjusting Bell from Horizontal to Vertical Positioning
Wide-Angle Sound Dispersion for Maximum Horizontal Pattern Coverage

Specifications:
Frequency Response 300Hz - 12kHz
Sensitivity 109dB
Power Taps 2, 3.8, 7.5, 15, 30W @ 70.7V
Dispersion 70° x 95°
Power Rating 30 Watts
Height 8 1/4" (20.96 cm)
Width 14 3/8" (36.51 cm)
Depth 12 7/8" (32.70 cm)
Shipping Weight 9.00 lbs (4.08 kgs)
Color Pantone 430 C - RAL 7000
Operating Temperature Range -40C to 70C
Warranty Period 60 months from date of purchase

Atlas PA40G Single Ch 40 Watt Power Amplifier with Global Power Supply

Small and compact, and engineered for efficiency and reliability, the AtlasIED PA40G amplifier is the perfect choice for paging or background music (BGM) systems, small to medium sound masking systems, and any applications where distributed audio is required. It provides 40W into a 70.7V/100V line and has a balanced line level input via phoenix connector and a summing unbalanced RCA input. Output is to 70.7/100V speaker lines via phoenix connector and additional features include status LEDs, Removable Level Controls with set it and forget it security cover, and a global (100VAC-240VAC) power supply. The PA series of amplifiers are part of a new line from AtlasIED that are designed from the ground up and include the important features professional installation personnel require to meet or exceed their customer's expectations.

Features:
One Balanced Line Input
One Unbalanced, Summing Line Level Input
Global Power Supply, 100VAC-240VAC ~ 50/60Hz
Compact 1RU, 1/2 Rack

Specifications:
Frequency Response 50Hz - 20kHz
Connector Type Phoenix and RCA
Output Power 40 Watts
Voltage Compatibility Universal
Warranty Period 36 months from date of purchase

Atlas CP700 2 Channel 700 Watts Commercial Audio Power Amplifier

A professional grade A/B type audio power amplifier specifically designed for demanding contractor applications, the CP700 features esoteric grade toroidal power supply and output transformers. These transformers were chosen for their outstanding reliability as well as extended frequency response (-3dB @ 30Hz - 16kHz output through transformer) Now you can have the peace of mind that systems specified with the CP700 will have true transformer output isolation, a feature that previously may have not been affordable due to the cost of quality external transformers.

CP700's two independent channels ensure maximum channel separation and ultra low distortion figures while providing years of faithful service.

Whether your application is a large distributed constant voltage sound system or a high SPL sound reinforcement system, the AtlasIED CP700 is the perfect answer for high power/low cost amplification needs.

Features:
25V, 70.7V, 100V, and Direct Coupled (2,4, and 8 Ohm) Outputs Mounted on Barrier Strips with Covers for Safety
Balanced Inputs on Barrier Strip and XLR Connectors
Dual-Speed, High Efficiency Fan Cooling
Loop Through Feature on Male XLRs, One per Channel Input
Power-Up Muting
Stepped Attenuators Mounted on the Rear for Security
Toroidal Output Transformers Provide Full Electrical Isolation and Meet Worldwide Safety Agency Approval
UL Listed - UL60065

Specifications:
Frequency Response 30Hz - 50kHz
Channels Two
Connector Type Terminal Block & XLR
Finish Black
Number Of Fans 1 - Variable Speed
Output Power 350 Watts/Channel @ 70.7V, 700 Watts 140V/200V Bridge Mono, 400 Watts/Channel @ 4Ω
Rack Units 3 RU
Height 5 3/16" (13 cm)
Voltage Compatibility 110V - 120V
Warranty Period 36 months from date of purchas

Atlas BB-88DT Networkable DSP Device Audio Processor with Dante

AtlasIED BlueBridge® networkable DSP devices are powerful and flexible tools offering mission critical solutions to satisfy the exact needs of any installation. Engineered to strict standards with the highest quality internal components, BlueBridge® devices provide pure clean audio, Ethernet connectivity for cost effective TCP/IP control and easy programmability. Intended for a variety of audio applications, BlueBridge® DSP platforms are cost effective solutions for the most demanding applications including video conferencing, house of worship, presentation rooms, conference rooms, courtrooms, room combining, restaurants, multi-zone paging, background music, and many other sound reinforcement and AV applications.

The BlueBridge® family of products feature open architecture, drag and drop software that makes them incredibly easy to use. Each model utilizes high quality THAT® microphone preamps and 24 Bit converters to obtain an ultra-low noise floor while still maintaining a smooth sound that satisfies the needs of demanding clients, with the flexibility and control a system designer requires. BlueBridge® models use a 40 Bit Floating Point DSP engine to prevent digital clipping that commonly occurs in other DSP products and to obtain maximum speed and power to process advanced algorithms in complex system designs. BlueBridge® DSP units can operate on any network while the optional control accessories require a PoE switch. BlueBridge® devices need to be connected to the network during set-up and if control is required but can be applied in many instances where network control is unnecessary or unavailable like live speech applications. When connected to a network, each BlueBridge® processor on the network will be auto recognized and controllable. BlueBridge® models provide many valuable processing tools including standard mixers, gain sharing auto-mixers, delays, equalizers, level controls, duckers, filters, and dozens of other processing capabilities.

This model includes 8 inputs and 8 outputs using Phoenix style connectors. BlueBridge® additionally works with the Atlas BluePanel software which enables the designer to create custom interfaces that can be accessed via a computer connected to the network. BluePanel can also be used to program wall controllers including the BB-TOUCH7 touch panel giving the user access to the system's functionality for volume control, source selection, room combining, or any other function the designer programs. This enables the end user to have some control over the system without having to access the BlueBridge® device directly preventing any unauthorized changes from happening within the device.

AtlasIED offers pre-configured design templates that can be used as starting points for a variety of DSP applications. These design templates are available as part of Atlas' BlueBridge® training program which is available to active AtlasIED customers.

The BB-88DT incorporates Dante™ technology and is capable of being integrated into new or existing systems that are using a Dante™ network. This devices offers 8 channels of self-configuring, true plug-and-play digital audio over an Ethernet network providing the highest quality audio over existing network infrastructure.

Features:
8 Input / 8 Output Configuration with Dante™
Open Architecture Programmability
True Plug and Play Digital Audio Networking
16 Channels of Digital Audio Over Ethernet (Dante™)
High Quality THAT® Corp Microphone Preamps
Ultra Low Noise Floor
Four Logic Inputs/Outputs
48kHz, 40 Bit Floating DSP Engine
Safety Listed to UL60065
EQ Modules: Parametric, Graphic, and Anti-Feedback
Crossover Modules: Butterworth, Linkwitz Riley, Bessel, Slopes: 6 to 48dB per Octave
Filter Modules: High Shelf, Low Shelf, All Pass
Mixer Modules: Gain Sharing Auto-Mixer, Gating Auto-Mixer, Matrix Mixer, Standard Mixer, LR Mixer, LCR Mixer
Generator Modules: Sine Tone, Sign Sweep, White, Pink
Dynamics Modules: Compressor, Expander, Limiter, Ducker

Specifications:
Inputs: 8
Safety Listed: Listed to UL60005
Outputs: 8
Input Type: Microphone or Line, Software Selectable
Output Type: Line
RAID: 40-Bit Floating Point
Analog Converters: High Performance 24-Bit
Phantom Power: 48V, Software Enabled
Input Impedance: >10kΩ
Dynamic Range: 110dB Type (Unweighted)
Latency: 5ms
CMRR: >100dB (50Hz-10khz)
Distortion: 0.002% (1kHz @ +4dBu)
Configuration Electronically Balanced Gain: -100 to +15dB in 0.25dB Steps
Power Consumption: 18.5W
Polarity: +/-, GUI Selectable
Frequency Response: 20Hz - 20kHz
Height: 1.75" (44mm)
Width: 19"
Depth: 9" (229mm)
Weight: 7.2 lbs / 3.25 kg
Warranty Period: 36 months from date of purchase

Atlas BBWP-S4K1W BlueBridge DSP Four Button Wall Plate Controller

The BBWP-S4K1W is part of the BlueBridge® DSP product line. The BBWP-S4K1W is a four-button wall controller that can be used to change any four preset selections and level control. It can also control button, preset, matrix connect, and mute functions. Using BlueBridge® Designer software, you can virtually assign level values and stack multiple actions to the single level control.

Features:
Power and Network Status Indicator LEDs
5 Label Slots with Plastic Covers
Single Level Control with LED Ladder Level Indicator
Aluminum Front Panel
RJ45 Ethernet Connector
External Power: 2 Pin Detachable Euro Connector
IP Reset Switch Push Button

Specifications:
Power: 5V DC @ 1A, Power Supply Included 48VDC-PoE
Wall Mounting: Fits 2-Gang Back Box
Height: 4.5" (114.3mm)
Warranty Period: 36 months from date of purchase

Atlas BBWP-TOUCH7B 7" Touch Screen Panel Wall Mount Controller System

The BBWP-TOUCH7B is a 7 inch touch screen control with multi-page control flexibility. The unit is designed to work with AtlasIED BlueBridge® Designer software allowing for remote control of integrator configured DSP settings. The screen is fully customizable using BlueBridge® Designer software allowing for multi-page control. Unit includes a complete flush mount kit (adapter plate and back box).

Features:
7" Touch Screen
Designed to Work with BluePanel Software
PoE Compatible for Easy Installation
Installs with Included Flush Mount or Wall Mount Hardware
Optional Rack Mount Panel Sold Separately, BB-TOUCH7-RP

Specifications:
Screen Size: 7" (17.78cm)
Material: Aluminum
Ethernet Connector: RJ45
Height: 5.1" (13cm)
Width: 10" (25.4cm)
Depth: 1.2" (3.0cm)
Weight: 2 lbs (0.9kg)
Warranty Period: 36 months from date of purchase

Atlas TSD-BB22 2 Channel Networkable DSP Digital Signal Audio Processor

AtlasIED BlueBridge® networkable DSP devices are powerful and flexible tools offering mission critical solutions to satisfy the exact needs of any installation. Engineered to strict standards with the highest quality internal components, BlueBridge® devices provide pure clean audio, Ethernet connectivity for cost effective TCP/IP control and easy programmability. Intended for a variety of audio applications, BlueBridge DSP platforms are cost effective solutions for the most demanding applications including video conferencing, house of worship, presentation rooms, conference rooms, courtrooms, room combining, restaurants, multi-zone paging, background music, and many other sound reinforcement and AV applications.

The BlueBridge® family of products feature open architecture, drag and drop software that makes them incredibly easy to use. Each model utilizes high quality THAT® microphone preamps and 24 Bit converters to obtain an ultra-low noise floor while still maintaining a smooth sound that satisfies the needs of demanding clients, with the flexibility and control a system designer requires. BlueBridge® models use a 40 Bit Floating Point DSP engine to prevent digital clipping that commonly occurs in other DSP products and to obtain maximum speed and power to process advanced algorithms in complex system designs. BlueBridge® DSP units can operate on any network while the optional control accessories require a PoE switch. BlueBridge® devices need to be connected to the network during set-up and if control is required but can be applied in many instances where network control is unnecessary or unavailable like live speech applications. When connected to a network, each BlueBridge® processor on the network will be auto recognized and controllable. BlueBridge® models provide many valuable processing tools including standard mixers, gain sharing auto-mixers, delays, equalizers, level controls, duckers, filters, and dozens of other processing capabilities.

BlueBridge® additionally works with the Atlas BluePanel software which enables the designer to create custom interfaces that can be accessed via a computer connected to the network. BluePanel can also be used to program wall controllers including the BB-TOUCH7 touch panel giving the user access to the system's functionality for volume control, source selection, room combining, or any other function the designer programs. This enables the end user to have some control over the system without having to access the BlueBridge® device directly preventing any unauthorized changes from happening within the device.

AtlasIED offers pre-configured design templates that can be used as starting points for a variety of DSP applications. These design templates are available as part of Atlas' BlueBridge® training program which is available to active AtlasIED customers.

Features:
Drag and Drop Open Architecture
iOS and Android App Control
Mic or Line Selectable Inputs
Balanced High Gain Outputs
Signal Indicator LEDs
Ultra Low Noise Floor
High Quality Mic Preamp (THAT® Corp)
Ethernet Network Connectivity
24dB Converters
48kHz, 40 Bit Floating DSP Engine
External Power Supply (Included)

Specifications:
Inputs: 2
Maximum Input Signal: +20dBu
Input Type: Mic or Line, GUI Selectable
Outputs: 2
Output Type: Line
Configuration Electronically Balanced Gain: -40 to +15dB in 0.25dB Steps
Polarity: +/-, GUI Selectable
Phantom Power: 48V, GUI Enabled
Output Impedance: 50Ω
Frequency Response: 20Hz - 20kHz
Latency: 5ms
CMRR: >100dB (50Hz-10khz)
Distortion: 0.002% (1kHz @ +4dBu)
Width: 4" (10.1cm)
Depth: 5.2" (13.21cm)
Weight: 6oz. (0.165kg)
External Power Supply Safety And Certifications: cUL, CE, RoHS, TUV
Warranty Period: 36 months from date of purchase

Atlas TSD-BB44 4 Channel Networkable DSP Digital Signal Audio Processor

AtlasIED BlueBridge® networkable DSP devices are powerful and flexible tools offering mission critical solutions to satisfy the exact needs of any installation. Engineered to strict standards with the highest quality internal components, BlueBridge devices provide pure clean audio, Ethernet connectivity for cost effective TCP/IP control and easy programmability. Intended for a variety of audio applications, BlueBridge® DSP platforms are cost effective solutions for the most demanding applications including video conferencing, house of worship, presentation rooms, conference rooms, courtrooms, room combining, restaurants, multi-zone paging, background music, and many other sound reinforcement and AV applications.

The BlueBridge® family of products feature open architecture, drag and drop software that makes them incredibly easy to use. Each model utilizes high quality THAT® microphone preamps and 24 Bit converters to obtain an ultra-low noise floor while still maintaining a smooth sound that satisfies the needs of demanding clients, with the flexibility and control a system designer requires. BlueBridge® models use a 40 Bit Floating Point DSP engine to prevent digital clipping that commonly occurs in other DSP products and to obtain maximum speed and power to process advanced algorithms in complex system designs. BlueBridge® DSP units can operate on any network while the optional control accessories require a PoE switch. BlueBridge® devices need to be connected to the network during set-up and if control is required but can be applied in many instances where network control is unnecessary or unavailable like live speech applications. When connected to a network, each BlueBridge® processor on the network will be auto recognized and controllable. BlueBridge® models provide many valuable processing tools including standard mixers, gain sharing auto-mixers, delays, equalizers, level controls, duckers, filters, and dozens of other processing capabilities.

BlueBridge® additionally works with the Atlas BluePanel software which enables the designer to create custom interfaces that can be accessed via a computer connected to the network. BluePanel can also be used to program wall controllers including the BB-TOUCH7 touch panel giving the user access to the system's functionality for volume control, source selection, room combining, or any other function the designer programs. This enables the end user to have some control over the system without having to access the BlueBridge® device directly preventing any unauthorized changes from happening within the device.

AtlasIED offers pre-configured design templates that can be used as starting points for a variety of DSP applications. These design templates are available as part of Atlas' BlueBridge® training program which is available to active AtlasIED customers.

Features:
Drag and Drop Open Architecture
iOS and Android App Control
Mic or Line Selectable Inputs
Balanced High Gain Outputs
Output Peak & Signal Indicator LEDs
Ultra Low Noise Floor
High Quality Mic Preamp (THAT® Corp)
Ethernet Network Connectivity
24dB Converters
48kHz, 40 Bit Floating DSP Engine
External Power Supply (Included)

Specifications:
Inputs 4
Input Type Mic or Line, GUI Selectable
Outputs 4
Output Type Line
Configuration Electronically Balanced Gain -40 to +15dB in 0.25dB Steps
Polarity +/-, GUI Selectable
Input Impedance >10kΩ
Phantom Power 48V, GUI Enabled
Frequency Response 20Hz - 20kHz
Dynamic Range 110dB Type (Unweighted)
Latency 5ms
CMRR >100dB (50Hz-10khz)
Distortion 0.002% (1kHz @ +4dBu)
Height 1.5" (3.9cm)
Width 4" (10.1cm)
Depth 5.2" (13.21cm)
Weight 6oz. (0.165kg)
External Power Supply Safety And Certifications cUL, CE, RoHS, TUV
Warranty Period 36 months from date of purchase

Atlas BBWP-K4W DSP Wall Mount Plate Controller with 4 Button Control

The BBWP-K4W is part of the BlueBridge® DSP product line. The BBWP-K4W is a four-button wall controller that can be used to change any four preset selections with level control. It can also control button, preset, matrix connect, and mute functions. Using BlueBridge® Designer software, you can virtually assign multiple actions to each button or level control.

Features:
Power and Network Status Indicator LEDs
4 Label Slots with Plastic Protective Covers
Level Control with LED Ladder Level Indicator
Aluminum Front Panel
RJ45 Ethernet Connector
External Power: 2 Pin Detachable Euro Connector
IP Reset Switch Push Button
Also Available in Black

Specifications:
Power: 5V DC @ 1A, Power Supply Included 48VC-PoE
Wall Mounting: Fits a 2-Gang Back Box
Height: 4.5" (114.3mm)
Warranty Period: 36 months from date of purchase

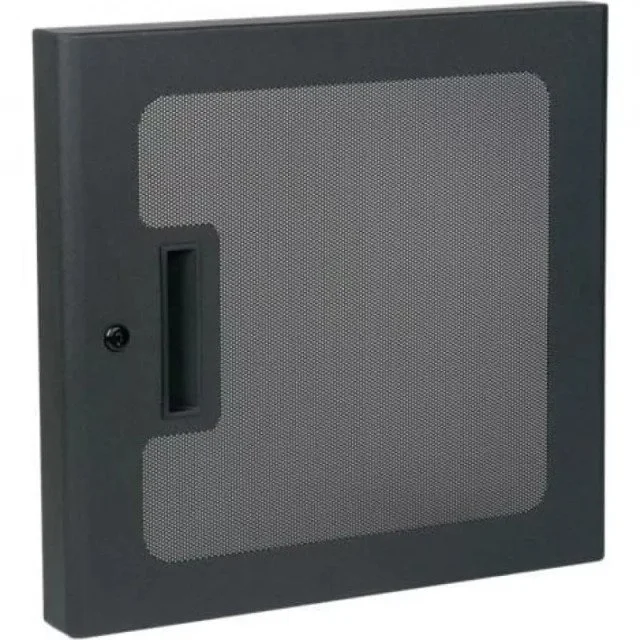

Atlas MPFD16 1" Deep Micro Perf Door for WMA 16RU Wall Mount Cabinet

The AtlasIED MPFD16 vented rack door is designed for use on the WMA series wall mount cabinets. The MPFD series combines the benefits of vented cooling with the ability to see LED's, TFT's or CRT's housed in the rack via the integral perforated steel mesh panel. A 16-gauge metal door frame provides exceptional strength to the door assembly.

Features:
1" Deep Micro Perforation Door
Combines Visual Reference Ability, Ventilation and Security
Textured Black Finish with Color Matched Lockset

Specifications:
Rack Units: 16
Height: 28" (71.12 cm)
Width: 20" (50.8 cm)
Depth: 1" (2.54 cm)
Shipping Weight: 15.00 lbs (6.80 kgs)

Atlas TB1930 30" Tripod Stand and 37" Boom Microphone Kit

Platinum design tripod systems are engineered to provide the highest level of performance and quality for high demanding applications with the positioning convenience and compact storage advantage only a tripod stand can provide. Night after night on stage or session after session in the studio, performances will never be compromised by a mic stand failure when you use the Platinum Design Series tripod mic stands.

This versatile stand is adjustable from 19" to 30" to meet the needs of seated instrumentalists and performers. Model includes two section metal tubing with 3 piece clutch for easy vertical height adjustment. Unit also features three, low profile metal legs with cup terminations for optimum stability and balance. The end is threaded 5/8"-27 and includes a lock-nut ring for versatile positioning of accessories or extension boom. The T1930 has a base spread of 25" (653mm) inches and weighs 4lbs.

The B2237 features friction notches on the boom swivel that are designed to prevent sagging even when used with heavy microphones. Cast 0.5 lb counterweight allows for proper boom positioning while maintaining boom arm balance. B2237 is adjustable from 22" to 37".

Features:
All Purpose Tripod Mic Stand
Heavy Duty Clutch Assembly
Boom Swivel Including Friction Notches That Prevent Sagging
Cast 0.5lb Counterweight
Finished in Non-Reflective Ebony
Low Profile Leg Cup for Increased Stability

Specifications:
Stand Height 19" - 30" (483mm - 762mm)
Base Spread 25" (653mm)
Shipping Weight 5.00 lbs (2.27 kgs)
Tube Finish Ebony
Boom Length 22" - 37" (559mm - 940mm)
Shipping Weight 2.00 lbs (0.91 kgs)
Warranty Period 60 months from date of purchase

Atlas Sound BBWP-TOUCH7W BlueBridge® 7" Touch Panel Wall Controller White

The BBWP-TOUCH7W is a 7 inch touch screen control with multi-page control flexibility. The unit is designed to work with AtlasIED BlueBridge® Designer software allowing for remote control of integrator configured DSP settings. The screen is fully customizable using BlueBridge® Designer software allowing for multi-page control. Unit includes a complete flush mount kit (adapter plate and back box).

Features:
• 7" Touch Screen
• Designed to Work with BluePanel Software
• PoE Compatible for Easy Installation
• Installs with Included Flush Mount or Wall Mount Hardware
• Optional Rack Mount Panel Sold Separately, BB-TOUCH7-RP

Specifications:
• Screen Size: 7" (17.78cm)
• Material: Aluminum
• Ethernet Connector: RJ45
• Height: 5.1" (13cm)
• Width: 10" (25.4cm)
• Depth: 1.2" (3.0cm)
• Weight: 2 lbs (0.9kg)
• Warranty Period: 36 months from date of purchase

Atlas Sound AP-15T Omni Purpose Horn Speaker with 15 W 25V 70V 100V Transformer

Model AP-15T is a double re-entrant speakers which deliver 15-watts of continuous power handling, superior intelligibility and unparalleled efficiency.

The AP-15 Series operates within a nominal frequency response range of 400-14,000 Hz and offers a sensitivity of 120dB at rated power to provide clear voice and signal communication.

The trademarked squared-bell design signifies AtlasIED quality and reliability. The Omni-Purpose® mounting bracket (supplied on all models) achieves precise positioning in the vertical and horizontal planes with a single adjustment and includes provisions for speaker installation on conventional surfaces as well as for strapmounting on I-beams or pillars.

AP Series speakers are U.S. made to assure superior service reliability. Weather-resistant construction is metal and matching ABS plastic with metal components finished in grey epoxy.

Features:
• Grey Finish
• Environment Resistant for Outdoor and Indoor Use
• High-Efficiency Driver with Proven Performance Reliability
• Omni-Purpose™ Bracket for Precise Positioning
• Superior Intelligibility for Voice and Tone Signaling
• Transformer Equipped for Versatile 25, 70.7, or 100V Line Applications
• World Recognized for Quality and Dependability

Specifications:
• Frequency Response: 400Hz - 14kHz
• Sensitivity: 106dB
• Power Taps: 1, 2, 3.8, 7.5, 15 @ 70.7V
• Dispersion: 70°
• Operating Temperature Range: -40 to 70C
• Height: 8 3/4" (22.23 cm)
• Width: 7 7/8" (20.00 cm)
• Depth: 9 5/16" (23.66 cm)
• Shipping Weight: 5.00 lbs (2.27 kgs)
• Warranty Period: 60 months from date of purchase

Atlas Sound MPFD16 1 inch Deep Micro Perf Vented Rack Door for WMA 16RU

The AtlasIED MPFD16 vented rack door is designed for use on the WMA series wall mount cabinets. The MPFD series combines the benefits of vented cooling with the ability to see LED's, TFT's or CRT's housed in the rack via the integral perforated steel mesh panel. A 16-gauge metal door frame provides exceptional strength to the door assembly.

Features:
• 1" Deep Micro Perforation Door
• Combines Visual Reference Ability, Ventilation and Security
• Textured Black Finish with Color Matched Lockset

Specifications:
• Rack Units: 16
• Height: 28" (71.12 cm)
• Width: 20" (50.8 cm)
• Depth: 1" (2.54 cm)
• Shipping Weight: 15.00 lbs (6.80 kgs)
• Warranty Period: 60 months from date of purchase
