Sennheiser Microphones

Sennheiser XSW-D PORT ENG SET Digital Camera Audio Wireless Microphone Set

Ships Free!

The utmost flexibility amongst our XS Wireless Digital Series for capturing camera audio. Plug it in, power it up, and immediately be up and running.

One-touch ease-of-use wireless audio set that utilizes a digital transmission to seamlessly link audio sources. Equipped with XLR and 3.5mm (1/8”) transmitters, this elegant solution makes capturing dialogue on a DSLR easier than ever before while maintaining a reliable connection.

Features

• One-touch ease of use

• 2.4 GHz digital transmission for worldwide operation

• 75m range (250ft) in optimal conditions

• Up to 5 hours of battery life on a single charge

• Switch between multiple transmitters linked to one receiver

• Configure any combination of transmitters and receivers

• Mute from either transmitter or receiver

Specifications

Dimensions:

XSW-D XLR FEMALE TX: approx. 102 x 24 x 28 mm

XSW-D MINI JACK TX: approx. 86 x 24 x 28 mm

XSW-D INSTRUMENT TX: approx. 122 x 24 x 28 mm

XSW-D XLR MALE RX: approx. 109 x 24 x 28 mm

XSW-D MINI JACK RX: approx. 86 x 24 x 28 mm

XSW-D INSTRUMENT RX: approx. 122 x 24 x 28 mm

XSW-D PEDALBOARD RX: approx. 130 x 82 x 51 mm

THD, total harmonic distortion: < 0.1 %

Charging time: typ. 3 h

Audio output: max. 12 dBu

Operating temperature: -10 °C to +55 °C (14 °F to 131 °F)

Signal-to-noise ratio: ≥ 106 dB

Operating time: up to 5 h

Modulation: GFSK with TDMA

Battery Specification: Li-Ion

Capacity: 850 mAh

Codecs: aptX® Live

Frequency range: 2,400 - 2,483.5MHz

Max. Input voltage: typ. 5.0 V

Transmission power: max. 10 mW

Voltage: 3.7 V

Operating relative humidity: 95 % (non-condensing)

Latency: < 4 ms

Temperature Range: 0 °C - 60 °C (32 °F - 140 °F)

Audio frequency response:

3.5 mm Jack/XLR: 80 - 18,000 Hz

6.3 mm Jack: 10 - 18,000 Hz

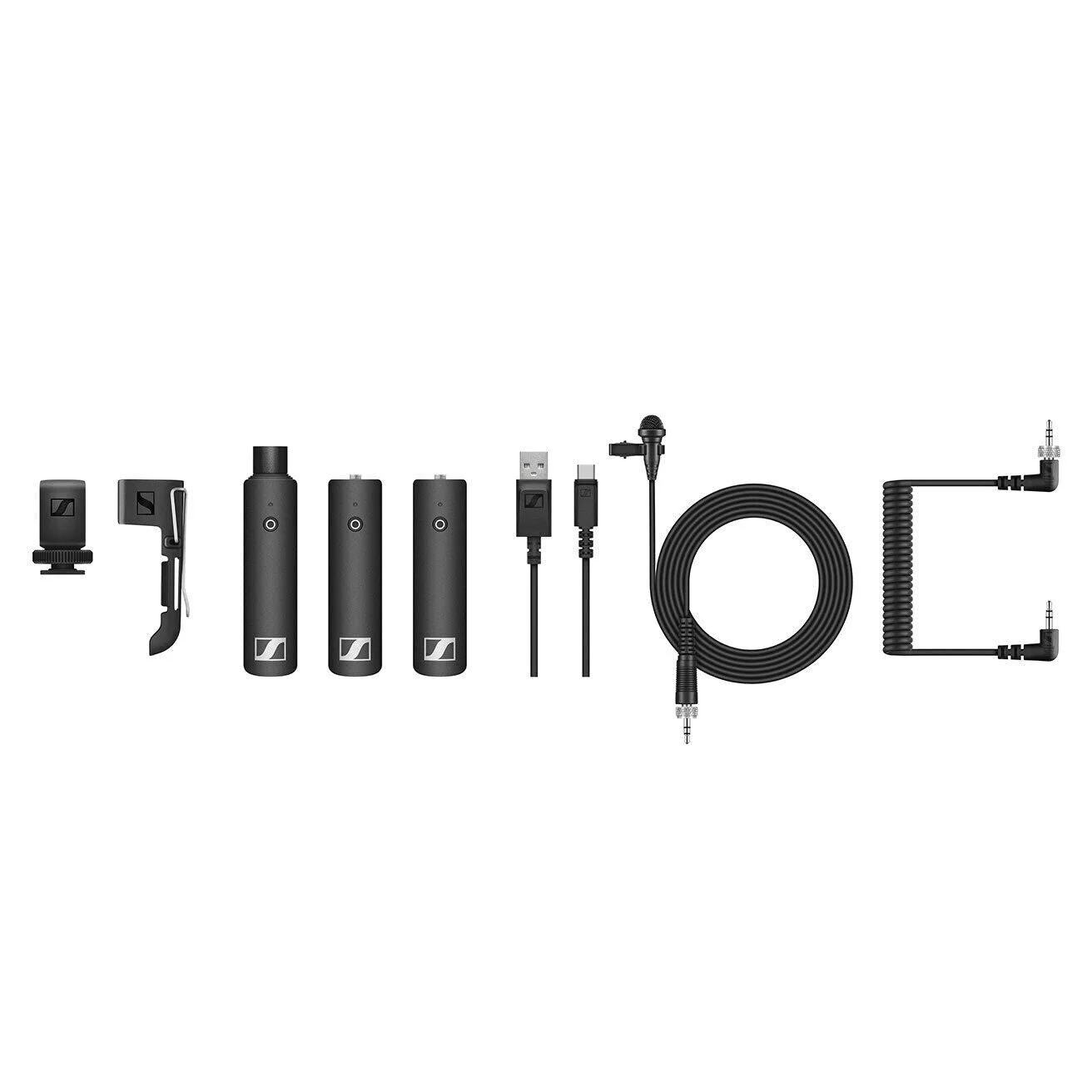

What's in the Box

• XSW-D 3.5mm (1/8”) transmitter

• XSW-D XLR Female transmitter

• XSW-D 3.5mm (1/8”) receiver

• ME2-II clip-on lavalier mic

• 3.5mm (1/8") coiled cable

• Cold shoe mount

• Belt clip

• USB-A to USB-C charging cable

-----------------------------------------------------------------------------------------

Happy customers, that's music to our ears!

Sennheiser EW-D SK R1-6 Bodypack Transmitter for Headset and Clip-On Microphone

Ships Free!

Compact and versatile bodypack transmitter for use with Evolution Wireless Digital receivers.

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. This bodypack transmitter is compatible with a wide range of Sennheiser headset microphones and clip-on/lavalier microphones.

Features

• Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability

• Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance

• Auto scan creates reliable connections with minimal time and effort

• 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail

• Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart

• 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels

• 2,240 selectable frequencies allow for fine tuning

• Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)

Raising the bar

Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market. Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own.

Equidistant Spacing – simpler than it sounds

Evolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems. Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other. This simplifies frequency coordination for wireless beginners and seasoned professionals alike, and also contributes to the system’s scalability and impressively high channel count.

Specifications

Frequency range: 470.2 - 526 MHz
Dimensions: 63 x 80 x 20 mm (without antenna)
THD, total harmonic distortion: ≤ -60 dB for 1 kHz @ -3 dBfs input level
Weight: approx. 120 g
Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)
Operating relative humidity: 5 - 95 % (non-condensing)
Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
Input voltage range: 2.0 - 4.35 V
Current consumption: < 300 mA
Power supply: 2 AA batteries 1.5 V (alkaline manganese)
or BA 70 rechargeable battery pack
Transmission power:
Audio link: 10 mW
ERP (Range Y1-3): 12 mW ERP
BLE: max. 10 mW EIRP

What's in the Box

• EW-D SK bodypack transmitter

• Pouch

• quick guide

• safety guide

• manufacturer declaration sheet

-----------------------------------------------------------------------------------------

Echo tone Music is a long time E-commerce Audio and Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as belt-buckle or pick scratches, scuffs, dings or scrapes, screw mount marks or collateral materials. Items must also include all original packaging, manuals, warrantees and accessories or your return may be subject to a return handling charge.

If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, body jewelry, sheet music, cleaners, polishes and polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!

Sennheiser EW-D ME2 SET (Q1-6) Live Vocal Digital Lavalier Wireless Microphone

Ships Free!

All-in-one digital wireless lavalier set for those who speak featuring Sennheiser's renowned ME 2 omni-directional clip-on microphone.

Versatile and feature-rich digital wireless system for those who speak or present that allows for seamless product pairing and management via the EW-D Smart Assist App. With a metal housing, the robust bodypack transmitter and unobstrusive clip-on microphone ME 2 (omni-directional) with high speech intelligibility suit perfectly for daily use on stage.

Features

• Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability

• Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance

• Auto scan creates reliable connections with minimal time and effort

• 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail

• Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart

• 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels

• 2,240 selectable frequencies allow for fine tuning

• Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)

Raising the bar

Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market. Automatically securing the most reliable signal in a matter of seconds and scalable up to 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own.

Equidistant Spacing – simpler than it sounds

Evolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems. Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other. This simplifies frequency coordination for wireless beginners and seasoned professionals alike and also contributes to the system’s scalability and impressively high channel count.

An engineer in your pocket

The power of Bluetooth Low Energy puts full control right in the palm of your hand with the Sennheiser Smart Assist app. Take advantage of a remarkably fast automated setup, mobile access to every system setting and the added benefit of remote monitoring, all from the convenience of your Android or iOS device. Save time, save energy and perform with confidence.

Specifications

Frequency range: 470.2 - 526 MHz

THD, total harmonic distortion: ≤ -60 dB for 1 kHz @ -3 dBfs input level

Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)

Operating relative humidity: 5 - 95 % (non-condensing)

Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs

EW-D EM

Dimensions: 212 x 44 x 189 mm

Weight: approx. 1000 g (without antennas and power supply)

Current consumption: ≤ 300 mA

Input voltage range: 11 - 13 V ⎓

Transmission power: BLE: max. 10 mW EIRP

Audio output level: 18 dBu max.

EW-D SK

Dimensions: 63 x 80 x 20 mm (without antenna)

Power supply: 2 AA batteries 1.5 V (alkaline manganese)

or BA 70 rechargeable battery pack

Current consumption: < 300 mA

Input voltage range: 2.0 - 4.35 V

Transmission power:

Audio link: 10 mW

ERP (Range Y1-3): 12 mW ERP

BLE: max. 10 mW EIRP

Weight: approx. 120 g

ME 2

Cable length: approx. 1.60 m

Connector: 3.5 mm jack

Frequency response: 50 to 18,000 Hz

Max. sound pressure level: 130 dB

Transducer principle: pre-polarized condensor microphone

Pick-up pattern: omni-directional

Sensitivity in free field, no load (1kHz): 17 mV/Pa

Equivalent noise level: 32 dB

Power supply: 7.5 V

What's in the Box

• EW-D EM rack receiver

• EW-D SK bodypack transmitter

• ME 2 lavalier microphone (omni-directional)

• 2 rod antennas

• power supply with country adapters

• rackmount set

• 4 rubber feet

• quick guide

• safety guide

• manufacturer declaration sheet

-----------------------------------------------------------------------------------------

Echo tone Music is a long time E-commerce Audio and Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as belt-buckle or pick scratches, scuffs, dings or scrapes, screw mount marks or collateral materials. Items must also include all original packaging, manuals, warrantees and accessories or your return may be subject to a return handling charge.

If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, body jewelry, sheet music, cleaners, polishes and polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!

Sennheiser EW-D SK BASE SET Q1  Wireless Microphone Receiver & Body Pack set

Ships Free!

Base Set for digital wireless applications featuring sationary receiver and bodypack transmitter for use with a wide range of Evolution Wireless Digital microphones.

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. With a metal housing, the robust bodypack transmitter suits perfectly for daily use on stage.

Features

• Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability

• Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance

• Auto scan creates reliable connections with minimal time and effort

• 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail

• Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart

• 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels

• 2,240 selectable frequencies allow for fine tuning

• Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)

Raising the bar

Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market. Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own.

Equidistant Spacing – simpler than it sounds

Evolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems. Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other. This simplifies frequency coordination for wireless beginners and seasoned professionals alike, and also contributes to the system’s scalability and impressively high channel count.

An engineer in your pocket

The power of Bluetooth Low Energy puts full control right in the palm of your hand with the Sennheiser Smart Assist app. Take advantage of a remarkably fast automated setup, mobile access to every system setting and the added benefit of remote monitoring, all from the convenience of your Android or iOS device. Save time, save energy and perform with confidence.

Specifications

Frequency range: 470.2 - 526 MHz

THD, total harmonic distortion: ≤ -60 dB for 1 kHz @ -3 dBfs input level

Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)

Operating relative humidity: 5 - 95 % (non-condensing)

Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs

EW-D EM

Dimensions: 212 x 44 x 189 mm

Weight: approx. 1000 g (without antennas and power supply)

Current consumption: ≤ 300 mA

Input voltage range: 11 - 13 V ⎓

Transmission power: BLE: max. 10 mW EIRP

Audio output level: 18 dBu max.

EW-D SK

Dimensions: 63 x 80 x 20 mm (without antenna)

Current consumption: < 300 mA

Input voltage range: 2.0 - 4.35 V

Power supply: 2 AA batteries 1.5 V (alkaline manganese)

or BA 70 rechargeable battery pack

Transmission power:

Audio link: 10 mW

ERP (Range Y1-3): 12 mW ERP

BLE: max. 10 mW EIRP

Weight: approx. 120 g

What's in the Box

• EW-D EM rack receiver

• EW-D SK bodypack transmitter

• 2 rod antennas

• power supply with country adapters

• rackmount set

• 4 rubber feet

• quick guide

• safety guide

• manufacturer declaration sheet

-----------------------------------------------------------------------------------------

Echo tone Music is a long time E-commerce Audio and Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as belt-buckle or pick scratches, scuffs, dings or scrapes, screw mount marks or collateral materials. Items must also include all original packaging, manuals, warrantees and accessories or your return may be subject to a return handling charge.

If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, body jewelry, sheet music, cleaners, polishes and polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!

Sennheiser EW-D CI1 SET (R4-9) Instrument Digital Wireless System Set

Ships Free!

All-in-one digital wireless instrument set for those who play the guitar and instrumentalist

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. With a metal housing, the robust bodypack transmitter and included CI 1 instrument cable suit perfectly for daily use on stage.

Features

• Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability

• Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance

• Auto scan creates reliable connections with minimal time and effort

• 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail

• Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart

• 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels

• 2,240 selectable frequencies allow for fine tuning

• Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)

Raising the bar

Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market. Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own.

Equidistant Spacing – simpler than it sounds

Evolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems. Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other. This simplifies frequency coordination for wireless beginners and seasoned professionals alike, and also contributes to the system’s scalability and impressively high channel count.

An engineer in your pocket

The power of Bluetooth Low Energy puts full control right in the palm of your hand with the Sennheiser Smart Assist app. Take advantage of a remarkably fast automated setup, mobile access to every system setting and the added benefit of remote monitoring, all from the convenience of your Android or iOS device. Save time, save energy and perform with confidence.

Specifications

Frequency range: 552 - 607.8 MHz

THD, total harmonic distortion: ≤ -60 dB for 1 kHz @ -3 dBfs input level

Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)

Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs

Operating relative humidity: 5 - 95 % (non-condensing)

EW-D EM

Dimensions: 212 x 44 x 189 mm

Weight: approx. 1000 g (without antennas and power supply)

Current consumption: ≤ 300 mA

Audio output level: 18 dBu max.

Transmission power: BLE: max. 10 mW EIRP

Input voltage range: 11 - 13 V ⎓

EW-D SK

Dimensions: 63 x 80 x 20 mm (without antenna)

Weight: approx. 120 g

Power supply: 2 AA batteries 1.5 V (alkaline manganese)

or BA 70 rechargeable battery pack

Current consumption: < 300 mA

Input voltage range: 2.0 - 4.35 V

Transmission power:

Audio link: 10 mW

ERP (Range Y1-3): 12 mW ERP

BLE: max. 10 mW EIRP

What's in the Box

• EW-D EM rack receiver

• EW-D SK bodypack transmitter

• CI 1 instrument cable

• 2 rod antennas

• power supply with country adapters

• rackmount set

• 4 rubber feet

• quick guide

• safety guide

• manufacturer declaration sheet

-----------------------------------------------------------------------------------------

Echo tone Music is a long time E-commerce Audio and Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as belt-buckle or pick scratches, scuffs, dings or scrapes, screw mount marks or collateral materials. Items must also include all original packaging, manuals, warrantees and accessories or your return may be subject to a return handling charge.

If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, body jewelry, sheet music, cleaners, polishes and polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!

Sennheiser EWD SK BASE SET R1 Digital Wireless Microphone System Base Set

Ships Free!

Base Set for digital wireless applications featuring sationary receiver and bodypack transmitter for use with a wide range of Evolution Wireless Digital microphones.

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. With a metal housing, the robust bodypack transmitter suits perfectly for daily use on stage.

Features

• Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability

• Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance

• Auto scan creates reliable connections with minimal time and effort

• 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail

• Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart

• 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels

• 2,240 selectable frequencies allow for fine tuning

• Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)

Raising the bar

Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market. Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own.

Equidistant Spacing – simpler than it sounds

Evolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems. Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other. This simplifies frequency coordination for wireless beginners and seasoned professionals alike, and also contributes to the system’s scalability and impressively high channel count.

An engineer in your pocket

The power of Bluetooth Low Energy puts full control right in the palm of your hand with the Sennheiser Smart Assist app. Take advantage of a remarkably fast automated setup, mobile access to every system setting and the added benefit of remote monitoring, all from the convenience of your Android or iOS device. Save time, save energy and perform with confidence.

Specifications

Frequency range: 520 - 576 MHz

THD, total harmonic distortion: ≤ -60 dB for 1 kHz @ -3 dBfs input level

Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)

Operating relative humidity: 5 - 95 % (non-condensing)

Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs

EW-D EM

Dimensions: 212 x 44 x 189 mm

Weight: approx. 1000 g (without antennas and power supply)

Current consumption: ≤ 300 mA

Input voltage range: 11 - 13 V ⎓

Transmission power:

BLE: max. 10 mW EIRP

Audio output level: 18 dBu max.

EW-D SK

Dimensions: 63 x 80 x 20 mm (without antenna)

Current consumption: < 300 mA

Input voltage range: 2.0 - 4.35 V

Power supply: 2 AA batteries 1.5 V (alkaline manganese)

or BA 70 rechargeable battery pack

Transmission power:

Audio link: 10 mW

ERP (Range Y1-3): 12 mW ERP

BLE: max. 10 mW EIRP

Weight: approx. 120 g

What's in the Box

• EW-D EM rack receiver

• EW-D SK bodypack transmitter

• 2 rod antennas

• power supply with country adapters

• rackmount set

• 4 rubber feet

• quick guide

• safety guide

• manufacturer declaration sheet

-----------------------------------------------------------------------------------------

Echo tone Music is a long time E-commerce Audio and Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as belt-buckle or pick scratches, scuffs, dings or scrapes, screw mount marks or collateral materials. Items must also include all original packaging, manuals, warrantees and accessories or your return may be subject to a return handling charge.

If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, body jewelry, sheet music, cleaners, polishes and polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!

Sennheiser EW300 G4-BASECOMBOAW Live Vocal Wireless Microphone System Combo Set

Ships Free!

Perfect for Presenters, this set consists of 1 SKM 300 G4-S handheld with mute switch, 1 MME 865-1 capsule (supercardioid, condenser), 1 EM 300-500 rackmout receiver, 1 GA3 rack kit and 1 mic clip.

Best choice for your business, top of the class in education. The G4 300 Series uses the power of an increased switching bandwidth of up to 88 MHz. New frequency ranges allow to operate multi-channel setups with dozens of channels while securing reliable operation - despite digital dividend.
The best choice if you need bodypack, handheld transmitters and maximum flexibility. This base set consists of the stationary receiver as well as a bodypack and a handheld transmitter. Just add your favorite capsule and clip-on or headset microphone.

Features

• Easy to use, fast setup time

• Integrated network port allows control, monitoring and setup via Sennheiser Control Cockpit and WSM Software

• Broad range of products and existing accessories (such as microphones) allows usage in any kind of environment

• Up to 88 MHz bandwidth, up to 32 channels

• Increased RF output power (10/30/50 mW)

• Transmission Range: up to 100 meters / 330 feet

• Compatible with wireless speaker system LSP 500 PRO

• RC (remote control) switch available for the bodypack transmitter

Specifications

EM 300-500 G4

Frequency range: Aw+: 470 - 558 MHz

Dimensions: Approx. 202 x 212 x 43 mm

Compander: Sennheiser HDX

THD, total harmonic distortion: ≤ 0.9 %

Weight: Approx. 980 g

Audio output: 6.3 mm jack socket (unbalanced): +12 dBu

XLR socket (balanced): +18 dBu

Signal-to-noise ratio: ≥ 115 dBA

Switching bandwidth: up to 88 MHz

Peak deviation: ±48 kHz

Nominal deviation: ±24 kHz

Modulation: Wideband FM

Power supply: 12 V DC

Antenna connector: 2 BNC sockets

Current consumption: 350 mA

Adjacent channel rejection: Typically ≥ 75 dB

Intermodulation attenuation: Typically ≥ 70 dB

Receiving frequency: Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels

RF sensitivity: < 2.5 μV for 52 dBA eff S/N

Squelch: 5 to 25 dBμV in steps of 2 dB

Equalizer:

Preset 1: Flat

Preset 2: Low Cut (-3 dB at 180 Hz)

Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)

Preset 4: High Boost (+6 dB at 10 kHz)

Temperature Range: -10 °C to +55 °C

Receiver Principle: True diversity

Blocking: ≥ 75 dB

SKM 300 G4

Dimensions: Approx. Ø 50 x 265 mm

Compander: Sennheiser HDX

THD, total harmonic distortion: ≤ 0.9 %

Weight: (incl. batteries) approx. 450 g

Signal-to-noise ratio: ≥ 115 dBA

RF output power:

switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW

Switching bandwidth: up to 88 MHz

Peak deviation: ±48 kHz

Nominal deviation: ±24 kHz

Operating time: Typically 8 h

Modulation: Wideband FM

Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack

Current consumption: at nominal voltage: typ. 180 mA

with transmitter switched off: ≤ 25 µA

Powering: 3 V battery / 2.4 V rechargeable battery

Transmission frequency:

Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels

AF frequency response: 80 – 18,000 Hz

Temperature Range: -10 °C to +55 °C

Frequency stability: ≤ ±15 ppm

SK 300 G4

Dimensions: Approx. 82 x 64 x 24 mm

Compander: Sennheiser HDX

THD, total harmonic distortion: ≤ 0.9 %

Weight: (incl. batteries) approx. 160 g

Signal-to-noise ratio: ≥ 115 dBA

RF output power:

switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW

Switching bandwidth: up to 88 MHz

Peak deviation: ±48 kHz

Nominal deviation: ±24 kHz

Operating time: Typically 8 h

Modulation: Wideband FM

Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack

Current consumption:

at nominal voltage: typ. 180 mA

with transmitter switched off: ≤ 25 µA

Input impedance: 40 kΩ, unbalanced / 1 MΩ

Max. Input voltage: 3 Veff

Powering: 3 V battery / 2.4 V rechargeable battery

Transmission frequency:

Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels

AF frequency response: Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz

Temperature Range: -10 °C to +55 °C

Frequency stability: ≤ ±15 ppm

What's in the Box

• EM 300-500 G4 true diversity receiver

• SKM 300 G4-S handheld transmitter

• SK 300 G4-RC bodypack transmitter

• MZQ 1 microphone clamp

• 4 AA batteries

• power supply

• 2 rod antennas

• GA 3 rackmount set

• quick guide

• safety guide

• manufacturer declaration sheet

-----------------------------------------------------------------------------------------

Echo tone Music is a long time E-commerce Audio and Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as belt-buckle or pick scratches, scuffs, dings or scrapes, screw mount marks or collateral materials. Items must also include all original packaging, manuals, warrantees and accessories or your return may be subject to a return handling charge.

If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, body jewelry, sheet music, cleaners, polishes and polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!

Sennheiser ASA 214-UHF Active Antenna Splitter for G3 and G4 Wireless Microphone System

Ships Free!

The ASA 214 active antenna splitter is built in a full metal housing and ships with 8 BNC cables included. The splitter runs up to 4 receivers of the ew series with two antennas. The UHF-Version includes the NT 1-1 power supply with EU, UK and US adapters, while the ASA 214-1G8 includes the NT 1-1 with EU, UK and AU adapters.

Features

• Compatible with G4 and G3 systems

• Power supply via BNC cables for EM 300-500 / EM 100 receivers. No additional power supply needed

• Up to 4 true diversity receivers can be used with two external antennas

• Full metal housing

Specifications

Impedance: 50 Ω

Dimensions: approx. 212 x 168 x 43 mm

Weight: approx. 1090 g

Power consumption: max. 2.0 A with connected receivers and boosters

Storage temperature: -20°C - +70°C

Operating temperature: -10°C - +55°C

Power supply: 13,8 V DC (with NT 1-1 mains unit)

Antenna connector: BNC

Frequency range: 470-870 MHz (UHF), 1785-1800 MHz (1G8)

Operating relative humidity: 5 - 95 %

What's in the Box

• ASA 214 splitter

• 8x BNC cable 50cm

• NT 1-1 power supply

-----------------------------------------------------------------------------------------

Happy customers, that's music to our ears!

Sennheiser XSW 2-ME2-A Live Vocal Lavalier Wireless Microphone System

Ships Free!

Inspire your audience. Flexible, rugged, all-in-one wireless system for public speakers and presenters.

Inspire your audience. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.

The XS WIRELESS 2 LAVALIER MIC SET is an easy to use all-in-one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation. The set includes a stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an unobstrusive clip-on microphone. Metal receiver housing and rackmount kit included.

Features

• Unobstrusive clip-on microphone for hands-free operation and compact bodypack transmitter

• True diversity receiver with metal housing

• External antennas

• Automatic frequency management and synchronization via remote channel for easy setup

• Fully tunable over a wide range of UHF frequencies

• Rackmount kit included

• Up to 12 compatible channels

Specifications

Receivers

Dimensions: approx. 200 x 42 x 127 mm

Weight: approx. 680g

Power supply: 12 V DC nom. / 300 mA

Housing: Metal

AF frequency response: 50 to 16,000 Hz

Transmitter

Dimensions: approx. 71 x 96 x 28 mm

Weight: approx. 95g

Microphone: Condenser

Frequency response: 50 to 16,000 Hz (–3 dB)

THD, total harmonic distortion: ≤ 0.9%

Pick-up pattern: Omni-directional

Signal-to-noise ratio: ≥ 103 dBA

RF output power: 10 mW

Switching bandwidth: up to 24 MHz

Modulation: Wideband FM

Operating time: approx. 10 hrs

Power supply: 2 AA size batteries, 1.5 V

Output voltage:'1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu

Diversity reception: True Diversity

Frequency: 8 frequency banks, each with up to 12 factory-preset channels

Frequency range:

A: 548-572 MHz, GB: 606-630 MHz, B: 614-638 MHz, C: 766-790 MHz, D: 794-806 MHz, E: 821-832 MHz, 863-865 MHz, K: 925-937.5 MHz

Sensitivity: < 3 μV at 52 dB(A)rms S/N

Squelch: switchable from 3 dBμV to 28 dBμV (via Pilot Tone)

Housing: Robust ABS

AF frequency response: 50 to 16,000 Hz (–3 dB)

Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)

Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps

Audio adjustment range: 40 dB, adjustable in 5-dB steps

Line / Mic level: 20 dB, switchable

Temperature Range: operation: 0°C to +40°C, storage: –20°C to +70°C

Receiver Principle: double superheterodyne

What's in the Box

• 1 receiver EM-XSW 2

• 1 bodypack transmitter SK-XSW

• 1 lavalier microphone ME 2-2

• 1 power supply NT 12-5 CW

• 2 AA batteries

• 1 rackmount kit

• 1 pouch

• user manual

-----------------------------------------------------------------------------------------

Echo tone Music is a long time E-commerce Audio and Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as belt-buckle or pick scratches, scuffs, dings or scrapes, screw mount marks or collateral materials. Items must also include all original packaging, manuals, warrantees and accessories or your return may be subject to a return handling charge.

If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, body jewelry, sheet music, cleaners, polishes and polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!

Sennheiser XSW 2-835-A Handheld Vocal Wireless Microphone System 12 channels

Ships Free!

Raise your voice. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions. The XS WIRELESS 2 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters featuring Sennheiser’s renowned evolution microphone capsule e835 (superior dynamic, cardioid) to perform under pressure. True Diversity receiver in a metal housing and rackmount kit included.

Features:

• Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules

• True diversity receiver with metal housing

• External antennas

• Automatic frequency management and synchronization via

• remote channel for easy setup

• Fully tunable over a wide range of UHF frequencies

• Rackmount kit included

• Up to 12 compatible channels

As easy as analog gets

XS Wireless; the entry-point to our analog portfolio and the first wireless system you’ll ever want to own. We developed XS Wireless 2 for those that want more flexibility without the burden of a complex set-up. Simply turn the system on and let the Automatic Frequency Management do the rest. In optimal environments, you can operate up to 12 wireless connections simultaneously, all without having to search for frequencies or worry about interference.

XSW 1 vs. XSW 2

XS Wireless 1 was developed for those that want to concentrate on the show and not so much on the gear. While XS Wireless 2 shares that same philosophy, we’ve added more control to help you dial in your set-up. Starting with the face of the receiver itself, XS Wireless 2 features a well-designed LCD screen that gives you manual control of your frequency tuning and includes an RF meter that indicates your signal strength. Add a pair of external antennas for increased range as well as two more channels for a total of 12 and its easy to see why XSW 2 is the next step up.

What makes the e835 capsule so special?

While every capsule part of the Evolution Series is designed with clarity and presence in mind, not all capsules are created equal. Simply put, the 835 is for vocalists that want a little more help cutting through the mix. Featuring a gentle boost at 3kHz – 5kHz to help with vocal presence, and then enhanced frequencies up to 12kHz for added brightness, the 835 helps your voice shine right out of the box.

Specifications

Receivers

Dimensions: approx. 200 x 42 x 127 mm, microphone: approx. 260 x 50 mm

Weight: approx. 680g

Microphone: dynamic

Frequency response: 50 to 16,000 Hz (–3 dB)

THD, total harmonic distortion: ≤ 0.9%

Pick-up pattern: cardioid

Signal-to-noise ratio: ≥ 103 dBA

RF output power: 10 mW

Switching bandwidth: up to 24 MHz

Operating time: approx. 10 hrs

Modulation: wideband FM

Power supply: 12 V DC nom. / 300 mA

Housing: Metal, microphone: robust ABS

Output voltage: 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu

Frequency: 8 frequency banks, each with up to 12 factory-preset channels

Frequency range

A: 548-572 MHz

GB: 606-630 MHz

B: 614-638 MHz

C: 766-790 MHz

D: 794-806 MHz

E: 821-832 MHz, 863-865 MHz

K: 925-937.5 MHz

Sensitivity: < 3 μV at 52 dB(A)rms S/N

Squelch: switchable from 3 dBμV to 28 dBμV (via Pilot Tone)

Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)

AF frequency response: 50 to 16,000 Hz (–3 dB)

Line: 20 dB, switchable

Input sensitivity: 1.5 mV / Pa

Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps

Audio adjustment range: 40 dB, adjustable in 5-dB steps

Temperature Range:

operation: 0°C to +40°C

storage: –20°C to +70°C

Receiver Principle: double superheterodyne

Diversity principle: True Diversity

Microphone

Weight: approx. 245g

Power supply: 2 AA size batteries, 1.5 V

AF frequency response: 80-14,000 Hz

What's in the Box

1 receiver EM-XSW 2

1 handheld transmitter SKM 835-XSW

1 microphone clamp MZQ 1

1 power supply NT 12-5 CW

2 AA batteries

1 rackmount kit

1 pouch

user manual

-----------------------------------------------------------------------------------------

Echo tone Music is a long time E-commerce Audio and Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as belt-buckle or pick scratches, scuffs, dings or scrapes, screw mount marks or collateral materials. Items must also include all original packaging, manuals, warrantees and accessories or your return may be subject to a return handling charge.

If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, body jewelry, sheet music, cleaners, polishes and polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!

Sennheiser AC 41-US Active Antenna Combiner for G4 Wireless System

Ships Free!

Active antenna combiner for evolution wireless G4 systems. The AC 41 operates up to four wireless stereo transmitters from the ew series using one shared antenna. Power is supplied to the SR IEM G4 transmitters over the BNC cables via NT 3-1 power supply (included with the AC 41), making separate power supplies for the transmitters obsolete.

Features:

• Up to 4 wireless stereo transmitters using one antenna

• Power supply via BNC cables ensures efficient powering, no need for additional power supply units for the SR IEM G4

• Compatible with G4 and G3 systems

Specifications

Frequency range:

470 - 870 MHz

470 - 608 MHz

Impedance: 50 Ω

Dimensions: approx. 212 x 168 x 43 mm

Weight: approx. 1470 g

Power consumption: max. 3.4 A (with connected transmitters)

Storage temperature: -20 °C to +70 °C (-4 °F to 158 °F)

Operating temperature: -10 °C to +55 °C (14 °F to 131 °F)

Power supply:

13.8 V DC (with tabletop power supply unit NT 3-1)

11.4 V DC (protected against reverse supply), 350 mA

RF input: max. 30 mW per input

Transmission loss: 0 dB (±1 dB)

Operating relative humidity: 5 to 95 %

What's in the Box

• 1x Active antenna splitter (470-870 MHz EU & UK / 470 - 608 MHz US)

• 1x NT 3-1 power supply with either EU, UK, US adapters

• 4x BNC interconnect cables

-----------------------------------------------------------------------------------------

Happy customers, that's music to our ears!

Sennheiser EW 100 G4-845-S-A1 Handheld Dynamic Vocal Wireless Microphone System

Ships Free!

Rugged all-in-one wireless system for singers and presenters. Set consists of 1 SKM 100 G4 handheld with mute switch, 1 MMD 845-1 capsule (supercardioid, dynamic), 1 EM 100 G4 rackmount receiver, 1 rack kit, 1 RJ10 linking and mic clip.

Now even more simple, flexible and reliable: The 100 series has become the first choice for both sound designers and occasional users because of its simple operating concept – and because the system makes no compromises in terms of live sound.

Features

• Engineered for professional live sound: Rugged all-in-one wireless system for singers and presenters.

• State-of-the-art live sound featuring Sennheiser‘s renowned e 835, e 845, e 865, e 935, e 945 capsules on a lightweight aluminum transmitter with integrated mute switch

• True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control

• Easy and flexible wireless synchronization between transmitter and receiver via infrared

• Fast frequency allocation for up to 12 receivers via new linking functionality

• Up to 20 compatible channels

• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range

• Transmission Range: up to 100 meters / 300 feet

• High RF output power (up to 30 mW) depending on country regulations

Reliability and performance

Eventually, you’ll get to a level in your career as an engineer or musician when the size stage you’re performing on demands more than an entry-level wireless system. You simply need more reach, more power and more reliability than what a 2.4 GHz system will allow. Enter the evolution wireless G4 100 Series—the next level in your journey as a stage professional.

Feature-rich and built to last

The evolution wireless G4 100 Series is packed with features that make it possible to get you up and running fast and efficiently. Use the Easy Setup function to automatically scan and select the best frequencies around you and take full advantage of the UHF spectrum. With up to 100 meters of range and a battery life of 8 hours, it’s easy to see how the durably constructed ewG4 transmitters and receivers will perform when you need them to.

Differences between the sets

The 835, 845 and 865 vocal microphone capsules are all great options and vary depending on your needs. While the 835 is ideal for most stages and features a cardioid polar pattern that rejects unwanted stage noise from the sides and rear, the 845 features a super-cardioid polar pattern that offers even more rejection and isolation for your vocal performance. The 865 introduces a condenser super-cardioid capsule, offering more sensitivity and clarity than a traditional dynamic capsule like the 835 or 845.

Specifications

EM 100 G4

Frequency range: A1: 470 - 516 MHz

Dimensions: Approx. 190 x 212 x 43 mm

Compander: Sennheiser HDX

THD, total harmonic distortion

≤ 0.9 %

Weight: Approx. 980 g

Audio output: 6.3 mm jack socket (unbalanced): +12 dBu

XLR socket (balanced): +18 dBu

Signal-to-noise ratio: ≥ 110 dBA

Switching bandwidth: up to 42 MHz

Peak deviation: ±48 kHz

Nominal deviation: ±24 kHz

Modulation: Wideband FM

Power supply: 12 V DC

Antenna connector: 2 BNC sockets

Current consumption: 300 mA

Adjacent channel rejection: Typically ≥ 65 dB

Intermodulation attenuation: Typically ≥ 65 dB

Receiving frequency:

Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels

RF sensitivity: < 2.5 μV for 52 dBA eff S/N

Squelch: low: 5 dBµV middle: 15 dBµV high: 25 dBμV

Equalizer:

Preset 1: Flat

Preset 2: Low Cut (-3 dB at 180 Hz)

Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)

Preset 4: High Boost (+6 dB at 10 kHz)

Temperature Range: -10 °C to +55 °C

Receiver Principle: True diversity

Blocking: ≥ 70 dB

SKM 100 G4-S

Dimensions: Approx. Ø 50 x 265 mm

Compander: Sennheiser HDX

THD, total harmonic distortion: ≤ 0.9 %

Weight: (incl.batteries) approx. 450 g

Signal-to-noise ratio: ≥ 110 dBA

RF output power: Max. 30 mW

Switching bandwidth: up to 42 MHz

Peak deviation: ±48 kHz

Nominal deviation: ±24 kHz

Operating time: Typically 8 h

Modulation: Wideband FM

Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack

Current consumption:

at nominal voltage: typ. 180 mA

with transmitter switched off: ≤ 25 µA

Input impedance: 40 kΩ

Max. Input voltage: 3 Veff

Powering: 3 V battery / 2.4 V rechargeable battery

Transmission frequency:

Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels

AF frequency response: 80 – 18,000 Hz

Temperature Range: -10 °C to +55 °C

Frequency stability: ≤ ±15 ppm

MMD 845-1

Sound pressure level (SPL): 154 dB SPL

Transducer principle: dynamic

Pick-up pattern: supercardioid

Sensitivity: 2.1 mV/Pa

What's in the Box

• EM 100 G4 true diversity receiver

• SKM 100 G4-S handheld transmitter

• MMD 835-1 microphone head (835-S variants only)

• MMD 845-1 microphone head (845-S variants only)

• MME 865-1 microphone head (865-S variants only)

• rackmount set

• MZQ 1 microphone clamp

• power supply

• 2 AA batteries

• 2 rod antennas

• RJ 10 cable

• quick guide

• safety guide

• manufacturer declaration sheet

• frequency supplement sheet

-----------------------------------------------------------------------------------------

Echo tone Music is a long time E-commerce Audio and Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as belt-buckle or pick scratches, scuffs, dings or scrapes, screw mount marks or collateral materials. Items must also include all original packaging, manuals, warrantees and accessories or your return may be subject to a return handling charge.

If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, body jewelry, sheet music, cleaners, polishes and polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!

Sennheiser EW-D ASA (Q-R-S) Active Antenna Splitter for Wireless Digital System

Ships Free!

Active Antenna Splitter for use with Evolution Wireless Digital systems.

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. Receive state-of-the-art live sound.

Features

• Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability

• Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance

• Auto scan creates reliable connections with minimal time and effort

• 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail

• Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart

• 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels

• 2,240 selectable frequencies allow for fine tuning

• Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)

Raising the bar

Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market. Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own.

Equidistant Spacing – simpler than it sounds

Evolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems. Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other. This simplifies frequency coordination for wireless beginners and seasoned professionals alike, and also contributes to the system’s scalability and impressively high channel count.

An engineer in your pocket

The power of Bluetooth Low Energy puts full control right in the palm of your hand with the Sennheiser Smart Assist app. Take advantage of a remarkably fast automated setup, mobile access to every system setting and the added benefit of remote monitoring, all from the convenience of your Android or iOS device. Save time, save energy and perform with confidence.

Specifications

Frequency range: 470 - 694 MHz

What's in the Box

• EW-D ASA active antenna splitter (dual 1:4)

• NT 12-35 CS power supply for EW-D ASA

• (8) BNC antenna interconnect cable

-----------------------------------------------------------------------------------------

Echo tone Music is a long time E-commerce Audio and Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as belt-buckle or pick scratches, scuffs, dings or scrapes, screw mount marks or collateral materials. Items must also include all original packaging, manuals, warrantees and accessories or your return may be subject to a return handling charge.

If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, body jewelry, sheet music, cleaners, polishes and polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!

Sennheiser EW-D SKM-S BASE R1-6 Base Set for Digital Wireless Microphone Heads

Ships Free!

Base Set for digital wireless applications featuring sationary receiver and handheld transmitter for use with a wide range of Evolution Wireless Digital microphone heads.

Versatile and feature-rich digital wireless system for those who sing or speak that allows for seamless product pairing and management via the EW-D Smart Assist App. With a metal housing, the robust bodypack transmitter suits perfectly for daily use on stage.

Features

• Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability

• Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance

• Auto scan creates reliable connections with minimal time and effort

• 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail

• Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart

• 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels

• 2,240 selectable frequencies allow for fine tuning

• Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)

Raising the bar

Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market. Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own.

Equidistant Spacing – simpler than it sounds

Evolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems. Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other. This simplifies frequency coordination for wireless beginners and seasoned professionals alike, and also contributes to the system’s scalability and impressively high channel count.

An engineer in your pocket

The power of Bluetooth Low Energy puts full control right in the palm of your hand with the Sennheiser Smart Assist app. Take advantage of a remarkably fast automated setup, mobile access to every system setting and the added benefit of remote monitoring, all from the convenience of your Android or iOS device. Save time, save energy and perform with confidence.

Specifications

Frequency range: 520 - 576 MHz

THD, total harmonic distortion: ≤ -60 dB for 1 kHz @ -3 dBfs input level

Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)

Operating relative humidity: 5 - 95 % (non-condensing)

Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs

EW-D EM

Dimensions: 212 x 44 x 189 mm

Weight: approx. 1000 g (without antennas and power supply)

Current consumption: ≤ 300 mA

Input voltage range: 11 - 13 V ⎓

Audio output level: 18 dBu max.

Transmission power: BLE: max. 10 mW EIRP

EW-D SKM-S

Dimensions:

50 x 268 mm (incl. MMD 835 microphone module)

40 x 200 mm (without microphone module)

Weight:

approx. 304 g (incl. MMD 835 microphone module)

approx. 195 g (without microphone module)

Power supply: 2 AA batteries 1.5 V (alkaline manganese)

or BA 70 rechargeable battery pack

Current consumption: < 300 mA

Input voltage range: 2.0 - 4.35 V

Transmission power:

Audio link: 10 mW

ERP (Range Y1-3): 12 mW ERP

BLE: max. 10 mW EIRP

What's in the Box

• EW-D EM rack receiver

• EW-D SKM handheld transmitter

• 2 rod antennas

• power supply with country adapters

• rackmount set

• 4 rubber feet

• quick guide

• safety guide

• manufacturer declaration sheet

-----------------------------------------------------------------------------------------

Echo tone Music is a long time E-commerce Audio and Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as belt-buckle or pick scratches, scuffs, dings or scrapes, screw mount marks or collateral materials. Items must also include all original packaging, manuals, warrantees and accessories or your return may be subject to a return handling charge.

If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, body jewelry, sheet music, cleaners, polishes and polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!

Sennheiser MD 421-II Instrument and Vocal Studio Microphone

Ships Free!

The MD 421 II continues the tradition of the MD 421, which has been one of Sennheiser's most popular dynamic mics for over 35 years. The large diaphragm, dynamic element handles high sound pressure levels, making it a natural for recording guitars and drums. The MD 421's full-bodied cardioid pattern and five-position bass control make it an excellent choice for most instruments, as well as group vocals or radio broadcast announcers. One listen and you'll know why it's a classic.

Features

• Rugged professional microphone

• Five position bass roll-off switch

• Effective feedback rejection

• Clear sound reproduction

• Easy handling due to pronounced directivity

Specifications

Dimensions: 215 x 46 x 49 mm

Connector: XLR-3

Frequency response (Microphone): 30 - 17000 Hz

Weight: 385 g

Sensitivity in free field, no load (1kHz): 2 mV/Pa +- 3 dB

Nominal impedance: 200 Ω

Min. terminating impedance: 200 Ω

What's in the Box

1 MD 421 II

1 microphone clamp for 3/8" thread

-----------------------------------------------------------------------------------------

Echo tone Music is a long time E-commerce Audio and Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as belt-buckle or pick scratches, scuffs, dings or scrapes, screw mount marks or collateral materials. Items must also include all original packaging, manuals, warrantees and accessories or your return may be subject to a return handling charge.

If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, body jewelry, sheet music, cleaners, polishes and polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!

Sennheiser EW-D 835-S SET R1-6 Vocal and Instrument Digital Wireless Microphone

Ships Free!

All-in-one digital wireless handheld set for those who sing or speak featuring Sennheiser's renowned e 835 capsule.

Versatile and feature-rich digital wireless system for those who sing or speak that allows for seamless product pairing and management via the EW-D Smart Assist App. Receive state-of-the-art live sound featuring Sennheiser‘s renowned e 835 capsule on a lightweight handheld transmitter with integrated mute switch.

Features:

• Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability

• Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance

• Auto scan creates reliable connections with minimal time and effort

• 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail

• Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart

• 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels

• 2,240 selectable frequencies allow for fine tuning

• Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)

Raising the bar

Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market. Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own.

Equidistant Spacing – simpler than it sounds

Evolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems. Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other. This simplifies frequency coordination for wireless beginners and seasoned professionals alike, and also contributes to the system’s scalability and impressively high channel count.

An engineer in your pocket

The power of Bluetooth Low Energy puts full control right in the palm of your hand with the Sennheiser Smart Assist app. Take advantage of a remarkably fast automated setup, mobile access to every system setting and the added benefit of remote monitoring, all from the convenience of your Android or iOS device. Save time, save energy and perform with confidence.

Specifications

Frequency range: 520 - 576 MHz

THD, total harmonic distortion: ≤ -60 dB for 1 kHz @ -3 dBfs input level

Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)

Operating relative humidity: 5 - 95 % (non-condensing)

Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs

EW-D EM

Dimensions: 212 x 44 x 189 mm

Weight: approx. 1000 g (without antennas and power supply)

Current consumption: ≤ 300 mA

Input voltage range: 11 - 13 V ⎓

Audio output level: 18 dBu max.

Transmission power: BLE: max. 10 mW EIRP

MMD 835

Dimensions: 405 x 350 x 73 mm

Sound pressure level (SPL): 154 dB

Transducer principle: dynamic

Weight: 3.1 kg

Pick-up pattern: cardioid

Sensitivity: 2.1 mV/Pa

EW-D SKM-S

Weight:

approx. 304 g (incl. MMD 835 microphone module)

approx. 195 g (without microphone module)

Power supply: 2 AA batteries 1.5 V (alkaline manganese)

or BA 70 rechargeable battery pack

Current consumption: < 300 mA

Input voltage range: 2.0 - 4.35 V

Transmission power:

Audio link: 10 mW

ERP (Range Y1-3): 12 mW ERP

BLE: max. 10 mW EIRP

Dimensions:

50 x 268 mm (incl. MMD 835 microphone module)

40 x 200 mm (without microphone module)

What's in the Box

• EW-D EM rack receiver

• EW-D SKM-S handheld transmitter

• MMD 835 microphone module

• MZQ 1 microphone clamp

• 2 rod antennas

• power supply with country adapters

• rackmount set

• 4 rubber feet

• quick guide

• safety guide

• manufacturer declaration sheet

-----------------------------------------------------------------------------------------

Echo tone Music is a long time E-commerce Audio and Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as belt-buckle or pick scratches, scuffs, dings or scrapes, screw mount marks or collateral materials. Items must also include all original packaging, manuals, warrantees and accessories or your return may be subject to a return handling charge.

If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, body jewelry, sheet music, cleaners, polishes and polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!

Sennheiser EW 100 G4-835-S-A  Handheld Vocal Wireless Microphone System

Ships Free!

Cardioid, dynamic wireless system for singers or presenters. The first choice for both sound designers and occasional users because of its simplicity.

Now even more simple, flexible and reliable: The 100 series has become the first choice for both sound designers and occasional users because of its simple operating concept – and because the system makes no compromises in terms of live sound.

• Engineered for professional live sound: Rugged all-in-one wireless system for singers and presenters.

• State-of-the-art live sound featuring Sennheiser‘s renowned e 835 capsule on a lightweight aluminum transmitter with integrated mute switch

• True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control

• Easy and flexible wireless synchronization between transmitter and receiver via infrared

• Fast frequency allocation for up to 12 receivers via new linking functionality

• Up to 20 compatible channels

• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range

• Transmission Range: up to 100 meters / 300 feet

• High RF output power (up to 30 mW) depending on country regulation

Reliability and performance

Eventually, you’ll get to a level in your career as an engineer or musician when the size stage you’re performing on demands more than an entry-level wireless system. You simply need more reach, more power and more reliability than what a 2.4 GHz system will allow. Enter the evolution wireless G4 100 Series—the next level in your journey as a stage professional.

Feature-rich and built to last

The evolution wireless G4 100 Series is packed with features that make it possible to get you up and running fast and efficiently. Use the Easy Setup function to automatically scan and select the best frequencies around you and take full advantage of the UHF spectrum. With up to 100 meters of range and a battery life of 8 hours, it’s easy to see how the durably constructed ewG4 transmitters and receivers will perform when you need them to.

Differences between the sets

The 835, 845 and 865 vocal microphone capsules are all great options and vary depending on your needs. While the 835 is ideal for most stages and features a cardioid polar pattern that rejects unwanted stage noise from the sides and rear, the 845 features a super-cardioid polar pattern that offers even more rejection and isolation for your vocal performance. The 865 introduces a condenser super-cardioid capsule, offering more sensitivity and clarity than a traditional dynamic capsule like the 835 or 845.

Specifications

EM 100 G4

Frequency range: A: 516 - 558 MHz

Dimensions: Approx. 190 x 212 x 43 mm

Compander: Sennheiser HDX

THD, total harmonic distortion:≤ 0.9 %

Weight: Approx. 980 g

Audio output: 6.3 mm jack socket (unbalanced): +12 dBu

XLR socket (balanced): +18 dBu

Signal-to-noise ratio: ≥ 110 dBA

Switching bandwidth: up to 42 MHz

Peak deviation: ±48 kHz

Nominal deviation: ±24 kHz

Modulation: Wideband FM

Power supply: 12 V DC

Antenna connector: 2 BNC sockets

Current consumption: 300 mA

Adjacent channel rejection: Typically ≥ 65 dB

Receiving frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels

RF sensitivity: < 2.5 μV for 52 dBA eff S/N

Squelch: low: 5 dBµV middle: 15 dBµV high: 25 dBμV

Equalizer: Preset 1: Flat

Preset 2: Low Cut (-3 dB at 180 Hz)

Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)

Preset 4: High Boost (+6 dB at 10 kHz)

Temperature Range: -10 °C to +55 °C

Receiver Principle: True diversity

Blocking: ≥ 70 dB

SKM 100 G4-S

Dimensions: Approx. Ø 50 x 265 mm

Compander: Sennheiser HDX

THD, total harmonic distortion: ≤ 0.9 %

Weight: (incl. batteries) approx. 450 g

Signal-to-noise ratio: ≥ 110 dBA

RF output power: Max. 30 mW

Switching bandwidth: up to 42 MHz

Peak deviation: ±48 kHz

Nominal deviation: ±24 kHz

Operating time: Typically 8 h

Modulation: Wideband FM

Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack

Current consumption: at nominal voltage: typ. 180 mA

with transmitter switched off: ≤ 25 µA

Input impedance: 40 kΩ

Max. Input voltage: 3 Veff

Powering: 3 V battery / 2.4 V rechargeable battery

Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels

AF frequency response: 80 – 18,000 Hz

Temperature Range: -10 °C to +55 °C

Frequency stability: ≤ ±15 ppm

MMD 835-1

Sound pressure level (SPL): 154 dB SPL

Transducer principle: dynamic

Pick-up pattern: cardioid

Sensitivity:2.1 mV/Pa

What's in the Box

EM 100 G4 true diversity receiver

SKM 100 G4-S handheld transmitter

MMD 835-1 microphone head (835-S variants only)

rackmount set

MZQ 1 microphone clamp

power supply

2 AA batteries

2 rod antennas

RJ 10 cable

quick guide

safety guide

manufacturer declaration sheet

frequency supplement sheet

-----------------------------------------------------------------------------------------

Echo tone Music is a long time E-commerce Audio and Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as belt-buckle or pick scratches, scuffs, dings or scrapes, screw mount marks or collateral materials. Items must also include all original packaging, manuals, warrantees and accessories or your return may be subject to a return handling charge.

If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, body jewelry, sheet music, cleaners, polishes and polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!

Sennheiser EW-D ME2/835-S Q1-6 Handheld & Lavalier Wireless Microphone Combo Set

Ships Free!

All-in-one combo set for digital wireless applications featuring sationary receiver, handheld transmitter and clip-on microphone.

Versatile and feature-rich digital wireless system for those who sing, speak or present that allows for seamless product pairing and management via the EW-D Smart Assist App. With a metal housing, the robust bodypack transmitter suits perfectly for daily use on stage.

Features

• Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability

• Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance

• Auto scan creates reliable connections with minimal time and effort

• 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail

• Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart

• 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels

• 2,240 selectable frequencies allow for fine tuning

• Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)

Raising the bar

Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market. Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own.

Equidistant Spacing – simpler than it sounds

Evolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems. Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other. This simplifies frequency coordination for wireless beginners and seasoned professionals alike, and also contributes to the system’s scalability and impressively high channel count.

An engineer in your pocket

The power of Bluetooth Low Energy puts full control right in the palm of your hand with the Sennheiser Smart Assist app. Take advantage of a remarkably fast automated setup, mobile access to every system setting and the added benefit of remote monitoring, all from the convenience of your Android or iOS device. Save time, save energy and perform with confidence.

Specifications

Frequency range: 470.2 - 526 MHz

THD, total harmonic distortion: ≤ -60 dB for 1 kHz @ -3 dBfs input level

Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)

Operating relative humidity: 5 - 95 % (non-condensing)

Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs

EW-D EM

Dimensions: 212 x 44 x 189 mm

Weight: approx. 1000 g (without antennas and power supply)

Current consumption: ≤ 300 mA

Input voltage range: 11 - 13 V ⎓

Transmission power: BLE: max. 10 mW EIRP

Audio output level: 18 dBu max.

EW-D SKM-S

Dimensions:

50 x 268 mm (incl. MMD 835 microphone module)

40 x 200 mm (without microphone module)

Weight:

approx. 304 g (incl. MMD 835 microphone module)

approx. 195 g (without microphone module)

Power supply

2 AA batteries 1.5 V (alkaline manganese)

or BA 70 rechargeable battery pack

Current consumption: < 300 mA

Input voltage range: 2.0 - 4.35 V

Transmission power:

Audio link: 10 mW

ERP (Range Y1-3): 12 mW ERP

BLE: max. 10 mW EIRP

MMD 835

Dimensions: 405 x 350 x 73 mm

Sound pressure level (SPL): 154 dB

Transducer principle: dynamic

Weight: 3.1 kg

Pick-up pattern: cardioid

Sensitivity: 2.1 mV/Pa

ME 2

Connector: 3.5 mm jack

Frequency response: 50 to 18,000 Hz

Max. sound pressure level: 130 dB

Cable length: approx. 1.60 m

Transducer principle: pre-polarized condensor microphone

Pick-up pattern: omni-directional

Sensitivity in free field, no load (1kHz): 17 mV/Pa

Power supply: 7.5 V

What's in the Box

• EW-D EM rack receiver

• EW-D SK bodypack transmitter

• EW-D SKM-S handheld transmitter

• ME 2 lavalier microphone

• MMD 835 microphone module

• MZQ 1 microphone clamp

• 2 rod antennas

• power supply with country adapters

• rackmount set

• 4 rubber feet

• quick guide

• safety guide

• manufacturer declaration sheet

-----------------------------------------------------------------------------------------

Echo tone Music is a long time E-commerce Audio and Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as belt-buckle or pick scratches, scuffs, dings or scrapes, screw mount marks or collateral materials. Items must also include all original packaging, manuals, warrantees and accessories or your return may be subject to a return handling charge.

If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, body jewelry, sheet music, cleaners, polishes and polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!

Sennheiser EW 100 G4-935-S-A Vocal Performance Wireless Microphone System

Ships Free!

Rugged all-in-one wireless system for singers and presenters. Set consists of 1 SKM 100 G4-S handheld with mute switch, 1 MMD 935-1 capsule (cardioid, dynamic), 1 EM 100 G4 rackmount receiver, 1 rack kit, 1 RJ10 linking cable and 1 mic clip.

Now even more simple, flexible and reliable: The 100 series has become the first choice for both sound designers and occasional users because of its simple operating concept – and because the system makes no compromises in terms of live sound.

Features:

• Engineered for professional live sound: Rugged all-in-one wireless system for singers and presenters.

• State-of-the-art live sound featuring Sennheiser‘s renowned e 835, e 845, e 865, e 935, e 945 capsules on a lightweight aluminum transmitter with integrated mute switch

• True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control

• Easy and flexible wireless synchronization between transmitter and receiver via infrared

• Fast frequency allocation for up to 12 receivers via new linking functionality

• Up to 20 compatible channels

• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range

• Transmission Range: up to 100 meters / 300 feet

• High RF output power (up to 30 mW) depending on country regulations

Reliability and performance

Eventually, you’ll get to a level in your career as an engineer or musician when the size stage you’re performing on demands more than an entry-level wireless system. You simply need more reach, more power and more reliability than what a 2.4 GHz system will allow. Enter the evolution wireless G4 100 Series—the next level in your journey as a stage professional.

Feature-rich and built to last

The evolution wireless G4 100 Series is packed with features that make it possible to get you up and running fast and efficiently. Use the Easy Setup function to automatically scan and select the best frequencies around you and take full advantage of the UHF spectrum. With up to 100 meters of range and a battery life of 8 hours, it’s easy to see how the durably constructed ewG4 transmitters and receivers will perform when you need them to.

Differences between the sets

While the 800 series capsules have an EQ designed to help your vocal cut through the mix, the 900 series capsules offer a more natural sound ideal for large scale PA systems or performance spaces. The 935 features a cardioid polar pattern that rejects sound from the sides and rear and is ideal for most stages. For louder stages that are susceptible to feedback, the super-cardioid polar pattern of the 945 will come into play, as it provides even more isolation for your vocal performance.

Specifications

EM 100 G4

Frequency range: A: 516 - 558 MHz

Dimensions: Approx. 190 x 212 x 43 mm

Compander: Sennheiser HDX

THD, total harmonic distortion: ≤ 0.9 %

Weight: Approx. 980 g

Audio output: 6.3 mm jack socket (unbalanced): +12 dBu

XLR socket (balanced): +18 dBu

Signal-to-noise ratio: ≥ 110 dBA

Switching bandwidth: up to 42 MHz

Peak deviation: ±48 kHz

Nominal deviation: ±24 kHz

Modulation: Wideband FM

Power supply: 12 V DC

Antenna connector: 2 BNC sockets

Current consumption: 300 mA

Adjacent channel rejection: Typically ≥ 65 dB

Intermodulation attenuation: Typically ≥ 65 dB

Receiving frequency

Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels

RF sensitivity: < 2.5 μV for 52 dBA eff S/N

Squelch: low: 5 dBµV middle: 15 dBµV high: 25 dBμV

Equalizer

Preset 1: Flat

Preset 2: Low Cut (-3 dB at 180 Hz)

Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)

Preset 4: High Boost (+6 dB at 10 kHz)

Temperature Range: -10 °C to +55 °C

Blocking: ≥ 70 dB

SKM 100 G4-S

Dimensions: Approx. Ø 50 x 265 mm

Compander: Sennheiser HDX

THD, total harmonic distortion: ≤ 0.9 %

Weight: (incl. batteries) approx. 450 g

Signal-to-noise ratio: ≥ 110 dBA

Switching bandwidth: up to 42 MHz

Peak deviation: ±48 kHz

Nominal deviation: ±24 kHz

Operating time: Typically 8 h

Modulation: Wideband FM

Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack

Current consumption

at nominal voltage: typ. 180 mA

with transmitter switched off: ≤ 25 µA

Input impedance: 40 kΩ

Max. Input voltage: 3 Veff

Powering: 3 V battery / 2.4 V rechargeable battery

Transmission frequency

Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels

AF frequency response: 80 – 18,000 Hz

Temperature Range: -10 °C to +55 °C

Frequency stability: ≤ ±15 ppm

MMD 935-1

Sound pressure level (SPL): 154 dB SPL

Transducer principle: dynamic

Pick-up pattern: cardioid

Sensitivity: 2.5 mV/Pa

What's in the Box

• EM 100 G4 true diversity receiver

• SKM 100 G4-S handheld transmitter

• MMD 935-1 microphone head (935-S variants only)

• rackmount set

• MZQ 1 microphone clamp

• power supply

• 2 AA batteries

• 2 rod antennas

• RJ 10 cable

• quick guide

• safety guide

• manufacturer declaration sheet

• frequency supplement sheet

-----------------------------------------------------------------------------------------

Echo tone Music is a long time E-commerce Audio and Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as belt-buckle or pick scratches, scuffs, dings or scrapes, screw mount marks or collateral materials. Items must also include all original packaging, manuals, warrantees and accessories or your return may be subject to a return handling charge.

If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, body jewelry, sheet music, cleaners, polishes and polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!

Sennheiser EW-D 835-S SET Q1-6 Instrument and Vocal Digital Wireless Microphone

Ships Free!

All-in-one digital wireless handheld set for those who sing or speak featuring Sennheiser's renowned e 835 capsule.

Versatile and feature-rich digital wireless system for those who sing or speak that allows for seamless product pairing and management via the EW-D Smart Assist App. Receive state-of-the-art live sound featuring Sennheiser‘s renowned e 835 capsule on a lightweight handheld transmitter with integrated mute switch.

Features

• Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability

• Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance

• Auto scan creates reliable connections with minimal time and effort

• 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail

• Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart

• 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels

• 2,240 selectable frequencies allow for fine tuning

• Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)

Raising the bar

Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market. Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own.

Equidistant Spacing – simpler than it sounds

Evolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems. Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other. This simplifies frequency coordination for wireless beginners and seasoned professionals alike, and also contributes to the system’s scalability and impressively high channel count.

An engineer in your pocket

The power of Bluetooth Low Energy puts full control right in the palm of your hand with the Sennheiser Smart Assist app. Take advantage of a remarkably fast automated setup, mobile access to every system setting and the added benefit of remote monitoring, all from the convenience of your Android or iOS device. Save time, save energy and perform with confidence.

Specifications

Frequency range: 470.2 - 526 MHz

THD, total harmonic distortion: ≤ -60 dB for 1 kHz @ -3 dBfs input level

Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)

Operating relative humidity: 5 - 95 % (non-condensing)

Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs

EW-D EM

Dimensions: 212 x 44 x 189 mm

Weight: approx. 1000 g (without antennas and power supply)

Current consumption: ≤ 300 mA

Input voltage range: 11 - 13 V ⎓

Audio output level: 18 dBu max.

Transmission power: BLE: max. 10 mW EIRP

MMD 835

Dimensions: 405 x 350 x 73 mm

Sound pressure level (SPL): 154 dB

Transducer principle: dynamic

Weight: 3.1 kg

Pick-up pattern: cardioid

Sensitivity: 2.1 mV/Pa

EW-D SKM-S

Weight:

approx. 304 g (incl. MMD 835 microphone module)

approx. 195 g (without microphone module)

Power supply: 2 AA batteries 1.5 V (alkaline manganese)

or BA 70 rechargeable battery pack

Current consumption: < 300 mA

Input voltage range: 2.0 - 4.35 V

Transmission power

Audio link: 10 mW

ERP (Range Y1-3): 12 mW ERP

BLE: max. 10 mW EIRP

Dimensions:

50 x 268 mm (incl. MMD 835 microphone module)

40 x 200 mm (without microphone module)

What's in the Box

• EW-D EM rack receiver

• EW-D SKM-S handheld transmitter

• MMD 835 microphone module

• MZQ 1 microphone clamp

• 2 rod antennas

• power supply with country adapters

• rackmount set

• 4 rubber feet

• quick guide

• safety guide

• manufacturer declaration sheet

-----------------------------------------------------------------------------------------

Echo tone Music is a long time E-commerce Audio and Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as belt-buckle or pick scratches, scuffs, dings or scrapes, screw mount marks or collateral materials. Items must also include all original packaging, manuals, warrantees and accessories or your return may be subject to a return handling charge.

If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, body jewelry, sheet music, cleaners, polishes and polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!

Sennheiser XSW 1-825 DUAL-A Live Vocal Dual Wireless Microphone

Ships Free!

2-channel wireless system for singers and presenters. Stable UHF band, built-in antennas and streamlined interface with great live sound.

XS Wireless 1 DUAL is a 2-channel wireless system for singers and presenters. Designed with ease of use in mind, these analog UHF systems feature a sleek dual-channel receiver with built-in antennas and the streamlined interface from Sennheiser's popular XS Wireless 1 series.

Features:

• Excellent live sound featuring Sennheiser's renowned evolution microphone capsules

• Antenna-switching 2-channel diversity reception

• Integrated antennas

• Automatic frequency management and synchronization via remote channel for easy setup

• Selectable UHF frequencies within a large bandwidth

• Up to 10 compatible channels

Specifications

System

Frequency range: 548-572 MHz

Dimensions: Ø 48 x L 180 mm

Connector: XLR-3

Frequency response: 55 - 16,000 Hz

THD, total harmonic distortion: ≤ 0.9%

Transducer principle: dynamic

Weight: 330 g (0.73 lbs)

Pick-up pattern: cardioid

Nominal impedance: 300 Ω (at 1 kHz)

Min. terminating impedance: 1 kΩ

Storage temperature: –20°C to +70°C

Operating temperature: 0°C to +40°C

Signal-to-noise ratio: ≥ 103 dBA

Switching bandwidth: Up to 24 MHz

Modulation: Wideband FM

Frequency: 80 factory presets (8 banks of 10 channels each)

Sensitivity: 1.8 mV/Pa (free field, no load at 1 kHz)

Synchronization

Transmitter: 2.4 GHz, low power OQPSK (only active during synchronization)

Temperature Range: 0 °C ... +40 °C (+32 °F ... +104 °F)

EM-XSW 1 DUAL

Dimensions: approx. 320 x 126.5 x 42 mm

Weight: approx. 620 g

Power supply: 12 V DC nom. / 300 mA

Output voltage

(at peak deviation, 1 kHz AF) 1/4“ (6.3 mm) socket (unbalanced): +6 dBu

Housing: Rugged ABS housing

Sensitivity: < 3 μV at 52 dB(A) rms S/N (at peak deviation)

Squelch: Adjustable from 3 dBμV to 28 dBμV

AF frequency response: 50 to 16,000 Hz (–3 dB)

Audio adjustment range: 45 dB, adjustable in 5 dB steps

Line / Mic level: 20 dB, switchable

Receiver Principle: Double superheterodyne

Diversity principle: Antenna switching diversity via internal antennas

SKM 825-XSW

Dimensions: Approx. 260 x 50 mm

Microphone: Dynamic

Weight: Approx. 245 g

Pick-up pattern: Cardioid

RF output power: 10 mW

Operating time: Approx. 10 hrs

Power supply: 2 AA size batteries, 1.5 V

Housing: Rugged ABS housing

Sensitivity: 0 to -30 dB, adjustable in 10 dB steps

Input sensitivity: 1.5 mV / Pa

AF frequency response: 80-16,000 Hz

What's in the Box

Basket complete

Accessories of the XSW & SKM series

Lower housing

Accessories of the XSW & SKM series

SKM MIC CLAMP MZQ 1

MIC CLAMP

-----------------------------------------------------------------------------------------

Echo tone Music is a long time E-commerce Audio and Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as belt-buckle or pick scratches, scuffs, dings or scrapes, screw mount marks or collateral materials. Items must also include all original packaging, manuals, warrantees and accessories or your return may be subject to a return handling charge.

If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, body jewelry, sheet music, cleaners, polishes and polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!

Sennheiser EWD 835S SET R4-9  Handheld Vocal Digital Wireless Microphone

Ships Free!

All-in-one digital wireless handheld set for those who sing or speak featuring Sennheiser's renowned e 835 capsule.

Versatile and feature-rich digital wireless system for those who sing, or speak that allows for seamless product pairing and management via the EW-D Smart Assist App. Receive state-of-the-art live sound featuring Sennheiser‘s renowned e 835 capsule on a lightweight handheld transmitter with integrated mute switch.

Features:

• Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability

• Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance

• Auto scan creates reliable connections with minimal time and effort

• 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail

• Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart

• 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels

• 2,240 selectable frequencies allow for fine tuning

• Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)

Raising the bar

Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market. Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own.

Equidistant Spacing – simpler than it sounds

Evolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems. Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other. This simplifies frequency coordination for wireless beginners and seasoned professionals alike, and also contributes to the system’s scalability and impressively high channel count.

An engineer in your pocket

The power of Bluetooth Low Energy puts full control right in the palm of your hand with the Sennheiser Smart Assist app. Take advantage of a remarkably fast automated setup, mobile access to every system setting and the added benefit of remote monitoring, all from the convenience of your Android or iOS device. Save time, save energy and perform with confidence.

Specifications

Frequency range: 552 - 607.8 MHz

THD, total harmonic distortion: ≤ -60 dB for 1 kHz @ -3 dBfs input level

Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)

Operating relative humidity: 5 - 95 % (non-condensing)

Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs

EW-D EM

Dimensions: 212 x 44 x 189 mm

Weight: approx. 1000 g (without antennas and power supply)

Current consumption: ≤ 300 mA

Input voltage range: 11 - 13 V ⎓

Audio output level: 18 dBu max.

Transmission power: BLE: max. 10 mW EIRP

MMD 835

Dimensions: 405 x 350 x 73 mm

Sound pressure level (SPL): 154 dB

Transducer principle: dynamic

Weight: 3.1 kg

Pick-up pattern: cardioid

Sensitivity: 2.1 mV/Pa

EW-D SKM-S

Weight:

approx. 304 g (incl. MMD 835 microphone module)

approx. 195 g (without microphone module)

Power supply: 2 AA batteries 1.5 V (alkaline manganese)

or BA 70 rechargeable battery pack

Current consumption: < 300 mA

Input voltage range: 2.0 - 4.35 V

Transmission power:

Audio link: 10 mW

ERP (Range Y1-3): 12 mW ERP

BLE: max. 10 mW EIRP

Dimensions

50 x 268 mm (incl. MMD 835 microphone module)

40 x 200 mm (without microphone module)

What's in the Box

• EW-D EM rack receiver

• EW-D SKM-S handheld transmitter

• MMD 835 microphone module

• MZQ 1 microphone clamp

• 2 rod antennas

• power supply with country adapters

• rackmount set

• 4 rubber feet

• quick guide

• safety guide

• manufacturer declaration sheet

-----------------------------------------------------------------------------------------

Echo tone Music is a long time E-commerce Audio and Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as belt-buckle or pick scratches, scuffs, dings or scrapes, screw mount marks or collateral materials. Items must also include all original packaging, manuals, warrantees and accessories or your return may be subject to a return handling charge.

If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, body jewelry, sheet music, cleaners, polishes and polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!

Sennheiser EW100 G4-865-SA  Handheld Vocal Wireless Microphone System

Ships Free!

Rugged all-in-one wireless system for singers and presenters. Set consists of 1 SKM 100 G4 handheld with mute switch, 1 MMD 865-1 capsule (supercardioid, condensor), 1 EM 100 G4 rackmount receiver, 1 rack kit, 1 RJ10 linking cable and 1 mic clip.

Now even more simple, flexible and reliable: The 100 series has become the first choice for both sound designers and occasional users because of its simple operating concept – and because the system makes no compromises in terms of live sound.

Features:

• Engineered for professional live sound: Rugged all-in-one wireless system for singers and presenters.

• State-of-the-art live sound featuring Sennheiser‘s renowned e 835 capsule on a lightweight aluminum transmitter with integrated mute switch

• True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control

• Easy and flexible wireless synchronization between transmitter and receiver via infrared

• Fast frequency allocation for up to 12 receivers via new linking functionality

• Up to 20 compatible channels

• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range

• Transmission Range: up to 100 meters / 300 feet

• High RF output power (up to 30 mW) depending on country regulations

Reliability and performance

Eventually, you’ll get to a level in your career as an engineer or musician when the size stage you’re performing on demands more than an entry-level wireless system. You simply need more reach, more power and more reliability than what a 2.4 GHz system will allow. Enter the evolution wireless G4 100 Series—the next level in your journey as a stage professional.

Feature-rich and built to last

The evolution wireless G4 100 Series is packed with features that make it possible to get you up and running fast and efficiently. Use the Easy Setup function to automatically scan and select the best frequencies around you and take full advantage of the UHF spectrum. With up to 100 meters of range and a battery life of 8 hours, it’s easy to see how the durably constructed ewG4 transmitters and receivers will perform when you need them to.

Specifications

EM 100 G4

Frequency range: A: 516 - 558 MHz

Dimensions: Approx. 190 x 212 x 43 mm

Compander: Sennheiser HDX

THD, total harmonic distortion: ≤ 0.9 %

Weight: Approx. 980 g

Audio output:

6.3 mm jack socket (unbalanced): +12 dBu

XLR socket (balanced): +18 dBu

Signal-to-noise ratio: ≥ 110 dBA

Switching bandwidth: up to 42 MHz

Peak deviation: ±48 kHz

Nominal deviation: ±24 kHz

Modulation: Wideband FM

Power supply: 12 V DC

Antenna connector: 2 BNC sockets

Current consumption: 300 mA

Adjacent channel rejection: Typically ≥ 65 dB

Receiving frequency

Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels

RF sensitivity: < 2.5 μV for 52 dBA eff S/N

Squelch: low: 5 dBµV middle: 15 dBµV high: 25 dBμV

Equalizer:

Preset 1: Flat

Preset 2: Low Cut (-3 dB at 180 Hz)

Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)

Preset 4: High Boost (+6 dB at 10 kHz)

Temperature Range: -10 °C to +55 °C

Receiver Principle: True diversity

Blocking: ≥ 70 dB

SKM 100 G4-S

Dimensions: Approx. Ø 50 x 265 mm

Compander: Sennheiser HDX

THD, total harmonic distortion: ≤ 0.9 %

Weight: (incl. batteries) approx. 450 g

Signal-to-noise ratio: ≥ 110 dBA

RF output power: Max. 30 mW

Switching bandwidth: up to 42 MHz

Peak deviation: ±48 kHz

Nominal deviation: ±24 kHz

Operating time: Typically 8 h

Modulation: Wideband FM

Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack

Current consumption: at nominal voltage: typ. 180 mA

with transmitter switched off: ≤ 25 µA

Input impedance: 40 kΩ

Max. Input voltage: 3 Veff

Powering: 3 V battery / 2.4 V rechargeable battery

Transmission frequency:

Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels

AF frequency response: 80 – 18,000 Hz

Temperature Range: -10 °C to +55 °C

Frequency stability: ≤ ±15 ppm

MME 865-1

Sound pressure level (SPL): 152 dB SPL

Transducer principle: pre-polarized condensor microphone

Pick-up pattern: supercardioid

Sensitivity: 1.6 mV/Pa

What's in the Box

• EM 100 G4 true diversity receiver

• SKM 100 G4-S handheld transmitter

• MME 865-1 microphone head (865-S variants only)

• rackmount set

• MZQ 1 microphone clamp

• power supply

• 2 AA batteries

• 2 rod antennas

• RJ 10 cable

• quick guide

• safety guide

• manufacturer declaration sheet

• frequency supplement sheet

-----------------------------------------------------------------------------------------

Echo tone Music is a long time E-commerce Audio and Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as belt-buckle or pick scratches, scuffs, dings or scrapes, screw mount marks or collateral materials. Items must also include all original packaging, manuals, warrantees and accessories or your return may be subject to a return handling charge.

If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, body jewelry, sheet music, cleaners, polishes and polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!

Sennheiser E 935 Dynamic Cardioid Vocal Stage Microphone Natural Sound

Dynamic cardioid vocal mic offering a natural sound. Fast transient response ensures no details are missed. 100% metal casing for tough on-stage use.

The e 935 is a cardioid vocal stage microphone specially designed to perform under pressure while cutting through the mix with its high output. Made for the working musician. Excellent sound results guaranteed, day to day, 365 days a year. First choice for rental companies.

Features

• Metal construction: Rugged and reliable

• Shock-mounted capsule: Low sensitivity to impact and handling noise

• Cardioid pickup pattern: Insulation from other on-stage signals

• Hum compensating coil: Reduces electrical interference

• Neodymium ferrous magnet with boron: Keeps microphone stable regardless of climate

• Made in Germany

• Supplied Accessories

• 1 Protective pouch

• 1 MZQ 800 microphone clip

Specifications

Dimensions: 47 x 151 mm

Connector: XLR-3

Frequency response (Microphone): 40 - 18000 Hz

Weight: 355 g

Sensitivity in free field, no load (1kHz): 2,8mV/Pa = -51dB (0 dB = 1V/Pa) = -71 dB (0 dB = 1V/ubar)

Nominal impedance: 350 Ω

Min. terminating impedance: 1000 Ω

What's in the Box

• 1 e 935

• MZQ 800 microphone clamp

• Pouch

• User manual

• Document of Warranty

-----------------------------------------------------------------------------------------

Echo tone Music is a long time E-commerce Audio and Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers, production companies and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as belt-buckle or pick scratches, scuffs, dings or scrapes, screw mount marks or collateral materials. Items must also include all original packaging, manuals, warrantees and accessories or your return may be subject to a return handling charge.

If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, body jewelry, sheet music, cleaners, polishes and polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!

Sennheiser XSW-D PEDALBOARD SET Guitar Digital Wireless Audio Pedalboard Set

Ships Free!

One-touch digital system that anyone can operate. It's as easy as plugging in a guitar cable, thus enabling you to concentrate more on a performance.

One-touch ease-of-use wireless audio set that utilizes a digital transmission to seamlessly link audio sources. This elegant solution allows you to play guitar wirelessly and still use a pedalboard, all while maintaining a reliable connection.

Features

• One touch ease-of-use

• 2.4 GHz digital transmission for worldwide operation

• 75m range (250ft) in optimal conditions

• Up to 5 hours battery life on a single charge

• Switch between multiple transmitters linked to one receiver

• Configure any combination of transmitters and receivers

• Mute from either transmitter or receiver

Specifications

Dimensions:

XSW-D XLR FEMALE TX: approx. 102 x 24 x 28 mm
XSW-D MINI JACK TX: approx. 86 x 24 x 28 mm
XSW-D INSTRUMENT TX: approx. 122 x 24 x 28 mm
XSW-D XLR MALE RX: approx. 109 x 24 x 28 mm
XSW-D MINI JACK RX: approx. 86 x 24 x 28 mm
XSW-D INSTRUMENT RX: approx. 122 x 24 x 28 mm
XSW-D PEDALBOARD RX: approx. 130 x 82 x 51 mm
THD, total harmonic distortion: < 0.1 %
Charging time: typ. 3 h
Audio output: max. 12 dBu
Operating temperature: -10 °C to +55 °C (14 °F to 131 °F)
Signal-to-noise ratio: ≥ 106 dB
Operating time: up to 5 h
Modulation: GFSK with TDMA
Battery Specification: Li-Ion
Capacity: 850 mAh
Codecs: aptX® Live
Frequency range: 2,400 - 2,483.5MHz
Max. Input voltage: typ. 5.0 V
Transmission power: max. 10 mW
Voltage: 3.7 V
Operating relative humidity: 95 % (non-condensing)
Latency: < 4 ms
Temperature Range: 0 °C - 60 °C (32 °F - 140 °F)
Audio frequency response:
3.5 mm Jack/XLR: 80 - 18,000 Hz
6.3 mm Jack: 10 - 18,000 Hz

What's in the Box

• XSW-D 6.3mm (1/4”) transmitter

• XSW-D Pedalboard receiver

• Receiver power supply

• Extension cable 6.3mm (1/4”)

• Belt clip

• USB-C to USB-C charging cable

-----------------------------------------------------------------------------------------

Echo tone Music is a long time E-commerce Audio and Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as belt-buckle or pick scratches, scuffs, dings or scrapes, screw mount marks or collateral materials. Items must also include all original packaging, manuals, warrantees and accessories or your return may be subject to a return handling charge.

If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, body jewelry, sheet music, cleaners, polishes and polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!

Sennheiser EW-D ME3 SET (Q1-6) Live Vocal Headworn Wireless Microphone System

Ships Free!

All-in-one digital wireless lavalier set for those who sing or speak featuring Sennheiser's renowned ME 3 cardioid headset microphone.

Versatile and feature-rich digital wireless system for those who speak or present that allows for seamless product pairing and management via the EW-D Smart Assist App. With a metal housing, the robust bodypack transmitter and unobstrusive clip-on microphone ME 3 (cardioid) with high speech intelligibility suit perfectly for daily use on stage.

Features

• Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability

• Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance

• Auto scan creates reliable connections with minimal time and effort

• 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail

• Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart

• 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels

• 2,240 selectable frequencies allow for fine tuning

• Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries

Raising the bar

Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market. Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own.

Equidistant Spacing – simpler than it sounds

Evolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems. Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other. This simplifies frequency coordination for wireless beginners and seasoned professionals alike, and also contributes to the system’s scalability and impressively high channel count.

An engineer in your pocket

The power of Bluetooth Low Energy puts full control right in the palm of your hand with the Sennheiser Smart Assist app. Take advantage of a remarkably fast automated setup, mobile access to every system setting and the added benefit of remote monitoring, all from the convenience of your Android or iOS device. Save time, save energy and perform with confidence.

Specifications

Frequency range: 470.2 - 526 MHz
THD, total harmonic distortion: ≤ -60 dB for 1 kHz @ -3 dBfs input level
Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)
Operating relative humidity: 5 - 95 % (non-condensing)
Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs

EW-D EM

Dimensions: 212 x 44 x 189 mm
Weight: approx. 1000 g (without antennas and power supply)
Audio output level: 18 dBu max.
Transmission power: BLE: max. 10 mW EIRP
Input voltage range: 11 - 13 V ⎓
Current consumption: ≤ 300 mA

ME 3

Connector: 3.5 mm jack
Frequency response: 50 to 18,000 Hz
Max. sound pressure level: 150 dB
Cable length: approx. 1.60 m
Transducer principle: pre-polarized condensor microphone
Pick-up pattern: cardioid
Sensitivity in free field, no load (1kHz): 1.6 mV/Pa

EW-D SK

Dimensions: 63 x 80 x 20 mm (without antenna)
Weight: approx. 120 g
Power supply: 2 AA batteries 1.5 V (alkaline manganese)
or BA 70 rechargeable battery pack
Current consumption: < 300 mA
Input voltage range: 2.0 - 4.35 V
Transmission power:
Audio link: 10 mW
ERP (Range Y1-3): 12 mW ERP
BLE: max. 10 mW EIRP

What's in the Box

• EW-D EM rack receiver

• EW-D SK bodypack transmitter

• ME 3 headset microphone (cardioid)

• 2 rod antennas

• power supply with country adapters

• rackmount set

• 4 rubber feet

• quick guide

• safety guide

• manufacturer declaration sheet

-----------------------------------------------------------------------------------------

Echo tone Music is a long time E-commerce Audio and Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as belt-buckle or pick scratches, scuffs, dings or scrapes, screw mount marks or collateral materials. Items must also include all original packaging, manuals, warrantees and accessories or your return may be subject to a return handling charge.

If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, body jewelry, sheet music, cleaners, polishes and polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!

Sennheiser E 914 High-Grade Live and Recording Instrument Wireless Microphone

Ships Free!

High-grade cardioid condenser microphone for demanding applications. Outstanding sound properties for highly sophisticated applications like acoustic guitars, cymbals, percussion, overheads, orchestras, and grand pianos.

The e 914 is a high grade condenser microphone for very demanding applications. Its outstanding sound properties qualify the e 914 for highly sophisticated tasks.

The e 914 is a perfect microphone for ambitious recordings and live performances.

Its main areas of application are acoustic guitars, cymbals, percussion, overhead, orchestras, grand pianos etc.

Features

• Exceptionally lively, clear sound

• Three-position sensitivity switch

• Three-position bass roll-off/cut-off switch

• Very high sound pressure handling capability

• Exchangeable capsule

Specifications

Dimensions: Ø 24 x 157 mm

Connector: XLR-3

Frequency response: 20 - 20000 Hz
Weight: 198 g
Attenuation: 0, -10, -20 dB
Sensitivity in free field, no load (1kHz): 7 mV/Pa
Nominal impedance: 100 Ω
Min. terminating impedance: 1000 Ω
Phantom powering: 48 V/2,2 mA
Equivalent noise level: 19 dB(A)
Max. Sound pressure level (active):
- 137, 147 (with activated -10 db attenuation), 157 (with activated -20 db attenuation) db

What's in the Box

• e 914 microphone

• Microphone clamp MZQ 800

• Windscreen

• Pouch

• User manual

-----------------------------------------------------------------------------------------

Echo tone Music is a long time E-commerce Audio and Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as belt-buckle or pick scratches, scuffs, dings or scrapes, screw mount marks or collateral materials. Items must also include all original packaging, manuals, warrantees and accessories or your return may be subject to a return handling charge.

If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, body jewelry, sheet music, cleaners, polishes and polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!

Sennheiser XSW 1-ME3 Live Vocal Headset Wireless Microphone System

Ships Free!

Hands-free performance. Easy to use all-in-one wireless system for singers and presenters.

Hands-free performance. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 HEADMIC SET is an easy to use all-in-one wireless system for singers and presenters, excellent for live sound that involves dancing and singing all at the same time. The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a compact bodypack transmitter and a lightweight headset microphone.

Features

• Lightweight headmic and compact bodypack transmitter

• Antenna-switching diversity reception

• Integrated antennas

• Automatic frequency management and synchronization via remote channel for easy setup

• Selectable UHF frequencies within a large bandwidth

• Up to 10 compatible channels

Specifications

Receivers

Dimensions: approx. 200 x 42 x 127 mm
Weight: approx. 340g
Power supply: 12 V DC nom. / 300 mA
AF frequency response: 50 to 16,000 Hz (–3 dB)


Transmitter

Dimensions: approx. 71 x 96 x 28 mm
Weight: approx. 95g
Operating time: Approx. 10 hrs
Power supply: 2 AA size batteries, 1.5 V
Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
Microphone: Condenser
THD, total harmonic distortion: ≤ 0.9%
Pick-up pattern: Cardioid
Signal-to-noise ratio: ≥ 103 dBA
RF output power: 10 mW
Switching bandwidth: up to 24 MHz
Modulation: Wideband FM
Output voltage: 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Housing: Rugged ABS housing
Frequency: 8 frequency banks, each with up to 10 factory-preset channels
Frequency range:
A: 548-572 MHz, GB: 606-630 MHz
B: 614-638 MHz
C: 766-790 MHz
D: 794-806 MHz
E: 821-832 MHz, 863-865 MHz
K: 925-937.5 MHz
Sensitivity: < 3 μV at 52 dB(A)rms S/N
SPL for peak deviation: 150 dB
Squelch: adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
Input sensitivity: 1.5 mV / Pa
Audio adjustment range: 45 dB, adjustable in 5-dB steps
Line / Mic level: 20 dB, switchable
Temperature Range: Operation: 0°C to +40°C, storage: –20°C to +70°C
Receiver Principle: Double superheterodyne
Diversity principle: Antenna switching diversity via internal antennas

What's in the Box

• 1 receiver EM-XSW 1

• 1 headset microphone ME 3-II

• 1 bodypack transmitter SK-XSW

• 1 power supply NT 12-5 CW

• 2 AA batteries

-----------------------------------------------------------------------------------------

Echo tone Music is a long time E-commerce Audio and Musical instrument dealer since 1998.  We take pride in selling quality gear for musicians, sound engineers and broadcast applications.

Shipping --Items are well packed and shipped  USPS, UPS or Pallet Freight Service.  Items purchased on Friday may not ship until Monday or until the projected processing period.  We are working hard to get your unit Built ( if needed), processed and shipped.

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.

Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as belt-buckle or pick scratches, scuffs, dings or scrapes, screw mount marks or collateral materials. Items must also include all original packaging, manuals, warrantees and accessories or your return may be subject to a return handling charge.

If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, body jewelry, sheet music, cleaners, polishes and polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.

Happy customers, that's music to our ears!
