Galaxy Audio

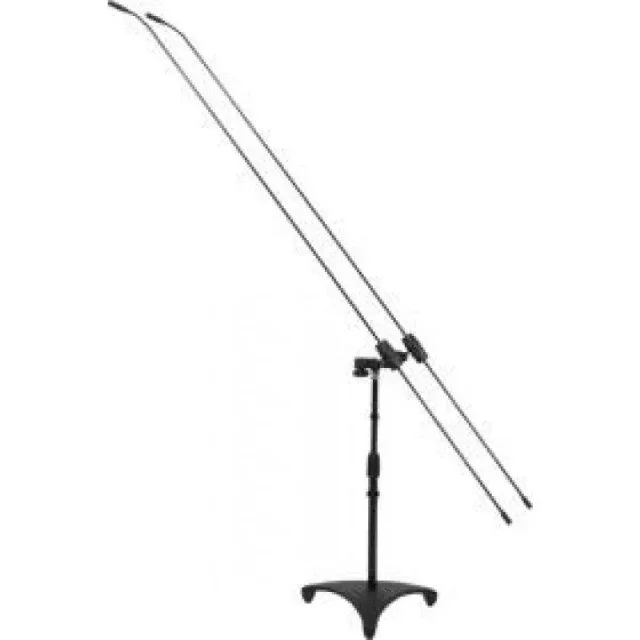

Galaxy Audio CBM-324 57" Carbon Fiber Boom Gooseneck Microphone and Base

Galaxy Audio’s extremely versatile 57-inch Carbon Boom Microphone is an aesthetically sleek miking system for choirs, presentations, orchestras, ensembles, plays, drum overheads, and ambient instrument / audience miking. The CBM-324 includes three easy-replace interchangeable mic elements: Omni, Cardioid, and Super Cardioid. Simply change the mic element for use in multiple performance applications. Galaxy Audio’s condenser elements offer transparent, smooth, articulate sound reproduction. The cardioid polar pattern is a popular choice because they are sensitive enough to capture the voices of up to 20 singers per microphone. In addition the mic end has a 2.5 inch flexible gooseneck so you can point the mic exactly where you need it.

The flexible light weight carbon boom makes remote miking easy. The included mini XLR to XLR cable has a recessed 10dB pad and 80Hz Low Frequency Roll Off Switch.

The CBM offers more flexibility and ease of use than permanently installed hanging choir mics, where mic positioning may change over time due to a relaxing cable or air currents from ventilation systems.

Applications: choirs, presentations, orchestras, ensembles, plays, drum overheads, ambient instrument / audience miking.

Specifications:
Type: Back Electret Condenser
Boom length including Mic Capsule: 56.9" Total - Includes Mic Capsule and 2.5" Flexible goose neck for better aiming the mic capsule
Impedance: 200 ohms
Frequency Response: 15Hz~18kHz
Sensitivity: -36dB (15.8mV/Pa) 0dB=1V,1kHz
Polar Pattern: Cardioid, Supercardioid & Omnidirectional
Max SPL for 1% T.H.D.: 125dB
Connector: 3 pin mini XLR (M)
Cable Length: 26.25' (8m)
Cable Connector:
Input: 3 pin mini-XLR (F)
Output: 3 Pin XLR (Power Module)
Power Supply: 9-48 VDC phantom power
Mic Stand: Either 24" (14.5 to 24" adjustable) or the 62" (35" to 62" adjustable)

Galaxy Audio MSPA5 5" Micro Spot Powered Portable Monitor Speaker 100 Watts

The Powered Micro Spot model MSPA5, incorporates design features of it both its big & little brother, the Powered Hot Spot & Powered Nano Spot, maintaining a similar compact design.

The Micro Spot Series is designed to be used in a wide array of applications: churches, schools, courtrooms, fixed installations, or on stage. The Galaxy Audio MSPA5 is powered by an internal 100-watt amplifier, delivering quality sound through the specially designed 5″ full-range speaker. This portable powered active speaker provides superior vocal clarity. The Powered Micro Spot will accept mic or line level with its XLR (+48V phantom power), 1/4″, or 1/8″ input.

Volume and EQ controls are conveniently located on the front of the portable powered active speaker. Additionally, the Galaxy Audio MSPA5 has an indicator for the built-in compressor/limiter, which helps prevent overdriving of the speaker and distortion.

The Powered Micro Spot can be mounted to a mic stand or be wall/ceiling mounted with the included hardware.

Features:
100 Watts
5″ Ceramic Driver
Freq. Response 160Hz – 20kHz
Sensitivity: 88dB, 1 W @ 1 m
Max SPL 108dB
Input Connections: Mic Line, XLR, 1/4″ & 1/8″
High Impact ABS Plastic
20dB Pad
2 Band EQ
Built-in Compressor
+48V Phantom Power
Internal Power Supply
Stand/Wall Mount Bracket Included

Specifications:
Frequency Response: 160Hz - 20kHz
Output: 100 Watts @ 16 Ohms
Sensitivity: 88dB, 1 W @ 1 m
Max SPL: 108dB
Speaker Complement: 5" Ceramic Driver
Nominal impedance: 16 Ohms
Equalization: Two Band Center Detent:
Lo: 200Hz
Hi:10kHz
Input Connections: One Balanced 1/4", One Balanced XLR with +48 VDC Phantom Power, and One 1/8" Stereo Summing
Controls: Input Level, High Frequency, Low Frequency, 20dB Pad, Phantom Power
Indicators: Power LED, Compressor LED
Power Requirements: Internal Power Supply, 120-230 VAC~ 1.5A, 50/60Hz
Splowt* 25.11
Enclosure Materials: High Impact ABS Plastic
Mounting/Rigging: Built-in yoke bracket points
Color: Black
Accessories: IEC Power Cable, Wall/Stand Bracket Mount Kit, Rubber Feet, Quick Start Guide
Dimensions: 6.26" x 6" x 7.52" (159 x 152.4 x 191 mm)(HxWxD)
Weight: 4.3 lbs (1.95 kg)

Galaxy Audio HS7 Dual 5" Hot Spot Personal Passive Monitor Speaker 200 Watts

The HOT SPOT monitor series has been the world’s number one personal monitor since it’s invention in 1970. There are two basic concepts that have led to the continued success of the HOT SPOT. The first concept was to bring the monitor closer to the performer. Second, was to create an unpowered PA monitor speaker that projects mid/high range frequencies; a frequency tailoring that Galaxy Audio calls, controlled bandwidth.

By bringing the monitor closer, the stage volume can be reduced, which, in turn, helps clean up the front of house mix. The Galaxy Audio Hot Spot HS7 has integrated volume control that allows the performer to have more control over his/her volume and to hear the other musicians on stage.

Features:
200 Watt Power Handling
Freq. Response 150Hz – 18kHz
Sensitivity: 94dB, 1 W @ 1 m (1 kHz octave band)
16 Ohm Cabinet with Two NEOLITE 5″ Drivers
Two NEOLITE Neodymium, Ferrofluid Cooled 5″ Drivers
Input Connections: Two Twist-Lock / 1/4″ Combo Jacks (wired in parallel)
7 Position Volume Control Full on to -18dB in 3dB steps
High Impact ABS Plastic
Integrated Handle
Mounting Points for Mic Boom Adapter and Bracket
Mounts to Most Mic Stands
MSA-1 Stand Adaptor Included

Specificatons:
Frequency Response: 150Hz- 18kHz
Output/Peak: 200 Watts
Sensitivity: 94dB, 1 W @ 1 m (1kHz Octave Band)
Max SPL: 126dB
Speaker Compliment: Two 5" drivers (S5N-8) NEOLITE Neodymium, Ferro Fluid cooled
Nominal Impedance: 16 ohms
Input Connections: Two Twist Lock/1/4" combo jacks POS: +1 NEG: -1 wired in parallel
Controls: 18dB Stepped Attenuator Volume Control
Splowt* 24
Enclosure Materials: High Impact ABS Plastic, Integrated Handle
Mounting/Rigging: Built-in yoke bracket points, built-in mic stand insert
Color: Black
Accessories: MSA-1 Stand Adaptor, Rubber Feet, Quick Start Guide
Dimensions: 7.75" x 11.75" x 6.75" (197 x 298 x 171mm)(HxWxD)
Weight: 5.25 lbs (2.381 kg)

Galaxy Audio PA6BT 6" Powered Hot Spot Personal Stage Monitor Speaker Bluetooth

The original mic-stand-mountable Powered Hot Spot Full Range Compact Personal Monitor with controls right at your fingertips.

Galaxy Audio’s PA6BT Powered Hot Spot continues to be the industry standard in compact near-field live stage vocal monitoring. By minimizing the audio footprint and positioning the monitor in closer proximity to the performer, stage clutter and noise are drastically reduced for a more professional appearance and performance. The lightweight portability of Galaxy Audio compact monitors makes them ideal for gigging musicians and smaller stage venues.

The Powered HOT SPOT® PA6BT personal monitor focuses on live vocal reproduction. The need for a near-field vocal monitor became apparent as stage volumes became increasingly more difficult to control. The Powered HOT SPOT® PA6BT offers the perfect solution for many live stage and portable PA applications. The PA6BT can be mounted on a microphone stand, positioning the monitor in closer proximity to the user and reducing feedback on stage. The mic stand socket and included mic stand adapter on the PA6BT are designed for use with most mic stands. The integrated handle, mic boom mount, and built-in bracket mount points, combined with the optional MBA (mic boom adaptor), allow a gooseneck or microphone boom to be mounted on top of the unit for a clean monitor set-up.

Many performers purchase cumbersome 12″ or 15″ floor monitors, roll off the low end and crank up the volume in order to cut through the mix. The Full Range PA6BT’s front facing EQ allows the performer to boost the mid-range, and minimal distance to the performer reduces stage volume and feedback. Galaxy Audio Compact Monitors feature a small, lightweight design, making it easier to transport and is the perfect choice for audio clarity and articulation in hostile stage environments.

The Original Near-Field Compact Personal Vocal Monitor is still the preferred choice by audio professionals worldwide.

The PA6BT takes full advantage of recent improvements in speaker and amplifier technology, making it the lightest, most powerful, and cleanest sounding compact PA system we have ever offered. Features include Bluetooth® technology with its own volume control, a 155-watt NEOLITE 6.5″ Woofer, and our highly efficient 1.5″ 60-watt Tweeter. XLR pass-through on both channels allows independent control of mics without affecting the signal sent to the house PA. A –20dB Pad switch on each XLR input ensures that even the hottest signals will be accepted without overdriving the inputs. An additional 1/8″ Line input on Channel 2 will accept stereo or mono signals from sources including tape or digital media players as well as line-level instruments.

The two-way speaker system gives the PA6BT Powered Personal Monitor a much wider frequency response than earlier models. This means that full-range music, such as keyboards or backing tracks, will come through with solid bass and crisp highs. The enhanced frequency response makes the PA6BT a great stand-alone PA system for small club gigs, lectures, and A/V presentations. A simple adjustment of the 3-band EQ can tailor the response for singers who love the time-honored accentuated midrange of the classic Hot Spot vocal monitor. The PA6BT gives you the versatility you expect for diverse stage set-ups.

The PA6BT comes equipped with a built-in high-tech Class D 170-watt amplifier, designed to handle the most demanding audio environments. This proven, robust design allows the PA6BT to function both as a stand-alone powered personal monitor system or a high-powered vocal monitor designed to cut through loud stage volumes. For larger gigs that require more coverage, simply patch from the Preamp Output to the main house PA, while using the PA6BT as your onstage monitor.

The PA6BT also features a built-in 18dB Compressor/Limiter circuit with Compressor and Clip LEDs. The Compressor acts to smooth out transient peaks in the audio signal, resulting in improved overall sound quality and perceived volume. The Limiter is designed to protect the woofer and tweeter from possible damage caused by amplifier distortion. The Clip LED indicates when a reduction in volume is recommended.

“After years of wishing for a small powered speaker for my small private gigs and rehearsals, my dreams have been answered a hundredfold. The Galaxy PA6S is simply the best small monitoring system that I have ever heard that is on the market today. I am able to play 6-7 note Full piano chords, organ and synth leads at sustained high levels without ANY distortion, yet maintaining a brilliant clarity that fills rooms much larger than I thought capable of. Nothing… I mean NOTHING, gets close! I am a Galaxy fan for Life!”

Features:
Built-in Bluetooth® with Performer Facing Volume Control
170-Watt built-in amplifier
Freq. Response 80Hz – 18kHz
Max SPL 118dB
Two Way Speaker System:
6.5″ Neodymium High Power Woofer
1.5″ High-Efficiency Tweeter
Two Channels with Performer Facing Volume Controls:
CH.1 XLR / 1/4″, CH.2 XLR / 1/4″ & 1/8″
-20dB Pad Switches on each XLR Input
3 Band EQ Performer Facing Controls
Built-in Compressor/Limiter
Pass-Through on each XLR Input
Integrated Handle
Mounting Point for Mic Boom and Bracket
Mounts to Most Mic Stands
MSA-1 Stand Adaptor Included

Specifications:
Frequency Response: 80Hz - 18kHz
Output/Peak: 170 Watts @ 4 Ohms
Sensitivity: 98dB, 1 W @ 1 m (1kHz octave band)
Max SPL: 118dB
Speaker Compliment:
1 SW6.5, 6.5" NEOLITE Neodymium Woofer
1 ST1.5 ferro fluid cooled 1.5" NEOLITE
Neodymium Titanium Dome Tweeter
Nominal Impedance: 4 Ohms
Equalization:
Three Band Center Detent
Lo: ± 12dB @ 200Hz
Mid: ± 12dB @ 2kHz
Hi: ± 12dB @ 10kHz
Input Connections:
Two 1/4" Balanced/Unbalanced
Two XLR +28V Phantom Power
One 1/8" Stereo Line In
Output Connections: Two XLR Thru Outputs, One 1/4" Preamp Output
Controls: CH1 & CH2 Level, High Frequency, Mid Frequency, Low Frequency, CH1 & CH2 20dB Pad, Bluetooth® Button, Bluetooth® Volume Control, Power Switch
Indicators: Power LED, Clip LED & Compressor LED
Protection: Short circuit current limiting. Short circuit foldback limiting. Thermal short circuit protection
Power Requirements:
Domestic: 120Vac~ 60Hz
Export: 230Vac~ 50Hz
Splowt* 18.44
Enclosure Materials: Fire Retardant Styrene, Integrated Handle
Mounting/Rigging: Built-in yoke bracket points, built-in mic stand insert
Color: Black
Accessories: MSA-1 Stand Adaptor, IEC Power Cable, Quick Start Guide
Dimensions: 7.75" x 11.75" x 6.75" (197 x 298 x 171 mm)(HxWxD)
Weight: 6.4 lbs (2.9 kg)

Galaxy Audio AS-950N Any Spot Series In Ear Wireless Personal Monitoring System

AS-950N Any Spot Series Wireless Personal Monitoring System includes the AS-950T Transmitter and one AS-950R Bodypack Receiver. This system offers 16 selectable channels and allows the wireless transmission of audio signal in either mono or stereo formats at a range of up to 200', thereby permitting musicians, singers, and lecturers to perform without significant tethers to cabled systems.

The receiver provides an audio output level of 50mW per L/R channel (100mW total) and features a standard 3.5mm stereo headphone jack. Powered by two AA batteries, the unit lasts up to 12 hours. The transmitter provides a L/R level display, two XLR-1/4" combo input jacks, a stereo/mono switch, and a headphone output with volume control. The transmitter includes a single/dual rack-mount kit, for mounting one unit in a single rack space or mounting two transmitters side by side in a single rack space.

The AS-950 Wireless System can help eliminate extraneous stage noise, aid in the protection from hearing damage, and limit on-stage feedback, thereby permitting performers to move around the stage or audience all while hearing their monitor mix. The Galaxy Audio AS-950N also comes one set of EB4 earbuds, an antenna, and a power supply.

Features:
16 Selectable UHF Frequencies
200' Range
Includes Transmitter
1 Bodypack Receiver
100mW Earphone Out with Vol Control
Level Display & Combo XLR-1/4" Inputs
Includes EB4 Earbuds
Includes Rackmount and Hardware
Includes Antenna and Power Supply
Show Less

Specifications
AS-950T
16 selectable UHF frequencies
Send a stereo or mono mix to any number of receivers on stage
Easy setup right out of the box
XLR-1/4" combo line level input
Easy to read audio LED indicators
Input level control
1/4" headphone output with volume control for easy monitoring
AS-950R
Built-in limiter
Multi-function LCD display
Up and down channel select buttons
Operates on 2 AA batteries (alkaline or rechargeable)
Lightweight titanium driver EB4 earbuds included

Galaxy Audio ESM8-OBG-4SHU Single Earset Microphone Headset 4 Shure Cable

Galaxy Audio offers the best choice for quality performance in an affordable over the ear microphone headset. The super lightweight design makes wearing the ESM8 microphone more comfortable, even for long periods of time, without using excessive pressure to hold the microphone in place. The soft microphone stem allows for easy adjustment of the microphone’s position as you wear the headset. These over the ear headset microphones, work great with many available wireless transmitters. Our detachable cables can be wired to work with transmitters made by Galaxy Audio®, AKG®, Shure®, Audio-Technica® & Sennheiser®. We can also custom wire to work with virtually any brand or model of the wireless transmitter. You can also use the Galaxy Audio ESM8 over the ear microphone headsets with most PC sound cards (adaptor not included).

Features:
Hooks Around One Ear
Flexible for Easy Formation
4″ Mic Boom Length (Omni)
4.7″ Mic Boom Length (Uni)
3.5 mm Omni Mic Diameter
7 mm Uni Mic Diameter
Condenser Element
Freq. Response:
Omni..20Hz-20kHz
Uni…..50Hz-16kHz
Detachable Cables 4 included

Specifications:
Polar Pattern: Uni-Directional / Omni-Directional
Frequency Response:
Omni: 20Hz - 20kHz
Uni: 50Hz - 16kHz
Impedance:
Omni: 1,800 Ohms
Uni: 1,000 Ohms
Sensitivity:
Omni: -65dB re. 8mV/Pa
Uni: -67dB re. 5mV/Pa
Max SPL 135dB
Operating Voltage: 1.5 - 9 Vdc
Cable Length: 4' (1.22 m) x 1.5 Diameter, 1.5 mm Thick Detachable Cable
Mic Boom Length:
Omni: 4"
Uni: 4.7"
Element (Omni):
Omni: Diameter 3.5 mm
Uni: Diameter 7 mm
Element Type: Back Electret Condenser
Included Accessories: Choice of 4 Free Standard Cables*, Windscreen, Choice of Cable, Manual
Color: Beige (Omni and Uni)
Weight Without Cable (Omni):
Omni: 2.8g
Uni: 2.9g
*4 Free Standard Easy-Replace Cables. Galaxy Audio®/AKG®, Shure®, Audio Technica®, and Sennheiser® or a Mix of all 4. We wire for most brands. Additional charges may apply.

Galaxy Audio HSM8-OBG-4SHU Dual Earset Microphone Headset 4 Shure Cable

Galaxy Audio offers the best choice for quality performance in an affordable headset. The super lightweight design makes wearing the Galaxy Audio HSM8 dual ear headset microphone more comfortable, even for long periods of time, without using excessive pressure to hold the microphone in place. The soft microphone stem allows for easy adjustment of the microphone’s position as you wear the headset. These Headset microphones, work great with many available wireless transmitters. Our detachable cables can be wired to work with transmitters made by Galaxy Audio®, AKG®, Shure®, Audio-Technica® & Sennheiser®. We can also custom wire to work with virtually any brand or model of the wireless transmitter. You can also use the Galaxy Audio HSM8 lightweight dual ear headset microphone with most PC sound cards (adaptor not included).

Features:
Hooks Around Both Ears
Flexible for Easy Formation
1.2″ – 7″ Adjustable Mic Boom Length (Omni)
2″ – 7.9″ Adjustable Mic Boom Length (Uni)
3.5 mm Omni Mic Diameter
7 mm Uni Mic Diameter
Condenser Element
Freq. Response:
Omni..20Hz-20kHz
Uni…..50Hz-16kHz
Detachable Cables 4 included

Specifications:
Polar Pattern: Uni-Directional / Omni-Directional
Frequency Response:
Omni: 20Hz - 20kHz
Uni: 50Hz - 16kHz
Impedance:
Omni: 1,800 Ohms
Uni: 1,000 Ohms
Sensitivity:
Omni: -65dB re. 8mV/Pa
Uni: -67dB re. 5mV/Pa
Max SPL: 135dB
Operating Voltage: 1.5 - 9 Vdc
Cable Length: 4' (1.22 m) x 1.5 Diameter, 1.5 mm Thick Detachable Cable
Mic Boom Length:
Omni: 1.2" - 7" Adjustable
Uni: 2" - 7.9" Adjustable
Element:
Omni: Diameter 3.5 mm
Uni: Diameter 7 mm
Element Type: Back Electret Condenser
Included Accessories: Choice of 4 Free Standard Cables*, Windscreen, Cable Clip, Manual
Color: Beige
Weight Without Cable:
Omni: 5.1g
Uni: 5.2g
*4 Free Standard Easy-Replace Cables. Galaxy Audio®/AKG®, Shure®, Audio Technica®, and Sennheiser® or a Mix of all 4. We wire for most brands. Additional charges may apply.

Galaxy Audio RM-CD Rackmount DVD CD MP3 SD USB Player Module

The Galaxy Audio CD player module, the RM-CD, will play burned/custom audio CDs in both wave and MP3 format, plus it accepts USB and SD formats. Functions include Power, Play, Pause, Stop, Eject, & Track selection.
Power supplied by TV8 and TV10.

Features:
CD/MP3 Player
LCD Display
Volume Control
Track Selector
Play, Pause, Stop Function
Remote Control
