The FSII-SPL is a splitter that connects multiple FreeSpeak II transceiver antennas to an Eclipse® HX matrix (via E-QUE-HX card) or a FreeSpeak II base station. The splitter provides up to five antenna feeds from one antenna port and has an SFP fiber slot for fiber connectivity.

• Functions with FSII base, FreeSpeak Edge base, Arcadia Central Station, and E-IPA-HX cards

• Provides 5 FSII transceiver feeds on one port on FSII base station or E-IPA-HX card

• SFP fiber slot for fiber link to FSII base station or as a fiber bridge between FSII-BASE-II stations and Eclipse HX frames

• Supports both multi-mode and single-mode fiber

• Configure settings using DIP switches

• IP-63 water resistance for outdoor use

• LED status indicator on front and back

• Mic stand or wall mount orientation (metric and imperial threads)

  Connections

  Transceiver Antenna: 5 Ethercon RJ45, each with yellow LED indicators on front and back

  Matrix: 1 Ethercon RJ45, with yellow LED indicator on front and back

  Fiber: 1 SFP port



  Power

  Splitter: Requires external power supply (included)

  Transceiver Module: Provides power to modules via RJ45 connections



  Mounting Options

  Wall Mount with 4 mounting points Mic Stand Mount (metric and imperial threads

  Environmental

  IP63 water resistance for outdoor use +32° to +122°F (0° to +50°C)

Clear Com RS-702 2ch Analog Partyline Intercom Belt pack System

The RS-702 is a two-channel analog beltpack with an XLR-6 line connector and XLR-4M headset connector. A mic preamp with a dynamic range of 130 db enables intelligible voice communication for every volume level, from a whisper to a shout. The beltpack also combines high headroom, low-noise audio and shaped frequency contour (Clear-Com Sound) to deliver crystal-clear audio. The RS-702 is compatible with all Encore partyline products, as well as the PL-Pro line and other partyline systems via Encore interfaces.

Features:
XLR-6 line connectors for 2-Channel + Program Audio
Visual LED indicators on top of keypad
Tactile buttons for Call and Talk
Recessed rotary controls for Volume with end stops
Concealed, programmable DIP switches
Program Audio thumbwheel adjustment
Fully compatible with current and previous Clear-Com analog partyline systems
Low operating current for more beltpack daisy-chaining
Rugged and strong construction
“Clear-Com Sound” for intelligible audio

Specifications:
Microphone Pre-Amplifier
Mic to Line (without limiter acting)
Frequency Response: 280 – 15kHz ± 3dB
Microphone output to line – Audio Level (-50dBm Electret input): -9dBm
Microphone output to line – Distortion: <0.1%
Microphone output to line – Signal to Noise: >65dB
Clear-Com Sound: Yes
Headphone Amplifier
Frequency Response – Line to Headphone: 150 – 20kHz ± 3dB
Headphone input from line – Audio Level (-9dBm Electret input): 7dBm
Headphone input from line – Distortion: <0.5%
Headphone input from line – Signal to Noise: >50dB
Earphone to Mic – Crosstalk: >80dB
Sidetone – Adjustment Range (-80db mic input): >45dB
Keypad Indicators
Power: Green LED
Talk A and B: Green LED
Call A and B: Orange LED
Connectors
Intercom Line: (2) 6-pin XLR–M–F Switchcraft pin layout*
Pin 1: Common
Pin 2: PL Power (+28V DC)
Pin 3: PL Ch-B
Pin 4: PL Ch-A
Pin 5: Program Audio +
Pin 6: Program Audio - Each intercom channel should be an individually shielded pair
Headset: 4-pin XLR–M
Pin 1: Mic - (Mic Common)
Pin 2: Mic +
Pin 3: Spkr-
Pin 4: Spkr+ (and 0.5*VCC DC, supply between Pin 4 and Pin 1)
Power
Input Voltage Range: 12-30V DC
Input Current (Idle): <=25mA
Input Current (Max): <=40mA
Call Voltage: 16.5V DC
Minimum Voltage Needed: 3.3V
Environmental: 32° - 158°F (0° - 70°C)
Relative Humidity:
0 - 90%, non-condensing
Dimensions:
3.4 x 4.5 x 1.7in (HxWxD)
(86 x 114 x 43mm)
Weight: 10.5oz (0.30kg)

Clear-Com YC-36 Dual Channel Adapter for RS-602 or RS-622 Belt Pack

YC-36 - "Y" Adapter Plus into the 6-pin male XLR intercom connector on a RS-602 or RS-622 beltpack. The other end provides two 3-pin female XLR connectors, for separate line connection to channels A and B.

Features:
3-pin to 6-pin adapter
Combine two single-channel 3-pin cables into a single 2-channel 6-pin connector
For use with RS-702, RS-602 and RS-622 (2-channel beltpacks)

Clear Com FSII-BP19-X4-US 1.9GHz Digital Wireless Intercom Belt Pack

The FSII-BP19 is a rugged, water-resistant beltpack that operates in the ISM licensefree 1.9GHz frequency range. Featuring the “Clear-Com Sound”, the FSII-BP19 has high audio bandwidth for superior intelligibility and listening comfort.

The FSII-BP19 can connect to the FreeSpeak II base station or to Eclipse HX card frame matrices using the E-QUE-HX interface card. FSII-BP19 users can roam seamlessly between FSII-19-TCVR antennas over wide areas. The “Listen Again” feature allows users to replay earlier commands, eliminating the need to repeat communication or disturb productions. FSII-BP19 have continuous reception over a 1400 ft range in good radio conditions.

The FSII-BP19 can be mixed with FSII-BP24 on the same system, increasing the quantity of beltpack users in a single radio space. In the US, between 50 – 65 users can operate on a single system, while the rest of the world can have between 70 - 90 users in the same radio space.

The FSII-BP19 are IP-65 rated for wet weather or dusty conditions making them ideal for outdoor productions. For better grip and protection, the beltpacks have a rubberized over-mold to protect from the most rugged environments.

Using the BAT60 Li-Ion battery, the FSII-BP19 has 18+ hours of battery life. Using an alternative set of 3 AA cells, the battery life is 6-9 hours. The beltpacks also include an USB charging port for recharging or for continuous powered transmissions.

Features:
Functions with FSII-Base, and FSII-Base-II, FreeSpeak Edge Base Station, Arcadia Central Station, E-IPA-HX Cards, and FSII Splitter
Typical indoor range: 300 ft (90 m), outdoor range: 800 ft (240 m)
1.9 and 2.4 GHz beltpacks operate interchangeably on a single system
5 to 200 beltpacks supported on a single system (See Product Line Cross Functionality Chart)
Encoder Volume Swap between A&C and B&D
"Listen Again" message replay
Simple 2-channel partyline operation to 5-channel intercom on the same beltpack
Over-the-air beltpack registration
18+ hour battery life or USB port for continuous operation
XLR-4M headset connector
IP53 rating for wet and dusty conditions
Built-in flashlight

Specifications:
Audio
Audio Bandwidth: 200Hz-7.5KHz
No. of Full-Duplex Audio Paths: Up to 5 with individual level control (2 dedicated rotaries, 3 with menu), 2 controls and a main volume
Mode of Operation: Full duplex on all routes
Level/Talk Controls: 4 pushbuttons, a reply button and 2 rotary controls
Enter/Answer-Back Button: 1
Frequency Spectrum
USA, Canada, Mexico: 1920-1930 MHz
Transceiver Range Output Power: 100mW
EU, Russia, Ukraine, Singapore, Hong Kong, Australia, New Zealand, South Africa: 1880-1900 MHz
Transceiver Range Output Power: 250mW
Japan: 1893-1906 MHz
Transceiver Range Output Power: 250mW
Argentina: 1910 MHz-1930 MHz
Transceiver Range Output Power: 250mW
Brazil: 1910 MHz-1930 MHz
Transceiver Range Output Power: 250mW
Chile: 1910 MHz-1930 MHz
Transceiver Range Output Power: 70mW
Taiwan: 1880-1895 MHz
Transceiver Range Output Power: 250mW
Connectors
Headset Connector: 4-pin male, Clear-Com standard, options for 5-pin female and 7-pin male with PTT
Headset Voltage: Maximum of ~+8dBu as set by firmware
Microphone Type: Electret and Dynamic, selectable in beltpack menu
Microphone Voltage: Electret Mic:-45dBu (additional 2.5V DC bias voltage positive on Pin 2 and negative on Pin 1 via a 1k resistor).
Dynamic Mic: -55dBu
Headset Limiter: Selectable from beltpack menu
Power
Modulation: GFSK, TDMA frame 10ms Full and Long slot
Output Power: (EU/Russia) 10dBm average, (US) 18-20dBm
Range: Typical indoor range 300ft (90m), outdoor range 800ft (240m)
Battery: Li-Ion or 3 AA alkaline cells
Battery Charging: Drop-in charger (AC60) or local USB
Battery Life: 18+ hours with Li-Ion; 9 hours with 3 x Alkaline AA cells
Environmental
IP53 water and dust resistance
Operating: 32º-125ºF (0º-50ºC)
Storage: 32º-150ºF (0º-70ºC)
Humidity: Between 20% and 90%, Non-Condensing
Dimensions:
Tapered design at largest points
3.75 x 5 x 1.5in (HxWxD)
(97 x 130 x 45mm)
Weight:
9.0oz (0.4kg) including batteries

Clear Com BAT60 Spare Lithium Ion Battery for FSII 1.9GHz and FSII 2.4GHz Belt Packs

The BAT60 from Clear-Com is a lithium-ion battery for use in their FreeSpeak II 1.9GHz and 2.4GHz beltpacks. Provide you and your team with 18 continuous hours of talk time.

Features:

Spare FreeSpeak II Battery: Spare FreeSpeak II

Beltpack spare Li-ion battery

For use in FSII 1.9GHz and FSII 2.4GHz beltpacks

Dimension:

2 x 1.5 x 5/8in

Weight:

2.0 oz

Clear Com CC-110-X4 Single On Ear Intercom Headset with 4 Pin Female XLR

The CC-110-X4 is a single-ear premium light-weight headset that has high performance headphones and cardioid dynamic microphones that provide high quality audio. The headset has a flexible design and includes both a soft leatherette or foam ear pad for superior comfort.

Features:
High quality dynamic cardioid microphone
20Hz -20KHz frequency response
Choice of earpads: leatherette or foam
Flexible gooseneck microphone positioning
Boom rotation ON/OFF switch for quick microphone muting
Interchangeable cabling for easy connector change and repair
Fully serviceable headset
Rugged design

Specifications:
Headphone
Type: Closed-back
Driver: 36mm diameter, neodymium magnet, copper-clad aluminum wire voice coil
Frequency Response: 20Hz v- 20kHz
Impedance: CC-110: 400O ±30%; at 1kHz typical
Microphone
Element: Dynamic
Driver: 15mm, neodymium magnet
Polar Pattern: Cardioid
Frequency Response: 250Hz - 20kHz
Impedance: CC-110: 200O ±30%; at 1kHz typical
Power
Maximum: 500mW
Sensitivity
Microphone Open Circuit Sensitivity: -64dB ±3.5dB; (0dB=1V/1Pa, at 1kHz , typical)
Headphone Sensitivity
CC-110: 99dB ±3dB (SPL) / 1mW, at 1kHz typical
Connector
Cable: 5ft (1.55m) long with 8-pin connector at headset end; 4-pin Female XLR
Dimensions
Packaging for CC-110: 6.7 x 8 x 3.5in (WxHxD)
(170 x 205 x 90mm)
Weight
CC-110: 5.1oz (145g) without 8-pin cable assembly and M3*18mm SCREW

Clear-Com AC60 5 Way Drop In Belt Pack and BAT60 Battery Charger

AC60 5-way battery and beltpack charger for the FreeSpeak II system. With five charging ports fitting BAT60 lithium-ion batteries.

Features:
FreeSpeak II 5 way charger: FreeSpeak II 5 bay
Drop in beltpack charger and battery charger
Unit. Comes with AC adapter part # 453G008-1

Specifications:
Dimension: 7 x 12.5 x 2.5in (WxLxD/H)

Weight:
Without power supply: 1.8lb
Power supply: 1.2lb

Clear Com CC-400-X4 Double Ear Closed Back Intercom Headset with 4 Pin Female XLR

The CC-400 double-ear headset features high ambient-noise attenuation headphones and a hyper-cardioid dynamic microphone that provide high quality audio. The headset has a flexible design and soft-ear pads to offer superior comfort. Able to rotate 300 degrees, the microphone boom acts as an On/Off switch for quick microphone muting.

Features:
High quality dynamic cardioid microphone
High ambient-noise attenuation headphones
Microphone: 300Hz - 20kHz frequency response
Headphone: 40Hz - 20kHz frequency response
Cushioned with soft leatherette padding
Flexible gooseneck microphone positioning
300-degrees boom mic rotation for ON/OFF mic-mute switch
Rugged design

Specifications:
Headphone
Type: Closed-back
Driver: 40mm diameter, neodymium magnet, copper-clad aluminum wire voice coil
Frequency Response: 40Hz v- 20kHz
Microphone
Element: Dynamic
Polar Pattern: Hyper-cardioid
Frequency Response: 300Hz - 20kHz
Sensitivity
Microphone Open Circuit Sensitivity: -61dB ±3.5dB (0dB=1V/1Pa, at 1kHz , typical)
Headphone Sensitivity
CC-400: 98dB ±3dB (SPL) /1mW at 1kHz typical)
Impedance
CC-400: 200O ±30%; at 1kHz typical
Microphone: 200O ±30%; at 1kHz typical
Connector
Cable: 5ft (1.55m) long with 8-pin connector at headset end; 4-pin Female XLR
Dimensions
Packaging for CC-400: 4.8 x 13 x 10.43in (WxHxD)
(122 x 330 x 265mm)
Weight
CC-400: 11.1oz (315g) without 8-pin cable assembly and M3*18mm SCREW

Clear Com PS-702 2ch 2 Amps Rackmount Intercom Power Supply

The PS-702 can supply up to 2 amps at 30 volts DC to two channels in a 1-RU. This is sufficient to power up to 40 beltpacks,10 speaker stations, or 12 headset stations even under the most demanding conditions. Either channel is capable of supplying up to 1.2 amps. The full current capacity may be divided between the two channels.

Clear-Com’s advanced fail-safe design can sense the difference between a short and an overload. Should a problem occur, each channel’s DC overload/fault LED identifies the power supply’s response to the problem: solid means an overload is sensed, but still powered; blinking means power has been temporarily cut off to protect the power supply. If both channels are operating and one channel has a fault, the other channel will continue to operate normally. Power is restored to the shorted or overloaded channel in a little as .5 seconds. With our exclusive Intelligent Fault/Overload Sensing (IFOS), the PS-702 will dynamically increase this time period before attempting another reset until the fault or overload is corrected. This function significantly extends component life. And there is no need to disconnect stations for the power supply to reset.

The unit also offers a convenient front panel intercom line jack, switchable to either channel. This can be quite handy for trouble-shooting or simply a time saver when quick access to either intercom line is needed. A 440Hz tone is available on either or both channels and is indispensable for system diagnostics and set-up. Simply flip a switch, set a level, and go.

Like all current Clear-Com Party-Line power supplies, two or more units can be connected in parallel for increased system capacity or backup redundancy. Multiple units will automatically synchronize their response to power faults and overloads. The PS-702 can also operate as a singlechannel unit by using the front-panel A+B link switch.

Features:
Provides up to 2 amps in only 1RU
Supports up to 40 beltpacks, 10 speaker stations or 12 headset stations
Exclusive IFOS Intelligent Fault/ Overload Sensing for system reset
Front panel intercom line jack selectable for either channel
A+B Link switch for single channel operation
Balanced program input with global and individual channel controls
Universal power supply accepts 100-240 VAC
Overload/fault indicator for each channel
Built-in test tone generator for set up and diagnostics
Switchable terminations for each channel
Works in parallel with other power supplies and main stations
UL Listed and CE certified

Specifications:
Program Line Input:
Maximum Level before Clipping: >= 20dBu Input Impedance: >= 5K
Frequency Response:
Program Input - Partyline: 200 - 20kHz ± 3dB
Max Distortion:
Program Input - Partyline: <= 0.2%
Noise:
Program Mic Input - Partyline: < -70dBu
Max Gain:
Program Input - Partyline: >= -16dB
Min Gain:
Program Input - Partyline: <= -20dB
Mains Power:
Input Voltage Range: 100 - 240V AC
Input Frequency Range: 50 - 60Hz
Input Power: <= 60V AC
Output Voltage: 30V DC ± 0.5V
Output Current per Channel (Continuous): 1.2A
Output Current per Channel (Peak): 2A (Do not exceed the 1.2A rating for more than 2 seconds per 1 minute period)
Short Circuit Recovery Time (1st short):<= 0.5 sec
Short Circuit Recovery Time: >= 20 shorts in 20sec) <= 20 sec
Environmental:
32° - 122°F (0° - 50°C)
Dimensions:
1.75 x 19 x 7.5in (HxWxD)
(44 x 483 x 190mm)
Weight:
6.16lbs (2.80kg)

Clear-Com CC-300-X4 Closed Back Single Ear Headset with XLR4 Connector and Microphone

The CC-300 (single-ear) headsets feature high performance headphones and cardioid dynamic microphone that provide high quality audio. The headset has a flexible design and a soft-ear pad to offer superior comfort. Able to rotate 300 degrees, the microphone boom acts as an On/Off switch for quick microphone muting.

Features:
High quality dynamic cardioid microphone
High ambient-noise attenuation headphones
Microphone: 300Hz - 20kHz frequency response
Headphone: 40Hz - 20kHz frequency response
Cushioned with soft leatherette padding
Flexible gooseneck microphone positioning
300-degrees boom mic rotation for ON/OFF mic-mute switch
Rugged design

Specifications:
Headphone
Type: Closed-back
Driver: 40mm diameter, neodymium magnet, copper-clad aluminum wire voice coil
Frequency Response: 40Hz v- 20kHz
Microphone
Element: Dynamic
Polar Pattern: Hyper-cardioid
Frequency Response: 300Hz - 20kHz
Sensitivity
Microphone Open Circuit Sensitivity: -61dB ±3.5dB (0dB=1V/1Pa, at 1kHz , typical)
Headphone Sensitivity
CC-300: 102dB ±3dB (SPL) /1mW at 1kHz typical)
Impedance
CC-300: 400O ±30%; at 1kHz typical
CC-400: 200O ±30%; at 1kHz typical
Connector
Cable: 5ft (1.55m) long with 8-pin connector at headset end; 4-pin Female XLR
Dimensions
Packaging for CC-300: 4.8 x 13 x 10.43in (WxHxD) (122 x 330 x 265mm)

Clear Com FSII-BP24-X4 2 Channel Digital Wireless Belt Pack Intercom Male XLR

The FSII-BP24 is a rugged, water-resistant beltpack that operates in the ISM license-free 2.4 GHz frequency range. Featuring the “Clear-Com Sound”, the FSII-BP24 has high audio bandwidth for superior intelligibility and listening comfort.

Features:
Functions with FSII base, FreeSpeak Edge base, Arcadia Central Station, E-IPA-HX card, and FSII splitter hardware
Typical indoor range: 300 ft (90m), outdoor range: 800 ft (240m)
1.9 and 2.4 GHz beltpacks operate on a single system
Up to 65 – 90 beltpacks on a single system
"Listen Again" message replay
Simple 2-channel partyline operation to 5-channel intercom on the same beltpack
Over-the-air beltpack registration
18+ hour battery life or USB port for continuous operation
XLR-4M headset connector
IP53 rating for wet and dusty conditions
Built-in flashlight

Specifications:
Audio
Audio Bandwidth: 200Hz-7.5KHz
No. of Full-Duplex Audio Paths: Up to 5 with individual level control (2 dedicated rotaries, 3 with menu), 2 controls and a main volume
Mode of Operation: Full duplex on all routes
Level/Talk Controls: 4 pushbuttons, a reply button and 2 rotary controls
Enter/Answer-Back Button: 1
Radio
Frequency Spectrum: 2.400-2.483MHz for EU and US cellular auto roaming technology
Modulation: GFSK, TDMA frame 10ms full and long slot
Output power: (EU) 18-22dBm, (US) 18-20dBm
Range: Typical indoor range 300ft (90m), outdoor range 800ft (240m)
Battery: Li-Ion or 3 AA alkaline cells
Battery Charging: Drop-in charger (AC60) or local USB
Battery Life: 18+ hours with Li-Ion; 9 hours with 3 x Alkaline AA cells
Connectors
Headset Connector: 4-pin male, Clear-Com standard, options for 5-pin female and 7-pin male with PTT
Headset Voltage: Maximum of ~+8dBu as set by firmware
Microphone Type: Electret and Dynamic, selectable in beltpack menu
Microphone Voltage: Electret Mic:-45dBu (additional 2.5V DC bias voltage positive on Pin 2 and negative on Pin 1 via a 1k resistor).
Headset Limiter: Selectable from beltpack menu
Environmental
IP53 water and dust resistance
Operating: 32º-125ºF (0º-50ºC)
Storage: 32º-150ºF (0º-70ºC)
Humidity: Between 20% and 90%, Non-Condensing
Dimensions
Tapered design at largest points
3.75 x 5 x 1.5 in (HxWxD) (97 x 130 x 45mm)
Weight
9.0 oz (0.25kg) including batteries

Clear-Com FSII-TCVR-24 Transceiver Active Intercom Antenna for FSII-BP24 Beltpacks

The FSII-TCVR-24 is an active transceiver antenna for the FSII-BP24 beltpacks. The antenna can be locally powered or powered via the FSII base station or matrix on shorter connections (less than 1000 ft). The FSII-TCVR-24 has a mount for wall or microphone stand. A blue status light is visible from either mounting orientations. When mixed with FSII-TCVR-19 antennas, a single radio space can support up to 65-90 FreeSpeak II 1.9 GHz or 2.4 GHz beltpacks.

Features:
Functions with FSII base, FreeSpeak Edge base, Arcadia Central Station, E-IPA-HX card, and FSII splitter hardware
Uses existing FSII base, E-QUE-HX cards, and FSII splitter hardware
Supports 4 FSII-BP24 beltpacks per FSII-TCVR-24 transceiver
Supports systems with up to 65-90 beltpacks when mixed with FSII-19-TCVRs
Blue LED status indicator on top and bottom
Mic stand or wall mount orientation (metric and imperial threads)
IP53 rating for wet and dusty conditions

Specifications:
Frequency Spectrum: 2.400-2.483GHz for EU and US Cellular auto roaming technology
Modulation: GFSK, TDMA frame 10ms full slot
Output power: (EU): 18dBm, (RoW): 22dBm
Environmental
IP53 water and dust resistance
Operating: 32º-125ºF (0º-50ºC)
Storage: 32º-150ºF (0º-70ºC)
Humidity: Between 20% and 90%, Non-Condensing
Dimensions
6.75 x 5.5 x 2in (HxWxD)
(173 x 134 x 52mm)
Weight
15.7oz (0.45kg)

Clear Com FSII-BASE-II Digital Wireless Base Station up to 25 FSII Belt Packs

FSII-Base-II-5 FreeSpeak II Digital Wireless Base Station is the perfect companion for all of your 1.9GHz and 2.4GHz FSII beltpacks. With compatibility for up to five packs, routing and configuration for all of your units can be handled by a single base station. The FSII-Base-II-5 features a quartet of 2-wire connections for analog partyline connection, alongside four 4-wire audio connections and four displays equipped with soft keys.

Features:
Supports both 1.9GHz and 2.4GHz FSII beltpacks on a single base station
Routing and configuration of up to 25 FreeSpeak II beltpacks
Four 2-wire ports with call signal, auto nulling (Clear-Com and RTS)
Supports 2 transceivers natively and up to 10 transceivers via FSII splitter
Fiber transceiver connections, supports two fiber-enables FSII splitters
Multi-mode user interface has monitoring, setup and main station modes with assignable soft keys
GPIOs allow assignment to trigger cue lights, tally or radios
Matrix and partyline configurations support up to 12 channels and/or groups
DECT Sync ports for optimizing co-located systems
RF Audio Filter improves system performance in hard RF environments
Browser-based Core Configuration Manager (CCM) with InSite for real-time statistics, beltpack and transceiver diagnostics, and functionality such as Remote Mic Kill
Text messaging from CCM to wireless beltpacks

Specifications:
Base-to-Beltpack Frequency Response: 100Hz - 7.1kHz
No. of Beltpacks per Base Station: 25
No. of Transceiver/ Antennas Supported by Base: 10
No. of Active Transceiver Ports: 2, one port can remotely power up to 1 FSII splitter or 1 FSII transceiver
PC Programming Port: 2 LAN RJ45
Relay Port: DB15, supports one relay assigned to the SA out
Partyline A , B, C ,D (each): XLR-3F, on/off termination switch, Clear-Com and RTS compatible
Partyline Power On/Off: A/B, C/D paired
Partyline Output Voltage: 26 - 28V DC, 400mA per pair (A/B or C/D)
4-Wire/Matrix Connection: 4 RJ45
Program Input: XLR-3F, transformer isolated, line-level input
Stage Announce Output: XLR-3M, transformer isolated, line-level output
Front Panel Headset: 4-pin male and 5-pin female options
Front Panel Displays: 4 OLED’s with encoders and assignable soft keys
Front Panel Indicators: Antenna Status, Beltpack Status
External Power Supply Connection: 12V DC Base Station
Programming/Editing: Push-to-enter rotary encoder
Power
Input: 100-240V AC, 1.4A max
Output: 12V DC, 60W,
5A Current Draw: 12V, 4A max, 48W max
Dimensions
1.75 x 19.0 x 10.2in (HxWxD)
(44 x 483 x 259mm)
Weight
5.57lbs (2.5kg)

Clear Com RS-701 Single Channel Analog Beltpack Intercom XLR 3 Connector

The RS-701 is a single-channel analog beltpack that can carry power and audio through the XLR-3 line connector. Each beltpack combines high headroom, low-noise audio and shaped frequency contour (the “Clear-Com Sound”) to deliver clear audio.

Note: Access the Encore Power Supply Calculator to estimate power requirements for analog partyline systems.

Features:
Visual LED indicators on top of keypad
Tactile buttons for Call and Talk
Recessed rotary controls for Volume with end stops
Concealed, programmable DIP switches for Latch Talk, Talk with Call, LEDs Off, Mic Gain, Mic Type and HP Level Off
Fully compatible with current and previous models of Clear-Com analog partyline systems
Low operating current for more beltpack daisy-chaining
Rugged and strong construction
“Clear-Com Sound” for intelligible audio

Specifications:
dBu is an absolute measurement. 0dBu is referenced to 0.775 volts RMS
Microphone Pre-Amplifier
Mic to Line (without limiter acting)
Frequency Response: 280 – 15kHz ± 3dB
Microphone output to line – Audio Level (-50dBm Electret input): -9dBm
Microphone output to line – Distortion: <0.1%
Microphone output to line – Signal to Noise: >65dB
Headphone Pre-Amplifier
Frequency Response – Line to Headphone: 150 – 20kHz ± 3dB
Headphone input from line – Audio Level (-9dBm Electret input): 3.5dBm
Headphone input from line – Distortion: <0.5%
Headphone input from line – Signal to Noise: >50dB
Earphone to Mic – Crosstalk: >80dB
Sidetone – Adjustment Range (-80db mic input): >45dB
Keypad Indicators
Power: Green LED
Talk: Green LED
Call: Orange LED
Connectors
Intercom Line: (2) 3-pin XLR–M–F
Pin 1: Common
Pin 2: PL Power (+28V DC)
Pin 3: Line (Audio)
Headset: 4-pin XLR–M
Pin 1: Mic - (Mic Common)
Pin 2: Mic +
Pin 3: Spkr-
Pin 4: Spkr+ (and 0.5*VCC DC, supply between Pin 4 and Pin 1)
Power
Input Voltage Range: 12-30V DC
Input Current (Idle): <=12mA
Input Current (Max): <=28mA
Call Voltage
16.5V DC Minimum Voltage Needed: 3.3V
Environmental
32°F - 158°F (0°C - 70°C)
Dimensions
3.4 x 4.5 x 1.7in (HxWxD)
(86 x 114 x 43mm)
Weight
10.5oz (0.30kg)

Clear Com FL-7 Light Call Signal Flasher Intercom System

The FL-7 Call Signal Flasher is a compact, low profile module which provides a visual and/or audible call signal indication whenever a call signal is present on the intercom line.

Note: Access the Encore Power Supply Calculator to estimate power requirements for analog partyline systems.

Features:
Provides visual and/or audible indication of a call signal
LED design with dimmer
Front panel mode switch selects flasher, ring or both
Control both tone volume and light brightness

Flash Rate
2 times/sec
Flasher Lens
2.5in diameter red
Rear Panel Connectors
One each XLR-3F and XLR-3M
Power Requirements
Input Voltage: 20-30V DC
Input Current: (idle) <= 10mA
Input Current: (max) <= 90mA
Front Panel Controls & Indicators
Brightness Control Three-way switch for flash and tone Tone level control Speaker
Environmental
32° to 122°F (0° to 50°C)
Dimensions
2.5 x 4 x 5.0in (WxHxD)
(63 x 101 x 127mm)
Weight
0.91lbs (0.415kg)

Clear Com KB-702 2 Channel Wall Mounted Remote Headset Speaker Station Intercom

The KB-702 remote speaker station permits the user to select between two channels of party-line communications, with the ability to talk and/or listen on the selected channel. The user can listen via the integral speaker, or may use a headset or telephone-style handset - and can talk via a headset mic, a telephone handset, or a push-totalk microphone.

Microprocessor-controlled logic and switching yields a feature-rich intercom station in a compact format. Electronic switching for the talk button, blue-color LED (on), amber color LED (o ), permits momentary or latching operation. For call signaling, a bright LED lights when a call is activated on a connected intercom channel. A defeatable audible call signal, with level control, is also provided. Separate level controls are provided for intercom level and for balanced program input. A local program source may be fed to the station, allowing the user to monitor that source while remaining in contact on the intercom system. The balanced program input can
also be used in conjunction with the stage-announce output of a main station to provide a paging interrupt, allowing paging at the KB station even if the intercom volume control is turned down.

A set of option dip switches is located at the top of the circuit board. Switches are provided for mic-latch disable (momentary-only talk), long-line operation, channel selection, call signal tracking, and audible call signaling. .

Features:
Talk/Listen from headset mic, telephone handset or push-to-talk microphone
Four modes of operation that are internally programmable via dip switches
Balanced local program input with separate level control
Visual and audible call signaling
Optional 4-wire daughter board for flexibility
Wall or console mountable, or optional V-Box for portable or desktop use
Built-in speaker

Specifications:
Headset Microphone Input
Input Type: Dynamic
Input Impedance: >= 1K
Mic Limiter Threshold: -2dBu ± 3dB
Mic Limiter Range: >= 15dB
Program Line Input
Maximum Level before Clipping: >= 20dBu
Input Impedance: >= 5K
Headset Output
Load Impedance: >= 8
Output Impedance: <= 25
Output Limiter Threshold: +5dBu ± 3dB
Maximum Output Level before Distortion: >= 17dBu
Speaker Output
Load Impedance: >= 4
Max Output Level before 1% Distortion: 20dBu ± 2dBu
Partyline Output
Off Noise: < -74dBu
Output Impedance: >10K
Partyline Input
Crosstalk: < -60dB
Max level before Clipping : >= 12dBu
Frequency Response
Mic – Partyline: 300 – 15kHz ± 3dB
Program Input – Headset Out: 200 – 18kHz ± 3dB
Program Input – Speaker Out: 200 – 18kHz ± 3dB
Partyline- Headset Out: 200 – 18kHz ± 3dB
Partyline- Speaker Out: 200 – 18kHz ± 3dB
Max Distortion
Headset Mic – Partyline: <= 0.5%
Program Input – Headset Out: <= 0.2%
Program Input – Speaker Out: <= 0.5%
Partyline- Headset Out: <= 0.2%
Partyline – Speaker Out: <= 0.5%
Noise
Headset Mic – Partyline: < -70dBu
Program Input – Headset Out: < -60dBu
Program Input – Speaker Out: < -60dBu
Partyline – Headset Out: < -50dBu
Partyline- Speaker Out: < -50dBu
Max Gain
Headset Mic – Partyline: 41dB ± 2dB
Program Input – Headset Out: >= 18dB
Program Input – Speaker Out: >= 24dB
Partyline- Headset Out: >= 34dB
Partyline- Speaker Out: >= 40dB
Power
Input Voltage Range: 20-30 VDC
Input Current (Idle): <= 90mA
Input Current (Max): <=110mA
Internal Adjustments and Connections
Intercom: Line Five terminal connector
Program Input: Three terminal connector
Option Switches: Three DIP switches
Call Signal Jumper3: Three sets of options jumpers
Call Alert Tone Level Control: Level adjustment control
Environmental
32° – 122°F (0° – 50°C)
Dimensions
4.5 x 8.25 x 1.75in (HxWxD)
(114 x 210 x 44mm)
Weight
0.99lb (0.45kg)

Clear-Com MS-702 2-Channel Intercom Main Station

The MS-702 is a 1RU two-channel main station with programmable front panel buttons, individual channel short-circuit protection, individual channel volume control, and a regulated fail-safe power supply.

Note: Access the Encore Power Supply Calculator to estimate power requirements for analog partyline systems.

Details

• Supports up to 55 beltpacks or 10 speaker stations on 2 channels

• Automatic short-circuit protection and reset with LED indicators

• Visual and audible call signaling

• Individual volume controls for each channelProgram feed to both channels with selectable Program Interrupt

• Remote Mic Kill

• Stage Announce with relay

• Channel A & B Link switch

• Built-in speaker

• Universal voltage power supply

Item Code

• MS-702

Technical Specifications

Panel Microphone Input

• Input Type: Electret

• Input Impedance: >=2K

• Mic Limiter Threshold: 0dBu ± 3dB

• Mic Limiter Range: >= 20dB

Headset Microphone Input

• Input Type: Dynamic

• Input Impedance: >= 1K

• Mic Limiter Threshold: 0dBu ± 3dB

• Mic Limiter Range: >= 15dB

Program Line Input

• Maximum Level before Clipping: >= 20dBu

• Input Impedance: >= 5K

Headset Output

• Load Impedance: >= 8

• Output Impedance: <= 25

• Output Limiter Threshold: +5dBu ± 3dB

• Maximum Output Level before Distortion: >= 17dBu

Speaker Output

• Load Impedance: >= 4

• Max Output Level before 1% Distortion: 20dBu ± 2dBu

Partyline Output

• O Noise: < -74dBu

• Output Impedance: >10K

Partyline Input

• Crosstalk: < -60dB

• Max level before Clipping: >= 12dBu

• Sidetone Null Capability: > 25dB

Stage Announce/Balanced Line Out

• Type: Balanced

• Output Impedance: >= 200

• Load Impedance: >= 600

IFB/Hot Mic

• Type: Unbalanced

• Output Impedance: 180

• Load Impedance: >= 600

Frequency Response

• Panel Mic - Partyline: 600 - 10KHz ± 3dB

• Headset Mic - Partyline: 200 - 12kHz ± 3dB

• Headset Mic - Line Out: 200 - 12kHz ± 3dB

• Program Input - Partyline: 100 17kHz ± 3dB

• Program Input - Headset Out: 200 - 10kHz ± 3dB

• Program Input - Speaker Out: 300 - 10kHz ± 3dB

• Partyline - Headset Out: 200 - 10kHz ± 3dB

• Partyline - Speaker Out: 300 - 10kHz ± 3dB

Max Distortion

• Panel Mic - Partyline: <= 0.5%

• Headset Mic - Partyline: <= 0.5%

• Headset Mic - Line Out: <= 0.5%

• Program Input - Partyline: <= 0.2%

• Program Input - Headset Out: <= 0.2%

• Program Input - Speaker Out: <= 0.5%

• Partyline - Headset Out: <= 0.2%

• Partyline - Speaker Out: <= 0.5%

Noise

• Panel Mic - Partyline: < -65dBu

• Headset Mic - Partyline: < -70dBu

• Headset Mic - Line Out: < -55dBu

• Program Input - Partyline: < -85dBu

• Program Input - Headset Out: < -60dBu

• Program Input - Speaker Out: < -60dBu

• Partyline - Headset Out: < -50dBu

• Partyline - Speaker Out: < -50dBu

Max Gain

• Panel Mic - Partyline: >= 37dB

• Headset Mic - Partyline: 41dB ± 2dB

• Headset Mic - Hot Mic Out: 55dB ± 3dB

• Headset Mic - Announce Out: 55dB ± 3dB

• Program Input - Partyline: >= -16dB

• Program Input - Headset Out: >= 18dB

• Program Input - Speaker Out: >= 24dB

• Partyline - Headset Out: >= 34dB

• Partyline - Speaker Out: >= 40dB

Min Gain

• Panel Mic - Partyline: <= 25dB

Mains Power

• Input Voltage Range: 100 - 240V AC

• Input Frequency Range: 50 - 60Hz

• Input Power: <= 60V AC

• Output Voltage: 30V DC ± 0.5V

• Output Current per Channel (Continuous): 1.2A

• Output Current per Channel (Peak): 2A (Do not exceed the 1.2A rating for more than 2 seconds per 1 minute period)

• Short Circuit Recovery Time (1st short):<= 0.5 sec

• Short Circuit Recovery Time >= 20 shorts in 20sec: <= 20 sec

Environmental

• 32 - 122°F (0 - 50°C)

Dimensions

• 1.75 x 19 x 6.5in (HxWxD)

• (44 x 483 x 165mm)

Weight

• 6.1lbs (2.8kg)

Clear Com BAT80 Rechargeable Lithium Ion Battery

The BAT80 lithium-ion battery charges FreeSpeak Edge® and FreeSpeak Icon beltpacks.

Details

• FreeSpeak Edge and FreeSpeak Icon Lithium-Ion Battery

• For use in FreeSpeak Edge and FreeSpeak Icon beltpacks

Item Code

• BAT80

Technical
Specifications

Battery

• Type of Cell: Rechargeable lithium Ion

• Voltage: 3.6V

• Capacity: 4400mAh

Temperature

• Operating: 32° to 113°F (0° to 45°C)

• Storage: -22° to 158°F (-30° to 70°C)

• Humidity: 20°C to 90% Non-Condensing

Dimensions

Battery:

• 3.25x2.3x0.69in (HxWxD)

• (82.6 x 58.4 x 17.5mm)

Weight

• Battery: 3.9oz (0.11kg)

Clear Com KB-701 Single Channel Remote Speaker Station

The KB-701 remote speaker station connects to a single channel of partyline intercom, and operates in half-duplex mode, similar to a walkie-talkie. It features both an integral speaker and a flush-mount electret microphone with mic limiter and a push-to-talk button.

Note: Access the Encore Power Supply Calculator to estimate power requirements for analog partyline systems.

Details

• Half-duplex, push-to-talk functionality

• Four modes of operation that are internally programmable

• Microprocessor controlled logic and switching

• Balanced local program input with separate level control

• Visual and audible call signaling

• Optional 4-wire daughter board for flexibility

• Wall or console mountable, or optional V-Box for portable or desktop use

• Built-in speaker

Item Code

KB-701

Technical
Specifications

Program Line Input

Maximum Level before Clipping: >= 20dBu

Input Impedance: >= 5K

Speaker Output

Load Impedance: >= 4

Max Output Level before 1% Distortion: 20dBu ± 2dBu

Partyline Output

O Noise: < -74dBu

Output Impedance: >10K

Partyline Input

Crosstalk: < -60dB

Max level before Clipping: >= 12dBu

Frequency Response

Program Input - Speaker Out: 200 - 18kHz ± 3dB

Partyline- Speaker Out: 200 - 18kHz ± 3dB

Max Distortion

Program Input - Speaker Out: <= 0.5%

Partyline- Speaker Out: <= 0.5%

Noise

Program Input - Speaker Out: < -60dBu

Partyline- Speaker Out: < -50dBu

Clear Com MS-704 4 Channel Intercom Main Station

The MS-704 is a 2RU four-channel main station with programmable front panel buttons, individual channel short-circuit protection, individual channel volume control, and a regulated fail-safe power supply.

Note: Access the Encore Power Supply Calculator to estimate power requirements for analog partyline systems.

Details

• Supports up to 55 beltpacks or 10 speaker stations on 4 channels

• Automatic short-circuit protection and reset with LED indicators

• Visual and audible call signaling

• 3 interruptible IFB channels

• Individual volume controls for each channel

• Program feed to both channels with selectable Program Interrupt

• Remote Mic Kill

• Stage Announce with relay

• Channel A & B Link switch

• Built-in speaker

• Universal voltage power supply

Item Code

MS-704

Technical
Specifications

Panel Microphone Input

Input Type: Electret

Input Impedance: >=2K

Mic Limiter Threshold: 0dBu ± 3dB

Mic Limiter Range: >= 20dB

Headset Microphone Input

Input Type: Dynamic

Input Impedance: >= 1K

Mic Limiter Threshold: 0dBu ± 3dB

Mic Limiter Range: >= 15 dB

Program Line Input

Maximum Level before Clipping: >= 20dBu

Input Impedance: >= 5K

Headset Output

Load Impedance: >= 8

Output Impedance: <= 25

Output Limiter Threshold: +5dBu ± 3dB

Maximum Output Level before Distortion: >= 17dBu

Speaker Output

Load Impedance: >= 4

Max Output Level before 1% Distortion: 20dBu ± 2dBu

Partyline Output

O Noise: < -74dBu

Output Impedance: >10K

Partyline Input

Crosstalk: < -60dB

Max level before Clipping: >= 12dBu

Sidetone Null Capability: > 25dB

Stage Announce/Balanced Line Out

Type: Balanced

Output Impedance: >= 200

Load Impedance: >= 600

IFB/Hot Mic

Type: Unbalanced

Output Impedance: 180

Load Impedance: >= 600

Frequency Response

Panel Mic - Partyline: 600 - 10kHz ± 3dB

Headset Mic - Partyline: 200 - 12kHz ± 3dB

Headset Mic - Line Out: 200 - 12kHz ± 3dB

Program Input - Partyline: 100 17kHz ± 3dB

Program Input - Headset Out: 200 - 10kHz ± 3dB

Program Input - Speaker Out: 300 - 10kHz ± 3dB

Partyline - Headset Out: 200 - 10kHz ± 3dB

Partyline - Speaker Out: 300 - 10kHz ± 3dB

Clear Com PS-704 4 Channel Intercom Power Supply

The PS-704 is a four-channel, single-rack-space intercom power supply that features Clear-Com’s “fail-safe” design for maximum reliability. The power supply delivers 2 amps at 30 volts, supplying power for one to four channels of intercom.

Note: Access the Encore Power Supply Calculator to estimate power requirements for analog partyline systems.

Details

• Provides up to 2 amps at 30 Volts

• Supports up to 40 beltpacks, 10 speaker stations, or 12 headset stations

• Exclusive Intelligent Fault/Overload Sensing (IFOS) for system reset

• Switchable line terminations for each channel

• Built-in test tone generator for set up and diagnostics

• UL listed and CE certified

• Line and load regulated

• Short-circuit protected

Item Code

PS-704

Technical Specifications

Program Line Input

Maximum Level before Clipping: >= 20dBu

Input Impedance: >= 5K

Frequency Response

Program Input - Partyline: 200 - 20kHz ± 3dB

Max Distortion

Program Input - Partyline: <= 0.2%

Noise

Program Mic Input - Partyline: < -70dBu

Max Gain

Program Input - Partyline: >= -16dB

Min Gain

Program Input - Partyline: <= -20dB

Mains Power

Input Voltage Range: 100 - 240V AC

Input Frequency Range: 50 - 60Hz

Input Power: <= 60V AC

Output Voltage: 30V DC ± 0.5V

Output Current per Channel (Continuous): 1.2A

Output Current per Channel (Peak): 2A (Do not exceed the 1.2A rating for more than 2 seconds per 1 minute period)

Short Circuit Recovery Time (1st short):<= 0.5 sec Short Circuit Recovery Time: >= 20 shorts in 20sec) <= 20 sec

Environmental

32° - 122°F (0 - 50°C)

Dimensions

1.75 x 19 x 7.5in (HxWxD)

(44 x 483 x 190mm)

Weight

6.16lbs (2.80kg)

Clear Com GM-9 Series Gooseneck Microphone Pro Audio

Details

• Gold-plated, threaded, and locking, 3-conductor quarter-inch phone plug connector

• Fitted windscreen is included

• Uni-directional electret condenser mic

• Side and rear rejection of greater than 6 dB between 100 Hz and 10 kHz

• Available in two sizes: 9 inches and 18 inches

• Compatible with Encore, i-Series and ICS stations

Item Code

GM-9

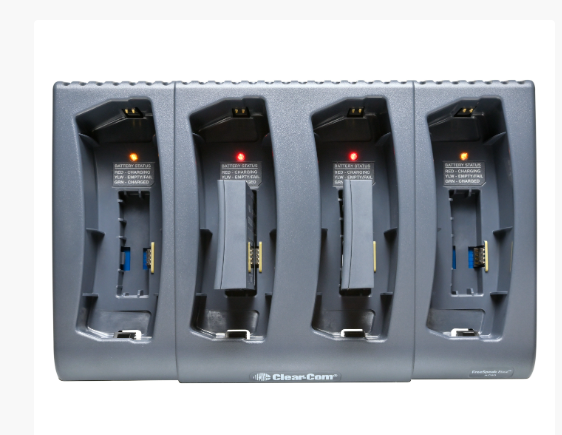

Clear Com AC80 Battery Charger for FreeSpeak II Belts

The AC80 battery charger can charge up to four FreeSpeak Edge® or FreeSpeak Icon beltpack batteries simultaneously, either as a drop-in charger for the whole beltpack or for individual BAT80 batteries.

Details

• Fast charging up to four hours

• Beltpack Drop-in charging

• Individual battery charging

• Charge status indicators

• Charge up to four beltpacks or batteries

• Beltpack displays charge status

• Designed for robust performance in the most demanding environments

Item Code

AC80

Technical
Specifications

Power Supply

Input Voltage: 100 to 240V AC (50 - 60Hz)

Output Voltage: 12V @ 5A (60W)

MTBF (min.): 300,000 Hours (Calculated Hours at 25ºC by Telcordia SR-332)

Temperature

Operating: 32° to 113°F (0° to 45°C)

Storage: -22° to 158°F (-30° to 70°C)

Humidity: 20°C to 90% Non-Condensing

Clear Com RM-702 Dual Channel Intercom Remote Station

The RM-702 is a 1RU two-channel remote station with programmable front panel buttons and individual channel volume control. The RM-702 is powered directly from the intercom line and requires no external AC power.

Details

• Selectable one- or two-channel communication

• Momentary/Latching talk buttons

• Individual call buttons

• Visual and audible call signaling

• Balanced audio input with program interrupt (IFB)

• Hot mic and line-level outputs

• Stage announce output with relay

• Built-in speaker

Item Code

RM-702

Technical
Specifications

Panel Microphone Input

Input Type: Electret

Input Impedance: >=2K

Mic Limiter Threshold: 0dBu ±3dB

Mic Limiter Range: >= 20dB

Headset Microphone Input

Input Type: Dynamic

Input Impedance: >= 1K

Mic Limiter Threshold: 0dBu ± 3dB

Mic Limiter Range: >= 15dB

Program Line Input

Maximum Level before Clipping: >= 20dBu

Input Impedance: >= 5K

Headset Output

Load Impedance: >= 8

Output Impedance: <= 25

Output Limiter Threshold: +5dBu ± 3dB

Maximum Output Level before Distortion: >= 17dBu

Speaker Output

Load Impedance: >= 4

Max Output Level before 1% Distortion: 20dBu ± 2dBu

Partyline Output

Output Noise: < -74dBu

Output Impedance: >10K

Partyline Input

Crosstalk: < -60dB

Max level before Clipping: >= 12dBu

Sidetone Null Capability: > 25dB

Stage Announce/Balanced Line Out

Type: Balanced

Output Impedance: >= 200

Load Impedance: >= 600

IFB/Hot Mic

Type: Unbalanced

Output Impedance: 180

Load Impedance: >= 600

Frequency Response

Panel Mic - Partyline: 600 - 10kHz ± 3dB

Headset Mic - Partyline: 200 - 12kHz ± 3dB

Headset Mic - Line Out: 200 - 12kHz ± 3dB

Program Input - Partyline: 100 - 17kHz ± 3dB

Program Input - Headset Out: 200 - 10kHz ± 3dB

Program Input - Speaker Out: 300 - 10kHz ± 3dB

Partyline - Headset Out: 200 - 10kHz ± 3dB

Partyline - Speaker Out: 300 - 10kHz ± 3dB
