Speaker Types

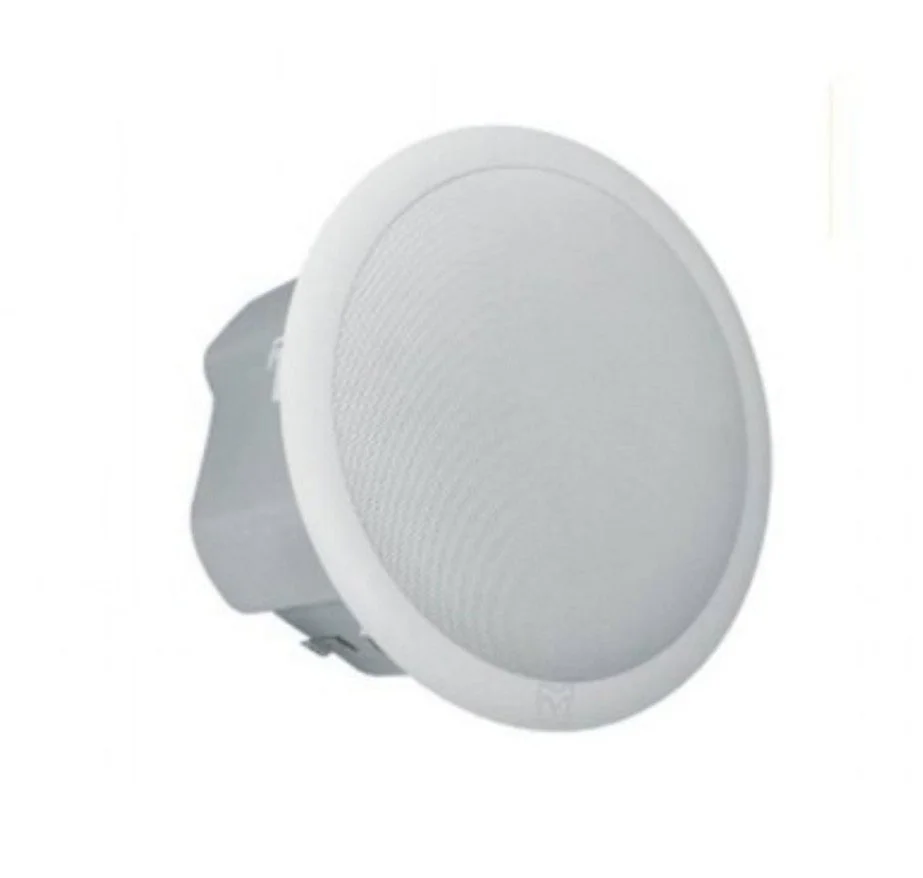

Bose FREESPACE FS2C WHITE In Ceiling and Surface Mount loudspeakers

The Bose sound quality you expect. The improvements you need. FreeSpace FS loudspeakers are the next step of our widely trusted line of in-ceiling and surface-mount loudspeakers, offering significant upgrades in durability, design, and ease of installation — all with remarkably consistent tonality. Engineered for high-quality performance in both background music and voice announcement applications, FS loudspeakers are ideal for almost any commercial space. The line includes five loudspeakers, two distinct levels of sound, new mounting options, and a modern aesthetic to match. For those seeking consistent, quality installed sound, FreeSpace FS loudspeakers are the perfect mix of performance and value.

Product Code

Black

841154-0310

FEATURES:

• Full-range 2.25-inch transducer, low-frequency range down to 83 Hz, 16-ohm, and 70/100V operation

• Front baffle-mounted tap settings and front-baffle audio connections

• Pick your power — FS2 models feature a 2.25-inch full-range transducer, low frequency down to 83 Hz, 16-ohm and 70/100V operation

• Maintain consistent tonal quality with shared voicing across all FS models

• Hear the best of both — music and voice — with transducers that offer clear voice reproduction and smooth response for background music

• Bring quality sound to more places

• Customize systems with confidence using in-ceiling, surface-mount, and pendant-mount options, allowing for tailored mix-and-match installations. DesignMax subwoofers and larger models can expand your system design options even further

• Blend with more room designs with updated enclosures — available in black and white — that pair modern aesthetics with practical features, including removable logos

• Tackle site-specific challenges with the support of a full suite of accessories, designed to handle a wide range of applications and mounting options

• Install with ease — all models feature Euroblock inputs and front-baffle input location on in-ceiling models

• Support public safety — all models are UL 1480 ULC-S541-listed for use in fire alarm and signaling systems in life safety applications

Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998.  We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications.

Shipping --Pro packed & shipped  USPS, UPS or Freight Service. Contact us & pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed &  shipped. Processing times vary, 2-30  days

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided. Otherwise customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, & accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

What products can not be returned? - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids

JBL PRX818XLFW 18 Inch Self Powered Subwoofer Speaker System with WIFI 1500 W

The JBL PRX818XLF is a self-powered extended low-frequency subwoofer system. Featuring a JBL 18-inch woofer powered by a 1500-watt class-D amplifier, PRX818XLF delivers incredible output in a lightweight and compact form factor.

Features:

• Built-in Wi-Fi for wireless control of your system from anywhere in the venue

• Free PRX Connect mobile app for iOS and Android provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound

• Class-leading 1500-watt amplifier delivers ample power to fill your venue

• JBL Differential Drive® transducers for higher SPL in a lightweight design

• Next-generation JBL neodymium compression drivers

• Redesigned Crown input technology, including XLR, 1/4” and RCA inputs plus XLR loop-through

• Intelligent variable-speed fan activates only when needed to reduce noise

• Updated tuning delivers flat frequency response and smooth off-axis behavior

• Durable wooden cabinets, tour-proven DuraFlex™ finish and dent-resistant 16-gauge grilles

• Universal power supply for worldwide compatibility

• dbx Type IV™ limiting ensures clear, accurate sound at high volumes

• Brutal testing regimen—including the famous JBL 100-hour power test—ensures reliable performance

Applications

The PRX815XLF extended low frequency subwoofer was designed and engineered to provide sub bass frequencies with accuracy and power. Used as a single sub in a sub/ sat system or in multiples as part of a scalable, large format sound reinforcement system, the PRX815XLF performs with exceptional efficiency and control. The subs are stackable and light-weight, ensuring quick set-ups and tear-downs. Due to their rugged construction, they are perfect for AV rental inventories. With the integrated stereo pass-thru this is the most powerful low-frequency complement to the PRX full-range systems. The addition of a polarity reverse option further enables system optimization. PRX800 subwoofers feature a standard M20 threaded pole cup that can accept most modern subwoofer-mounted speaker poles.

The PRX818XLF is a high performance self-powered subwoofer system with remote Wi-Fi control of onboard DSP EQ parameters. The PRX818XLF is comprised of a powerful 2278G Differential Drive® dual voice-coil and magnetic gap, woofer driven by a 1500 Watt Class-D power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable cross-over functionality, polarity optimization, protection, dynamic limiting and discrete component optimization.

All PRX800 cabinets are built from 18 mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX800 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each

The amplifier input panel offers stereo inputs with XLR or ¼ inch jack compatibility. A user selectable crossover ensures a smooth transition to full-range system connected to the stereo outputs. Signal present and limiter lights indicate the system status and assist in setting the optimum level via the level control knob.

Specifications

System Type: Self Powered 18” subwoofer

Maximum SPL Output: 134 dB peak

Frequency Range (-10dB): 30 Hz - 103 Hz

Frequency Response (±3 dB): 35 Hz – 87 Hz

Inputs: Two Balanced female XLR/ 1/4” combo connectors

Input Impedance: 20K Ohms (balanced)

Signal Indicators: Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal: Green LED indicates signal present Power: Blue indicates system has power and ready

Dynamic Control (Input): dbx Type IV™ limiter circuit

System Low Pass: 80 Hz

Loop out Crossover Frequency: 80Hz Digital 24db/octave Linkwitz-Riley Filter

Design: Highly efficient Class-D amplifier

Power Rating: 1500W

AC power input: 100V - 240V ~ 50/60 Hz

LF Driver: 1 x JBL 2278H 460 mm (18 in) woofer

Enclosure: Rectangular, 18 mm, birch-poplar mix

Transport: 2 x injection molded handles with backing cup

Finish: Obsidian DuraFlex™ finish

Grille: Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.

Dimensions (H x W x D): 692 mm x 523 mm x 724 mm (27.26 in x 20.6 in x 28.5 in)

Net Weight: 36.28 kg (80.0 lb)

Gross Weight: 45.0 kg (100.0 lb)

Mic Inputs: 2

Phantom Power: No

EQ: 8-band parametric EQ

Effects: 25 parametric EQ's and speaker delay

Outputs: 1 x XLR (mix out)

Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998.  We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications.

Shipping --Pro packed & shipped  USPS, UPS or Freight Service. Contact us & pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed &  shipped. Processing times vary, 2-30  days

Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided. Otherwise customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, & accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.

What products can not be returned? - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items,  electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids

Bose F1 MODEL 812 12' Flexible Array Portable Loudspeaker Powerful 1000 Watts

Powerful, standalone sound that flexes to meet your coverage needs — the Bose F1 Model 812 is a 1000-watt, full-range loudspeaker featuring Bose Flexible Array technology. At the heart of the F1 is a 12-inch woofer nested behind an array of eight high-output drivers. These nine speakers are supported by a lower crossover point than conventional loudspeakers — to give full voice to your sound and deliver clearer, more natural vocals and midrange clarity, even at high volumes. And you control the vertical coverage pattern. So, wherever you’re playing, you can adapt the PA to match the room. With the Bose F1 Model 812, your sound stands alone.

FEATURES

• Powerful full-range loudspeaker with 132 dB max SPL and low-frequency performance down to 43 Hz (-10 dB)

• Portable, standalone design with built-in 1000-watt amplifier and nine transducers: eight high-output drivers and a 12” high-power woofer

• Lower crossover point than conventional loudspeakers for clear and natural vocals even at high volumes

• Flexible Array technology: easily adjust coverage pattern — Straight, C, J, or Reverse J — to optimize sound for different spaces: floor level, on stage, for raked seats or bleachers, and more

• Automatic EQ adjusts to maintain optimum tonal balance for each coverage pattern

• Built-in handles for easy transport and compatible with standard 35 mm speaker stands (sold separately)

• Optional Bose F1 Subwoofer (sold separately) for even more low-frequency response

• Integrated speaker stand for F1 Model 812

• Built-in 1000-watt amplifier

• Hidden cable channels for clean appearance

• Built-in handles for easy transport

Applications:

Live music performances

Bands of all styles

Solo musicians

Mobile DJs

Houses of worship

Schools and universities

Resorts and hospitality venues

Business presentations

Flex Array Shapes

Straight Pattern

Use the straight pattern when the audience is standing and their heads are approximately at the same height as the loudspeaker.

Reverse-J Pattern

The reverse-J pattern is good for an audience in raked seating that starts at loudspeaker height and extends above the top of the loudspeaker.

J Pattern

The J pattern works well when the loudspeaker is up on a raised stage and the audience is seated below on the floor.

C Pattern

Use the C pattern for raked seating in an auditorium when the first row is on the floor with the loudspeaker.

SPECS

Frequency Response (-3 dB)

52 Hz - 16 kHz

Frequency Range (-10 dB)

43 Hz - 20 kHz

Nominal Dispersion

C: 100° H x 40° V

Maximum SPL @ 1 m

132 dB SPL (peak)

Rated Power

1,000 W
