One Systems

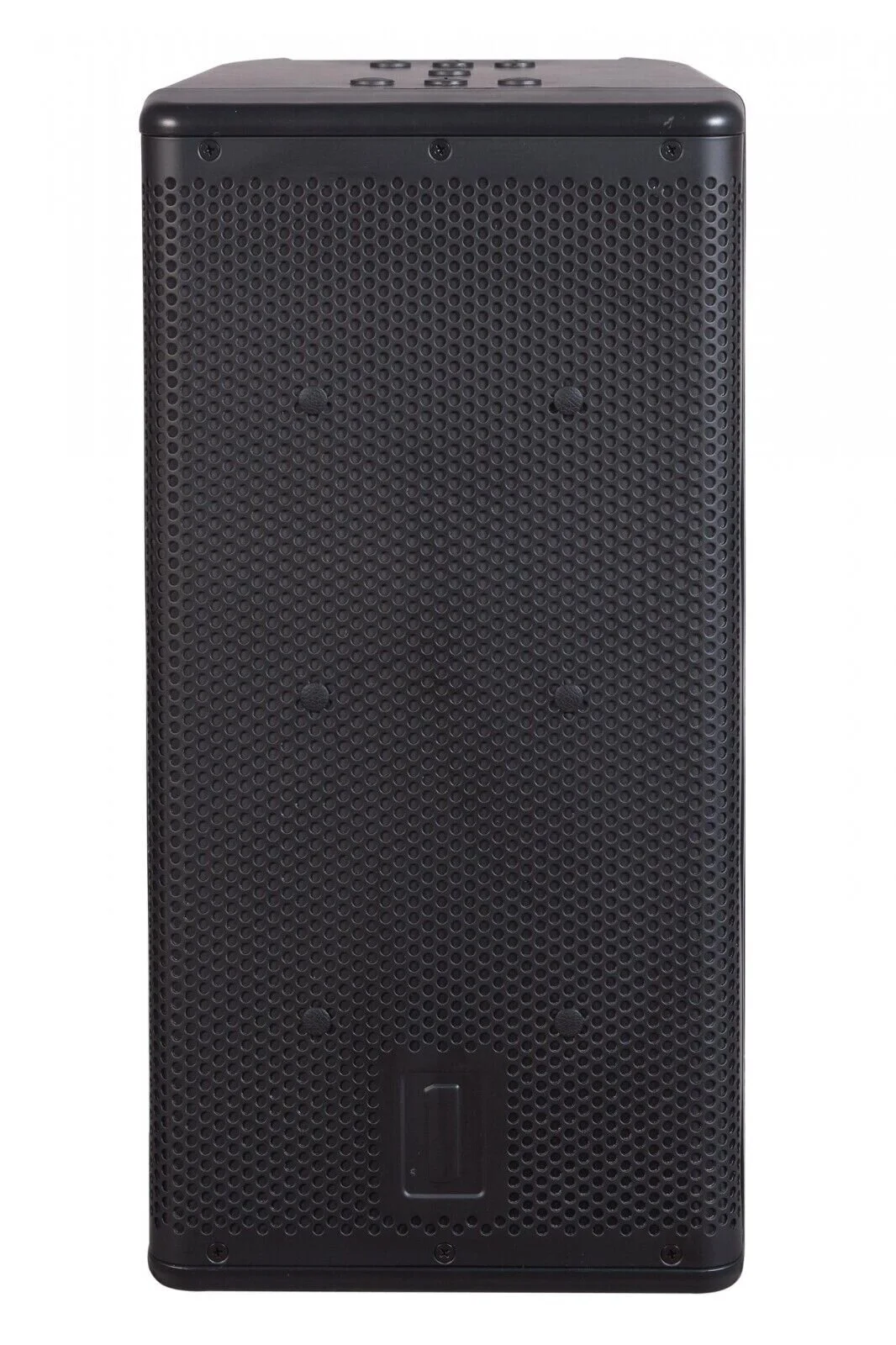

One Systems 108.HTH-BLACK 8" Two Way Direct Weather Loudspeaker System 800 Watts

The 108.HTH provides a unique combination of excellent performance, direct weather capability and amazing flexibility. The 108.HTH includes a long-throw 60 x 40-degree rotatable horn that's factory installed, but also includes a rotatable wide-throw 105 x 60-degree horn too. The 108.HTH's rotatable long or wide-throw horns, its wide, smooth response and beefy components provide excellent performance for a variety of applications. Its built-in 3-tap transformer provide 70.7 - 100 volt taps at 150, 75 and 37.5 watts or it can be powered as a low-impedance system. The 108.HTH's multiple 316 marine stainless steel suspension points and range of installation hardware add to its already impressive flexibility. The 108.HTH is designed and built tough enough to handle any outdoor application, but is widely used for indoor applications too thanks to its high performance and flexibility.

Features:

• Marine-grade (316) stainless steel rigging and structural support

• Easily configurable Hi Z (150 watt) multi tap or Lo Z (8 ohm) operation

• Combined 70.7Vrms or 100Vrms operation

• Rotatable High frequency horns

• Both 60 x 40 and 105 x 60 horns supplied

• No performance degrading or dynamics limiting passive protection devices

• 200 watts continuous, 800 watts peak power handling in Lo Z mode

• IEC 529 IP 45 ingress protection (IP 56 when vent plugs are installed)

Specifications:
Frequency Response: 65Hz – 16,000Hz
Coverage Pattern: 60 x 40 degrees or 105 x 60 degrees
Crossover Frequency:
2000 Hz (60 x 40 horn)
1600 Hz (105 x 60 horn)
System Sensitivity (1 Watt / 1 Meter): 92dB
Power Handling:
200 watts continuous
400 watts program
800 watts peak
Input Impedance (Lo Z): 8-ohms
Input Taps (Hi Z): 150 watts, 75 watts, 37.5 watts
Weight: 16.5 kg (36.4 lb.)
Dimensions (H x W x D) mm: 483.84 x 243.2 x 270.8
Dimensions (H x W x D) in: 19.05 x 9.56 x 10.66

One Systems 112.HTH-BLACK 12" Two Way Direct Weather Loudspeaker System 3200 W

The 112.HTH provides highly intelligible vocals, extended low-frequency response and high output capability from a reasonably-sized direct weather capable system. The 112.HTH can be used anywhere outdoors thanks to its combination of 316 marine stainless steel suspension hardware and enclosure reinforcements, HYBRID stainless steel grille with marine capable coating and tough UV-resistant enclosure. The 112.HTH comes with a large-sized, rotatable 60 x 40-degree horn installed, but a rotatable 105 x 60-degree for wide coverage applications is also available with order. The 112.HTH can be powered as a low impedance system (800 watts continuous, 3,200 watts peak at 8 ohms) or as a high impedance system (70.7 – 100 volts with taps at 150 watts, 75 watts and 37.5 watts). The 112.HTH delivers top-class performance, impressive flexibility and long useful life. Its highly defined audio performance and output capability make it a solution for indoor or outdoor audio applications.

The 112HTH is optimized for outdoor short throw to medium throw applications such as theme parks, parade routes, baseball and football stadiums, and other entertainment/sports venues where permanent installation is required. The 112HTH is an extremely versatile design that offers high performance in a small physical package. The 12-inch woofer offers substantial extended low frequency output.

The 112HTH is a two-way design that features rotatable and interchangeable high frequency horns. The 112HTH has a rotatable 60 x 40 degree horn installed. A wide coverage pattern 105 x 60 horn may be ordered through One systems that is also fully rotatable. The medium Q, 60 x 40 pattern is ideal for medium throw applications and where venue or space acoustics require a tighter high frequency pattern. The 105 x 60 high frequency wave guide is an optional accessory that provides broad dispersion and controlled coverage. The 12-inch nominal diameter low frequency component features a very large voice coil diameter and insures high reliability and excellent linearity.
The One Systems 112HTH features 15 each M10 rigging points. These rigging points may be used with the One Systems PT76/M pan and tilt system or the PM4/M pole mount system rigging brackets. The PT76/M is used for flat surface mounting. An optional U-bracket, the 112HTH-U/M, is also available as an accessory. The enclosure is an injection molded design that utilizes a high-impact copolymer material that exhibits superior weather resistance. The 112HTH is available in either black or white color. Both color options are stabilized for ultra violet exposure. The design also features a three-layer “rain shield” grille, as well as an input weather cover with a waterproof gland nut. The system ingress protection in normal mode is IP 45. When the vent plugs are installed the ingress protection is IP 56.

Features:

• Marine-grade (316) stainless steel rigging and structural support

• Easily configurable Hi Z (150 watt) multi tap or Lo Z (8 ohm) operation

• Combined 70.7Vrms or 100Vrms operation

• Rotatable High frequency horns

• ET-60/40 horn supplied and ET-105/60 horn available

• No performance degrading or dynamics limiting passive protection devices

• 800 watts continuous, 3200 watts peak power handling in Lo Z mode

• IEC 529 IP 45 ingress protection (IP 56 when vent plugs are installed)

Specifications:
Frequency Response: 60Hz – 16,000Hz
Coverage Pattern:
ET-60/40, 60 x 40 degrees
ET-105/60, 105 x 60 degrees
Crossover Frequency:
1,300 Hz (rotatable 105 x 60)
1,800 hz (rotatable 60 x 40)
System Sensitivity (1 Watt / 1 Meter): 96dB
Power Handling:
800 watts continuous
1600 watts program
3200 watts peak
Input Impedance (Lo Z): 8-ohms
Input Taps (Hi Z): 150 watts, 75 watts, 37.5 watts
Weight: 35.3kg (77.8 lb.)
Dimensions (H x W x D) mm: 749 x 368 x 414
Dimensions (H x W x D) in: 29.5 x 14.5 x 16.3

One Systems 118.HSB.UM-BLACK U Bracket Mounting for 118/HSB Loudspeaker System

One Systems, Inc. offers a variety of U-Brackets for use with its loudspeaker systems. U-Brackets provide an easy way to achieve a vertical or horizontal wall mounting, or a ceiling parallel mount for loudspeaker systems.

Features:

• Black 316 grade (marine) stainless steel

• U-bracket for 118/HSB-Black

One Systems 106.HTH-BLACK 6" 2 Way Direct Weather Hybrid Series Speaker System

The 106.HTH provides an unbeatable combination of excellent sound quality, output-per-size and comprehensive direct-weather performance. The 106.HTH can be used anywhere outdoors - including on ships or near ocean applications. Unlike typical small-format speakers, the 106.HTH is equipped with a small-format compression driver coupled to a 110 x 70-degree constant-directivity horn. This horn / driver delivers excellent vocal intelligibility, smooth response and good coverage. Its 6.5" woofer features a large-sized 1.75" voice coil for extended bandwidth and power handling without needing performance-degrading passive protection. The system's 316 marine-grade stainless steel U-Bracket, enclosure reinforcements and its HYBRID stainless steel grille with marine-capable coating ensure extraordinary corrosion resistance and long life. The 106.HTH is a high performance solution for demanding applications where space is limited. It can be powered Lo-Z (8 ohm) or Hi-Z (70.7 – 100 volts with taps at 50, 25 and 12.5 watts). The impedance selection is made using separate barrier strips for low and high impedance connections, which provides better reliability than switches.

Features:
• Marine-grade (316) stainless steel rigging and structural support
• Easily configurable Hi Z (50 watt) multi tap or Lo Z (8-ohm) operation
• Combined 70.7Vrms or 100Vrms operation
• Marine-grade (316) stainless steel U-bracket included
• No performance degrading or dynamics limiting passive protection devices
• 100 watts continuous, 400 watts peak power handling in the Lo Z mode
• IEC 529 IP 56 ingress protection

Specifications:
• Frequency Response: 80Hz – 20,000Hz
• Coverage Pattern: 110 H X 70 V
• Crossover Frequency: 3000 Hz
• System Sensitivity (1 Watt / 1 Meter): 89dB
• Power Handling: 100 watts continuous
   200 watts program
   400 watts peak
• Input Impedance (Lo Z): 8-ohms
• Input Taps (Hi Z): 50 Watts, 25 Watts, 12.5 Watts
• Weight: 6.5kg (14.6 lb.)
• Dimensions (H x W x D) mm: 312 x 185 x 217.1
• Dimensions (H x W x D) in: 12.3 x 7.3 x 8.5

One Systems 118.HSB.UM-BLACK U Bracket Mounting for 118/HSB Loudspeaker System

One Systems, Inc. offers a variety of U-Brackets for use with its loudspeaker systems. U-Brackets provide an easy way to achieve a vertical or horizontal wall mounting, or a ceiling parallel mount for loudspeaker systems.

Features:

• Black 316 grade (marine) stainless steel

• U-bracket for 118/HSB-Black
