Sennheiser ew 500 G4-945-AS | Professional Wireless Mic Set

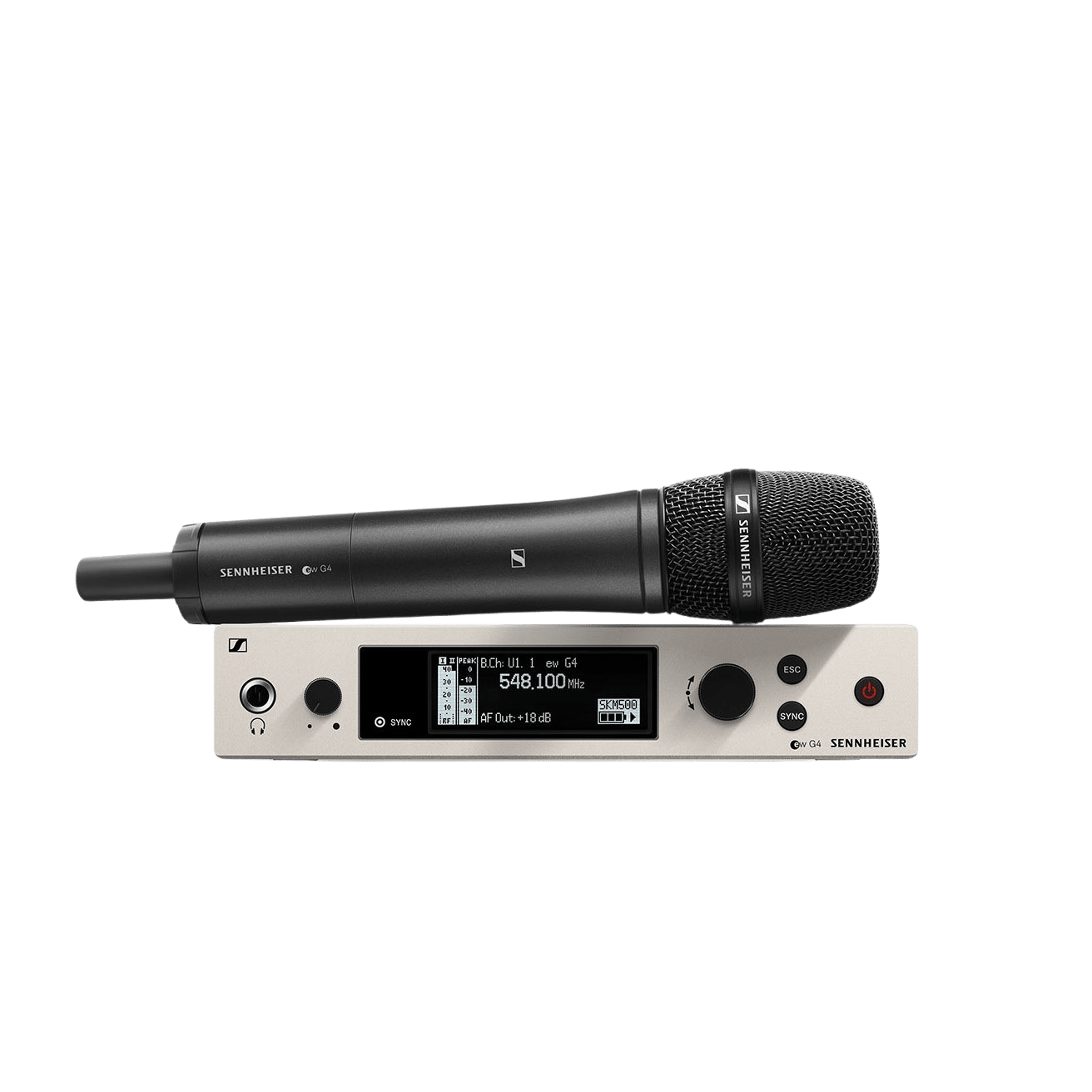

The ew 500 G4-945-AS is designed for professional live performances and comes as a complete set including:

• 1 x SKM 500 G4 handheld transmitter

• 1 x MMD 945 supercardioid dynamic capsule

• 1 x EM 300-500 G4 rackmount receiver

• 1 x GA3 rack kit

• 1 x Mic clip

Renowned for its flexibility, the ew 500 G4 is the choice of top sound engineers, especially for multi-channel setups on world-class stages. It supports up to 88 MHz bandwidth and 32 compatible channels. The included Ethernet connection allows integration with Wireless Systems Manager (WSM) software for advanced frequency coordination in multi-channel setups. This evolution series unit, combined with Sennheiser’s e 900 capsules (e 935, e 945, e 965), delivers exceptional performance on even the largest stages.

Features

• True diversity half-rack receiver in full-metal housing with intuitive OLED display for complete control

• Easy and flexible wireless synchronization between transmitter and receiver via infrared

• Up to 32 compatible channels

• Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range

• Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination

• High RF output power (up to 50 mW, adjustable in three steps: 10/30/50), depending on country regulations

Top Specs

• Dimensions: Approx. 202 x 212 x 43 mm

• Audio Output: 6.3 mm jack socket (unbalanced): +12 dBu

• Frequency Range: 520.000 – 558.000 MHz

• Pickup Pattern: Supercardioid

• Sensitivity: 1.8 mV/Pa

• Signal-to-Noise Ratio: ≥ 115 dBA

• Transducer Type: Dynamic
