Solid State Logic

D510 500 Series Rack

Ultra-Flexible Harrison 500 Series System
The Harrison D510r is a ten-slot 500 Series rack system offering expandable analog summing mixer, Dante AoIP interface, or USB interface options. Built on a legacy that shaped the sound of legends like Michael Jackson, Led Zeppelin, and Steely Dan, Harrison continues to push the boundaries of music and audio production.

Most Versatile & Expandable 500 Series System
Whether in the studio, on stage, or in post-production, the D510r delivers the sonic excellence and flexibility modern artists, producers, and engineers demand. When paired with the optional D510mx mixer and interchangeable D510dante or D510ua interface cards, the D510 500 Rack System becomes the most versatile 500 Series rack available.

High-Performance Tracking Rig with Analog Summing
Bring the depth and three-dimensional soundstage of Harrison’s analog summing to your studio or live sound console. Add eight 32Cpre+ 500 Series mic pre-modules to build a portable Harrison tracking rig, or combine EQ and Dynamics modules to create a custom eight-channel Harrison mixer—all in just 3U.

Whether adding analog warmth to digital stems, summing outputs from drum machines and samplers, or creating a portable console-grade recording rig, the D510r grows with your production needs—one module at a time.

Dante AoIP Interface
The D510r is the only 500 Series rack featuring an optional Dante interface for seamless integration into live sound and studio facilities using Dante AoIP. Pairing with the Dante interface transforms the D510 system into a multifaceted 500 Series setup, integrating analog mic pres, dynamics, EQs, and other 500 Series modules into hybrid workflows.

USB & ADAT Interface
With high-performance A/D and D/A converters on every slot, plus four extra D/A converters for D510mx headphone mixes (when installed), the D510ua interface enables advanced hybrid workflows. Connect via USB for direct DAW integration, expand with up to 16 channels of bi-directional ADAT, or use both simultaneously.

Built to Perform
Designed for touring and studio environments, the D510r features a rugged steel enclosure that fits standard 19” racks. Its built-in power supply delivers 30% more power per module than standard 500 Series specifications, providing stability, headroom, and reliability for all your modules.

Expandable System Options:

• D510mx Mixer Interface: High-performance tracking rig with analog summing for immersive depth and three-dimensional soundstage.

• D510dante AoIP Interface: The only 500 Series system with optional Dante AoIP interface for professional live and studio integration.

• D510ua USB + ADAT Interface: Adds unmatched expandability and flexibility with world-class audio performance.

D510 Dante AoIP Interface
Dante Interface for D510 System

Ultra-Flexible Harrison 500 Series System
The Harrison D510r is a ten-slot 500 Series rack system offering expandable analog summing mixer, Dante AoIP interface, or USB interface options. Built on a legacy that shaped the sound of legends like Michael Jackson, Led Zeppelin, and Steely Dan, Harrison continues to push the boundaries of music and audio production. Whether in the studio, on stage, or in post-production, the D510r delivers the sonic excellence and flexibility modern artists, producers, and engineers demand.

Audio over IP Connectivity for Live Sound and Studio
The D510dante card brings high-performance Dante AoIP connectivity to your Harrison 500 Series rack. Featuring 10 in / 14 out A/D & D/A converters, it ensures pristine audio quality for live sound and studio applications. Seamlessly integrate 500 Series processing into your mix bus, subgroups, or channel inserts on any Dante-compatible live sound console. In hybrid studio setups, leverage Dante’s flexible routing matrix to send and receive audio across your modules with ease.

Expandable D510 500 Series Rack System

• D510 500 Series Rack: Ultra-flexible ten-slot rack with analog summing mixer, Dante AoIP, or USB interface options.

• D510mx Mixer Interface: High-performance tracking rig with analog summing, delivering depth and three-dimensional soundstage.

• D510ua USB + ADAT Interface: Provides unmatched expandability, flexibility, and professional audio performance for hybrid setups.

Key Features:

• Dante AoIP connectivity with 10 in / 14 out

• High-performance A/D & D/A converters

• Integrates seamlessly with Dante-compatible consoles

• Ideal for live sound, studio, and hybrid setups

• Compatible with Harrison 500 Series modules and analog summing mixer

Solid State Logic Pure Drive Quad 4 Channel Microphone Preamplifier

Mic Pre’s with Prestige
The PURE DRIVE QUAD brings Solid State Logic’s celebrated SuperAnalogue PureDrive™ microphone preamp technology—first introduced in the ORIGIN console—into a powerful 4-channel 2U rack unit. With an added DRIVE mode, expanded connectivity, and advanced digital conversion, it delivers the clarity, punch, and warmth SSL preamps are famous for. The original PureDrive™ circuit offered a pristine sound with the option to shift into a harmonically rich driven tone, and PURE DRIVE QUAD carries that legacy forward.

ORIGIN consoles paired with PureDrive™ preamps are found in some of the world’s most prestigious studios. Whether you’re capturing delicate acoustic performances in PURE mode or adding analog thickness to drums in DRIVE mode, the PureDrive™ design offers unmatched versatility and musicality.

Analogue Obsession
PURE DRIVE QUAD delivers four premium mic preamps featuring PURE and DRIVE modes, plus a new Asymmetric DRIVE option, enhanced digital connectivity, and an integrated USB interface. Each channel provides four impedance settings, independent +48V phantom power, polarity invert, and a fully sweepable High Pass Filter.

Built with digitally controlled analogue circuits—no mechanical switches or pots in the signal path—PURE DRIVE QUAD ensures long-term reliability, precise recall, and perfectly matched channels. Each preamp can switch between three DRIVE flavours: Clean, Classic Drive, and Asymmetric Drive.

Three Distinct Sonic Flavours

Clean Mode (White)
Ultra-low noise, transparent SSL preamp performance that captures the source with exceptional detail.

Classic Drive (Amber)
Symmetrical DRIVE that generates predominantly odd harmonics—identical to the ORIGIN console.

Asymmetric Drive (Green)
A new colouration option exclusive to PURE DRIVE, emphasising even harmonics for extra weight, warmth, and softened transients.

Mic Impedance Input
Four selectable impedance values allow precise mic matching or creative tonal shaping—particularly powerful when using ribbon and dynamic microphones.

Independent Gain, Trim & HPF Controls
• Gain: Stepped control up to +65 dB
• Trim: 31-step precision control for fine level matching or driving the input for colour
• HPF: Variable high-pass filter up to 300 Hz

Advanced Connectivity
PURE DRIVE QUAD offers extensive analogue and digital I/O for professional studio, project studio, and location recording environments. Rear combo XLR inputs, front Hi-Z/DI inputs with auto-detection, and three D-Sub connectors support both line-level input and insert paths. Insert returns/ADC inputs accept up to +24 dBu.

Digital options include an integrated USB soundcard (up to 32-bit/192 kHz), dual AES/EBU output pairs, ADAT out, and ADAT LINK IN for cascading two units. AES and ADAT outputs can also be repurposed to route DAW audio from the USB soundcard. Auto-ranging word clock I/O ensures solid digital clocking.

Key Features

• Four high-performance SuperAnalogue PureDrive™ mic preamps

• +48V phantom power, polarity invert, and 3rd-order high-pass filter

• Stepped Gain up to +65 dB

• 31-step Trim with 1 dB increments for precise level control

• Three DRIVE modes per channel: Clean, Classic Drive, Asymmetric Drive

• Mic/Line switching via XLR, TRS, or D-Sub

• Four Hi-Z/DI instrument inputs with auto-detection

• Four mic preamp input impedance options for tonal shaping

• Balanced analogue outputs and insert sends

• +24 dBu line-level insert returns/ADC inputs

• Digital connectivity via ADAT, AES, and USB

• ADAT/AES outputs can source from DAW via USB

• USB soundcard mode: 12-in / 12-out @ 44.1/48 kHz

• Digitally controlled analogue electronics for recall and matching

• Up to 192 kHz / 32-bit conversion

• Selectable Auto-Sleep mode

• Auto-ranging Wordclock In/Out

SSL SiX Channel Strip (SiX CH) – 500 Series

Deceptively simple. Extremely powerful.
The SSL SiX CH brings the renowned SuperAnalogue™ channel processing from the SSL SiX console into a compact single-slot 500 Series module. With its premium mic preamp, musical 2-band EQ, versatile one-knob compressor, and convenient front-panel line input, the SiX CH is a professional-grade channel strip suitable for any studio setup.

Key Features

SuperAnalogue™ Mic Preamp

• Ultra-clean, fast, and punchy SSL preamp design

• Wide gain range for all source types

• Low noise performance

• +48V phantom power

• Phase invert switch

High Pass Filter

• 12 dB/octave HPF at 75 Hz

• Helps remove rumble and low-end noise

Classic SSL HF & LF EQ

• 2-band musical EQ taken from the SSL SiX console

• High shelf: 3.5 kHz / Bell: 5 kHz

• Low shelf: 60 Hz / Bell: 200 Hz

• ±15 dB gain range

• Switchable between shelf and bell curves

One-Knob Channel Compressor

• SSL feed-forward design

• Program-dependent attack

• Automatic makeup gain

• Transparent yet effective compression

Front-Panel TRS Line Input

• Fast access for instruments & external gear

• Switchable Hi-Z mode (1MΩ input impedance)

• Ideal for guitars, basses, and high-impedance sources

• Can be used as a feature-rich summing module input

Metering

• 5-segment LED meter in dBu for precise level monitoring

Technical specifications

Module signal: Mono

Pre-Amp Gain: Variable from +6 to +72 dB (Mic), -3 to +63dB (Line)

Mic Pre EIN: Typically 129dB

THD+N: <0.0015%

CMRR: >80dB (Mic), >70dB (Line)

SSL 2 MKII – Professional 2-in / 2-out USB-C Audio Interface

Elevated performance to fuel your creativity.
Building on the success of the original SSL 2, the SSL 2 MKII introduces a series of significant upgrades and carefully curated features. Designed for musicians, producers, and engineers who demand top-tier sound quality and intuitive control — SSL 2 MKII delivers unmatched audio performance and a workflow-friendly interface, ideal for both newcomers and seasoned professionals.

Core Features & Highlights

• 2 x SSL-Designed Analogue Preamps — Bus-powered preamps with wide gain range and uncompromised sound quality.

• Legacy 4K Analogue Colour Enhancement — Add the classic console “mojo” inspired by SSL 4000-series.

• Hi-Z Instrument Inputs — Record guitars, bass, and more directly.

• High-Current Headphone Outputs — Powerful headphone amps with 119.5 dB dynamic range.

• Balanced Monitor Outputs — Professional grade DC-coupled monitor outs with 120 dB dynamic range.

• Stereo Loopback — Perfect for podcasting, streaming, or content creation.

• 32-bit Dynamic Range & 192 kHz Sample Rate — Capture every nuance with high-fidelity and detail.

• SSL Production Pack (Included) — A comprehensive software bundle for music production (see below).

• Mac & Windows Compatible — Plug-and-play on Mac; ASIO/WDM driver support for Windows.

What SSL 2 MKII Offers

Class-leading Mic Amps

Two premium SSL mic preamps deliver a 64 dB gain range, 116.5 dB dynamic range, and -130.5 dBu EIN — enabling pristine capture of vocals, instruments, synths, or line sources. Each input supports Mic, Line, or Instrument (DI) mode for flexibility.

Pro-Grade Output Section

Balanced monitor outputs provide clean, detailed playback with headroom and clarity — ideal for pairing with studio monitors. DC-coupled outputs even support sending control voltages (CV) to synths.

Dual Headphone Outputs

Front-panel headphone jacks with high-current NJM amps drive any headphones — from compact monitors to full-sized studio models — with detail and dynamic range. Great for tracking, mixing or monitoring while recording.

Legacy 4K Analogue Enhancement Circuit

Bring the character of SSL 4000-series consoles to your recordings. The Legacy 4K circuit adds subtle harmonic coloration and a musical high-frequency boost, giving your sound warmth, presence, and classic console “glue.”

Next-Gen Conversion for Clarity

With 32-bit resolution and 192 kHz sampling, SSL 2 MKII’s converters deliver clarity, detail and dynamic precision. Great for vocal tracks, acoustic instruments, synths, drums — anything you record.

Flexible for Producers, Artists & Content Creators

Whether you’re recording a demo, streaming content, producing a hit track, or composing with virtual instruments — SSL 2 MKII handles it all. Its compact, bus-powered form factor makes it ideal for home studios, mobile setups, or portable rig use.

Included with SSL 2 MKII — SSL Production Pack

Your SSL 2 MKII includes a premium software bundle (worth over US$1100) to kickstart your production workflows:

• 3 months free: SSL & Slate Complete Access Subscription

• 3 months free: Auto-Tune Unlimited subscription

• 3 months free: Output Arcade subscription

• Perpetual licenses for: SSL Vocalstrip 2, SSL Drumstrip plug-ins

• Harrison Mixbus 10

• IK Multimedia Amplitube 5 SE

• Celemony Melodyne Essential

• Native Instruments Hybrid Keys & Komplete Start

• Ableton Live 11 Lite

• AAS Session Bundle plug-ins

• 1.5 GB of Loopcloud samples

Technical Specifications

• Audio Interface Type: 2-in / 2-out USB-C

• Converters: Next-Gen 32-bit / 192 kHz

• Mic Preamps: 2 × SSL-designed analogue preamps with 48V phantom power, High-Pass Filter (HPF), Line/DI input modes

• DI / Instrument Inputs: 2 × auto-detect Hi-Z instrument inputs

• Headphone Outputs: 2 × high-current headphone outputs with 119.5 dB dynamic range

• Monitor Outputs: Balanced, DC-coupled outputs with 120 dB dynamic range

• Additional Features: Legacy 4K analogue enhancement, stereo loopback, CV-output capable

• Compatibility: macOS (plug-and-play) and Windows 10/11 (ASIO/WDM drivers)

SSL PURE DRIVE OCTO – 8-Channel PureDrive™ Mic Preamp & Audio Interface

Mic Pre’s with Prestige

The PURE DRIVE OCTO harnesses SSL’s renowned PureDrive™ mic-preamp technology — originally featured in the legendary ORIGIN console. Now in an 8-channel, 2U rackmount format, PURE DRIVE OCTO brings that heritage into a compact, powerful, modern unit. With a new DRIVE mode, expanded connectivity and advanced digital conversion, it delivers both pristine clarity and a warm, rich, harmonically driven tone — offering producers and engineers unprecedented flexibility and sonic quality.

ORIGIN and its PureDrive™ preamps have earned their place in the world’s top studios. Whether you’re capturing a delicate piano performance in CLEAN mode or pumping out gritty drums in DRIVE mode, PureDrive™ has become a go-to tool for premium recordings. PURE DRIVE OCTO continues that legacy into rack format — delivering eight studio-grade mic preamps with PURE and DRIVE modes, plus a new Asymmetric DRIVE mode, robust digital I/O, and an integrated USB interface.

Modes & Tonal Flavours

Clean Mode

• Ultra-low noise floor, highly linear SSL preamp character — captures true, detailed source audio with complete transparency.

Classic Drive Mode

• Symmetrical analog drive that produces rich odd-harmonic distortion — the same celebrated tone as ORIGIN’s original preamps.

Asymmetric Drive Mode

• Emphasizes even harmonics for a thicker, warmer tone with softened transients — ideal for vocals, guitars, drums, or any source needing character and presence.

Each channel can be switched independently, giving you full flexibility over your mixes.

Professional Design & Precision Engineering

• No potentiometers, mechanical switches, or relays in the signal path — PURE DRIVE OCTO uses digitally controlled analogue circuitry.

• Stepped pots and precise electronic switching ensure consistent channel matching, easy recall, and long-term stability.

• Offers one of the most capable, feature-rich outboard mic-preamp units available for serious production work.

Versatile Connectivity & I/O Options

PURE DRIVE OCTO is built for both studio and project-workflow flexibility:

• 8 rear-mounted combo XLR mic inputs

• 4 front-panel Hi-Z/DI instrument inputs with auto-detect

• Three D-Sub connectors for line-level inputs, insert sends, and returns

• Insert returns / ADC inputs accept full +24 dBu line level — perfect for interfacing with external processors

• Digital connectivity including integrated USB soundcard (8-in / 24-out at 44.1/48 kHz), AES, and ADAT outputs

• AES and ADAT outputs can optionally route DAW outputs from USB — ideal for hybrid workflows

• Auto-ranging word-clock In/Out for robust synchronization and clocking

Key Features

• 8 high-performance PureDrive™ mic preamps

• +48 V phantom power, polarity invert, 3rd-order 75 Hz hi-pass filter

• Stepped Gain control up to +65 dB

• 31-step Trim control (1 dB increments) for precise level adjustment

• Three selectable preamp modes: Clean, Classic Drive, Asymmetric Drive

• Mic/Line switching — XLR, TRS, D-Sub options

• 4 front-panel Hi-Z/DI inputs for instruments

• Four selectable mic-preamp input impedance options — for tonal tailoring, especially with dynamic and ribbon mics

• Balanced analogue outputs / insert sends + professional-level insert returns / ADC inputs (+24 dBu)

• Full digital I/O: USB, AES, ADAT — up to 32-bit / 192 kHz conversion with +24 dBu line level = 0 dBFS

• Stepped pots + digitally controlled analogue circuit — for precision, recallability, and matched channels

• Auto-Sleep mode, auto-ranging word-clock I/O

Solid State Logic THE BUS+ – Analog Bus Compressor

If there is a single piece of analogue processing equipment that is synonymous with SSL, it is the SSL Bus Compressor. From the first SSL 4000B console in 1976 through every generation that followed, the Bus Compressor has remained the trusted centerpiece of SSL consoles. For top engineers and producers worldwide, it is the most relied-upon tool for making mixes sound bigger, more cohesive, and more energetic—delivering the legendary SSL glue and punch.

SSL set out to create the ultimate version of this iconic processor, and THE BUS+ is the most versatile incarnation ever made. Built on the foundation of the original circuit, it adds multiple unique coloration options and advanced processing tools. It can deliver clean, punchy compression like the SuperAnalogue™ 9000 Series, gritty 4000E-style character, or aggressive saturated parallel compression for drums—THE BUS+ handles it all.

The design uses premium components including 2181 THAT VCAs, four operating modes, and three distinct compression color options that can be blended to fit any genre. Powerful routing and processing enhancements include a Dynamic Analog EQ (D-EQ), Transient Expander, and more.

Innovation

To complement the expanded feature set, SSL added improvements for technical precision and recallability. Every control pot is stepped and scanned by a microcontroller that translates its position into exact circuit parameters. This eliminates pot tolerances and makes recall effortless—ideal for mastering applications.

Dynamic Analogue Equaliser (D-EQ)

THE BUS+ includes SSL’s first-ever Dynamic Analogue EQ, a versatile 2-band Dynamic EQ that can be placed before or after the Bus Compressor. Dynamic EQs adjust EQ gain based on signal level above a threshold, making them extremely effective for controlling contrast between background elements and forward-moving material.

The D-EQ offers:

• Two parallel dynamic EQ bands

• 16 selectable frequencies per band

• Switchable HF shelf-to-bell operation

• Compression or expansion per band (31-position stepped control)

It enhances the top and bottom end of your mix smoothly and musically, making it the perfect companion to the Bus Compressor.

Advanced Processing Tools

Alongside the classic SSL Bus Compressor, THE BUS+ adds several sophisticated tools:

Compression Color Modes

• LOW THD Mode – Reduces low-frequency distortion, cleans up bottom end.

• F/B Mode (Feed-Back) – Creates a more relaxed, vintage compression feel.

• 4K Mode – Introduces harmonic distortion and unbalanced VCA behavior for classic 4000-series character with adjustable grit.

Transient Expander (Unlockable)

Adds controlled attack and impact without harshness.

Key Features

Bus Compressor

• Four modes: Classic Stereo, Σ S/C Stereo, Dual Mono, Mid-Side

• External side-chain inputs and sends

• Authentic SSL Bus Compressor circuit

• LOW THD, F/B, and 4K modes

• Negative ratios for creative pumping effects

• New attack/release options including Auto 2

• MIX control for parallel compression

• Moving-coil gain reduction meters

• Unlockable Transient Expander

General

• Fully analogue circuit, digitally controlled

• Huge +27.5 dBu headroom

• Configurable processing order (pre/post D-EQ)

• CH 1 IN and CH 2 IN global bypass

• Switchable operating level: 0 dB, +10 dB, -5 dB

• Sleep and Auto-Sleep modes

• Precision MDAC-controlled MAKE-UP gain with 1 dB or 0.5 dB steps

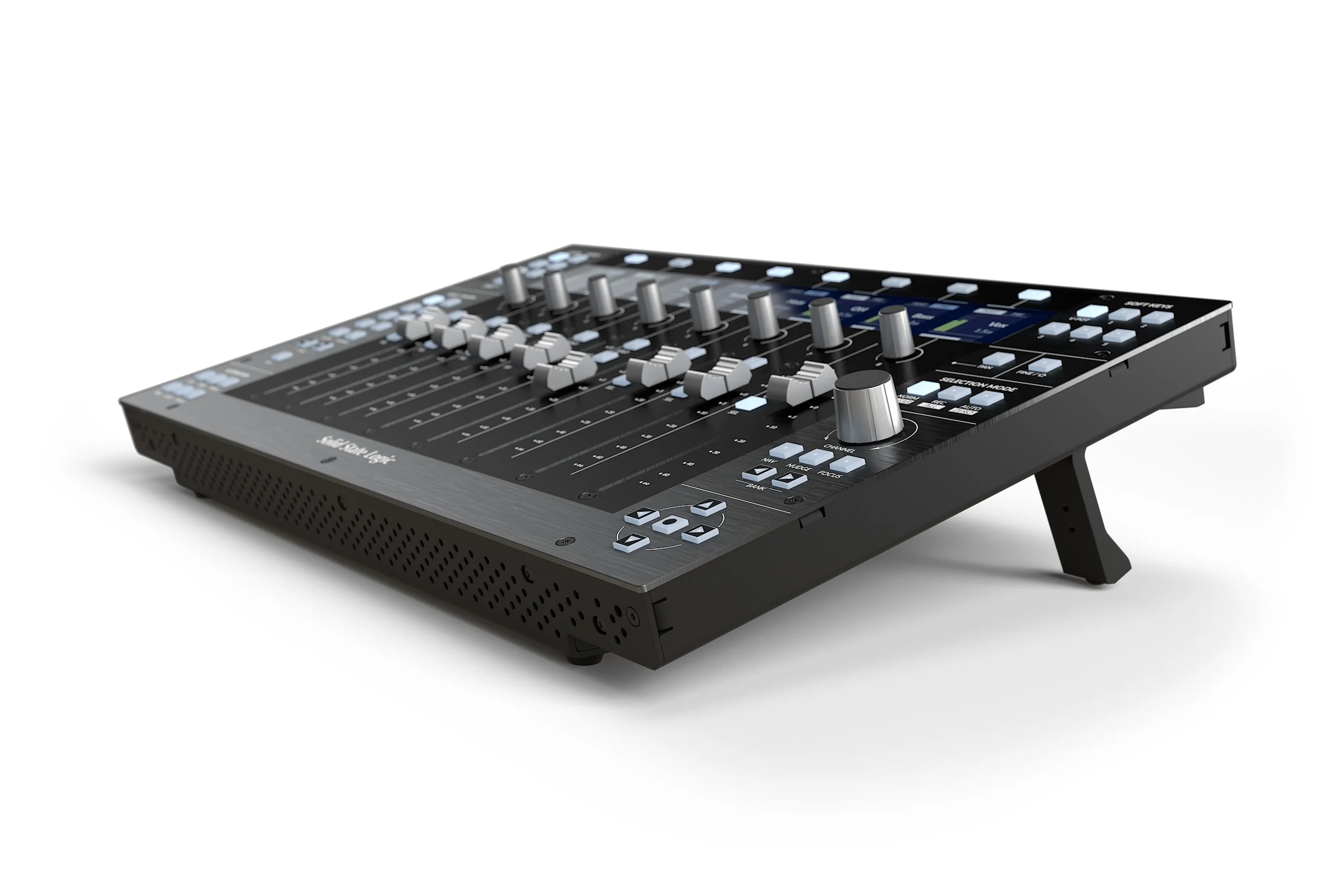

Solid State Logic UF8 – Advanced DAW Controller

Accelerated creativity, intelligent production.
The SSL UF8 is a professional studio controller designed for fast, modern DAW-based workflows. With 8 motorised faders, high-resolution displays, and deep workflow integration, UF8 connects producers, engineers, and artists directly to the creative process—dramatically improving speed, precision, and productivity.

UF8 represents the culmination of SSL’s 40+ years of console design, workflow mastery, and studio ergonomics. This engineering excellence is distilled into a premium-finish USB controller built for modern music creation, mixing, content production, and post-production.

Music Creation & Production

With UF8 at the center of your studio, navigating large sessions becomes effortless. Hi-resolution visual feedback and intuitive controls help you stay creative longer, focusing on the music—not the mouse.

Content Creation & Webcasting

Solo tracks instantly, trigger your favorite edits, and accelerate your content workflow. UF8 helps creators produce faster and deliver more engaging results.

Post-Production

UF8 offers smooth, precise automation for dialogue and sound design. Assign essential shortcuts to user-keys for a workflow tailored to your post-production needs.

Music Mixing

Bring feel and expression back into your mixes with 100 mm motorised faders—perfect for balancing tracks or riding effects. Expand your setup to 32 faders (4× UF8) for the full SSL mix experience.

Advanced Workflow

UF8 is built from deep understanding of production needs:

• Control multiple DAWs simultaneously

• Multi-purpose Master Encoder for timeline navigation

• Track banking & mouse wheel emulation

• Dedicated automation section

• Channel & Plug-In control modes for enhanced Pro Tools workflows

• Quick access to solos, mutes, sends & plug-ins

Key Features

• 100 mm touch-sensitive motorised faders

• High-resolution color displays

• Brushed anodized all-metal enclosure

• 8 endless rotary encoders

• 43 assignable workflow keys (5× banks of 8 + 3 Quick Keys)

• Intelligent CHANNEL encoder with scroll-emulation precision

• Hi-speed USB connectivity

• Custom workflows via SSL 360° software

Detailed Component Features

100 mm Touch-Sensitive Faders

Premium feel, engineered precision, and SSL-grade response.

High-Resolution Color Displays

Clear, constant visual feedback: levels, pan, routing, naming, and more.

Endless Rotary Encoders

V-POT workflow from SSL AWS & Duality consoles for seamless parameter control.

Intelligent CHANNEL Encoder

Control any plug-in parameter under your mouse cursor.

Custom Workflows

Configure macros and shortcuts for complete session control using 43 assignable keys.

Human Engineering

Six adjustable positioning angles with included stands. Optional 19" rack-mount kit.

Multi-Unit Chaining

Link multiple UF8s: build 16, 24, or 32-channel SSL production systems.

Rear Panel Connectivity

• USB-C port (C-to-C and C-to-A cables included)

• USB-A port for daisy-chain communication or dongles

• Two footswitch jack inputs

• External auto-ranging PSU port

SSL 360° Software

SSL 360° is the command center for UF8:

• Configure DAW profiles

• Customize user keys

• Manage firmware & updates

• Save/load layouts

Includes Vocalstrip 2 and Drumstrip full plug-in licenses.

Open DAW Policy – Multi-DAW Support

Official profiles available for:

• Pro Tools

• Logic Pro

• Cubase / Nuendo

• Ableton Live

• Studio One

• LUNA

• REAPER

• FL Studio

• Digital Performer

• Bitwig

• Mixbus

• Pyramix

• Samplitude / Sequoia

Control up to 3 DAWs simultaneously.

System Requirements

Mac:

• macOS 13 Ventura, 14 Sonoma, 15 Sequoia, 26 Tahoe

Windows:

• Windows 10 or 11

Hardware:

• Intel 3rd Gen Core i5 or equivalent

• 8 GB RAM recommended

• Internet connection for SSL 360° updates

Physical Specifications

Unit Dimensions:
17” × 10.5” × 2.4”
(431 × 266 × 62.7 mm)

Weight:

• Unboxed: 6.4 lbs (2.9 kg)

• Boxed: 11.02 lbs (5.0 kg)

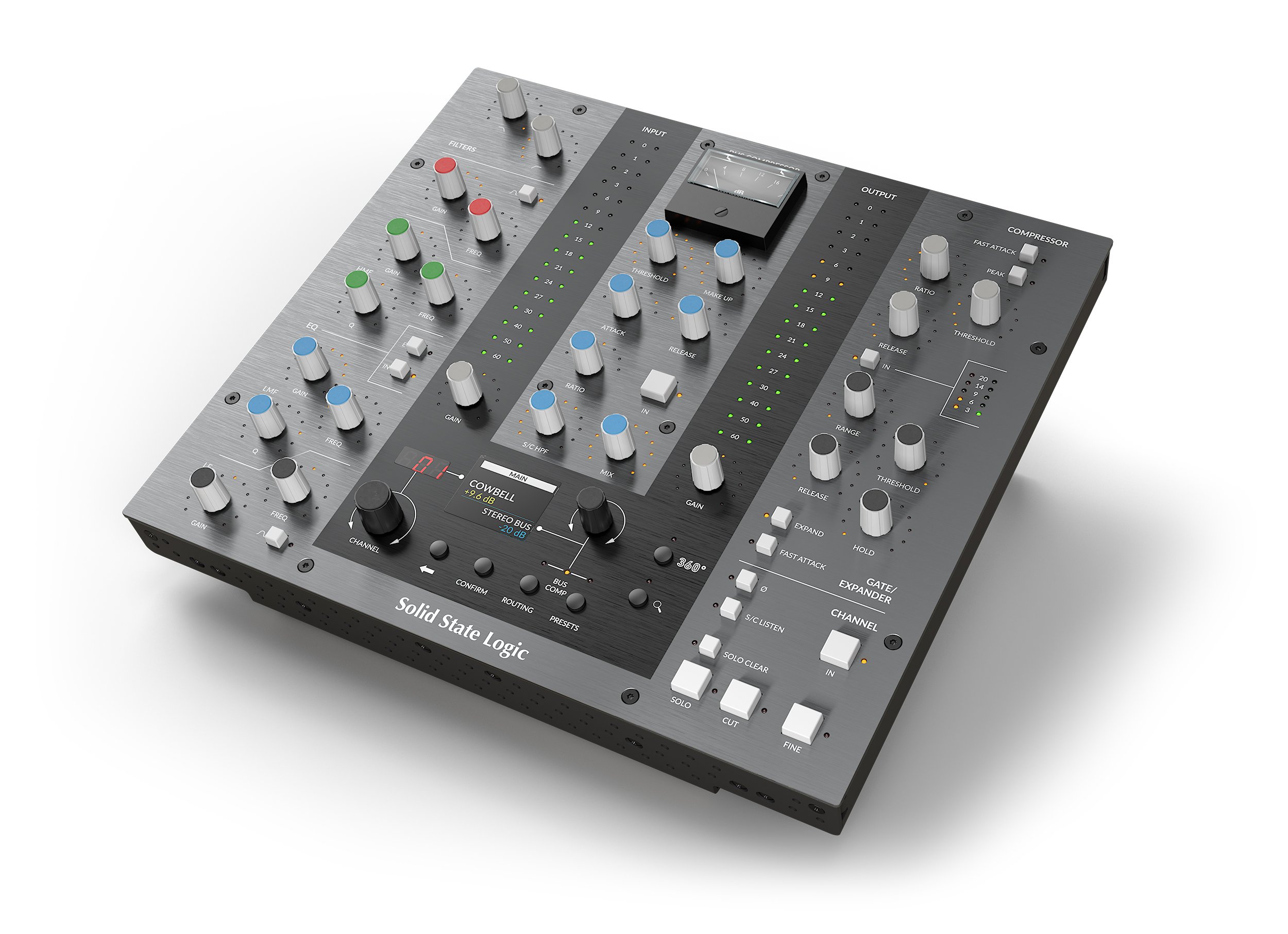

SSL UC1 Plug-in Controller

Studio-grade plug-in control — for SSL and any third-party plug-ins

UC1 delivers the ultimate hands-on control over your DAW plug-ins. With knob-per-function EQ & dynamics control, a full bus-compressor section, an authentic moving-coil gain-reduction meter, dual front-panel displays, and a rugged metal build — UC1 gives you a tactile, intuitive, professional workflow. Whether you use SSL 360°-enabled plug-ins (Channel Strip, 4K, Bus Compressor) or third-party plug-ins, UC1 brings console-style ergonomics and lightning-fast control to any DAW session.

UC1 draws on decades of console design to provide a deeply integrated control surface. Multiple parameters can be adjusted simultaneously, presets can be loaded, processing order changed, and Focus can be switched between plug-ins — all without reaching for your mouse. Add compatibility with other SSL controllers (like UF1 or UF8) to expand your hybrid workflow even further.

Key Features

Dedicated Plug-in Controls with Console Ergonomics

• Knob-per-function control for EQ and dynamics — no digging through menus.

• Full bus-compressor section with real-time moving-coil gain-reduction meter.

• Smart LED-ring feedback gives constant visual indication of active parameters and levels.

Seamless Plug-in Integration

• Full native support: Channel Strip 2, 4K B / E / G, Bus Compressor 2.

• Control any third-party plug-in using 360 Link or 360 Link Bus Compressor.

• Load presets and change plug-in process order (with 360-enabled plug-ins).

Efficient Workflow & Visual Feedback

• Dual front-panel displays show track/plug-in names, parameters, values, and status.

• Quickly switch between multiple DAWs connected to the SSL Plug-in Mixer.

• USB connection ensures fast, stable communication with minimal latency.

Rugged Build Quality

• All-metal chassis with brushed-anodized top plate — built to take real studio use.

• Compact, desk-friendly footprint for home studios and professional rigs alike.

What’s Included with UC1

• UC1 hardware controller

• Licenses for SSL plug-ins: Channel Strip 2, 4K B, Bus Compressor 2

• Free access to 360 Link & 360 Link Bus Compressor (no extra cost)

• 6-month trial of SSL 360° Access

• Plug-ins and Mixer hosted in the SSL 360° application (Mac & Windows)

System Requirements

• Operating System: macOS or Windows (64-bit)

• Plug-in Hosts: AAX Native, AU, VST3, VST (64-bit)

• Minimum CPU: Intel 3rd Gen Core i5 (or equivalent AMD), 2.4 GHz or above

• RAM: 8 GB minimum recommended

• Minimum Screen Resolution: 1280 × 960

• Internet connection required for license activation and software updates

SSL 360° software must be installed to control plug-ins via UC1.

UC1 Physical Specification

Dimensions:

11.8” x 10.5” x 2.4” / 300 x 266 x 61mm (Width X Depth X Height)

Weight:

Unboxed 4.6lbs / 2.1kg

Boxed 9.9lbs / 4.5kg

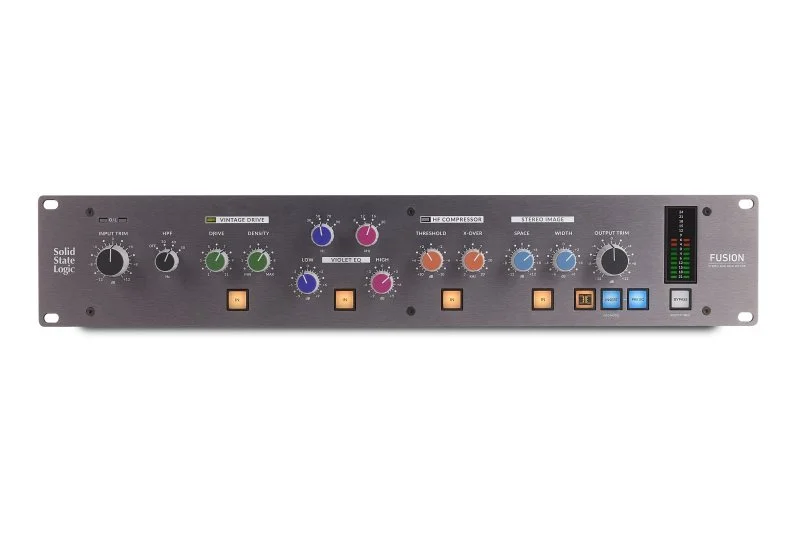

Fusion – All-Analogue 2U Stereo Outboard Processor

Fusion is an all-analogue 2U stereo processor designed for the modern hybrid studio. It introduces six brand-new analogue colouration tools that add tonal character, weight, and space to your mix bus or stereo stems. Enjoy the warmth, detail, and finesse that only true analogue circuits can offer.

ANALOGUE COLOUR TOOLS

Six analogue colours & limitless sonic flavours

The SSL legacy is built on iconic analogue tools: pristine mic preamps, classic Channel EQ & Dynamics, the legendary Stereo Bus Compressor, Listen Mic Compressor, and the SSL summing bus.
Fusion expands this heritage with six newly developed colouration tools, offering exceptional tonal versatility for hybrid studios. It pairs perfectly with the SSL Stereo Bus Compressor.

DESIGNED FOR MODERN HYBRID WORKFLOWS

Workflow-enhancing features include:

• Input & Output Trim Controls
±12dB trim for flexible gain staging.

• Input Overload LED
Prevents unexpected clipping.

• Large Peak-Hold Meters
Accurate visual monitoring.

• High-Pass Filter (HPF)
3rd-order HPF with 3 selectable cutoff frequencies.

• Tri-Colour Status Indicators
For the Vintage Drive and HF Comp/LMC sections.

• Stereo Insert / Mid-Side (MS) Operation
XLR insert can be used for:
— Standard stereo insert processing, or
— True MS mode, allowing different EQ or compression on the center and side channels.
Insert position can be switched pre-Violet EQ (Stereo mode) or pre-Stereo Image controls (MS mode).

• Full XLR I/O Connectivity
Professional balanced input and output connections.

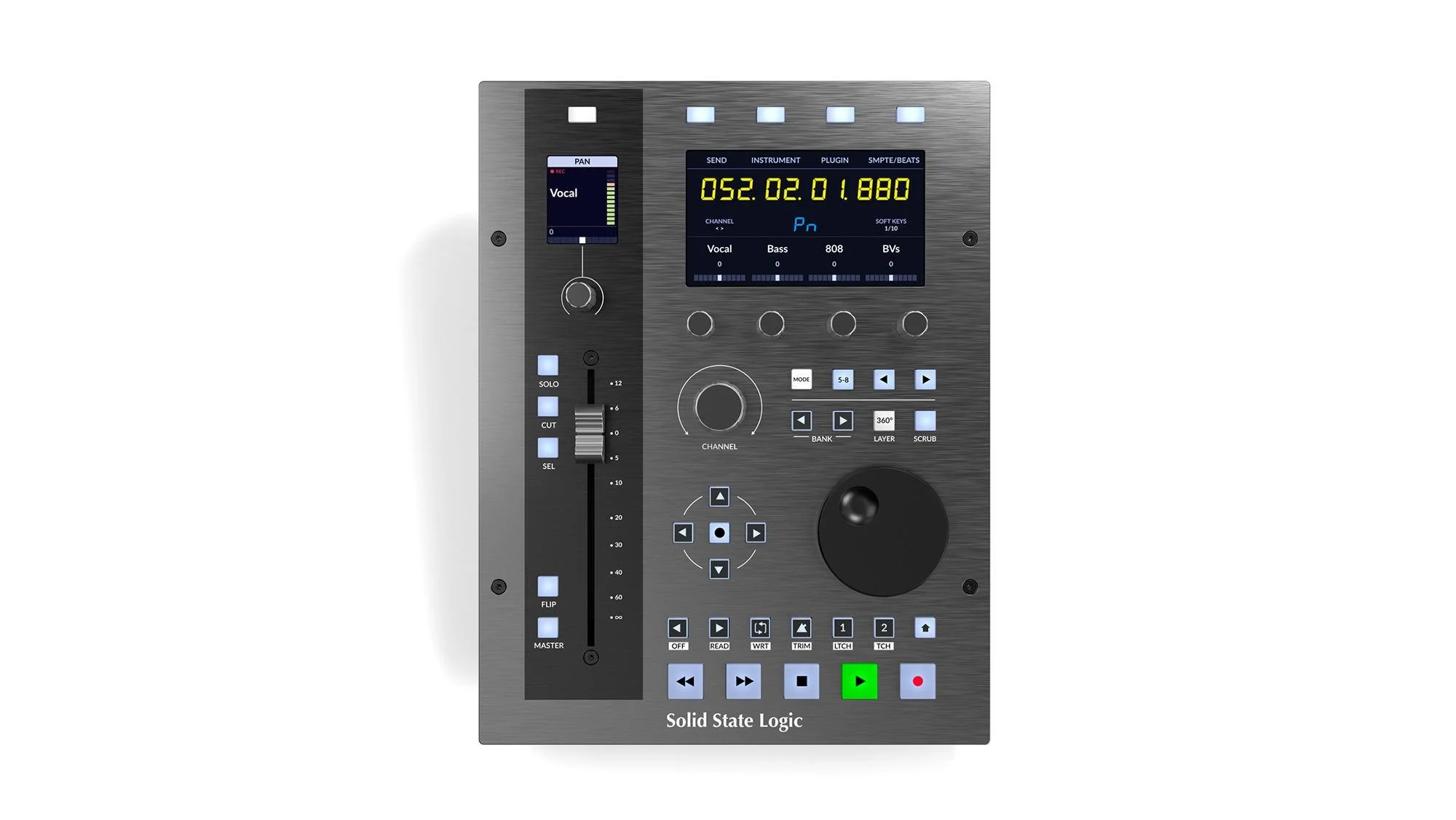

UF1 DAW Control Centre

UF1 is the ultimate single-fader studio controller for creators who want deep DAW control in a compact footprint. Designed with SSL’s signature production workflow in mind, UF1 delivers precision, speed and intuitive control for in-the-box mixing. Featuring a premium 100 mm motorised fader, dual high-resolution displays, durable soft-feel keys, a weighted jog wheel and a metal chassis, UF1 gives you professional tactile control over every aspect of your session.

From pans, sends and plug-ins to transport, navigation and custom macros, UF1 puts your entire workflow at your fingertips. With 46 assignable soft keys, seamless integration with SSL Meter Pro, SSL Meter plug-ins and SSL 360° software, UF1 offers power and control unmatched by any controller of its size.

Key Features

Premium 100 mm Motorised Fader

• Smooth, precise response built to SSL console standards

• High-detail volume control that keeps you in the sweet spot

Transport Controls & Weighted Jog Wheel

• Dedicated transport section for fast session navigation

• Weighted jog wheel for effortless scrubbing and timeline movement

• Customisable secondary transport shortcuts (e.g., loop, automation)

Dual High-Resolution Displays

• 1.7” + 4.3” LCD TFT screens

• Visual feedback for track names, parameters, timecode, SSL Meter Pro and SSL Plug-in Mixer

• Deep integration with 360-enabled channel strips

Multi-Purpose Large Encoder

• Channel banking

• Mouse-wheel emulation (Focus mode)

• System volume control

Human-Engineered Design

• Includes adjustable stands with six elevation angles

• Positioned for optimal ergonomics in any studio setup

Custom Workflow Control

• Configure macros, keyboard shortcuts and custom commands in SSL 360°

• 46 assignable, backlit user keys for personalised workflow

Advanced Metering & Analysis (with SSL Meter Pro)

Loudness Metering

• Momentary, Short-Term and Integrated loudness tools

• Histogram, history capture and full preset list

• Covers international broadcast, film and streaming standards

True Peak & RMS Levels + K-System

• Dual True Peak and RMS metering

• Max/current value readouts

• Lissajous phase scope with adjustable fade

• Phase correlation and stereo balance meters

31-Band Real-Time Analyser (RTA)

• Visualise the full frequency spectrum of your mix

• Inspect individual frequency bands

• Adjustable peak-hold and averaging times

Analogue Metering View

• Choose between VU and PPM (Type II)

• Classic analogue-style metering trusted by engineers worldwide

SSL 2+ MKII USB-C Audio Interface

Elevated Performance for Modern Production

The original SSL 2+ set a new standard for desktop interfaces, delivering professional SSL sound in a compact form. The new SSL 2+ MKII takes that legacy further with upgraded converters, improved headphone amps, expanded dynamic range, and enhanced workflow features for musicians, producers, engineers, podcasters, and content creators. Designed with SSL’s engineering heritage, it delivers class-leading audio quality, intuitive operation, and professional-grade reliability.

Highlights

• 2 x SSL-Designed Analogue Mic Preamps
  Huge 64 dB gain range, ultra-low noise, and input modes for Mic, Line, and Instrument.

• Legacy 4K Analogue Enhancement
  Adds classic SSL 4000-series harmonic color and high-end presence.

• Next-Gen 32-bit / 192 kHz Converters
  Extreme clarity, precision, and detail at all dynamic levels.

• Independent High-Current Headphone Outputs
  Re-engineered amps delivering 119.5 dB dynamic range.

• 4 x Balanced DC-Coupled TRS Outputs
  Professional monitoring, outboard routing, and CV control for synths.

• Hi-Z Instrument Inputs
  Directly record guitars, bass, and other instruments with clarity.

• MIDI I/O + Stereo Loopback
  Ideal for creators, streamers, and hybrid producers.

• USB-C Bus Powered
  Fully portable and ready for Mac/PC.

• SSL Production Pack Included
  A premium software bundle worth over $1100.

Detailed Overview

Class-Leading Mic Preamps

Equipped with two SSL-designed mic preamps delivering 64 dB gain, 116.5 dB dynamic range, and -130.5 dBu EIN, the MKII provides pristine transparency for vocals and instruments. Each input supports Mic, Line, and Instrument (DI) modes for versatile studio use.

Professional-Grade Outputs

Four balanced TRS outputs provide 120 dB dynamic range, enabling ultra-clean monitor playback, routing to outboard gear, or sending CV signals to modular synths. All outputs are DC-coupled for advanced workflows.

Dual Independent Headphone Amps

The redesigned headphone section uses high-current NJM amplifiers capable of driving any studio headphones with exceptional accuracy.

• Dynamic Range: 119.5 dB

• Independent mixes for engineer & performer

• Front-panel access for convenience

Legacy 4K — SSL’s Iconic Analogue Mojo

Inspired by the legendary SSL 4000 (4K) consoles, the Legacy 4K circuit adds:

• Subtle, musical harmonic enhancement

• A forward, airy high-frequency boost
  This produces the signature SSL presence and character heard on countless hit records.

Connectivity & I/O

Front Panel:

• 2 x Auto-detect Instrument (DI) inputs

• 2 x Independent headphone outputs

Rear Panel:

• 2 x Neutrik® XLR Combo Mic/Line inputs

• 4 x Balanced TRS outputs

• MIDI In/Out (5-pin DIN)

• USB-C port (USB-bus powered)

Next-Generation Conversion

The MKII uses upgraded 32-bit / 192 kHz converters, delivering:

• Exceptional low-level detail

• Punchier transients

• More accurate monitoring

• Fuller stereo image
  Whether recording vocals, synths, or streaming live, the converter upgrade provides a noticeable improvement in clarity and definition.

For Content Creators

The SSL 2+ MKII is excellent for podcasts, streaming, and online performances.

• Clean preamps for speech and voiceover

• Built-in stereo loopback for system audio or online guests

• Reliable driver support for Mac and Windows

For Music Producers

With dual headphone outs, premium converters, and SSL-grade preamps, the MKII is built for modern music production. Adding the SSL Production Pack provides all the instruments, plug-ins, and tools needed for a full studio workflow.

Key Features

• 2-In / 4-Out USB-C Audio Interface

• Next-Gen 32-bit / 192 kHz Converters

• 2 SSL Mic Preamps w/ HPF, Line & DI Modes

• Legacy 4K Analogue Enhancement Circuit

• Dual Independent Headphone Outputs

• 4 Balanced TRS DC-Coupled Outputs

• MIDI I/O + Stereo Loopback

• Professional Components: Neutrik®, Alps®, NJM

• USB 2.0 Bus Powered

• Portable, Robust SSL Build Quality

Technical Specifications

System Requirements

Mac: macOS 12+ (Class-Compliant, Plug-and-Play)
Windows: Windows 10, 11, and Windows 11 ARM (ASIO/WDM driver included)

Connectivity

• USB 2.0 Type-C (C-to-C and C-to-A cables included)

Mic Preamps

• EIN: -130.5 dBu A-weighted

• Gain Range: 64 dB

• Dynamic Range: 116.5 dB A-weighted

Instrument Inputs

• Dynamic Range: 116 dB A-weighted

• Max Input Level: +15 dBu

Line Inputs

• Dynamic Range: 117 dB A-weighted

• Max Input Level: +24 dBu

Balanced Outputs

• Dynamic Range: 120 dB A-weighted

• Max Output Level: +14.5 dBu

Headphone Outputs

• Dynamic Range: 119.5 dB A-weighted

• Max Output: +13 dBu
