TASCAM IF-AN16/OUT | 16-Channel Analog Output Expansion Card

TASCAM IF-AN16/OUT – 16-Channel Analog Output Expansion Card

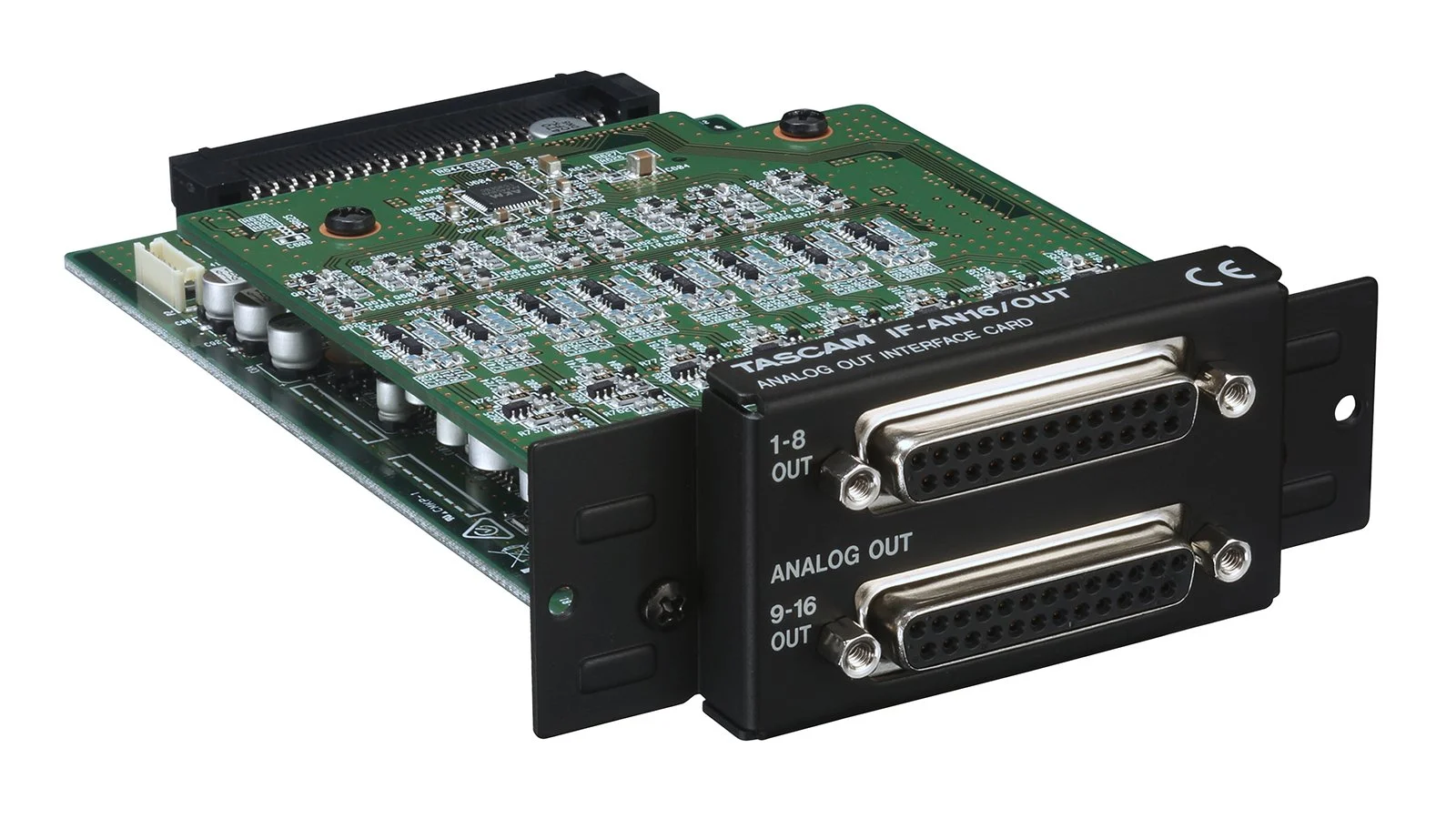

The TASCAM IF-AN16/OUT is a 16-channel analog output expansion card designed for the TASCAM Expansion Slot system. Compatible with the Sonicview 24, Sonicview 16, DA-6400, and DA-6400dp models, it adds extensive analog output capability via two D-sub 25-pin connectors. The card supports multiple sample rates and bit depths, making it a flexible, high-quality solution for professional studio, live, and broadcast environments.

Key Features

• 16 channels of professional-grade analog outputs

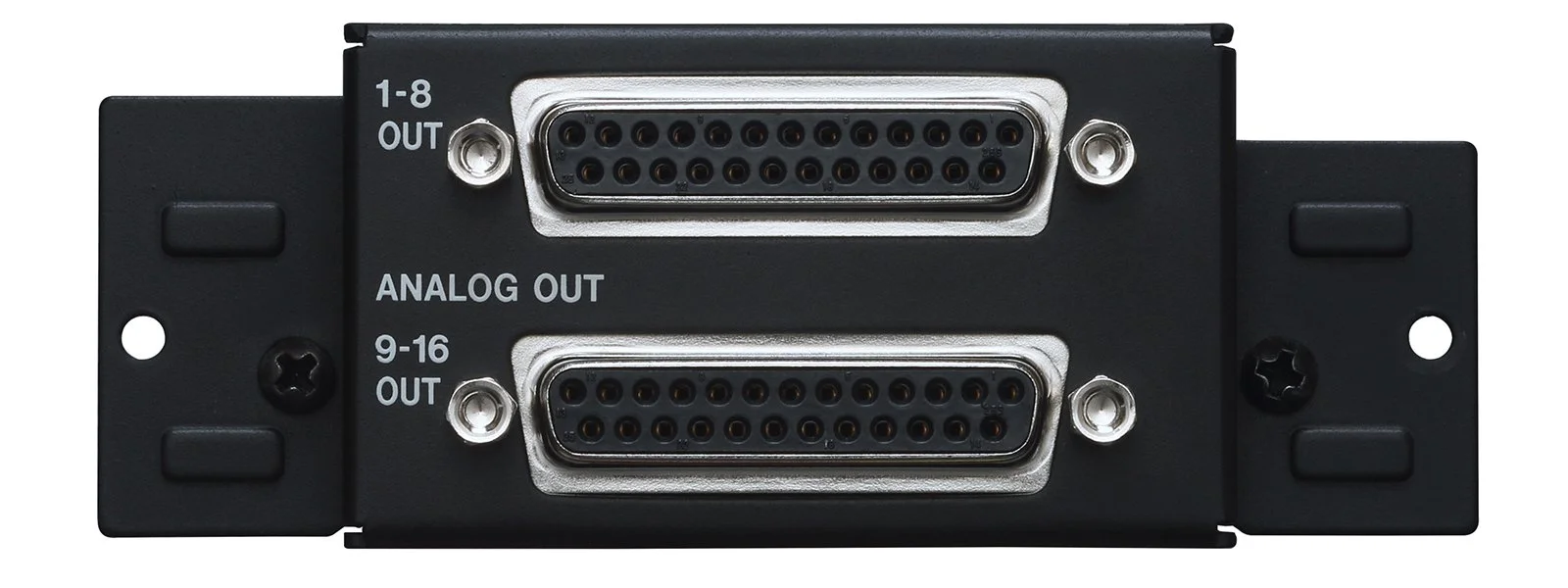

• Two 8-channel D-sub 25-pin balanced output connectors (channels 1–8 and 9–16)

• Built-in output attenuation for each channel: 0 to –14 dB in 0.5 dB steps

• Compatible with all TASCAM Expansion Slot system devices

• Ideal for expanding output capabilities in studio and live production setups

Technical Specifications

• Formats & Channels: 16 channels at 44.1 / 48 / 88.2 / 96 kHz, 16-bit / 24-bit

• Connector: D-sub 25-pin

• Locking Screws: No. 4-40 UNC (inch type)

• Nominal Output Levels: +4 dBu, +6 dBu (only when maximum output is +15 dBu)

• Maximum Output Levels: +24 dBu, +22 dBu, +20 dBu, +18 dBu, +15 dBu (switchable per device settings)
