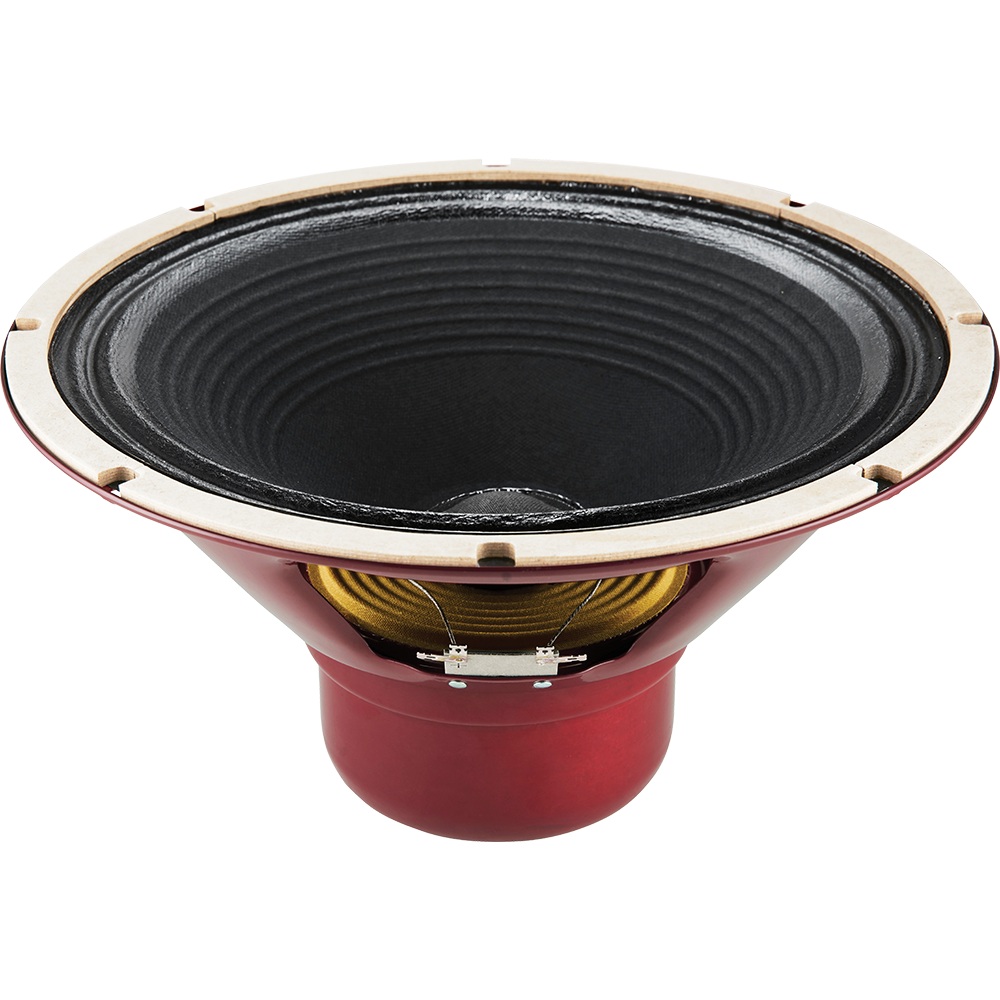

Celestion CELESTION RUBY 8 OHM Alnico Magnet Guitar Speaker for Amps and Combos
Ships Free!
The Ruby is an alnico-magnet guitar speaker that’s purpose-built to create vintage tones – and at 35-watts power handling it’s ideal for use with mid-powered amps and combos. Bringing the instantly familiar Celestion alnico vibe with its glorious dampened attack; the Ruby oozes a richly musical vintage warmth with mellow highs and a smooth sophisticated midrange.
Specifications
Nominal Diameter: 12in/305mm
Nominal Power Rating: 35W
Nominal Impedance: 8Ω or 16Ω
Sensitivity: 100dB
Frequency Range: 75-5000Hz
Resonance frequency Fs: 75Hz
DC resistance, Re: 6.7Ω or 13.1Ω
Voice coil diameter (mm): 44mm
Voice coil diameter (in): 1.75in
Chassis Type: Pressed steel
Magnet Type: Alnico
Voice coil material: Round copper
Mounting Information
Diameter: 12.2in/309mm
Magnet structure diameter: 5.0in/128mm
Mounting slot PCD: 11.7in/297mm
Number of mounting slots: 8
Overall Depth: 6.5in/165mm
Cut-out diameter: 11.1”, 283mm
Unit Weight: 9.3lb/4.2kg
----------------------------------------------------------------------------------------------------------------
Echotone Music LLC is an experienced long time E-commerce Audio & Musical instrument dealer since 1998. We take pride in selling quality gear for musicians, sound engineers, production companies and broadcast applications.
Shipping --Items are well packed and shipped USPS, UPS or Pallet Freight Service. Items purchased on Friday may not ship until Monday or until the projected processing period. We are working hard to get your unit Built ( if needed), processed and shipped.
Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.
Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as mount marks, plug marks, scratches, scuffs, dings or scrapes, screw mount marks or collateral material damage.. Items must also include all original packaging, manuals, warrantees & accessories or your return may be subject to a return handling charge.
Refunds or for the Item cost only. If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.
The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, cleaners, polishes & polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.
Happy customers, that's music to our ears!
