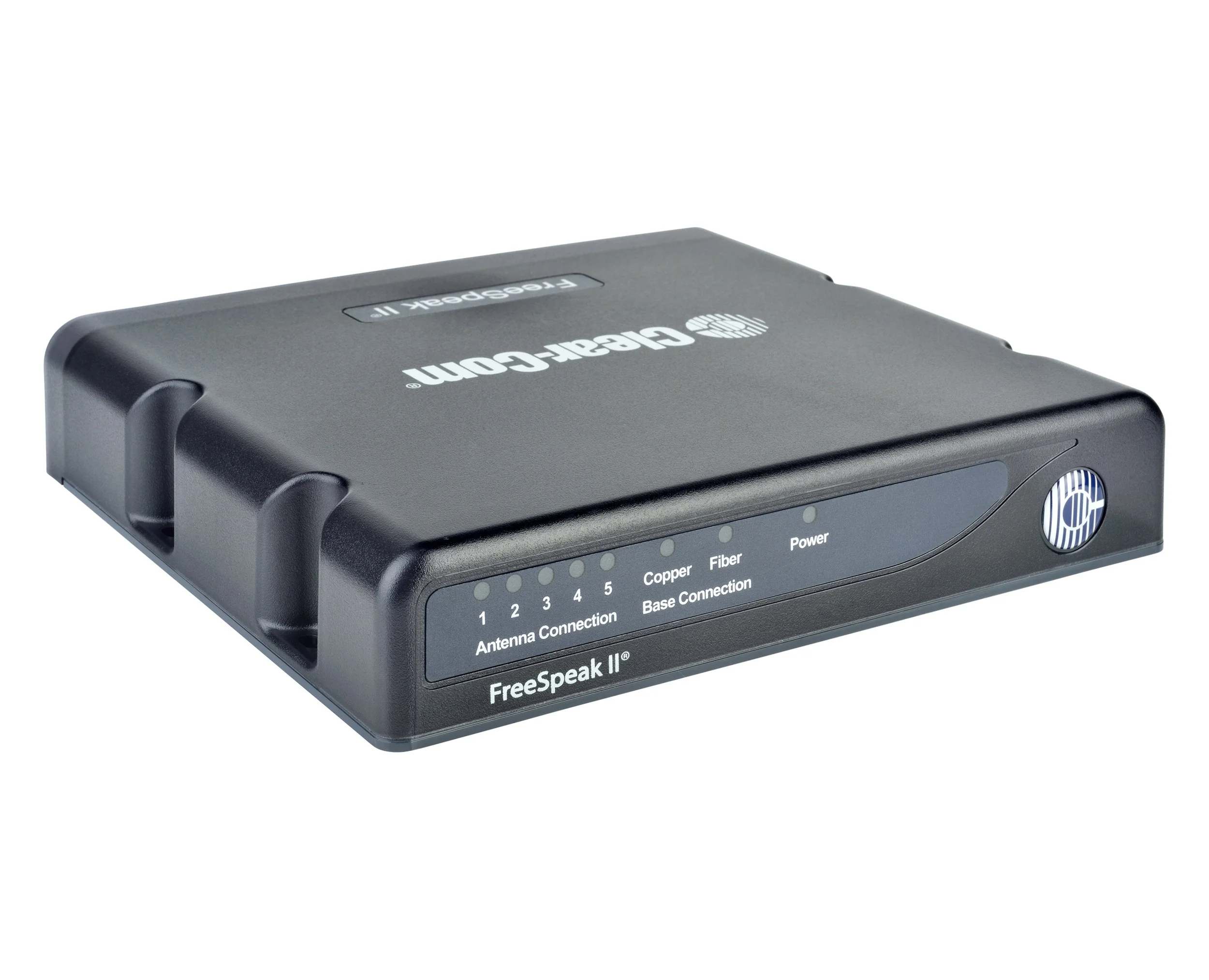

Clear Com Intercom FSII-SPL FreeSpeak II Splitter RJ45 Ethercon Base

The FSII-SPL is a splitter that connects multiple FreeSpeak II transceiver antennas to an Eclipse® HX matrix (via E-QUE-HX card) or a FreeSpeak II base station. The splitter provides up to five antenna feeds from one antenna port and has an SFP fiber slot for fiber connectivity.

• Functions with FSII base, FreeSpeak Edge base, Arcadia Central Station, and E-IPA-HX cards

• Provides 5 FSII transceiver feeds on one port on FSII base station or E-IPA-HX card

• SFP fiber slot for fiber link to FSII base station or as a fiber bridge between FSII-BASE-II stations and Eclipse HX frames

• Supports both multi-mode and single-mode fiber

• Configure settings using DIP switches

• IP-63 water resistance for outdoor use

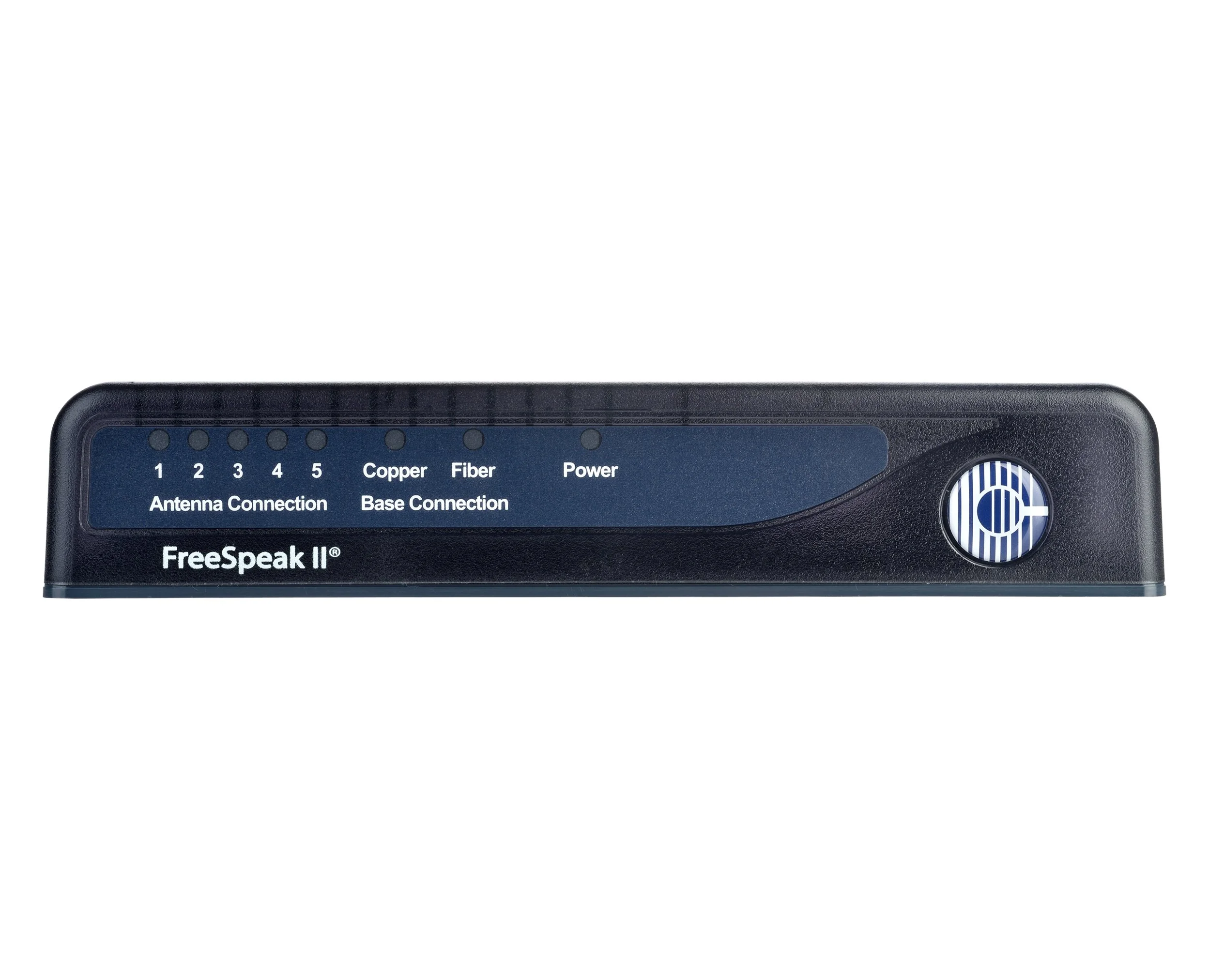

• LED status indicator on front and back

• Mic stand or wall mount orientation (metric and imperial threads)

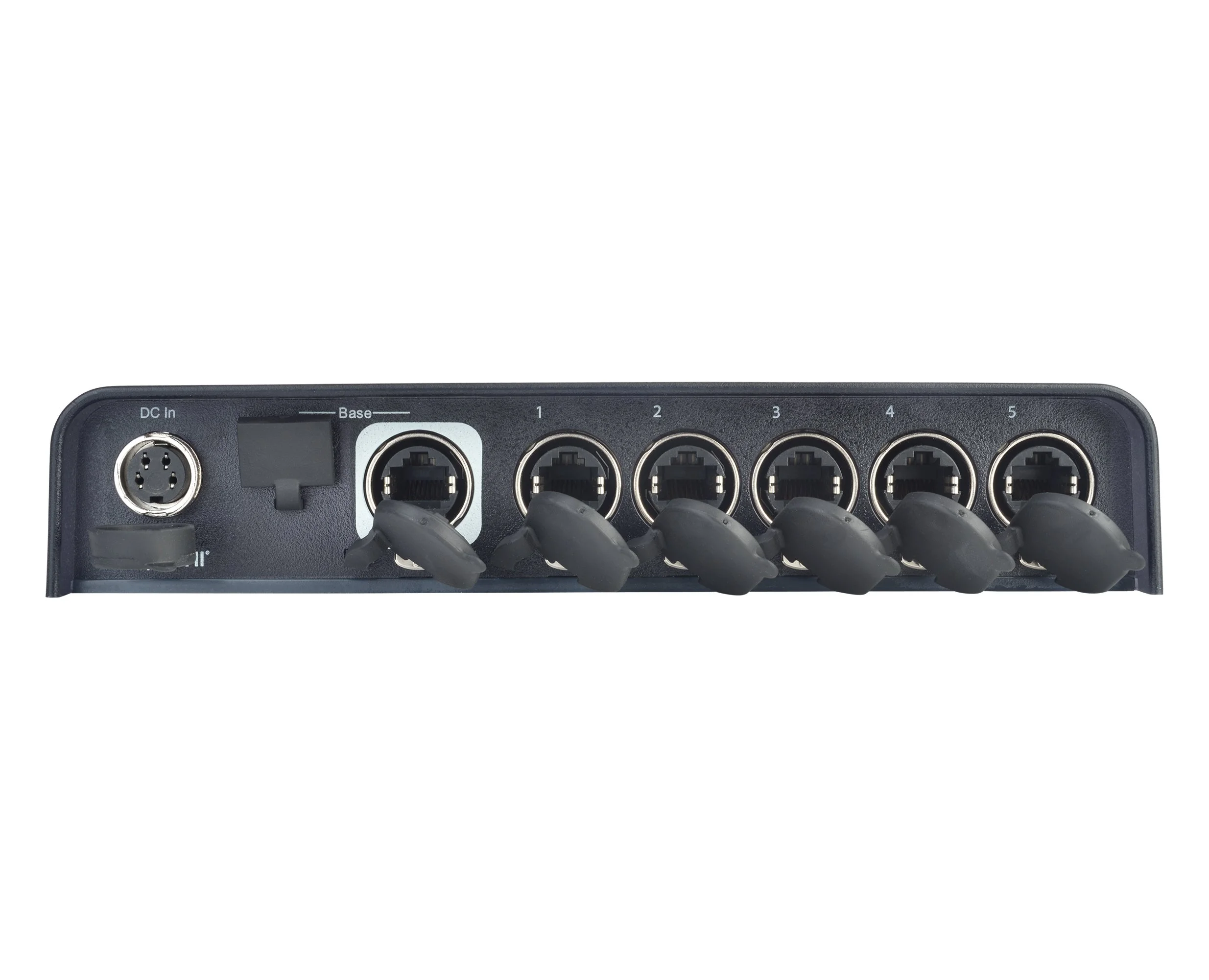

  Connections

  Transceiver Antenna: 5 Ethercon RJ45, each with yellow LED indicators on front and back

  Matrix: 1 Ethercon RJ45, with yellow LED indicator on front and back

  Fiber: 1 SFP port



  Power

  Splitter: Requires external power supply (included)

  Transceiver Module: Provides power to modules via RJ45 connections



  Mounting Options

  Wall Mount with 4 mounting points Mic Stand Mount (metric and imperial threads

  Environmental

  IP63 water resistance for outdoor use +32° to +122°F (0° to +50°C)
