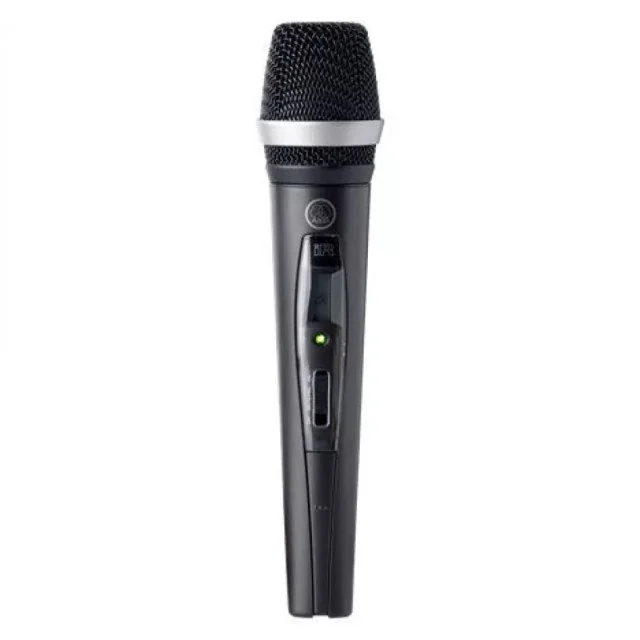

AKG Acoustics HT470 D5 BD8 50MW Wireless Handheld Transmitter Microphone System
AKG Acoustics HT470 D5 BD8 50MW Wireless Handheld Transmitter Microphone System
The rugged HT470 is an analog professional wireless handheld transmitter with pilot tone transmission to prevent unexpected startup noise. It continuously sends transmitter data, including low-battery information, to the receiver. An infrared data link in conjunction with the automatic frequency setup makes the HT470 extremely simple to use. The unique dipole-antenna design ensures reliable transmission even when one pole of the antenna is covered completely by the user's hand. An enhanced battery identification automatically detects the used battery type and allows up to 14 hours of operation on one AA-size battery. The display shows the remaining operating time in hours. Available in two versions - D5 and C5
Features:
Leading edge dipol-antenna design
infrared synchronization
Up to 50mW transmission power
Integrated charging contacts
pilot Tone transmission
Specifications;
General Specifications
Audio frequency bandwidth: 35 - 20000 Hz
Signal to Noise: 120 dB-A
THD at 1 kHz: 0.7 Prozent
Operating temperature range: -10 to 55 Celsius
Peak deviation: 48 kHz
Nominal deviation: 20 kHz
Radio Output Power (min/max): 10 to 50 mW
Microphone head versions: D5; C5
Switching bandwidth: 30 MHz
Recommended simultaneous channels: 24
Number of selectable frequencies: 1220 (selectable in 25kHz steps)
Frequency Selection: Selectable frequency in 25kHz steps
Radio range (Line of sight): 100m (depending on antenna system)
Modulation: FM (Frequency Modulation)
Switchable RF power: no
Pilot Tone: yes
Dimensions
Height: 237 mm
Width: 51 mm
Net Weight: 240 g
Battery 2
Battery type: HR 6 AA (NiHM) rechargeable
Number of batteries: 1
Operating time: 8 h
Battery 1
Battery type: LR6 AA alkaline
Number of batteries: 1
Operating time: 7 h
What's in the box:
1 x HT470 Handheld transmitter with D5 or C5 capsule
1 x Stand adapter
1 x AA size battery
