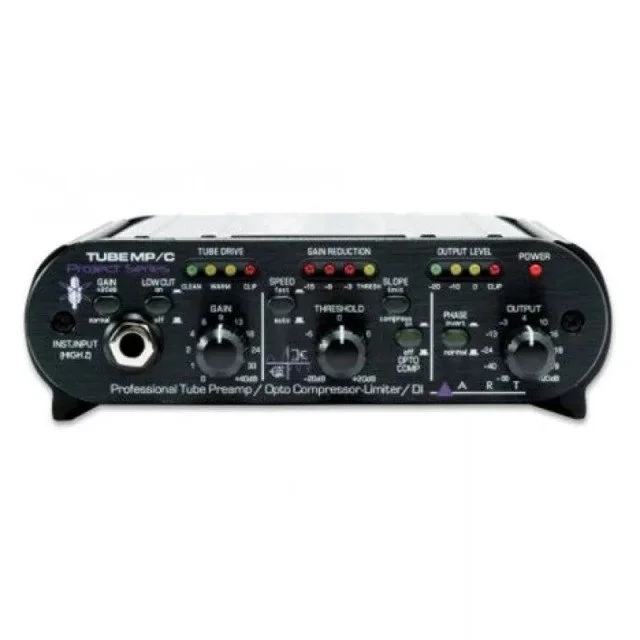

ART TUBEMP/C Tube MP/C Microphone/Line Preamplifier and VCA Less Compressor

$175.99
sold out

ART TUBEMP/C Tube MP/C Microphone/Line Preamplifier and VCA Less Compressor

The Tube MP/C (PreAmplifier/Compressor) is a multi-purpose tool for audio engineering and recording. Two independent circuits featuring a tube-based analog preamplifier and a VCA-less compressor with optical gain reduction control are housed in one, convenient desk-top chassis.

Used as a mic/line preamp or as a DI (direct) box, the Tube MP/C is designed to work seamlessly with any recording, sound-reinforcement, or electronic instrument setup. A R T’s Tube MP/C circuitry is a hybrid design utilizing the latest, most advanced, solid-state and tube technology.

The preamplifier’s active balanced solid-state input provides extremely low noise and excellent common mode rejection. The ¼-inch high impedance input prevents loading of any connected device making the Tube MP/C perfect for DI or line level applications. The preamplifier’s second stage 12AX7a tube runs on a regulated DC voltage providing an additional 20dB of gain.

The compression circuit features a VCA-less design and utilizes optical electronics (Vactrol) coupled with a 12AX7a vacuum tube gain stage for superior musical performance.

Optional ART SM1 stand mount securely attaches the Tube MP/C to any microphone stand for live stage or studio applications is available.

Features

  • Tube-based mic/line preamplifier with up to 80 dB of gain

  • Hand-selected 12AX7a tube

  • Optical (VCA-less) compressor circuitry = transparent dynamics control

  • 1/4-inch unbalanced inputs and outputs

  • XLR balanced inputs and outputs

  • Transformer isolated XLR output

  • Selectable output range for Line/Instrument interface levels

  • LED meters for Tube Warmth, Gain Reduction and Output level

  • +48V phantom power Phase reversal switch

  • Selectable release time settings

  • > 90dB dynamic range

  • Custom extruded aluminum chassis

Specifications

Frequency Response: 30 Hz – 60 kHz +/- 1 dB balanced output, 20 Hz – 60 kHz +/- 1dB 1/4″ output

Total Harmonic Distortion: <0.1% @ max gain

CMMR: > 60 dB @ max gain

Equivalent Input Noise: -128dBu typical (“A” wtd., Shorted XLR balanced input, gain @ max)

Input Impedance: 1M Ω 1/4″ input, 5K Ω XLR input

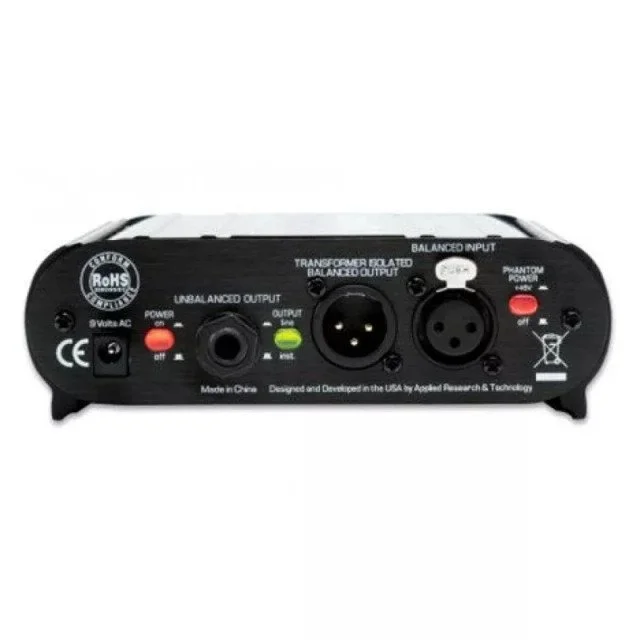

Input/Output Connections: Input: XLR balanced or 1/4″ balanced. Output: 1/4″ unbalanced XLR balanced, transformer isolated.

Maximum Gain: +80 dB (balanced in-out, +64dB (unbalanced input, balanced output)

Maximum Input Level: unbalanced (Inst): +15 dBu, balancd (mic): +10 dBu

Maximum Output Level: +19 dBu (Line mode)

Output Impedance: XLR: <600 Ω, 1/4″: <300 Ω

Low Cut Filter: -3 dB @ 70 Hz, 6dB/Octave

Phantom Power: Switch selectable, +48Volts DC, filtered, current limited

Chassis Type: All aluminum black anodized with integral rubber sides

Power Requirements: 9VAC @ 1000mA (external)

Attack Time: <1 ms (limit), 20 ms (comp.)

Release Time: 150ms (fast), 20ms – 3s Program dependant (Auto)

Tube Type: Hand selected 12AX7a

Compressor Slope: 2:1 (Comp.) / 11:1 (Limit)

Dimensions: 1.75″H x 5.9″ W x 6.5″ D (44.5mm x 150mm x 165mm)

Weight: 2.9 lbs (1.32 kg)

Notes: 0dBu = 0.775V rms

Weight includes power supply and packaging
