The Atlona AT-OME-RX21 is an HDBaseT receiver and 4K/UHD scaler with a local HDMI input. Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-RX21 receives HDBaseT for video up to 4K/60 4:2:0, plus embedded audio, control, and Ethernet over distances up to 330 feet (100 meters). The HDMI input supports video up to UHD/60 4:4:4. The OME-RX21 is HDCP 2.2 compliant and features 4K/60 upscaling and downscaling with frame rate conversion. The OME-RX21 is ideal for 4K presentation applications with Omega, HDVS-200, or UHD-EX Series transmitters, as well as Atlona AV presentation switchers with HDBaseT outputs, local HDMI sources, and the Gain™ Series amplifiers.

Versatile scaler, switcher, and extender

The OME-RX21 combines the benefits of 4K/UHD scaling, auto-switching for HDBaseT and HDMI inputs, integrated display control, and more. It incorporates many popular integration convenience features, while delivering excellent performance and value for 4K presentation and video conferencing applications. The OME-RX21 can remotely power an Atlona transmitter over HDBaseT. For additional integration convenience, the OME-RX21 features audio de-embedding, integrated two-port Ethernet switch, contact closure ports for controlling a motorized screen or display lift, internal video test patterns for setup and troubleshooting, and remote management with AMS (Atlona Management System).

Automatic Display Control

The OME-RX21 can provide control to a display through TCP/IP, RS-232, or CEC*, without the need for a separate control system. This simplifies system design and integration while reducing costs. With automatic display control, the OME-RX21 can trigger a display to power on automatically whenever a laptop or other device is connected to the OME-RX21. At the end of the presentation, when the presenter disconnects the laptop, the OME-RX21 forces the display to power off. Ease of presenter interaction with the system, and the savings incurred by automatic display shutdown provide a significant return on investment. The OME-RX21 display control capability can also be triggered by an external control system.

Consumer Electronics Control (CEC): Atlona does not guarantee the function of CEC with all televisions. We can confirm proper operation with many current Samsung, Panasonic, Sony, and LG TVs. Many manufacturers do not support the CEC “off” command when sent from a source and older TVs use proprietary commands. Atlona only supports those TVs that follow CEC command structure from HDMI 1.2a and support the “off” command when issued by a source. We encourage any dealer to get evaluation product from Atlona prior to designing a system around this control technology or be prepared to use other methods to control their displays if Atlona CEC is not compatible with the installed display

Reliable Auto-Switching

The OME-RX21 automatically selects an input source based on detection of the 5 volt hot plug detect (HPD) signal, as well as active video. This ensures reliable auto-switching operation for all video sources, including DVRs, DisplayPort / Mini DisplayPort adapters, and other devices that always maintain the HPD line at the 5 volt “high” state but may not be delivering active video.

Applications

Complete system integration

The OME-RX21 and an Omega Series switcher / transmitter provide a compact, yet comprehensive and cost-effective integration solution.

Larger system applications

 The OME-RX21 is ideal for extending AV and control, from a switcher in an equipment rack to a remote display. Built-in 4K scaling optimizes content for 4K and HD displays.

Local HDMI input included

This HDBaseT receiver includes an additional HDMI input – a convenience whenever there’s a PC or wireless collaboration gateway to be installed near the display.

Two-port network switch

This is a simple but integration-friendly feature that lets you interface IP control between an AV LAN (or control processor), the display, and an upstream AV switcher over HDBaseT.

Audio de-embedding

The OME-RX21 features analog balanced stereo output, for de-embedding two-channel audio from any source and delivering to a sound system. A five-band EQ is included to fine-tune the audio.

Internal test patterns

Three internally generated test patterns are available to facilitate display setup, validate system performance, and provide a quick signal source for troubleshooting cabling or display issues.

Diagrams

AV extension and much more

With a compatible OMEGA transmitter, the OME-RX21 is ideal for AV presentation and collaboration needs, with 4K upscaling and downscaling, the ability to provide audio for sound reinforcement, and contact closure control for projector lifts or screens.

The OME-RX21 also includes a local HDMI input, plus two Ethernet ports to simplify integration of IP display control.

Diagrams

AV extension and much more With a compatible OMEGA transmitter, the OME-RX21 is ideal for AV presentation and collaboration needs, with 4K upscaling and downscaling, the ability to provide audio for sound reinforcement, and contact closure control for projector lifts or screens.

The OME-RX21 also includes a local HDMI input, plus two Ethernet ports to simplify integration of IP display control.

Ideal for HDVS-200 Series

The OME-RX21 works with HDVS-200 Series switching transmitters, and is the ideal replacement for the longstanding HDVS-200-RX. HDVS-200 transmitters provide switching for HDMI and VGA sources.

4K upscaling and downscaling.

Seamlessly incorporate 4K and HD into any system.

Compact form factor.

Small and easily mountable onto surfaces.

Display control and automation.

Effortless system operation with no user intervention.

Specifications:

Video

HDMI                 2.0

HDCP                2.2

UHD/HD/SD         4096×2160@60(1)/50/30/25/24Hz, 3840×2160@60(1)/50/30/25/24Hz, 1080p@60/59.9/50/30/29.97/25/24/23.98Hz,                            1080i@30/29.97/25Hz, 720p@60/59.94/50Hz, 576p@50Hz, 576i@25Hz, 480p@60/59.96Hz, 480i@30Hz

VESA               2560×1600, 2048×1536, 1920×1200, 1680×1050, 1600×1200, 1440×900, 1400×1050, 1280×1024, 1280×800, 1366×768, 1360×768, 1152×864, 1024×768, 800×600, 640×480

Video

Scaler Up/Down       1024x768p60, 1280x720p50, 1280x720p60, 1280x768p60, 1280x800p60, 1360x768p60, 1600x1200p60, 1920x1080p24, 1920x1080p25, 1920x1080p50, 1920x1080p60, 1920x1200p60, 2048x1080p60, 3840x2160p24, 3840x2160p25, 3840x2160p30, 3840x2160p50, 3840x2160p60, 4096x2160p24, 4096x2160p25, 4096x2160p30, 4096x2160p50, 4096x2160p60

Color Space      YUV, RGB

Chroma Subsampling   4:4:4, 4:2:2, 4:2:0

Color Depth         8-bit, 10-bit, 12-bit.

Audio

HDMI Pass-Through Formats PCM 2.0, LPCM 5.1, LPCM 7.1, Dolby® Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS® Digital Surround™, DTS-HD Master Audio™, and DTS:X®

Bit Rate                  24 Mbits/s max

Analog Audio

Format Stereo           2-Channel

Balanced Output +4 dBu nominal gain, +20 dB headroom

Frequency Response 20 Hz to 20 kHz, ± 0.5 dB

Impedance         150 Ω

Stereo channel separation > 90 dB

THD+N                < 0.03% at 20 Hz to 20 kHz

SNR               > 90 dB at 1 kHz, zero clipping @ 0 dBFS, unweighted

EQ                5 band, 63Hz, 85Hz, 250Hz, 1kHz, 4kHz

Sample Rate        32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

Control

RS-232                 1-way connected display control

2-way device control and monitoring

Supported baud rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200

CEC Support        Yes

Relay                 Normally open (NO), adjustable Toggle and Pulse modes

Electrical rating: 48V@1A

Resolution / Distance  4K/UHD – Feet / Meters 1080p – Feet / Meters

HDMI IN/OUT      15 5 30 10

CAT5e 295      90 330 100

CAT6/6a/7     330         100 330 100

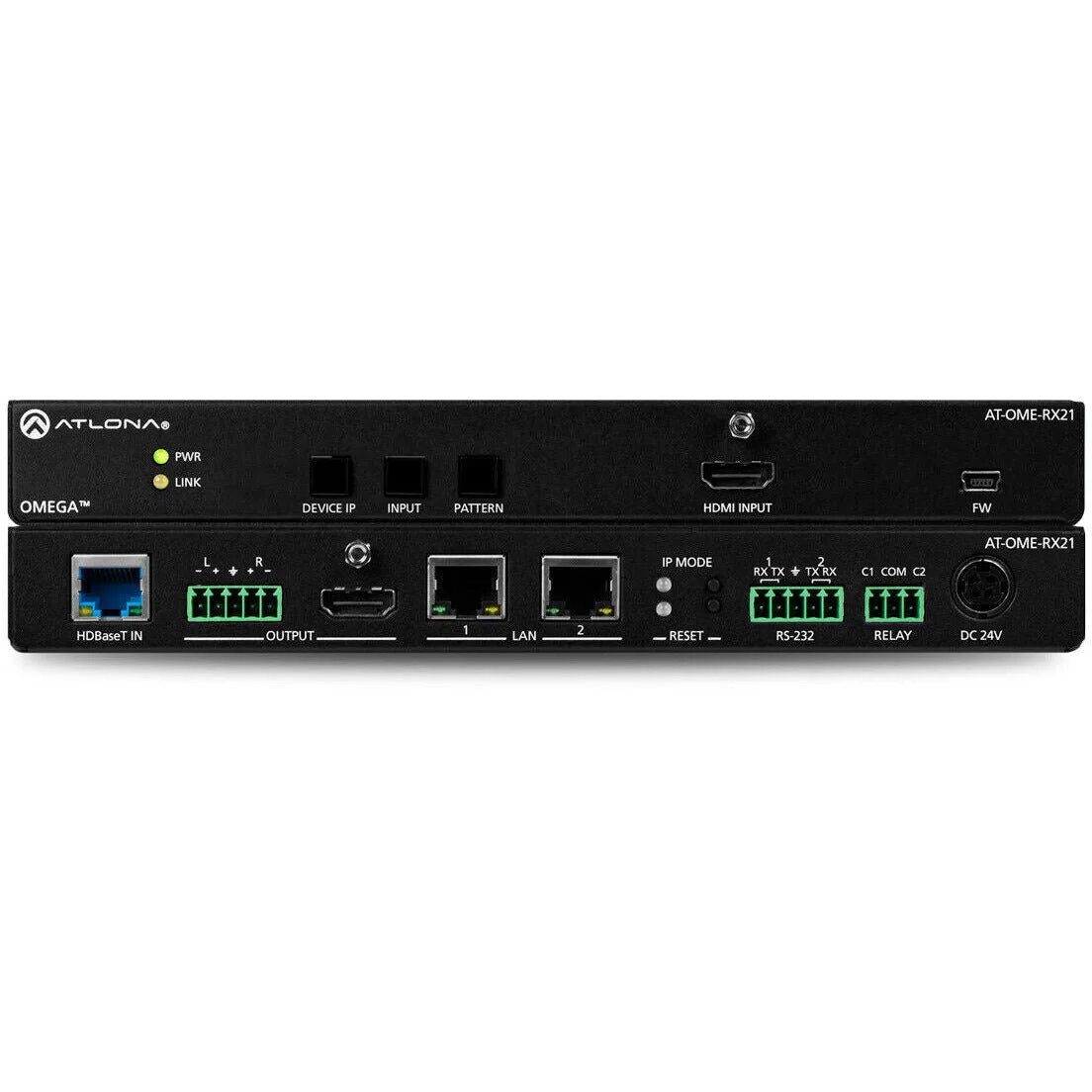

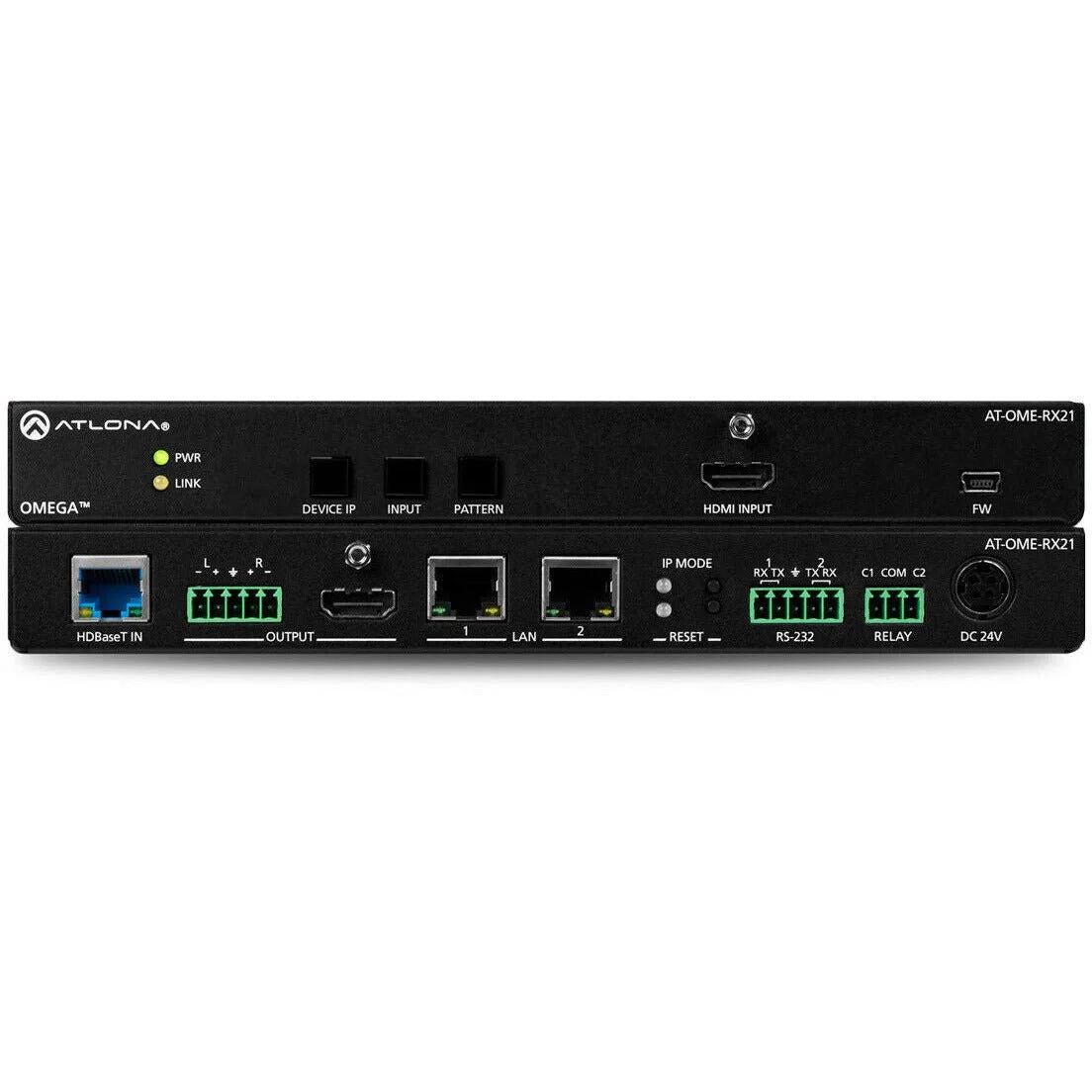

Connectors, Controls, and Indicators

HDMI IN             1 – Type A, 19-pin female

HDBaseT IN     1 – RJ45, female

HDMI OUT     1 – Type A, 19-pin female

AUDIO OUT     1 – 5-pin captive screw, balanced / unbalanced 2-channel

RELAY             1 – 3-pin captive screw

RS-232             2 – 3-pin captive screw (bidirectional)

LAN             2 – RJ45, 100Base-T

DC 24V             1 – 4-pin, mini-DIN locking connector

PWR indicator     1 – LED, green

LINK indicator     1 – LED, yellow

Control Buttons: DEVICE IP, INPUT, PATTERNIP MODE, RESET 3 – momentary, tact-type      2 – momentary, recessed

Function Indicators:

IP MODE, RESET      2 – LED, green

Temperature         Fahrenheit Celsius

Operating         32 to 122 0 to 50

Storage                -4 to 140 -20 to 60

Humidity (RH)         20% to 60%, non-condensing

Power

Consumption        TBD W

Supply Input:         100 – 240 V AC, 50/60 Hz

Output:                 24 V / 2.7A DC

Dimensions             (H x W x D) Inches Millimeters

Unit                1.02 x 8.62 x 5.98 26 x 219 x 152

Power Supply        1.26 x 1.93 x 4.69 32 x 49 x 119

Weight              Pounds    Kilograms

Device            1.96 0.89

Certification

Device               CE, FCC, UL

Features:

• HDBaseTTM receiver for HDMI®, Ethernet, power, and control

• Local HDMI input

• 4K/UHD downscaling and upscaling

• Supplies power over HDBaseT to a transmitter

• Audio de-embedding

• Dual Ethernet ports and integrated network switch

• Two relays provide control for motorized screen, shades, or display lift

Technical Features

• Automatic input selection using hot plug detect and video detection technology

• Automatic display control

• Local powering

• Internal video test patterns for setup, calibration, and troubleshooting

• Advanced motion-adaptive deinterlacing for 1080i input signals

• Aspect ratio control

• 4K/UHD downscaling and upscaling

• Advanced 4K/UHD scaling with selectable frame rate conversion

• HDCP 2.2 compliant

• 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling for HDMI input and output

• Video, audio, power, and data over category cable utilizing HDBaseT technology

• HDBaseT receiver with local HDMI input

• Product Warranty

• Included accessories

• Low-profile, 1.02 inch (26 mm) high enclosure

• Front panel power and signal status LEDs

• Field-updatable firmware

• Easy to configure and manage with AMS (Atlona Management System)

• Two relays provide control for motorized screen, shades, or display lift

• Dual Ethernet ports and integrated network switch

• TCP/IP and RS-232 control

• Intuitive GUI-based configuration using integrated web server

• HDCP management

• EDID management

• Multi-channel audio compliant

• Audio de-embedding

----------------------------------------------------------------------------------------------------------------
