Atlona AT-UHD-EX-70C-TX 4KUHD HDMI Over HDBaseT Transmitter with Control and POE

Atlona AT-UHD-EX-70C-TX 4KUHD HDMI Over HDBaseT Transmitter with Control and POE

Ships Free!

The Atlona AT-UHD-EX-70C-TX is an HDBaseT transmitter for HDMI transmission up to 230 feet (70 meters) over category cable with RS-232 and IR control pass-through. It transmits video signals up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling, plus embedded multi-channel audio. The AT-UHD-EX-70C-TX is HDCP 2.2 compliant and supports EDID communication. This HDBaseT transmitter is externally powered by the included power supply, making it ideal for extending AV and control directly to a projector with an HDBaseT input.

The AT-UHD-EX-70C-TX provides a value-oriented integration solution for simple point-to-point signal extension to a display, or expanding the scope of an AV system design with remote input connectivity. It features a quarter rack width metal enclosure and includes surface mounting brackets for easy under-table, furniture, or on-wall installation.

Applications

The AT-UHD-EX-70C-TX is ideal for use in:

• Extending AV and control to HDBaseT-equipped projectors and flat-panel displays

• Integrating a remote source or HDMI connection point into an Atlona switcher with an HDBaseT input

• Installations in which UHD-EX Series transmitters are to be used with third-party HDBaseT devices

Features

4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling

• Supports 4K/60 4:2:0 and 4K/30 4:4:4

• Allows 4K/UHD transmission when used with a compatible HDBaseT-equipped display or HDBaseT receiver

HDCP 2.2 compliant

• Adheres to latest specification for High-bandwidth Digital Content Protection

• Allows protected content stream to pass between devices

Supports 4K HDR10 @ 24 Hz

• Extends 4K HDR10 @ 24 Hz (4:2:0 chroma subsampling, 10-bit color)

Local AC powering

• Includes external power supply – ideal for point-to-point installations with an HDBaseT-equipped projector

• IEEE 802.3af PoE Power Sourcing Equipment (PSE) – can supply power over HDBaseT to a remote receiver, such as the AT-UHD-EX-70C-RX*

• Saves time and integration costs

Long distance HDBaseT extension

• Transmits AV and control up to 230 feet (70 meters) @ 1080p or 130 feet (40 meters) @ 4K/UHD using CAT6a/7 cable

• Uses easy-to-integrate category cable for low-cost, reliable system installation

Extends bidirectional RS-232 and IR control signals

• Control signals travel over HDBaseT link to device for maximum control system flexibility

• Simplifies integration of source, control system, and display

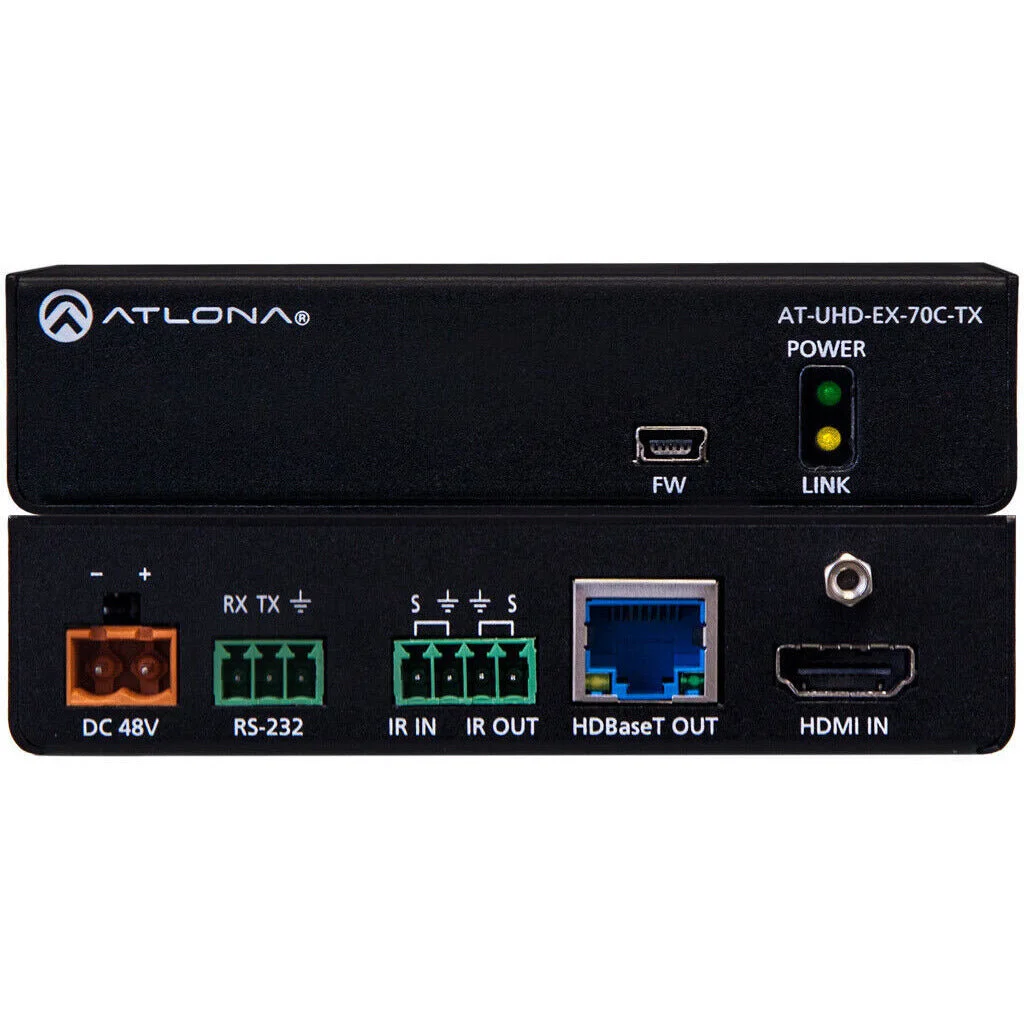

Rear panel I/O connectors

• Placement of ports on rear panel simplifies wire management

• Saves installation time and eliminates clutter

Multi-channel audio compliant

• Supports PCM, Dolby Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS Digital Surround™, DTS-HD Master Audio™, and DTS:X™

• Allows any multi-channel audio stream to be used within a professional audio system

Field-updatable firmware

• Front panel USB port provides an easy means for device updates

• Ensures long-term system return on investment

Front panel Power and Link status LEDs

• LED indicators provide power and HDBaseT link status information

• Provides easy setup and troubleshooting

Power chaining

• Included power supply provides ample power for up to three Atlona HDBaseT extenders

• Four Atlona HDBaseT extenders can be powered using the optional AT-PS-483125-C power supply

• Reduces clutter from multiple power supplies in equipment racks

Low-profile, 1 inch (25 mm) high quarter rack-width enclosure

• Easy installation into racks and confined spaces

• Keeps devices out-of-sight when placed in public spaces

Included accessories

• User guide, surface mounting brackets, and external universal power supply

Specifications

Video

Signal: HDMI

Copy Protection: HDCP 1.4/2.2

Pixel Clock: 300 MHz

UHD/HD/SD:

4096×2160 @ 24/25/30/50(1)/60(1) Hz

3840×2160 @ 24/25/30/50(1)/60(1) Hz

2048x1080p @ 60 Hz

1920x1080p @ 60/59.94/50/30/29.97/25 /24/23.98 Hz

1080i@60/59.94/50 Hz

1280x720@60/59.94/50 Hz

720x576p

720x576i

640x480p

640x480i

VESA

All resolutions are 60Hz:

2560×2048

2560×1600

2048×1536

1920×1200

1680×1050

1600×1200

1600×900

1440×900

1400×1050

1366×768

1360×768

1280×1024

1280×800

1280×768

1152×768

1024×768

800×600

640×480

Color Space: YUV, RGB

Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0

Color Depth: 8-bit, 10-bit, 12-bit

HDR: 4K HDR10 @ 24Hz, 4:2:0 chroma subsampling, 10-bit color

Audio

HDMI:

PCM 2.0

LPCM 5.1

LPCM 7.1

Dolby® Digital

Dolby Digital Plus™

Dolby TrueHD

Dolby Atmos®

DTS® Digital Surround™

DTS-HD Master Audio™

DTS:X®

Bit Depth: up to 24-bit

Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

Resolution / Distance 4K/UHD - Feet / Meters 1080p - Feet / Meters

HDMI IN/OUT                                    15  5         30 10

CAT5e 115                                    35      200         60

CAT6/6a/7                                   130 40         230 70

Control

CEC: Pass through

Buttons and Indicators

Function Indicators:

POWER

LINK

1 x LED, green

1 x LED, yellow

Connectors

HDMI IN: 1 - Type A, 19-pin female

HDBaseT OUT: 1 - RJ45, female

FW: 1 - Micro-A USB

RS-232: 1 - 3-pin captive screw

IR IN / IR OUT: 1 - 4-pin captive screw

DC 48V: 1 - 2-pin captive screw

Environmental Fahrenheit Celsius

Operating +32 to +122 0 to +50

Storage         -4 to +140 -20 to +60

Humidity (RH) 20% to 60%, non-condensing

Power

Consumption: 10.89 W

External Power Supply: Input: 100 - 240 V AC, 50/60 Hz

Output: 48V, 0.83A

Dimensions (H x W x D)                 Inches               Millimeters

Unit                                                 0.93 x 4.2 x 2.95     23.7 x 106.8 x 75

Power Supply (AT-PS-483125-C) 1.42 x 1.81 x 4.41 36 x 46 x 112

Weight Pounds Kilograms

Unit         0.55         0.25

Certification

Device: CE, FCC

Power Supply: CE, FCC, RoHS, cULus, RCM, CCC

Compliance

NDAA-899: Yes

----------------------------------------------------------------------------------------------------------------
