Audio-Technica ATW-2129BI 2000 Series Wireless Lavalier Microphone System

Audio-Technica ATW-2129BI 2000 Series Wireless Lavalier Microphone System

Ships Free!

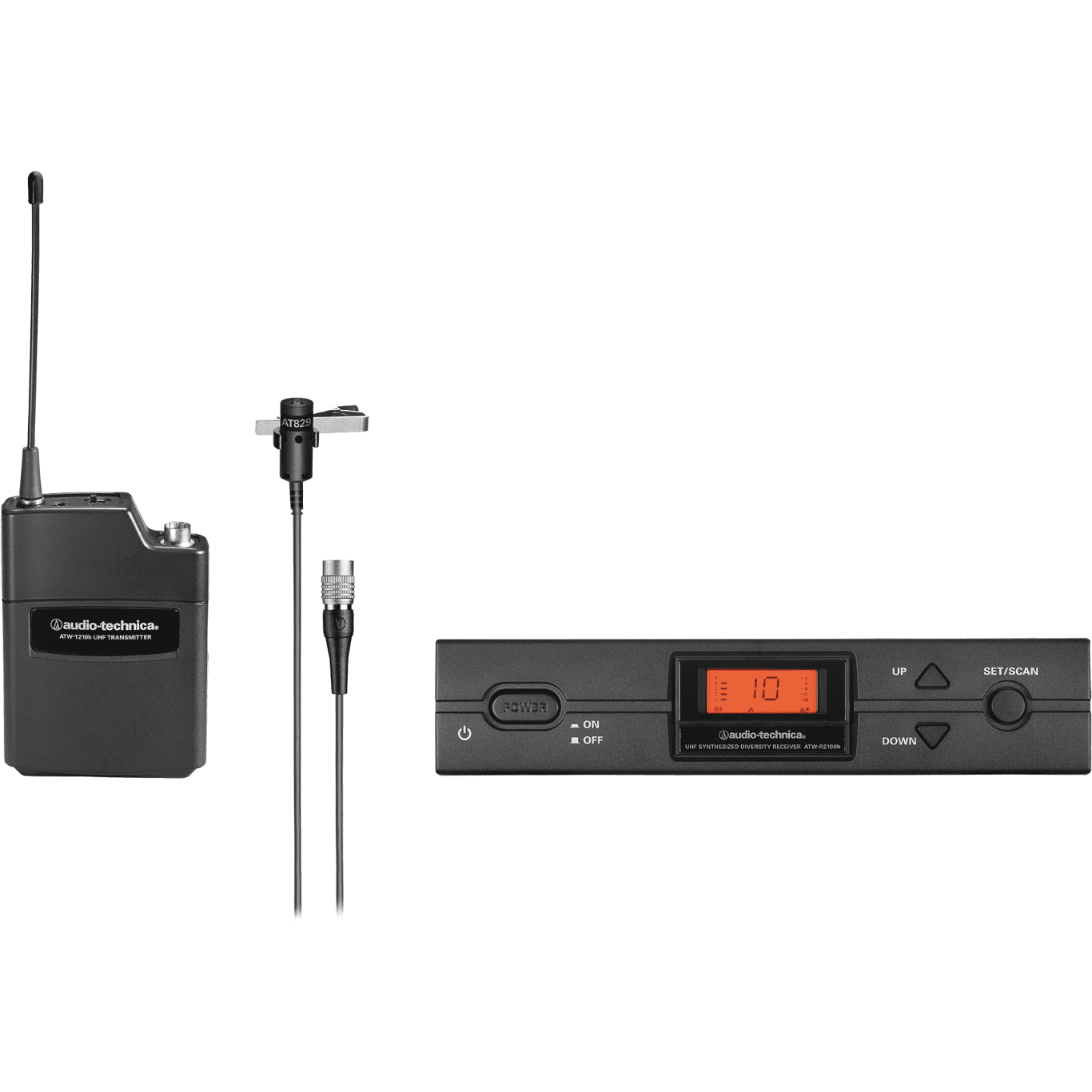

ATW-R2100b receiver and ATW-T210b body-pack transmitter with AT829cW lavalier microphone.

Specifications

Operating Frequencies: UHF

Band D: 656.125 to 678.500 MHz DISCONTINUED IN NORTH AMERICA

Band I : 487.125 to 506.500 MHz

Modulation Mode: FM

Maximum Deviation: ±40 kHz

Frequency Response: 100 Hz to 15 kHz (+1 dB, -3 dB)

Operating Range: 100 m (300'), typical

Open range environment with no interfering signals.

Total Harmonic Distortion: < 1% (at 1 kHz, ±20 kHz deviation)

Operating Temperature Range: 5º C to 45º C

41º F to 113º F

Battery and LCD performance may be reduced at very low temperatures.

Number Of Channels: 10 total

Notes: Third-generation 2000 Series (“b” version) components:

ATW-R2100b receiver

ATW-T210b body-pack transmitter

ATW-T220b cardioid dynamic microphone/transmitter

Click here for “b” version 2000 Series owner’s manual.

Second-generation 2000 Series (“a” version) components:

ATW-R2100a receiver

ATW-T210a body-pack transmitter

ATW-T220a cardioid dynamic microphone/transmitter

Click here for “a” version 2000 Series owner’s manual.

First-generation 2000 Series (original) components:

ATW-R2100 receiver

ATW-T210 body-pack transmitter

ATW-T220 cardioid dynamic microphone/transmitter

Click here for original 2000 Series owner’s manual.

CONSUMER ALERT

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC’s wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones.

Handheld Transmitter

RF Power Output: High: 30 mW; Low: 10 mW (switchable), at 50 ohms

Spurious Emissions: Following federal and national regulations

Microphone Element: Dynamic cardioid

Battery Type: Two 1.5V AA alkaline (not included)

or two 1.2V AA NiMH (not included)

Recharging power for NiMH batteries (with ATW-CHG2)

U.S./Canada/Latin America: 3.2 V DC, 230 mA x2

Other world areas: 3.2 V DC, 320 mA x2

Battery Life: High: 7 hours (alkaline)

Low: 9 hours (alkaline)

Depending on battery type and use pattern.

Dimensions: 232.0 mm (9.13") long,

48.0 mm (1.89") diameter

Net Weight: 252 g (8.9 oz), without batteries

Accessories Included: AT8456a Quiet-Flex™ stand clamp

Body Pack

RF Power Output: High: 30 mW, Low: 10 mW (switchable), at 50 ohms

Battery Life: High: 7 hours (alkaline)

Low: 9 hours (alkaline)

Depending on battery type and use pattern.

Battery Type: Two 1.5V AA alkaline (not included)

or two 1.2V AA NiMH (not included)

Recharging power for NiMH batteries (with ATW-CHG2)

U.S./Canada/Latin America: 3.2 V DC, 230 mA x2

Other world areas: 3.2 V DC, 320 mA x2

Dimensions: 66.0 mm (2.60") W x

22.5 mm (0.89") D x

92.3 mm (3.63") H

Input Connections: Four-pin Locking Connector

Pin 1: GND

Pin 2: INST INPUT

Pin 3: MIC INPUT

Pin 4: DC BIAS +9V

Net Weight: 81 g (2.9 oz), without batteries

Spurious Emissions Following federal and national regulations

Receiver

Receiving System: True diversity

Image Rejection: 60 dB nominal, 55 dB minimum

RF Sensitivity: 20 dBuV at 60 dB S/N ratio

(50 ohms termination)

Antenna Input: BNC-type, 50 ohms

Bias voltage 12V DC, 60 mA, each

Power Requirements: 12-18V DC, 500 mA

Dimensions: 210.0 mm (8.27") W x

162.2 mm (6.39") D x

44.0 mm (1.73") H

Not including BNC connectors or feet.

Weight: 1.0 kg (35.3 oz), without accessories

Accessories Included: Two flexible UHF antennas; AC adapter (country dependent); rack-mount adapters

ADDITIONAL RECEIVER SPECS

Maximum Output Level:

XLR, balanced: +9 dBV

¼" (6.3 mm), unbalanced: +4 dBV

Balanced Audio Output Attenuator:

Two position switch: 0 / -12 dB

----------------------------------------------------------------------------------------------------------------
