Bogen DRZ120 6 Zone Music & Paging System w/ FM Tuner MP3 Mic & Line Inputs

Bogen DRZ120 6 Zone Music & Paging System w/ FM Tuner MP3 Mic & Line Inputs

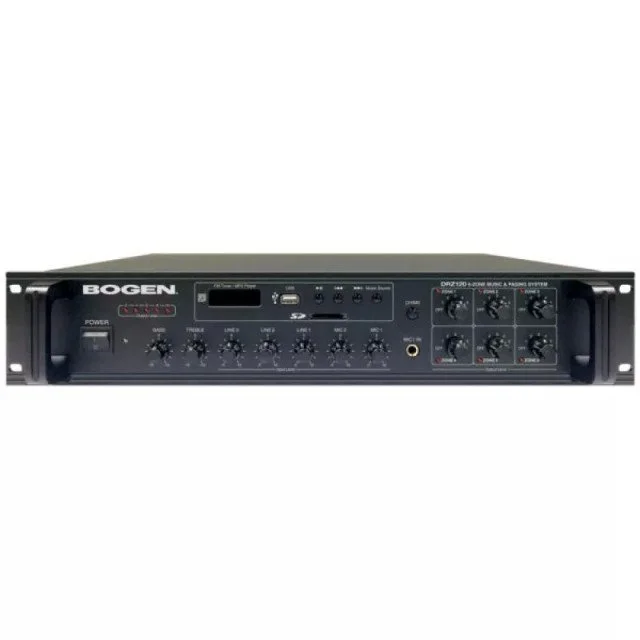

The Bogen DRZ120 is a unique, self-contained 6-zone music and paging system for small- to medium-sized applications. It combines a digital FM tuner / MP3 player with seven (7) MIC & LINE inputs. It has a 120-watt amplifier capable of driving 4–16-ohm or 70-volt speaker systems. The DRZ120 permits connection of up to six individual paging and music zones. The DRZ120 also features Bass and Treble controls and a 5-segment LED output signal level indicator. The built-in FM tuner uses a PLL synthesizer to provide accurate frequency selection. MP3 audio can be played from files (.mp3 & .wav) accessed via the USB or SD card slots on the front panel. The MIC1 Input can be set for VOX-activated override/muting of the other audio inputs. Additionally, there is a push-button activated Chime feature that produces a short, melodic series of four ascending bell-like alert tones which are played across all outputs

Features:

Self-contained, 6-zone music and paging system with FM Tuner, MP3 Player, MIC and LINE inputs.

120-watt audio output (into 8-ohms)

For use with 4-16 ohm or 70-volt speaker systems.

Enable from 1-6 zones for music or paging

7 total audio inputs - MIC1-4, Line1-3

MIC1 input uses a front 1/4” TRS connector for a balanced Lo-Z microphone

MIC1 VOX-activated muting of all other audio inputs governed via a MUTE Control

RCA inputs for LINE1-3

Built-in digital FM Tuner, with PLL synthesizer to provide accurate frequency selection

Auto station search and manual tuning

Back-lit tuner display, LCD

FM 75Ω coaxial antenna connector

Over 800 FM station presets

Bass and Treble controls

Infrared Remote Controller for FM tuner and MP3 player control:

-Volume control

-TUNER/MP3 select button

-Preset and scan channel selection

-USB/SD media select

-MP3 play/pause/forward/ backward/repeat options

-EQ mode selection (none, Classic, Jazz, Rock, Bass & Pop)

Chime button with priority output

5-segment LED output level meter

AUX post-mix LINE output

Power-on LED indicator

Rack-mountable with integral brackets

Listed to UL Standard 60065 for U.S. and Canada

FCC Part 15 compliant

Operates from nominal 120V AC, 60 Hz

Included Accessories:

21-Button Remote Control

5 ft. Male-to-Male RCA Phono Cables

5 ft. 75-Ohm Wire FM Antenna

Two (2) 3-Terminal Pluggable Euro-Block Connectors

Four (4) Rubber Feet/Stand-offs with mounting screws

Specifications:

Amplifier

Power Rating (RMS): 120 watts into 8-ohms

Distortion: < 1% Rated output power @ 1 kHz

Signal to Noise Ratio: LINE: ≥ -74dB

Audio Frequency Response: 80 Hz - 16 kHz @ 4Ω (+/-3dB)

Zone Outputs:   120 watts @70V max. for any single zone, or

20 watts @70V max. for each zone (assuming equal loads)

AUX Speaker Output: 4-16Ω

Tone Controls:  Bass: +/-10 dB @ 100 Hz

Treble: +/-10 dB @ 10 kHz

Microphone Inputs:      ≤ 3mV/1kΩ balanced (Front 1/4” TRS, Rear XLR,

Rear Euro-Block x2)

MIC1 Precedence: VOX-activated, with adjustable MUTE Control

LINE Inputs: ≤ 300mV/10kΩ unbalanced; RCA jacks

AUX Line Output: 50Ω/(1V); RCA jacks

Tuner

Station Tuning: Digital, with PLL Synthesizer

Band Coverage: FM: 87.5 to 108 MHz

Antenna: 75Ω coaxial

Preset Memory: Over 800 FM stations

Memory Scan: Automatically presets stations

Channel Indicator: Back-lit, LCD

Power/Dimension

Power Required: 120V AC nominal @ 60 Hz

Power Consumption: 250W

Overall Dimensions: 19-1/8" W x 3-1/2" H x 13-3/4" D

Product Weight: 25.2 lbs.
