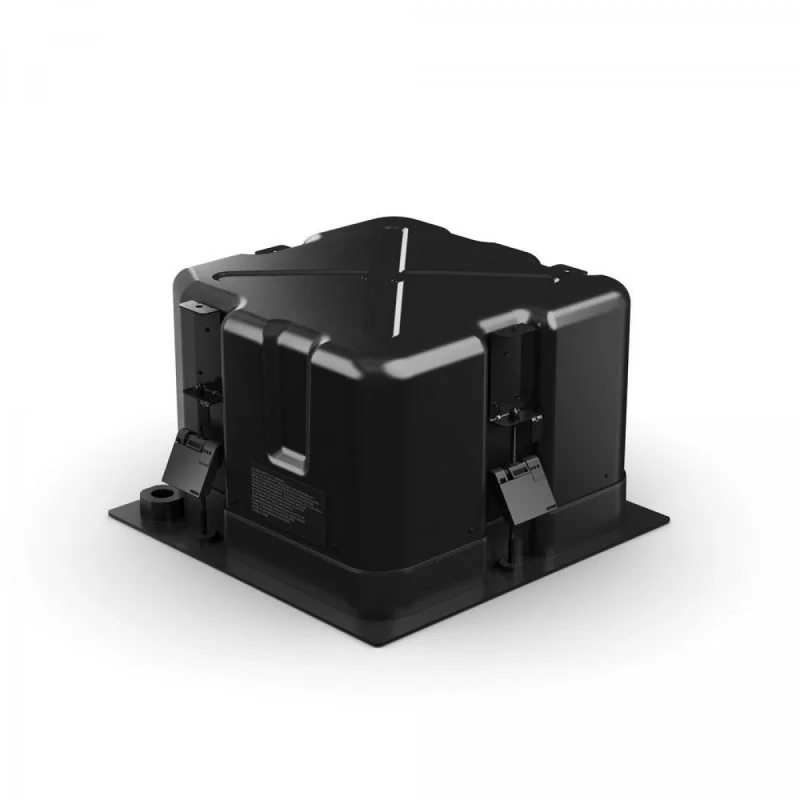

Bose EM90 EdgeMax In Ceiling Premium Loudspeaker
Bose EM90 EdgeMax In Ceiling Premium Loudspeaker
Bose Professional EdgeMax in-ceiling premium loudspeakers feature proprietary Bose PhaseGuide technology with high-frequency compression drivers to create a new category that combines the room-filling coverage patterns typical of larger surface-mount speakers with the architect-preferred aesthetics of in-ceiling models. Designed to mount near wall-ceiling boundaries, EdgeMax loudspeakers provide improved audio quality and coverage, while reducing the number of required units, compared to conventional dome-tweeter ceiling speakers.
Applications:
Retail stores
Restaurants and bars
Concourse
Transportation facilities
Resorts and hospitality venues
Houses of worship
Conferencing
SPECS:
Frequency Response (+/-3 dB)
50 Hz - 18 kHz
Frequency Range (-10 dB)
45 Hz - 20 kHz
Nominal Dispersion
75° Vertical
90° Horizontal
Long-Term Power Handling
125 W (500 W peak)
Sensitivity (SPL / 1 W @ 1 m)
96 dB SPL
Maximum SPL @ 1 m
117 dB SPL (123 dB SPL peak)
Transducers
1 x 8-inch woofer
1 x compression driver
Nominal Impedance
8 Ω (transformer bypassed)
FEATURES:
PhaseGuide technology – provides unique asymmetrical vertical pattern for room-filling coverage when mounting near wall-ceiling boundary
Provides improved room visual appearance – for demanding interior designs by eliminating center-of-ceiling or wall-mounted loudspeakers
Nominal 90° horizontal coverage – designed for in-ceiling mounting near room corners
High-frequency compression driver – for best-in-class audio quality with superior frequency response and coverage consistency versus typical dome tweeters
8-inch woofer – with wall-boundary loading provides extended bass impact
2-way passive crossover with 70/100V transformer
New auto-hold, spring-loaded mounting arms – for fast, easy installs
Magnetically attached grill – for quick access to wiring and tap settings
UL1480A listing – for air-handling (plenum) space installation
