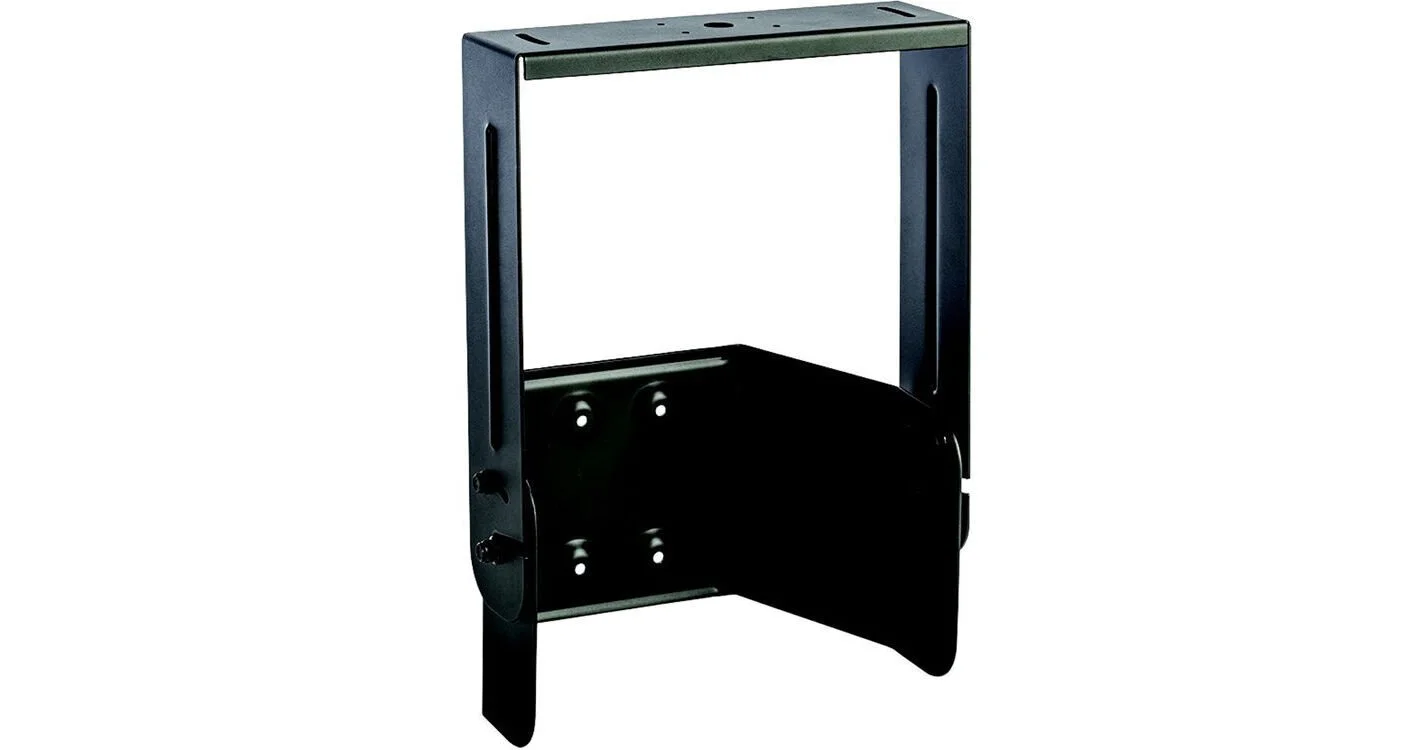

Bose F1 YOKE MOUNTING KIT Bracket Suits for Standard & High Ceiling Installation
Bose F1 YOKE MOUNTING KIT Bracket Suits for Standard & High Ceiling Installation
The Yoke Mounting Kit includes a double yoke bracket that allows for adjustment of the pitch (up/down angle) and yaw (right/left angle) of the loudspeaker in
ceiling-mounted installations. Use the flexible array to further refine the vertical
coverage pattern by up to 40 degrees. The Yoke mounting bracket is suitable for
standard and high ceiling installtions.
Specs:
Mechanical
Wall plate 67.6 cm x 15.2 cm (26.6" x 6.0")
Material Steel
Maximum load capacity 22.7 kg (50.0 lb)
Ceiling clearance 6.3 cm (2.5") at 0° position shown
Weight 6.9 kg (15.2 lb)
General
Compatible with F1 Model 812, F1 Model 812 Passive
Product code 736451-0110 – Yoke Mounting Kit, Black
Pitch and Yaw Ranges - Ceiling Mounted
Tilt/Pitch degrees ±45°
Pan/Yaw degrees ±7.5
Features:
Fits F1 Model 812 Active and Passive loudspeakers
Works in both standard and high ceiling installations
±45° of pitch adjustment
Fits the 4 x M8 threaded inserts (127 x 70 mm) on the rear panel
