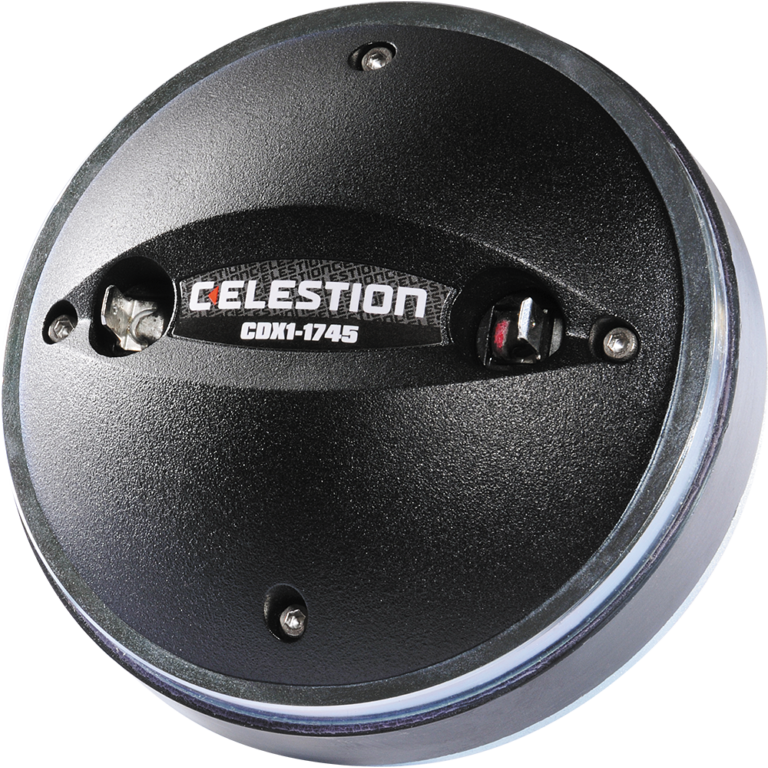

Celestion CDX1-1745 8 OHM 40W Compression Driver for Speaker System

Celestion CDX1-1745 8 OHM 40W Compression Driver for Speaker System

Single piece PETP diaphragm and surround

Sound Castle diaphragm assembly

2,200Hz recommended min. crossover freq (12dB/oct)

Bolt fitting

Specifications

Nominal Power Rating: 40W

Additional Impedances: 16

Screw Version: CDX1-1746

Continuous Power Rating: 80W

Sensitivity: 110dB

Rated Impedance: 8Ω

Frequency Range: 1200Hz-20,000Hz

Voice coil diameter (mm): 44mm

Voice coil diameter (in): 1.75in

Recommended min. crossover (12dB/oct): 2200Hz

Magnet Type: Ferrite

Voice coil material: Edgewound copper clad aluminium

Diaphragm Material: PETP film

Surround Material: PETP film

Width (mm): 120mm

Width (in): 4.7in

Depth (mm): 56mm

Depth (in): 2.2in

Fitting: Bolt (2/3 M6 holes on 76/57mm, 3.0/2.24in PCD)

Throat Exit (mm): 25mm

Throat Exit (in): 1.0in

Repair Kit 1 (Part Number): T5510 (8Ω)

Repair Kit 2 (Part Number): T5523 (16Ω)

Horn 1 (Part Number): T5359

Horn 1 (Description): H1-9040P

Horn 2 (Part Number): T5134

Horn 2 (Description): H1-7050 'No Bell'

Mounting Information

Unit Weight: 2.3kg/5.1lb

Width: 120mm/4.7in

Depth: 56.0mm/2.2in

Weight: 2.3kg/5.1lb

Fitting: Bolt (2/3 M6 holes on 76/57mm, 3.0/2.24in PCD)

Throat Exit: 25mm/1.0in

----------------------------------------------------------------------------------------------------------------
