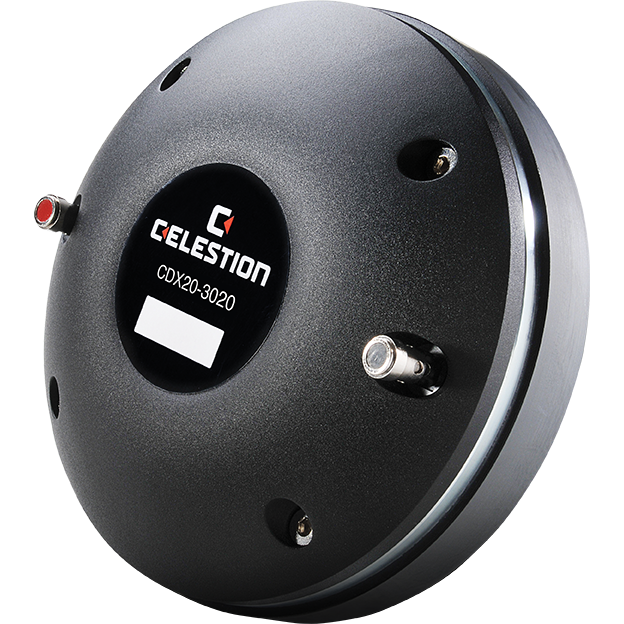

Celestion CDX20-3020 8 OHM 100W Compression Driver for Speaker Applications
Ships Free!
800Hz recommended min. crossover freq (12dB/oct)
Single piece titanium diaphragm and surround
Specifications
Nominal Power Rating: 100W
Continuous Power Rating: 200W
Sensitivity: 107dB
Rated Impedance: 8Ω
Frequency Range: 500Hz-18,000Hz
Voice coil diameter (mm): 75mm
Voice coil diameter (in): 3.0in
Recommended min. crossover (12dB/oct): 800Hz
Magnet Type: Ferrite
Voice coil material: Edgewound copper clad aluminium
Diaphragm Material: Titanium
Surround Material: Titanium
Width (mm): 180mm
Width (in): 7.0in
Depth (mm): 68.0mm
Depth (in): 2.7in
Fitting: Bolt (4 x M6 holes on a 102mm/4in PCD)
Throat Exit (mm): 50mm
Throat Exit (in): 2.0in
Repair Kit 1 (Part Number): T6509 (8Ω)
Mounting Information
Unit Weight: 4.9kg/10.8lb
Width: 180mm/7.0in
Depth: 68.0mm/2.7in
Weight: 4.9kg/10.8lb
Fitting: Bolt (4 x M6 holes on a 102mm/4in PCD)
Throat Exit: 50mm/2.0in
----------------------------------------------------------------------------------------------------------------
Echotone Music LLC is an experienced long time E-commerce Audio & Musical instrument dealer since 1998. We take pride in selling quality gear for musicians, sound engineers, production companies and broadcast applications.
Shipping --Items are well packed and shipped USPS, UPS or Pallet Freight Service. Items purchased on Friday may not ship until Monday or until the projected processing period. We are working hard to get your unit Built ( if needed), processed and shipped.
Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided, otherwise customer pays for return shipping costs.
Returned items must be sealed/unopened in original, brand-new condition, showing no signs of wear or use such as mount marks, plug marks, scratches, scuffs, dings or scrapes, screw mount marks or collateral material damage.. Items must also include all original packaging, manuals, warrantees & accessories or your return may be subject to a return handling charge.
Refunds or for the Item cost only. If the item was listed as free shipping then the cost of the shipment will be deducted from the units original cost. Gear returned with out all its original packaging, warranty cards and accessories or that shows signs of wear from use, will be subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.
The following products cannot be returned - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, strings, reeds, computers, tubes, earbuds, earplugs, recorders, harmonicas, raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids, clothing/footwear, cleaners, polishes & polishing cloths, software/soundware, books, CDs, DVD's, vinyl records, and videos.
Happy customers, that's music to our ears!
