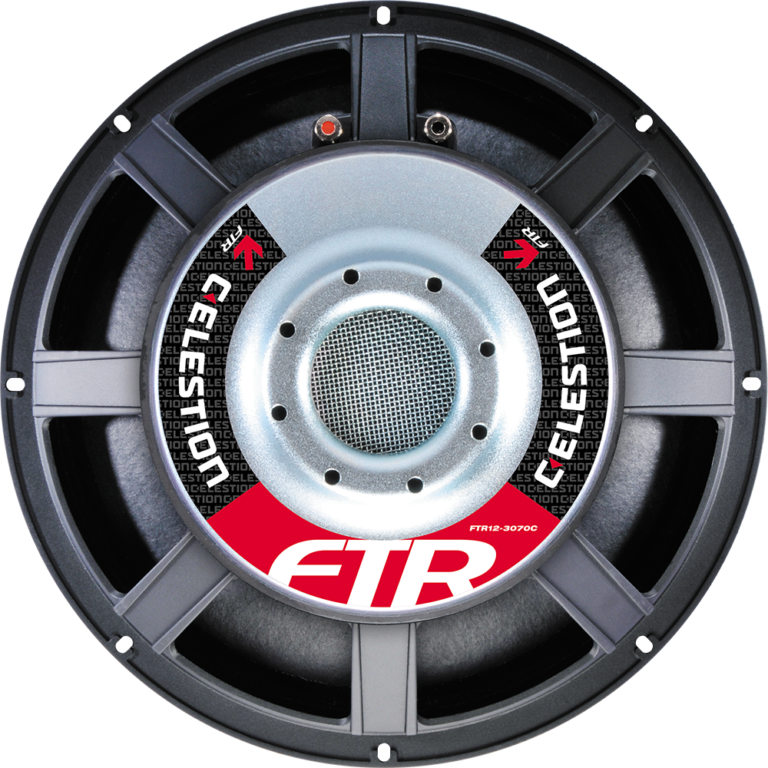

Celestion FTR1-3070C8OHM Magnet Cast Aluminium Chassis Driver for Speaker System
Glass loaded paper cone with weather-resistant impregnation
Airflow vented magnet assembly for dynamic heat dispersion
Features
12" ferrite mid/bass driver provides 350Wrms (AES standard) power handling and 96dB sensitivity
3" high temperature Inside/Outside voice coil efficiently dissipates heat, preventing sensitivity loss due to thermal compression
Low frequency response, down to 40Hz
Intelligent heat management in both chassis and magnet assembly design further minimizes distortion
Specially treated weather-resistant cone
Specifications
Nominal Diameter: 305mm/12in
Nominal Power Rating: 350W
Continuous Power Rating: 700W
Sensitivity: 96dB
Rated Impedance: 8Ω
Frequency Range: 40Hz-4000Hz
Voice coil diameter (mm): 75mm
Voice coil diameter (in): 3in
Chassis Type: Cast aluminium
Magnet Type: Ferrite
Magnet Weight: 2.3kg/81oz
Voice coil material: Round copper
Former Material: Glass fibre
Cone material: Glass loaded paper (weather-resistant)
Surround Material: Cloth-sealed
Suspension: Single
Xmax: 3mm/0.12in
Gap Depth: 10mm/0.4in
Voice coil winding width: 16mm/0.63in
Small Signal Parameters
Sd: 530.93cm2/82.29in2
Fs: 65.10Hz
Mms: 54.61g/1.93oz
Qms: 2.804
Qes: 0.362
Qts: 0.321
Re: 5.59Ω
Vas: 43.70L/1.54ft3
BI: 18.58Tm
Cms: 0.11mm/N
Rms: 7.96kg/s
Le (at 1kHz): 1.09mH
Mounting Information
Mounting slot dimensions: 10mm x 7mm/0.39in x 0.27in Ø
Mounting slot PCD: 298mm-304mm/11.7in-12.0in
Number of mounting slots: 8
Overall Depth: 102mm/4.02in
Overall Diameter (mm): 318mm
Overall Diameter (in): 12.5in
Cut-out diameter: 286mm/11.26in
Unit Weight: 6.3kg/13.9lb
----------------------------------------------------------------------------------------------------------------
