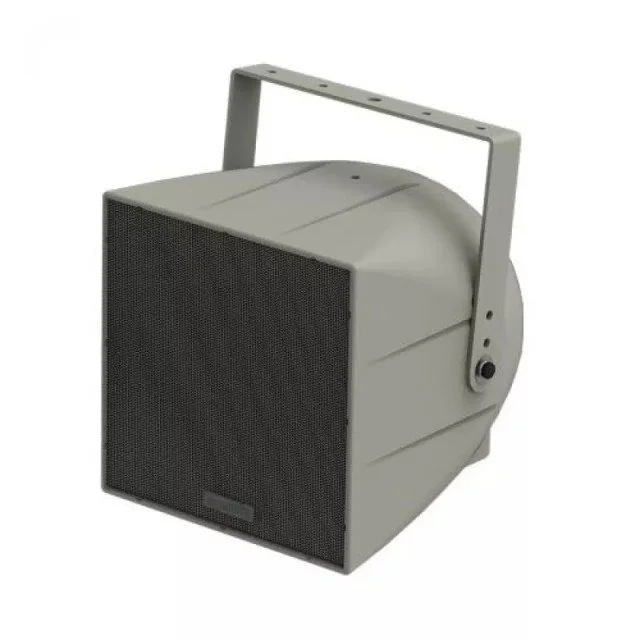

Community Pro R.25-94TZ 8" Two Way Athletic Field Cruise Ship Outdoor Speaker
Community Pro R.25-94TZ 8" Two Way Athletic Field Cruise Ship Outdoor Speaker
The R.25-94TZ is a 2-way, full-range loudspeaker system designed to provide high quality voice and music reproduction in applications requiring extreme weather resistance. It is designed to withstand long-term exposure to tough, environmental conditions and to provide performance normally associated only with indoor loudspeakers.
The R.25-94TZ has an 8-inch (203mm) cone LF driver and a ¾-inch (20 mm) exit HF compression driver with a weather resistant diaphragm. The HF driver is coupled to a nominal 90° x 40° horn. The HF assembly is coaxially mounted with the LF driver. An input autoformer with switchable taps provides impedance matching to 70V or 100V lines. The enclosure and HF horn are molded of UV resistant gray polyethylene. All exposed hardware is stainless steel. The Weather-Stop™ grille assembly, retained by stainless steel screws to the front of the enclosure, consists of three layers
FEATURES:
High fidelity
All horn loaded
Multi-tap 200W autoformer for 70V and 100V inputs
Rotomolded, UV resistant enclosure
High efficiency
Integral mounting points
High power passive crossover
Five-year product warranty / Fifteen-year enclosure warranty
APPLICATIONS:
Convention centers
Fill speaker for stadia, athletic fields, arenas and race tracks
Outdoor background music / paging systems
Theme and amusement parks
Fairgrounds and rodeos
Malls, cruise ships, skating rinks
Swimming pools
Specifications:
Loudspeaker Type: 2-way, horn loaded, coaxial, weather-resistant
Operating Range: 160 Hz to 12.5 kHz (±3 dB)
Max Input Ratings: 200W, 70V/100V
Maximum Output: 120 dB SPL / 127 dB SPL (peak)
200W Nominal Impedance: 25 ohms
Nominal –6dB Beamwidth: 90°H x 40°V
Input Connection: 16-2 SJOW (12 ft /4 m)
Enclosure: Rotomolded LLDPE, light grey
Mounting/Rigging Provisions: (5) rigging points (M8 hardware), 1-3/8” pole mount socket
Environmental Performance: IEC529 IP55W rating with a minimum 5-degree downward aiming angle
Supplied Accessories: (1) Yoke bracket, (1) Aiming strap
