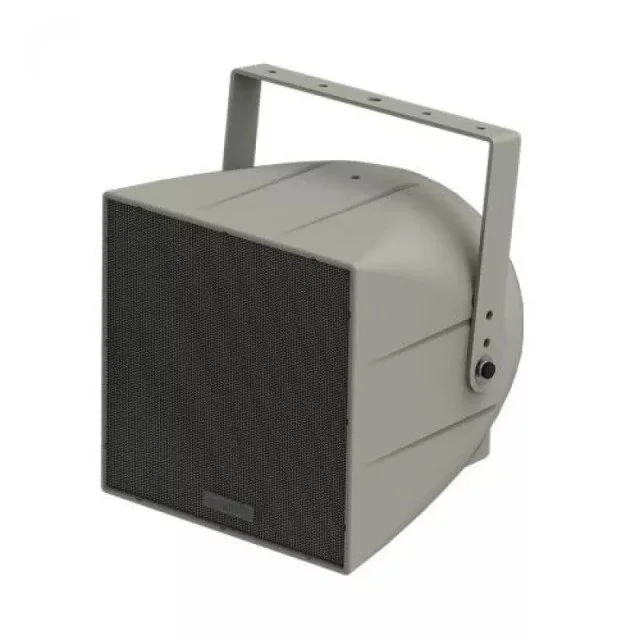

Community Pro R.25-94Z 8" Two Way Athletic Field Cruise Ship Outdoor Loudspeaker
Community Pro R.25-94Z 8" Two Way Athletic Field Cruise Ship Outdoor Loudspeaker
The R.25-94Z is a 2-way, full-range loudspeaker system designed to provide high quality voice and music reproduction in applications requiring extreme weather resistance. It is designed to withstand long-term exposure to tough, environmental conditions and to provide performance normally associated only with indoor loudspeakers. The R.25-94Z has an 8-inch (203mm) cone LF driver and a ¾-inch (20 mm) exit HF compression driver
with a weather resistant diaphragm. The HF driver is coupled to a nominal 90° x 40° horn. The HF assembly is coaxially mounted with the LF driver.
FEATURES:
Weather-resistant, rotomolded UV enclosure
Weather-treated drivers and crossovers
Corrosion-resistant zinc-rich epoxy dual-layer powder coated steel grille and yoke
High fidelity, all horn loaded
High efficiency
Integral mounting points
High power passive crossover
Optional 200W, 70V autoformer version available (model R.25-94TZ)
Optional black and white versions (model R.25-94BZ and R.25-94WZ)
Five-year product warranty / Fifteen-year enclosure warranty
APPLICATIONS:
Convention centers
Fill speaker for stadia, athletic fields, arenas and race tracks
Outdoor background music / paging systems
Theme and amusement parks
Fairgrounds and rodeos
Malls, cruise ships, skating rinks
Swimming pools
Specifications:
Loudspeaker Type: 2-way, horn loaded, coaxial, weather-resistant
Operating Range: 160 Hz to 12.5 kHz (±3 dB)
Max Input Ratings: 200W continuous, 500W program
Maximum Output: 120 dB SPL / 127 dB SPL (peak)
Nominal Impedance: 8 ohms
Nominal –6dB Beamwidth: 90°H x 40°V
Input Connection: 16-2 SJOW (12 ft /4 m)
Enclosure: Rotomolded LLDPE, light grey
Mounting/Rigging Provisions: (5) rigging points (M8 hardware), 1-3/8” pole mount socket
Environmental Performance: IEC529 IP55W rating with a minimum 5-degree downward aiming angle
Supplied Accessories: (1) Yoke bracket, (1) Aiming strap
