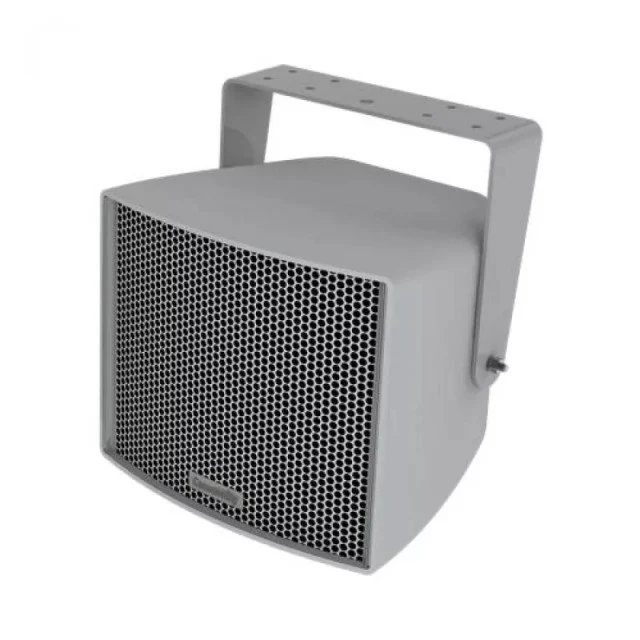

Community Pro R.35COAX 10" Two Way Stadium Amusement Park Outdoor Loudspeaker

Community Pro R.35COAX 10" Two Way Stadium Amusement Park Outdoor Loudspeaker

The R.35COAX is a two-way, full-range loudspeaker system designed to provide high quality voice and music reproduction in applications requiring extreme weather resistance. It is designed to withstand long-term

exposure to tough, environmental conditions and to provide performance normally associated only with indoor loudspeakers. The R.35COAX has a 1.25-inch (32mm) exit HF compression driver and a 10-inch (254mm) cone LF driver with a 2-inch voice coil. The HF assembly is coaxially mounted with the LF driver allowing

90° conical coverage with low distortion. The carbon ring cone design provides a cone area nearly equivalent to a typical 12-inch driver cone. The Music / Voice switch provides an out-ofthe-box selectable flat response or 3dB boost for increased vocal intelligibility allowing for additional application flexibility. The design uses

Biamp's proprietary Tru-Phase™ high frequency compression driver phase plug to provide wide dispersion, low distortion and increased intelligibility. The LF driver cone is treated with the same hydrophobic protection as the grille cloth to provide full weather-resistance. The enclosure has a reinforced ribbed interior with weather-treated wooden inserts to reduce resonance, increase rigidity and reduce rear and lateral radiation. The R.35COAX carries a 5 year product warranty and a 15 year enclosure warranty.

FEATURES:

• Excellent musicality and intelligibility, and low distortion in an extremely compact enclosure

• Weather-resistant, compact, matte finish paintable high impact ABS plastic modified-trapezoidal enclosure

• Hydrophobically-treated grille and LF driver cone, polymer HF diaphragm, and moisture-sealed crossover

• 200W Autoformer (standard), selectable 8 ohm or 70V/100V operation

• Corrosion-resistant dual-layer powder-coated low-profile steel yoke and aluminum grille

APPLICATIONS:

Theme and Amusement Parks

Malls

Stadiums

Fairgrounds

Outdoor Entertainment Centers

Race Tracks

Athletic Fields

Swimming Pools

Background Music / Voice Paging Systems

Convention Centers

Factories Multipurpose

outdoor and indoor venues

SPECIFICATIONS:

Operating Mode: Passive, Selectable Low Impedance or 70V/100V

Operating Environment: Indoor or Weather-Resistant Outdoor

Operating Range:2 70 Hz to 16 kHz

Nominal Beamwidth (H x V): 90° x 90°

Transducers:

            LF 1 x 10" (254mm) Carbon ring cone with hydrophobic treatment, 2" (51mm) Voice Coil

            HF 1 x 1.25" (32mm) exit compression

Continuous Power Handling3 @ Nominal Impedance:  Passive   40V    200W @ 8 Ohms (800W peak)

Autoformer Taps:

            70V: 200W,100W, 50W, 25W

            100V: 200W,100W, 50W

MUSIC VOICE

Nominal Sensitivity4:

Passive:

Music

            @ 1W 97 dB

            @ 2.83V 97 dB

Voice:

            @ 1W 99 dB

            @ 2.83V 99 dB

Nominal Maximum SPL5: (Whole Space)

Passive:

Music

            Peak 126 dB

            Continuous 120 dB

Voice

            Peak 128 dB

            Continuous 122 dB

Equalized Sensitivity6:      

System:

Music

            @ 1W 97 dB

            @ 2.83V 97 dB

Equalized Maximum SPL7:

System:

Music

            Peak 126 dB

            Continuous 120 dB

Required Accessories: High Pass Filter - 70 Hz, 24 dB /octave, Digital Signal Processor

Recommended Amplifiers:

            Passive 200W - 400W @ 8 Ohms, (40V - 57V)

PHYSICAL:

Input Connection: NL4 Speakon-type connector (low impedance only), and 7-position terminal strip for low impedance or constant voltage operation

Controls:  Music / Voice switch, 70V/100V operation jumper

Mounting Points: Two (2) M8 rigging points

Included Accessories: Zinc-rich epoxy dual-layer powder-coated yoke, included integral safety cable mounting point

Environmental: IP55W per IEC 529, designed to MIL-STD-810G Color-matched ABS plastic input panel weather cover

with 13.5mm ID gland nut installed in .82" knockout

Dimensions H x W x D:  11.00" x 13.00" x 13.50" (279 x 330 x 343 mm)

Weight: 26 lbs (11.8 kg) with included yoke
