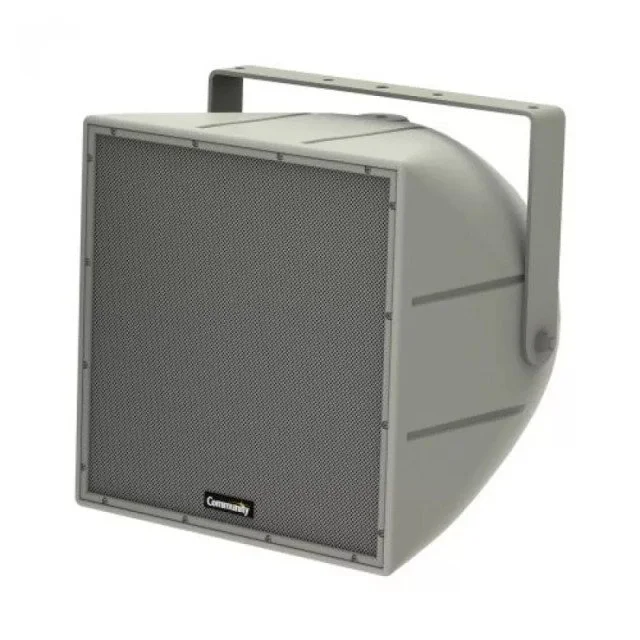

Community Pro R.5-94TZ 12" 2 Way Athletic Field Cruise Ship Outdoor Loudspeaker
Community Pro R.5-94TZ 12" 2 Way Athletic Field Cruise Ship Outdoor Loudspeaker
The R.5-94TZ two-way, full-range loudspeaker system is engineered to provide quality full-range sound projection in a variety of outdoor and indoor applications. Its wide range, smooth frequency response and high efficiency ensure both high fidelity music reproduction and superb projection of clear intelligible speech with very low distortion. An input autoformer with switchable taps provides impedance matching to 70V or 100V lines. Fiveyear limited product warranty; fifteen-year enclosure warranty.
FEATURES:
Rotomolded, UV enclosure
Pattern control down to 630 Hz
High efficiency
Integral mounting points
High power passive crossover
DYNA-TECH active protection circuitry
Multi-tap 200W autoformer for 70V and 100V inputs
Five-year product warranty / Fifteen-year enclosure warranty
APPLICATIONS:
Fill speaker for stadia, athletic fields, arenas and race tracks
Convention centers
Outdoor background music / paging systems
Theme and amusement parks
Fairgrounds, rodeos, air shows
Malls, cruise ships, skating rinks
Swimming pools
Portable sound systems
Specifications:
Loudspeaker Type: 2-way, horn loaded, coaxial, weather-resistant
Operating Range: 125 Hz to 10 kHz (±4 dB)
Max Input Ratings: 200W, 70V/100V
Maximum Output on 200W Tap: 125 dB SPL
Nominal Impedance: 25 ohms
Nominal –6dB Beamwidth: 90°H x 40°V
Input Connection: 16-2 SJOW (12 ft /4 m)
Enclosure: Rotomolded LLDPE, light grey
Mounting/Rigging Provisions: (5) 3/8-16 rigging points
Environmental Performance: IEC529 IP55W rating with a minimum 5-degree downward aiming angle
Supplied Accessories: (1) Yoke bracket, (1) Aiming strap
Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998. We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications.
Shipping -Pro packed & shipped USPS, UPS or Freight Service. Contact us & pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed & shipped. Processing times vary, 2-30 days
Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided. Otherwise customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, & accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new.
What products can not be returned? - Clearance items, Custom Builds, Road Cases, DT12 items, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas raw-frame speakers, turntable cartridges, fog fluid
