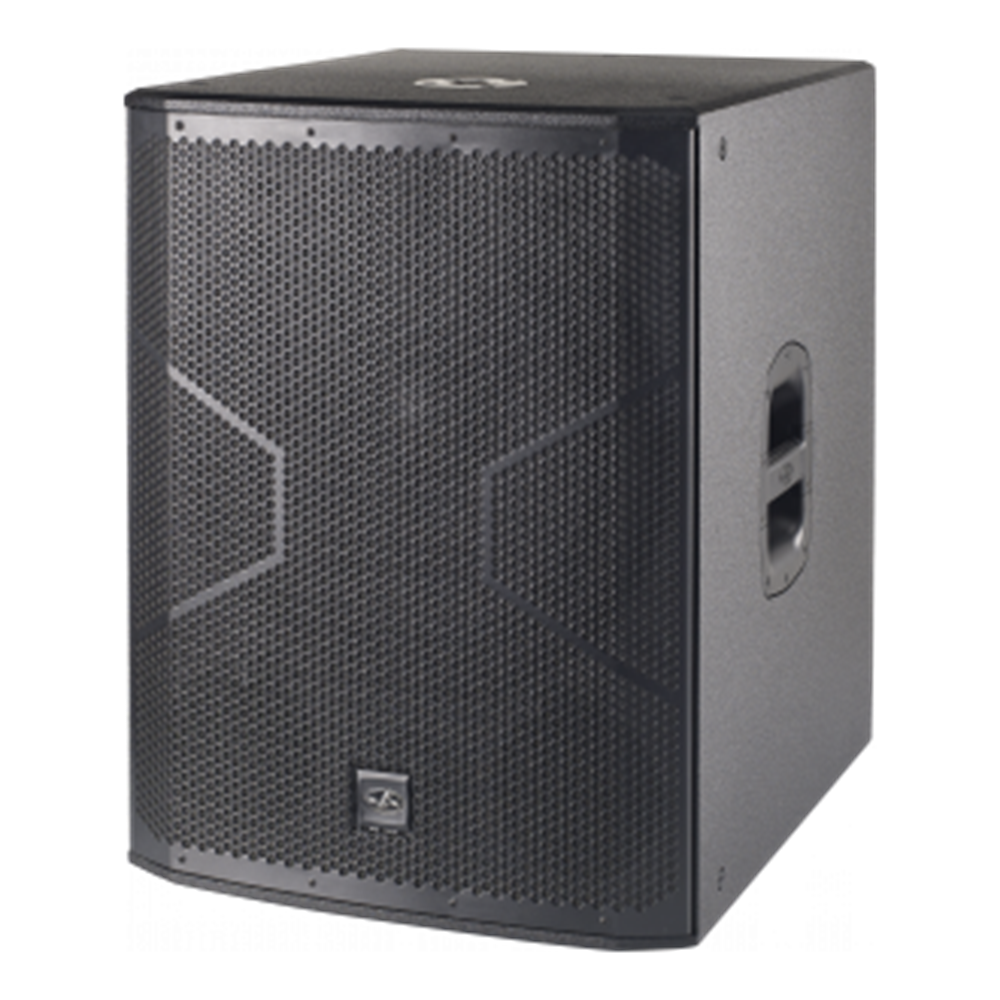

DAS Altea-718A 18inch Powered Subwoofer System 600 watts
The ALTEA-718A is a powered subwoofer system designed to provide extended bass response for the ALTEA full-range cabinets. At the heart of the system is a DAS 18FW4 bass loudspeaker. This loudspeaker incorporates a FEM optimized high-efficiency speaker design and an extended 3″ voice coil for long excursion. Cooling is assured thanks to the 18FW4´s vented pole piece and abundant apertures in the speaker´s back plate keeping power compression to a minimum while providing high acoustic output over extended periods.

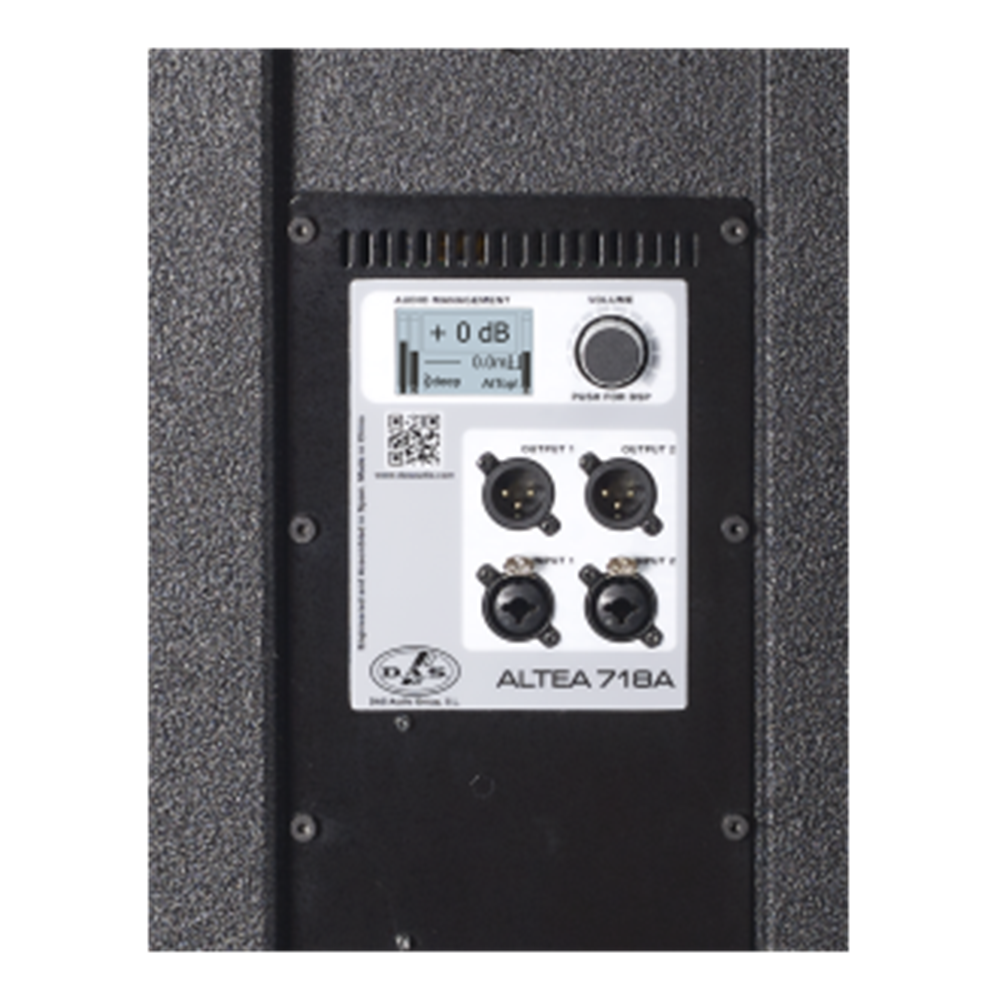

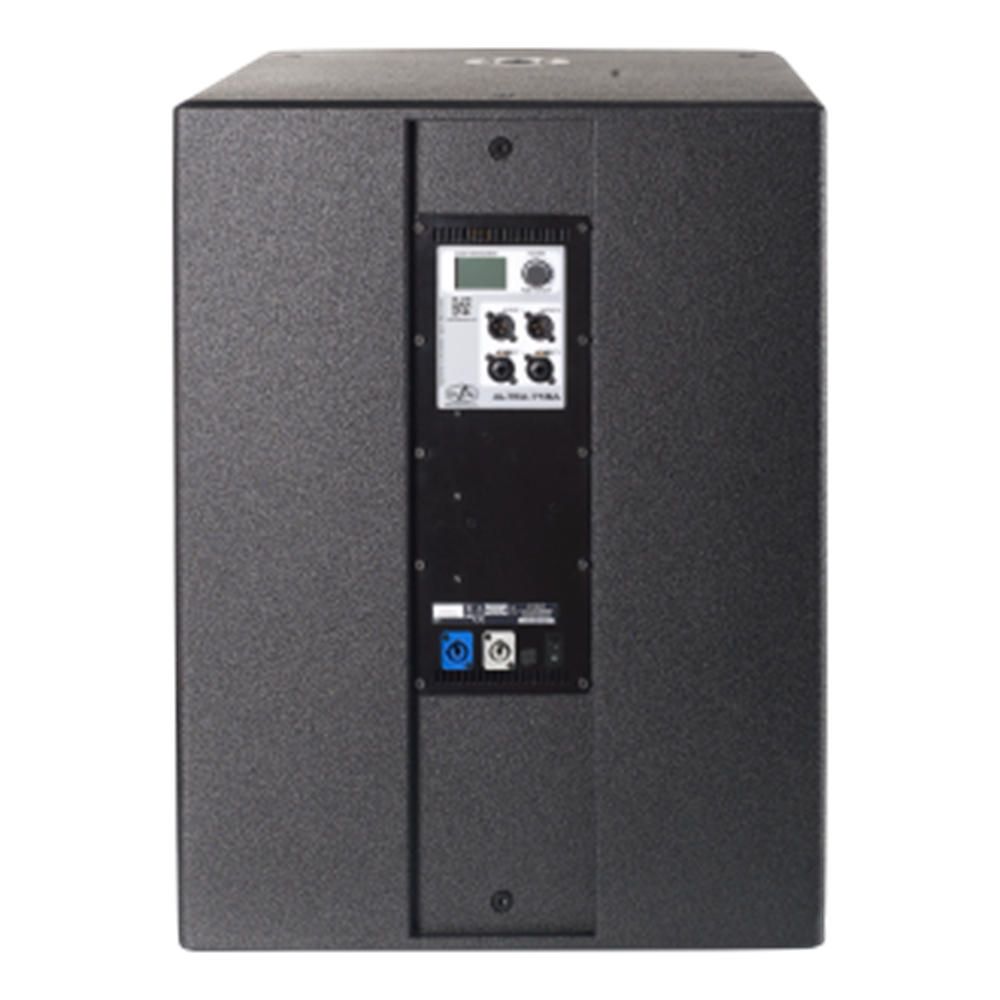

Driving the DAS 18FW4 loudspeaker is a cutting-edge 1200 Wpeak Class D amplifier. On the rear panel a balanced input connector and stereo “loop thru” output connections are available to provide signal for ALTEA satellite systems. Thanks to the digital presets accessible by way of a DAScontrol™ interface on the rear of the cabinet, setting up a combo system with ALTEA full-range systems is easy.
The ALTEA-718 is the passive version for use with external amplification and outboard DSP.
Features
Powered, 600 W, 18″, long excursion bass-reflex subwoofer, black
Performance
Electronics and Connectors
Nominal Amplifier Power (continuous): 600 W
Nominal Amplifier Power (peak): 1200 W
Input Type: Balanced
Input Impeadance: 20 kohms
Input Sensitivity: 1.95 V (+8 dBu)
Audio Signal Input Connector: 2 x Female XLR
Audio Signal Loop Thru Connector: 2 x Male XLR
Control: DAScontrol™
Current Draw 230 V / 115 V: 1.4 A/2.8 A
Enclosure
Enclosure Construction: Birch Plywood
Enclosure Geometry: Rectangular
Rigging: M10 Rigging Points
Finish: ISO-flex Paint
Color: Black
Dimensions: ( H x W x D ) 720 x 545 x 650 mm 28,4 x 21,5 x 25,6 in
Net Weight: 42,0 kg ( 92,6 lb )
Components
Shipping
Carton Dimensions ( H x W x D ): 820 x 600 x 700 mm 32,3 x 23,6 x 27,6 in
Shipping Weight: 46,5 kg ( 102,5 lb )
