dB Technologies DVA T8 3 Way Line Array System Active Speaker RDNET Port

dB Technologies DVA T8  3 Way Line Array System Active Speaker  RDNET Port

Ships Free!

The most advanced incarnation of a string of successful line array systems that started with the DVA T4 and enhanced with DVA T12. Hard to believe that something so petite succeded in packing such a mighty punch.

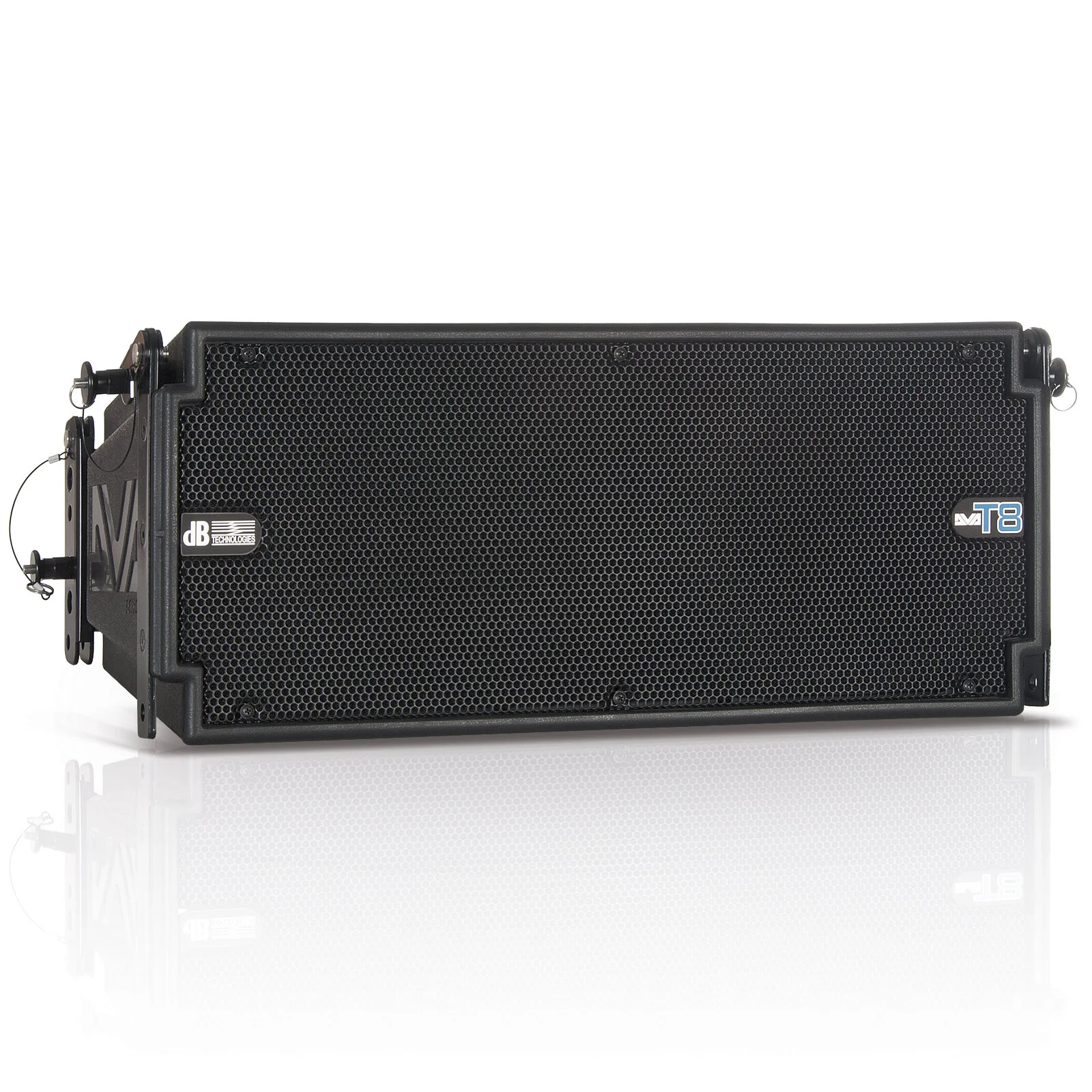

DVA T8 is a 3-way module equipped with a 8” bass reflex neodymium woofer, 1 horn loaded 6.5” midrange with a 2” voice coil and phase plug device, and two 1”drivers with constant directivity horn. These components have been optimally arranged to obtain a uniform 100° by  15° coverage per module. DVA T8 features a Class D 700 W RMS Digipro G2 digital amplifier and is capable to reach up to 132 dB SPL.

The system is  equipped with a RDNET port which allows the system to be controlled and monitored remotely in real-time through the use of dBTechnologies Network control software.

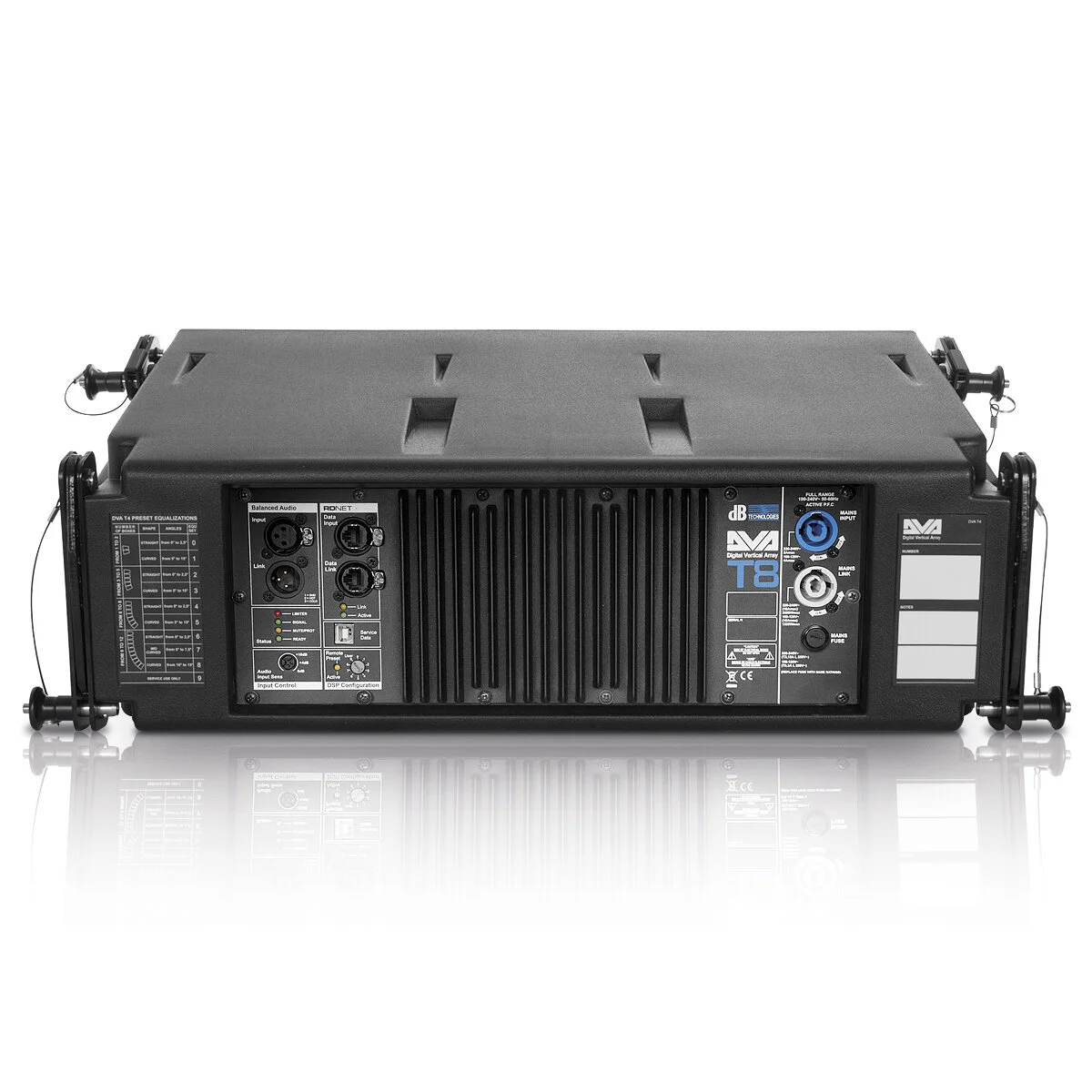

Thanks to a rotary on the module’s rear panel, it is possible to select one among 9 different preset options plus a personal setting which can be saved.

This way,  users adapt the module’s frequency response to aiming distance and to coupling with other modules within the same array, thus optimizing the sound in a consistent and balanced way, without the use of any external processors.

The module’s electronics and components are housed in a sturdy polypropylene box, reinforced with an internal anti-vibration metal structure which drastically reduces any resonance, allowing the cabinet to achieve an excellent acoustic response.

The reinforced polypropylene box, the selected components and a state of the art amplifying technology come together to deliver an exceptional weight-performance ratio: in facts, each module of DVA T8 weights a mere 14,2 kg (31,3 lbs).

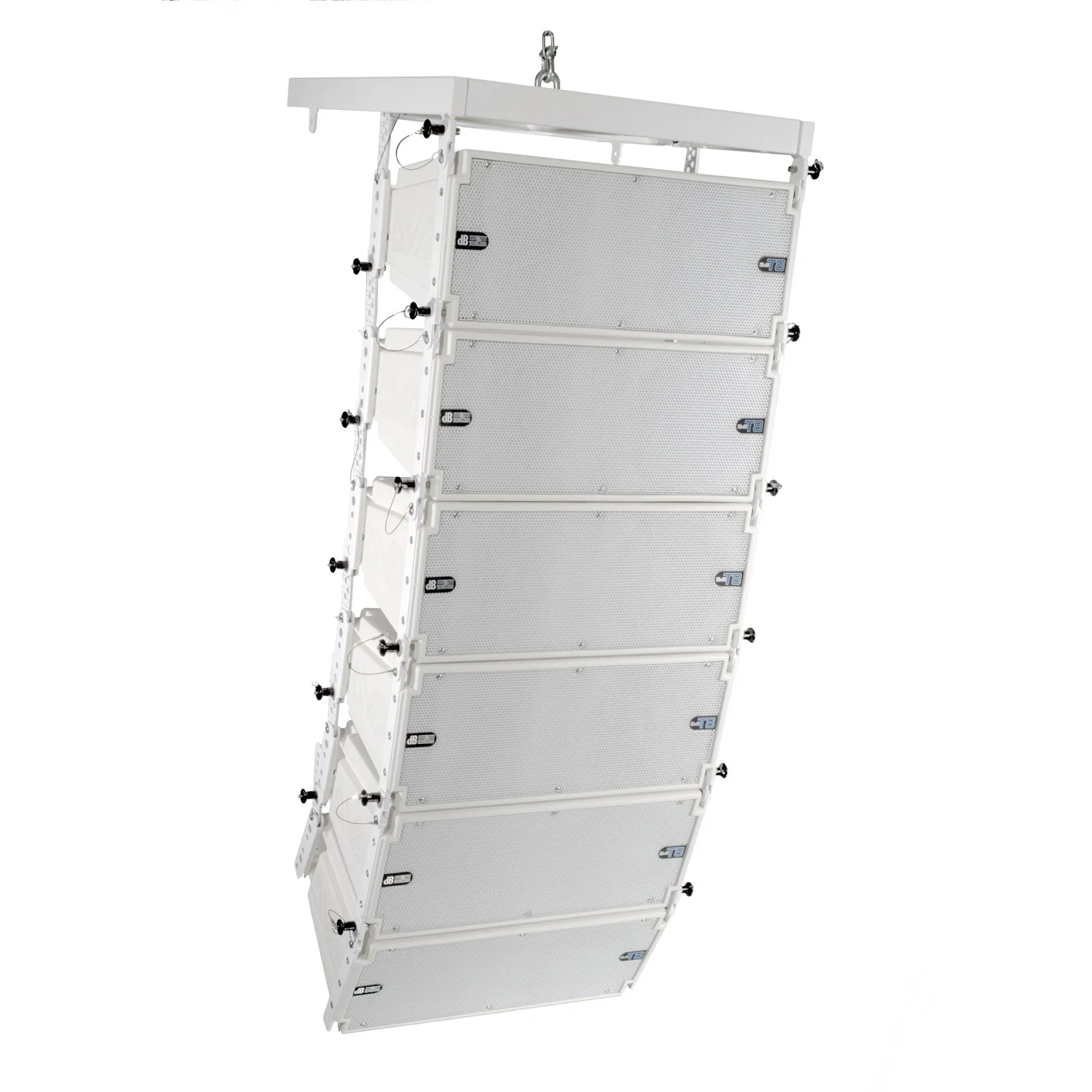

The unique feature of the DVA T series is the mechanical and acoustic compatibility between line array modules of the same family. This feature guarantees a great versatility in terms of both using and configuring the products.

Specifications:

Technical Data

Speaker Type: 3-Way Active Line Array Module

Acoustical data

Frequency Response [-6dB]66:  - 18.000 Hz

Max SPL: One Unit: 132 dB

HF: 2x1 "

Voice Coil HF: 1.4 "

Directivity: 100x15 ° Single unit

MF: 1x 6.5 "

Voice Coil MF: 2 "

LF: 8 "

Voice Coil LF: 2.5 "

Amplifier

Amp Technology: Digipro® G2

Amp Class: Class D

HF Amp: 175 W RMS

MF Amp: 175 W RMS

LF Amp: 350 W RMS

Cooling: Convection

Processor

Controller: DSP 56 bit with double precision filters

AD/DA Converter: 24 bit/96 kHz

System Presets: 9, (8xHF and Low-mid correction)

Limiter: Dual Active Limiter

Multiband RMS, Peak, Thermal

Crossover Frequency MF-HF: 1900 Hz

Slope MF-HF: 24 dB/Octave

Crossover Frequency LF-MF: 400 Hz

Slope LF-MF: 24 dB/Octave

Input

Signal Input: 1x XLR fem, Bal.

Signal Output: 1x XLR male, Bal.

Network: RDnet remote control RJ45 connector IN/OUT

Power Socket: 1x Powercon In

1x Power: con Out

Voltage Range: 90 - 240 V

Mechanics

Housing: Polypropylen PP

Metal reinforced

Housing Design: Trapezoidal 15°

Rain Cover: Included

Rigging Points: Integrated rigging hardware

Width: 580 mm (23.2 in)

Height: 240 mm (9.6 in)

Depth: 327 mm (13.08 in)

Weight: 14,2 kg (31.3 lbs)

Features:

• 3-WAY ACTIVE SPEAKER

• 700W RMS DIGITAL POWER AMP

• HIGH-END 56-BIT DSP ON BOARD

• 96KHZ SAMPLING RATE

• NETWORK READY WITH AN INTEGRATED RDNET PORT

• ACOUSTICALLY COMPATIBLE WITH DVA T12

• MACHANICALLY COMPATIBLE WITH DVA T12

----------------------------------------------------------------------------------------------------------------
