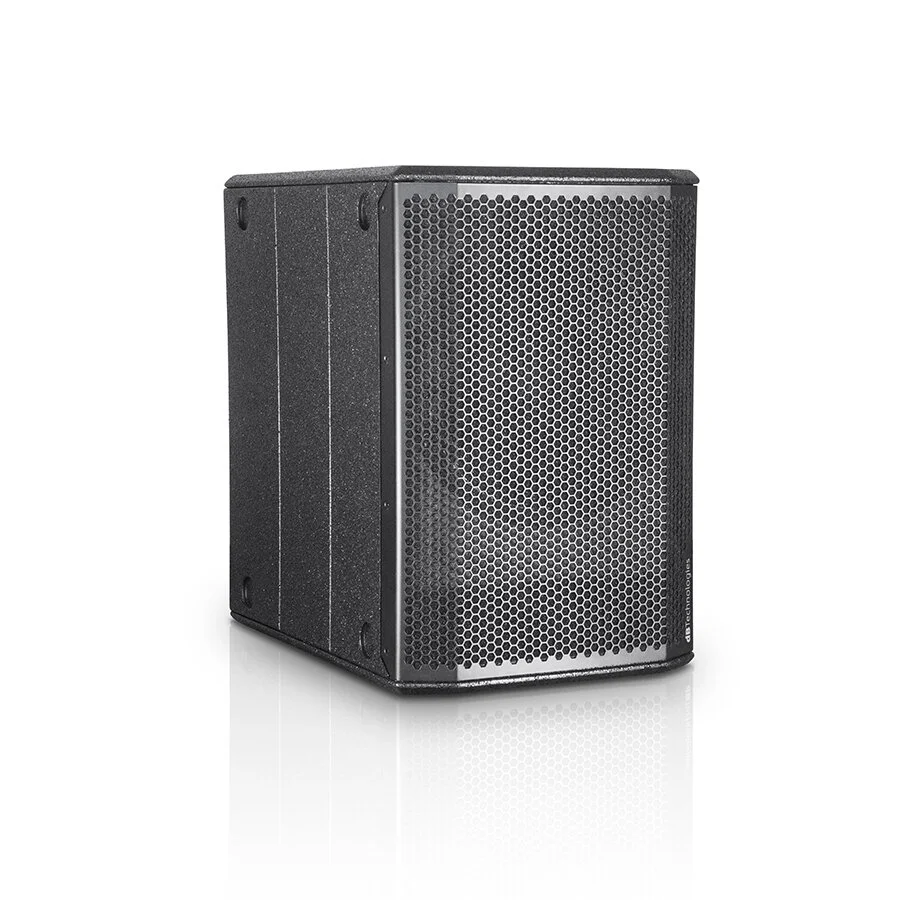

dB Technologies SUB 612 600W RMS Class D Subwoofer Power Amplifier
BTechnologies releases SUB612 to complete SUB 600 active subwoofer family. The new model aims to create complete PA system making the most of dBTechnologies’ smaller full-range systems such as OPERA 10 and B-H 8 and 10.
Just like 15” and 18” models of the family, bass-reflex SUB 612 features a 600W RMS Class-D Power Amplifier with SMPS, delivers outstanding sound pressure levels (up to 129 dB) in spite of a very compact housing (only 19.8 Kg -43,65 lbs) and provides an impressively precise low-end reproduction.
Sub 600s’ remarkable audio performance allows user to build most of the PA systems with 1 single sub and 2 full range speakers, avoiding any external processing or crossover thanks to separate balanced X-Over signal feeds to left and right speakers.

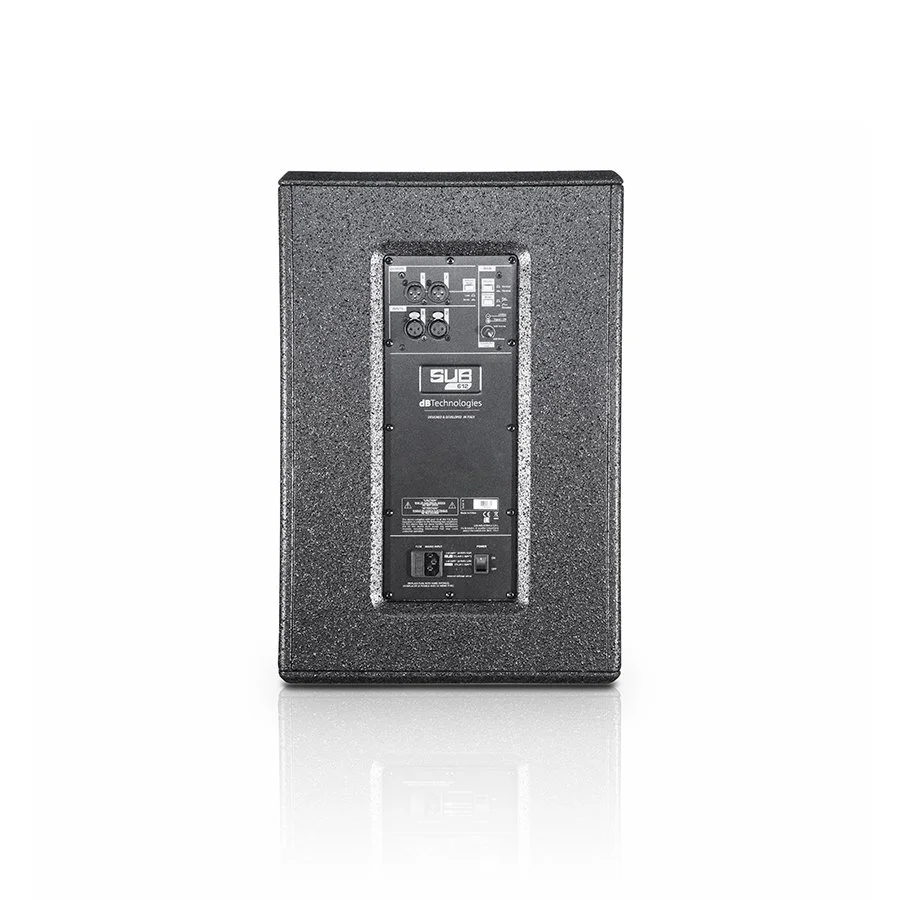

Controls on the amp panel allow user to operate with Mono or Stereo audio feed, activate polarity inversion and choose Outputs link mode (True Bypass or X-Over). Whenever a further punch is needed, a low-frequencies boost EQ can be set thanks to the Sub BOOST Mode switch.
Specifications:
Technical Data
Speaker Type: Active Subwoofer
Acoustical data
Frequency Response [-10dB]: 46 - 123 Hz
Max SPL (1 m): 129 dB
Directivity: omnidirectional
LF12”
LF Voice Coil: 2.5"
Amplifier
Amp Technology: SMSP digital amplifier
Amp Class: Class D
RMS Power: 600 W
Peak Power: 1200 W
Processor
Controller: DSP 28/56 Bit
Limiter: Peak, Thermal, RMS
Controls: 1x Subwoofer attenuation Control
1x Flat/Boosted switch
1x Switch output mode
1x Polarity switch
Input
Signal Input: 2x XLR (balanced)
Signal Output: 2x XLR (balanced)
Mechanics
Housing: Black painted Plywood
Handles: 1 on top
Pole Mount: M20
Width: 360 mm (14.72 in)
Height: 550 mm (21.65 in)
Depth: 525 mm (20.67 in)
Weight: 19.8 Kg (43.65 lbs)
FEATURES:
600 W RMS CLASS-D AMPLIFIER
STEREO BALANCED INPUT
LINK OR X-OVER BALANCED STEREO OUTPUT MODE
COMPACT AND STURDY WOOD CABINET
LIGHTWEIGHT
POLARITY INVERSION SWITCH
FLAT OR BOOST EQ MODE SWITCH
----------------------------------------------------------------------------------------------------------------
