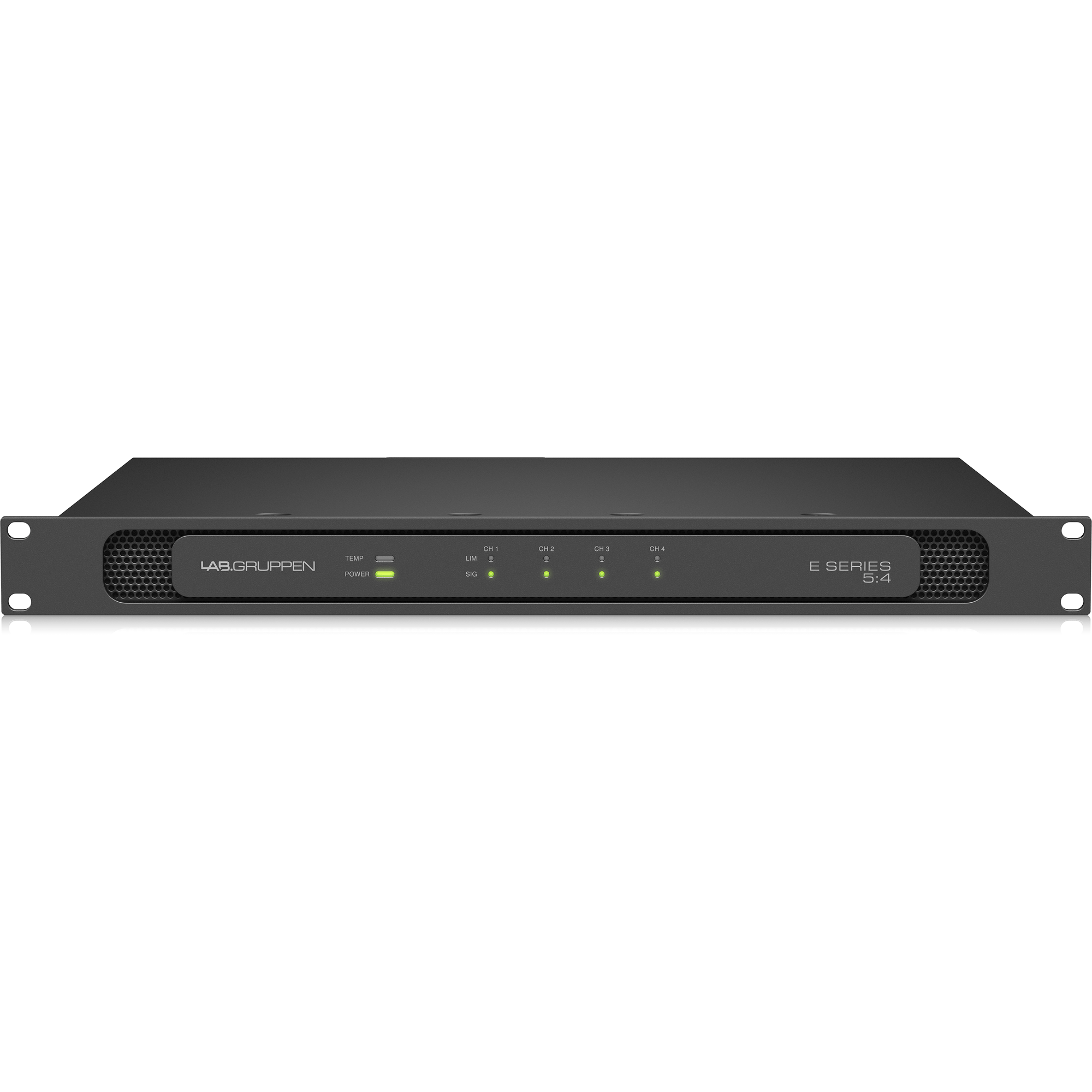

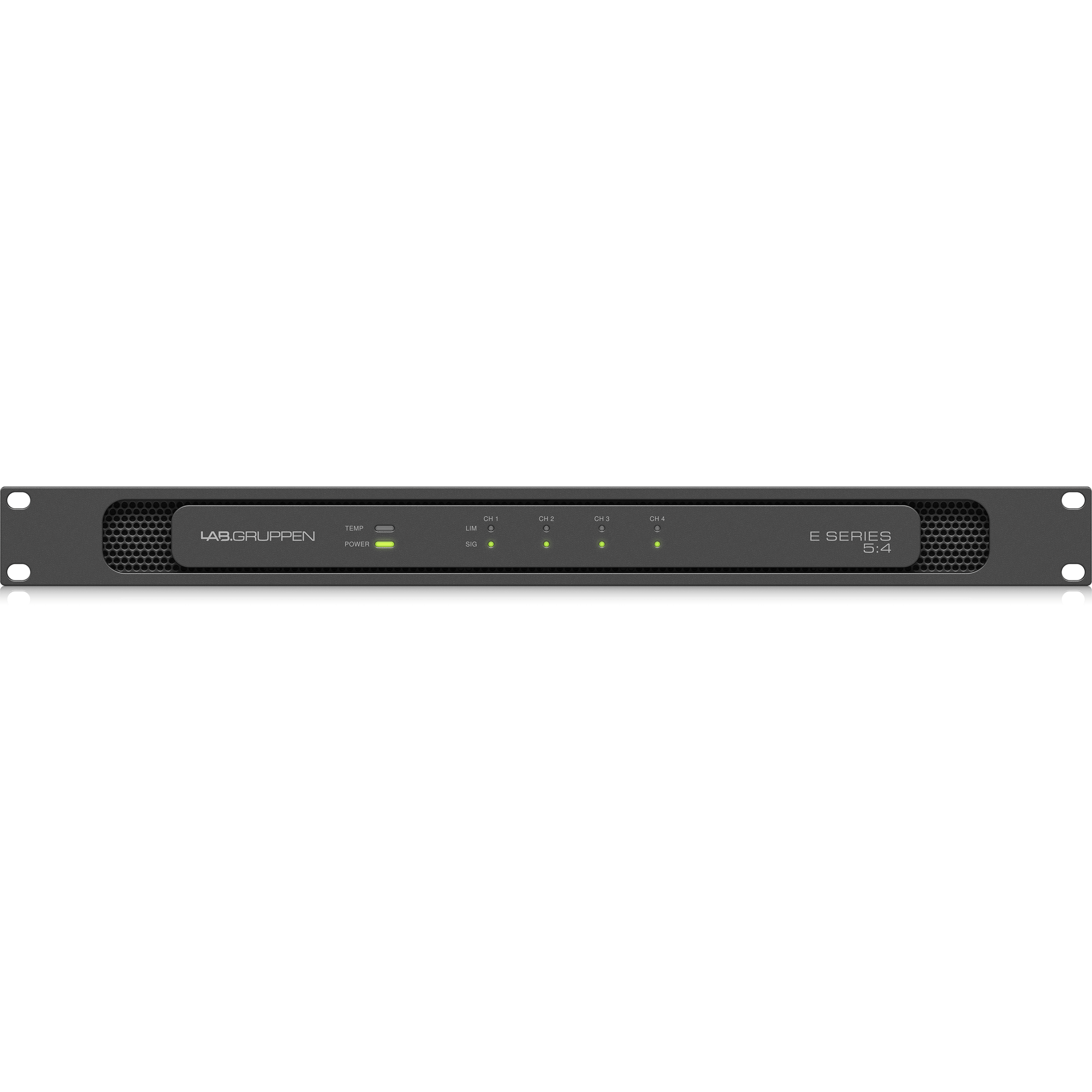

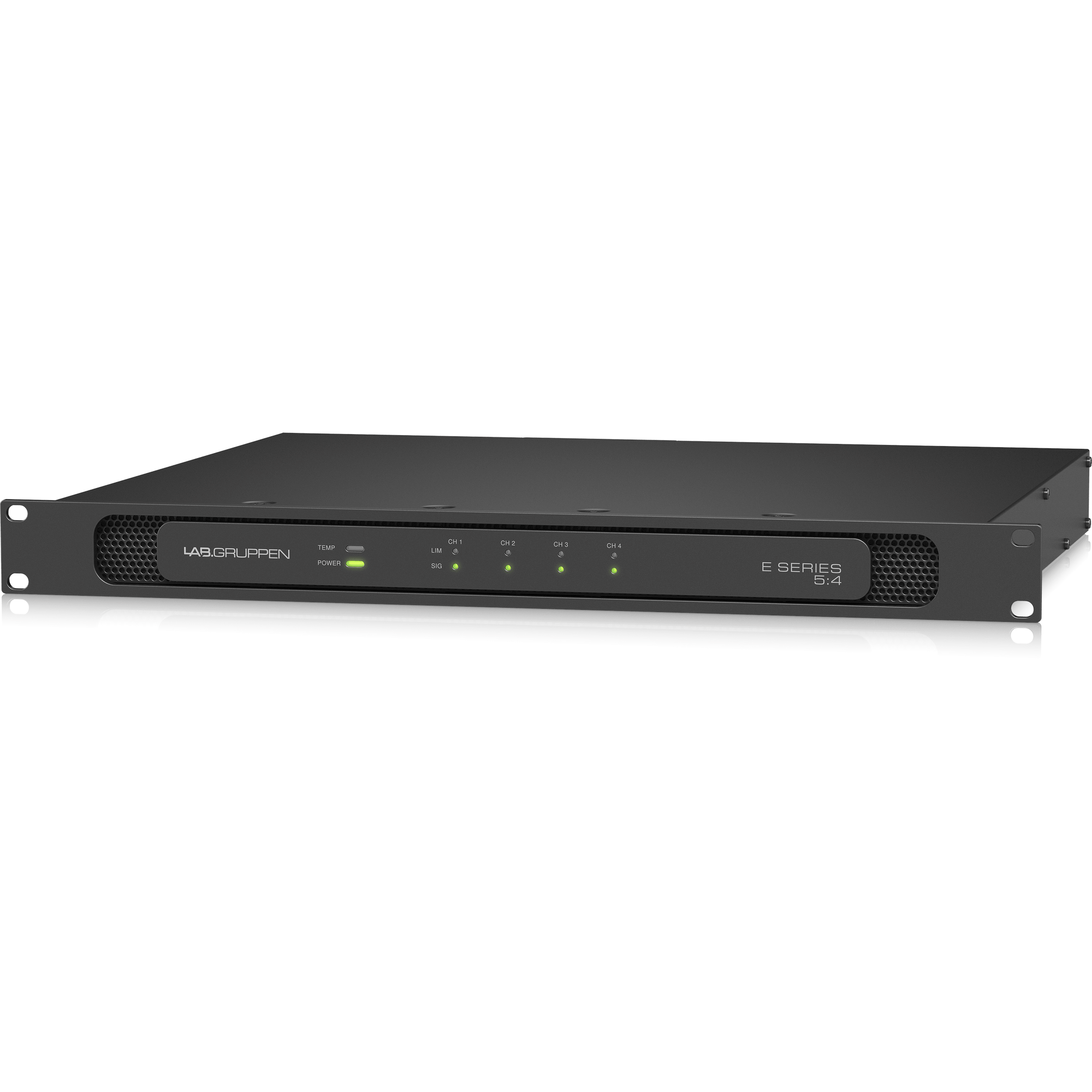

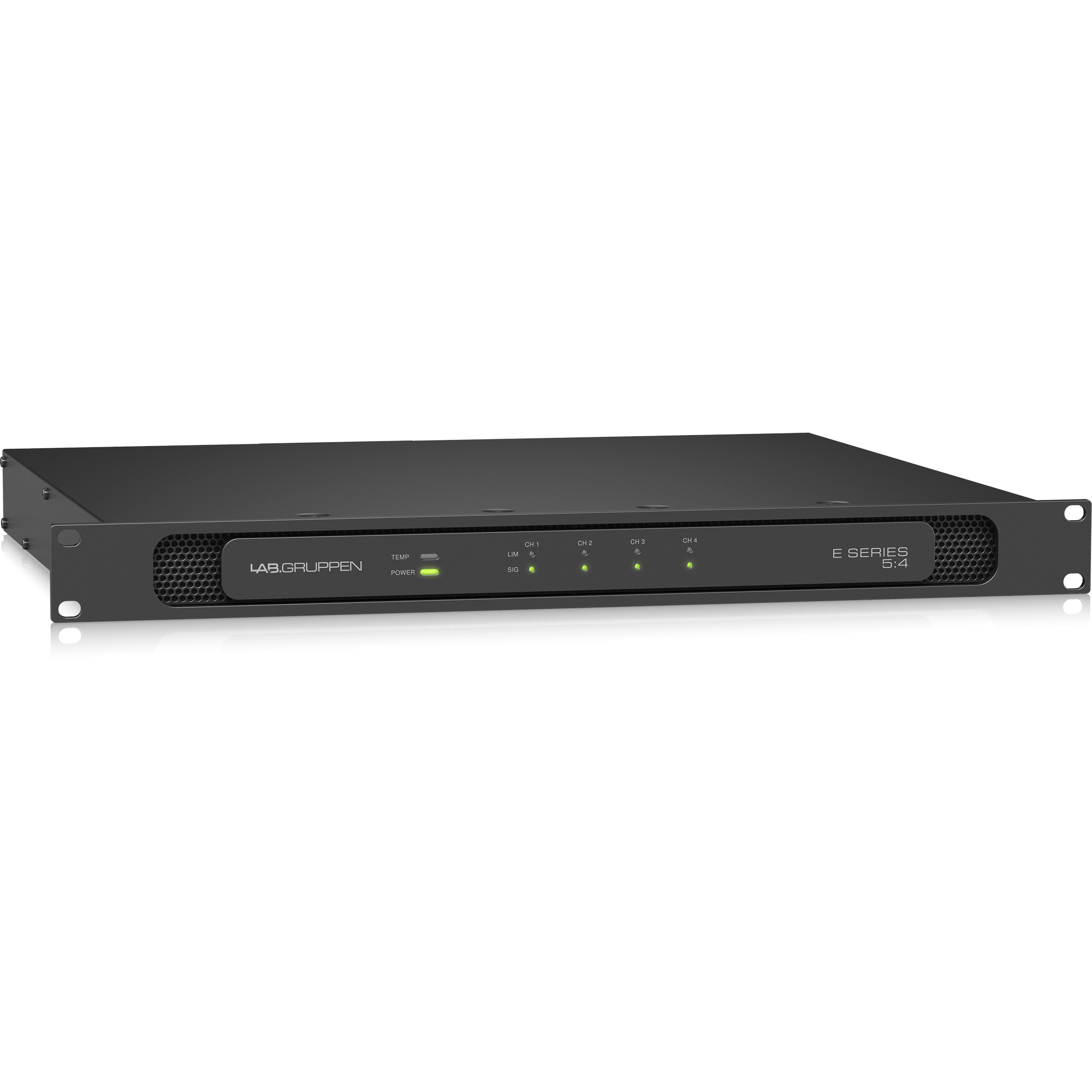

The Lab Gruppen E5:4 500W E-Series Installation Amplifier
is a feature-rich solution for professional audio installations. This amplifier is designed to deliver exceptional performance, flexibility, and energy efficiency, making it a top choice for mixed A/V installations.
HIGHLIGHTS
Power Output:
4 x 125W channels, configurable for constant voltage (70/100V) or low impedance (2, 4, 8, and 16 Ohms)
Energy Efficiency:
Energy Star certified, with low power consumption and minimal heat generation
Asymmetric Channel Loading:
Allows mixing and matching loads with different impedances for optimized system efficiency
Amplifier Technology:
IntelliDrive Energy Efficient Amplifier (IDEEA) technology, a proprietary Class-D design for high performance and low distortion
Rail Sensing Limiter (RSL):
Reduces signal clipping and optimizes output for varying load conditions
Auto-Standby and Power-On:
Automatically reduces power consumption to below 1W during idle periods
Cooling System:
Temperature-controlled fans with front-to-back airflow for efficient cooling
User-Friendly Controls:
Per-channel attenuation knobs, signal LEDs, and a high-pass filter (50 Hz) selectable via rear panel switches
Durable Build:
Compact 1 rack unit form factor with an aluminum front panel, designed for durability and ease of installation
Connectivity:
Balanced analog inputs and outputs on detachable screw terminals, along with a GPIO connector for system integration
Fail-Safe Protection:
Comprehensive circuit protection ensures reliable operation under challenging conditions
SPECIFICATION
General
Number of amplifier channels4Total output all channels driven500 WPeak output voltage per channel100 V / 70 VrmsMax. output current9.9 Arms
Max output power (all channels driven)
2 ohmsN.R.4 ohms125 W8 ohms125 W16 ohms125 W (requires the “70 V” mode for the RSL, “Lo-Z” gives 63 W)70 V125 W100 VCan deliver 125 W to a 100 V load tapped at 250 W
Performance
THD 20 Hz - 20 kHz at 1 W<0.1%THD at 1 kHz and 1 dB below clipping<0.05%Signal to Noise Ratio>112 dBAChannel separation (Crosstalk) at 1 kHz> 70 dBFrequency Response2 Hz - 40 kHzInput impedance20 kOhmCommon Mode Rejection (CMR)50 dBOutput impedance25 mOhm
Gain, Sensitivity and Limiters
Limit and gain switch defining limit and gain (per channel)2 pos: Lo-Z and 70 VVPL for 70 V mode100 VVPL for Lo-Z mode44.7 VSensitivity for stated power into 8 Ohm in Lo-Z mode4 dBuSensitivity for 70.7 V out in 70 V mode4 dBuSensitivity for stated power into 4 Ohm in Lo-Z mode1 dBuSensitivity for stated power into 16 Ohm in 70 V mode0 dBuGain in 70 V mode35.2 dBGain in Lo-Z mode28.2 dBLevel adjustment (per channel)Rear panel potentiometer, from -inf to 0 dB
Connectors and Switches
Input connectors (per ch.)3 - pin detachable screw terminals, electronically balancedOutput connectors (per ch.)2 - pin detachable screw terminalsHigh pass filterFixed at 50 Hz, switchable per channelPower controlCan be used to go between standby and ONGPI (power control input)Contact closure type, 2-pin detachable screw terminal, controls the power stateGPO (power state output)Contact closure type, 2-pin detachable screw terminal, for external monitoring of the power stateCoolingTwo fans, front-rear airflow, temperature controlled speed
Power
Nominal voltage100 - 240 VACOperating voltage85 – 265 VACStandby consumption<1 WMains connectorIEC inlet
Dimensions
DimensionsW: 483 mm (19”), H: 44 mm (1 U), D: 381 mm (15”)
Weight
Weight6 kg (13.2 lbs)
Finish
FinishDark grey aluminum front and black steel chassis
DOCUMENTATION
A & E SpecificationsA & E Specifications, GermanCurrent Draw & Thermal DissipationCurrent Draw & Thermal Dissipation EnglishData SheetQuick Start Guide, All Language
