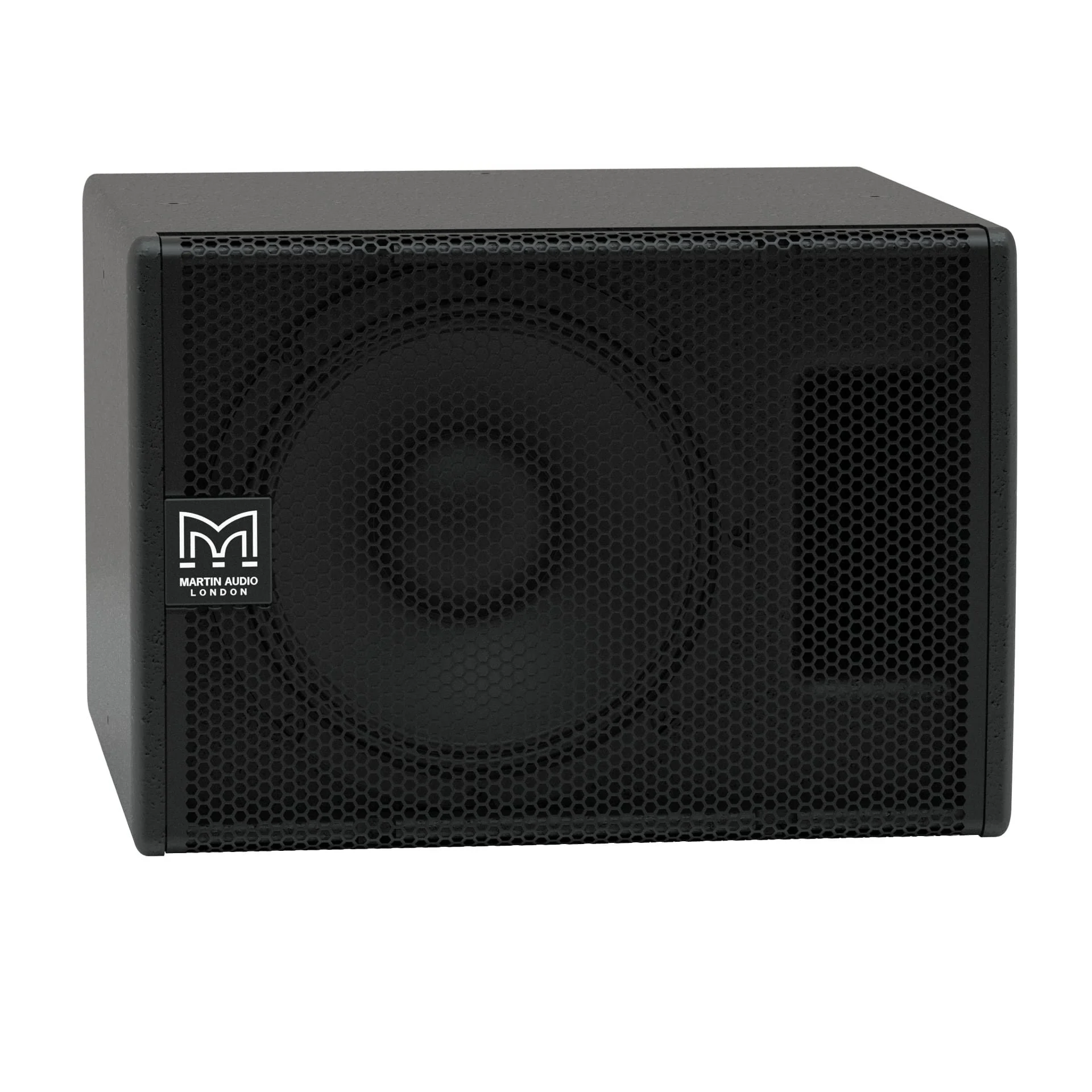

Martin Audio SX110 10 Inch Ultra compact Passive Slimline Subwoofer Loudspeaker
Martin Audio SX110 10 Inch Ultra compact Passive Slimline Subwoofer Loudspeaker
The SX110 is an slimline subwoofer designed for applications that call for increased impact and low frequency performance in a visually unobtrusive enclosure. Its very small size makes it perfectly suited to installed sound applications where space is limited such as under banquette seating.
The SX110 features a 10” (250mm)/2” (50mm) voice coil driver and generously sized low frequency port for reduced air noise. An ideal subwoofer to augment the bass output of ADORN Series or small CDD loudspeakers, it can be used on the ground or flown using integral M8 inserts.
The SX110 enclosure is constructed from plywood and finished in black or white textured paint as standard. An impact-resistant perforated steel grille protects the drivers, and rubber feet on the base resist movement.
When used with Martin Audio full-range systems, crossover and EQ functions can be performed by the DX0.5 or DX4.0 system controller
Features:
Slimline direct-radiator subwoofer
1 x 10” (250mm) driver with 2” (50mm) voice coil
Large port for reduced air noise
Perforated steel grille
8Ω nominal impedance
M8 flying inserts
Specification
TYPE: Slimline, direct radiating subwoofer
FREQUENCY RESPONSE (1): 50Hz-150Hz ± 3dB,
-10dB @ 42Hz
DRIVER: 1 x 10” (250mm)/2” (50mm) voice coil, long excursion, ferrite magnet
RATED POWER (2): 250W AES, 1000W peak
RECOMMENDED AMPLIFIER: VIA 2502
SENSITIVITY (10): 97dB
MAXIMUM SPL (9): 121dB continuous, 127dB peak (half space)
NOMINAL IMPEDANCE: 8Ω
DISPERSION (-6DB): Omnidirectional
CROSSOVER: 80-120Hz active
ENCLOSURE: Plywood
FINISH: White
PROTECTIVE GRILLE: Perforated steel
CONNECTORS: 2 x NL4 type
PIN CONNECTIONS (INPUT): +1, -1 Link through: +2, -2
PINS CONNECTIONS (LINK): +1, -1 Link through: +2, -2
FITTINGS: 12 x M8 inserts
DIMENSIONS (INCL FEET): (W) 417mm x (H) 297mm x (D) 415mm
(W) 16.4ins x (H) 11.7ins x (D) 16.3ins
WEIGHT: 12kg (26.5lbs)
Applications:
Retail outlets
Cafes, bars and restaurants
Museums and Houses of Worship
Fitness clubs
Educational facilities
Hotels and convention centers
** it can be used on the ground or flown using integral M8 inserts
