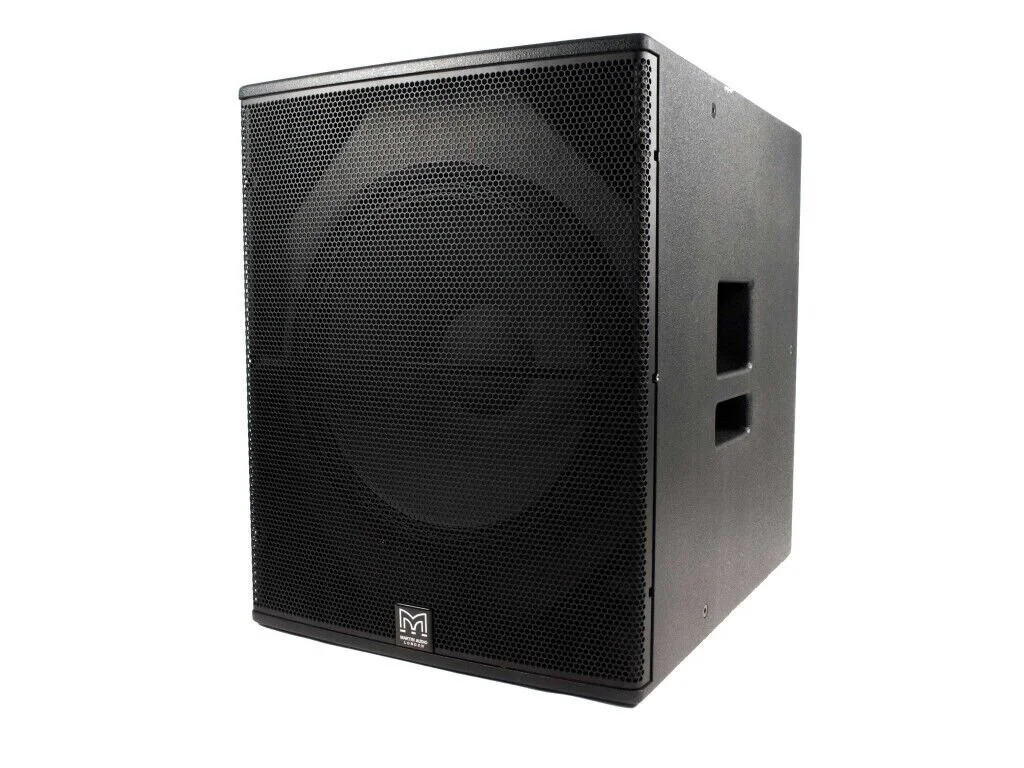

Martin Audio X118B 18 Inch Passive Blackline Portable Subwoofer Loudspeaker

Martin Audio X118B 18 Inch Passive Blackline Portable Subwoofer Loudspeaker

The Blackline X118 is a compact, high performance subwoofer for use with BlacklineX Series full-range loudspeakers. It extends the low frequency operating range of the combined system to 42Hz and provides exceptional low frequency impact. It can be used singly, stacked or flown via integral M10 insets and features a long-excursion 18” (460mm)/4” (100 mm) voice coil driver in a compact reflex enclosure. Its four reflex ports have a large frontal area to reduce turbulent air noise at very high levels.

The X118 enclosure is constructed from plywood and finished in black textured paint. An impact-resistant perforated steel grille protects the driver, and the enclosure has a 35mm pole-mount fitting in the top surface and two side handles for ease of handling. Rubber feet on the base of the enclosure resist movement and align with recesses in the top surface for stable stacking.

When used with BlacklineX Series full-range systems, crossover and EQ functions can be performed by the DX0.5 system controller or by an iKON amplifier.

Features:

• Compact, direct-radiator subwoofer

• 1 x 18” (460mm) driver with 4” (100mm) voice coil

• Large ports for reduced air noise

• Perforated steel grille

• 35mm pole-mount socket

• 8Ω nominal impedance

• M10 flying inserts

Applications:

• Portable sound reinforcement

• Live music clubs

• Bars and restaurants

• Nightclubs

• Corporate AV events and conferences

• Weddings and parties

• Secondary stages at festivals

• HoW, leisure centers and retail outlets

Specification:

TYPE:  Compact, direct radiating subwoofer

FREQUENCY RESPONSE (5):        42Hz-150Hz ± 3dB, -10dB @ 36Hz

DRIVER:         18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet

RATED POWER (2): 800W AES, 3200W peak

SENSITIVITY (8):      101dB

MAXIMUM SPL (9):           130dB continuous, 136dB peak (half space)

NOMINAL IMPEDANCE:   8Ω

DISPERSION (-6DB):          Omnidirectional

CROSSOVER:           80-120Hz active

ENCLOSURE:            Birch/poplar ply

FINISH:          Black textured paint

PROTECTIVE GRILLE:         Black perforated steel

CONNECTORS:        3 x NL4 type

PIN CONNECTIONS (INPUT):       1+/1-

PIN CONNECTIONS (LINK):          A: 1+/- to 1+/-, B: 2+/- to 1+/-

FITTINGS:     16 x M10 inserts, pole-mount socket, 2 x bar handles, provision for castors

DIMENSIONS:

(W) 530mm x (H) 669mm x (D) 640mm

(W) 20.9ins x (H) 26.3ins x (D) 25.2ins

WEIGHT:       42kg (92.6lbs)
