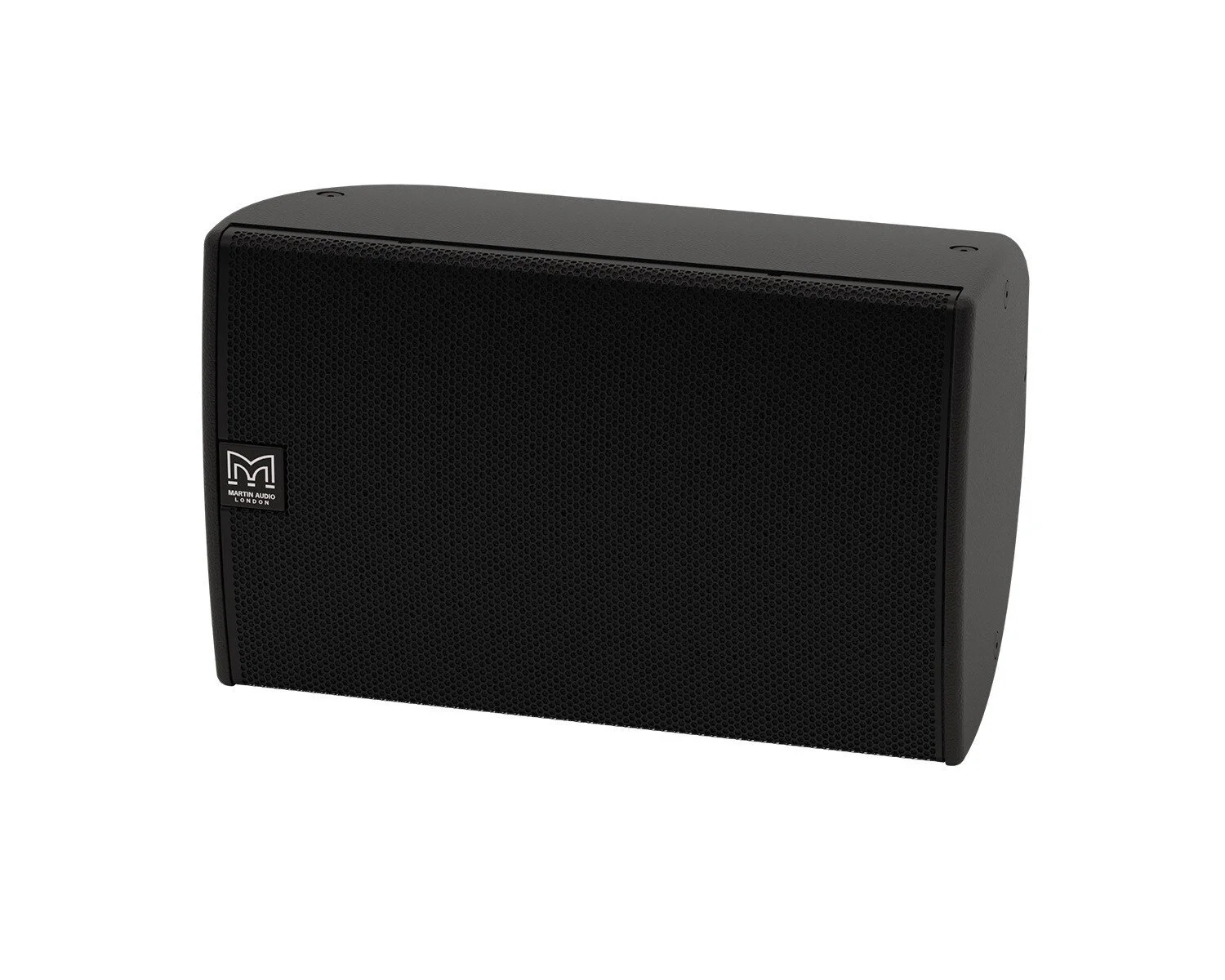

Martin Audio X12 12 Inch Compact Passive Two Way Portable Loudspeaker System
Martin Audio X12 12 inch Compact Passive Two Way Portable Loudspeaker System
The Blackline X12 fulfils the requirement for a compact system that can deliver high sound levels — either as a stand-alone system or sup-plemented by a BlacklineX subwoofer. Featuring a 12” (300mm) LF driver unit and a 1” (25mm) exit compression driver on a user-rotatable horn, its 80° x 50° dispersion pattern is ideal for medium throw applications.
The Blackline X12 LF driver has a 2.5” (63mm) voice coil and a high BL motor, while the HF compression driver utilizes a 1.75” (44mm) poly-imide diaphragm for extended high frequency response. Use with a BlacklineX Series subwoofer will enable the X12 to operate as a dancefloor or sound reinforcement system that is remarkably powerful for its size, as well as being extremely portable.
The X12 is constructed from plywood and fitted with a screw-free steel grille, M8 inserts for wall brackets and eyebolt suspension, plus a pole-mount socket with a removable bung that maintains clean lines in install applications. Finished in black textured paint.
A full-range passive two-way system, the X12 may be used without a controller. However, the EQ and limiter functions of a controller such as the Martin Audio DX0.5 will maximize its capabilities. When used in conjunction with an X115, X118 or X210 subwoofer, crossover and EQ functions can be performed by the DX0.5.
Features:
Compact passive two-way system
Symmetrical multi-angle plywood enclosure
User-rotatable 80° x 50° horn
Vertical and horizontal orientation
Screw-free, cloth-backed perforated steel grille
Integral ergonomic handle
Pole-mount bung maintains clean lines
8Ω nominal impedance
Twin NL4 connectors
Flexible mounting options via M8 inserts
Specification:
TYPE: Compact, passive two-way system
FREQUENCY RESPONSE (5): 62Hz-20kHz ± 3dB, -10dB @ 50Hz
DRIVER: LF: 12” (300mm)/2.5” (63.5mm) voice coil, ferrite motor system
HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver
RATED POWER (2): 300W AES, 1200W peak
SENSITIVITY (8): 97dB
MAXIMUM SPL (9): 122dB continuous, 128dB peak
NOMINAL IMPEDANCE: 8Ω
DISPERSION (-6DB): 80° H x 50° V (user-rotatable)
CROSSOVER: 2.3kHz passive
ENCLOSURE: Multi-angle birch/poplar ply
FINISH: Black textured paint
PROTECTIVE GRILLE: Black perforated steel with scrim cloth backing
CONNECTORS: 2 x NL4 type
PIN CONNECTIONS (INPUT): 1+/1-
PIN CONNECTIONS (LINK): 1+/- to 1+/-
FITTINGS: 20 x M8 inserts, pole-mount socket, 1 x bar handle
DIMENSIONS: (W) 358mm x (H) 574mm x (D) 337mm
(W) 14.1ins x (H) 22.6ins x (D) 13.7ins
WEIGHT: 17kg (37.5lbs)
ACCESSORIES: Wall bracket, eyebolts
Applications:
Portable sound reinforcement
Live music clubs
Bars and restaurants
Nightclubs
Unobtrusive stage monitoring
Corporate AV events and conferences
Weddings and parties
Main PA infill
Secondary stages at festivals
HoW, leisure centres and retail outlets
