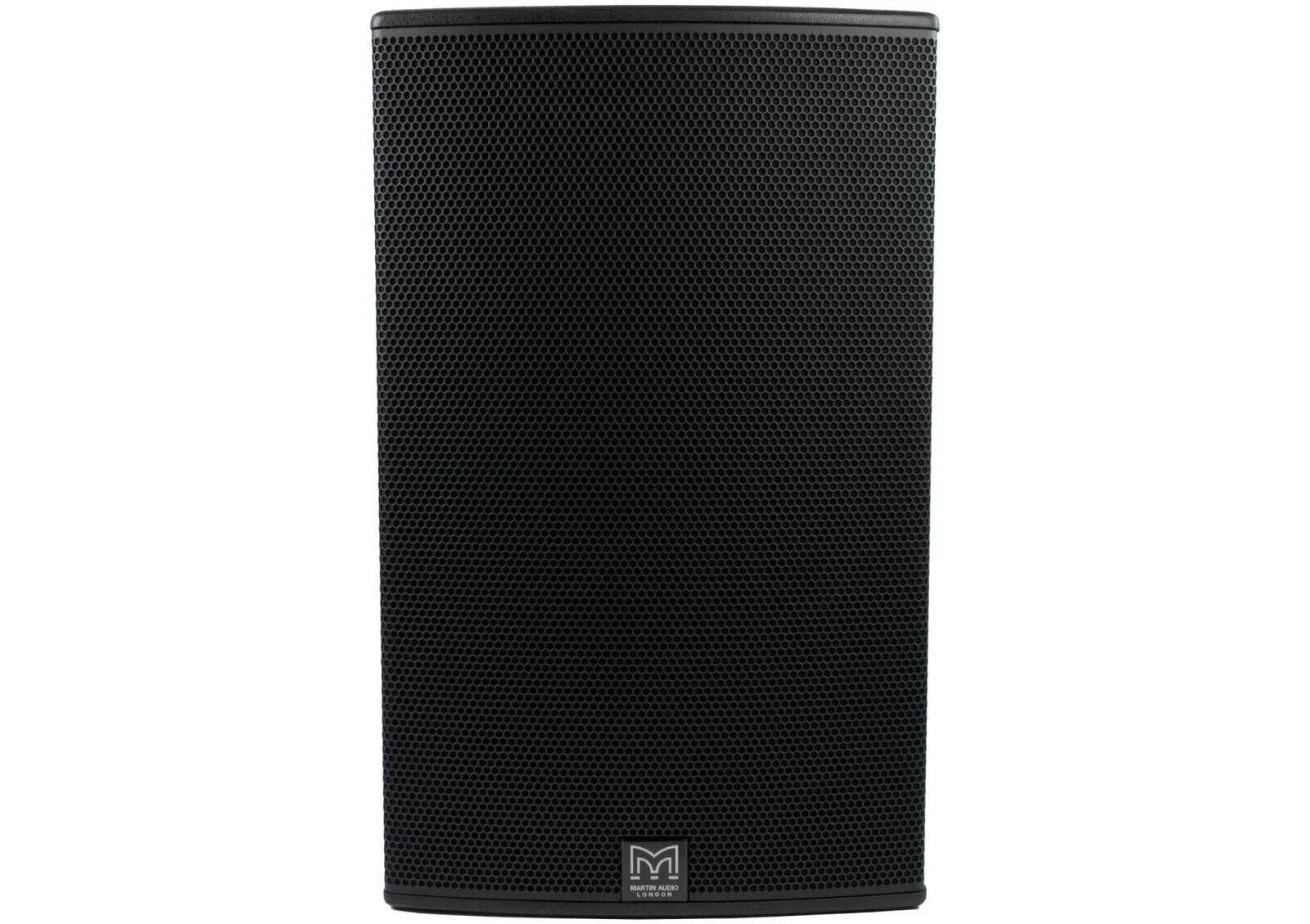

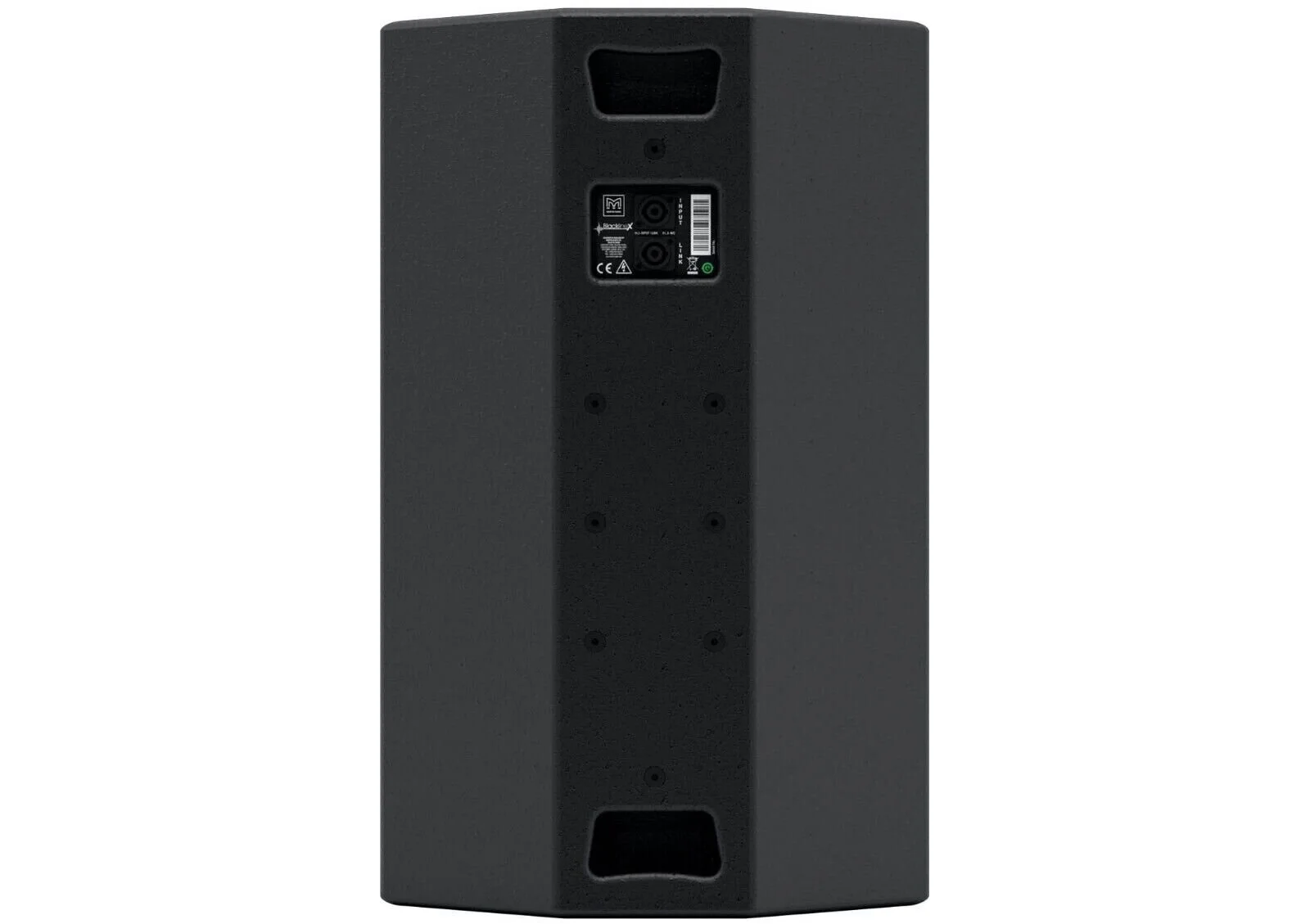

Martin Audio X15 15 Inch High Power Passive Two Way Portable Loudspeaker
Martin Audio X15 15 Inch High Power Passive Two Way Portable Loudspeaker
The Blackline X15 is a very high-power, passive two-way system designed for professional portable applications and installations that demand the ultimate in sonic performance from a single enclosure. With an accurately-defined 80° x 50° coverage pattern, it combines very high output capability with exceptional sonic performance and impact.
Featuring a powerful 15” (380mm)/3” (75mm) voice coil LF drive unit, and a 1” (25mm) exit HF compression driver with a 1.75” (44mm) polyimide diaphragm for extended high frequency response.
The X15 is constructed from plywood and fitted with a screw-free steel grille, M8 inserts for a wall bracket and eyebolt suspension, plus a pole-mount socket with a removable bung that maintains clean lines in install applications. Finished in black textured paint.
A full-range passive two-way system, the X15 may be used without a controller. However, the EQ and limiter functions of a controller such as the Martin Audio DX0.5 will maximize its capabilities. When used in conjunction with an X115, X118 or X210 subwoofer, crossover and EQ functions can be performed by the DX0.5.
Features:
High power, passive two-way system
Symmetrical multi-angle plywood enclosure
User-rotatable 80° x 50° horn
Vertical and horizontal orientation
Screw-free, cloth-backed perforated steel grille
Integral ergonomic handle
Pole-mount bung maintains clean lines
8Ω nominal impedance
Twin NL4 connectors
Flexible mounting options via M8 inserts
Specification
TYPE: High-power, passive two-way system
FREQUENCY RESPONSE (5): 55Hz-20kHz ± 3dB, -10dB @ 45Hz
DRIVER: LF: 15” (380mm)/3” (75mm) voice coil, ferrite motor system
HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver
RATED POWER (2): 400W AES, 1600W peak
SENSITIVITY (8): 99dB
MAXIMUM SPL (9): 125dB continuous, 131dB peak
NOMINAL IMPEDANCE: 8Ω
DISPERSION (-6DB): 80° H x 50° V (user-rotatable)
CROSSOVER: 2.2kHz passive
ENCLOSURE: Multi-angle birch/poplar ply
FINISH: Black textured paint
PROTECTIVE GRILLE: Black perforated steel with scrim cloth backing
CONNECTORS: 2 x NL4 type
PIN CONNECTIONS (INPUT): 1+/1-
PIN CONNECTIONS (LINK): 1+/- to 1+/-
FITTINGS: 19 x M8 inserts, pole-mount socket, 2 x bar handles
DIMENSIONS: (W) 427mm x (H) 690mm x (D) 419mm
(W) 16.8ins x (H) 27.2ins x (D) 16.5ins
WEIGHT: 24kg (52.9lbs)
ACCESSORIES: Eyebolts
Applications:
Portable sound reinforcement
Live music clubs
Bars and restaurants
Nightclubs
Unobtrusive stage monitoring
Corporate AV events and conferences
Weddings and parties
Main PA infill
Secondary stages at festivals
HoW, leisure centers and retail outlets
