Middle Atlantic DWR-12-22PD Pivoting Data Wall Rack with Plexi Glass Door

Middle Atlantic DWR-12-22PD Pivoting Data Wall Rack with Plexi Glass Door

The DWR Series Wall Racks are now Forward and Lever Lock™ compatible providing maximum mounting capacity on and off the rail and a suite of tool-free accessories making rack installations 5Xs faster!

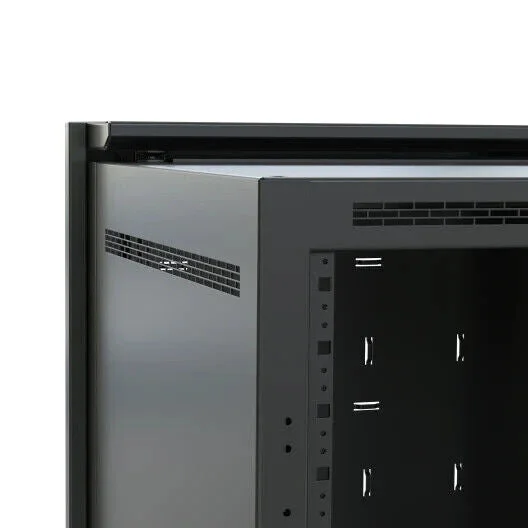

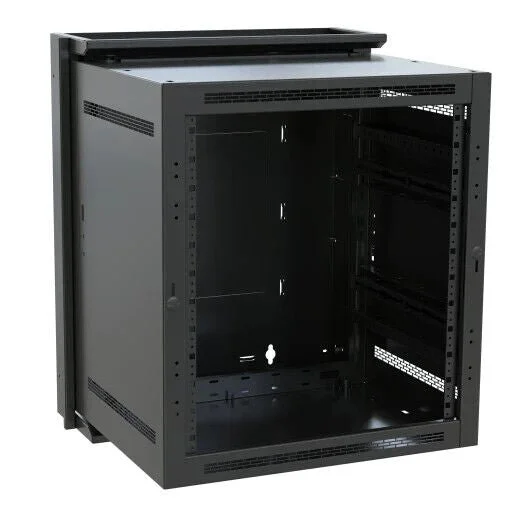

DWR-12-22PD Sectional Wall Mount Rack with Plexiglass Front Door is a 22” (20” Useable) / 55.8cm (50.8cm) deep rack designed for mounting 19" wide equipment onto a wall. A tool-less quick mount system enables single person mounting of the center section to the back panel.

The DWR-12-22PD wall mount rack can handle load capacity of up to 200 lb (90kg). You can mount wall racks to the side or corner with the help of a front mounted minimum clearance latch, thereby saving considerable wall space.

Features:

• 12RU and 22" Deep

• Now equipped with the revolutionary Forward rackrail giving you the ability to use Forward blank panels, vent panels and horizontal cable management. Rear rackrail is optional (FWD-DWR-RRxx)

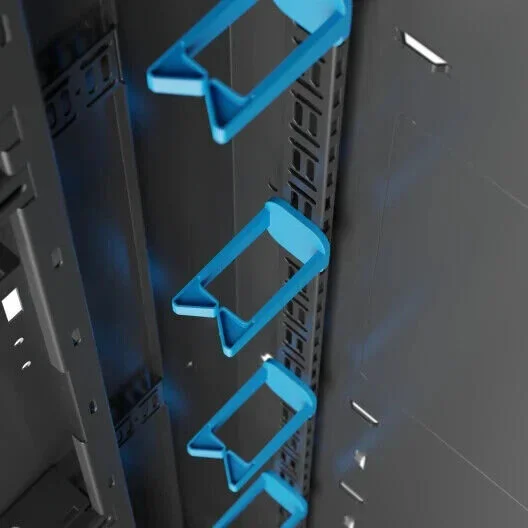

• Now accepts patented Lever Lock™ tool free and hardware free internal device and cable management system accessories in the backpan (with LL-DWR/SR-BP)

• Robust welded steel construction, with Seismic certification when used with DWRSR-ZL latch

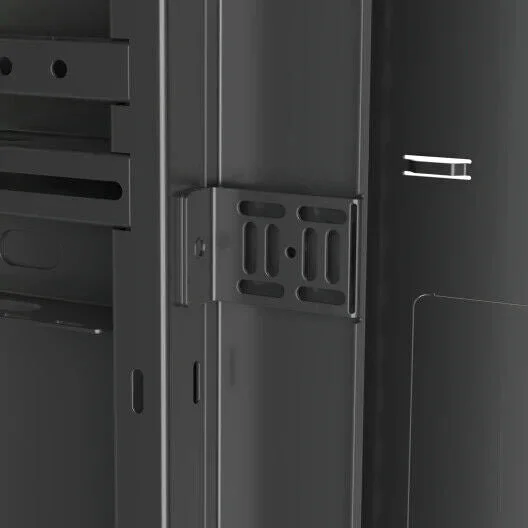

• Tool-Free Quick-Mount™ system for easy, one-person mounting of the center section to the backpan on the jobsite

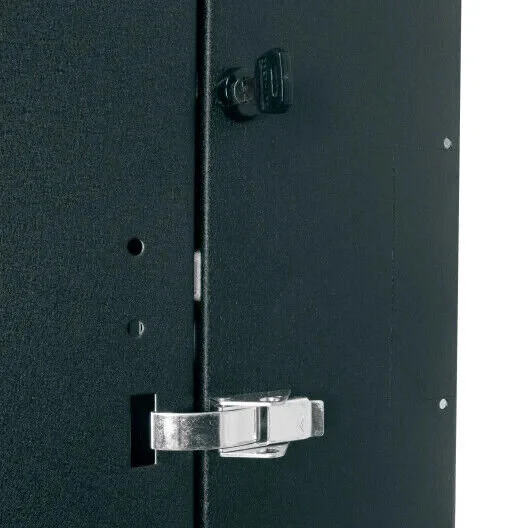

• Optional minimum-clearance latch allows side-by-side or interior corner mounting to save room

• Center section swing is reversible, and can be both key-locked and padlocked

• Center section is keyed differently from optional front door for additional security

• Designed for active or passive cooling to support all systems

Specifications:

Dimensions & Measurements

Depth: 55.9 cm (22 in)

Height: 71.3 cm (28.1 in)

Primary Package Weight: 40.8 kg (90 lbs)

Rack Units: 12 RU

UL Load Capacity: 90.7 kg (200 lbs)

Usable Depth: 50.8 cm (20 in)

Usable Height: 53.3 cm (21 in)

Width: 59.4 cm (23.4 in)

Characteristics & Features

Available Internationally: Yes

Color: Black

Federal Ops Country of Origin: USA

Finish: Textured Black Powder Coat

Forward Compatible: Yes

Front Door: No

Material: Steel

Rack Rail Type: Forward Rackrail

Seismic Rated: Yes

TAA Compliant: Yes

Certifications & Warranties

Certifications:

CSA Standard

TAA

UL Listed

Patent Number: 7278183

Seismic Load Capacity: 155
