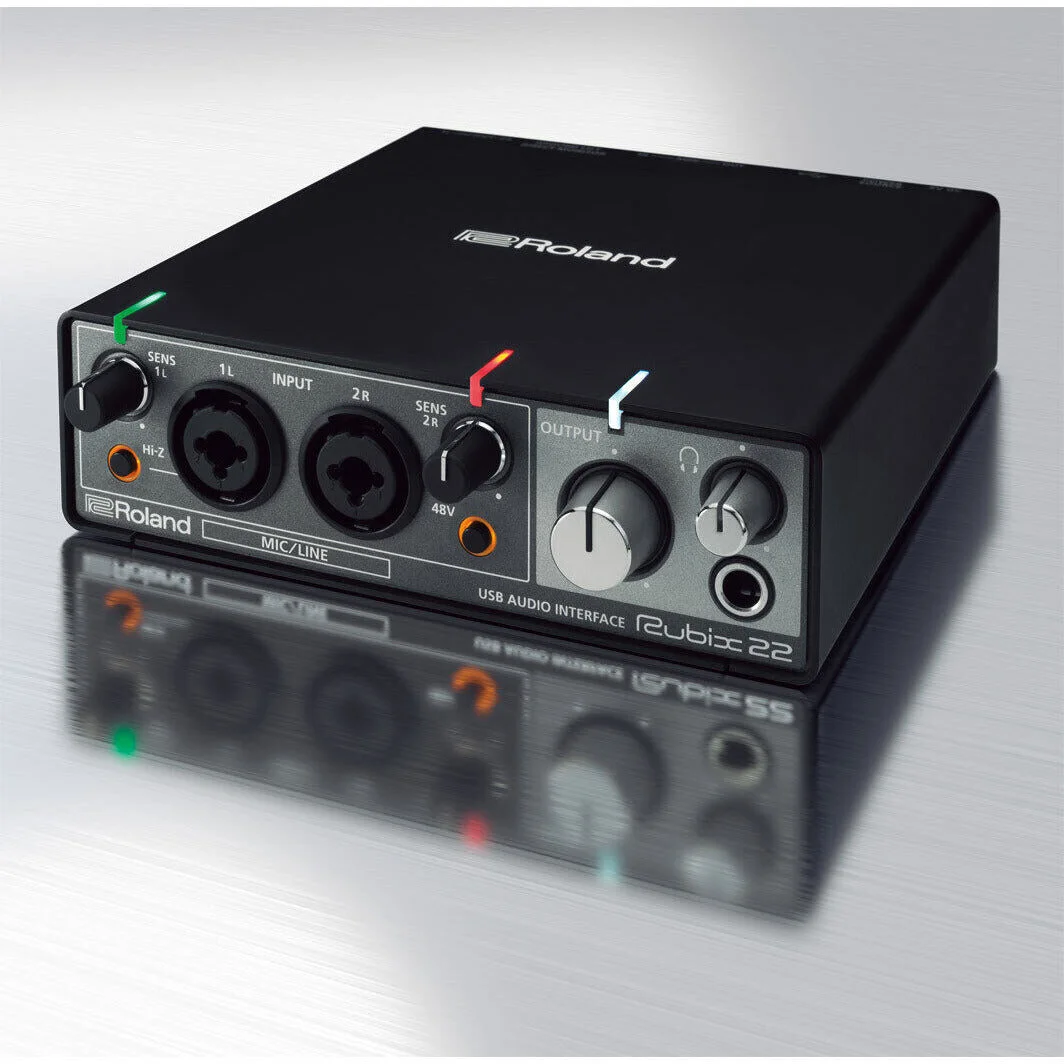

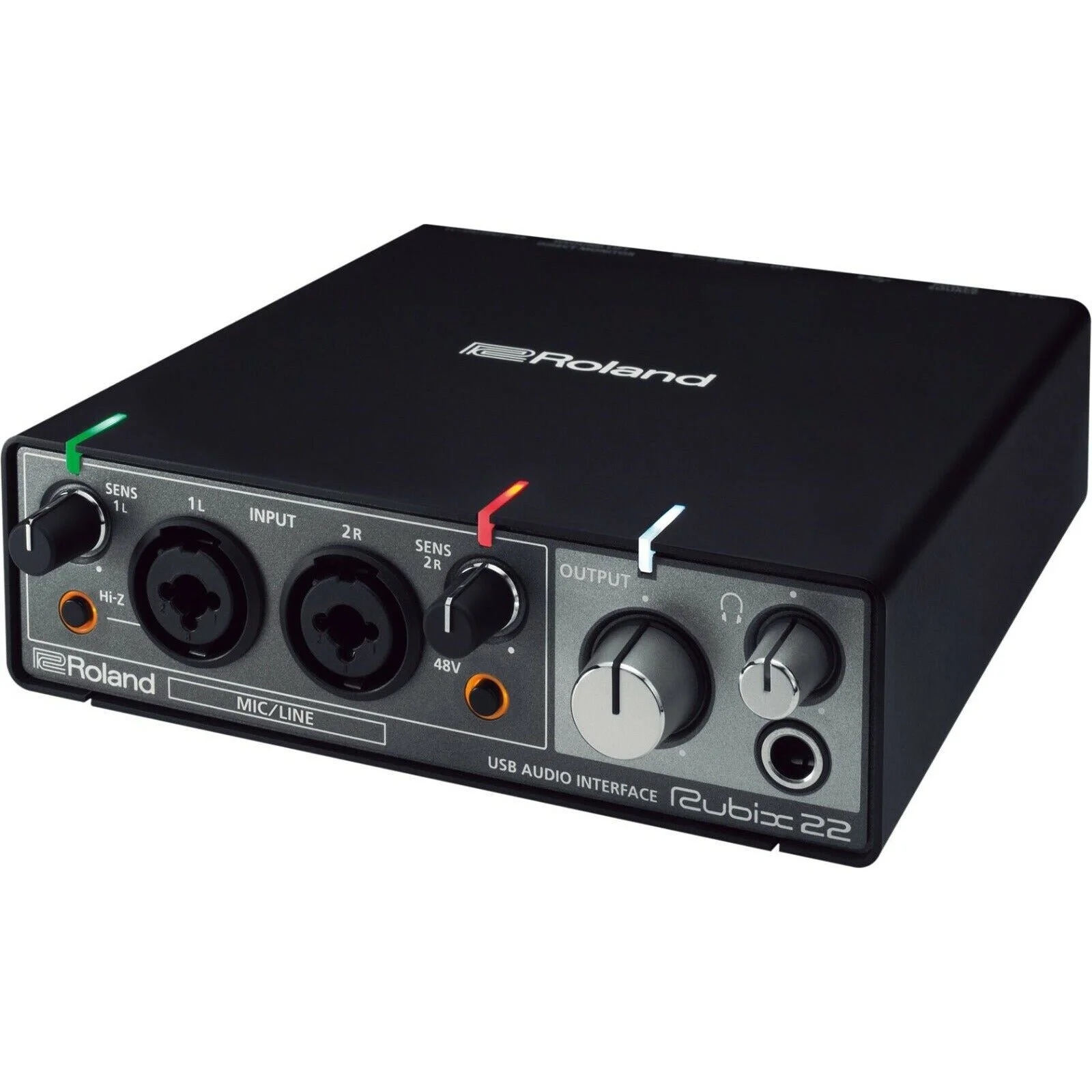

2-IN/2-OUT, HIGH-RESOLUTION INTERFACE FOR MAC, PC AND IPAD

Rubix22 offers a perfect balance of high-fidelity sound, solid build quality, compact size, affordable price, and crucial features for today's musicians and producers. With support for high-resolution audio up to 24-bit/192kHz, Rubix22 sounds clear and defined and is carefully engineered to have extremely low noise from input to output. Its near universal USB support means it works seamlessly with Mac and PC computers, and even supports iPads, for the ultimate in portable music production and performance.

Features

• 2-in/2-out USB audio interface

• 2 low-noise mic preamps with XLR combo jacks

• Hi-Z input for guitar and other high impedance sources

• MIDI In/Out ports

• Extensively shielded, low-noise design

• Sturdy and compact metal construction

• Big, easy-to-read indicators show vital information

• Low latency, class compliant drivers

• Ground lifts for quiet operation in a variety of venues

• Includes six months of Roland Cloud Pro membership

Studio-grade sound you can take anywhere

Nothing is more important than sound quality when it comes to audio interfaces. And you shouldn’t have to sacrifice sound quality to have an affordable interface that you can take with you. Rubix sounds clean and detailed with transparent, low noise mic preamps and supports audio resolutions up 24-bit/192kHz. It’s made of durable metal, and a lot went into its compact, low-noise design. With all the places Rubix22 can go, you’ll appreciate its extensive shielding and ground lifts, making sure you get good clean audio just about anywhere.

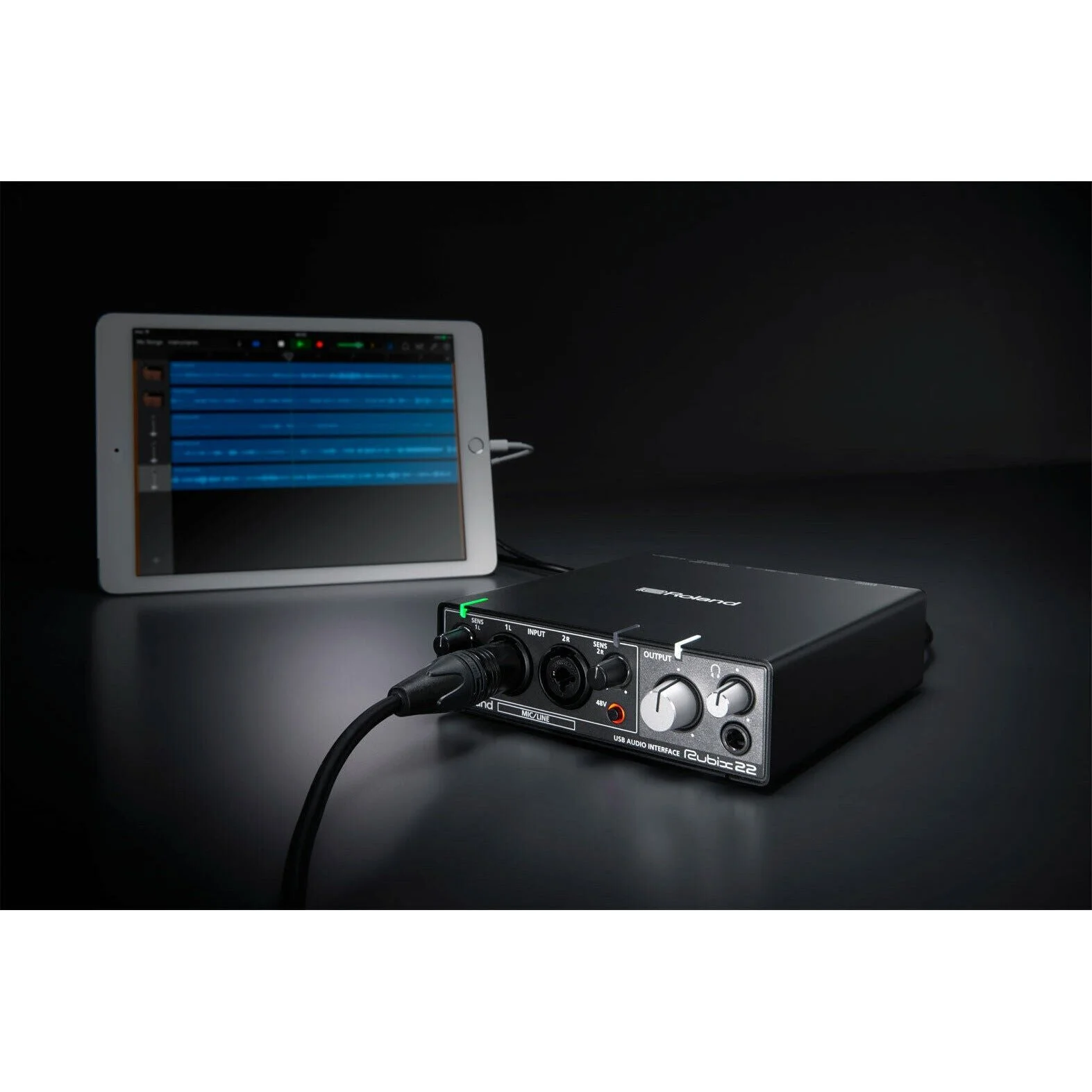

Built for Mac, PC and iPad

Rubix22 is ultra-portable and ultra-flexible. It has low latency class compliant drivers for Mac and PC, so it's simple to get up and running with smooth, reliable audio performance. And it also supports iPad giving you an extremely compact system for on-location recording, on-the-go production, or live performance. It even includes six months free of Roland Cloud Pro membership with full access to Zenbeats multi-platform music creation app, software synthesizers like ZENOLOGY Pro, TR-808, and D-50, and much more.

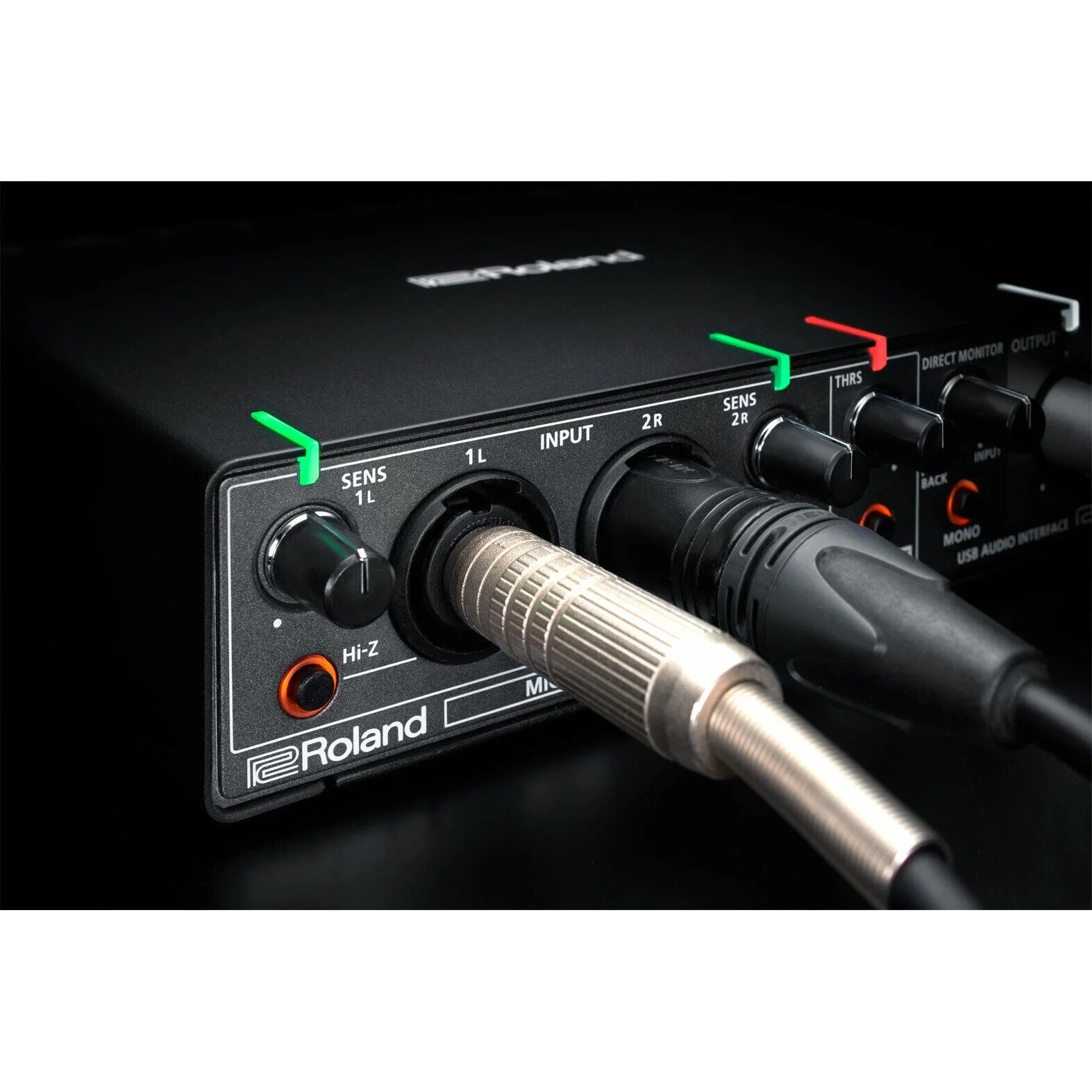

2 high quality mic preamps

Rubix22’s dual microphone preamps are designed for low noise and high definition. They sound clean and transparent with plenty of headroom for capturing all the impact and detail of whatever you’re recording. And the flexible combo jacks mean you can easily connect a wide variety of sources without the need for adapters or special cables.

Specifications

SYSTEM

Number of Audio Record/Playback Channels

Record: 2 channels

Playback: 2 channels

Signal Processing

PC interface: 24 bits

AD/DA conversion: 24 bits

Sampling Frequency

AD/DA conversion: 44.1 kHz, 48 kHz, 96 kHz, 192 kHz

Interface

Hi-Speed USB

MIDI IN, OUT

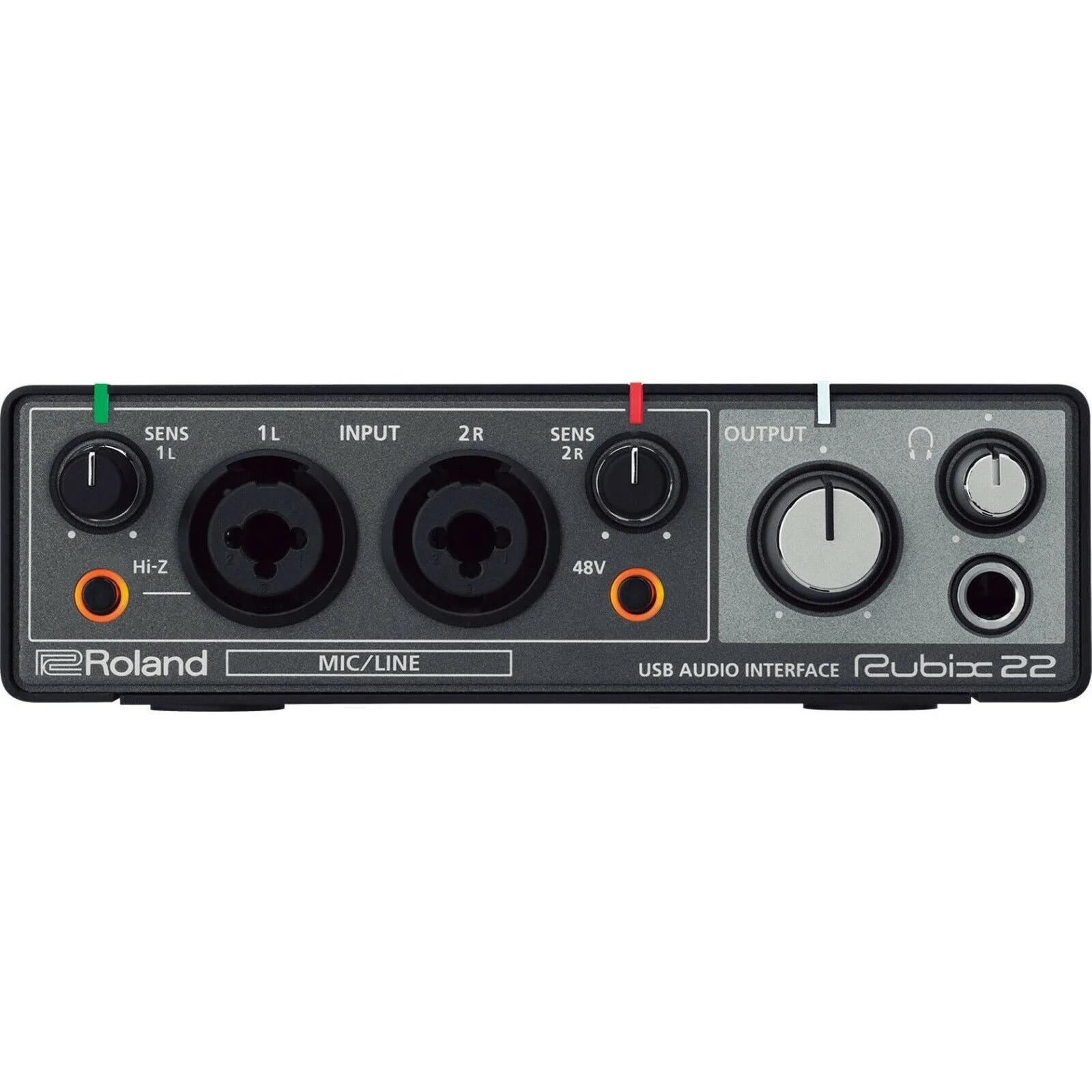

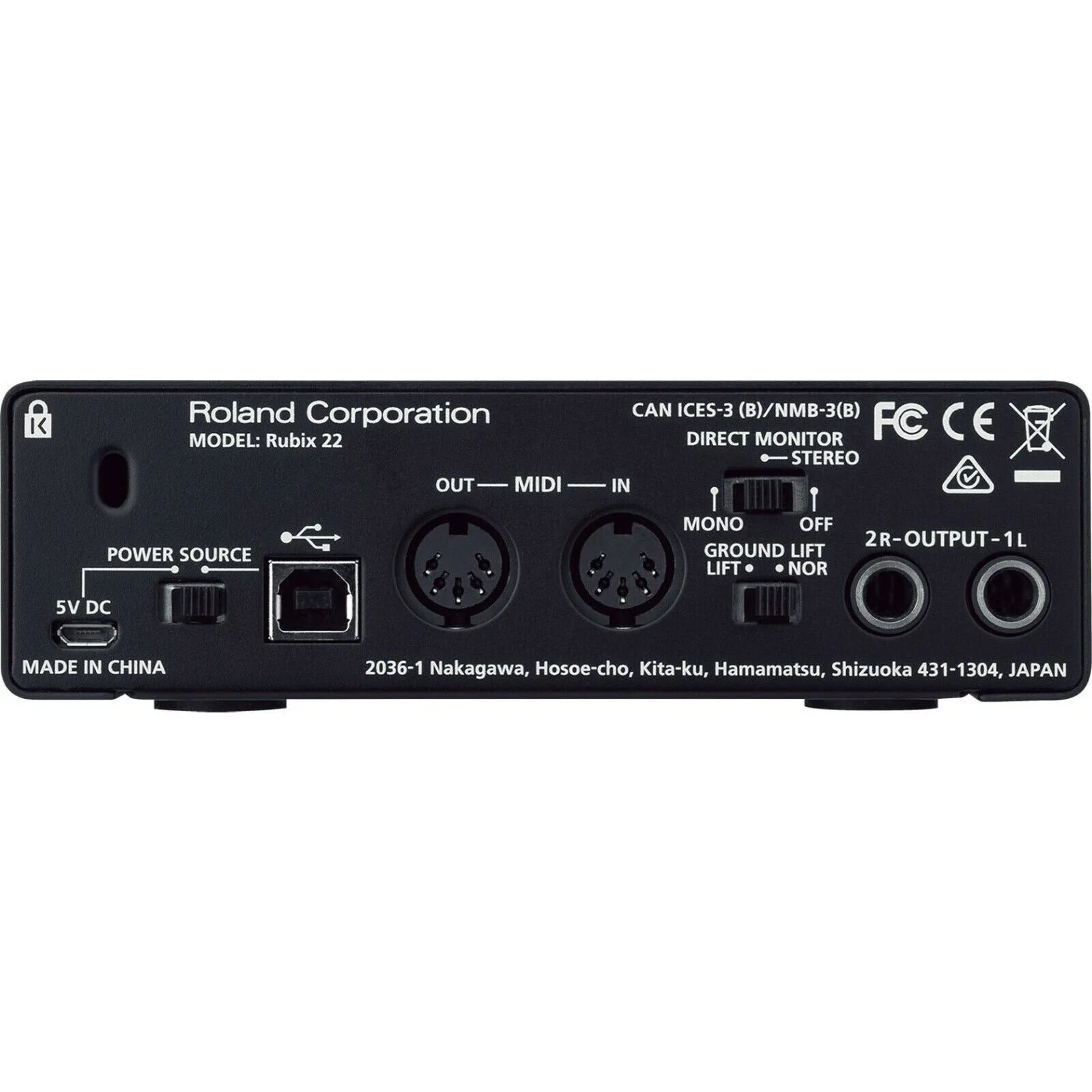

Connectors

INPUT (1L, 2R) connectors: XLR type (balanced, phantom power: +48 V, 6 mA Max *1)

INPUT (1L, 2R) jacks *2: 1/4-inch TRS phone type (balanced)

PHONES jack: Stereo 1/4-inch phone type

OUTPUT (1L, 2R) jacks: 1/4-inch TRS phone type (impedance balanced)

MIDI (IN, OUT) connectors

USB port: USB Type B

DC 5V port: USB Type micro B

*1 Current value per channel.

*2 INPUT 1L supports high impedance

Controllers

SENS 1L, 2R knobs

Hi-Z switch

48V switch

OUTPUT knob

PHONES knob

POWER SOURCE switch

DIRECT MONITOR switch

GROUND LIFT switch

Indicator

Level indicators (1L, 2R)

POWER indicator

Hi-Z indicator

48V indicator

CHARACTERISTICS

Nominal Input Level

INPUT (1L, 2R) connectors (XLR type): -60-- -12 dBu

INPUT (1L, 2R) jacks (1/4-inch TRS phone type): -44--+4 dBu

Maximum Input Level

INPUT (1L, 2R) connectors (XLR type): +2 dBu

INPUT (1L, 2R) jacks (1/4-inch TRS phone type): +18 dBu

Nominal Output Level

OUTPUT (1L, 2R) jacks: -6 dBu (impedance balanced)

Maximum Output Level

OUTPUT (1L, 2R) jacks: +8 dBu (impedance balanced)

PHONES Maximum Output Power

20 mW + 20 mW (L + R, 47 ohms load)

Headroom

14 dB

Input Impedance

INPUT (1L, 2R) connectors (XLR type): 4 k ohms or greater (balanced)

INPUT (1L, 2R) jacks (1/4-inch TRS phone type): 15 k ohms or greater (balanced)

INPUT (1L) jack (1/4-inch phone type *3): 500 k ohms or greater

*3 When the Hi-Z is turned on

Output Impedance

OUTPUT (1L, 2R) jacks: 2 k ohms (balanced)

PHONES jack: 47 ohms

Residual Noise Level

INPUT (1L, 2R) --> OUTPUT (1L, 2R): -94 dBu typ. (SENS 1L, SENS 2R knobs: min., input terminated with 600 ohms, IHF-A, typ.)

Dynamic Range

AD block INPUT (1L, 2R) jacks: 104 dB typ. (SENS 1L, SENS 2R knobs: min.)

DA block OUTPUT (1L, 2R) jacks: 109 dB typ.

OTHER

Power Supply

Supplied from the computer via USB, DC 5V

Current Draw

500 mA

Operating System

Microsoft(R) Windows(R) 7, Windows(R) 8, Windows(R) 8.1, Windows(R) 10

Apple Mac OS X 10.10 or later

Apple iOS 9 or later

* Although Roland has tested numerous configurations, and has determined that on average, a computer system similar to that described above will permit normal operation of the Rubix, Roland cannot guarantee that a given computer can be used satisfactorily with the Rubix based solely on the fact that it meets the above requirements. This is because there are too many other variables that may influence the processing environment, including differences in motherboard design and the particular combination of other devices involved.

Dimensions

145 (W) x 165 (D) x 46 (H) mm

5-3/4 (W) x 6-1/2 (D) x 1-13/16 (H) inches

Weight (main unit only)

1.0 kg

2 lbs 4 oz

Accessories

Setup Guide

Leaflet "USING THE UNIT SAFELY"

USB cable

* 0 dBu = 0.775 Vrms

----------------------------------------------------------------------------------------------------------------
