Sennheiser ASA 214-UHF Active Antenna Splitter for G3 G4 Wireless Mic Systems

Sennheiser ASA 214-UHF Active Antenna Splitter for G3 and G4 Wireless Microphone System

Ships Free!

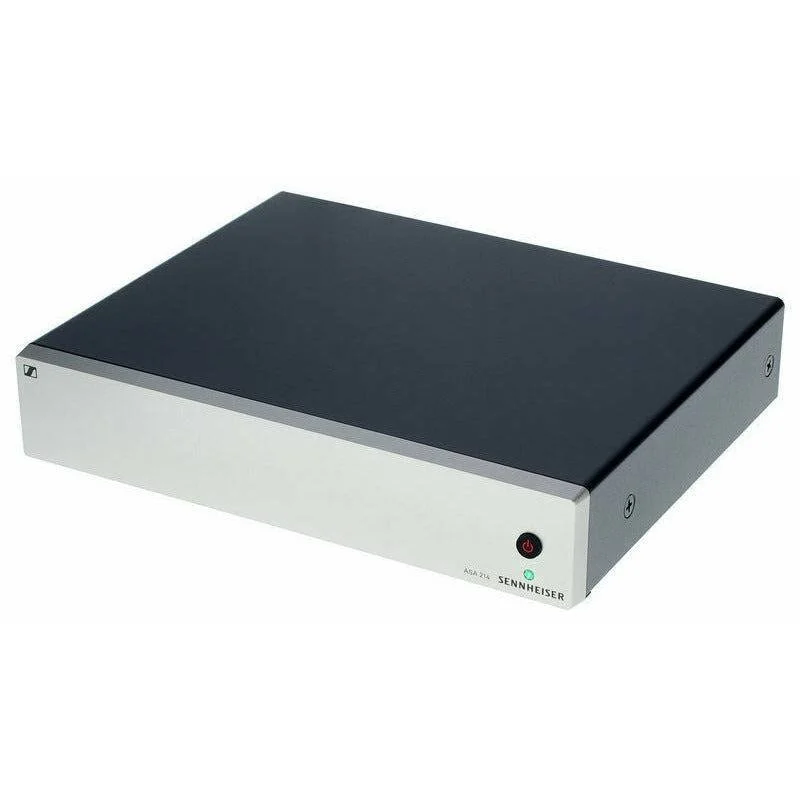

The ASA 214 active antenna splitter is built in a full metal housing and ships with 8 BNC cables included. The splitter runs up to 4 receivers of the ew series with two antennas. The UHF-Version includes the NT 1-1 power supply with EU, UK and US adapters, while the ASA 214-1G8 includes the NT 1-1 with EU, UK and AU adapters.

Features

• Compatible with G4 and G3 systems

• Power supply via BNC cables for EM 300-500 / EM 100 receivers. No additional power supply needed

• Up to 4 true diversity receivers can be used with two external antennas

• Full metal housing

Specifications

Impedance: 50 Ω

Dimensions: approx. 212 x 168 x 43 mm

Weight: approx. 1090 g

Power consumption: max. 2.0 A with connected receivers and boosters

Storage temperature: -20°C - +70°C

Operating temperature: -10°C - +55°C

Power supply: 13,8 V DC (with NT 1-1 mains unit)

Antenna connector: BNC

Frequency range: 470-870 MHz (UHF), 1785-1800 MHz (1G8)

Operating relative humidity: 5 - 95 %

What's in the Box

• ASA 214 splitter

• 8x BNC cable 50cm

• NT 1-1 power supply

-----------------------------------------------------------------------------------------
