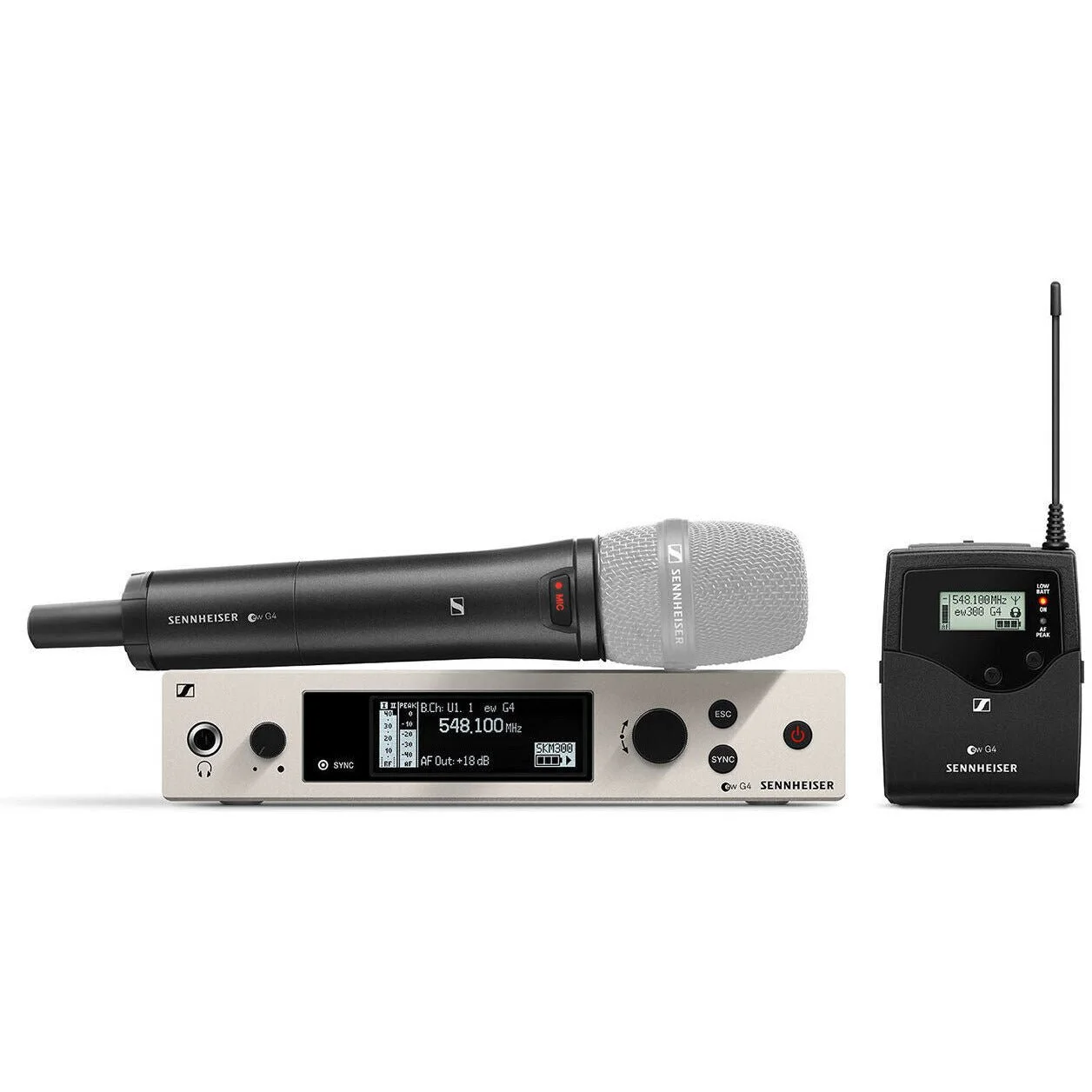

Sennheiser EW300 G4-BASECOMBOAW Live Vocal Wireless Microphone System Combo Set

Sennheiser EW300 G4-BASECOMBOAW Live Vocal Wireless Microphone System Combo Set

Ships Free!

Perfect for Presenters, this set consists of 1 SKM 300 G4-S handheld with mute switch, 1 MME 865-1 capsule (supercardioid, condenser), 1 EM 300-500 rackmout receiver, 1 GA3 rack kit and 1 mic clip.

Best choice for your business, top of the class in education. The G4 300 Series uses the power of an increased switching bandwidth of up to 88 MHz. New frequency ranges allow to operate multi-channel setups with dozens of channels while securing reliable operation - despite digital dividend.
The best choice if you need bodypack, handheld transmitters and maximum flexibility. This base set consists of the stationary receiver as well as a bodypack and a handheld transmitter. Just add your favorite capsule and clip-on or headset microphone.

Features

• Easy to use, fast setup time

• Integrated network port allows control, monitoring and setup via Sennheiser Control Cockpit and WSM Software

• Broad range of products and existing accessories (such as microphones) allows usage in any kind of environment

• Up to 88 MHz bandwidth, up to 32 channels

• Increased RF output power (10/30/50 mW)

• Transmission Range: up to 100 meters / 330 feet

• Compatible with wireless speaker system LSP 500 PRO

• RC (remote control) switch available for the bodypack transmitter

Specifications

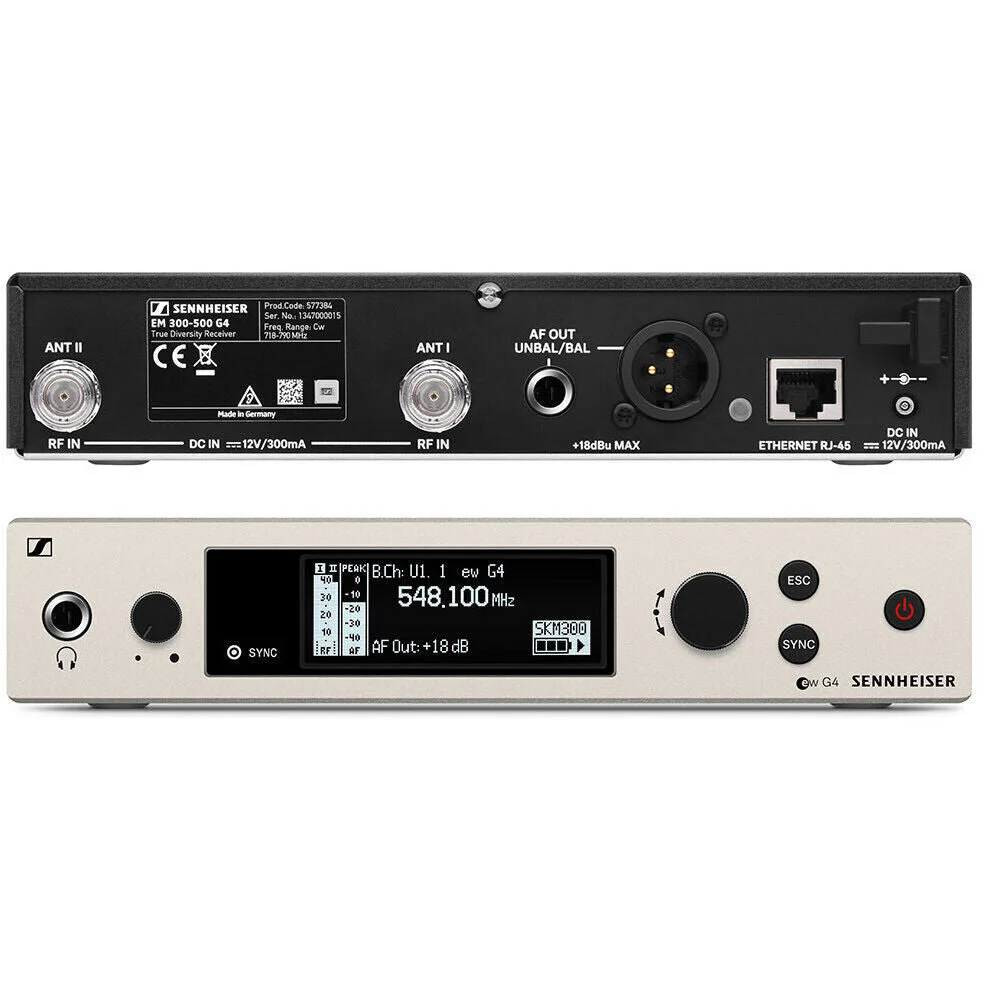

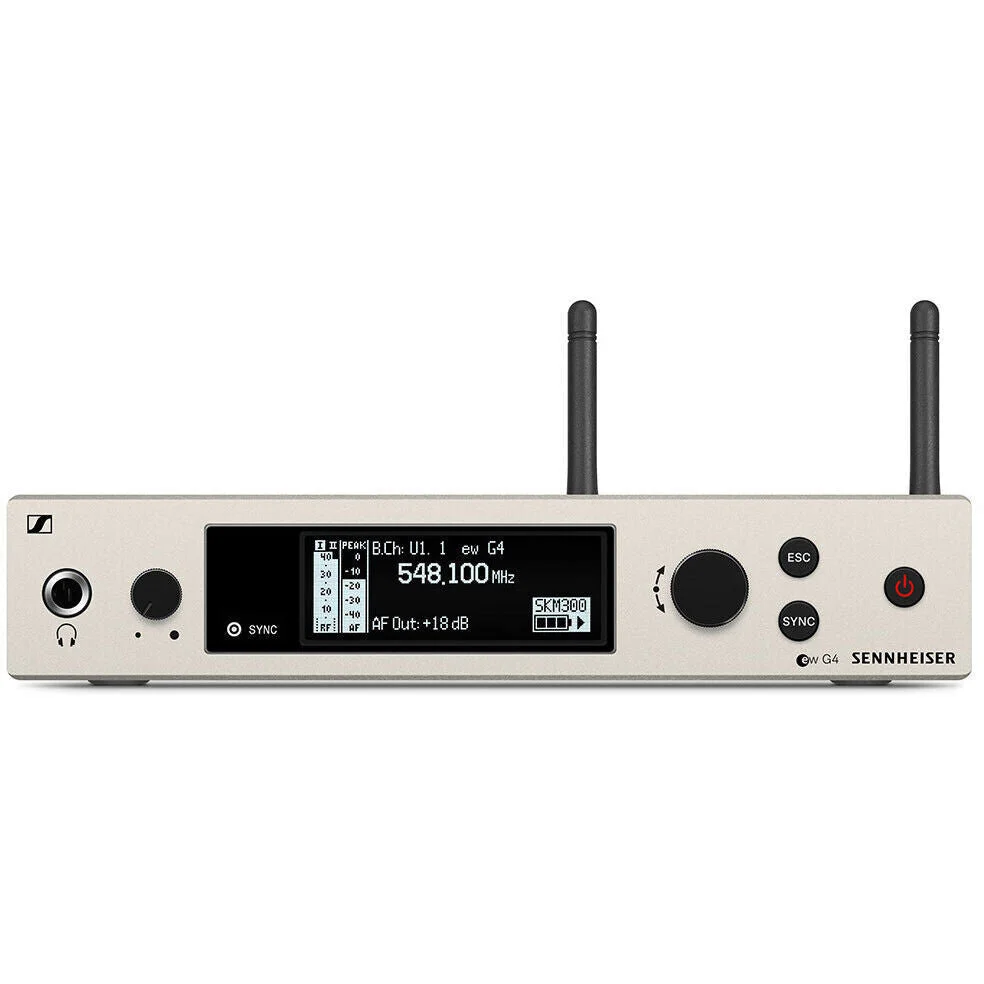

EM 300-500 G4

Frequency range: Aw+: 470 - 558 MHz

Dimensions: Approx. 202 x 212 x 43 mm

Compander: Sennheiser HDX

THD, total harmonic distortion: ≤ 0.9 %

Weight: Approx. 980 g

Audio output: 6.3 mm jack socket (unbalanced): +12 dBu

XLR socket (balanced): +18 dBu

Signal-to-noise ratio: ≥ 115 dBA

Switching bandwidth: up to 88 MHz

Peak deviation: ±48 kHz

Nominal deviation: ±24 kHz

Modulation: Wideband FM

Power supply: 12 V DC

Antenna connector: 2 BNC sockets

Current consumption: 350 mA

Adjacent channel rejection: Typically ≥ 75 dB

Intermodulation attenuation: Typically ≥ 70 dB

Receiving frequency: Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels

RF sensitivity: < 2.5 μV for 52 dBA eff S/N

Squelch: 5 to 25 dBμV in steps of 2 dB

Equalizer:

Preset 1: Flat

Preset 2: Low Cut (-3 dB at 180 Hz)

Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)

Preset 4: High Boost (+6 dB at 10 kHz)

Temperature Range: -10 °C to +55 °C

Receiver Principle: True diversity

Blocking: ≥ 75 dB

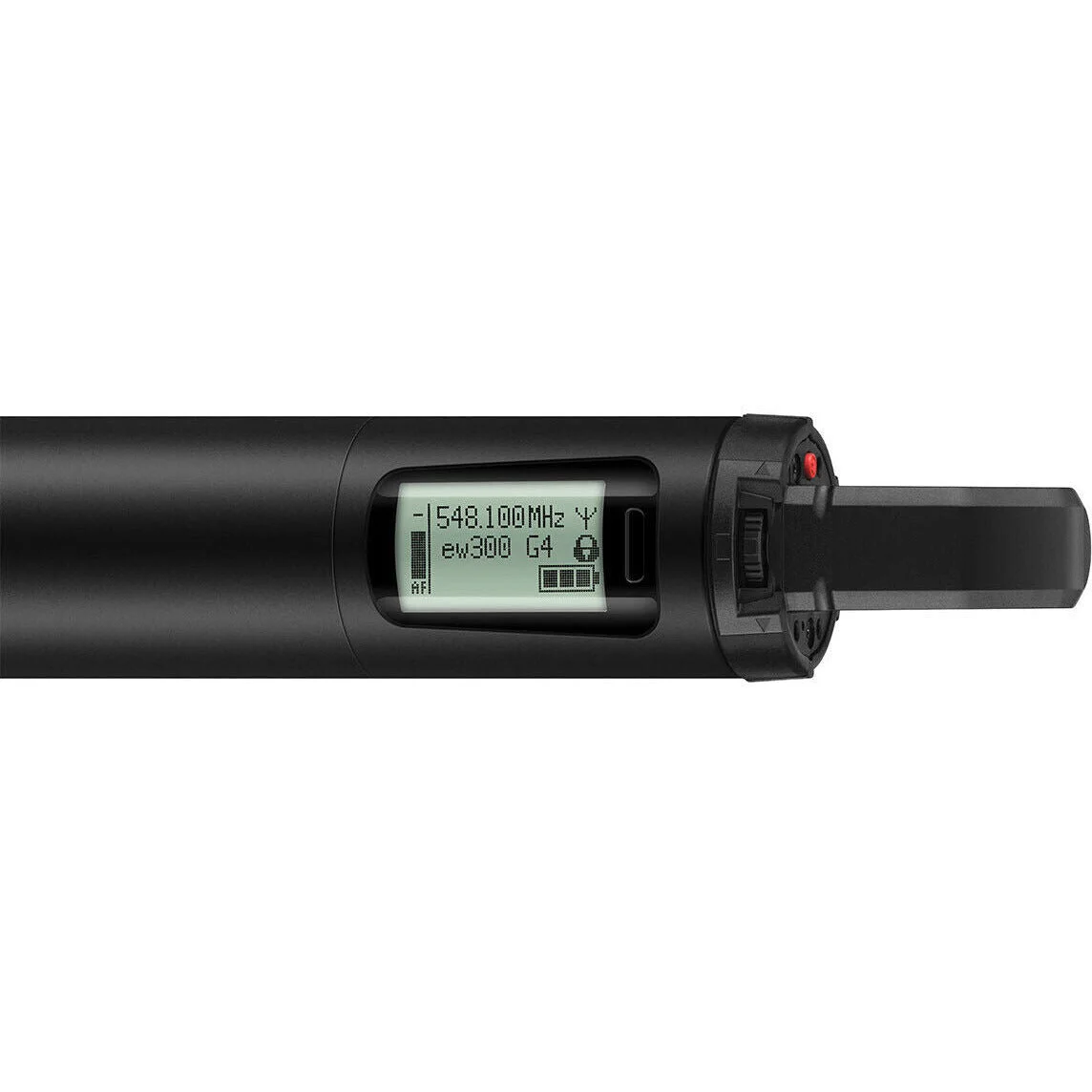

SKM 300 G4

Dimensions: Approx. Ø 50 x 265 mm

Compander: Sennheiser HDX

THD, total harmonic distortion: ≤ 0.9 %

Weight: (incl. batteries) approx. 450 g

Signal-to-noise ratio: ≥ 115 dBA

RF output power:

switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW

Switching bandwidth: up to 88 MHz

Peak deviation: ±48 kHz

Nominal deviation: ±24 kHz

Operating time: Typically 8 h

Modulation: Wideband FM

Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack

Current consumption: at nominal voltage: typ. 180 mA

with transmitter switched off: ≤ 25 µA

Powering: 3 V battery / 2.4 V rechargeable battery

Transmission frequency:

Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels

AF frequency response: 80 – 18,000 Hz

Temperature Range: -10 °C to +55 °C

Frequency stability: ≤ ±15 ppm

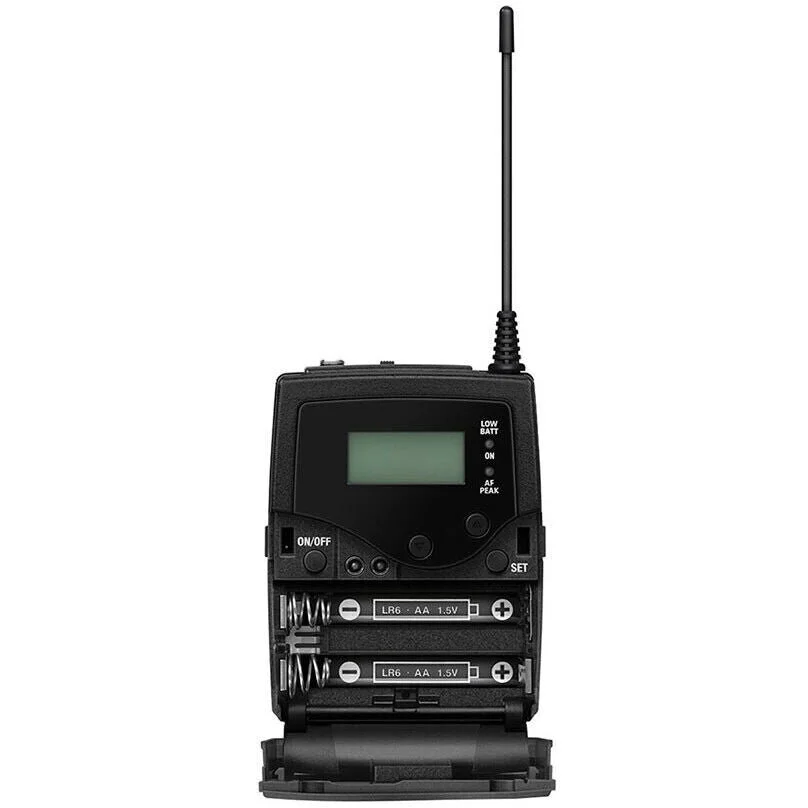

SK 300 G4

Dimensions: Approx. 82 x 64 x 24 mm

Compander: Sennheiser HDX

THD, total harmonic distortion: ≤ 0.9 %

Weight: (incl. batteries) approx. 160 g

Signal-to-noise ratio: ≥ 115 dBA

RF output power:

switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW

Switching bandwidth: up to 88 MHz

Peak deviation: ±48 kHz

Nominal deviation: ±24 kHz

Operating time: Typically 8 h

Modulation: Wideband FM

Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack

Current consumption:

at nominal voltage: typ. 180 mA

with transmitter switched off: ≤ 25 µA

Input impedance: 40 kΩ, unbalanced / 1 MΩ

Max. Input voltage: 3 Veff

Powering: 3 V battery / 2.4 V rechargeable battery

Transmission frequency:

Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels

AF frequency response: Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz

Temperature Range: -10 °C to +55 °C

Frequency stability: ≤ ±15 ppm

What's in the Box

• EM 300-500 G4 true diversity receiver

• SKM 300 G4-S handheld transmitter

• SK 300 G4-RC bodypack transmitter

• MZQ 1 microphone clamp

• 4 AA batteries

• power supply

• 2 rod antennas

• GA 3 rackmount set

• quick guide

• safety guide

• manufacturer declaration sheet

-----------------------------------------------------------------------------------------
