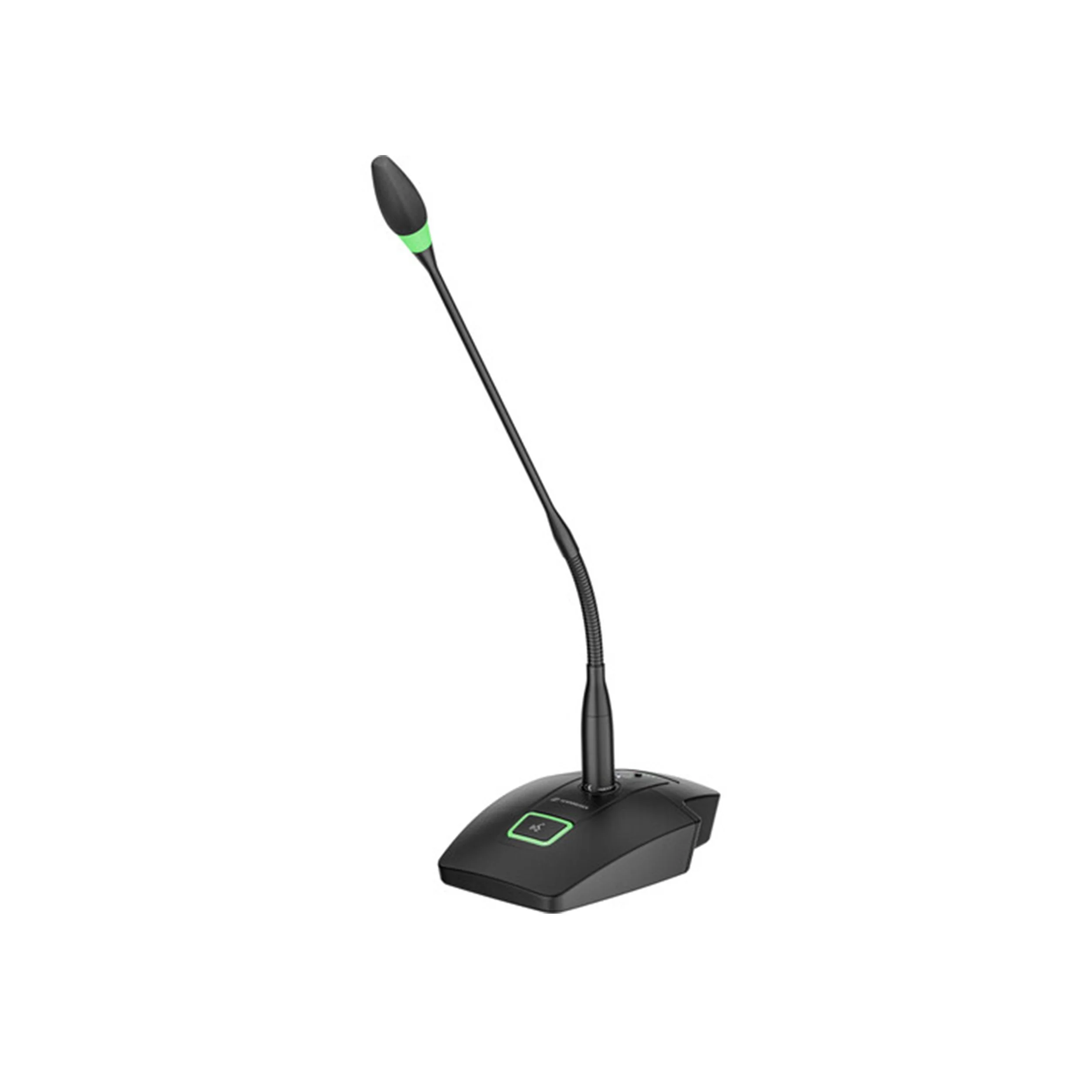

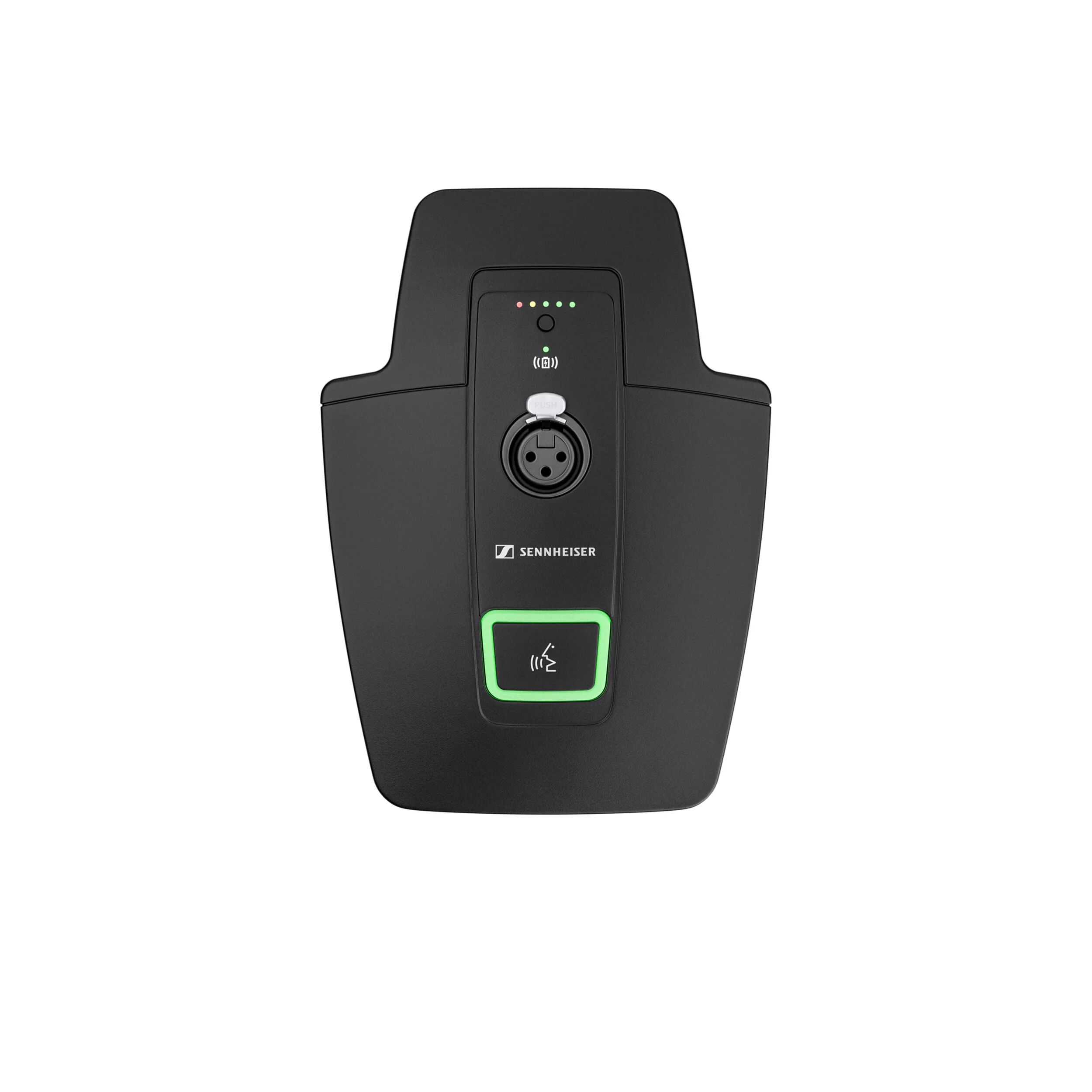

EW-DX TS 3-pin tablestand transmitter is a sturdy, wireless table stand that provides a stable base for a wide range of Sennheiser gooseneck microphones.
Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies to deliver a digital UHF system that can be scaled with ease. With its advanced feature set and hardware options, classrooms, corporate campuses, and live performance productions benefit from a network-ready system that is designed to integrate seamlessly. EW-DX tablestand transmitters are compatible with a wide range of Sennheiser gooseneck microphones.
Weight (g): approx. 660 g (excl. BA 40)
Audio input: XLR 3F
Frequency range: 470.2 - 550 MHz
Input impedance: 30 kΩ
Latency (ms): 1.9 ms
Signal-to-noise ratio: > 90 dB(A)
Transducer type: Condenser
Connection: Wireless
Latency (ms): 1,9 ms
RF sensitivity: <-90 dBm
Total harmonic distortion (THD): < -60 dB for 1 kHz @ -3 dBfs Input level
Frequency range: 470.2-550 MHz
Frequency response: 75 to 20,000 Hz
Audio frequency response: 20 Hz - 20 kHz (-3 dB)
Signal-to-noise ratio: > 90 dB(A)
Dynamic range (>): 134 dB
Sampling rates: 24 bit/48 kHz
Connection: Wireless
Audio Input: XLR 3F
Operating relative humidity (<%): 5-95% (non-condensing)
Operating temperature (C): -10 °C - +50 °C (14°F-122 °F)
Battery Included: Y
Battery capacity (Ah): 2.2
Battery count: 1
Battery voltage (V): 3.6
Charging current (mA): < 300 mA
Battery operating time (h): BA 40 rechargeable battery pack
Input voltage: 2.0 - 4.35 V
Input impedance: 30 kOhms
Output power: Audio Link: 10 mW; Bluetooth Low Energy: max. 10 mW EIRP
Transmission power (mA): Audio link: 10 mW ERP (Range Y1-3:
12 mW ERP) LD mode: 10 mW ERP BLE: max. 10 mW EIRP
Transmission method: 200 kHz
Weight (g): approx. 660 g (excl. BA 40)
Product height: 94
Product length: 250
Product weight (g): 650
Product width: 225
Bluetooth transmission frequency: 2402-2480 MHz
