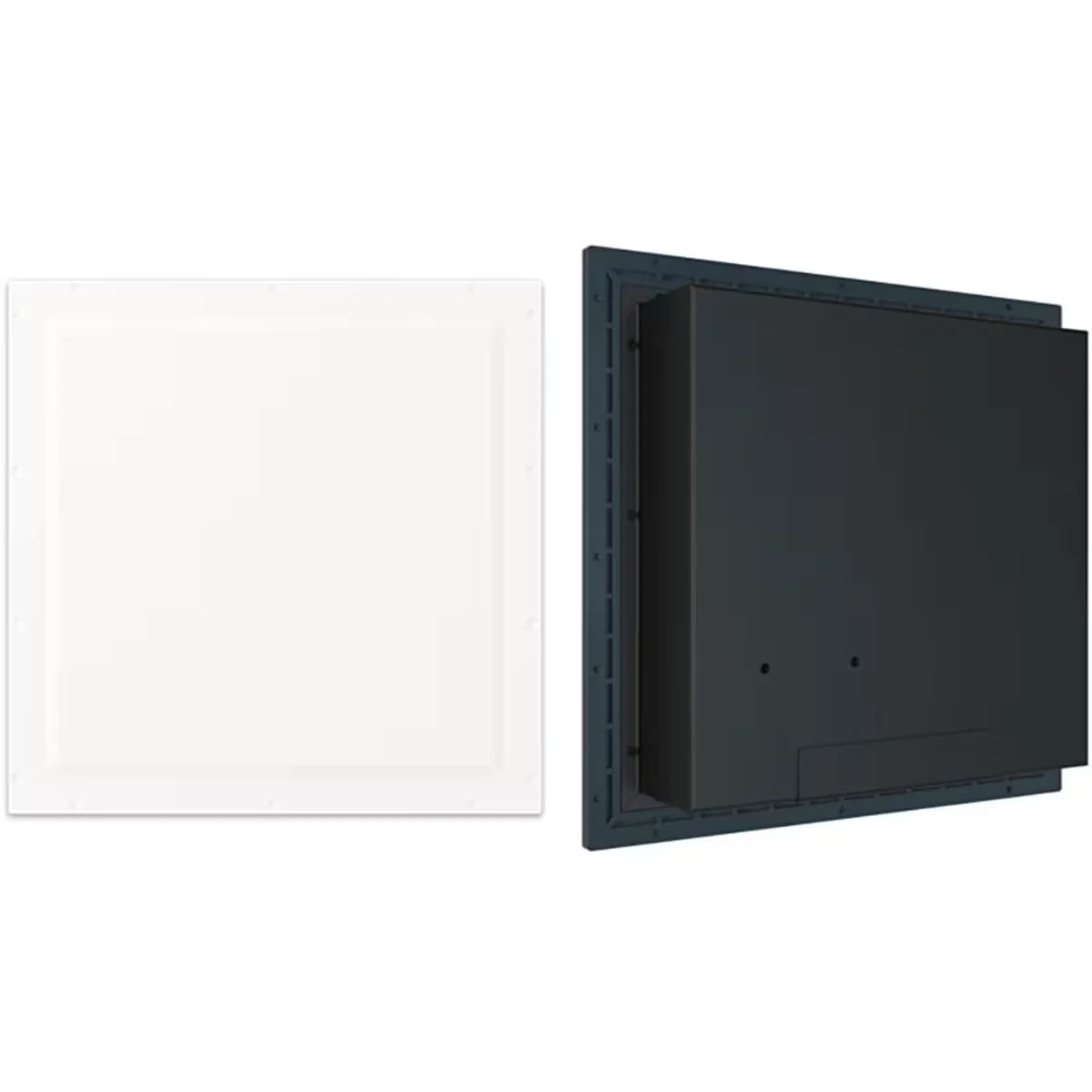

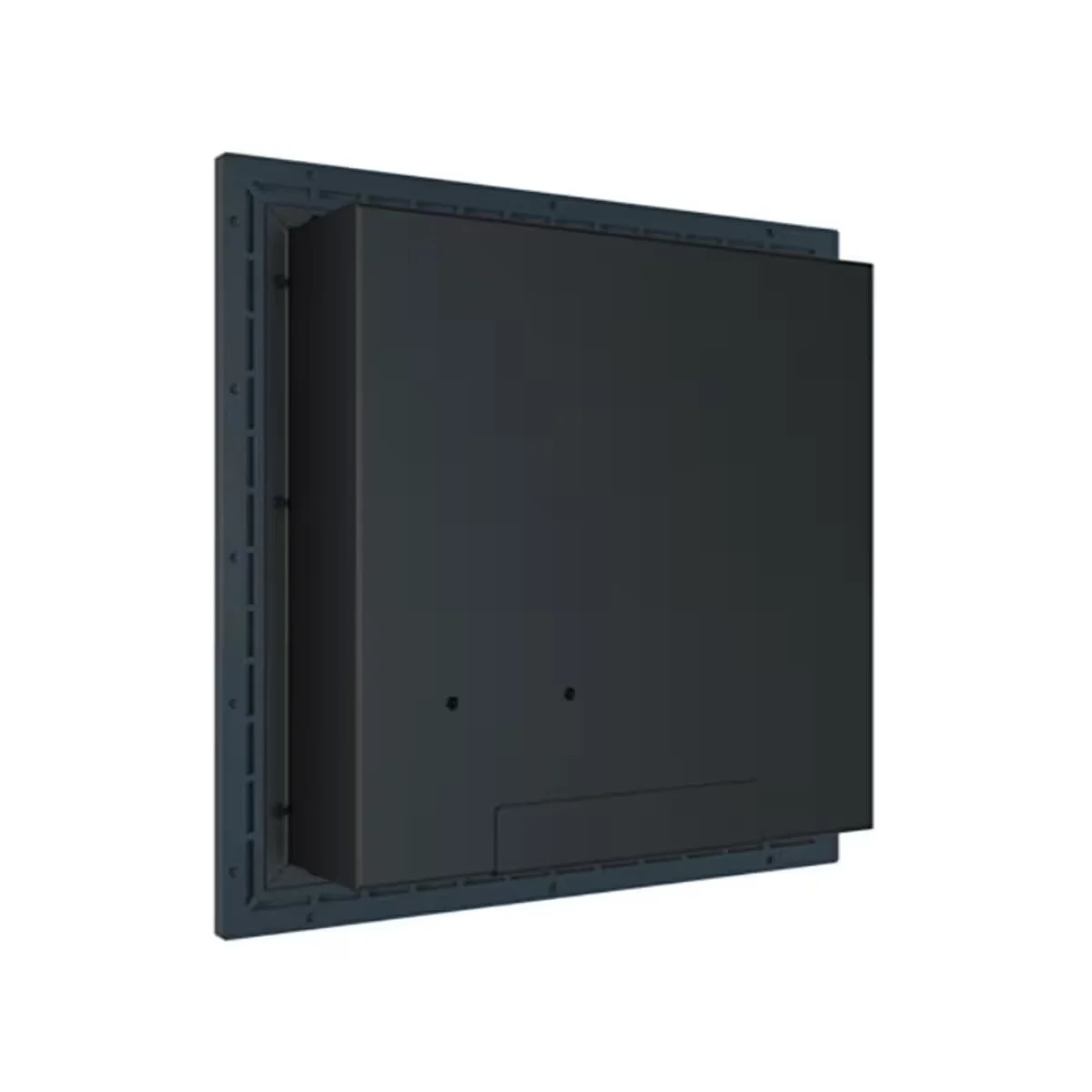

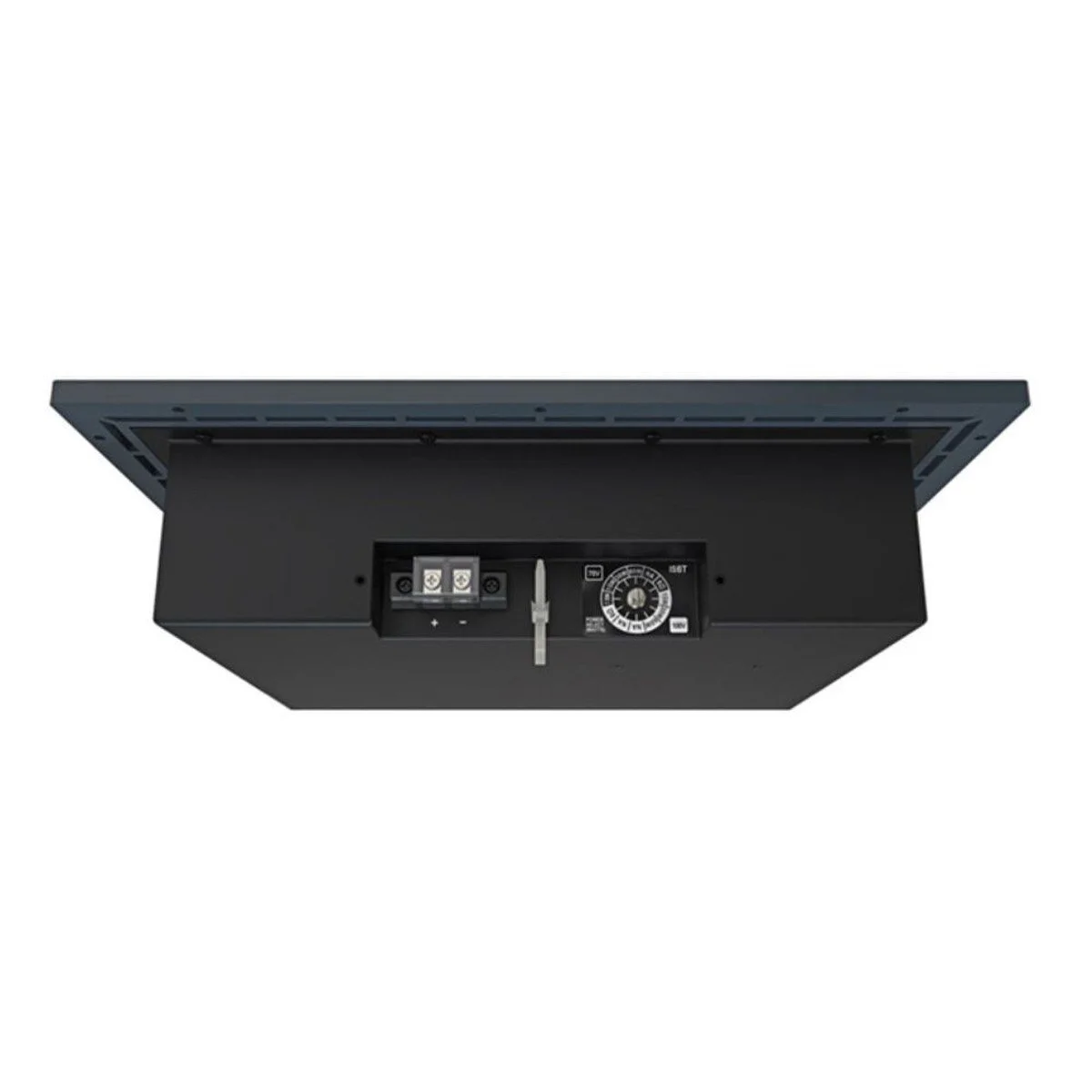

SONANCE IS6T Invisible Series Wall and Ceiling Speaker

$910.00

sold out

SONANCE IS6T Premium In-Ceiling Speaker for Clear, Powerful Sound

Invisible Speakers are the pinnacle of the Sonance “Designed to Disappear” strategy. High frequencies are achieved with Sonance’s “Motion Flex Technology”, which consists of a “Wave Flex Drive Unit” with a bending wave diaphragm, utilizing a 1.75” (44mm) voice coil, while the low frequencies are generated by an “Air Flex” Woofer with an air pulse diaphragm driven by an 6.5” (165mm) carbon fiber woofer.

Key Features

6 Ohms nominal impedance with select models for professional use (IS6T and IS8T feature Sonance Laminated Core Transformer for 6 Ohm/70v/00V tap selection)
180 degree sound
Motion Flex Technology features acoustically isolated baffle, Air Flex Woofer and Wave Flex Drive Unit for superior detail and range
Sonance CDX Crossover Design - Warmth and detail at all volumes
Accepts up to 3mm topping compound
Install into drywall, select plasters, wallpaper. leather, and wood veneer applications
Sonance DISC Depth Identification Sensing Calibration System to measure and standardize finish and performance
Limited 15 Year Warranty valid on Invisible Series products purchased from an authorized Sonance dealer or distributor

Specifications

Color

White

Wave Flex Drive Unit

20in^2(127cm^2) bending wave diaphragm. 1.75in (44mm) voice coil

Air Flex Woofer

98in^2 (633cm^2) air pulse diaphragm, 6.5in (165mm) carbon fiber woofer

Frequency Response (+/- 3db)

50Hz - 30kHz

Power Handling (RMS)

100 watts RMS

Sensitivity

84dB (2.83V/1m)

Nominal Impedance (Ohms)

4 Ohms

Dispersion

170 degree hemispherical up to 10kHz

Transformer Taps

70 V / 100 V: 30W, 15W and 7.5W 70 V: 3.8W

Dimensions (WxHxD)

16.1" x 16.1" x 3.15" (408.94mm x 408.94mm x 80.01mm)

Dimensions No Feet (WxHxD)
