Sonance IS8T Surface-Mount Speaker Audio for Indoor/Outdoor Use
Invisible Speakers are the pinnacle of the Sonance “Designed to Disappear” strategy. High frequencies are achieved with Sonance’s “Motion Flex Technology”, which consists of a “Wave Flex Drive Unit” with a bending wave diaphragm, utilizing a 1.75” (44mm) voice coil, while the low frequencies are generated by an “Air Flex” Woofer with an air pulse diaphragm driven by an 8” (203mm) carbon fiber woofer.
Key Features
6 Ohms nominal impedance with select models
for professional use (IS6T and IS8T feature Sonance
Laminated Core Transformer for 6 Ohm/70v/00V tap selection)
180 degree sound
Motion Flex Technology features acoustically isolated baffle, Air Flex Woofer and Wave Flex Drive Unit for superior detail and range
Sonance CDX Crossover Design - Warmth and detail at all volumes
Accepts up to 3mm topping compound
Install into drywall, select plasters, wallpaper. leather, and wood veneer applications
Sonance DISC Depth Identification Sensing Calibration System to measure and standardize finish and performance
Limited 15 Year Warranty valid on Invisible Series products purchased from an authorized Sonance dealer or distributor
Specifications
Color
White
Wave Flex Drive Unit
29in^2 (188cm^2) bending wave diaphragm, 1.75in (44mm) voice coil
Air Flex Woofer
191in^2 (1234cm^2) air pulse diaphragm, 8in (203mm) carbon fiber woofer
Frequency Response (+/- 3db)
40Hz - 30kHz
Power Handling (RMS)
160 watts RMS
Sensitivity
86dB (2.83V/1m)
Nominal Impedance (Ohms)
4 Ohms
Dispersion
170 degree hemispherical up to 10kHz
Transformer Taps
70 V / 100 V: 60W, 30W and 15W 70 V: 7.5W
Dimensions (WxHxD)
16.1" x 24.13" x 3.86" (408.94mm x 612.9mm x 98.04mm)
Dimensions No Feet (WxHxD)
16.1" x 24.13" x 3.86" (408.94mm x 612.9mm x 98.04mm)
Mounting Depth
3.39" (86.11mm)
Weight
25.24 lbs. (11.45kg)
Certifications
UL2043, UL1480
Attachment
Screw Terminals with strain relief
Overload Protection
Two independent self-resetting poly switches
Sonance IS8T Surface-Mount Speaker Audio for Indoor/Outdoor Use
Invisible Speakers are the pinnacle of the Sonance “Designed to Disappear” strategy. High frequencies are achieved with Sonance’s “Motion Flex Technology”, which consists of a “Wave Flex Drive Unit” with a bending wave diaphragm, utilizing a 1.75” (44mm) voice coil, while the low frequencies are generated by an “Air Flex” Woofer with an air pulse diaphragm driven by an 8” (203mm) carbon fiber woofer.
Key Features
6 Ohms nominal impedance with select models
for professional use (IS6T and IS8T feature Sonance
Laminated Core Transformer for 6 Ohm/70v/00V tap selection)
180 degree sound
Motion Flex Technology features acoustically isolated baffle, Air Flex Woofer and Wave Flex Drive Unit for superior detail and range
Sonance CDX Crossover Design - Warmth and detail at all volumes
Accepts up to 3mm topping compound
Install into drywall, select plasters, wallpaper. leather, and wood veneer applications
Sonance DISC Depth Identification Sensing Calibration System to measure and standardize finish and performance
Limited 15 Year Warranty valid on Invisible Series products purchased from an authorized Sonance dealer or distributor
Specifications
Color
White
Wave Flex Drive Unit
29in^2 (188cm^2) bending wave diaphragm, 1.75in (44mm) voice coil
Air Flex Woofer
191in^2 (1234cm^2) air pulse diaphragm, 8in (203mm) carbon fiber woofer
Frequency Response (+/- 3db)
40Hz - 30kHz
Power Handling (RMS)
160 watts RMS
Sensitivity
86dB (2.83V/1m)
Nominal Impedance (Ohms)
4 Ohms
Dispersion
170 degree hemispherical up to 10kHz
Transformer Taps
70 V / 100 V: 60W, 30W and 15W 70 V: 7.5W
Dimensions (WxHxD)
16.1" x 24.13" x 3.86" (408.94mm x 612.9mm x 98.04mm)
Dimensions No Feet (WxHxD)
16.1" x 24.13" x 3.86" (408.94mm x 612.9mm x 98.04mm)
Mounting Depth
3.39" (86.11mm)
Weight
25.24 lbs. (11.45kg)
Certifications
UL2043, UL1480
Attachment
Screw Terminals with strain relief
Overload Protection
Two independent self-resetting poly switches

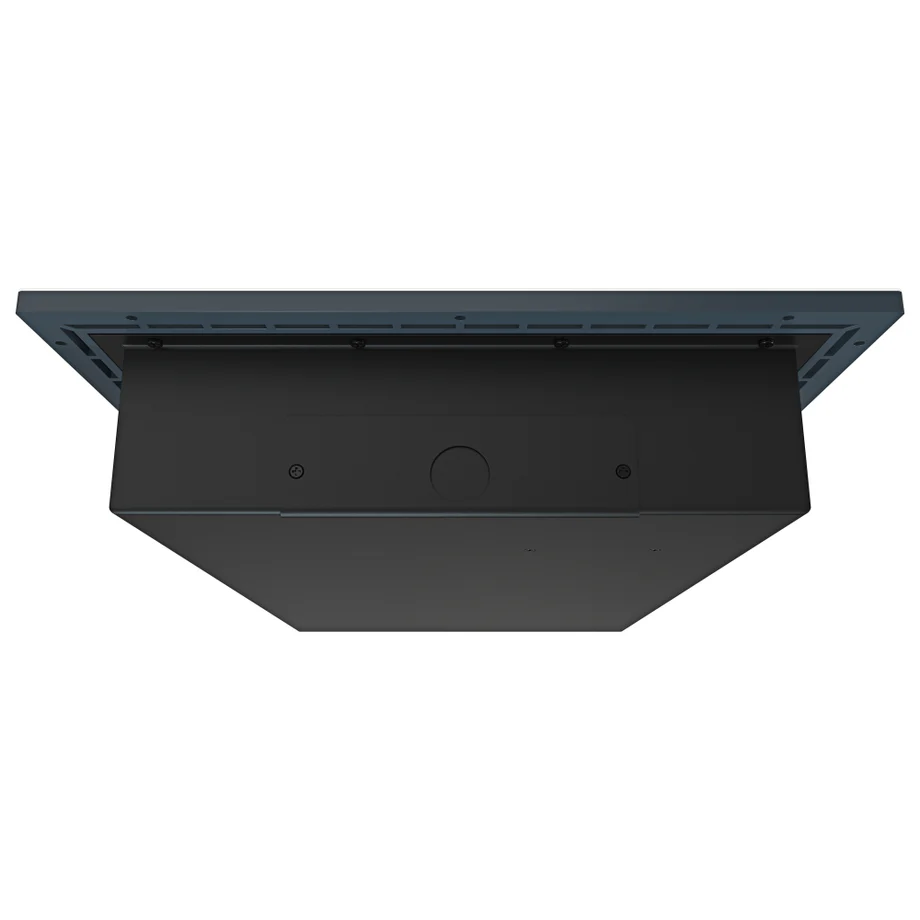

Image 1 of 4

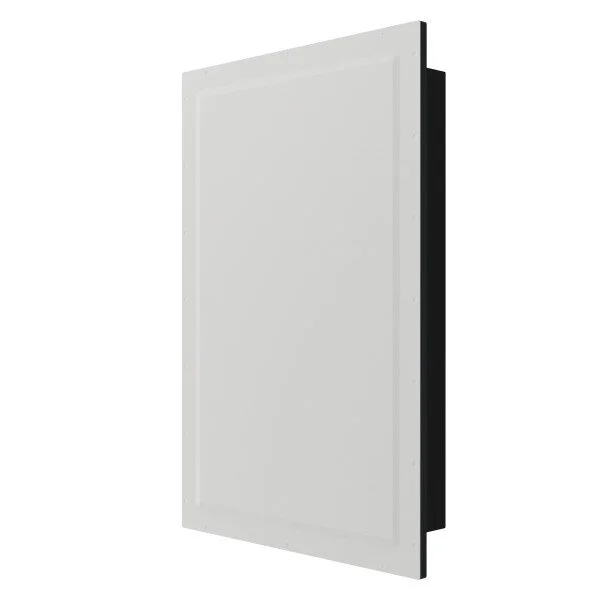

Image 2 of 4

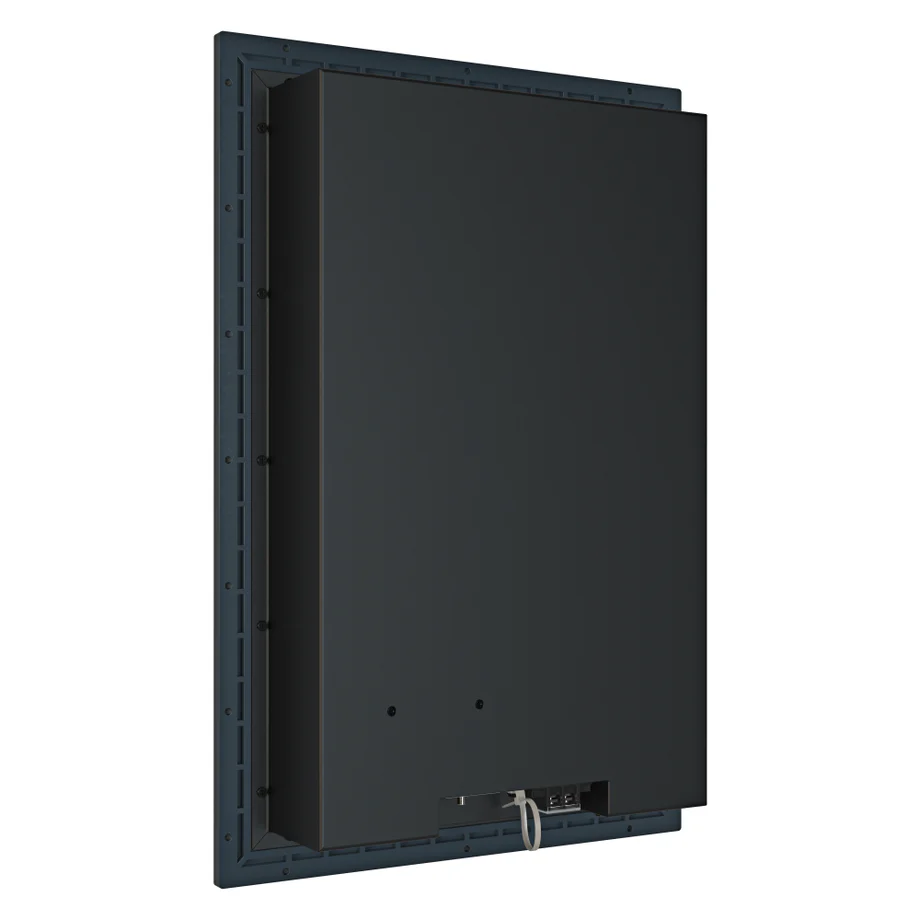

Image 3 of 4

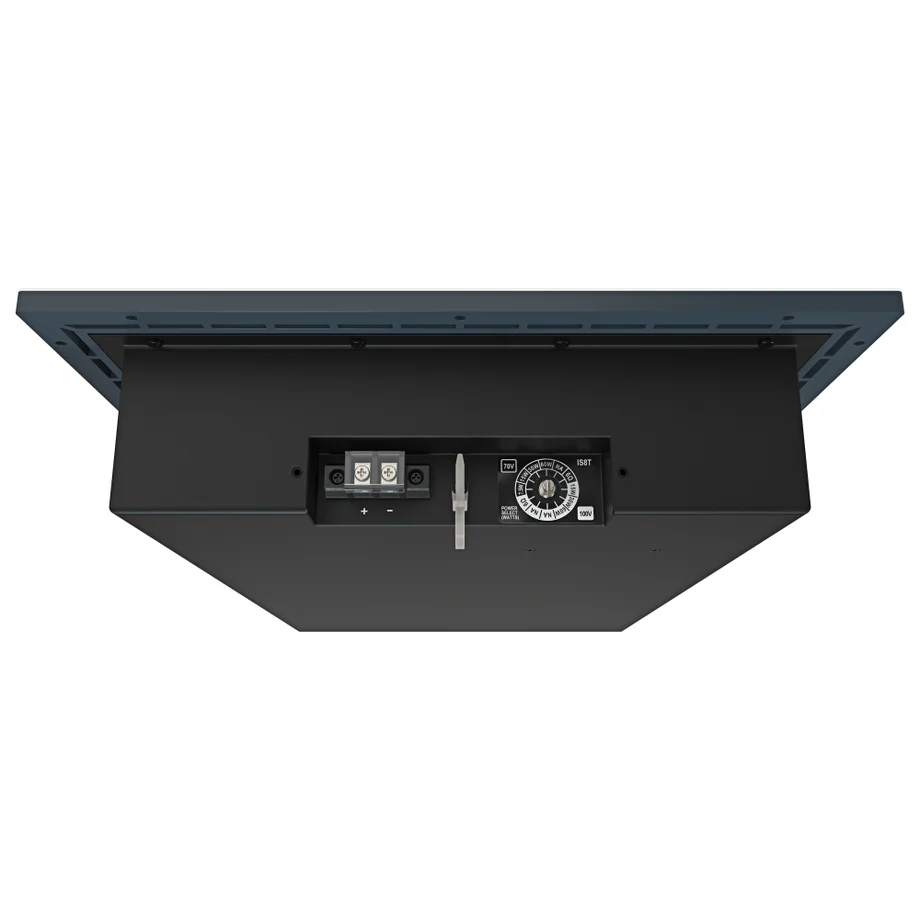

Image 4 of 4
