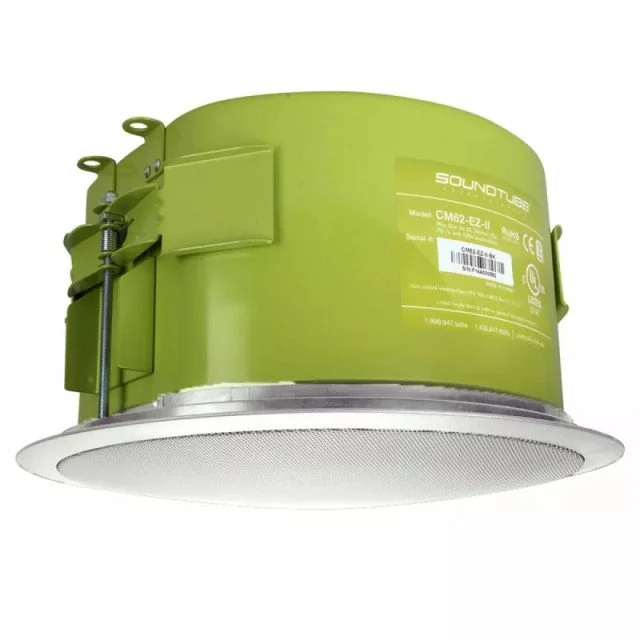

SoundTube CM62-EZS-II-WH Two Way 6" In Ceiling Blind Mount Speaker White

$167.00
sold out

SoundTube CM62-EZS-II-WH Two Way 6" In Ceiling Blind Mount Speaker White

The next generation version of the CM62-EZs with improved and additional features. Engineered for applications with limited plenum space, incorporating a SoundTube-specific shallow backcan with an installed depth of only 3.5 inches. One 6.50 in (165.0 mm) treated fiber woofer with cloth surround and one 1.00 in (25.4 mm) silk dome tweeter. Easy-access six-position tap switch for 25/70.7/100-volt and 16 ohm transformer bypass position allows for easy ordering, stocking and installation. Reduced amplification costs with maximum efficiency including 90.5 dB sensitivity and 16 ohm impedance. Superior voice intelligibility with a 10 kHz coverage angle of 80 (independently verified). Cost-effective 16 ohm settings allows for the use of multiples of two, four, or six speakers in a system using a standard amplifier without a trans former. Incorporates a painted steel grille for lasting durability. Ceramic input terminal accepts up to 10 gauge plenum rated signal wire and includes thermal fuse. Suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. EN54-24 listed. Adaptable to material thicknesses ranging from 0.04 inch (0.9 mm) 1.60 inch (40.6 mm). UL 1480 (UEAY) and 2043, cUL, CE (EMC Directive 89/366/EEC, EN55020, EN55013) approved. IP-Rating: IPX3.

Included accessories: Choose between a tile bridge or a pre-construction bracket, UL-listed 0.5-inch flex conduit clamp, paint shield and two wire nuts.

Features:

  • Two Way, Blind Mount Speaker

  • Shallow 3.5" Back can

  • 16 Ohms

  • Six-Position Transformer Tap Switch

  • 25 / 70 / 100V Operation

  • 120° Coverage

  • Painted Steel Grille

  • Includes 0.5" Flex Conduit Clamp

  • Includes Paint Shield and Two Wire Nuts

Specifications:

Color: White

UPC: 752830442689

Manufacturer: SoundTube

Manufacturer's Category: CM-EZ Economical In-Ceiling

Shipping Weight: 9.15 lbs / 4.15 kg

Carton Height: 6.25 in / 158.75 mm

Carton Length: 13 in / 330.2 mm

Carton Width: 13 in / 330.2 mm

Certifications: CE, EN54, RoHS, UL1480A, UL2043

Enclosure Properties: ABS Glass Fiber Reinforced, Injection Molded, Sealed

Enclosure Volume: 350 cu in / 5735.47 cu cm

Included Accessories: Conduit Clamp, Cover Plate, Grille, Paint Mask, Choose Between a Tile Bridge or Pre-Construction Bracket

Optional Accessories: White Grille (GRL-CM6/8EZ-II-WH)|Tile Bridge (AC-CMEZ6/8-TB)|Pre-Construction Bracket (AC-CMEZ6/8-PCB)|Junction Box (AC-CM-EZ-JBOX)

Source Inputs: 4 Pin Ceramic Terminal

IP Rating: IPX3

TAA Compliant (Trade America): No

BAA Compliant (Made in USA): No

Backcan Diameter: 9.67 in / 245.6 mm

Backcan Height: 3.25 in / 82.5 mm

Coverage Angle (±6dB @ 2kHz): 120°

Crossover Frequency: 4.0 kHz

Cutout Width/Diameter: 10.5 in / 266.7 mm

Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz): 5.1 and 5

Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz): 6.2dB and 7.0dB

Frequency Response (± 10 dB): 75 Hz - 22 kHz

Frequency Response (± 3 dB): 135 Hz - 20 kHz

Grille Properties: Standard-Flange, Friction-Fit, White, Paintable, Painted, Steel

Low Frequency Voice Coil: 1 in / 25.4 mm

Low Pass Crossover: 12 dB per octave 2nd order

Max. Ceiling Thickness: 1.6 in / 40.6 mm

Max. Continuous Power RMS: 50W

Max. Program Power: 100 W

Minimum Impedance (Ω Ohms): 17.9 Ω

Minimum Ceiling Thickness: 0.04 in / 0.9 mm

Network Type: High Pass: 6 dB per octave 1st order

Nominal Impedance (Ω Ohms): 16 Ω

Tweeter Driver: 1" Silk Dome

Woofer Driver: 6.5" Treated Fiber Cone w/ Cloth Surround

Sensitivity dB:  @ 1W/1M 90 dB

Sensitivity dB:  @ 2.83V/1M 87.5 dB

Tap Selector: Rotary Switch

Transformer Options: 25 / 70.7 / 100 V, 16 Ohm direct

Transformer Taps Max. Setting (25V/70.7V/100V):  4W/32W/32W

Visible Diameter: 11.75 in / 298.5 mm

Visible Height:  0.34 in / 8.6 mm
